12, circuit 33 (WH/PK) and the starter motor relay pin 86, circuit
33 (WH/PK).

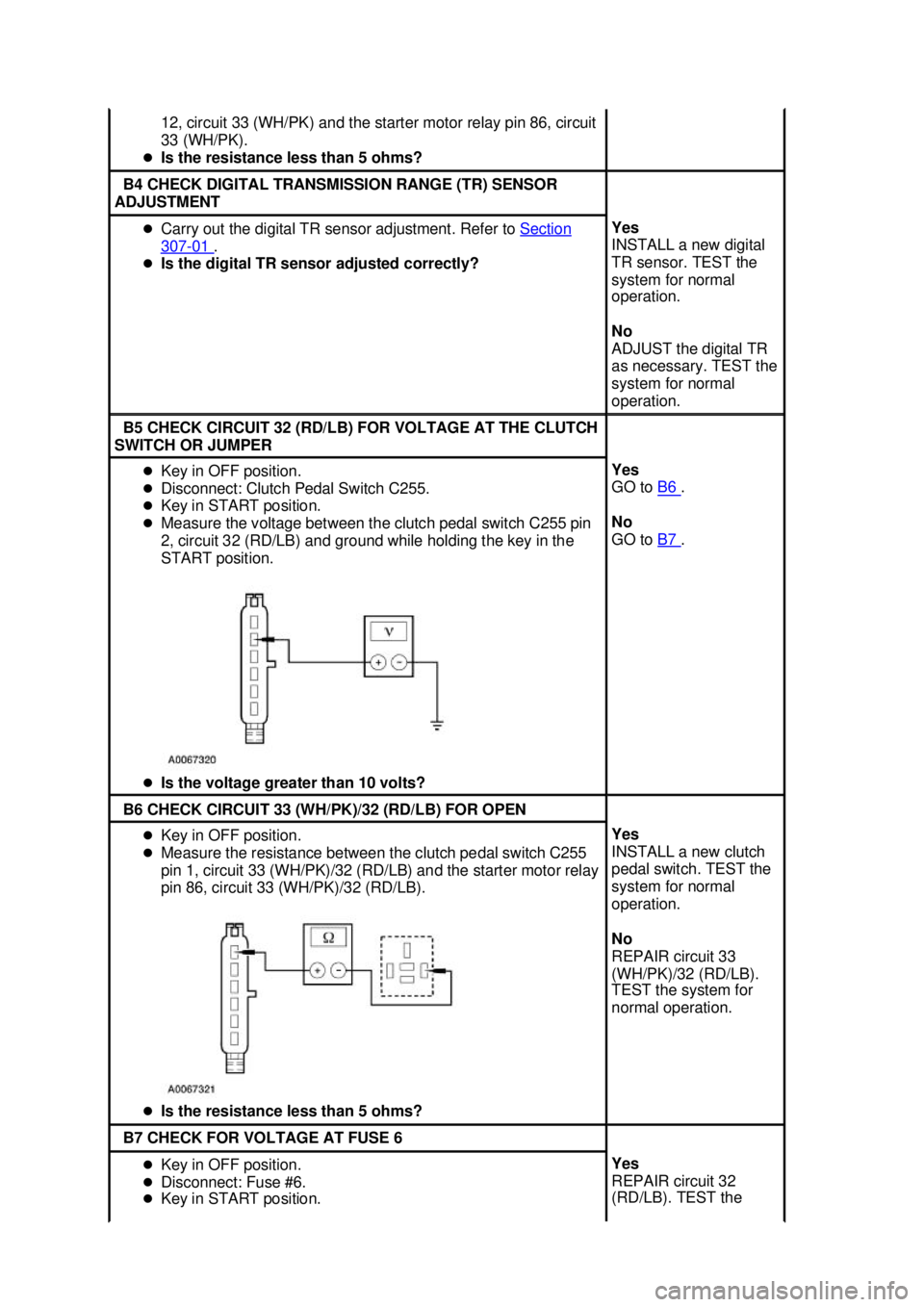

z Is the resistance less than 5 ohms? B4 CHECK DIGITAL TRANSMISSION RANGE (TR) SENSOR
ADJUSTMENT z
Carry out the digital TR sensor adjustment. Refer to Section 307 - 01 .
z Is the digital TR sensor adjusted correctly? Yes
INSTALL a new digital
TR sensor. TEST the
system for normal
operation.
No
ADJUST the digital TR
as necessary. TEST the
system for normal
operation.
B5 CHECK CIRCUIT 32 (RD/LB) FOR VOLTAGE AT THE CLUTCH
SWITCH OR JUMPER z
Key in OFF position.
z Disconnect: Clutch Pedal Switch C255.
z Key in START position.
z Measure the voltage between the clutch pedal switch C255 pin
2, circuit 32 (RD/LB) and ground while holding the key in the
START position.
z Is the voltage greater than 10 volts? Yes
GO to
B6 .
No
GO to B7 .
B6 CHECK CIRCUIT 33 (WH/PK)/32 (RD/LB) FOR OPEN
z
Key in OFF position.
z Measure the resistance between the clutch pedal switch C255
pin 1, circuit 33 (WH/PK)/32 (RD/LB) and the starter motor relay
pin 86, circuit 33 (WH/PK)/32 (RD/LB).
z Is the resistance less than 5 ohms? Yes
INSTALL a new clutch
pedal switch. TEST the
system for normal
operation.
No
REPAIR circuit 33
(WH/PK)/32 (RD/LB).
TEST the system for
normal operation.
B7 CHECK FOR VOLTAGE AT FUSE 6
z
Key in OFF position.
z Disconnect: Fuse #6.
z Key in START position. Yes
REPAIR circuit 32
(RD/LB). TEST the Klj . 5 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Ignition
The ignition coil (12029), which is mounted on the upper intake manifold, can be described as a coil
pack containing three separate coil units. Each coil unit is individually controlled by the powertrain
control module (PCM) (12A650) through separate wire leads. Each coil unit activates two spark plugs
wired in a series by the spark plug wires (12286).
zOne spark plug activates on the compression stroke and uses the majority of the ignition coil's
stored energy.
z The other spark plug activates on the exhaust stroke and uses very little of the ignition coil's
stored energy.
z Because the pairs of spark plugs are connected in a series, one spark will travel from ground to
the electrode while the other spark will travel from the electrode to ground.
The spark plug (12405):
zchanges the high voltage pulse into a spark which ignites the fuel and air mixture.
z originally equipped on the vehicle has a platinum- enhanced active electrode for long life.
The crankshaft position (CKP) sensor (6C315):
NOTE: Initial engine ignition timing is set at 10 degrees ± 2 degrees before top dead center (BTDC)
and is not adjustable.
zis a variable reluctance sensor triggered by a 36- minus-1 tooth trigger pulse wheel located on
the crankshaft (6303) inside the engine front cover (6019).
The sine wave type signal generated from the crankshaft position sensor provides two types of
information:
zposition of the crankshaft in 10 degree increments
z the crankshaft speed (rpm)
The powertrain control module (PCM) (12A650) uses this information to determine ignition coil turn ON
and turn OFF times and misfire detection.
For additional information, refer to Section 303 - 14 .
SECTION 303-
07A: Engine Ignition — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Ignition
Eight separate ignition coils (12029):
zare mounted directly above each spark plug (12405).
z are controlled by the powertrain control module (PCM) for correct firing sequence.
The spark plug:
zchanges the high voltage pulse into a spark which ignites the fuel and air mixture.
z originally equipped on the vehicle has a platinum- enhanced active electrode for long life.
Crankshaft position (CKP) sensor (6C315):
NOTE: Initial engine ignition timing is set at 10 degrees ± 2 degrees before top dead center (BTDC)
and is not adjustable. For additional information, refer to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
zis a variable reluctance sensor triggered by a 36- minus-1 tooth trigger pulse wheel located on
the crankshaft (6303) inside the engine front cover (6019).
The sine wave type signal generated from the crankshaft position sensor provides two types of
information:
zposition of the crankshaft in 10 degree increments
z the crankshaft speed (rpm)
The powertrain control module (PCM) (12A650) uses this information to determine ignition coil turn ON
and turn OFF times and misfire detection.
For additional information, refer to Section 303 - 14 .
SECTION 303-
07B: Engine Ignition — 4.6L (2V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Ignition
Eight separate ignition coils:
zare controlled by the powertrain control module (PCM).
z are mounted directly above each spark plug.
z are controlled by the powertrain control module for correct firing sequence.
The spark plug:
zchanges the high voltage pulse into a spark which ignites the fuel and air mixture.
z originally equipped on the vehicle has a platinum- enhanced active electrode for long life.
The crankshaft position (CKP) sensor:
NOTE: Initial engine ignition timing is set at 10 degrees ± 2 degrees before top dead center (BTDC)
and is not adjustable. For additional information, refer to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
zis a variable reluctance sensor, triggered by a 36- minus-1 tooth trigger pulse wheel located on
the crankshaft, inside the engine front cover.
The sine wave type signal generated from the crankshaft position sensor provides two types of
information:
zposition of the crankshaft in 10 degree increments
z the crankshaft speed (rpm)
For additional information, refer to Section 303 - 14 .
SECTION 303-
07C: Engine Ignition — 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION

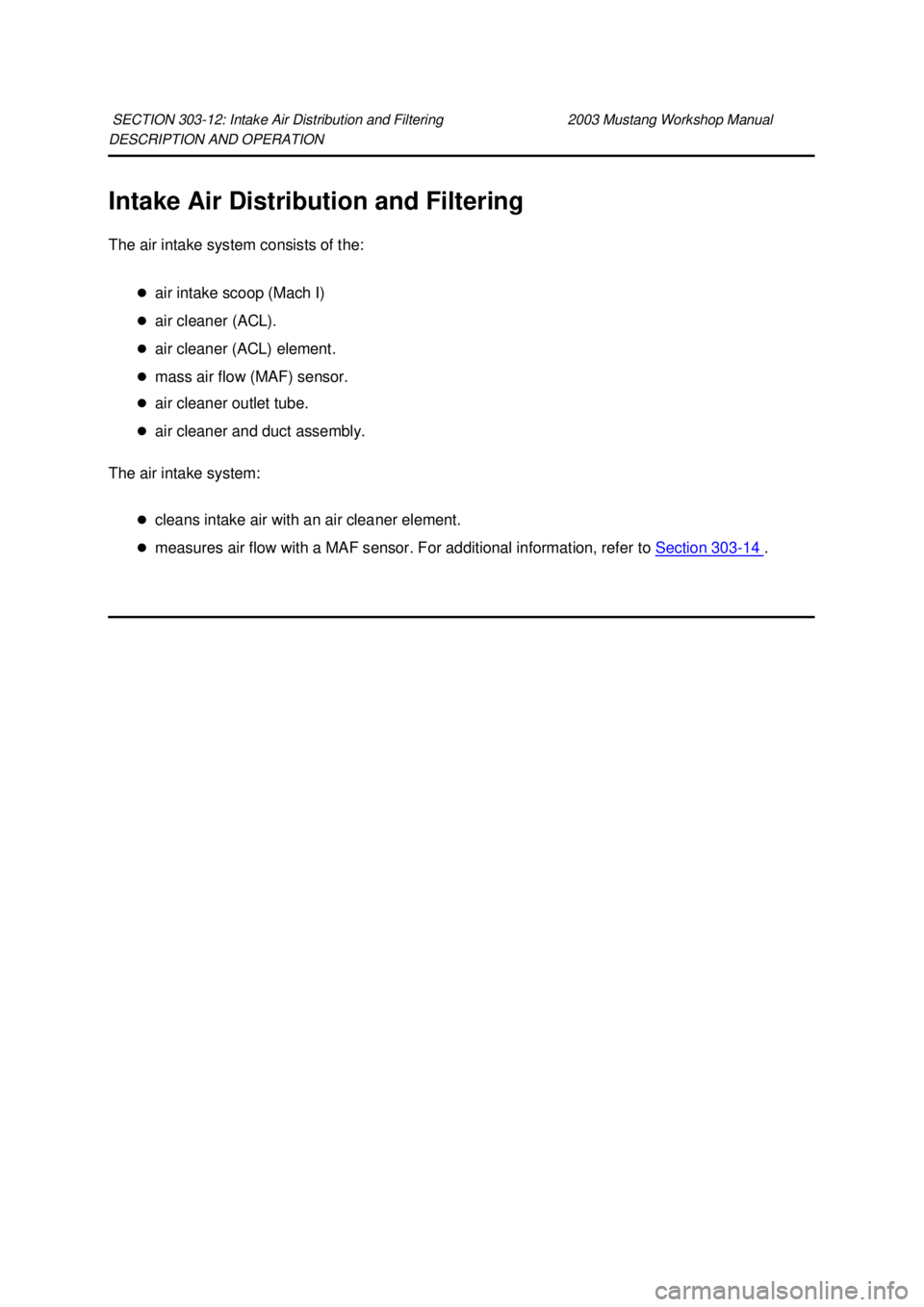

Intake Air Distribution and Filtering
The air intake system consists of the:
zair intake scoop (Mach I)
z air cleaner (ACL).
z air cleaner (ACL) element.
z mass air flow (MAF) sensor.
z air cleaner outlet tube.
z air cleaner and duct assembly.
The air intake system:
zcleans intake air with an air cleaner element.
z measures air flow with a MAF sensor. For additional information, refer to Section 303 - 14 .
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

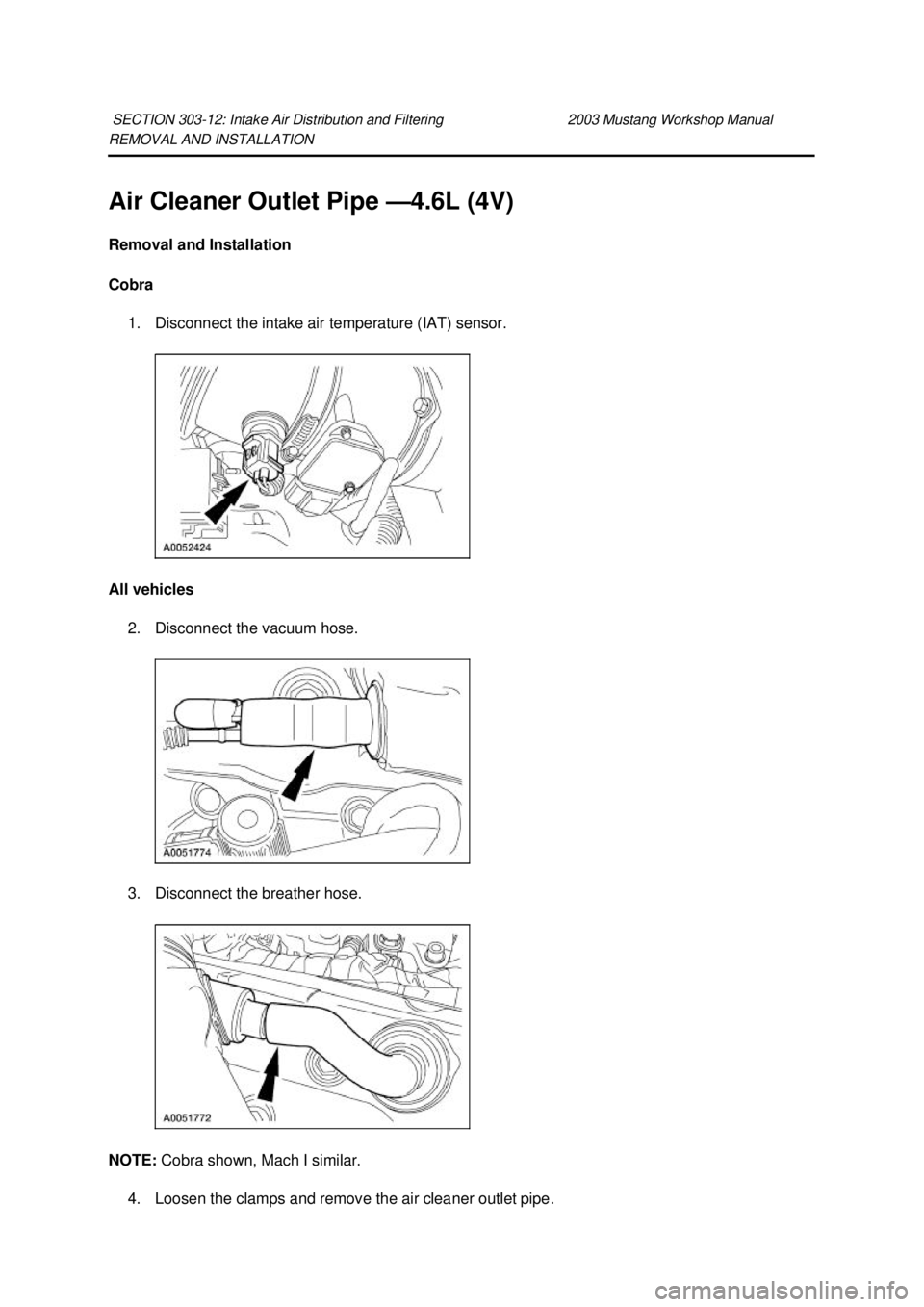

Air Cleaner Outlet Pipe —
4.6L (4V)
Removal and Installation
Cobra 1. Disconnect the intake air temperature (IAT) sensor.
All vehicles 2. Disconnect the vacuum hose.
3. Disconnect the breather hose.
NOTE: Cobra shown, Mach I similar.
4. Loosen the clamps and remove the air cleaner outlet pipe.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

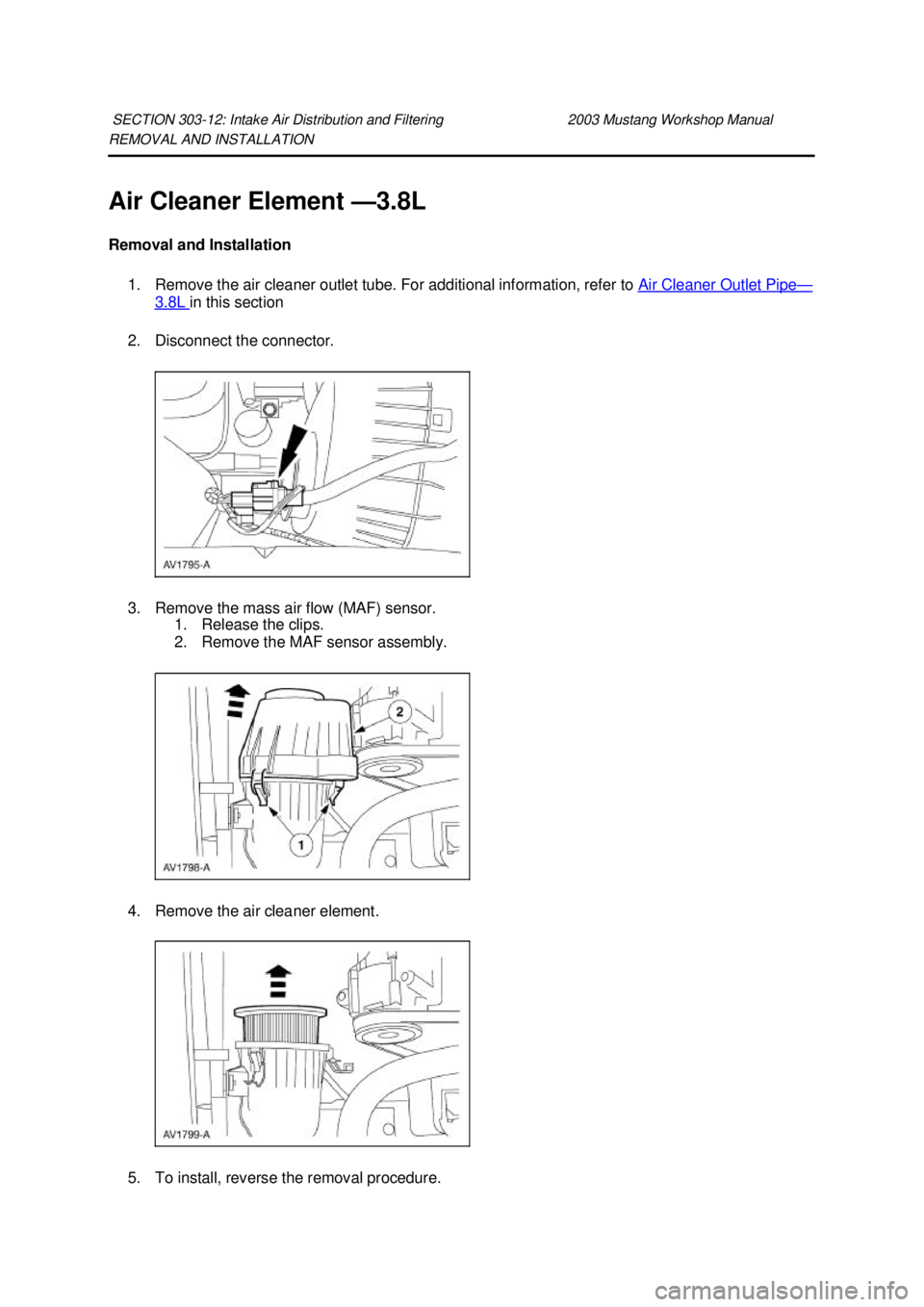

Air Cleaner Element —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube. For additional information, refer to Air Cleaner Outlet Pipe —
3.8L in this section
2. Disconnect the connector.
3. Remove the mass air flow (MAF) sensor. 1. Release the clips.
2. Remove the MAF sensor assembly.
4. Remove the air cleaner element.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

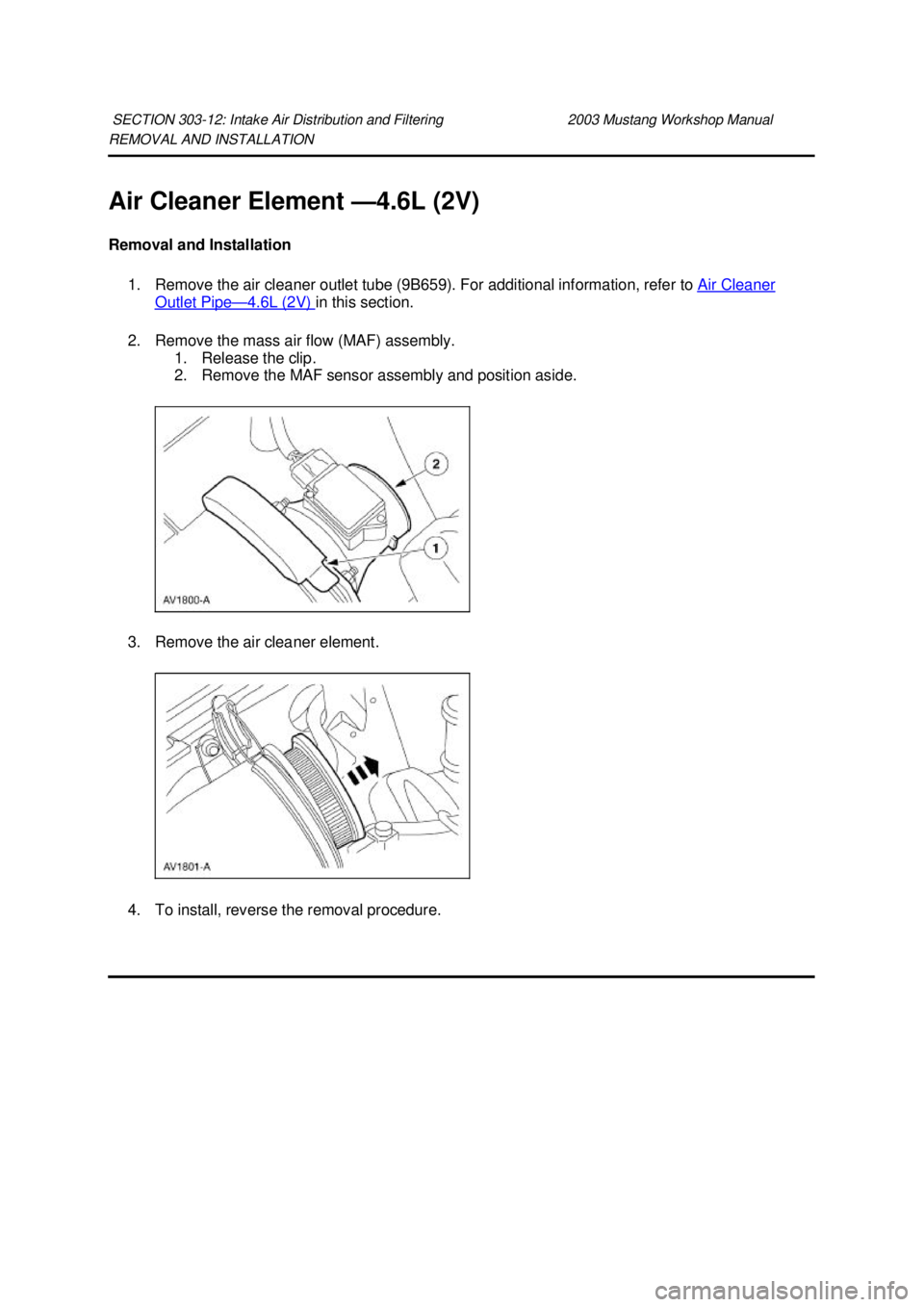

Air Cleaner Element —
4.6L (2V)
Removal and Installation 1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) in this section.
2. Remove the mass air flow (MAF) assembly. 1. Release the clip.
2. Remove the MAF sensor assembly and position aside.
3. Remove the air cleaner element.
4. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

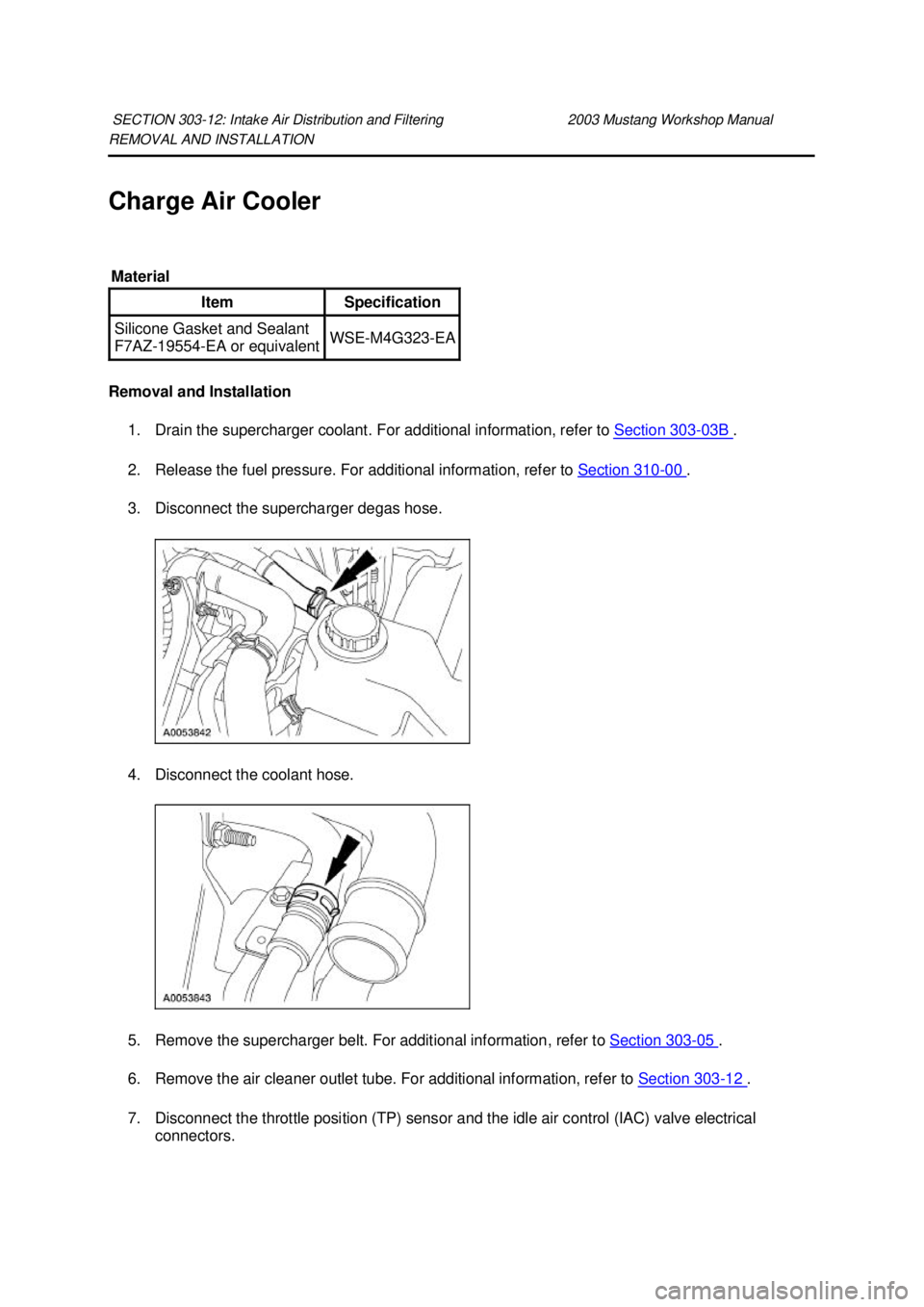

Charge Air Cooler
Removal and Installation
1. Drain the supercharger coolant. For additional information, refer to Section 303 - 03B .
2. Release the fuel pressure. For additional information, refer to Section 310 - 00 .
3. Disconnect the supercharger degas hose.
4. Disconnect the coolant hose.
5. Remove the supercharger belt. For additional information, refer to Section 303 - 05 .
6. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
7. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical connectors.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Material
Item Specification
Silicone Gasket and Sealant
F7AZ-
19554- EA or equivalent WSE-
M4G323- EA Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

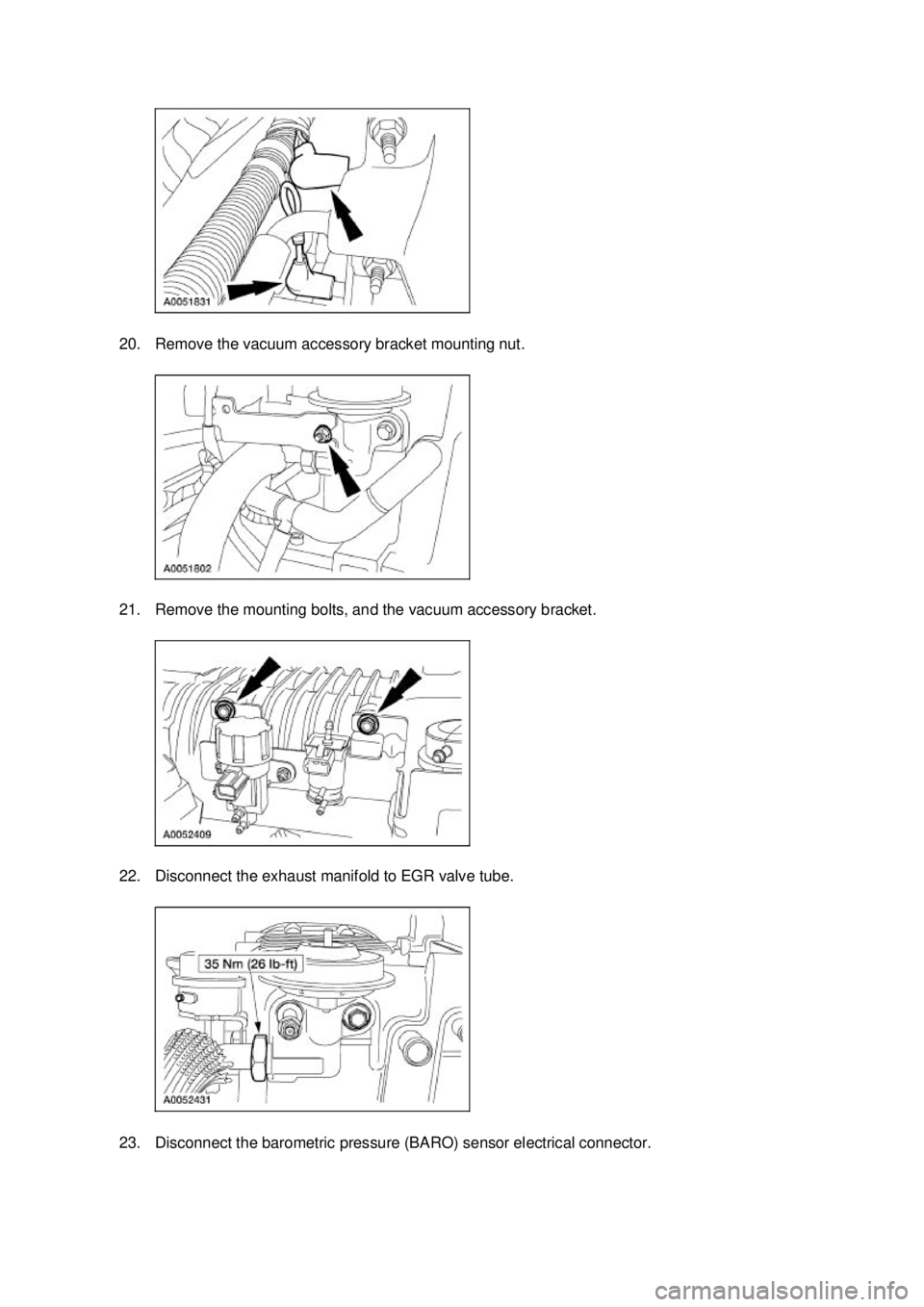

20. Remove the vacuum accessory bracket mounting nut.
21. Remove the mounting bolts, and the vacuum accessory bracket.
22. Disconnect the exhaust manifold to EGR valve tube.
23. Disconnect the barometric pressure (BARO) sensor electrical connector. Klj . 5 ba
