DIAGNOSIS AND TESTING
Anti-
Theft — Passive Anti- Theft System (PATS)
Refer to Wiring Diagrams Cell 112 , Anti-
Theft for schematic and connector information.
Refer to Wiring Diagrams Cell 60 , Instrument Cluster for schematic and connector information.
Inspection and Verification
NOTE: PATS must be reconfigured upon installment of a new instrument cluster. Refer to Section 418 -
00 .
1. Verify the customer concern by duplicating the condition.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool
Visual Inspection Chart Mechanical Electrical
z
Ignition lock cylinder
z Encoded ignition key (PATS key)
z Use of non- encoded ignition key (key without the molded plastic
head, non- PATS key)
z Use of a non- programmed encoded ignition key z
Central junction box
fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z PATS transceiver
z Connectors
z Ignition switch Klj . 1 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Rear View Mirrors
Refer to Wiring Diagrams Cell
124 , Power Mirrors for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
Symptom Chart
Refer to the Wiring Diagrams for connector numbers stated in the pinpoint tests. SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Flex Probe Kit
105-
R025B or equivalent
Visual Inspection Chart Mechanical Electrical
z
Exterior rear view mirrors
z Interior rear view mirror z
Central junction box (CJB) fuse 19 (15A)
z Wiring harness
z Connections
z Exterior rear view mirror control
z Exterior rear view mirror motor
SYMPTOM CHART Condition
Possible Sources Action
z The mirrors are inoperative zExterior rear view
mirror control. z
Go To Pinpoint Test A . Klj . 1 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Seats
Refer to Wiring Diagrams Cell
120 , Power Seats for schematic and connector information.
Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart .
Symptom Chart
Refer to the Wiring Diagram manual for the connector numbers cited in the pinpoint tests. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Front seat track.
z Seat at limit(s) of travel. z
Battery junction box (BJB) Fuse Power Seat (25A).
z Loose, corroded or damaged connectors.
z Seat regulator control switch.
z Lumbar seat control switch.
z Lumbar motor.
z Bolster and lumbar control switches (cobra)
SYMPTOM CHART Condition
Possible Sources Action
z The power seat is
inoperative z
BJB Fuse Power Seat
(25A).
z Seat regulator control
switch.
z Circuitry. z
Go To Pinpoint Test
A . Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

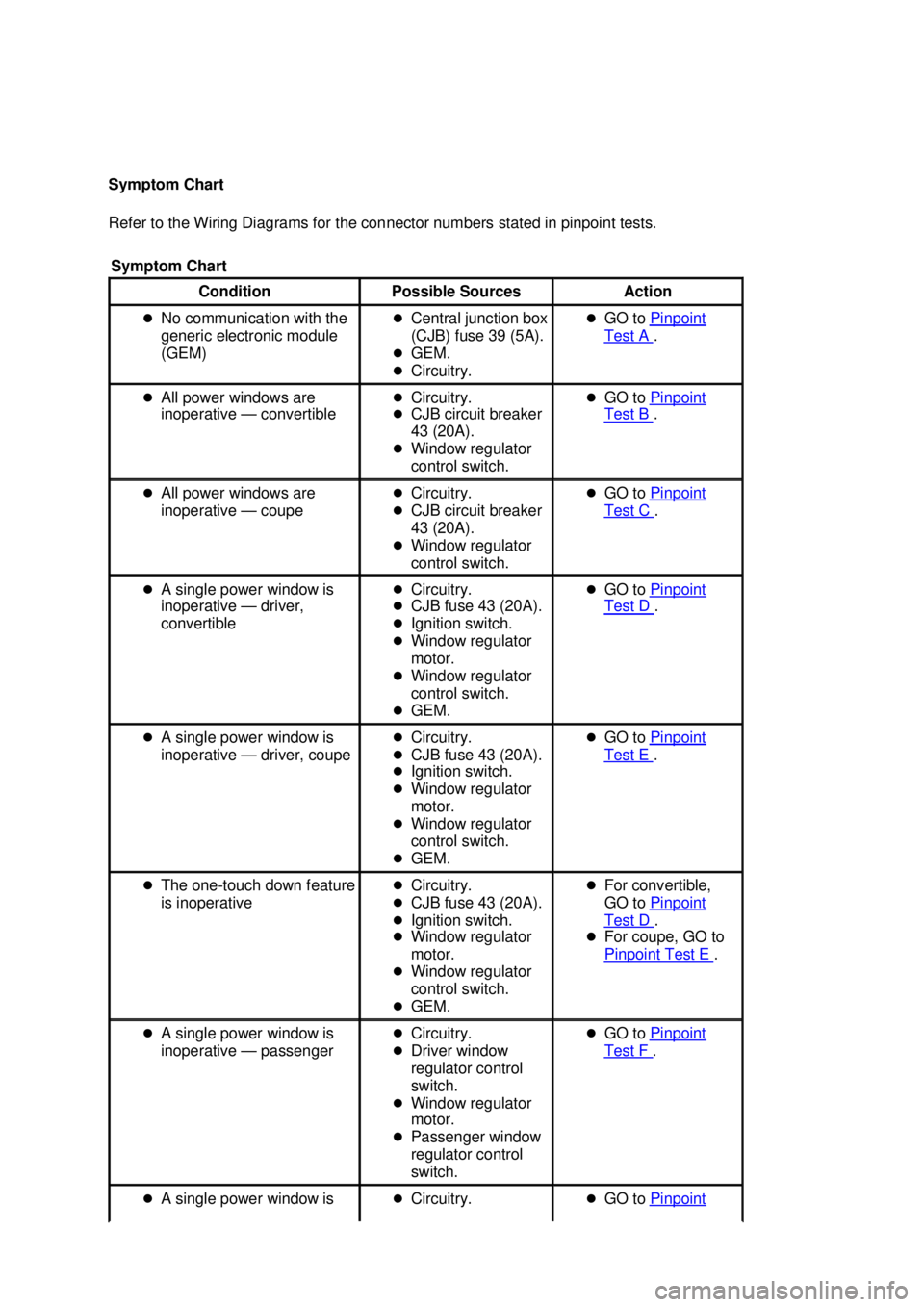

Symptom Chart
Refer to the Wiring Diagrams for the connector numbers stated in pinpoint tests.
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module
(GEM) z
Central junction box
(CJB) fuse 39 (5A).
z GEM.
z Circuitry. z
GO to Pinpoint Test A .
z All power windows are
inoperative — convertible z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test B .
z All power windows are
inoperative — coupe z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test C .
z A single power window is
inoperative — driver,
convertible z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test D .
z A single power window is
inoperative — driver, coupe z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test E .
z The one- touch down feature
is inoperative z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
For convertible,
GO to Pinpoint Test D .
z For coupe, GO to
Pinpoint Test E .
z A single power window is
inoperative — passenger z
Circuitry.
z Driver window
regulator control
switch.
z Window regulator
motor.
z Passenger window
regulator control
switch. z
GO to Pinpoint Test F .
z A single power window is zCircuitry. zGO to Pinpoint Klj . 5 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

relay Pin 5, Circuit 65 (DG), harness side and ground; and
between BJB wiper ON/OFF relay Pin 2, Circuit 65 (DG),
harness side and ground.
z Are the voltages greater than 10 volts? REPAIR circuit(s) in question.
REPEAT the self-
test.
CLEAR the DTCs. B11 ISOLATE PROBLEM BETWEEN GEM AND BJB
z
Key in OFF position.
z Connect a fused jumper wire (30A) between wiper
ON/OFF relay Pin 3 and Pin 5, harness side.
z Key in ON position.
z Did the wiper motor activate? Yes
GO to
B12 .
No
GO to B22 .
B12 CARRY OUT THE WIPER ON/OFF RELAY COMPONENT
TEST z
Check the wiper ON and OFF relay; refer to Wiring
Diagrams, Cell 149, Component Testing.
z Is the ON/OFF wiper relay OK? Yes
GO to
B13 .
No
INSTALL a new wiper
ON/OFF relay. REPEAT the
self- test. CLEAR the DTCs. B13 CHECK CIRCUIT 646 (YE/WH) FOR SHORT TO
BATTERY BETWEEN GEM AND BJB z
Disconnect: Wiper On/Off Relay.
z Disconnect: GEM C201d.
z Measure the voltage between GEM C201d 3 Pin 12,
Circuit 646 (YE/WH), harness side and ground. Yes
REPAIR Circuit 646
(YE/WH). REPEAT the self-
test. CLEAR the DTCs.
No
GO to
B14 . Klj . 10 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z

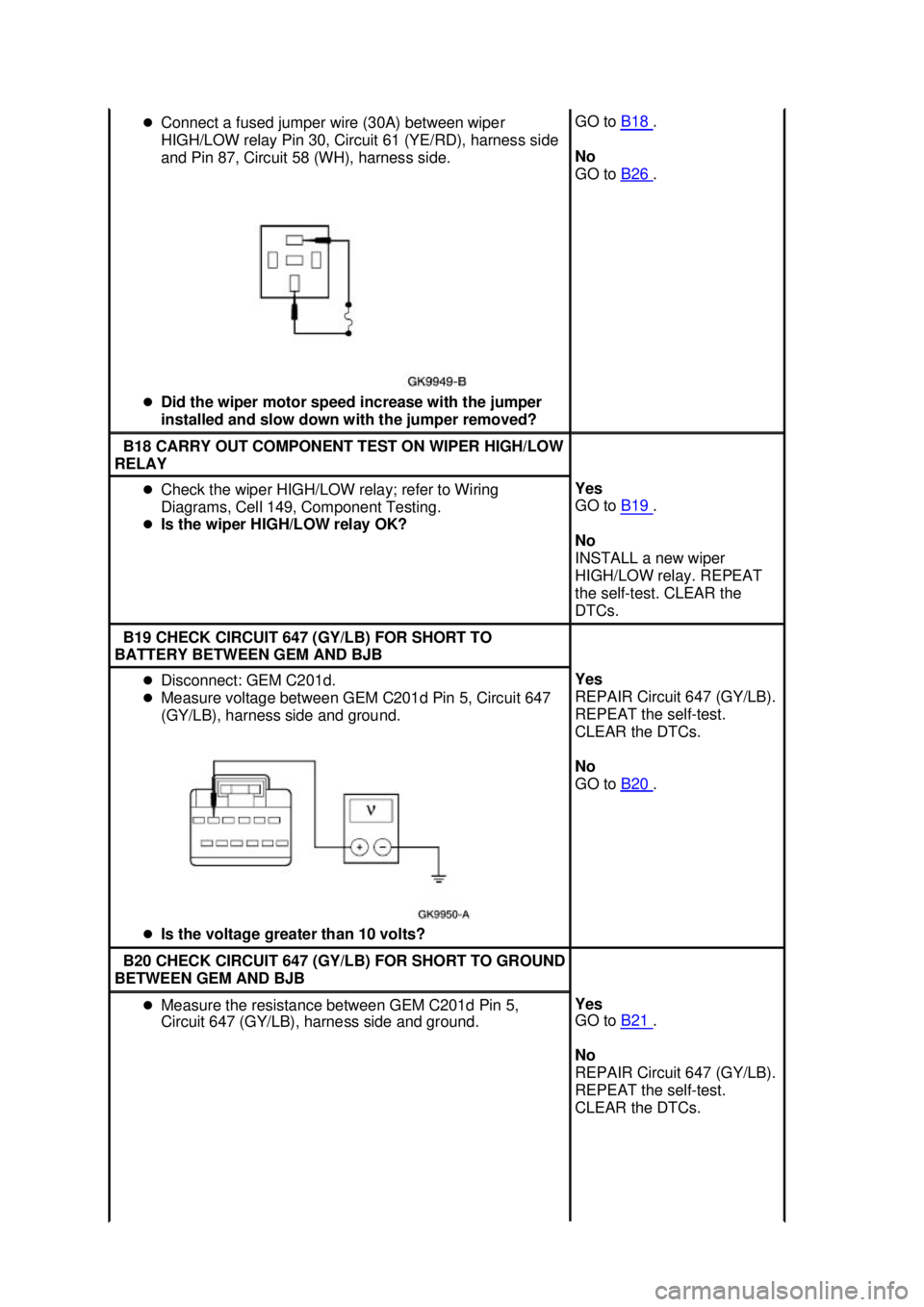

Connect a fused jumper wire (30A) between wiper
HIGH/LOW relay Pin 30, Circuit 61 (YE/RD), harness side
and Pin 87, Circuit 58 (WH), harness side.
z Did the wiper motor speed increase with the jumper
installed and slow down with the jumper removed? GO to
B18 .
No
GO to B26 .
B18 CARRY OUT COMPONENT TEST ON WIPER HIGH/LOW
RELAY z
Check the wiper HIGH/LOW relay; refer to Wiring
Diagrams, Cell 149, Component Testing.
z Is the wiper HIGH/LOW relay OK? Yes
GO to
B19 .
No
INSTALL a new wiper
HIGH/LOW relay. REPEAT
the self- test. CLEAR the
DTCs. B19 CHECK CIRCUIT 647 (GY/LB) FOR SHORT TO
BATTERY BETWEEN GEM AND BJB z
Disconnect: GEM C201d.
z Measure voltage between GEM C201d Pin 5, Circuit 647
(GY/LB), harness side and ground.
z Is the voltage greater than 10 volts? Yes
REPAIR Circuit 647 (GY/LB).
REPEAT the self-
test.
CLEAR the DTCs.
No
GO to B20 .
B20 CHECK CIRCUIT 647 (GY/LB) FOR SHORT TO GROUND
BETWEEN GEM AND BJB z
Measure the resistance between GEM C201d Pin 5,
Circuit 647 (GY/LB), harness side and ground. Yes
GO to
B21 .
No
REPAIR Circuit 647 (GY/LB).
REPEAT the self- test.
CLEAR the DTCs. Klj . 12 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

test.

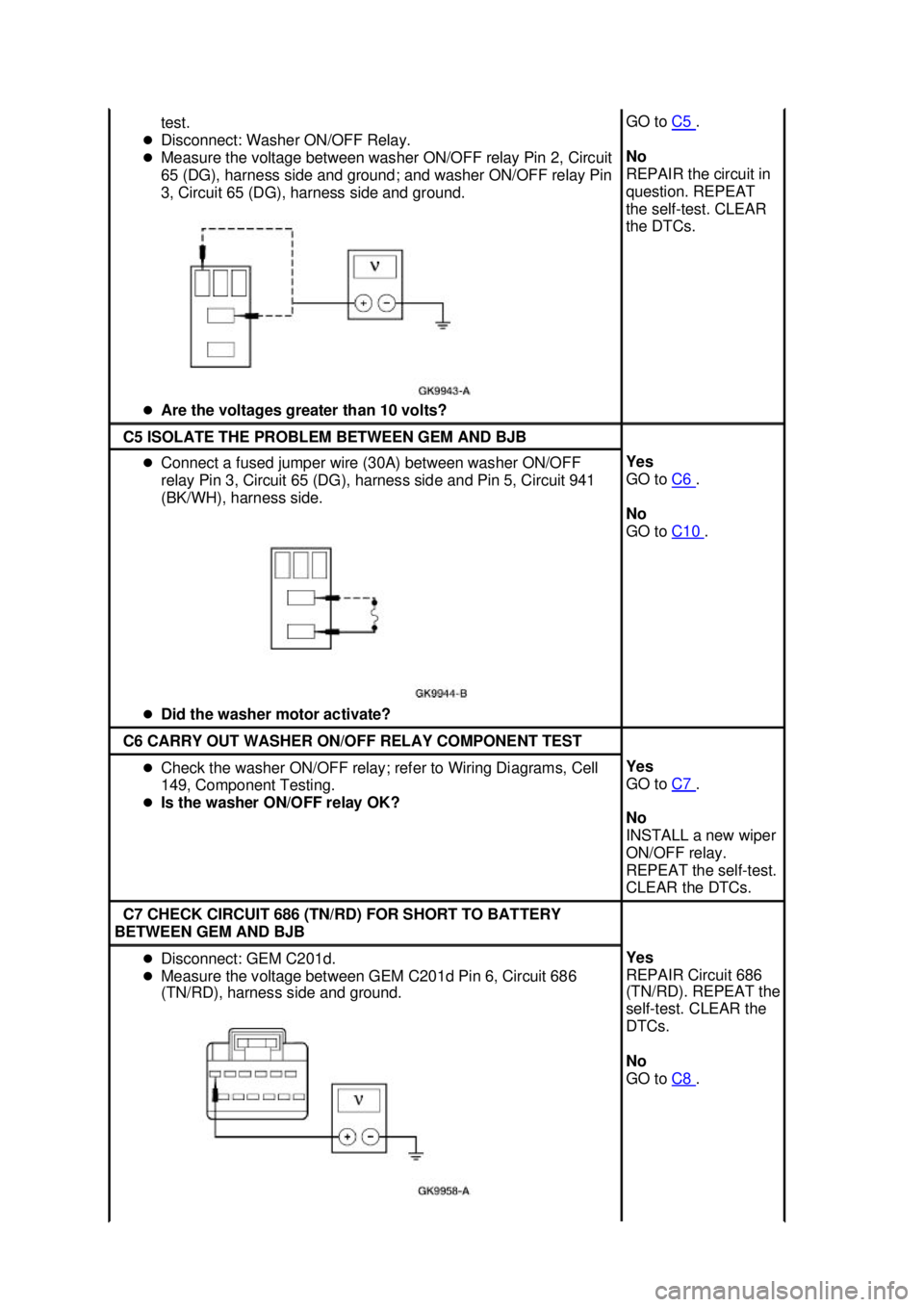

z Disconnect: Washer ON/OFF Relay.
z Measure the voltage between washer ON/OFF relay Pin 2, Circuit
65 (DG), harness side and ground; and washer ON/OFF relay Pin
3, Circuit 65 (DG), harness side and ground.
z Are the voltages greater than 10 volts? GO to
C5 .
No
REPAIR the circuit in
question. REPEAT
the self- test. CLEAR
the DTCs. C5 ISOLATE THE PROBLEM BETWEEN GEM AND BJB
z
Connect a fused jumper wire (30A) between washer ON/OFF
relay Pin 3, Circuit 65 (DG), harness side and Pin 5, Circuit 941
(BK/WH), harness side.
z Did the washer motor activate? Yes
GO to
C6 .
No
GO to C10 .
C6 CARRY OUT WASHER ON/OFF RELAY COMPONENT TEST
z
Check the washer ON/OFF relay; refer to Wiring Diagrams, Cell
149, Component Testing.
z Is the washer ON/OFF relay OK? Yes
GO to
C7 .
No
INSTALL a new wiper
ON/OFF relay.
REPEAT the self- test.
CLEAR the DTCs. C7 CHECK CIRCUIT 686 (TN/RD) FOR SHORT TO BATTERY
BETWEEN GEM AND BJB z
Disconnect: GEM C201d.
z Measure the voltage between GEM C201d Pin 6, Circuit 686
(TN/RD), harness side and ground. Yes
REPAIR Circuit 686
(TN/RD). REPEAT the
self-
test. CLEAR the
DTCs.
No
GO to C8 . Klj . 16 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING

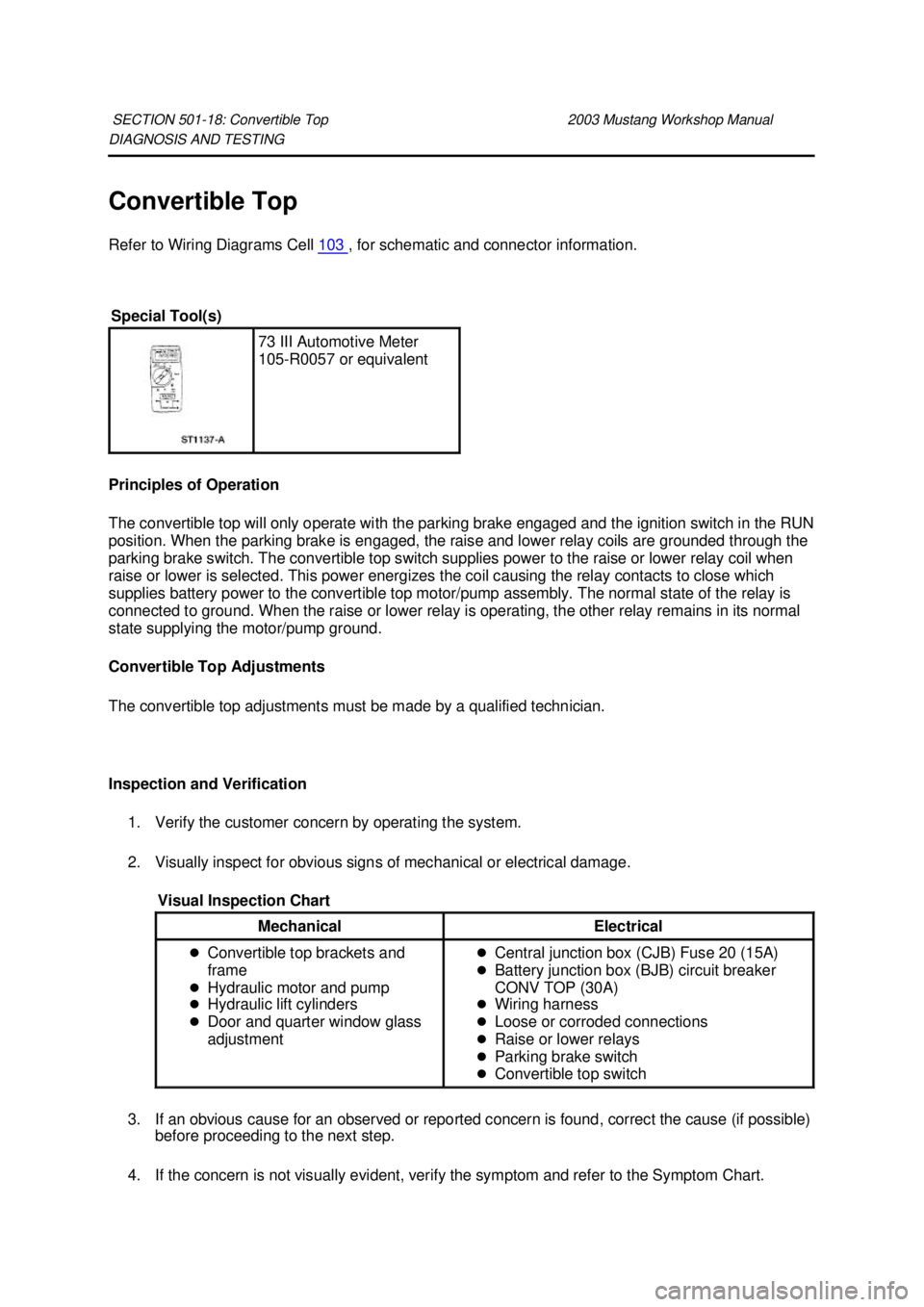

Convertible Top
Refer to Wiring Diagrams Cell
103 , for schematic and connector information.
Principles of Operation
The convertible top will only operate with the parking brake engaged and the ignition switch in the RUN
position. When the parking brake is engaged, the raise and lower relay coils are grounded through the
parking brake switch. The convertible top switch supplies power to the raise or lower relay coil when
raise or lower is selected. This power energizes the coil causing the relay contacts to close which
supplies battery power to the convertible top motor/pump assembly. The normal state of the relay is
connected to ground. When the raise or lower relay is operating, the other relay remains in its normal
state supplying the motor/pump ground.
Convertible Top Adjustments
The convertible top adjustments must be made by a qualified technician.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
SECTION 501-
18: Convertible Top 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Convertible top brackets and
frame
z Hydraulic motor and pump
z Hydraulic lift cylinders
z Door and quarter window glass
adjustment z
Central junction box (CJB) Fuse 20 (15A)
z Battery junction box (BJB) circuit breaker
CONV TOP (30A)
z Wiring harness
z Loose or corroded connections
z Raise or lower relays
z Parking brake switch
z Convertible top switch Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
