key FORD MUSTANG 2003 Workshop Manual

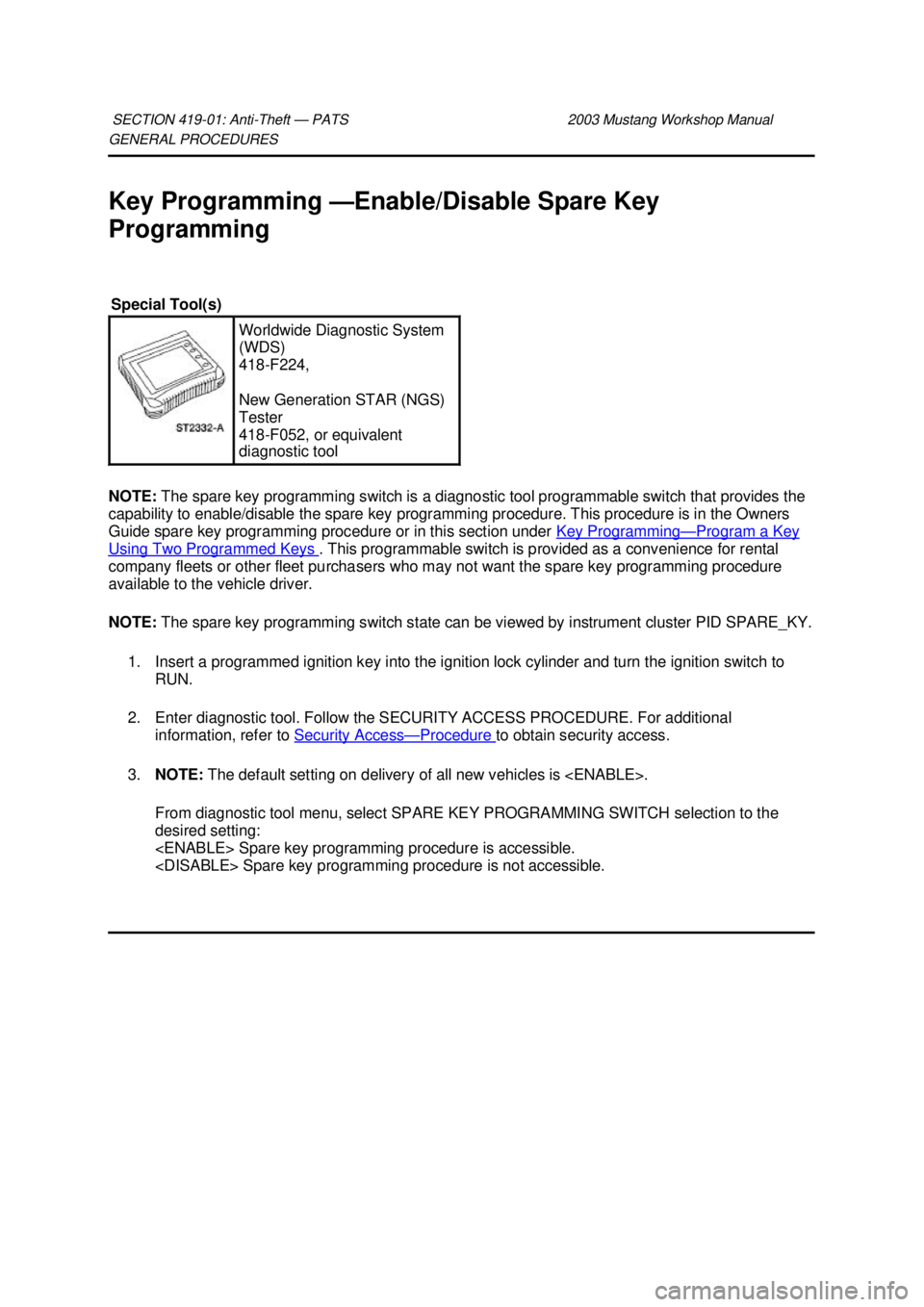

GENERAL PROCEDURES
Key Programming —
Enable/Disable Spare Key
Programming
NOTE: The spare key programming switch is a diagnostic tool programmable switch that provides the
capability to enable/disable the spare key programming procedure. This procedure is in the Owners
Guide spare key programming procedure or in this section under Key Programming — Program a Key
Using Two Programmed Keys . This programmable switch is provided as a convenience for rental
company fleets or other fleet purchasers who may not want the spare key programming procedure
available to the vehicle driver.
NOTE: The spare key programming switch state can be viewed by instrument cluster PID SPARE_KY.
1. Insert a programmed ignition key into the ignition lock cylinder and turn the ignition switch to RUN.
2. Enter diagnostic tool. Follow the SECURITY ACCESS PROCEDURE. For additional information, refer to Security Access — Procedure to obtain security access.
3. NOTE: The default setting on delivery of all new vehicles is .
From diagnostic tool menu, select SPARE KEY PROGRAMMING SWITCH selection to the
desired setting:
Spare key programming procedure is accessible.
Spare key programming procedure is not accessible.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

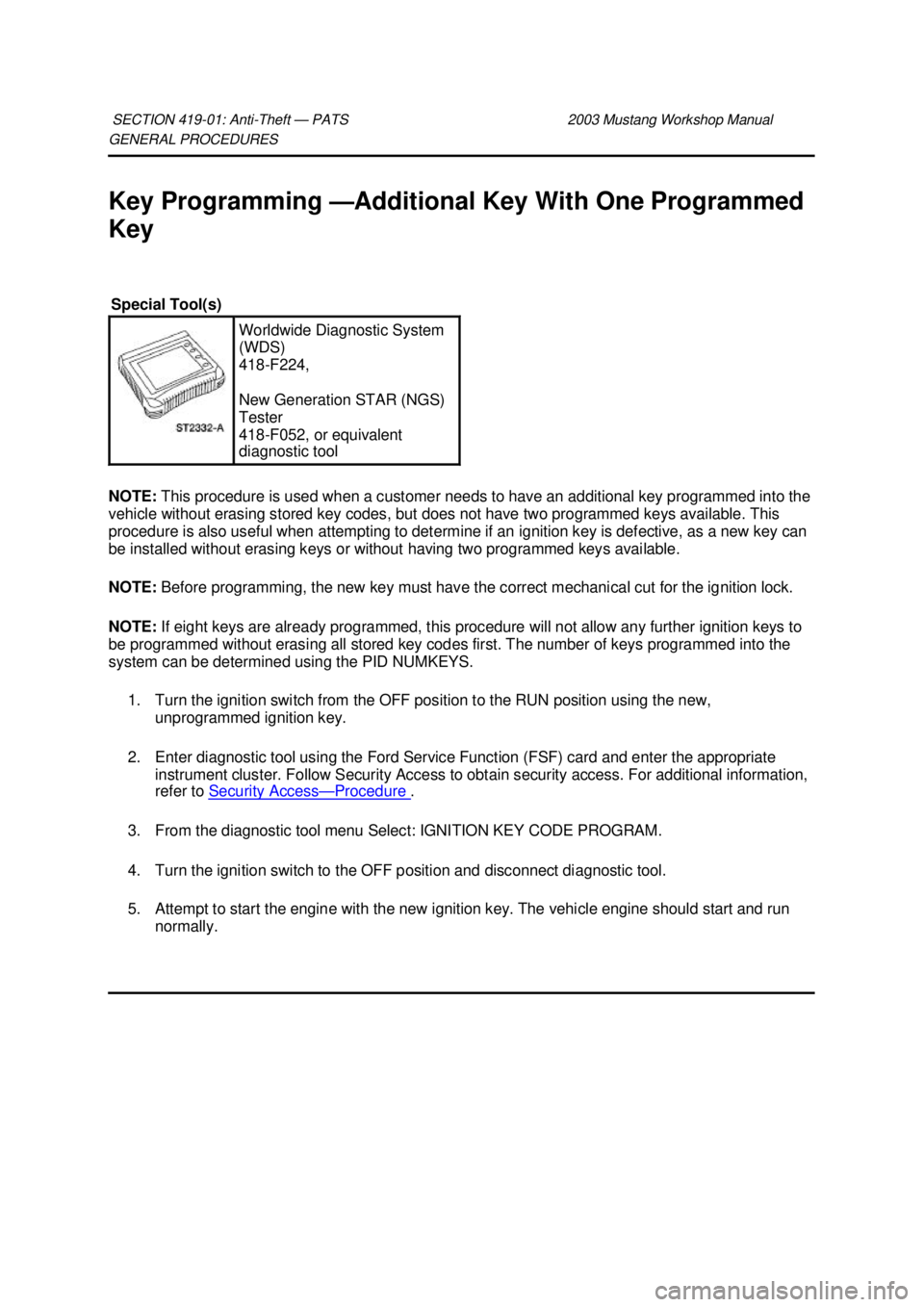

GENERAL PROCEDURES
Key Programming —
Additional Key With One Programmed
Key
NOTE: This procedure is used when a customer needs to have an additional key programmed into the
vehicle without erasing stored key codes, but does not have two programmed keys available. This
procedure is also useful when attempting to determine if an ignition key is defective, as a new key can
be installed without erasing keys or without having two programmed keys available.
NOTE: Before programming, the new key must have the correct mechanical cut for the ignition lock.
NOTE: If eight keys are already programmed, this procedure will not allow any further ignition keys to
be programmed without erasing all stored key codes first. The number of keys programmed into the
system can be determined using the PID NUMKEYS.
1. Turn the ignition switch from the OFF position to the RUN position using the new, unprogrammed ignition key.
2. Enter diagnostic tool using the Ford Service Function (FSF) card and enter the appropriate instrument cluster. Follow Security Access to obtain security access. For additional information,
refer to Security Access — Procedure .
3. From the diagnostic tool menu Select: IGNITION KEY CODE PROGRAM.
4. Turn the ignition switch to the OFF position and disconnect diagnostic tool.
5. Attempt to start the engine with the new ignition key. The vehicle engine should start and run normally.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

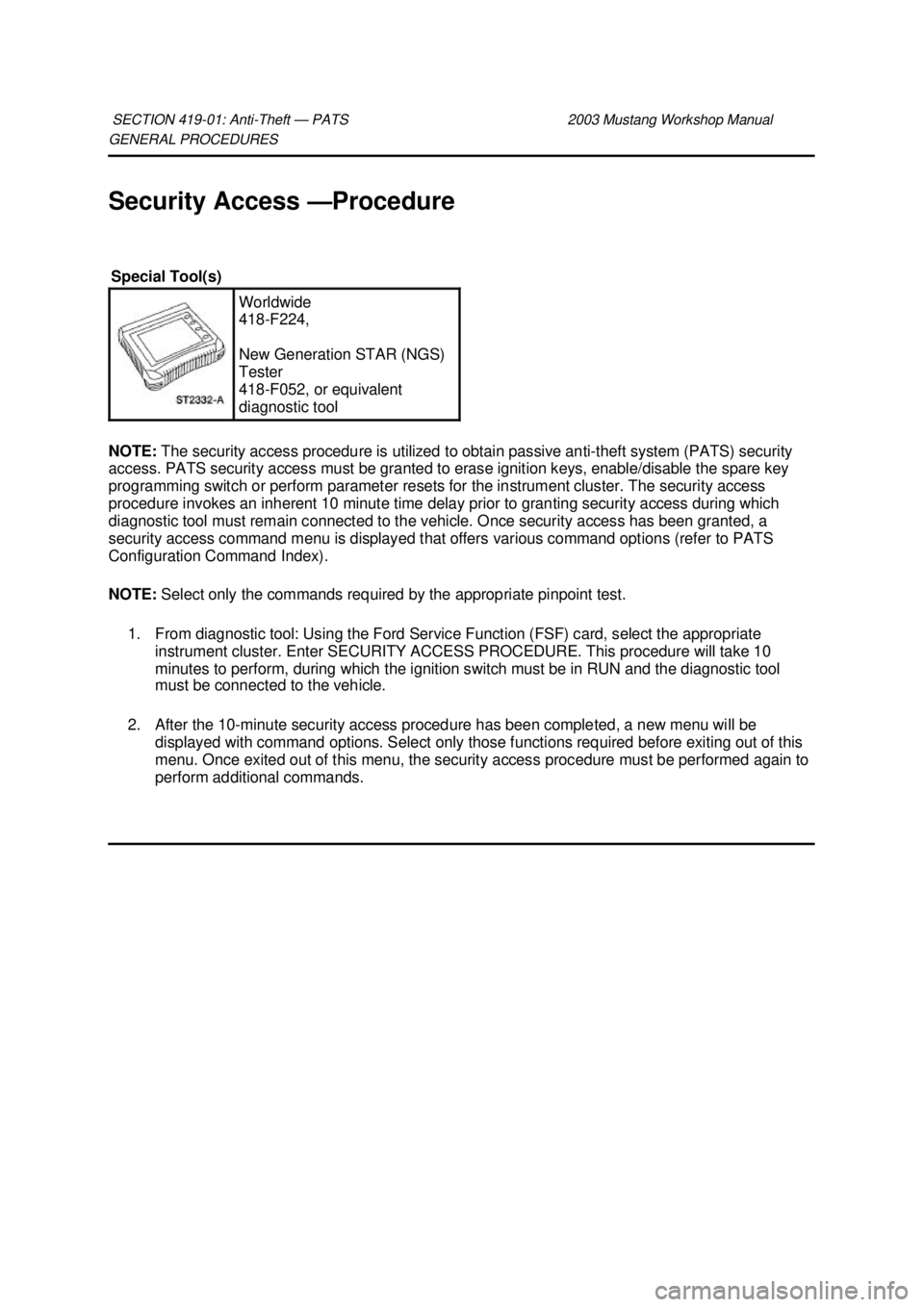

GENERAL PROCEDURES
Security Access —
Procedure
NOTE: The security access procedure is utilized to obtain passive anti- theft system (PATS) security
access. PATS security access must be granted to erase ignition keys, enable/disable the spare key
programming switch or perform parameter resets for the instrument cluster. The security access
procedure invokes an inherent 10 minute time delay prior to granting security access during which
diagnostic tool must remain connected to the vehicle. Once security access has been granted, a
security access command menu is displayed that offers various command options (refer to PATS
Configuration Command Index).
NOTE: Select only the commands required by the appropriate pinpoint test.
1. From diagnostic tool: Using the Ford Service Function (FSF) card, select the appropriate instrument cluster. Enter SECURITY ACCESS PROCEDURE. This procedure will take 10
minutes to perform, during which the ignition switch must be in RUN and the diagnostic tool
must be connected to the vehicle.
2. After the 10- minute security access procedure has been completed, a new menu will be
displayed with command options. Select only those functions required before exiting out of this
menu. Once exited out of this menu, the security access procedure must be performed again to
perform additional commands.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
Worldwide
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Module —
Passive Anti- Theft Transceiver
Removal
1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to
these charges, damage may result.
Disconnect the battery ground cable (14301).
2. Remove the ignition switch lock cylinder (11582). 1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while
pushing out the ignition switch lock cylinder.
3. Unscrew the tilt wheel handle and shank and remove.
4. Remove the instrument panel steering column opening cover. 1. Remove the screws.
2. Remove the LH instrument panel steering column opening cover.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

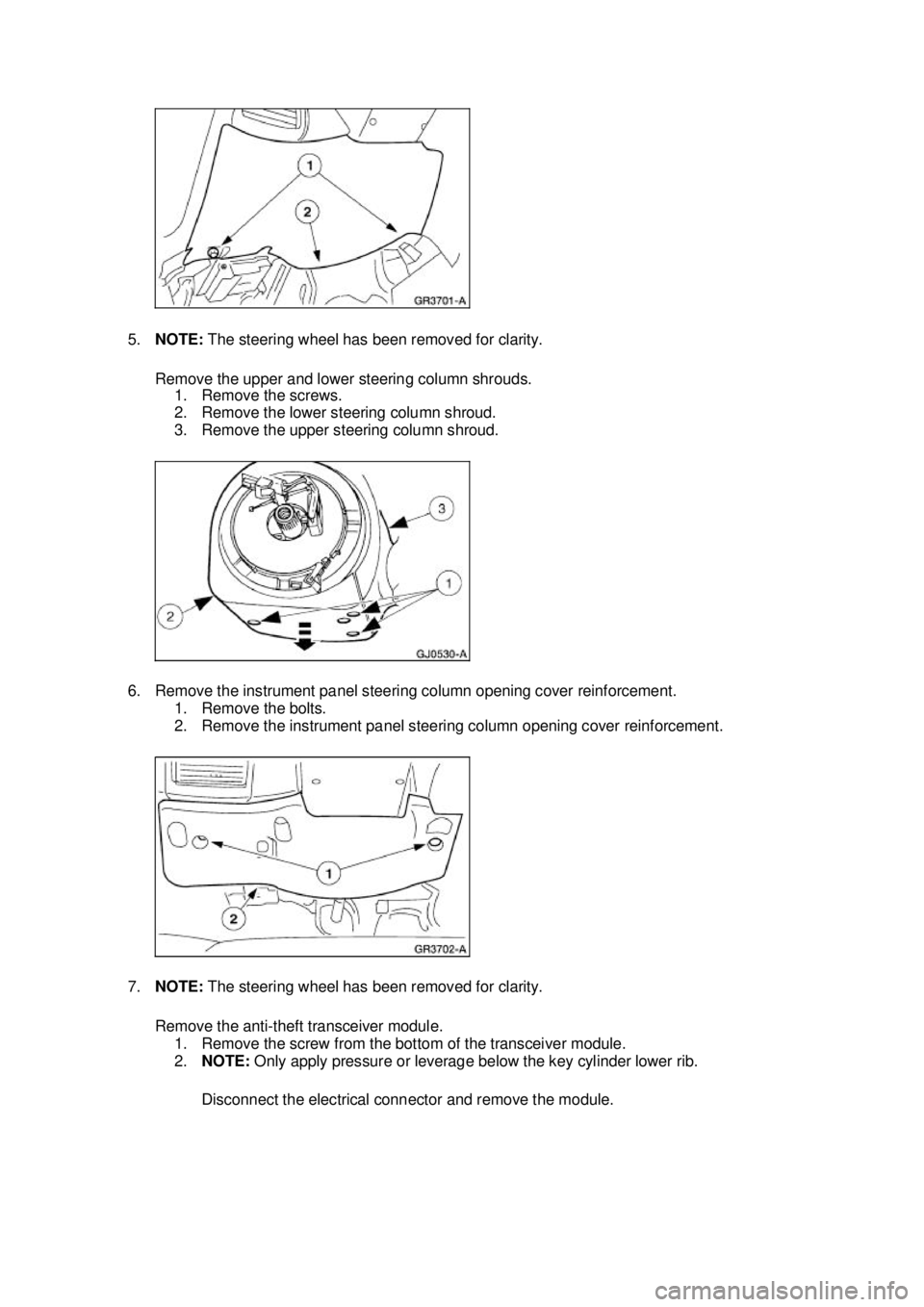

5.
NOTE: The steering wheel has been removed for clarity.
Remove the upper and lower steering column shrouds. 1. Remove the screws.
2. Remove the lower steering column shroud.
3. Remove the upper steering column shroud.
6. Remove the instrument panel steering column opening cover reinforcement. 1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.
7. NOTE: The steering wheel has been removed for clarity.
Remove the anti- theft transceiver module.
1. Remove the screw from the bottom of the transceiver module.
2. NOTE: Only apply pressure or leverage below the key cylinder lower rib.
Disconnect the electrical connector and remove the module. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Module Controlled Functions
The generic electronic module (GEM)(14B205) is the only multifunction control module on this vehicle.
The GEM controls the following functions:
zwarning chimes and warning lamps
z one- touch down window
z windshield washers and wipers
z battery saver
z illuminated entry with keyless remote entry
z interior lighting
SECTION 419-
10: Multifunction Electronic Control Modules 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Multifunction Electronic Module
For warning chime concerns, refer to
Section 413 - 09 .
For courtesy lamps/illuminated entry and battery saver concerns, refer to Section 417 - 02 .
For one- touch window concerns, refer to Section 501 - 11 .
For wiper/washer control and interval timer concerns, refer to Section 501 - 16 .
For keyless entry and power door lock concerns, refer to Section 501 - 14B .
For anti- theft concerns, refer to Section 419 - 01 .
SECTION 419-
10: Multifunction Electronic Control Modules 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

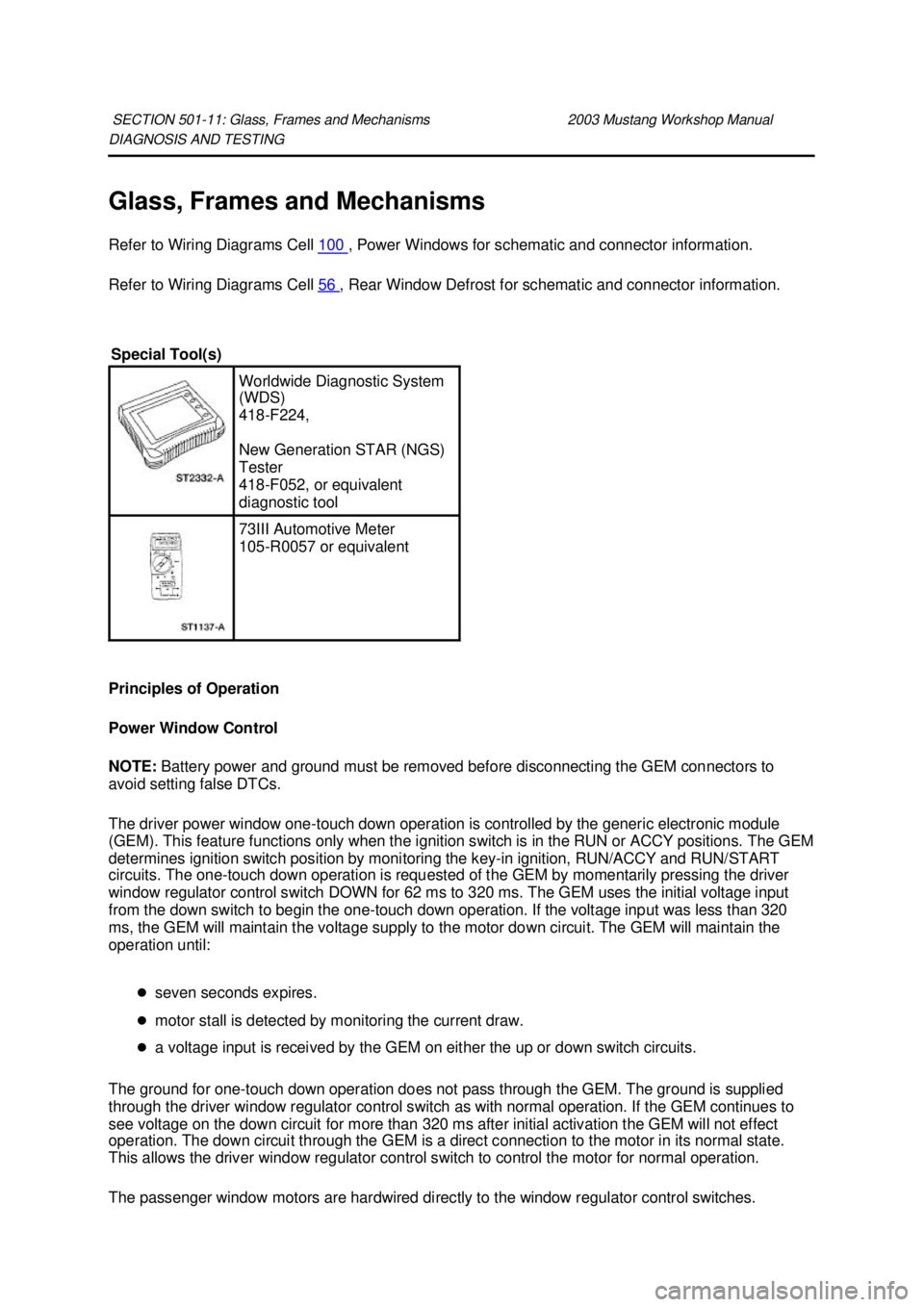

DIAGNOSIS AND TESTING
Glass, Frames and Mechanisms
Refer to Wiring Diagrams Cell
100 , Power Windows for schematic and connector information.
Refer to Wiring Diagrams Cell 56 , Rear Window Defrost for schematic and connector information.
Principles of Operation
Power Window Control
NOTE: Battery power and ground must be removed before disconnecting the GEM connectors to
avoid setting false DTCs.
The driver power window one- touch down operation is controlled by the generic electronic module
(GEM). This feature functions only when the ignition switch is in the RUN or ACCY positions. The GEM
determines ignition switch position by monitoring the key- in ignition, RUN/ACCY and RUN/START
circuits. The one-touch down operation is requested of the GEM by momentarily pressing the driver
window regulator control switch DOWN for 62 ms to 320 ms. The GEM uses the initial voltage input
from the down switch to begin the one- touch down operation. If the voltage input was less than 320
ms, the GEM will maintain the voltage supply to the motor down circuit. The GEM will maintain the
operation until:
zseven seconds expires.
z motor stall is detected by monitoring the current draw.
z a voltage input is received by the GEM on either the up or down switch circuits.
The ground for one- touch down operation does not pass through the GEM. The ground is supplied
through the driver window regulator control switch as with normal operation. If the GEM continues to
see voltage on the down circuit for more than 320 ms after initial activation the GEM will not effect
operation. The down circuit through the GEM is a direct connection to the motor in its normal state.
This allows the driver window regulator control switch to control the motor for normal operation.
The passenger window motors are hardwired directly to the window regulator control switches. SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool 73III Automotive Meter
105-
R0057 or equivalent Klj . 1 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

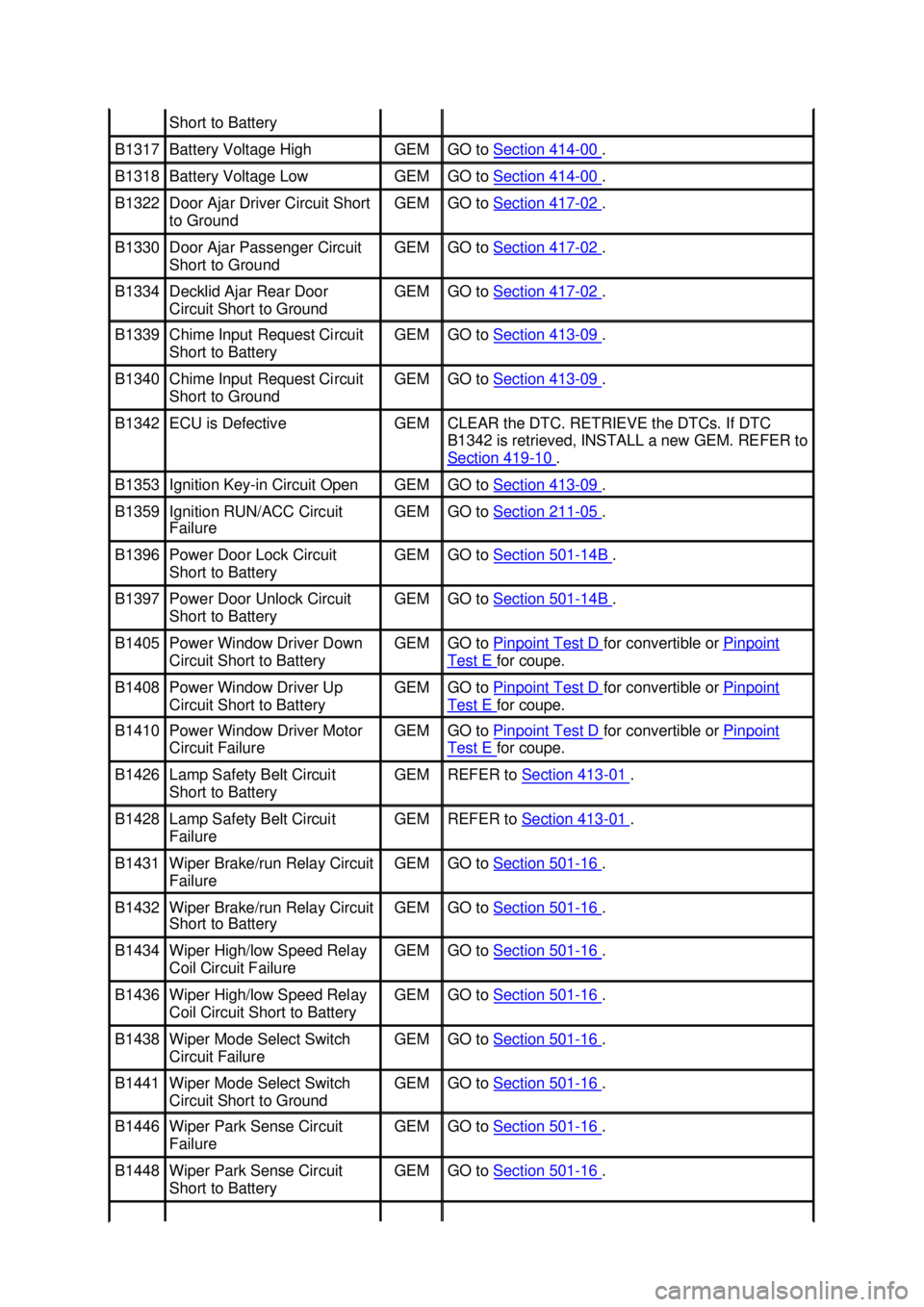

Short to Battery
B1317 Battery Voltage High GEM GO to
Section 414 - 00 .
B1318 Battery Voltage Low GEM GO to
Section 414 - 00 .
B1322 Door Ajar Driver Circuit Short
to Ground GEM GO to
Section 417 - 02 .
B1330 Door Ajar Passenger Circuit
Short to Ground GEM GO to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door
Circuit Short to Ground GEM GO to
Section 417 - 02 .
B1339 Chime Input Request Circuit
Short to Battery GEM GO to
Section 413 - 09 .
B1340 Chime Input Request Circuit
Short to Ground GEM GO to
Section 413 - 09 .
B1342 ECU is Defective GEM CLEAR the DTC. RETRIEVE the DTCs. If DTC
B1342 is retrieved, INSTALL a new GEM. REFER to
Section 419
- 10 .
B1353 Ignition Key-
in Circuit Open GEM GO to
Section 413 - 09 .
B1359 Ignition RUN/ACC Circuit
Failure GEM GO to
Section 211 - 05 .
B1396 Power Door Lock Circuit
Short to Battery GEM GO to
Section 501 - 14B .
B1397 Power Door Unlock Circuit
Short to Battery GEM GO to
Section 501 - 14B .
B1405 Power Window Driver Down
Circuit Short to Battery GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1408 Power Window Driver Up
Circuit Short to Battery GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1410 Power Window Driver Motor
Circuit Failure GEM GO to
Pinpoint Test D for convertible or
Pinpoint Test E for coupe.
B1426 Lamp Safety Belt Circuit
Short to Battery GEM REFER to
Section 413 - 01 .
B1428 Lamp Safety Belt Circuit
Failure GEM REFER to
Section 413 - 01 .
B1431 Wiper Brake/run Relay Circuit
Failure GEM GO to
Section 501 - 16 .
B1432 Wiper Brake/run Relay Circuit
Short to Battery GEM GO to
Section 501 - 16 .
B1434 Wiper High/low Speed Relay
Coil Circuit Failure GEM GO to
Section 501 - 16 .
B1436 Wiper High/low Speed Relay
Coil Circuit Short to Battery GEM GO to
Section 501 - 16 .
B1438 Wiper Mode Select Switch
Circuit Failure GEM GO to
Section 501 - 16 .
B1441 Wiper Mode Select Switch
Circuit Short to Ground GEM GO to
Section 501 - 16 .
B1446 Wiper Park Sense Circuit
Failure GEM GO to
Section 501 - 16 .
B1448 Wiper Park Sense Circuit
Short to Battery GEM GO to
Section 501 - 16 . Klj . 3 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC
ELECTRONIC MODULE (GEM) inoperative —
rear,
convertible only z
Window regulator
motor.
z Driver window
regulator control
switch. Test G .
z The defrost system is
inoperative z
BJB fuse HTD BL
(30A).
z CJB fuse 23 (15A).
z Circuitry.
z Instrument cluster
module (ICM).
z Rear window
defrost switch.
z Heated rear
window grid. z
GO to Pinpoint Test H .
z The defrost system will not
shut off automatically z
Circuit.
z ICM.
z Rear window
defrost switch. z
GO to Pinpoint Test I .
Test Step Result / Action to Take
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to
use the correct probe adapter(s) may damage the connector. A1 CHECK THE GENERIC ELECTRONIC MODULE (GEM)
POWER SUPPLY z
Key in OFF position.
z Disconnect: Generic Electronic Module (GEM) C201a.
z Disconnect: GEM C201b.
z Key in ON position.
z Using the following table, measure the voltage between the
GEM, harness side and ground.
z Are the voltages greater than 10 volts? Connector Pin Circuit
C201a 4 400 (LB/BK)
C201a 1 1006 (DG/WH)
C201b 2 1001 (WH/YE)
C201b 3 193 (YE/LG) Yes
GO to
A2 .
No
REPAIR the circuit(s) in
question. TEST the system
for normal operation. A2 CHECK THE GEM GROUND CIRCUIT 397 (BK/WH) FOR
OPEN z
Key in OFF position.
z Measure the resistance between the GEM C201b pin 4,
circuit 397 (BK/WH), harness side and ground. Yes
GO to
A3 .
No Klj . 6 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
