air filter FORD MUSTANG 2003 Owner's Guide

REMOVAL AND INSTALLATION
Air Cleaner Element —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube. For additional information, refer to Air Cleaner Outlet Pipe —
3.8L in this section
2. Disconnect the connector.
3. Remove the mass air flow (MAF) sensor. 1. Release the clips.
2. Remove the MAF sensor assembly.
4. Remove the air cleaner element.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Cleaner Element —
4.6L (2V)
Removal and Installation 1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) in this section.
2. Remove the mass air flow (MAF) assembly. 1. Release the clip.
2. Remove the MAF sensor assembly and position aside.
3. Remove the air cleaner element.
4. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

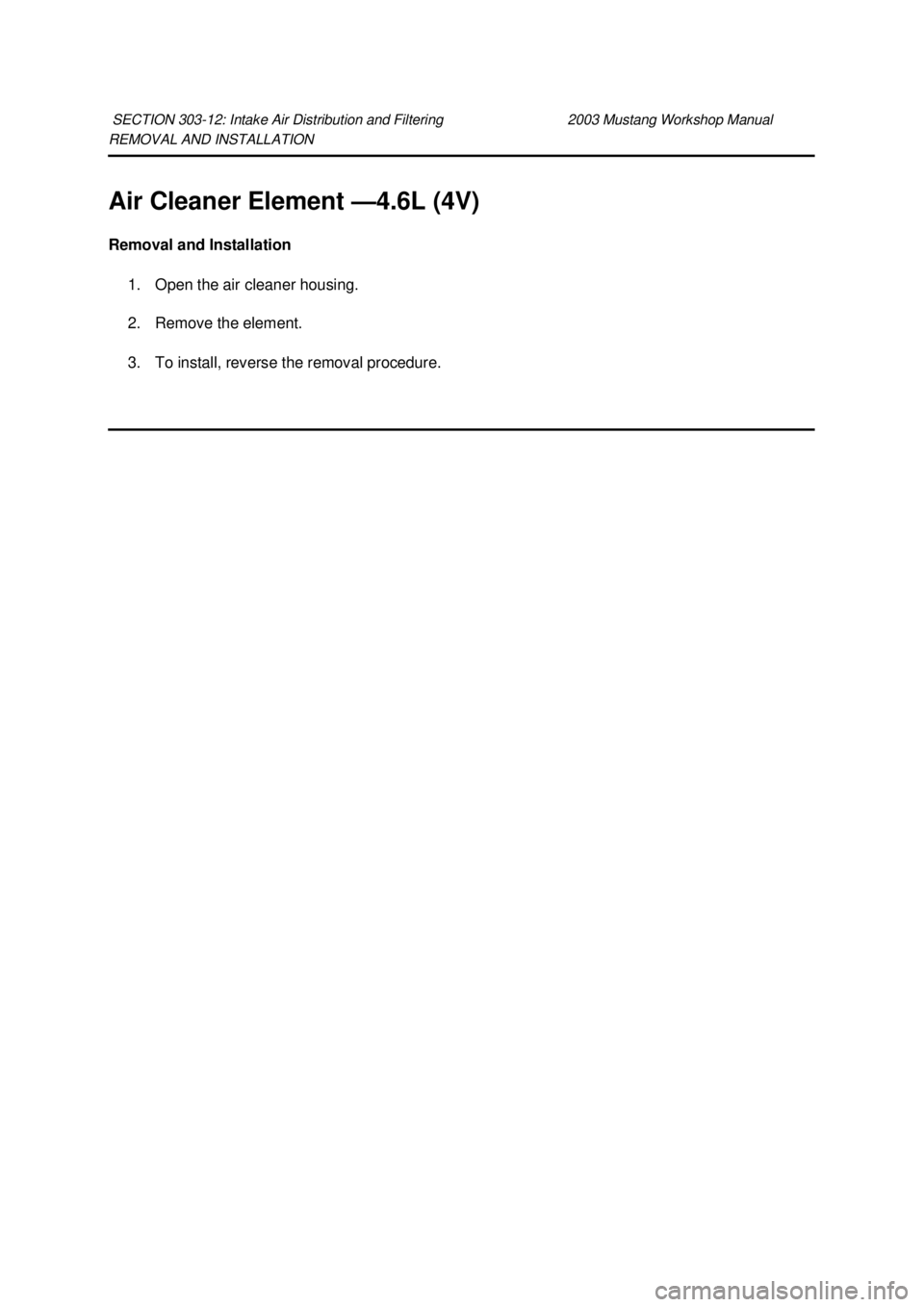

Air Cleaner Element —
4.6L (4V)
Removal and Installation 1. Open the air cleaner housing.
2. Remove the element.
3. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

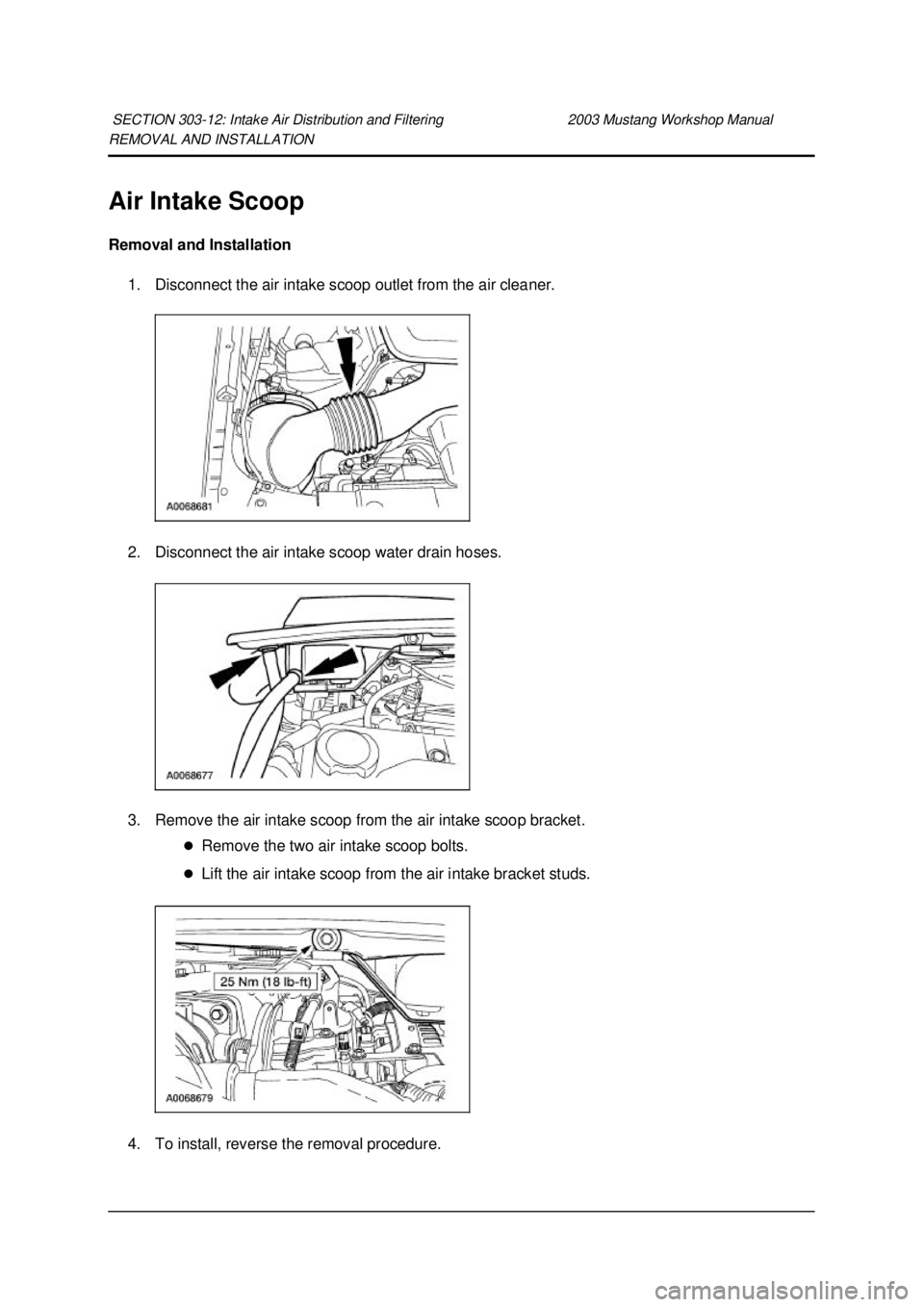

Air Intake Scoop
Removal and Installation
1. Disconnect the air intake scoop outlet from the air cleaner.
2. Disconnect the air intake scoop water drain hoses.
3. Remove the air intake scoop from the air intake scoop bracket. zRemove the two air intake scoop bolts.
z Lift the air intake scoop from the air intake bracket studs.
4. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Intake Scoop Bracket
Removal and Installation
1. Remove the air intake scoop. For additional information, refer to Air Intake Scoop in this section.
2. Remove the air intake scoop bracket nut at the throttle body.
3. Remove the exhaust gas recirculation (EGR) vacuum regulator solenoid bolts and position the EGR vacuum regulator solenoid aside.
4. Remove the air intake scoop bracket nuts and the air intake scoop bracket bolt and remove the air intake scoop bracket from the engine.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Charge Air Cooler
Removal and Installation
1. Drain the supercharger coolant. For additional information, refer to Section 303 - 03B .
2. Release the fuel pressure. For additional information, refer to Section 310 - 00 .
3. Disconnect the supercharger degas hose.
4. Disconnect the coolant hose.
5. Remove the supercharger belt. For additional information, refer to Section 303 - 05 .
6. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
7. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical connectors.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Material
Item Specification
Silicone Gasket and Sealant
F7AZ-
19554- EA or equivalent WSE-
M4G323- EA Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST C: DTC P1450 EXCESSIVE VACUUM DETECTED IN
THE FUEL TANK Tester to the fuel filler pipe.
z Pressurize the EVAP
system to 6.47 to 6.97 kPa
(26 to 28 inches H
2 O).
z Does the pressure drop
immediately? No
INSTALL new fuel tank vapor line(s). REPEAT pinpoint test
Step B5 to verify the repair. CARRY OUT the evaporative
emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If the system passes the
leak test, CARRY OUT the evaporative emission repair
verification drive cycle. REFER to Evaporative Emission Repair Verification Drive Cycle in this section.
B6 CHECK FOR FAILED EVAP
CANISTER PURGE VALVE OR
FUEL TANK PRESSURE
SENSOR z
Use the recorded results
from the PCM DTCs.
z Are DTC codes P0455 and
P1443 present? Yes
INSTALL a new EVAP canister purge valve. REFER to
Evaporative Emission Canister Purge Valve
in this section.
CARRY OUT the evaporative emission system leak test.
REFER to Evaporative Emission System Leak Test in this
section. If no leak is detected, CARRY OUT the evaporative
emissions repair verification drive cycle. REFER to
Evaporative Emission Repair Verification Drive Cycle in this
section.
No
INSTALL a new fuel tank pressure sensor. REFER to Fuel Tank Pressure Sensor in this section. CARRY OUT the
evaporative emission system leak test. REFER to
Evaporative Emission System Leak Test in this section. If
the system passes the leak test, CARRY out the
evaporative emission repair verification drive cycle. REFER
to Evaporative Emission Repair Verification Drive Cycle in
this section. Test Step Result / Action to Take
NOTE:
Condition P1450 DTC set: more than - 1.79 kPa (-7.2 inches H
2 O) over 30 seconds. C1 CHECK FOR VISUAL CAUSES OF EXCESSIVE
FUEL TANK VACUUM z
Check for kinks or bends in the fuel vapor hoses
and tubes.
z Visually check the EVAP canister inlet port,
canister vent solenoid filter or outlet hose for
contamination or foreign material.
z Check the canister vent solenoid for blockage or
contamination.
z Is a concern with a hose, tube, connection or
component visually evident? Yes
REMOVE any contamination or foreign
material around fuel vapor hoses and
tubes. REPAIR the hoses, tubes or
components as necessary. After all
visual concerns are repaired, GO to
C2
.
No
GO to C2 .
C2 CHECK FOR BLOCKAGE BETWEEN EVAP
TEST PORT AND CANISTER VENT SOLENOID z
Disconnect and plug the EVAP return tube at the
intake manifold.
z Connect the Evaporative Emissions System Leak
Tester to the EVAP test port. Yes
GO to
C3 .
No Klj . 10 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10. If the vehicle stalls in (D) or manual 2 at idle with vehicle at a stop, move the transmission range
selector lever to manual 1 position. If the vehicle stalls, see torque converter operation
concerns. For additional information, refer to Diagnosis By Symptom in this section. If the
vehicle does not stall in (D), refer to Diagnosis By Symptom in this section.
11. If the vehicle exhibits a vibration during the road test, complete the Road Test Evaluation Form. This form will aid the technician in determining the source of the vibration.
NOTE: The following is a list of common vehicle concerns that have been misdiagnosed as torque
converter clutch shudder. For diagnosis of the following items refer to the appropriate sections of the
workshop manual and the Powertrain Control/Emissions Diagnosis (PC/ED) manual.
zspark plugs - check for cracks, high resistance or broken insulators
z plug wires
z fuel injector - filter may be plugged
z fuel contamination - poor engine performance
z EGR valve - valve may let in too much exhaust gas and cause engine to run lean
z vacuum leak - engine will not get correct air/fuel mixture
z MAP/MAF sensor - incorrect air/fuel mixture
z HO2S sensor - too rich/lean air/fuel mixture
z fuel pressure - may be too low
z engine mounts - loose/damaged mounts can cause vibration concerns
z axle joints - check for vibration Torque Converter Road Evaluation Form
1) Does the Torque Converter
Engage/Disengage? Yes ·
GO to Step 2. No ·
REFER to Diagnosis By Symptom —
Torque Converter No Apply Routine
240/340 and Always Applied Routine
241/341 in this section for further
diagnosis information. Repair as
required, verify converter operation
and then continue. 2) Does vibration occur during 3-
4 or 4-3 shift at:
light, medium, or heavy throttle? Light ·
May be torque converter clutch
shudder. GO to Step 3. Medium ·
May be torque converter clutch
shudder. GO to Step 3. Heavy ·
Not torque converter clutch shudder
— converter does not engage due to
PCM strategy. REFER to Section 100 - 04 and
Diagnosis By Symptom —
Noise/Vibration Routine 254/354
in this section for further diagnosis. 3) Is the problem vehicle speed dependent Yes ·
Not torque converter clutch shudder Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Condition.
Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift cable
as necessary. After repairing transmission shift cable, verify the digital
transmission range (TR) sensor is correctly adjusted. Adjust the
digital TR sensor as necessary. Incorrect Pressures
·
Low forward clutch
pressure, low line
pressure ·
Check pressure at line and forward clutch tap. Refer to Line Pressure
Chart for specification. If pressures are low, check the following
components: oil filter and seal assembly, main controls, pump
assembly, forward clutch assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
3- 4 shift valve, main
regulator valve, manual
valve — stuck,
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect gaskets for damage and install a new gasket. ·
2- 3 accumulator and
seals damaged ·
Inspect piston, seals and bore for damage. Repair as required. ·
Pressure regulator
valve ·
Inspect the diameter for wear. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Porosity/cross
leaks/ball missing or
leaking, plugged hole ·
Inspect for porosity and leaks. Repair as required. ·
No. 3 and No. 4 seal
rings damaged ·
Inspect seals for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Forward Clutch
Assembly
·
Seals, piston damaged ·
Inspect seals for damage. Repair as required. ·
Check balls damaged,
missing, mislocated,
not seating correctly ·
Inspect for mislocation, poor seating, damage. Install a new cylinder
as required. ·
Friction elements
damaged or worn ·
Check for abnormal wear, damage. Repair as required. One-
Way Clutch
Assembly (Planetary) ·
Worn, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. Output Shaft Klj . 4 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

·
Damaged ·
Inspect for damage. Install new components as required.
Engagement Concern: No Reverse Possible Component Reference/Action
202 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 302 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable, verify
that the digital TR sensor is correctly adjusted. Adjust the digital
TR sensor as necessary. Incorrect Pressures
·
Low reverse clutch
pressure, low reverse band
pressure, low line pressure ·
Check pressure at line pressure tap; refer to Line Pressure Chart
for specifications. If pressures are low, check the following
components: oil filter and seal assembly, main controls, reverse
servo, pump assembly, reverse clutch assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. Main Controls
·
No. 6 shuttle ball, manual
valve, main regulator valve,
1- 2 accumulator seals
stuck or damaged ·
Inspect for damage. Repair as required. ·
Loose bolts ·
Tighten bolts to specifications. ·
Gasket damaged ·
Inspect for damage and install a new gasket. Low/Reverse Servo
·
Seals (piston and cover)
damaged ·
Inspect for damage. Repair as required. ·
Servo cover retaining ring
damaged ·
Anchor pins (case)
damaged Pump Assembly
·
Loose bolts ·
Tighten bolts to specifications. ·
Porosity/cross leaks/ball
missing or leaking, plugged
hole ·
Inspect pump assembly. Install new as required. ·
Gasket damaged ·
Inspect for damage and install a new gasket. ·
No. 1 and 2 seal rings
damaged ·
Inspect for damage. Repair as required. Reverse Clutch Assembly Klj . 5 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
