SPECIFICATIONS
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Steering column reinforcement 9 80
Instrument panel steering column cover bolts 9 80
Duct RH instrument panel register 9 80 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Air Distribution
NOTE:
The air distribution system of this vehicle cannot be equipped with a cabin air filter.
There are two sources of air available to the air distribution system:
zoutside air
z recirculated air
Recirculated air is only used during MAX A/C.
Air distribution within the vehicle is determined by the function selector switch position. Airflow control
doors are used to direct airflow within the air plenum chamber. Vacuum control motors (18A318) are
used to position these airflow control doors. Refer to Section 412 - 00 for a description and operation of
each of the system functions.
The air distribution system is designed to provide airflow from the defrost nozzle when no vacuum is
applied to any of the vacuum control motors. This is done to prevent a situation where defrost cannot
be obtained due to a system vacuum leak.
Air enters the passenger compartment from the:
zinstrument panel A/C register (19893).
z heater outlet floor duct (18C433).
z windshield defroster hose nozzle (18490).
z side window demisters.
Passenger compartment air is exhausted from the vehicle through open windows or body air vents.
Instrument Panel Registers
There are A/C registers on the left and right sides of the instrument panel and in the center instrument
panel finish panel.
The LH and RH A/C registers are only serviceable as assemblies.
The center A/C registers are not serviceable as assemblies. The registers are installed with the
instrument panel center finish panel assembly. Component Locations SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

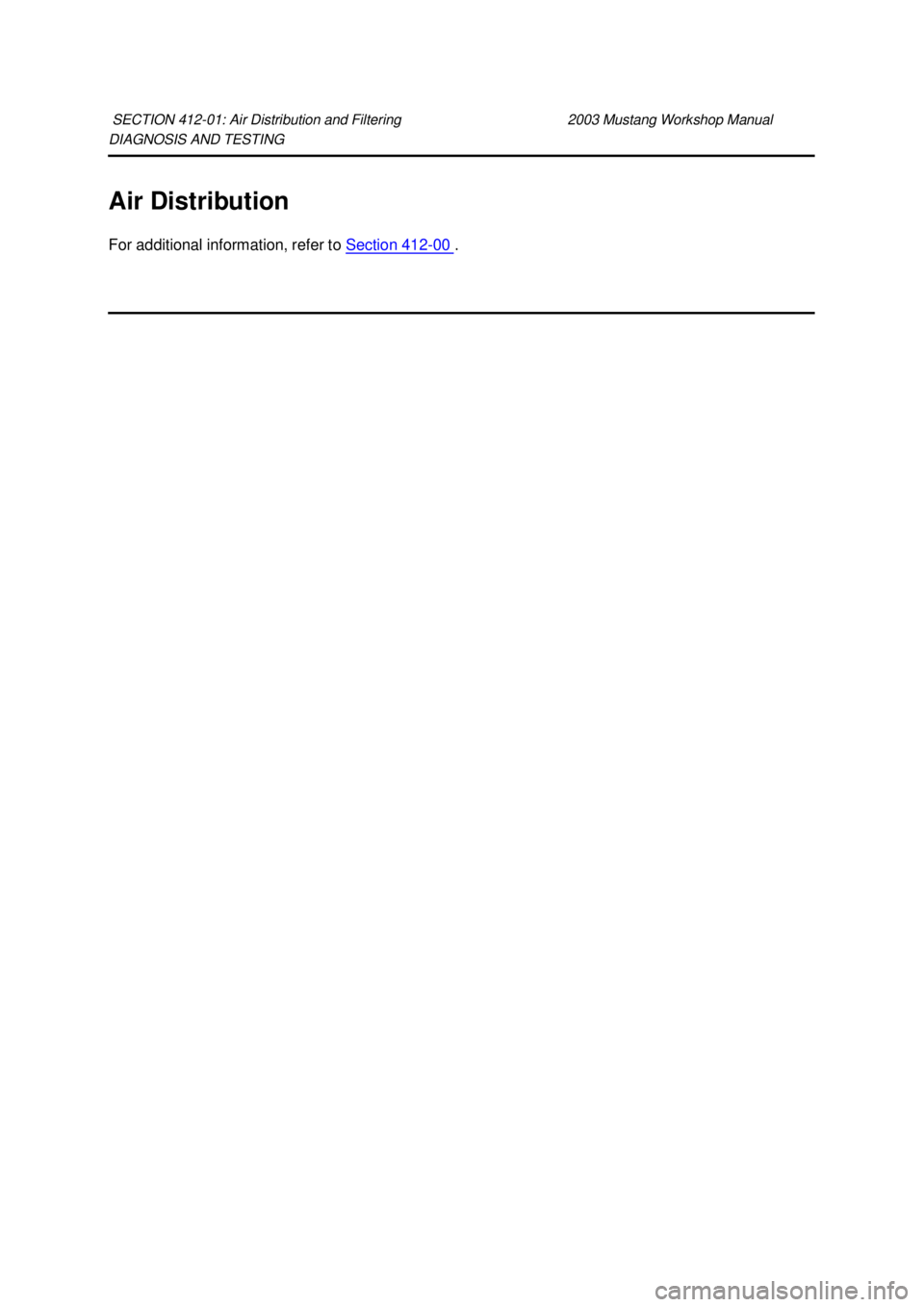

DIAGNOSIS AND TESTING
Air Distribution
For additional information, refer to
Section 412 - 00 .
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Register —
LH
Removal 1. Remove the instrument panel steering column cover bolts.
2. Unsnap and remove the instrument panel steering column cover.
3. Remove the bolts and the steering column reinforcement. 4. Remove the screws. SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION

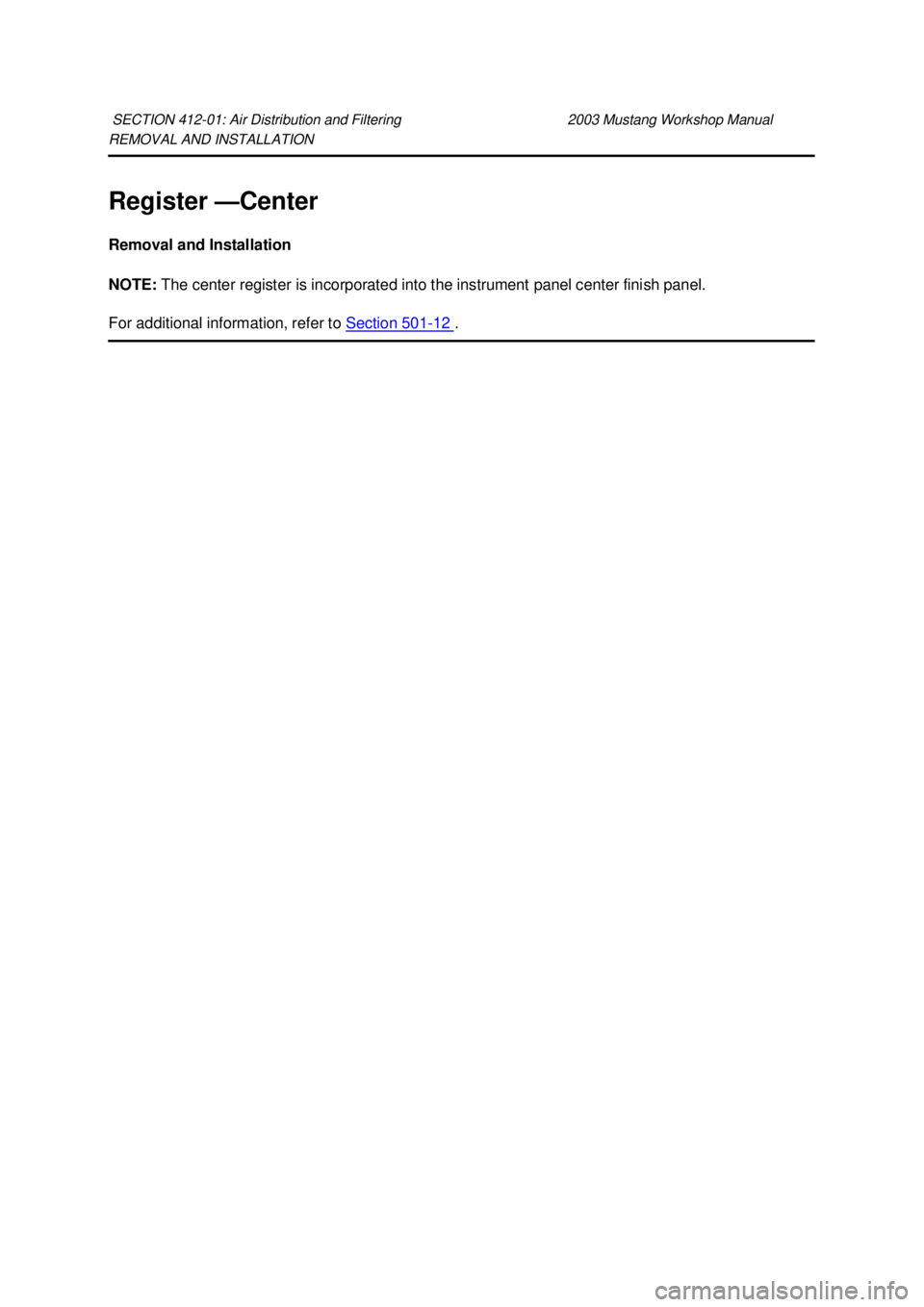

Register —
Center
Removal and Installation
NOTE: The center register is incorporated into the instrument panel center finish panel.
For additional information, refer to Section 501 - 12 .
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION

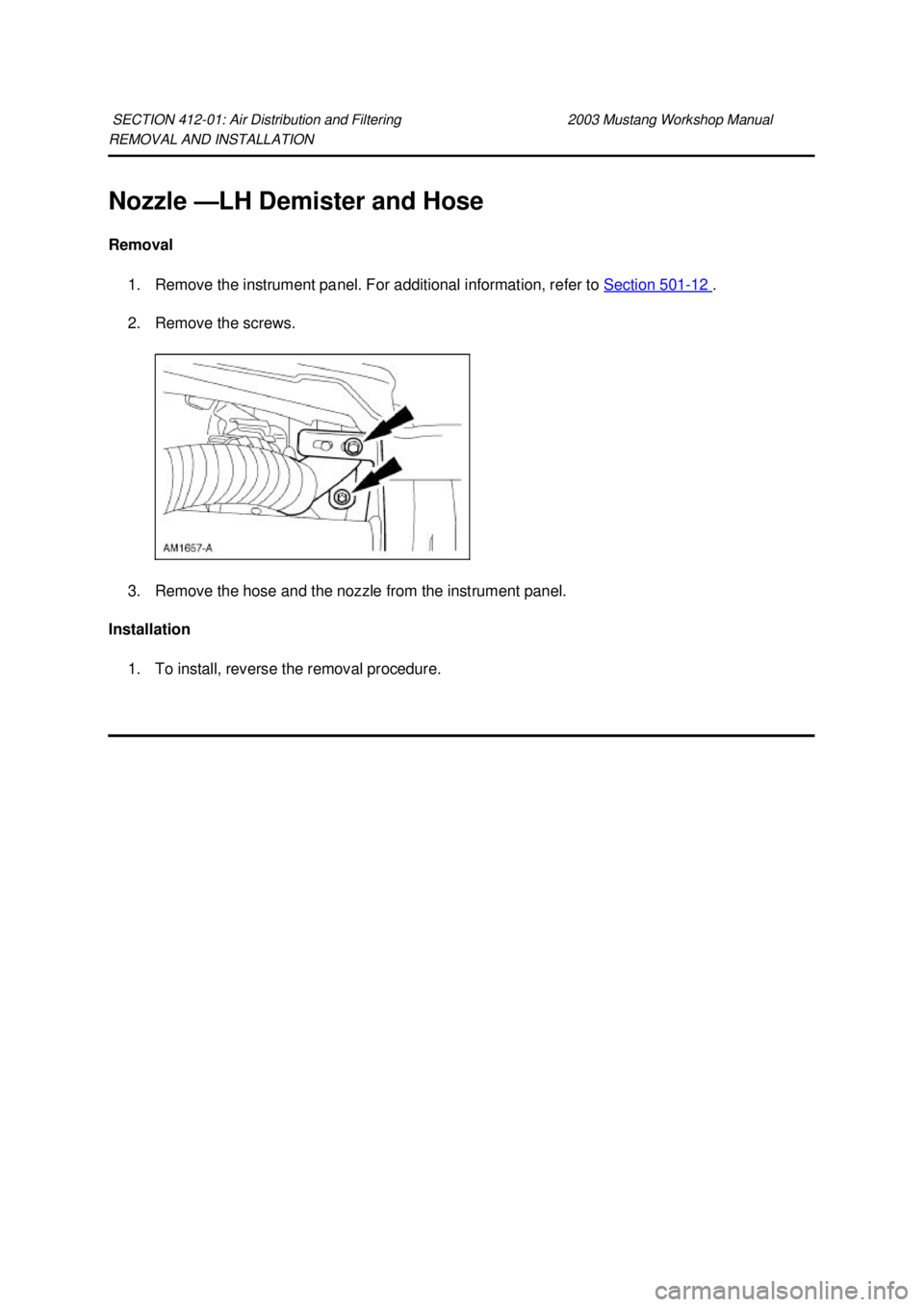

Nozzle —
LH Demister and Hose
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws.
3. Remove the hose and the nozzle from the instrument panel.
Installation
1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION

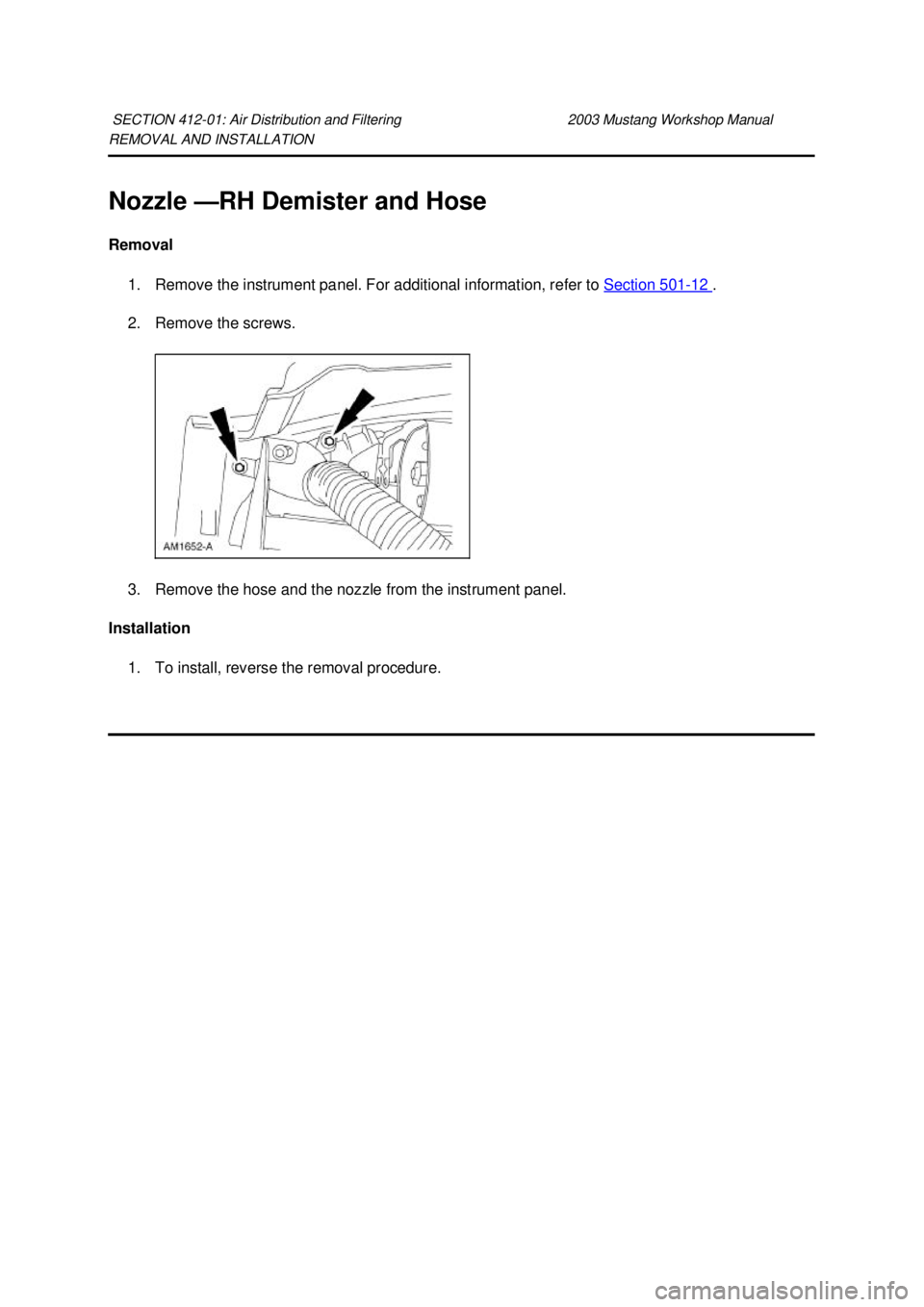

Nozzle —
RH Demister and Hose
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws.
3. Remove the hose and the nozzle from the instrument panel.
Installation
1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Duct —
Floor
Removal 1. Remove the evaporator core housing. For additional information, refer to Section 412 - 02 .
2. Remove the screws and remove the heater outlet floor duct.
Installation 1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION

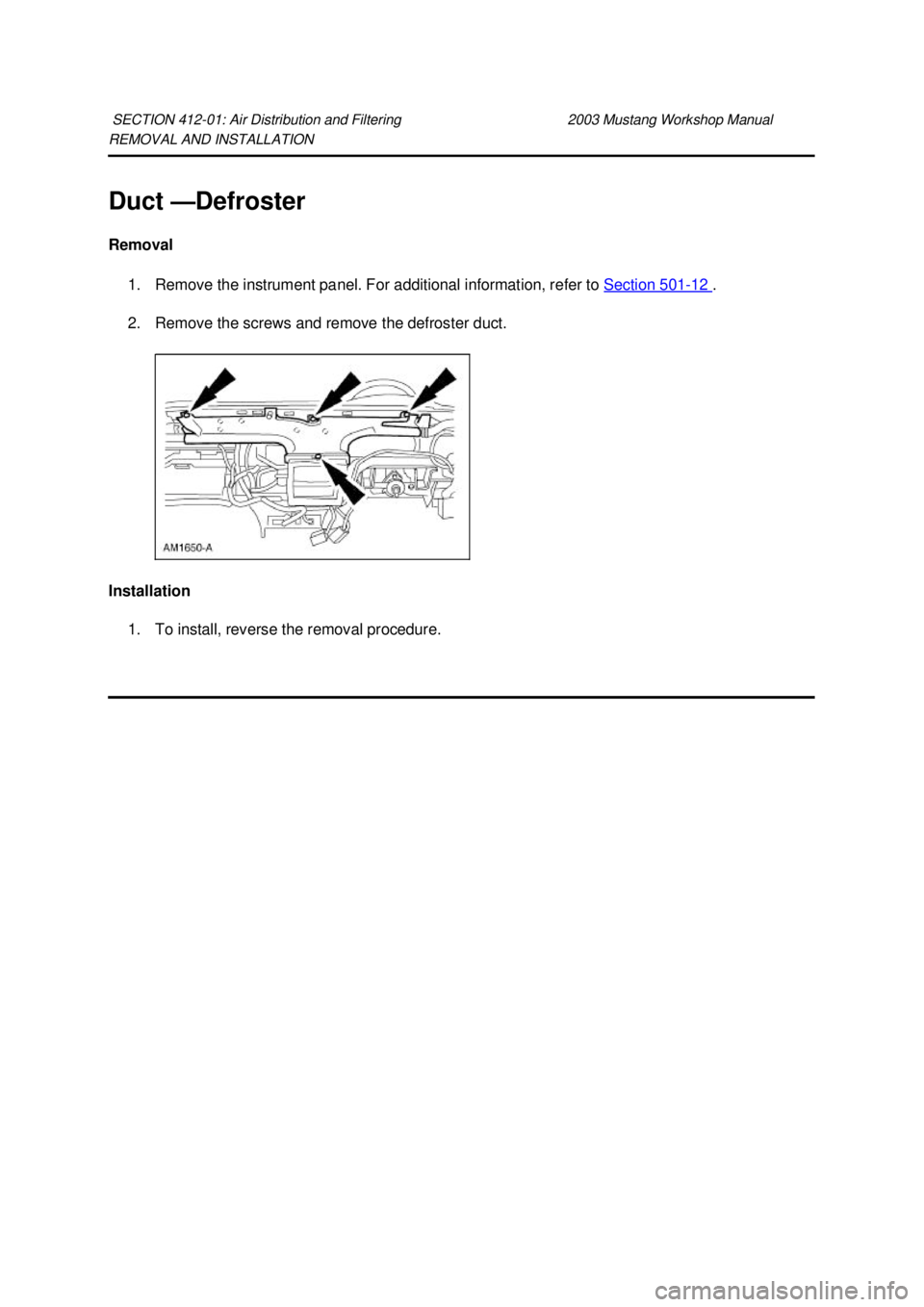

Duct —
Defroster
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws and remove the defroster duct.
Installation 1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION

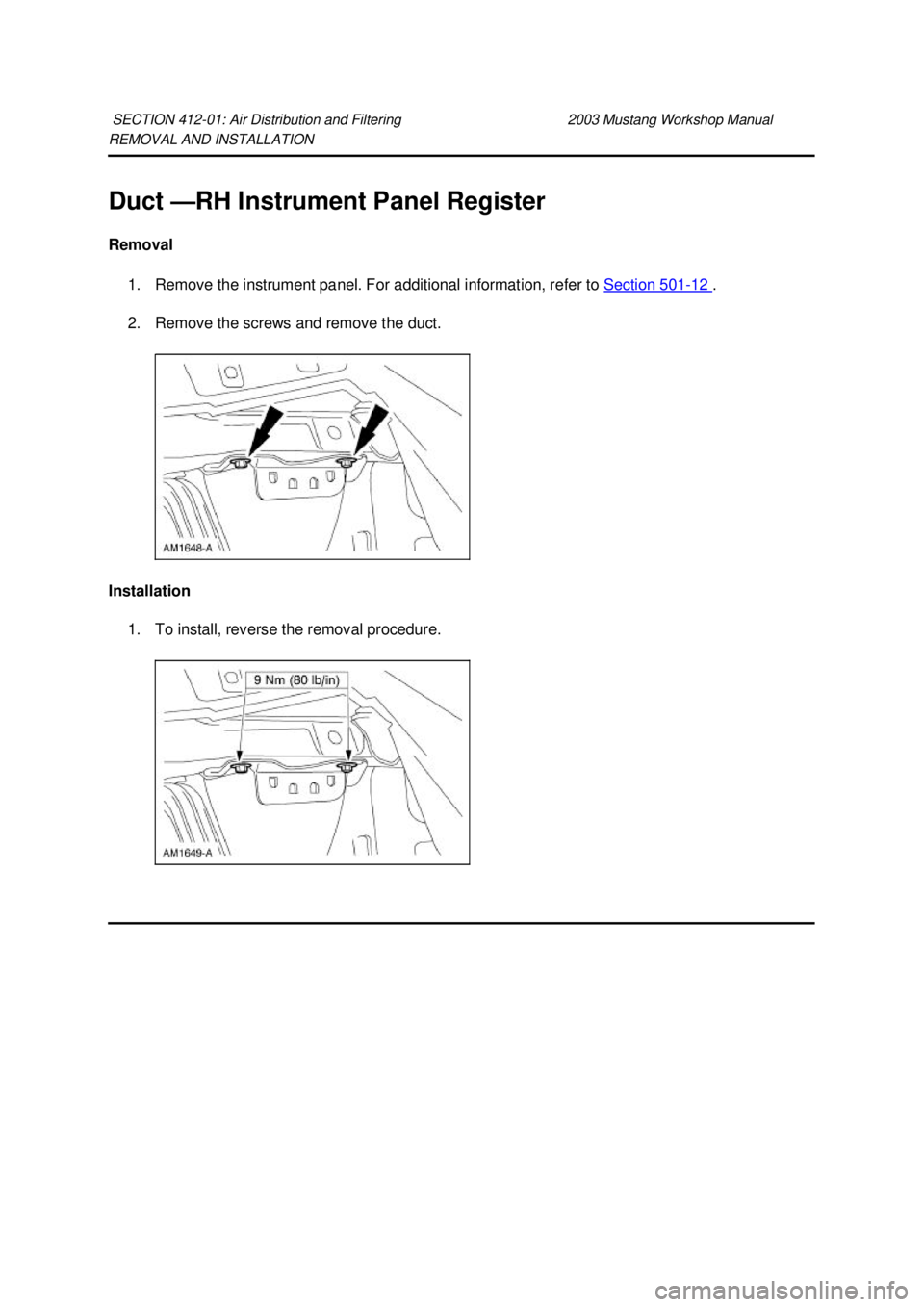

Duct —
RH Instrument Panel Register
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws and remove the duct.
Installation 1. To install, reverse the removal procedure.
