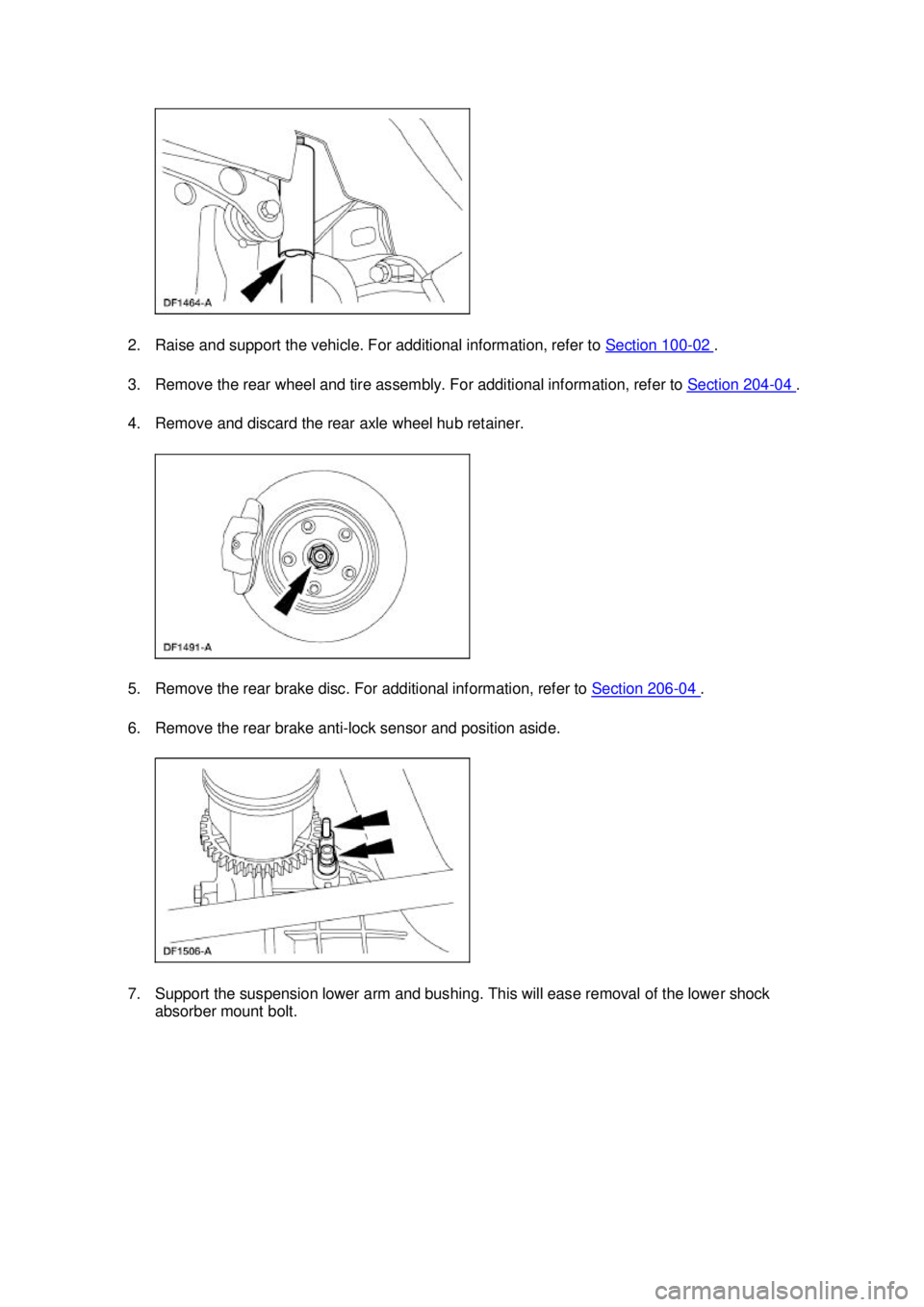

2. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .
3. Remove the rear wheel and tire assembly. For additional information, refer to Section 204 - 04 .
4. Remove and discard the rear axle wheel hub retainer.
5. Remove the rear brake disc. For additional information, refer to Section 206 - 04 .
6. Remove the rear brake anti- lock sensor and position aside.
7. Support the suspension lower arm and bushing. This will ease removal of the lower shock absorber mount bolt. Klj . 2 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

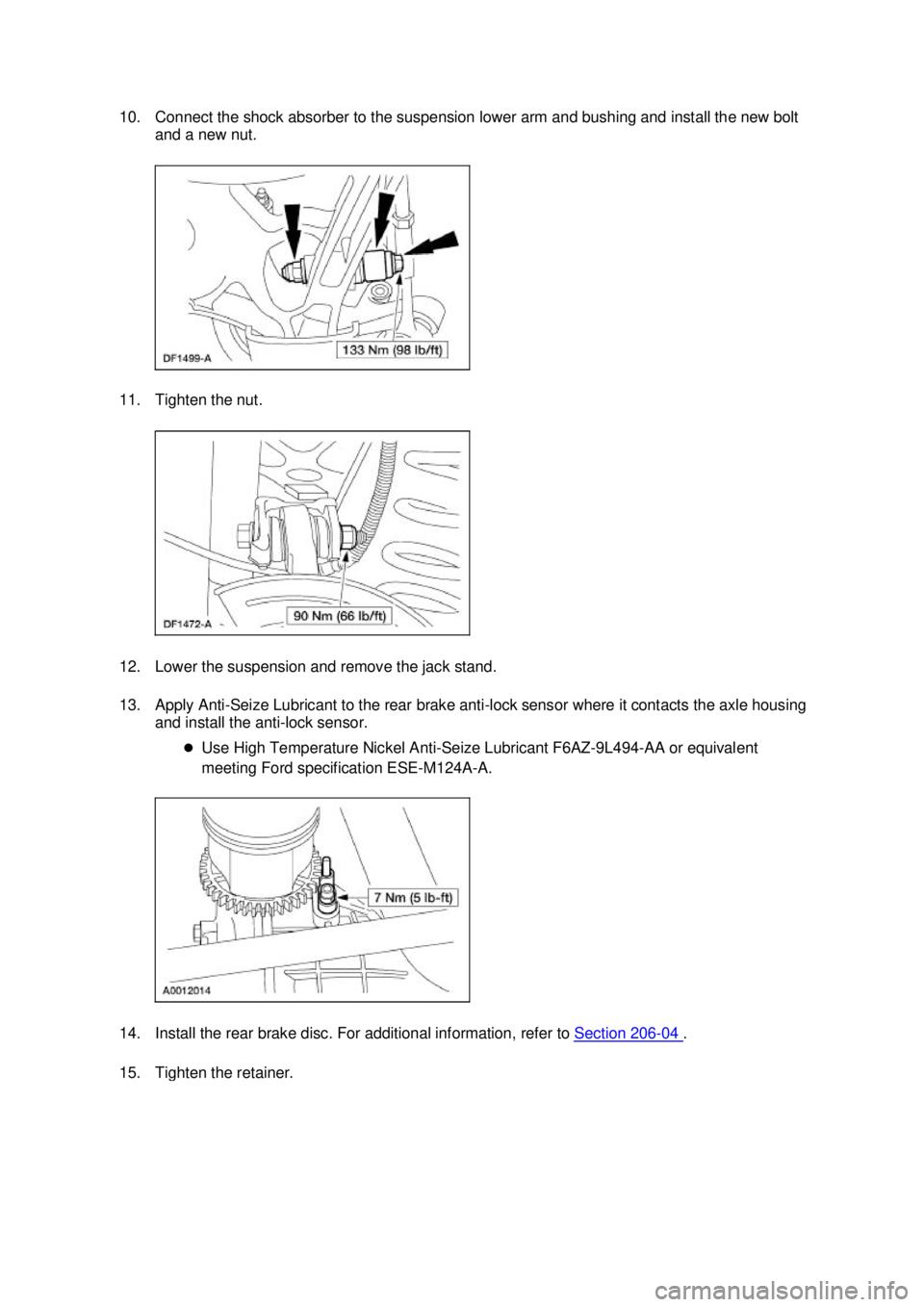

10. Connect the shock absorber to the suspension lower arm and bushing and install the new bolt
and a new nut.
11. Tighten the nut.
12. Lower the suspension and remove the jack stand.
13. Apply Anti- Seize Lubricant to the rear brake anti- lock sensor where it contacts the axle housing
and install the anti- lock sensor.
z Use High Temperature Nickel Anti- Seize Lubricant F6AZ-9L494-AA or equivalent
meeting Ford specification ESE-M124A- A.
14. Install the rear brake disc. For additional information, refer to Section 206 - 04 .
15. Tighten the retainer. Klj . 8 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY
Halfshaft Joint
Disassembly
1. CAUTION: Do not disassemble the halfshaft assembly. Install a new assembly if
worn or damaged.
Remove the halfshaft from the vehicle. For additional information, refer to Halfshaft in this
section.
2. If necessary, remove the dust seal assembly (2217). 1. Tap uniformly around the dust seal assembly.
2. Slide the dust seal assembly from the shaft.
3. Using a suitable bearing plate and a press, remove the rear brake anti- lock sensor indicator, if
necessary.
SECTION 205-

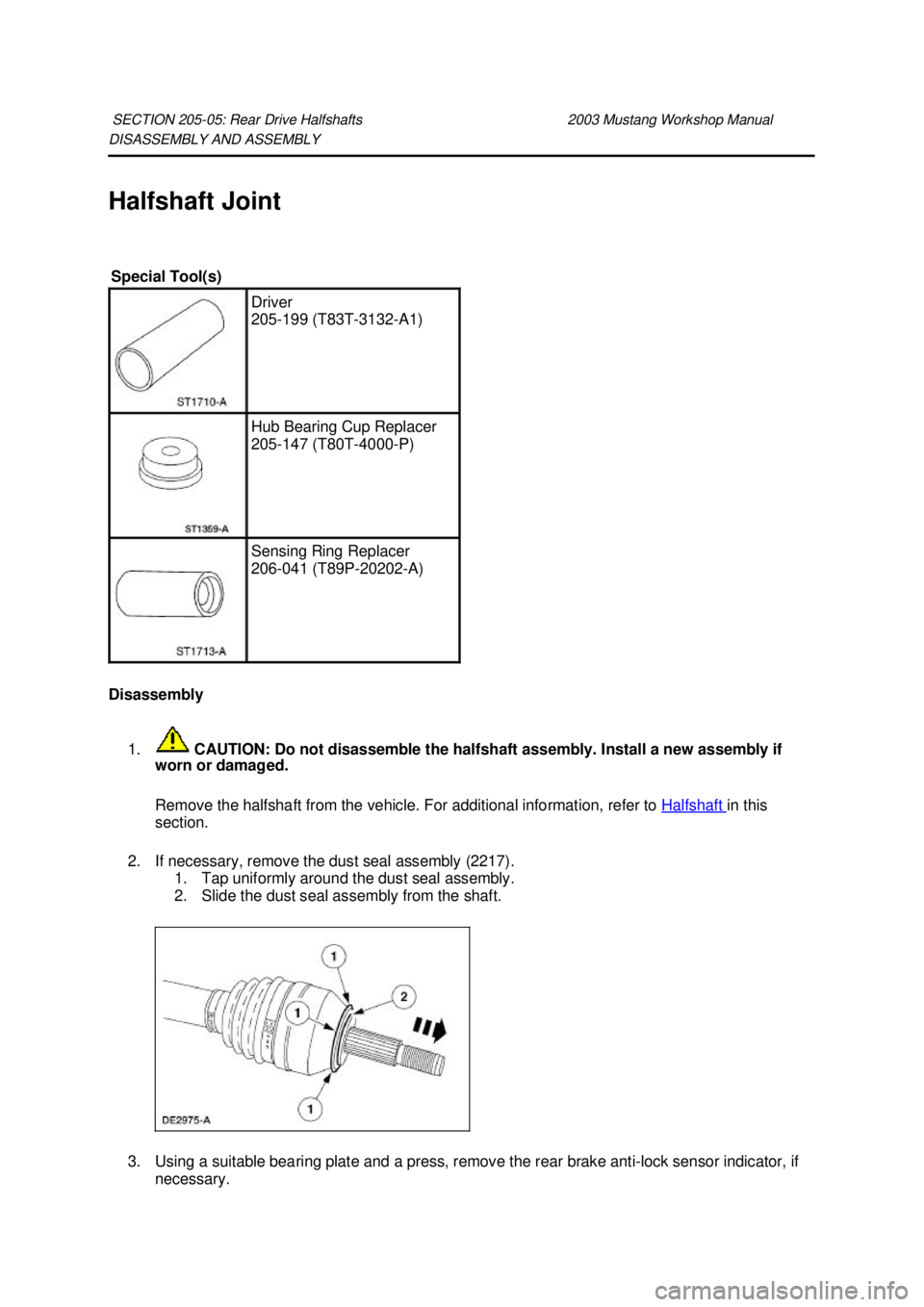

05: Rear Drive Halfshafts 2003 Mustang Workshop Manual Special Tool(s)
Driver
205-
199 (T83T-3132- A1) Hub Bearing Cup Replacer
205-
147 (T80T-4000- P) Sensing Ring Replacer
206-
041 (T89P-20202- A) Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Assembly

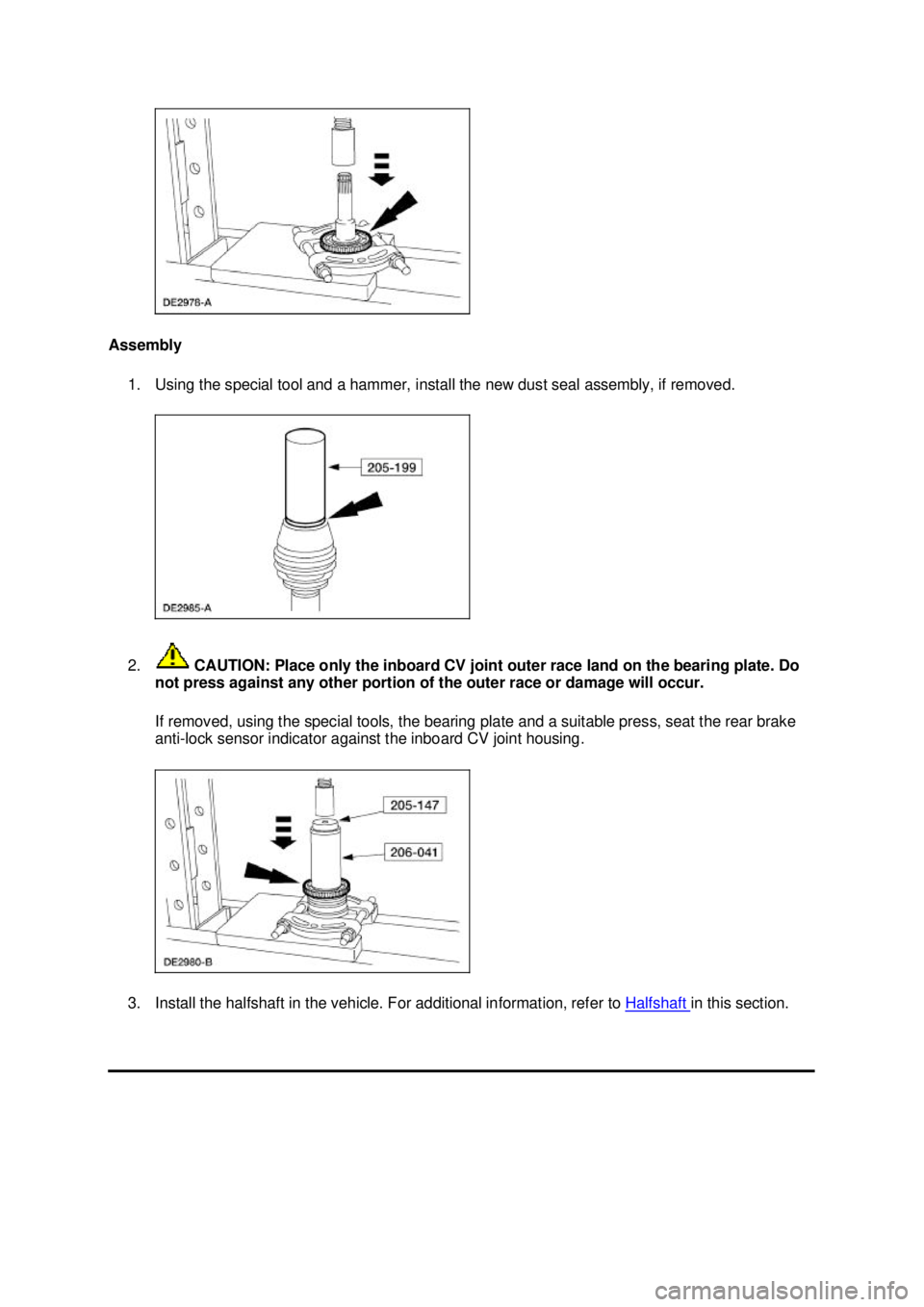

1. Using the special tool and a hammer, install the new dust seal assembly, if removed.
2. CAUTION: Place only the inboard CV joint outer race land on the bearing plate. Do
not press against any other portion of the outer race or damage will occur.
If removed, using the special tools, the bearing plate and a suitable press, seat the rear brake
anti- lock sensor indicator against the inboard CV joint housing.
3. Install the halfshaft in the vehicle. For additional information, refer to Halfshaft in this section. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

not machine a new brake disc.
7. For vehicles with a two- piece hub and brake disc assembly:
z Match-mark before disassembly.
z Remove the brake disc.
z Using a die grinder with a mild abrasive (Scotch Brite® type), remove any rust or
corrosion from the hub and brake disc mounting surfaces.
z Align the match- marks and reinstall the brake disc on the hub.
8. CAUTION: Do not use a bench lathe to machine brake discs.
NOTE: The depth of cut must be between 0.10 and 0.20 mm (0.004 and 0.008 inch). Lighter
cuts will cause heat and wear. Heavier cuts will cause poor brake disc surface finish.
Using on- vehicle brake lathe, machine the brake discs. Follow the manufacturer's instructions.
After machining, make sure the brake disc still meets the thickness specification.
9. Using a dial indicator, verify that the brake disc lateral runout is now within vehicle specification.
10. Remove any metal chips.
11. Remove the hub adapter.
12. Remove any remaining metal chips from the machining operation.
13. CAUTION: Do not carry out this step on rear drum- in-hat brake discs.
For vehicles with a two- piece hub and a non drum- in-hat brake disc assembly:
z Remove the brake disc from the hub.
z Remove any remaining metal chips from hub and brake disc mounting surfaces and from
the ABS sensor.
z Apply High Temperature Nickel Anti- Seize Lubricant F6AZ-9L494-AA to the mounting
surfaces.
z Using the match- marks, mount the brake disc on the hub.
14. Install the caliper and check brake operation.
Symptom Chart Symptom Chart
Condition
Possible Sources Action
z The Brakes Pull or
Drift z
Tire air pressure.
z Wheel alignment.
z Brake pads.
z Brake components.
z Suspension
component. z
Go To Pinpoint Test A .
z The Red Brake
Warning Indicator Is z
Instrument cluster.
z Circuit. z
Go To Pinpoint Test B . Klj . 4 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

The dual brake system is split front and rear with the front wheel brakes comprising of one circuit and
the rear wheel brakes, the other circuit.
Brake Fluid
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with
eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush with running
water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water
and induce vomiting. Get medical attention immediately.
Clean, fresh Ford High Performance DOT 3 Brake Fluid C6AZ-19542- AB or equivalent DOT 3 fluid
meeting Ford specification ESA- M6C25-A is the only brake fluid that should be used in Ford vehicles.
z Do not reuse brake fluid drained or bled from the system.
z Do not use brake fluid that has been stored in an open container.
z Do not mix different types of brake fluid.
Brake Master Cylinder
The brake master cylinder is a dual piston type. The brake master cylinder operates as follows: zWhen the brake pedal (2455) is depressed, pressure is applied by mechanical linkage to the
primary and secondary piston.
z Brake master cylinder pistons apply hydraulic pressure to the two hydraulic circuits.
z Brake master cylinder will not be overhauled, a new master cylinder is installed only.
The brake master cylinder consists of:
zbrake master cylinder reservoir (2K478)
z brake master cylinder body
Brake Master Cylinder Reservoir
NOTE: Whenever the brake master cylinder reservoir is removed from the brake master cylinder, new
grommets must be installed.
The brake master cylinder reservoir :
zis mounted to the brake master cylinder.
z holds fluid supply for each brake master cylinder hydraulic piston.
z provides visual fluid level markings.
z contains the brake master cylinder fluid level sensor. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

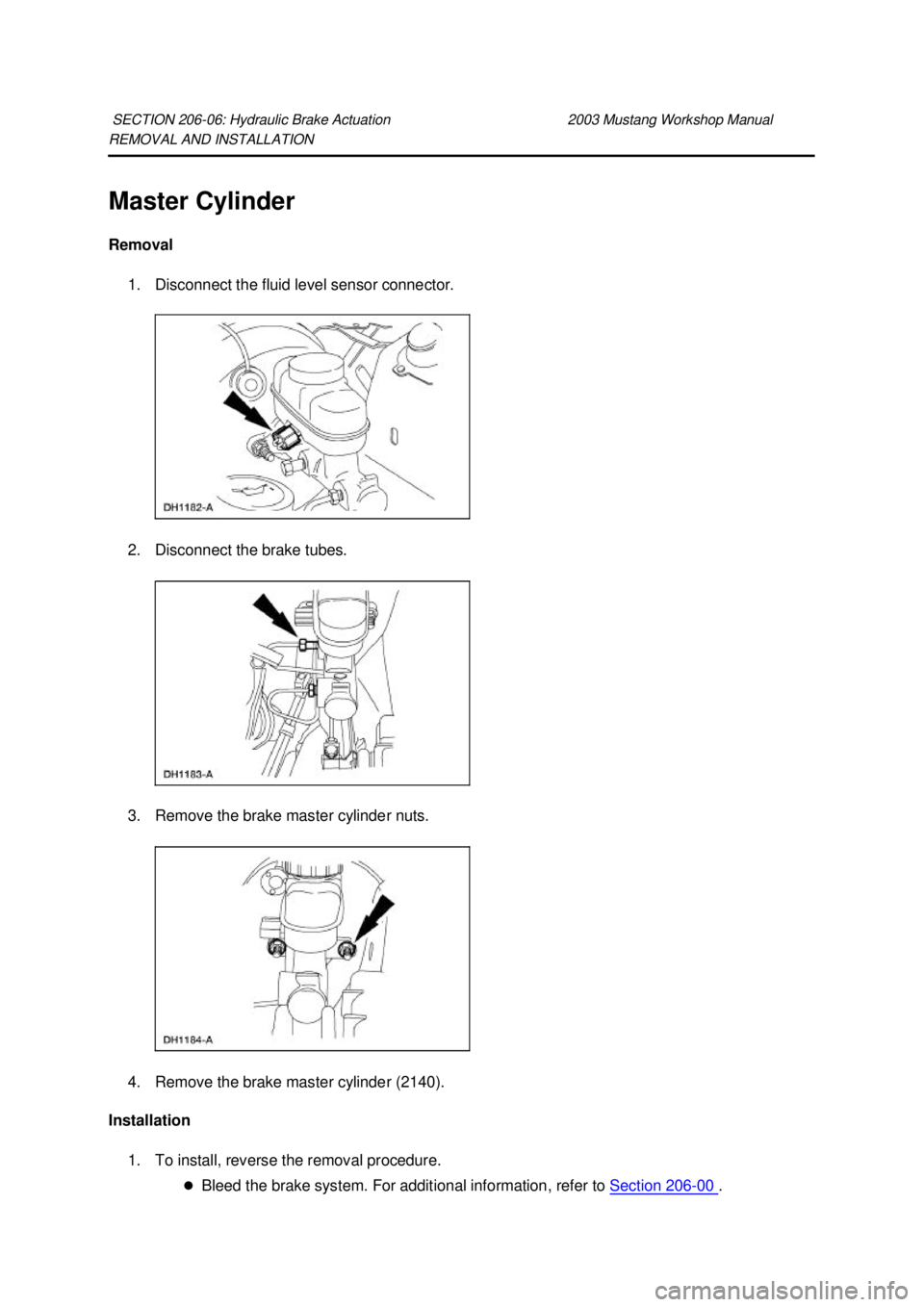

REMOVAL AND INSTALLATION
Master Cylinder
Removal
1. Disconnect the fluid level sensor connector.
2. Disconnect the brake tubes.
3. Remove the brake master cylinder nuts.
4. Remove the brake master cylinder (2140).
Installation
1. To install, reverse the removal procedure. zBleed the brake system. For additional information, refer to Section 206 - 00 .
SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

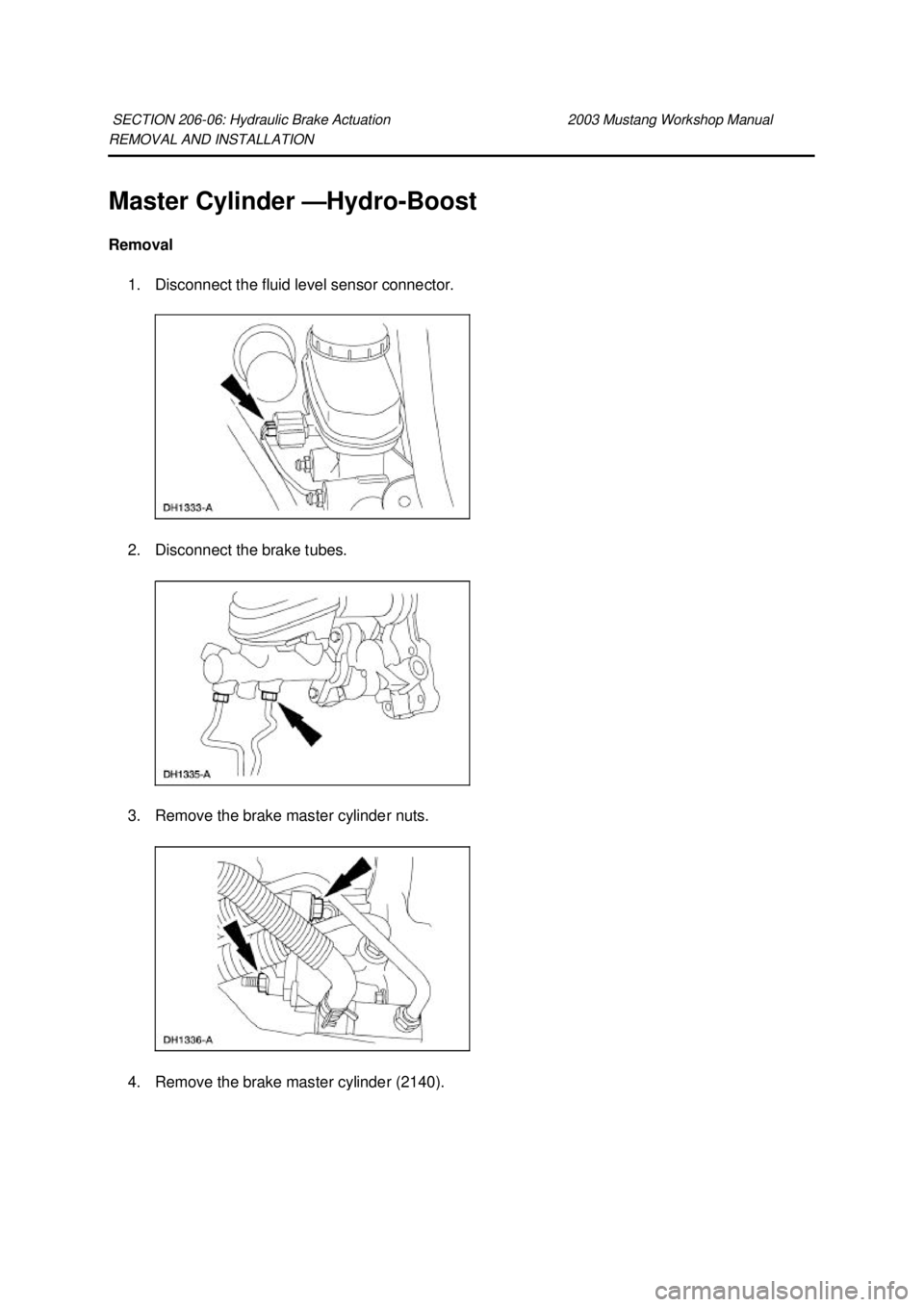

REMOVAL AND INSTALLATION
Master Cylinder —
Hydro-Boost
Removal 1. Disconnect the fluid level sensor connector.
2. Disconnect the brake tubes.
3. Remove the brake master cylinder nuts. 4. Remove the brake master cylinder (2140). SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Brake Booster —
Hydro-Boost
Removal WARNING: The power brake booster should not be carried by the accumulator, nor
should it ever be dropped on the accumulator. Check the snap ring on the accumulator for
correct seating before the power brake booster is used. The accumulator contains high-
pressure nitrogen gas and can be dangerous if mishandled.
WARNING: If the accumulator is to be disposed of, it must not be exposed to excessive
heat. Before discarding the accumulator, drill a 1.6- mm (1/16-inch) diameter hole in the end of
the accumulator can to relieve the gas pressure. Always wear safety glasses when performing
this operation.
1. With the engine off, depress the brake pedal (2455) several times to discharge the accumulator.
2. Disconnect the battery ground cable (14301). For additional information, refer to Section 414 -
01 .
3. Disconnect the fluid level sensor connector.
4. Disconnect the brake tubes.
SECTION 206-
07: Power Brake Actuation 2003 Mustang Workshop Manual Special Tool(s)
Installer Set, Teflon Seal
211-
D027 (D90P-3517- A) or
equivalent Klj . 1 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

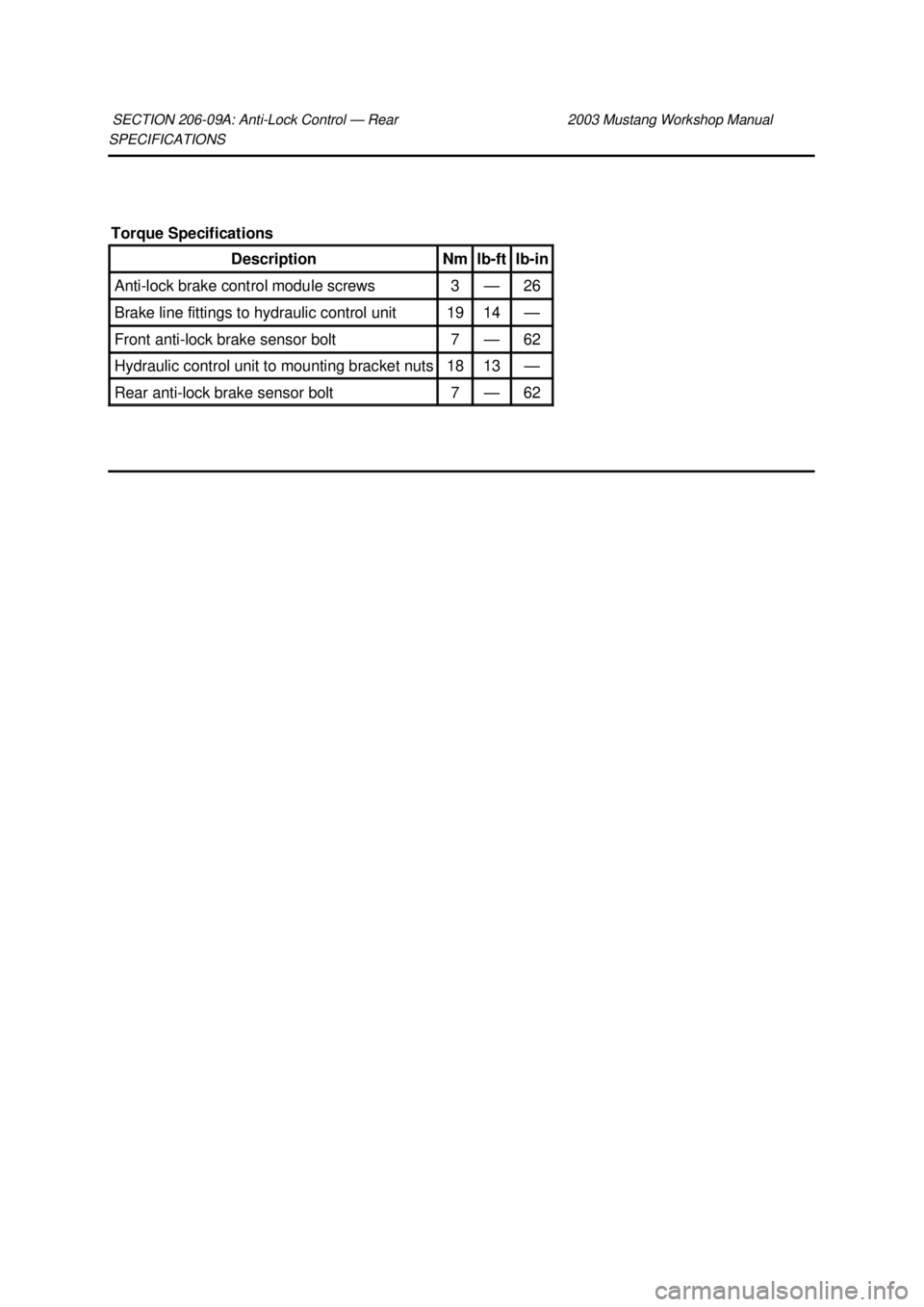

SPECIFICATIONS
SECTION 206-
09A: Anti-Lock Control — Rear 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Anti-
lock brake control module screws 3 — 26
Brake line fittings to hydraulic control unit 19 14 —
Front anti-
lock brake sensor bolt 7 — 62
Hydraulic control unit to mounting bracket nuts 18 13 —
Rear anti-
lock brake sensor bolt 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
