REMOVAL AND INSTALLATION

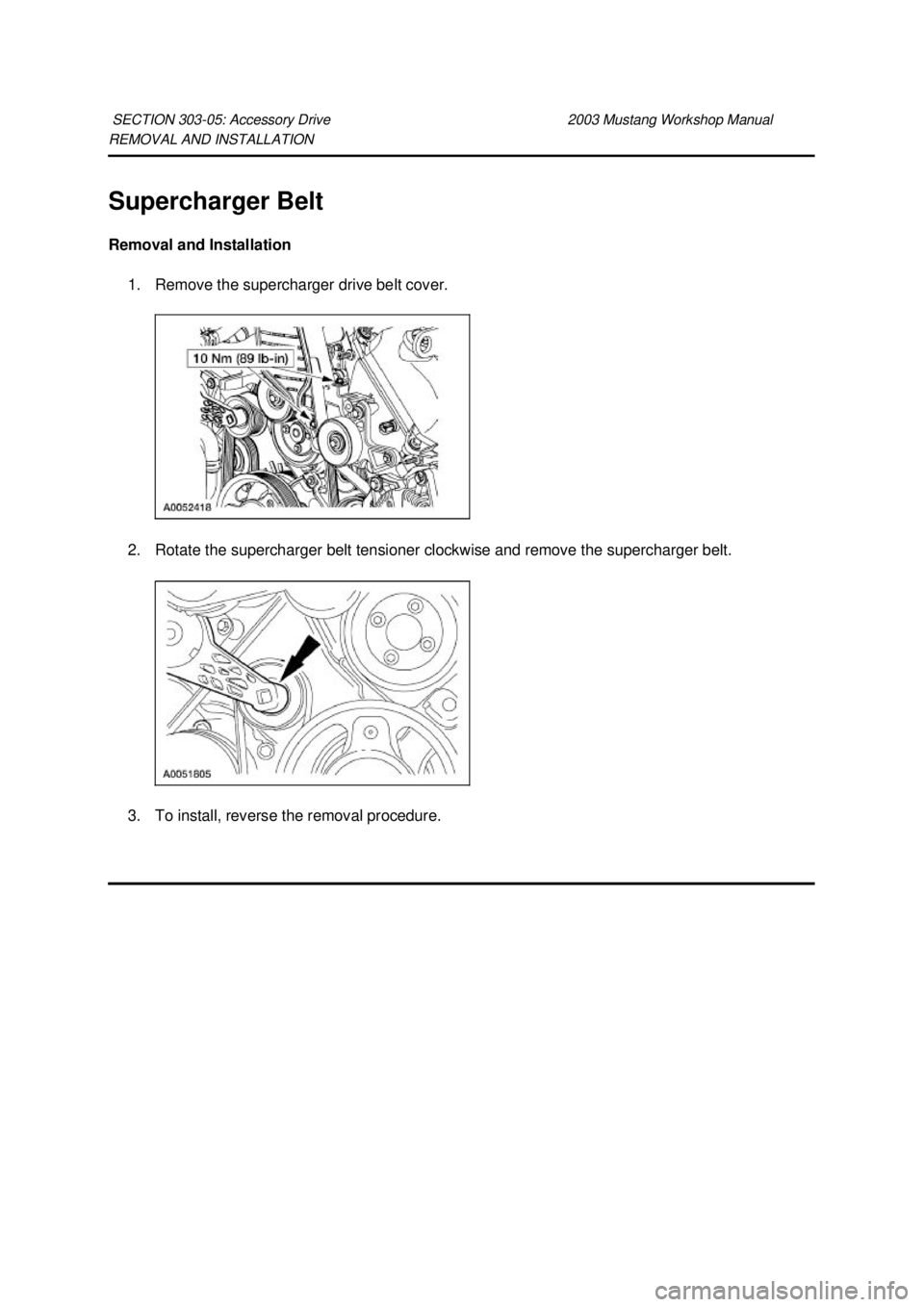

Supercharger Belt
Removal and Installation
1. Remove the supercharger drive belt cover.
2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

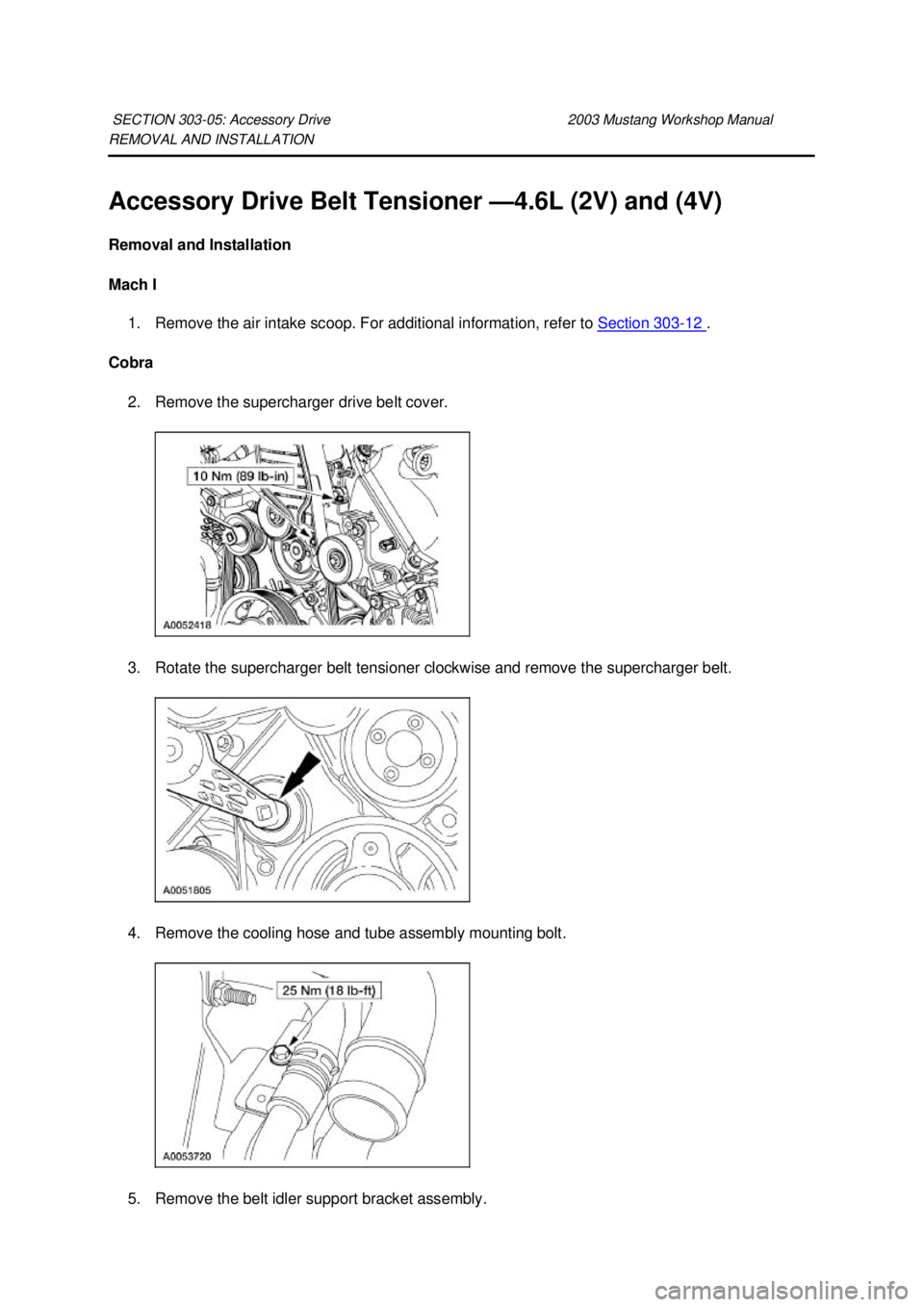

Accessory Drive Belt Tensioner —
4.6L (2V) and (4V)
Removal and Installation
Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
Cobra 2. Remove the supercharger drive belt cover.
3. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
4. Remove the cooling hose and tube assembly mounting bolt.
5. Remove the belt idler support bracket assembly.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

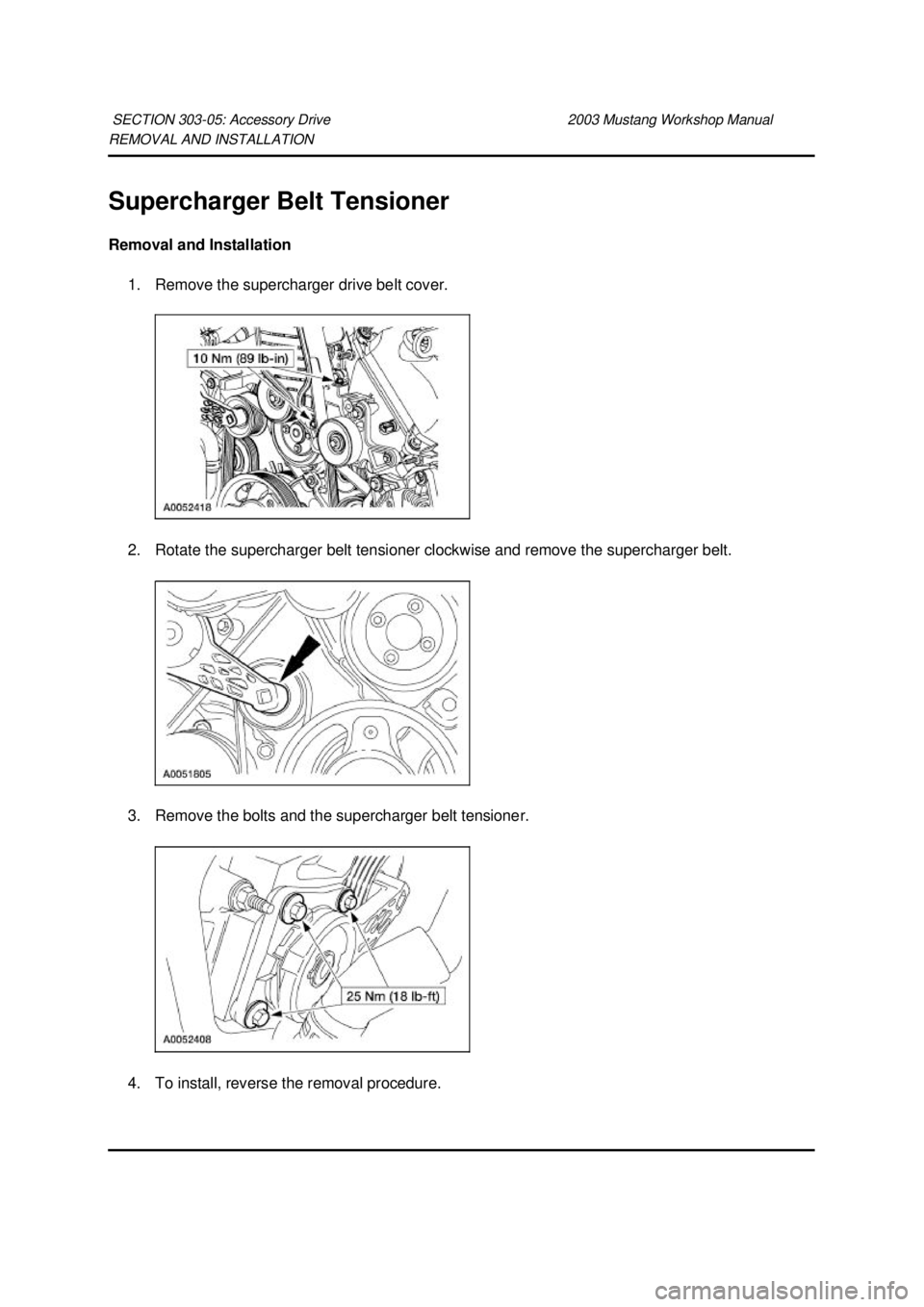

Supercharger Belt Tensioner
Removal and Installation
1. Remove the supercharger drive belt cover.
2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. Remove the bolts and the supercharger belt tensioner.
4. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

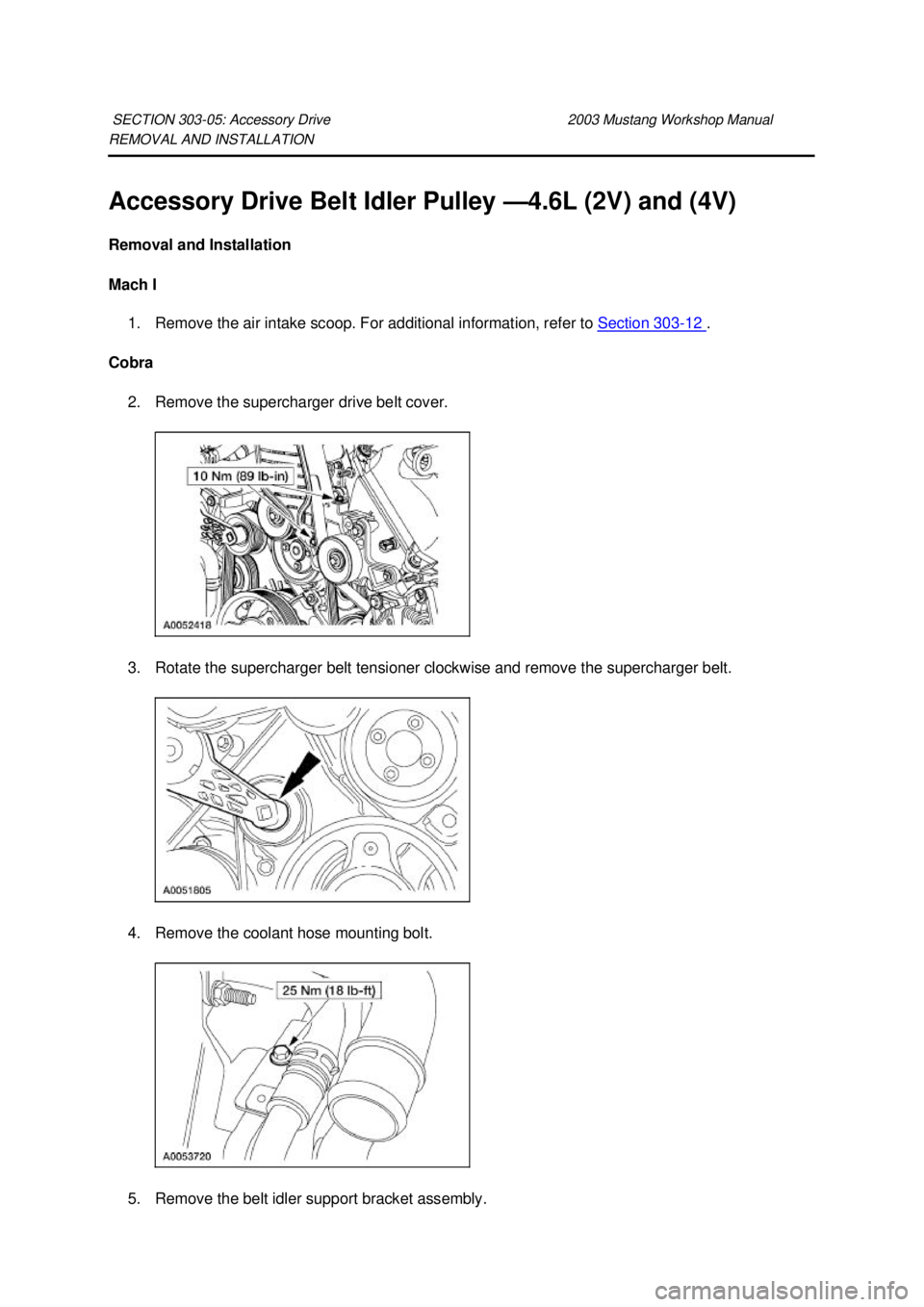

Accessory Drive Belt Idler Pulley —
4.6L (2V) and (4V)
Removal and Installation
Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
Cobra 2. Remove the supercharger drive belt cover.
3. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
4. Remove the coolant hose mounting bolt.
5. Remove the belt idler support bracket assembly.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

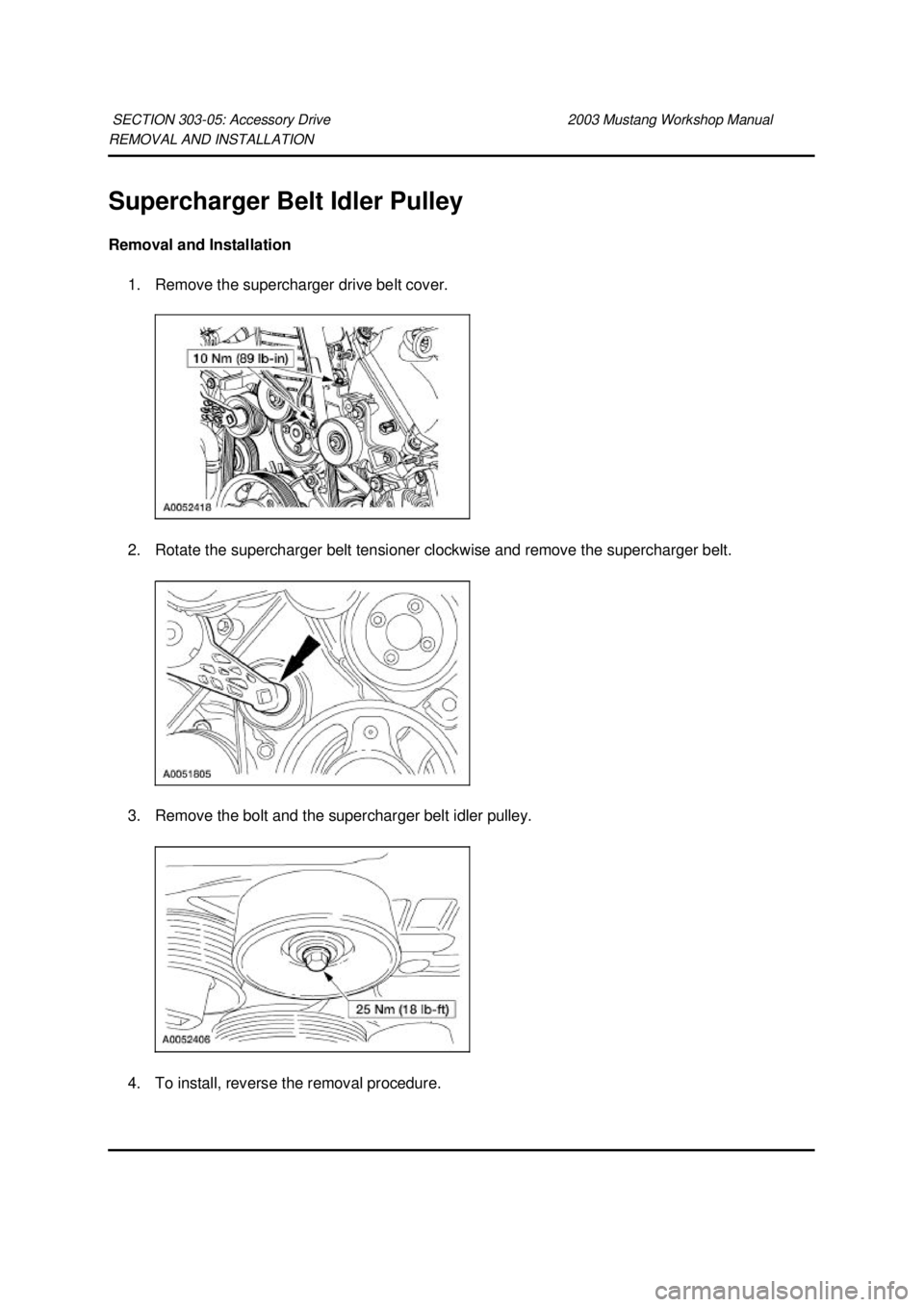

Supercharger Belt Idler Pulley
Removal and Installation
1. Remove the supercharger drive belt cover.
2. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.
3. Remove the bolt and the supercharger belt idler pulley.
4. To install, reverse the removal procedure.
SECTION 303-
05: Accessory Drive 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

12 o'clock position
„ Friction elements ·
3rd Gear:
„ Torque converter
„ Case to planet support spring
„ Friction elements ·
4th Gear:
„ Gear set
„ Friction elements
„ Torque converter ·
Reverse:
„ Gear set
„ Friction elements ·
Output shaft splines worn or damaged Other Noises/Vibrations
·
Main controls, valve resonance ·
Shift cable:
„ Vibration
„ Grounding
„ Cooler lines
„ Grounding ·
Locate source of disturbance and repair as
required.
Other Concerns: Engine Will Not Crank Possible Component Reference/Action
255 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
engine starting system
hardware, digital TR sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test C . Repair and
adjust as required. 355 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust the
digital TR sensor as necessary.
Other Concerns: No Park (P) Range Possible Component Reference/Action
256 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 356 —
HYDRAULIC/MECHANICAL ROUTINE Klj . 29 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

4. Using the special tool, install the intermediate clutch piston.
1. Position the intermediate clutch piston and the special tool onto the pump body.
2. Push the intermediate clutch piston to the bottom of the pump body bore, exerting even pressure and remove the special tool.
5. CAUTION: The piston bleed hole must be located at 12 o'clock position (towards
the top of the transmission). Shift problems may occur if installed incorrectly.
NOTE: The piston bleed hole is the only round hole in the pump body.
Locate the piston bleed hole.
6. Install by snapping the spring retainer assembly on pump body. Klj . 5 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

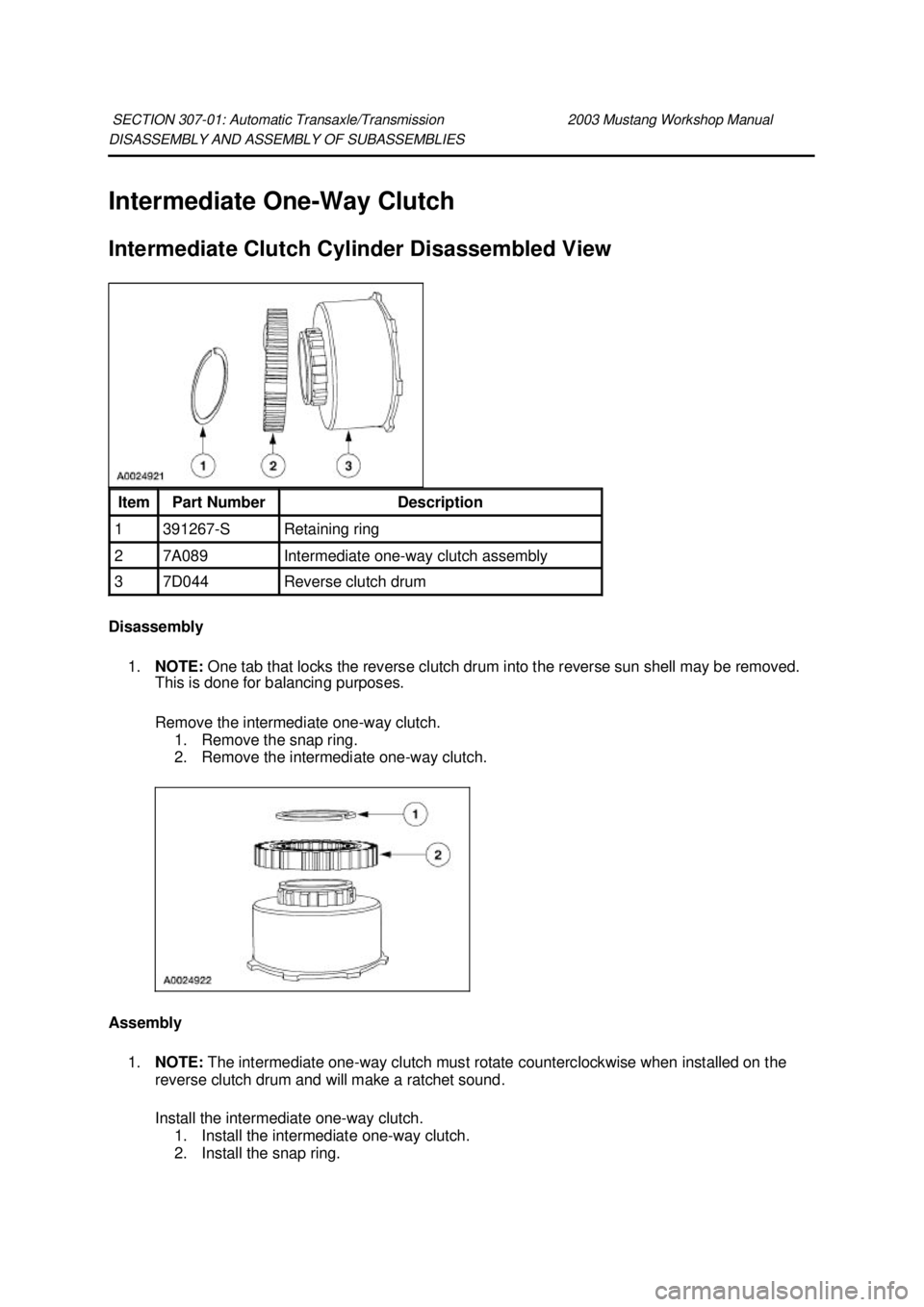

Intermediate One-
Way Clutch
Intermediate Clutch Cylinder Disassembled View
Disassembly 1. NOTE: One tab that locks the reverse clutch drum into the reverse sun shell may be removed.
This is done for balancing purposes.
Remove the intermediate one- way clutch.
1. Remove the snap ring.
2. Remove the intermediate one- way clutch.
Assembly 1. NOTE: The intermediate one- way clutch must rotate counterclockwise when installed on the
reverse clutch drum and will make a ratchet sound.
Install the intermediate one- way clutch.
1. Install the intermediate one- way clutch.
2. Install the snap ring.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Item Part Number Description
1 391267-
S Retaining ring
2 7A089 Intermediate one-
way clutch assembly 3 7D044 Reverse clutch drum Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

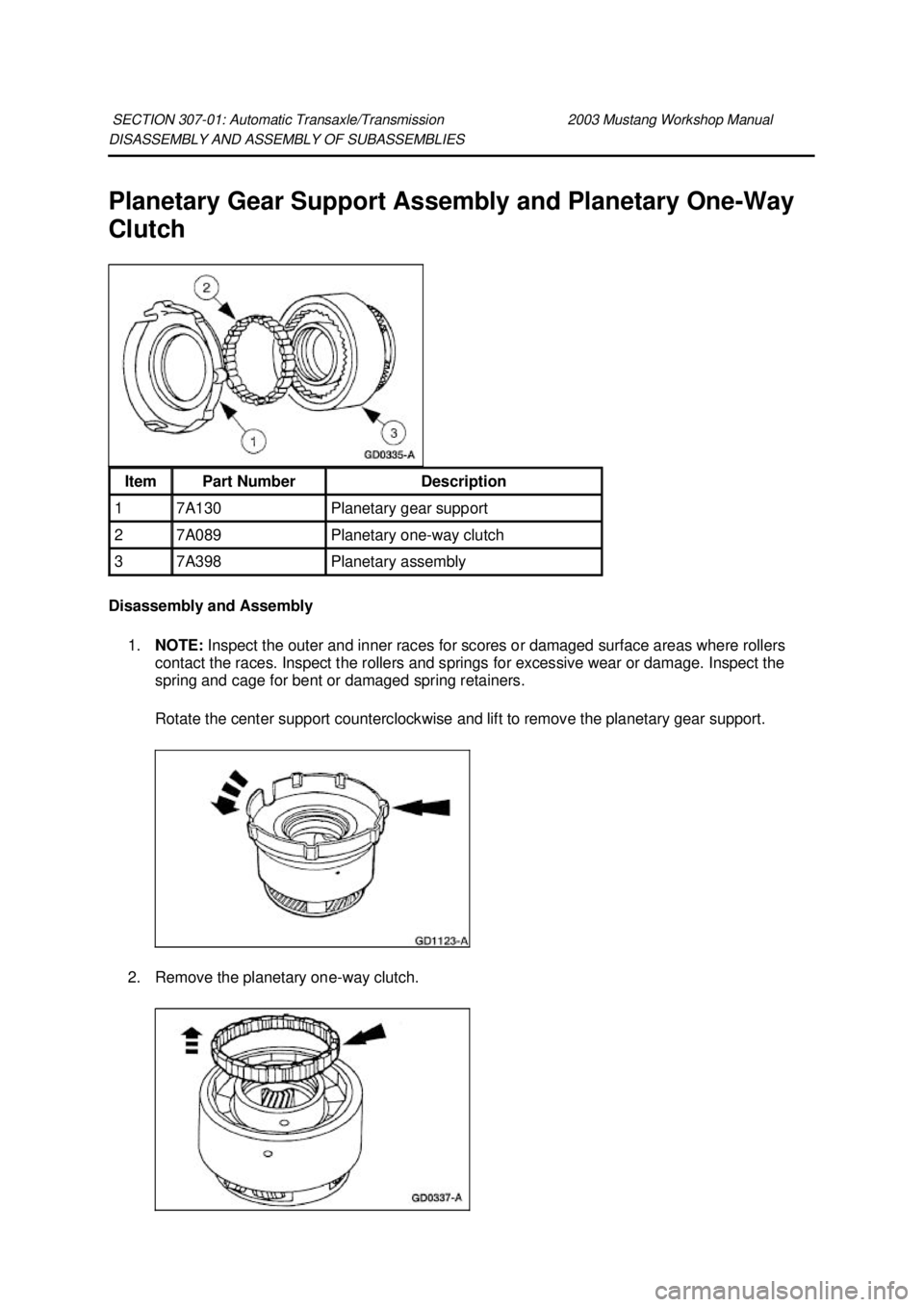

Planetary Gear Support Assembly and Planetary One-
Way
Clutch
Disassembly and Assembly
1. NOTE: Inspect the outer and inner races for scores or damaged surface areas where rollers
contact the races. Inspect the rollers and springs for excessive wear or damage. Inspect the
spring and cage for bent or damaged spring retainers.
Rotate the center support counterclockwise and lift to remove the planetary gear support.
2. Remove the planetary one- way clutch.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Item Part Number Description
1 7A130 Planetary gear support
2 7A089 Planetary one-
way clutch 3 7A398 Planetary assembly Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Torque Converter Impeller to Pump Stator Interference
Check
1. NOTE: Front pump support may remain in front pump support and gear during this test.
Position the front pump support with the splines up.
2. Mount the torque converter on the front pump support with the splines on the one- way clutch
inner race, engaging the mating splines of the front pump support.
3. Hold the front pump support stationary and rotate the torque converter counterclockwise. zThe torque converter should rotate freely with no signs of scraping.
z If there are signs of scraping, install a new or remanufactured torque converter.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
