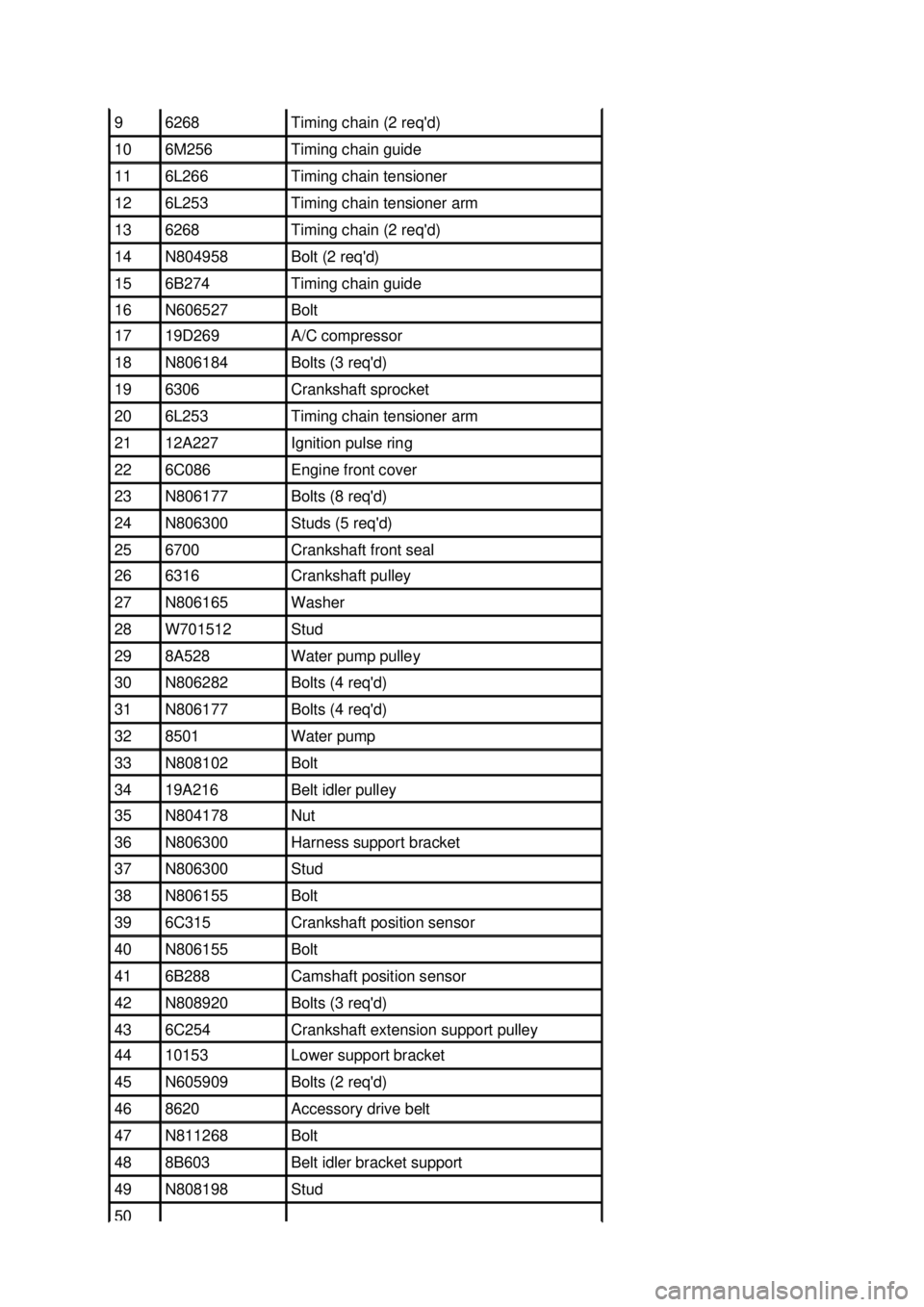

9 6268 Timing chain (2 req'd)
10 6M256 Timing chain guide
11 6L266 Timing chain tensioner
12 6L253 Timing chain tensioner arm
13 6268 Timing chain (2 req'd)
14 N804958 Bolt (2 req'd)
15 6B274 Timing chain guide
16 N606527 Bolt
17 19D269 A/C compressor
18 N806184 Bolts (3 req'd)
19 6306 Crankshaft sprocket
20 6L253 Timing chain tensioner arm
21 12A227 Ignition pulse ring
22 6C086 Engine front cover
23 N806177 Bolts (8 req'd)
24 N806300 Studs (5 req'd)
25 6700 Crankshaft front seal
26 6316 Crankshaft pulley
27 N806165 Washer
28 W701512 Stud
29 8A528 Water pump pulley
30 N806282 Bolts (4 req'd)
31 N806177 Bolts (4 req'd)
32 8501 Water pump
33 N808102 Bolt
34 19A216 Belt idler pulley
35 N804178 Nut
36 N806300 Harness support bracket
37 N806300 Stud
38 N806155 Bolt
39 6C315 Crankshaft position sensor
40 N806155 Bolt
41 6B288 Camshaft position sensor
42 N808920 Bolts (3 req'd)
43 6C254 Crankshaft extension support pulley
44 10153 Lower support bracket
45 N605909 Bolts (2 req'd)
46 8620 Accessory drive belt
47 N811268 Bolt
48 8B603 Belt idler bracket support
49 N808198 Stud
50 Klj . 8 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9N491 Hose and tube assembly
Item Part Number Description
1 6083 Cylinder head gasket
2 — Bolt (2 req'd)
3 — Washer (2 req'd)
4 6255 Spacer
5 — Secondary timing chain (2 req'd)
6 — Screw and washer
7 6C271 Timing chain vibration damper Klj . 9 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Timing Drive Components
Removal CAUTION: Since the engine is not free- wheeling, if the crankshaft (6303) or the camshafts
(6250) are moved in any manner during removal and installation, the crankshaft and the
camshafts must be resynchronized.
1. Remove the engine front cover (6019). For additional information, refer to Engine Front Cover in
this section.
2. Remove the crankshaft sensor ring from the crankshaft.
3. CAUTION: Unless otherwise instructed, at no time when the timing chains (6268)
are removed and the cylinder heads (6049) are installed is the crankshaft (6303) or the
camshaft (6250) to be rotated. Severe piston (6108) and valve damage will occur.
Using the special tool, position the crankshaft as shown.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Holding Tool, Crankshaft
303-
448 (T93P-6303- A) Klj . 1 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4.
CAUTION: The camshaft timing marks must be correctly lined up or damage to the
valves and pistons can occur.
NOTE: The copper links on the timing chain may not line up with the timing marks on the
sprockets.
Make sure the timing marks on the camshaft sprockets are correctly positioned. If necessary,
turn the crankshaft one full turn clockwise to correctly position the sprockets.
5. NOTE: LH shown; RH similar.
Remove the two bolts, the timing chain tensioner (6L266) and tensioner arm (6L253).
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
Remove the LH and RH timing chains and the crankshaft sprocket (6306).
zRemove the special tool from the crankshaft.
z Remove the RH timing chain from camshaft sprocket.
z Remove the RH timing chain from the crankshaft sprocket.
z Remove the LH timing chain from the camshaft sprocket.
z Remove the LH timing chain and crankshaft sprocket. Klj . 2 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7.
CAUTION: The bolts are different lengths and must be returned to their original
location.
NOTE: RH shown; LH similar.
Remove the bolts and the timing chain guides (6K297).
Installation 1. CAUTION: Timing chain procedures must be followed exactly or damage to the
pistons or valves will result.
Compress the tensioner plunger, using a soft- jawed vise.
2. Install a retaining clip on the tensioner to hold the plunger in during installation. zRemove the tensioner from the vise. Klj . 3 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. If the copper links are not visible, mark one link on one end and one link on the other end, and
use as timing marks.
4. Install the timing chain guides.
5. Rotate the LH camshaft sprocket until the timing mark is approximately at the 12 o' clock position. Rotate the RH camshaft timing sprocket until the timing mark is approximately in the
11 o' clock position.
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are Klj . 4 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past position
shown or severe piston or valve damage will occur.
Using the special tool, position the crankshaft.
7. Remove the special tool.
8. Install the crankshaft sprocket with the flange facing forward.
9. NOTE: LH timing chain shown; RH similar.
Install the LH timing chain onto the crankshaft sprocket, aligning the one copper link on the
timing chain (6268) with the slot on the crankshaft sprocket.
10. Verify the camshaft sprocket to copper link alignment. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

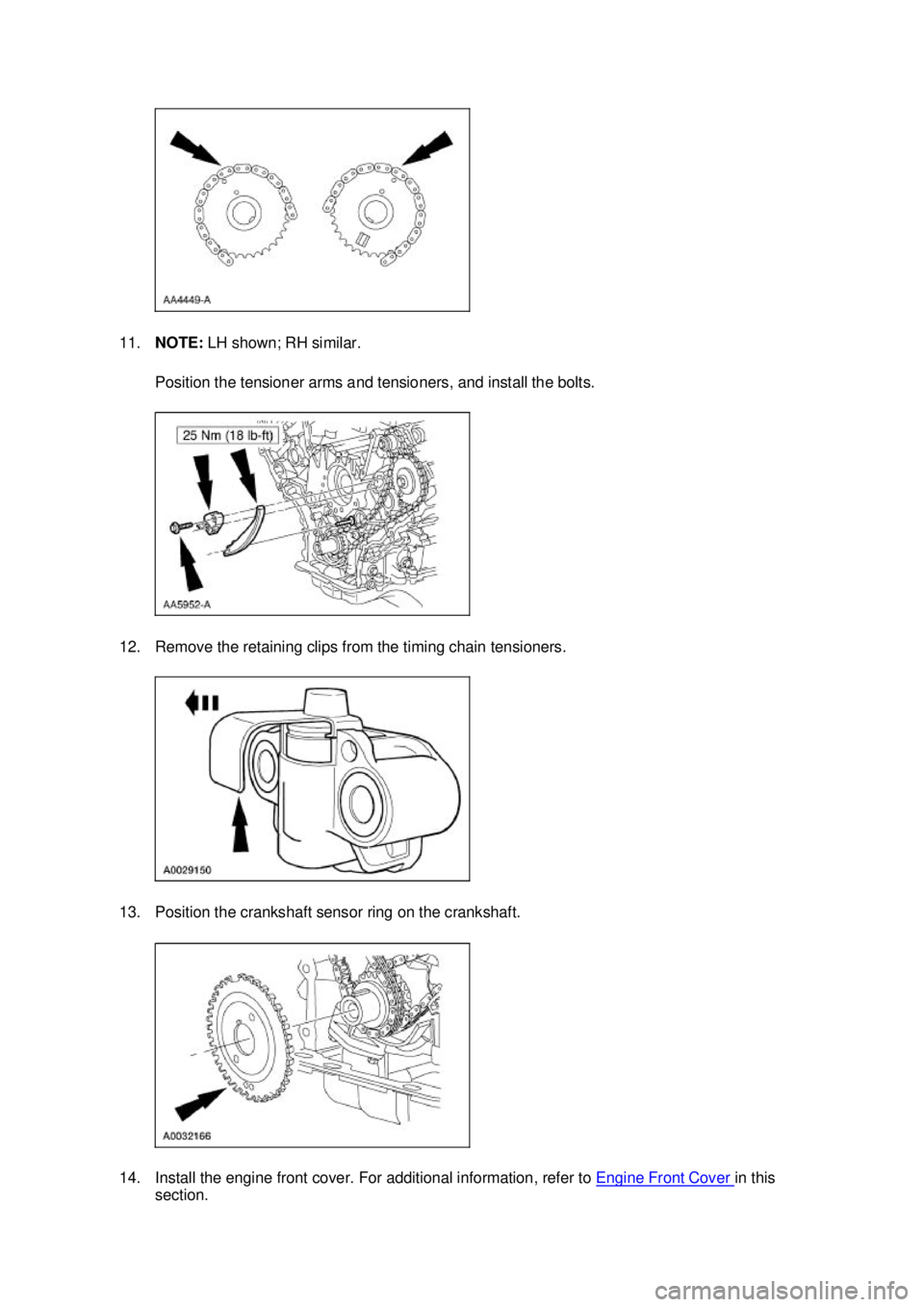

11.
NOTE: LH shown; RH similar.
Position the tensioner arms and tensioners, and install the bolts.
12. Remove the retaining clips from the timing chain tensioners.
13. Position the crankshaft sensor ring on the crankshaft.
14. Install the engine front cover. For additional information, refer to Engine Front Cover in this
section. Klj . 6 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

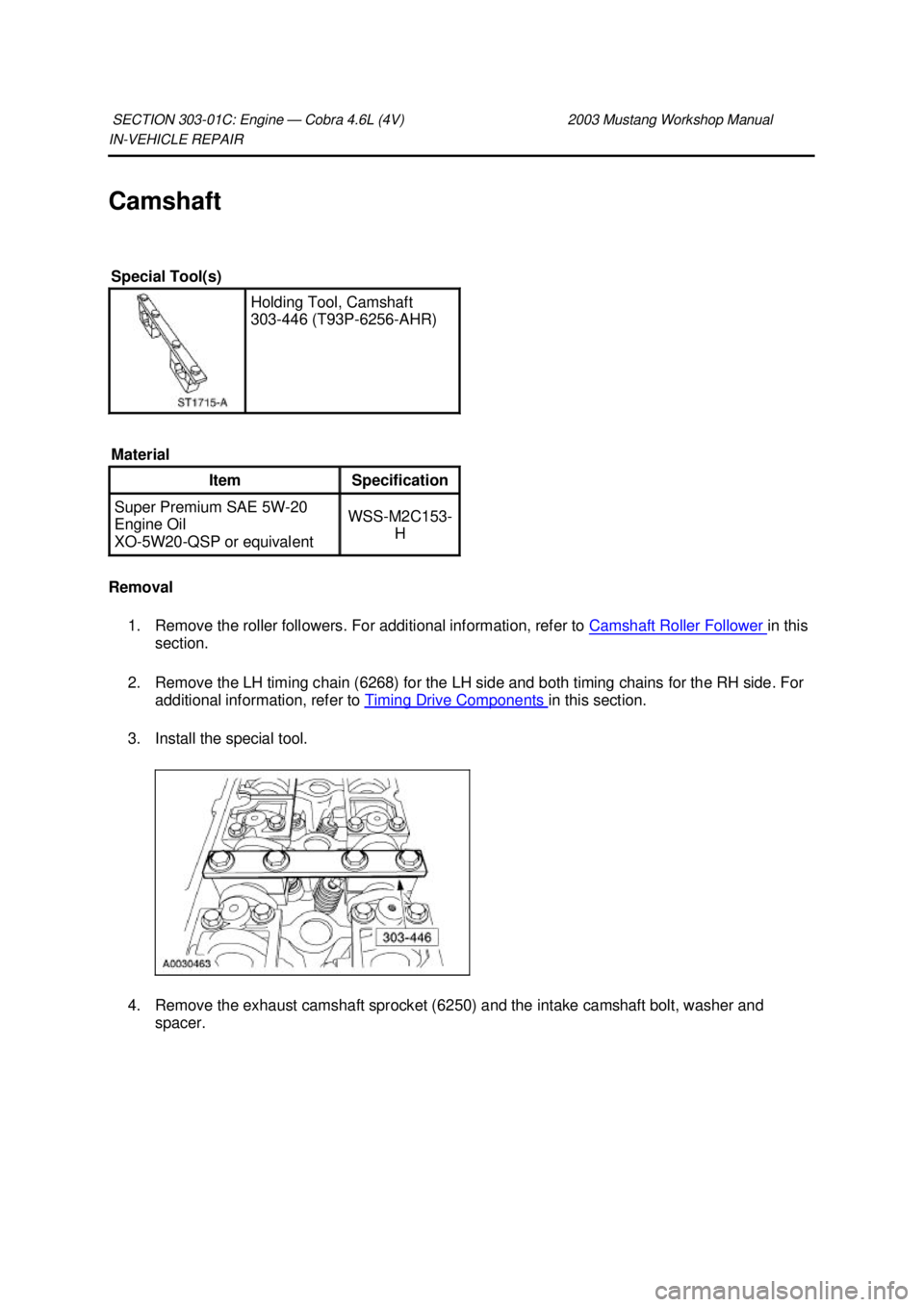

Camshaft
Removal 1. Remove the roller followers. For additional information, refer to Camshaft Roller Follower in this
section.
2. Remove the LH timing chain (6268) for the LH side and both timing chains for the RH side. For additional information, refer to Timing Drive Components in this section.
3. Install the special tool.
4. Remove the exhaust camshaft sprocket (6250) and the intake camshaft bolt, washer and spacer.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Holding Tool, Camshaft
303-
446 (T93P-6256- AHR)
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

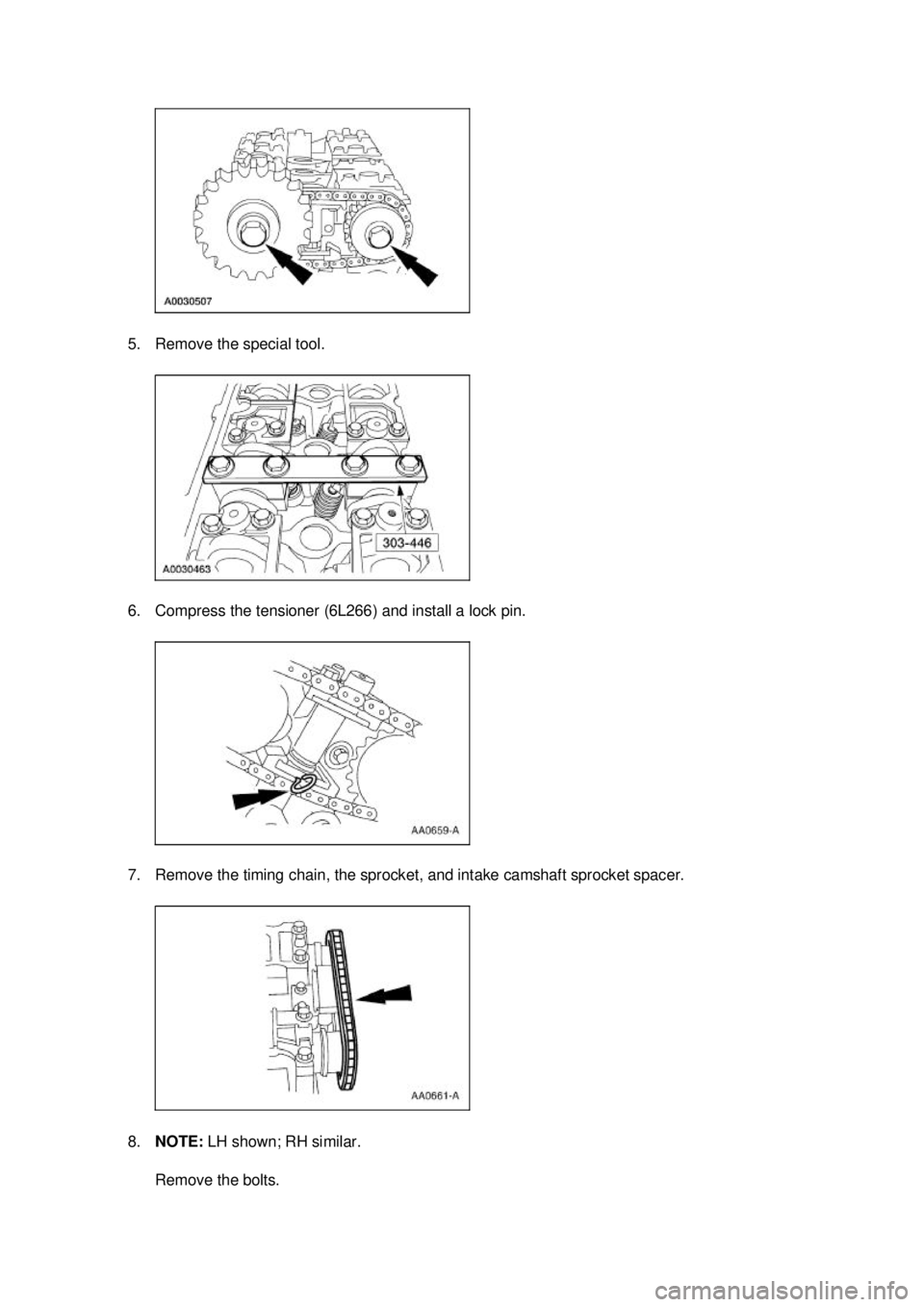

5. Remove the special tool.
6. Compress the tensioner (6L266) and install a lock pin.
7. Remove the timing chain, the sprocket, and intake camshaft sprocket spacer.
8.
NOTE: LH shown; RH similar.
Remove the bolts. Klj . 2 ba
