4.
CAUTION: The camshaft timing marks must be correctly lined up or damage to the
valves and pistons can occur.
NOTE: The copper links on the timing chain may not line up with the timing marks on the
sprockets.
Make sure the timing marks on the camshaft sprockets are correctly positioned. If necessary,
turn the crankshaft one full turn clockwise to correctly position the sprockets.
5. NOTE: LH shown; RH similar.
Remove the two bolts, the timing chain tensioner and tensioner arm.
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
Remove the LH and RH timing chains and the crankshaft sprocket.
zRemove the special tool from the crankshaft.
z Remove the RH timing chain from camshaft sprocket.
z Remove the RH timing chain from the crankshaft sprocket.
z Remove the LH timing chain from the camshaft sprocket.
z Remove the LH timing chain and the crankshaft sprocket. Klj . 2 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7.
CAUTION: The bolts are different lengths and must be returned to their original
location.
NOTE: RH shown; LH similar.
Remove the bolts and the timing chain guides.
Installation 1. CAUTION: Timing chain procedures must be followed exactly or damage to the
pistons or valves will result.
Compress the tensioner plunger, using a soft- jawed vise.
2. Install a retaining clip on the tensioner to hold the plunger in during installation. zRemove the tensioner from the vise. Klj . 3 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. If the copper links are not visible, mark one link on one end and one link on the other end, and
use as timing marks.
4. Install the timing chain guides.
5. Rotate the LH camshaft sprocket until the timing mark is approximately at the 12 o' clock position. Rotate the RH camshaft timing sprocket until the timing mark is approximately in the
11 o' clock position.
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are Klj . 4 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past position
shown or severe piston or valve damage will occur.
Using the special tool, position the crankshaft.
7. Remove the special tool.
8. Install the crankshaft sprocket with the flange facing forward.
9. NOTE: LH timing chain shown; RH similar.
Install the LH timing chain onto the crankshaft sprocket, aligning the one copper link on the
timing chain with the slot on the crankshaft sprocket.
10. Verify the camshaft sprocket to copper link alignment. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

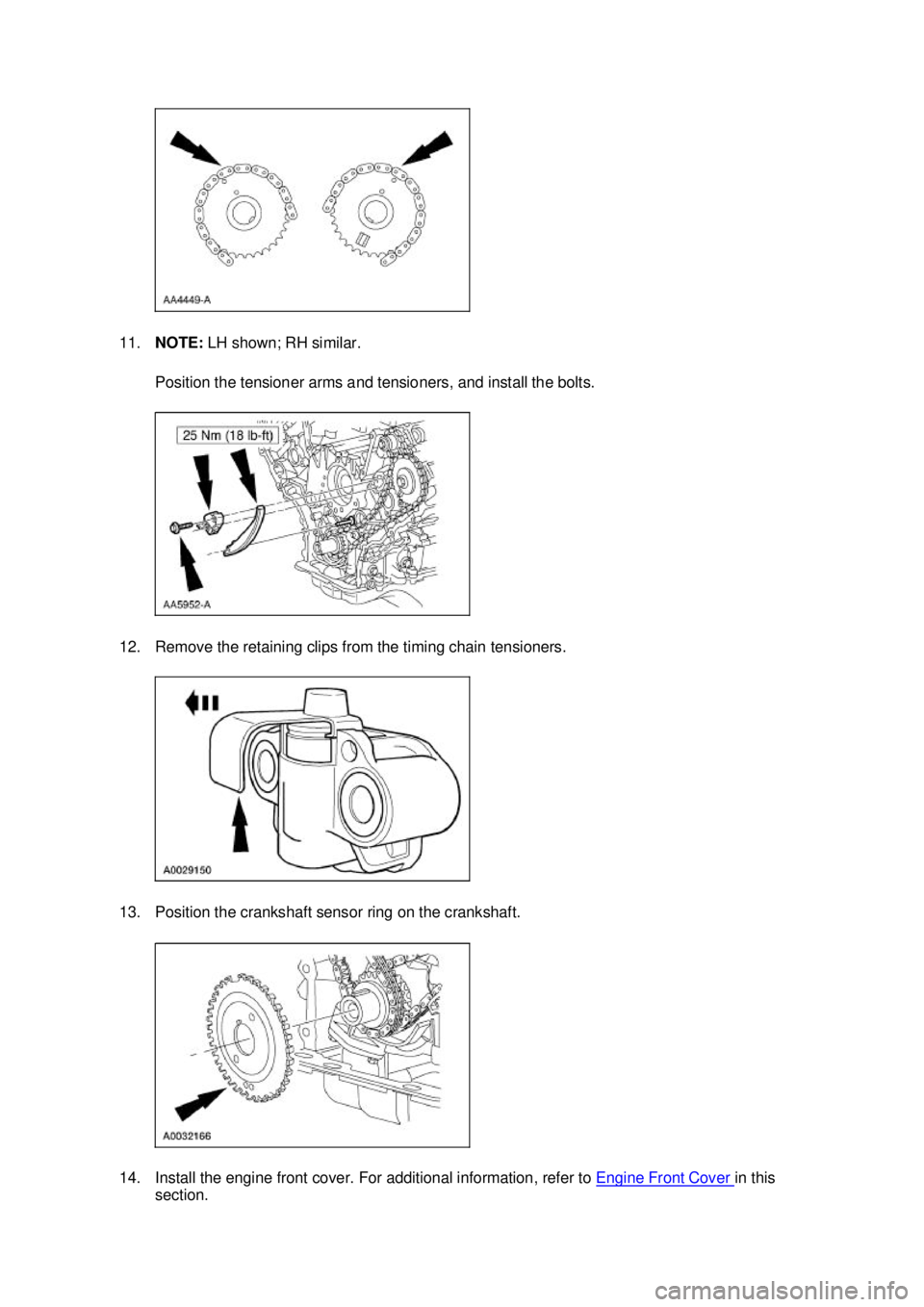

11.
NOTE: LH shown; RH similar.
Position the tensioner arms and tensioners, and install the bolts.
12. Remove the retaining clips from the timing chain tensioners.
13. Position the crankshaft sensor ring on the crankshaft.
14. Install the engine front cover. For additional information, refer to Engine Front Cover in this
section. Klj . 6 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

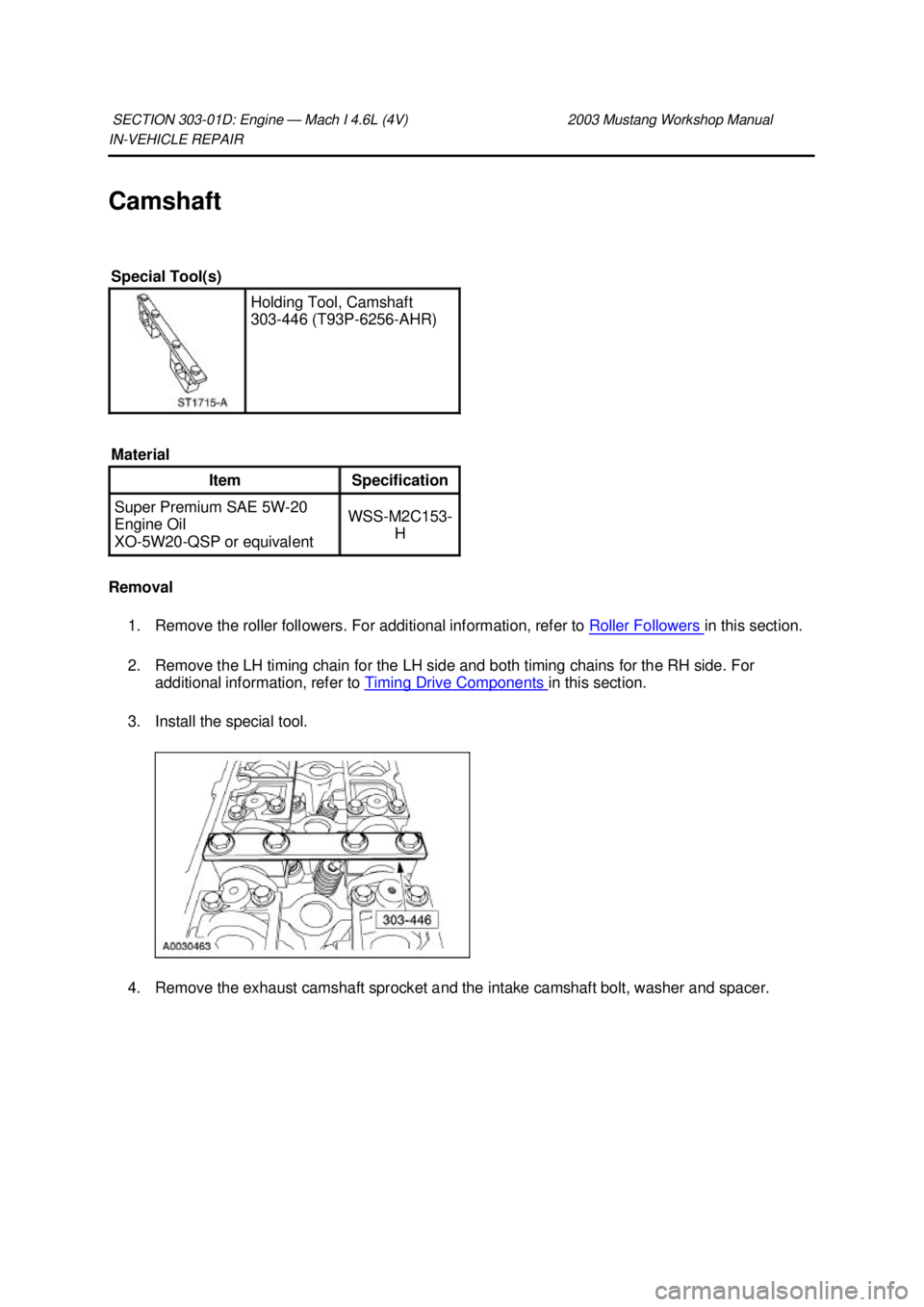

IN-
VEHICLE REPAIR
Camshaft
Removal 1. Remove the roller followers. For additional information, refer to Roller Followers in this section.
2. Remove the LH timing chain for the LH side and both timing chains for the RH side. For additional information, refer to Timing Drive Components in this section.
3. Install the special tool.
4. Remove the exhaust camshaft sprocket and the intake camshaft bolt, washer and spacer.
SECTION 303-
01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Holding Tool, Camshaft
303-
446 (T93P-6256- AHR)
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

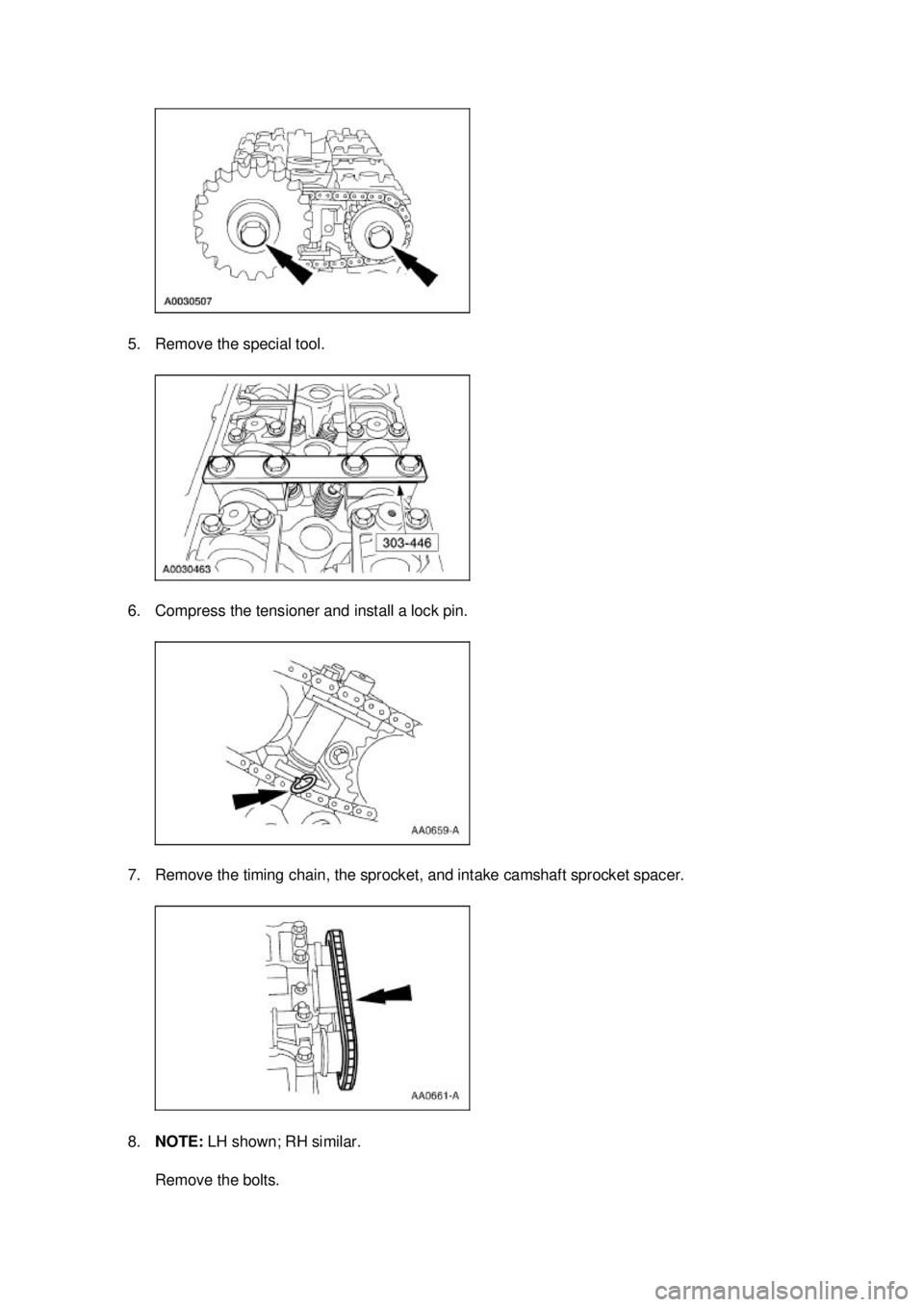

5. Remove the special tool.
6. Compress the tensioner and install a lock pin.
7. Remove the timing chain, the sprocket, and intake camshaft sprocket spacer.
8.
NOTE: LH shown; RH similar.
Remove the bolts. Klj . 2 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

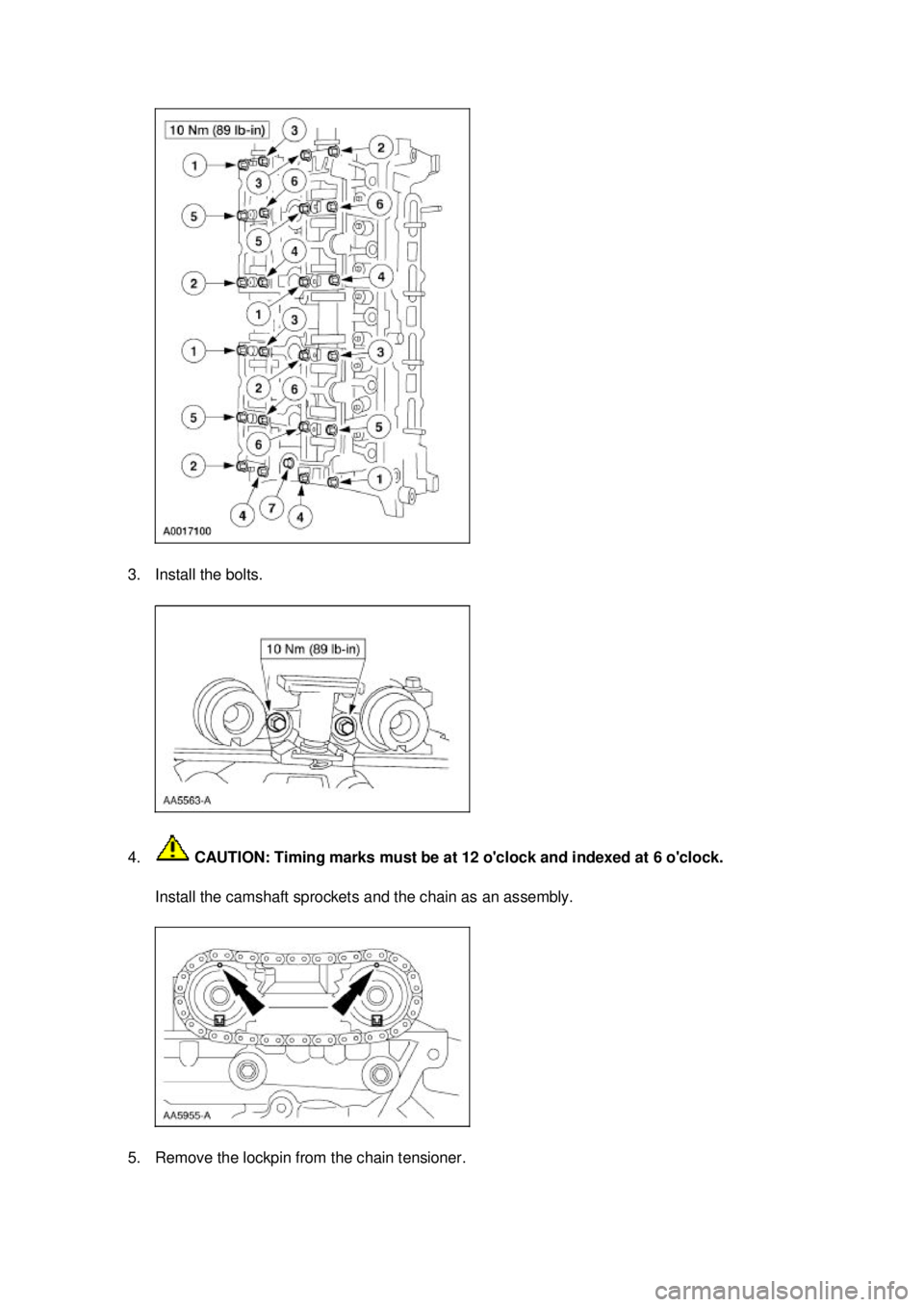

3. Install the bolts.
4.
CAUTION: Timing marks must be at 12 o'clock and indexed at 6 o'clock.
Install the camshaft sprockets and the chain as an assembly.
5. Remove the lockpin from the chain tensioner. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

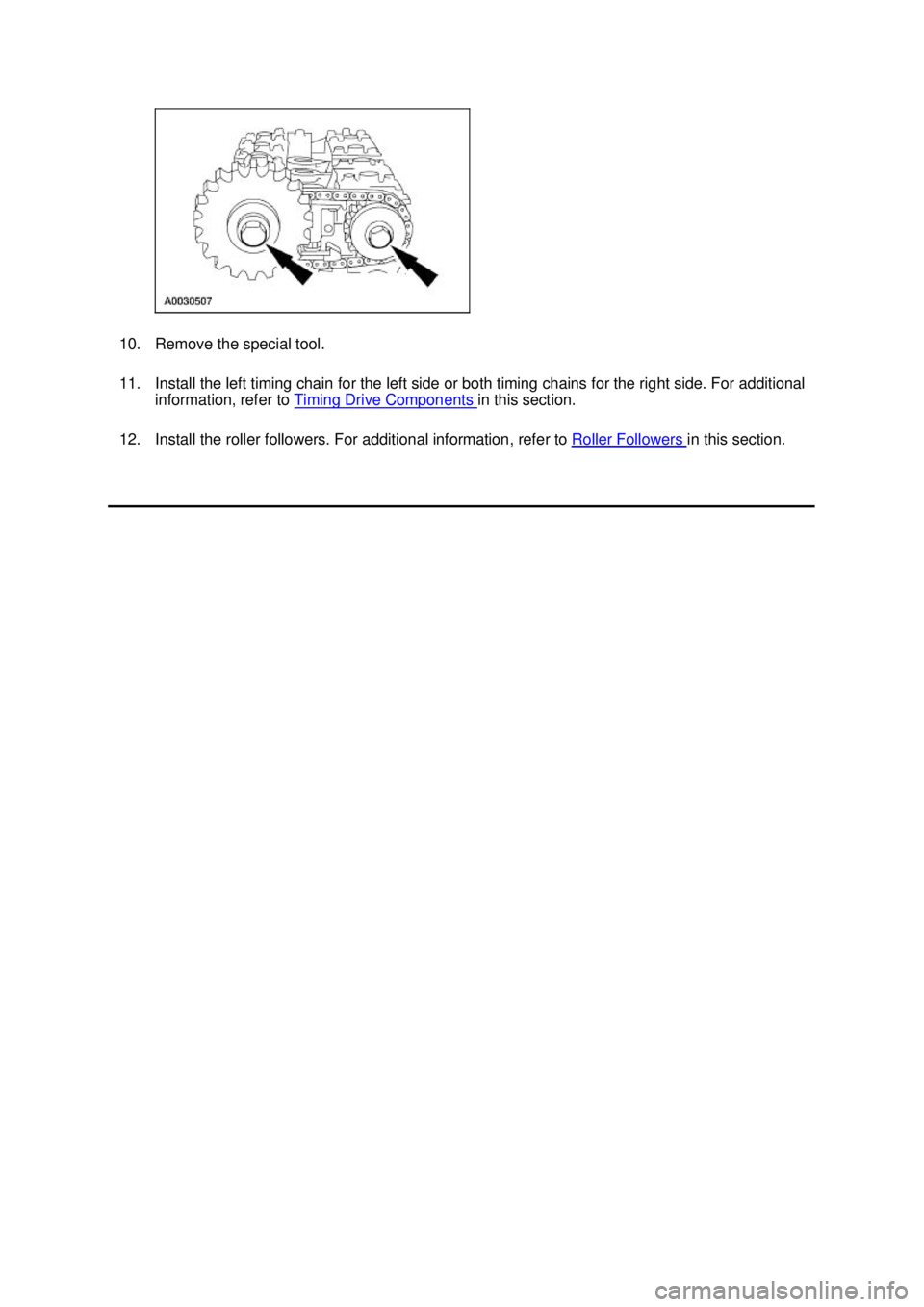

10. Remove the special tool.
11. Install the left timing chain for the left side or both timing chains for the right side. For additional
information, refer to Timing Drive Components in this section.
12. Install the roller followers. For additional information, refer to Roller Followers in this section. Klj . 7 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

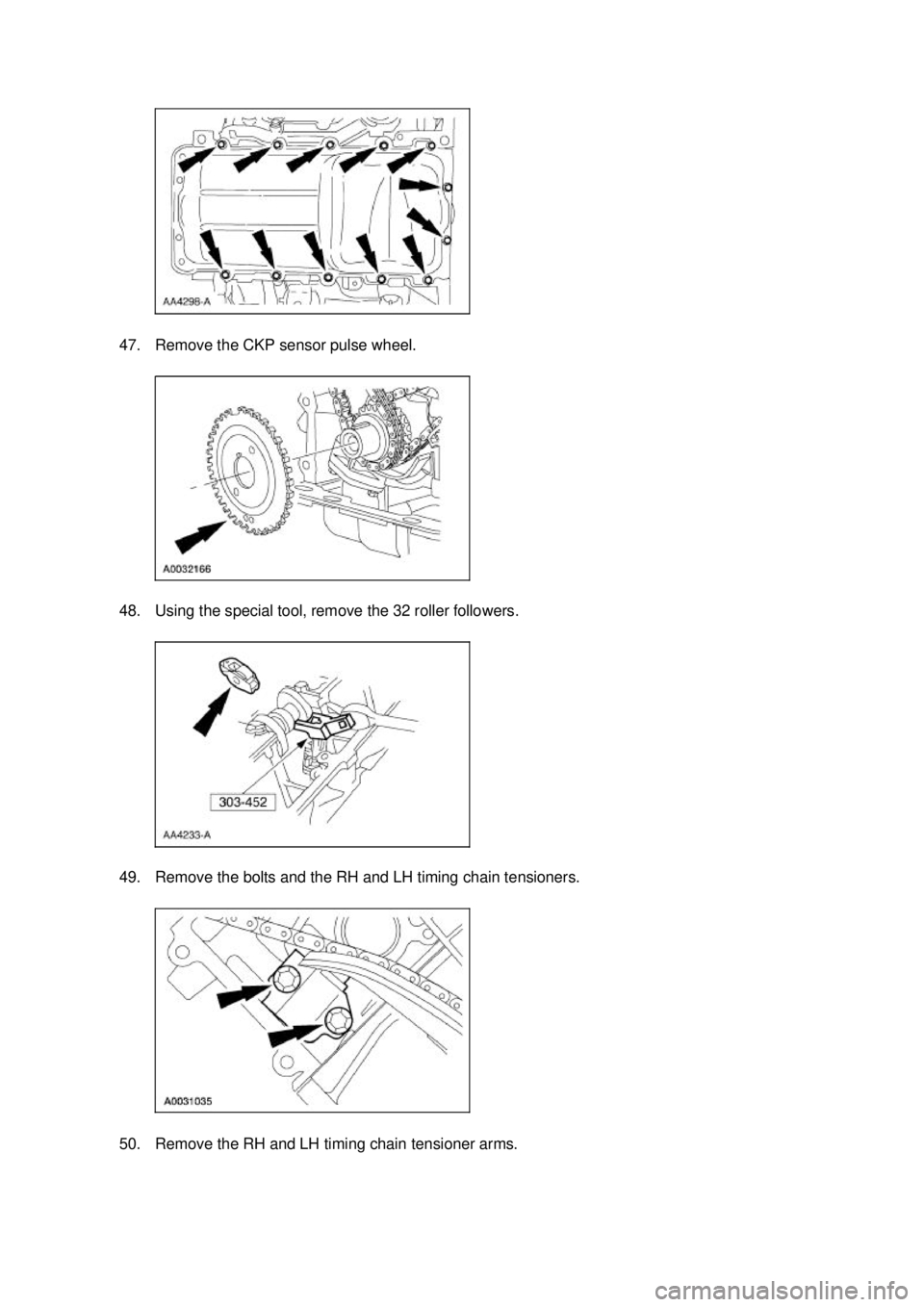

47. Remove the CKP sensor pulse wheel.
48. Using the special tool, remove the 32 roller followers.
49. Remove the bolts and the RH and LH timing chain tensioners.
50. Remove the RH and LH timing chain tensioner arms. Klj . 15 ba
