Page 4288 of 4378

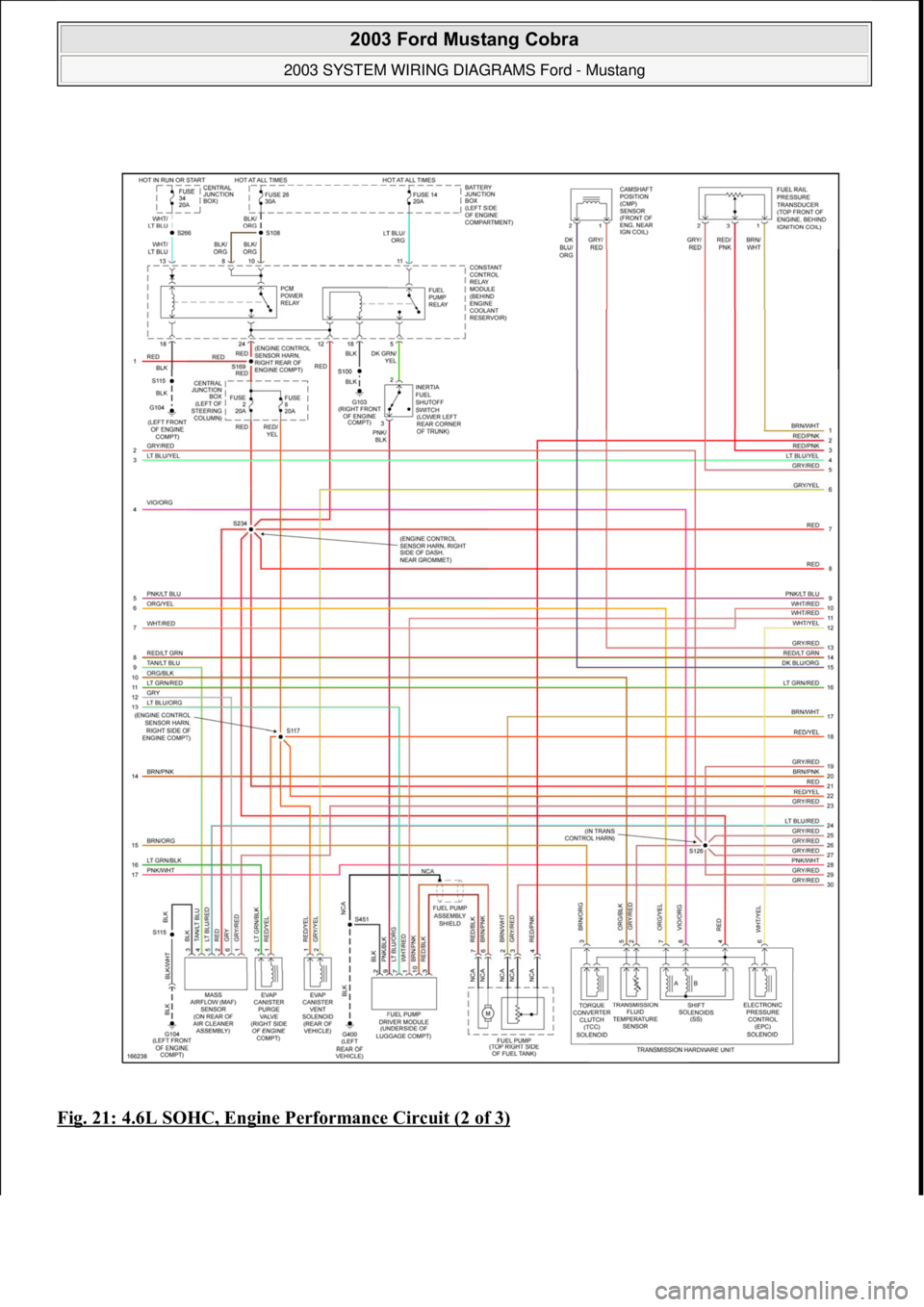

Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 22 © 2006 Mitchell Repair Information Company, LLC.
Page 4289 of 4378
Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3)
EXTERIOR LIGHTS
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 23 © 2006 Mitchell Repair Information Company, LLC.
Page 4334 of 4378

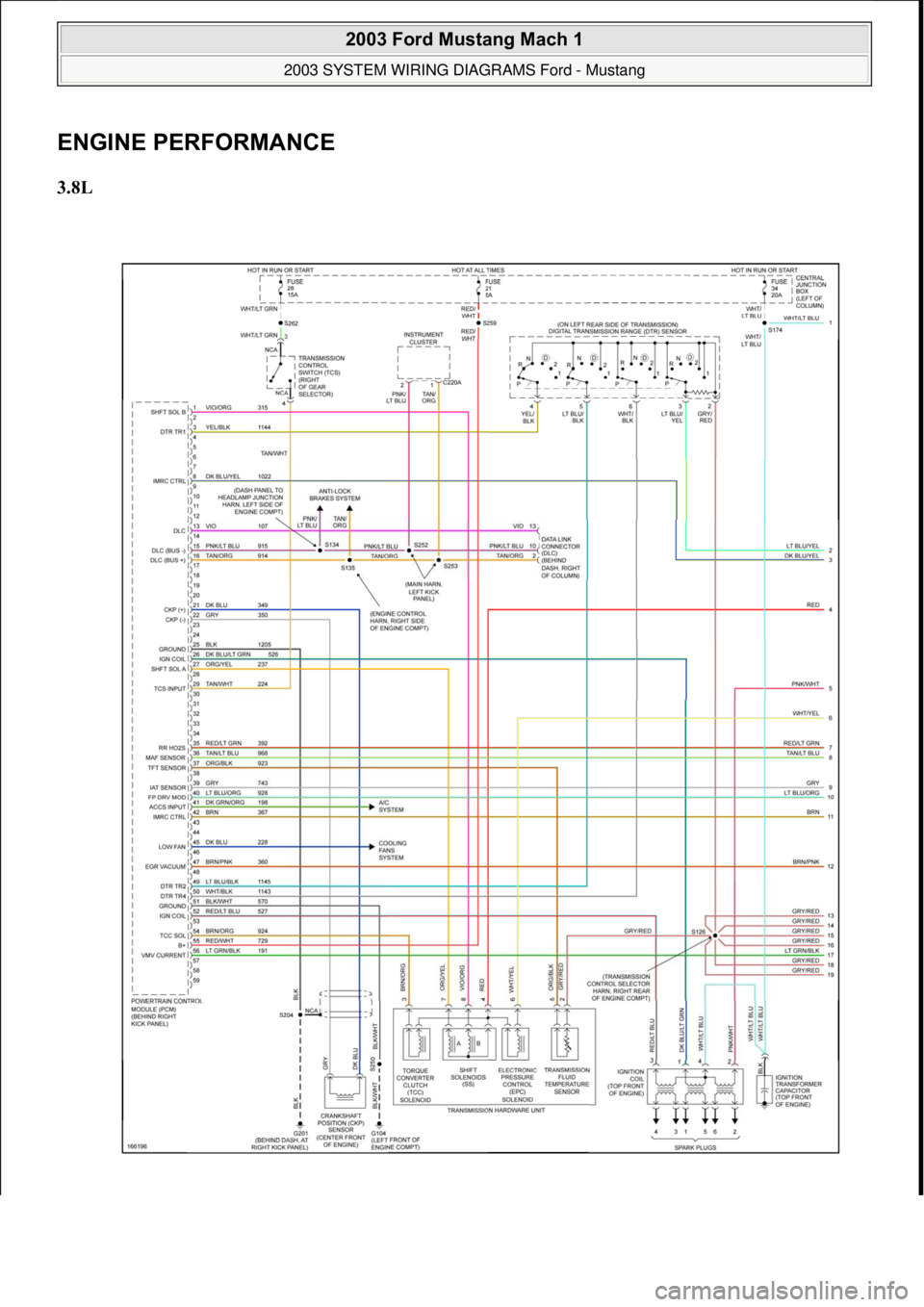

ENGINE PERFORMANCE
3.8L
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 12 © 2006 Mitchell Repair Information Company, LLC.
Page 4335 of 4378

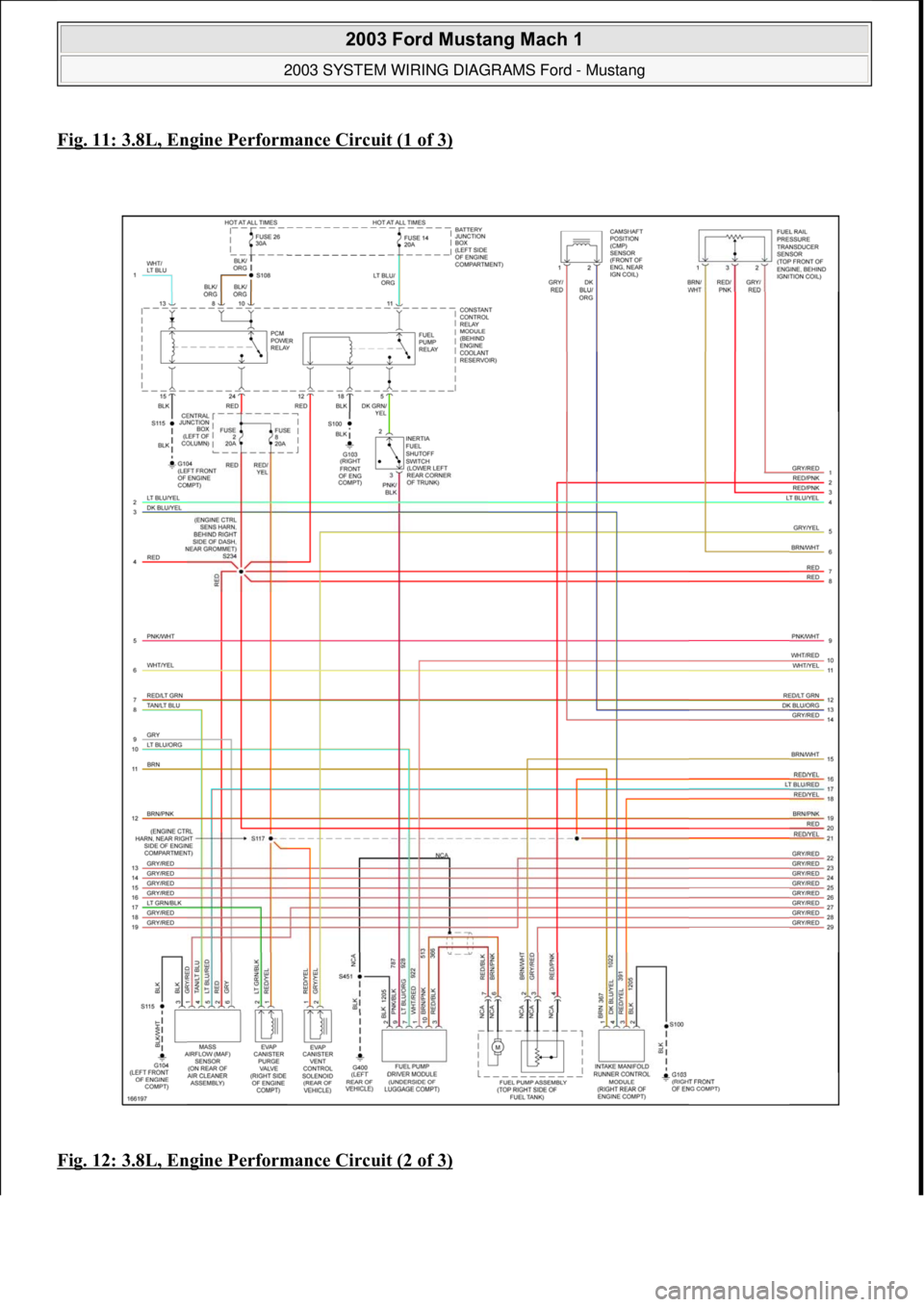

Fig. 11: 3.8L, Engine Performance Circuit (1 of 3)
Fig. 12: 3.8L, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 13 © 2006 Mitchell Repair Information Company, LLC.
Page 4336 of 4378

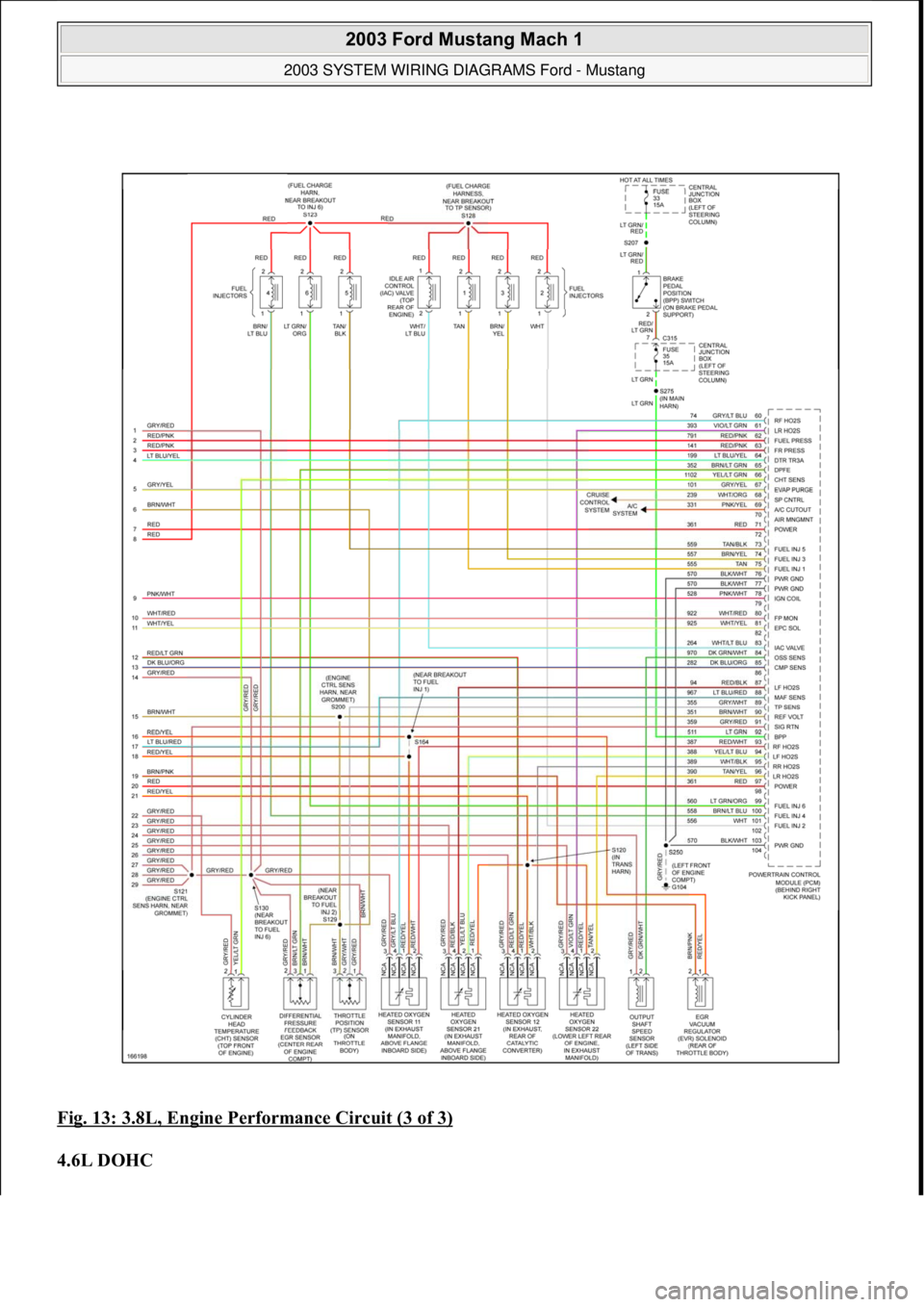

Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 14 © 2006 Mitchell Repair Information Company, LLC.
Page 4337 of 4378

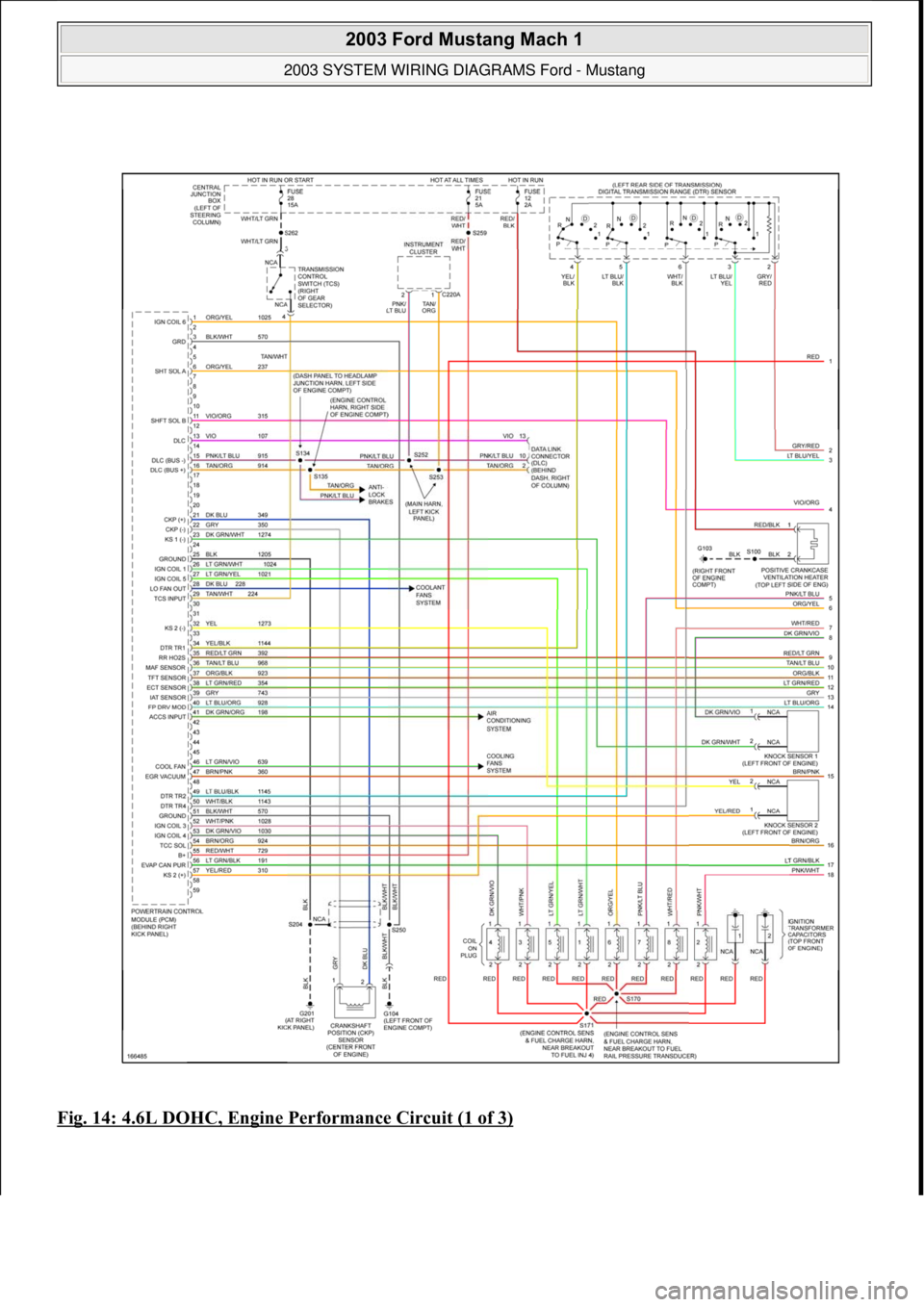

Fig. 14: 4.6L DOHC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 15 © 2006 Mitchell Repair Information Company, LLC.
Page 4338 of 4378

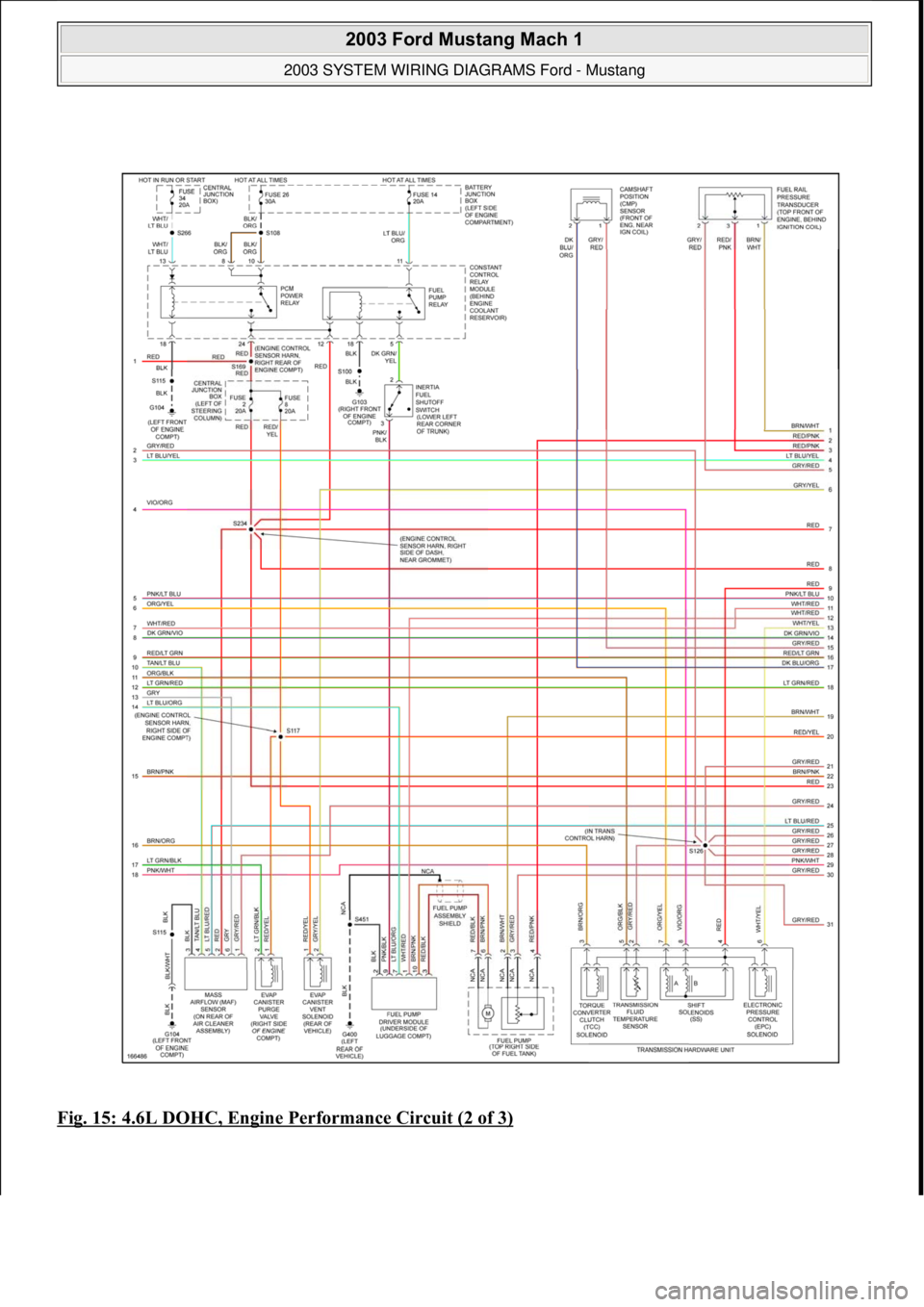

Fig. 15: 4.6L DOHC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 16 © 2006 Mitchell Repair Information Company, LLC.
Page 4339 of 4378

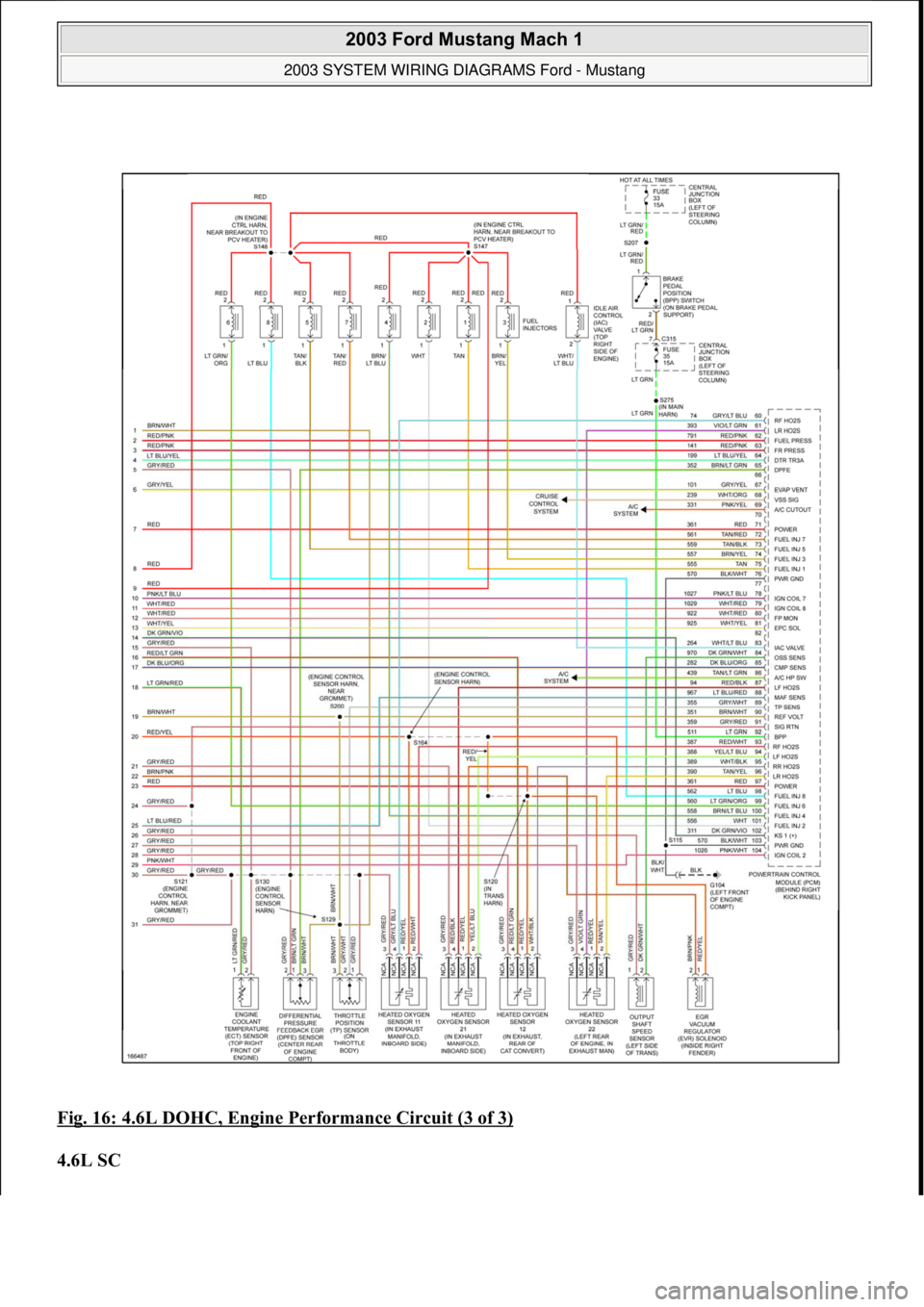

Fig. 16: 4.6L DOHC, Engine Performance Circuit (3 of 3)
4.6L SC
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 17 © 2006 Mitchell Repair Information Company, LLC.
Page 4340 of 4378

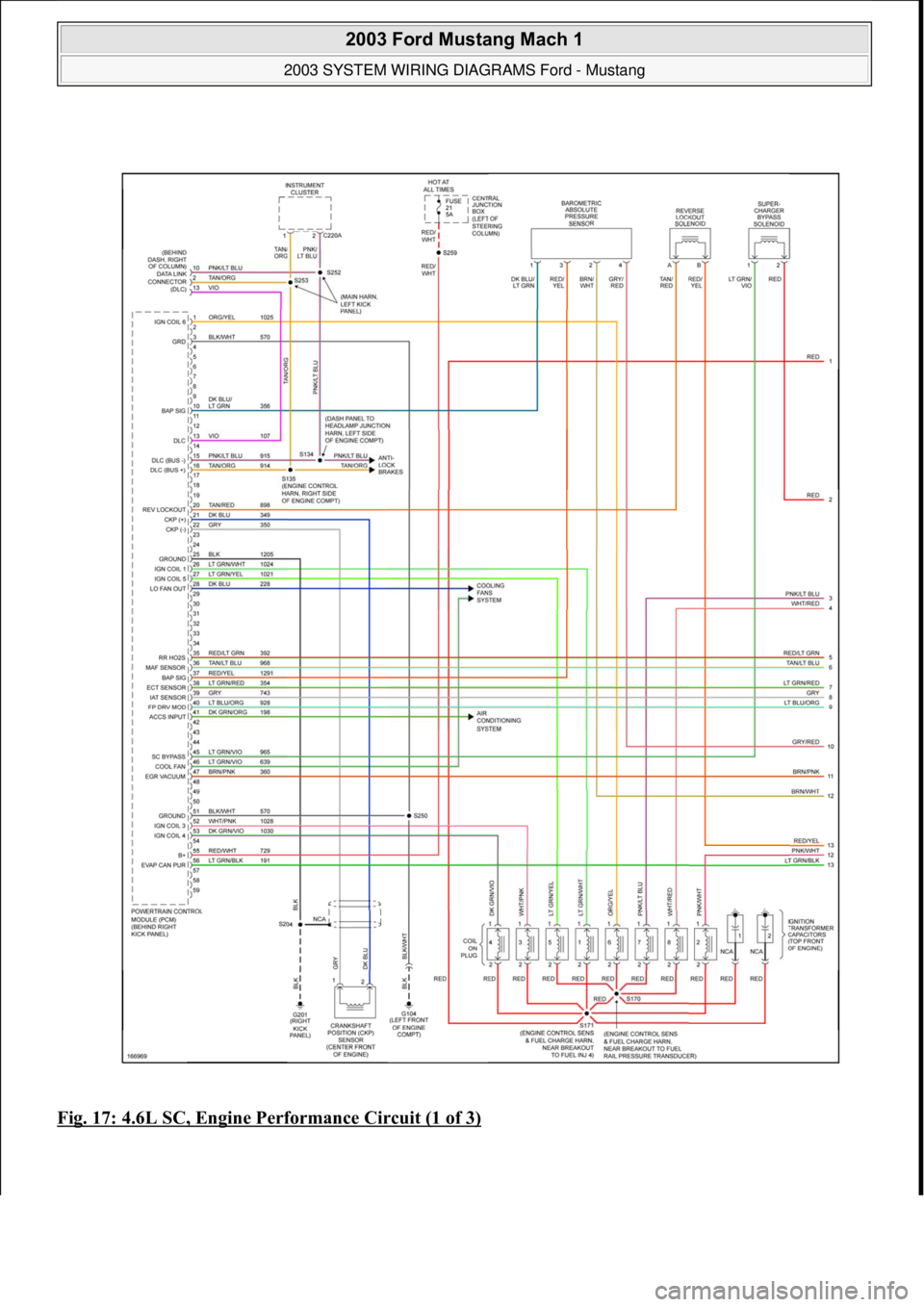

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 18 © 2006 Mitchell Repair Information Company, LLC.
Page 4341 of 4378

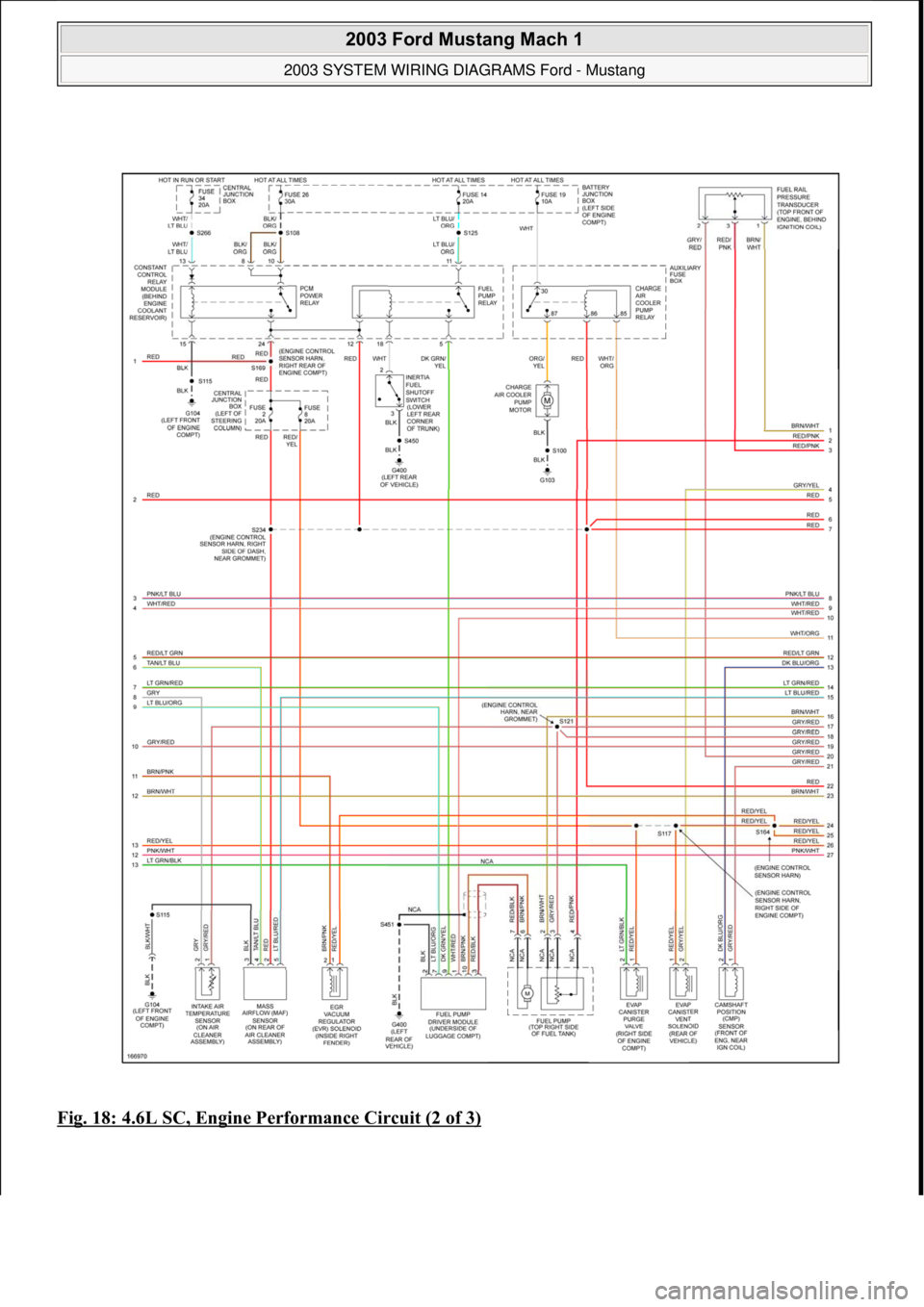

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 19 © 2006 Mitchell Repair Information Company, LLC.
