FORD MUSTANG 2004 4.G Owner's Manual
Manufacturer: FORD, Model Year: 2004, Model line: MUSTANG, Model: FORD MUSTANG 2004 4.GPages: 240, PDF Size: 3.62 MB
Page 21 of 240
3.Scan:Press to hear
a brief sampling of all
listenable radio
stations, CD or MP3 tracks. Press again to stop.
4.CLK:To set the
clock press and hold
the CLK control for the
following functions:
•To set the hour, press SEEK
/control to
decrease or increase to the hours.
•To set the minutes, press TUNE DIR
/to
decrease or increase the minutes.
Release CLK to save the clock settings. Press CLK
again to return the display to radio mode.
5.EJ (Eject):Press to
stop and eject a disc. If
a disc is ejected and
not removed, the player will automatically reload the
disc and return to radio mode.
6.COMP
(Compression):In CD
and MP3 mode, press
to adjust the soft and loud sounds together for a
more consistent listening level. The compression
icon (c) will illuminate in the display.
7.Shuffle:Press to
engage random play on
the CD or MP3 disc.
SHF then ON will briefly appear in the display. Press
SEEK to select another random track on the disc.
Press shuffle again to disable.
8.Repeat:Press to
repeat the current
track.
9.CD
(Fast
forward): Press and
hold until the desired
selection point is reached. This function is not
enabled in MP3 mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21
Page 22 of 240

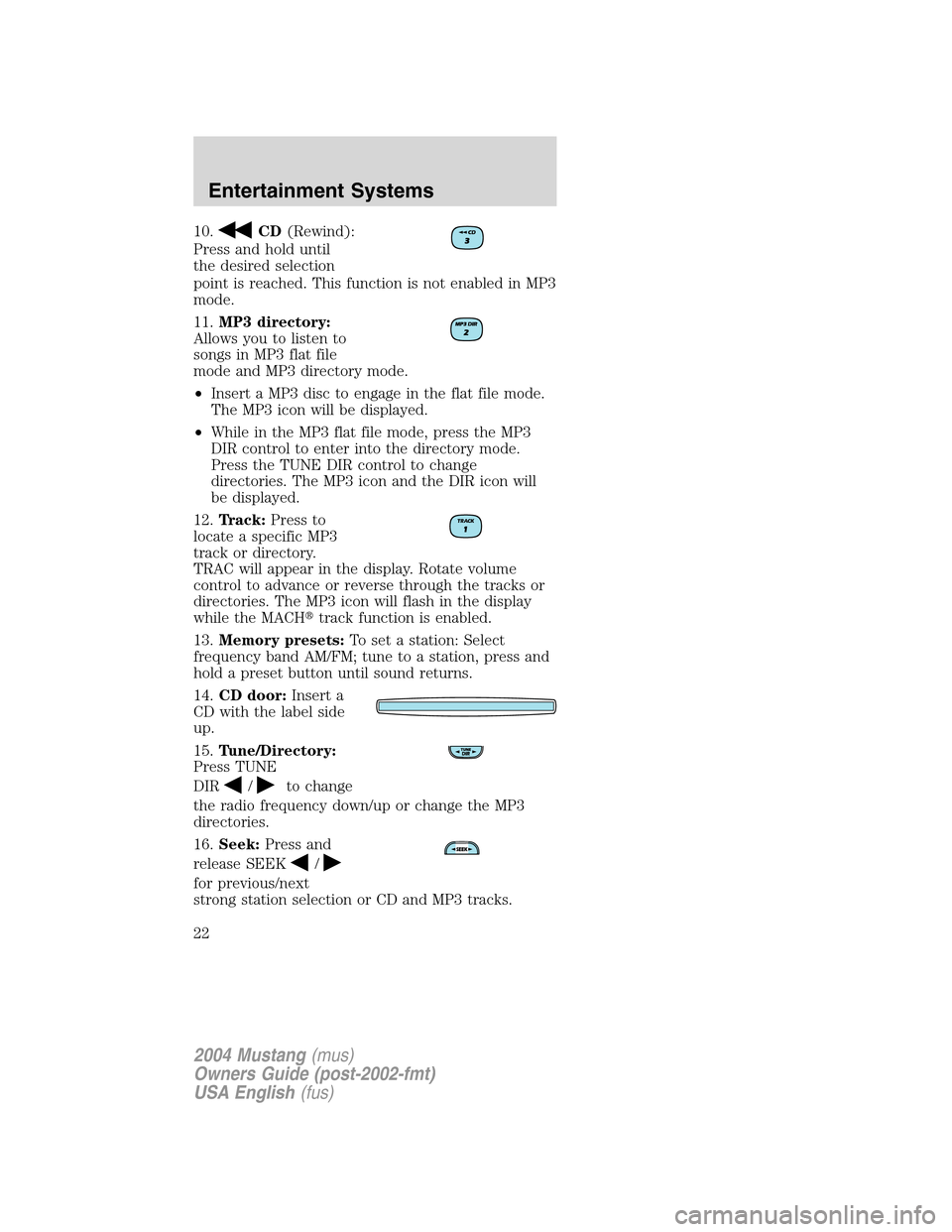

10.CD(Rewind):
Press and hold until
the desired selection
point is reached. This function is not enabled in MP3
mode.
11.MP3 directory:
Allows you to listen to
songs in MP3 flat file
mode and MP3 directory mode.
•Insert a MP3 disc to engage in the flat file mode.
The MP3 icon will be displayed.
•While in the MP3 flat file mode, press the MP3
DIR control to enter into the directory mode.
Press the TUNE DIR control to change
directories. The MP3 icon and the DIR icon will
be displayed.
12.Track:Press to
locate a specific MP3
track or directory.
TRAC will appear in the display. Rotate volume
control to advance or reverse through the tracks or
directories. The MP3 icon will flash in the display
while the MACHtrack function is enabled.
13.Memory presets:To set a station: Select
frequency band AM/FM; tune to a station, press and
hold a preset button until sound returns.
14.CD door:Insert a
CD with the label side
up.
15.Tune/Directory:
Press TUNE
DIR
/to change
the radio frequency down/up or change the MP3
directories.
16.Seek:Press and
release SEEK
/
for previous/next
strong station selection or CD and MP3 tracks.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
22
Page 23 of 240
17.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
18.CD:Press CD to
play a CD or MP3 disc.
When the MP3 disc is
loaded, CD and LOAD will appear on the display.
The display will briefly show the total number of
tracks on the disc as TXXX (XXX=number of
tracks).
19.AM/FM:Press to
select a frequency band
in radio mode.
20.Bass:
Press
/to
decrease/increase the
bass output.
21.Treble:
Press
/to
decrease/increase the
treble output.
MP3 FUNCTIONS
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23
Page 24 of 240
Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
numbers each MP3 track on the disc (denoted by
the .mp3 file extension) from T001 to T255.
•MP3 directory mode represents a directory
structure consisting of one level of directories
(folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3
extension) and all directories containing MP3
files, from 01–01 to 99–99. The first two digits
denote the directory number and the last two
digits denote the track number within that
directory.
•Creating discs with only one level of
subdirectories will help with navigation through
the disc files.
ERROR MESSAGES
You may experience an error message for the
following situations:
•NO DISC when the CD control is pressed and
there is not a CD present.
•DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
•CD ERR for any other disc malfunction.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24
Page 25 of 240

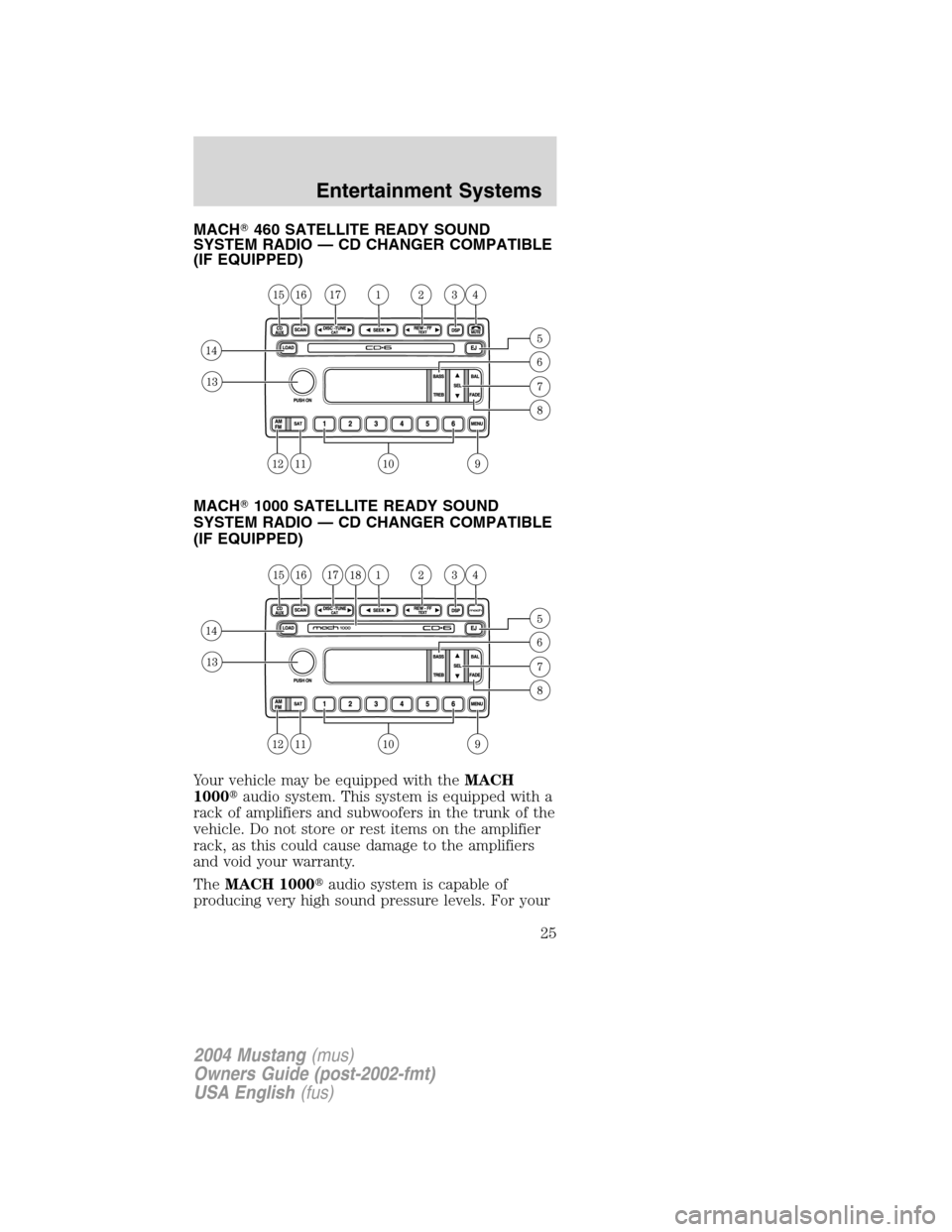

MACH460 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
MACH1000 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
Your vehicle may be equipped with theMACH
1000audio system. This system is equipped with a
rack of amplifiers and subwoofers in the trunk of the
vehicle. Do not store or rest items on the amplifier
rack, as this could cause damage to the amplifiers
and void your warranty.
TheMACH 1000audio system is capable of
producing very high sound pressure levels. For your
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
25
Page 26 of 240
listening comfort and protection, it is not
recommended to listen to theMACH 1000audio
system at high volume levels for extended periods of
time.
1.Seek:Press and
release SEEK
/
for previous/next
strong station, selection or track.
2.Rewind:In CD
mode, press until
desired selection is
reached.
Fast forward:In CD mode, press until desired
selection is reached.
TEXT:TEXT is only available when equipped with
Satellite radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
3.DSP (Digital
Signal Processing):
Press DSP to access
the Ambiance menu. Ambiance gives the feeling of
“being there”to your music, creating increased
clarity as well as an open and spacious feel to the
music. Press SEL to engage/disengage. Turn the
volume control to increase/decrease the level of
ambiance.
Occupancy:Press DSP again to change the
occupancy mode to optimize sound for:
•ALL SEATS—Enhances acoustic sound for all
seating locations.
•DRIVER SEAT—Enhances acoustic sound for
the driver. Rear seat and passenger seat
performance may be compromised in favor of the
driver.
•REAR SEAT - Enhances acoustic sound for the
rear seat passengers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
26
Page 27 of 240

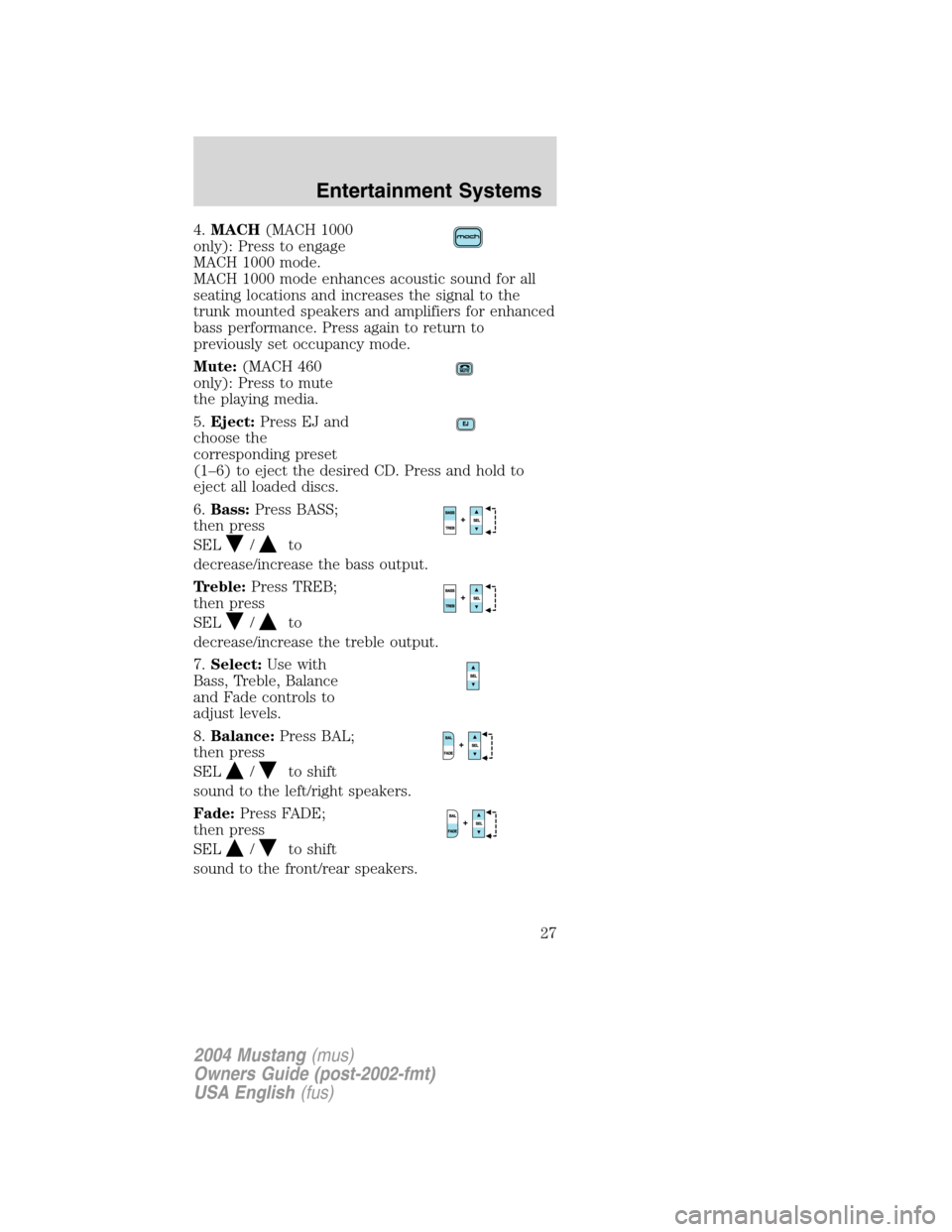

4.MACH(MACH 1000
only): Press to engage
MACH 1000 mode.
MACH 1000 mode enhances acoustic sound for all
seating locations and increases the signal to the
trunk mounted speakers and amplifiers for enhanced
bass performance. Press again to return to
previously set occupancy mode.
Mute:(MACH 460
only): Press to mute
the playing media.
5.Eject:Press EJ and
choose the
corresponding preset
(1–6) to eject the desired CD. Press and hold to
eject all loaded discs.
6.Bass:Press BASS;
then press
SEL
/to
decrease/increase the bass output.
Treble:Press TREB;
then press
SEL
/to
decrease/increase the treble output.
7.Select:Use with
Bass, Treble, Balance
and Fade controls to
adjust levels.
8.Balance:Press BAL;
then press
SEL
/to shift
sound to the left/right speakers.
Fade:Press FADE;
then press
SEL
/to shift
sound to the front/rear speakers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
27
Page 28 of 240

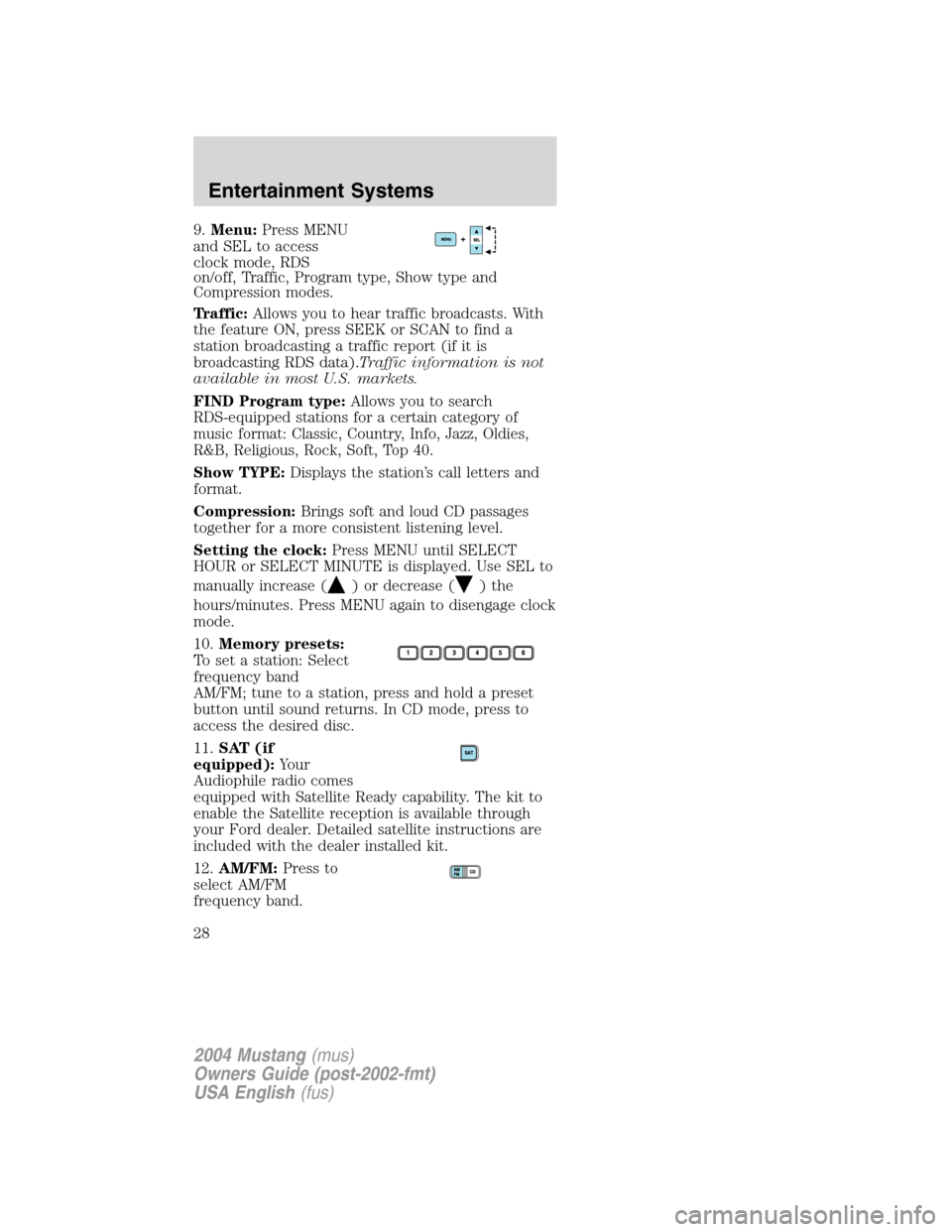

9.Menu:Press MENU
and SEL to access
clock mode, RDS
on/off, Traffic, Program type, Show type and
Compression modes.
Traffic:Allows you to hear traffic broadcasts. With
the feature ON, press SEEK or SCAN to find a
station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not
available in most U.S. markets.
FIND Program type:Allows you to search
RDS-equipped stations for a certain category of
music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and
format.
Compression:Brings soft and loud CD passages
together for a more consistent listening level.
Setting the clock:Press MENU until SELECT
HOUR or SELECT MINUTE is displayed. Use SEL to
manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock
mode.
10.Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station, press and hold a preset
button until sound returns. In CD mode, press to
access the desired disc.
11.SAT (if
equipped):Your
Audiophile radio comes
equipped with Satellite Ready capability. The kit to
enable the Satellite reception is available through
your Ford dealer. Detailed satellite instructions are
included with the dealer installed kit.
12.AM/FM:Press to
select AM/FM
frequency band.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
28
Page 29 of 240
Autostore:Allows you to set the strongest local
radio stations without losing your original manually
set preset stations for AM/FM1/FM2 . Press and
momentarily hold AM/FM. AUTOSTORE will flash on
the display. When the six strongest stations are
filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the
system will store the last one in the remaining
presets. Press again to disengage.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
Speed sensitive volume:Radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise. Recommended
level is 1–3. Level 0 turns the feature off and level 7
is the maximum setting.
Press and hold the volume control for five seconds.
Then press SEL to increase (
) or decrease ()
the volume setting. The level will appear in the
display.
14.Load:Press LOAD
and the corresponding
preset (1–6) to load a
CD into the desired slot. Press and hold to load up
to six discs at once.
15.CD AUX:Press to
access CD or AUX
mode.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
peel and cause the CD to become jammed. It is
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
29
Page 30 of 240

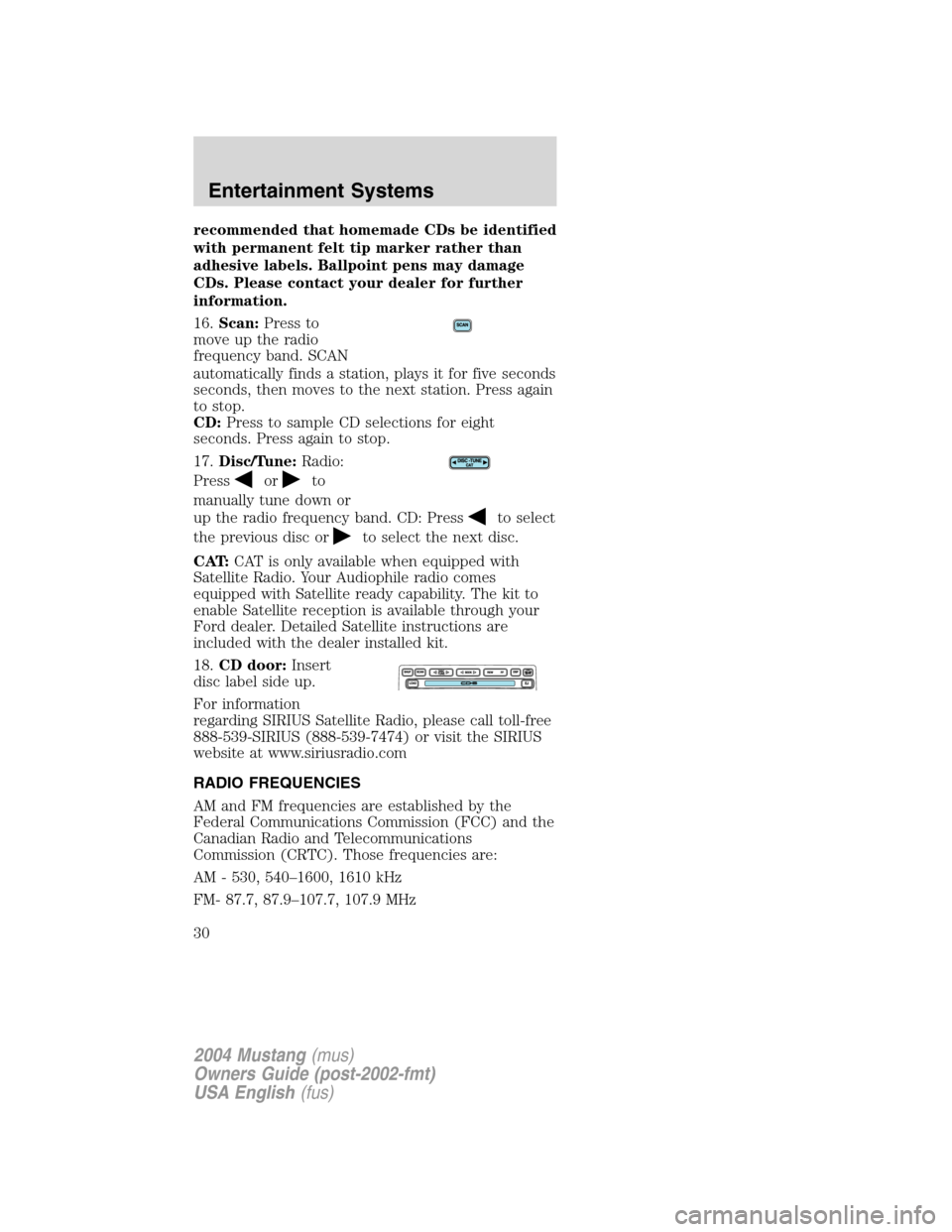

recommended that homemade CDs be identified
with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage
CDs. Please contact your dealer for further
information.
16.Scan:Press to
move up the radio
frequency band. SCAN
automatically finds a station, plays it for five seconds
seconds, then moves to the next station. Press again
to stop.
CD:Press to sample CD selections for eight
seconds. Press again to stop.
17.Disc/Tune:Radio:
Press
orto
manually tune down or
up the radio frequency band. CD: Press
to select
the previous disc or
to select the next disc.
CAT:CAT is only available when equipped with
Satellite Radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
18.CD door:Insert
disc label side up.
For information
regarding SIRIUS Satellite Radio, please call toll-free
888-539-SIRIUS (888-539-7474) or visit the SIRIUS
website at www.siriusradio.com
RADIO FREQUENCIES
AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the
Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1600, 1610 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
30
