FORD MUSTANG 2004 4.G User Guide

Service engine soon:
TheService engine
soonindicator light
illuminates when the
ignition is first turned to the ON position to check
the bulb. Solid illumination after the engine is
started indicates the On Board Diagnostics System
(OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance
and Specificationschapter. If the light is blinking,
engine misfire is occurring which could damage your
catalytic converter. Drive in a moderate fashion
(avoid heavy acceleration and deceleration) and
have your vehicle serviced immediately.
Under engine misfire conditions, excessive
exhaust temperatures could damage the
catalytic converter, the fuel system, interior floor
coverings or other vehicle components, possibly
causing a fire.
Check fuel cap:
Illuminates when the
fuel cap may not be
properly installed.
Continued driving with this light on may cause the
Service engine soon light to come on. Refer toFuel
filler capin theMaintenance and Specifications
chapter.
Brake system
warning light:To
confirm the brake
system warning light is
functional, it will momentarily illuminate when the
ignition is turned to the ON position when the
engine is not running, or in a position between ON
and START, or by applying the parking brake when
the ignition is turned to the ON position. If the
brake system warning light does not illuminate at
this time, seek service immediately from your
dealership. Illumination after releasing the parking
SERVICE
ENGINE
SOON
CHECK
FUEL
CAP
P!
BRAKE
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
11

brake indicates low brake fluid level and the brake
system should be inspected immediately by your
servicing dealership.
Driving a vehicle with the brake system
warning light on is dangerous. A significant
decrease in braking performance may occur. It will
take you longer to stop the vehicle. Have the
vehicle checked by your dealer immediately.
Anti-lock brake
system:If the ABS
light stays illuminated
or continues to flash, a
malfunction has been detected, have the system
serviced immediately. Normal braking is still
functional unless the brake warning light also is
illuminated.
Air bag readiness:If
this light fails to
illuminate when
ignition is turned to ON, continues to flash or
remains on, have the system serviced immediately. A
chime will also sound when a malfunction in the
supplemental restraint system has been detected.
Safety belt:Reminds
you to fasten your
safety belt. A chime
will also sound to
remind you to fasten your safety belt.
Charging system:
Illuminates when the
battery is not charging
properly.
Low fuel:Illuminates
when the fuel level in
the fuel tank is at or
near empty. Refer to
Fuel gaugein this chapter).
ABS
AIR
BAG
LOW
FUEL
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
12

Overdrive off:
Illuminates when the
overdrive function of
the transmission has been turned off, refer to the
Drivingchapter. If the light flashes steadily or does
not illuminate, have the transmission serviced soon,
or damage may occur.
Traction Control

active:Illuminates
when the Traction
Control
system is
active. If the light
remains on, have the system serviced immediately.
Anti-theft system:
Flashes when the
Securilock
Passive
Anti-theft System has been activated.
Turn signal:
Illuminates when the
left or right turn signal
or the hazard lights are turned on. If the indicators
stay on or flash faster, check for a burned out bulb.
High beams:
Illuminates when the
high beam headlamps
are turned on.
Key-in-ignition warning chime:Sounds when the
key is left in the ignition in the OFF/LOCK or ACC
position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the
headlamps or parking lamps are on, the ignition is
off (the key is not in the ignition) and the driver’s
door is opened.O/D
OFF
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
13

GAUGES
Base instrument cluster gauges
Optional instrument cluster gauges
Mach 1 instrument cluster gauges
Speedometer:Indicates the current vehicle speed.
•Base instrument
cluster
P! BRAKE
L C
EFH
LH
10 203020 406080100
120
140
160
180
405060 70
80
90
100
11 0
1204
5
6
7 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOON
MPH km/h
ABS
00000 00.
CHECK
FUEL
CAP
P! BRAKE
0
00000 00
FH
H
102040608020 40608010 012 0 14 0
160
180
200
220
240
100
120
140
305070 90
110
13 0
1504
5
6
7
8 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOON
MPH km/h
ABS
.
L
LCHECK
FUEL
CAP
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
14

•Optional instrument
cluster
•Mach 1 instrument
cluster

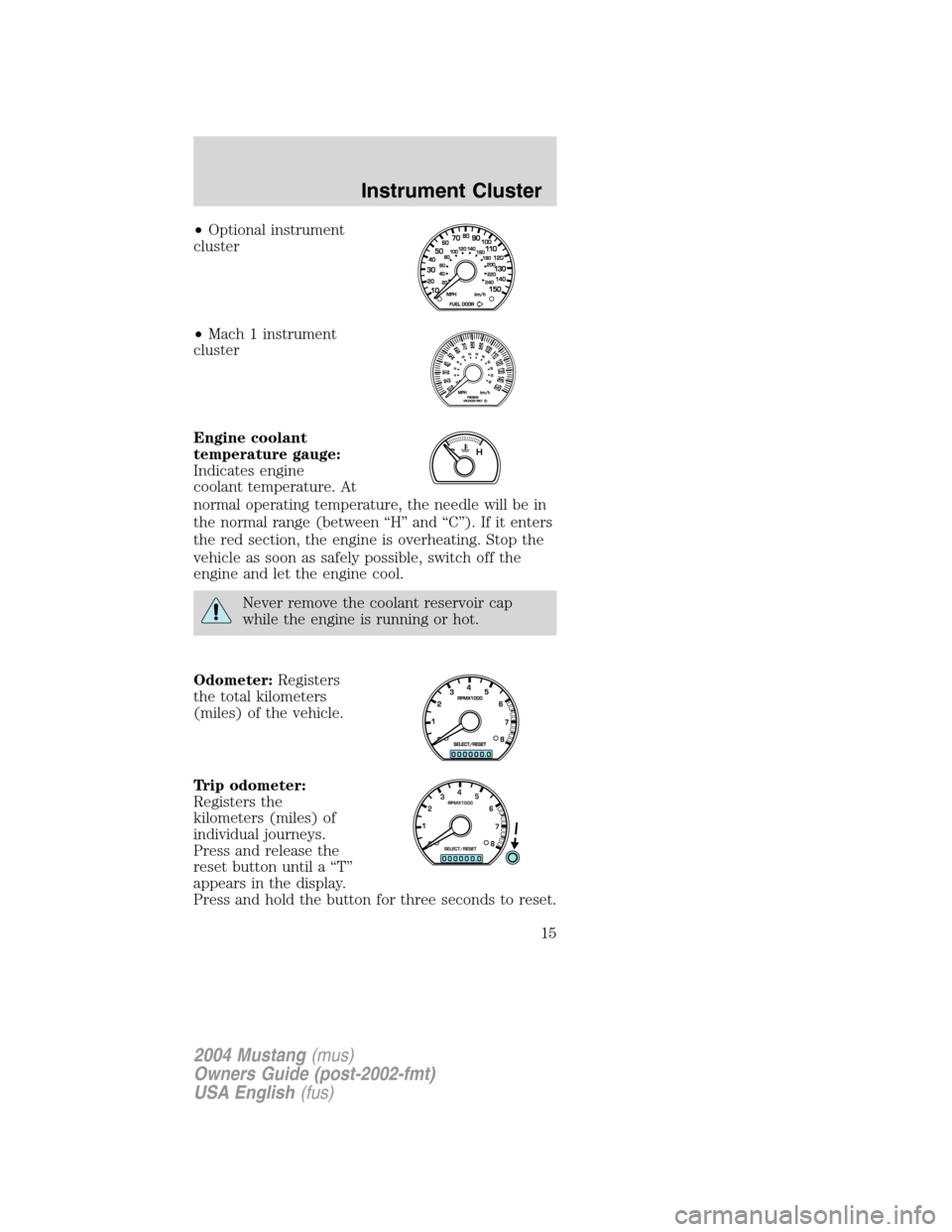

Engine coolant
temperature gauge:
Indicates engine
coolant temperature. At
normal operating temperature, the needle will be in
the normal range (between“H”and“C”). If it enters
the red section, the engine is overheating. Stop the
vehicle as soon as safely possible, switch off the
engine and let the engine cool.
Never remove the coolant reservoir cap
while the engine is running or hot.
Odometer:Registers
the total kilometers
(miles) of the vehicle.
Trip odometer:
Registers the
kilometers (miles) of
individual journeys.
Press and release the
reset button until a“T”
appears in the display.
Press and hold the button for three seconds to reset.
CH
0
00000 00
4
5
6
7
8 3
2
1RPMX1000
SELECT/RESET
.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
15

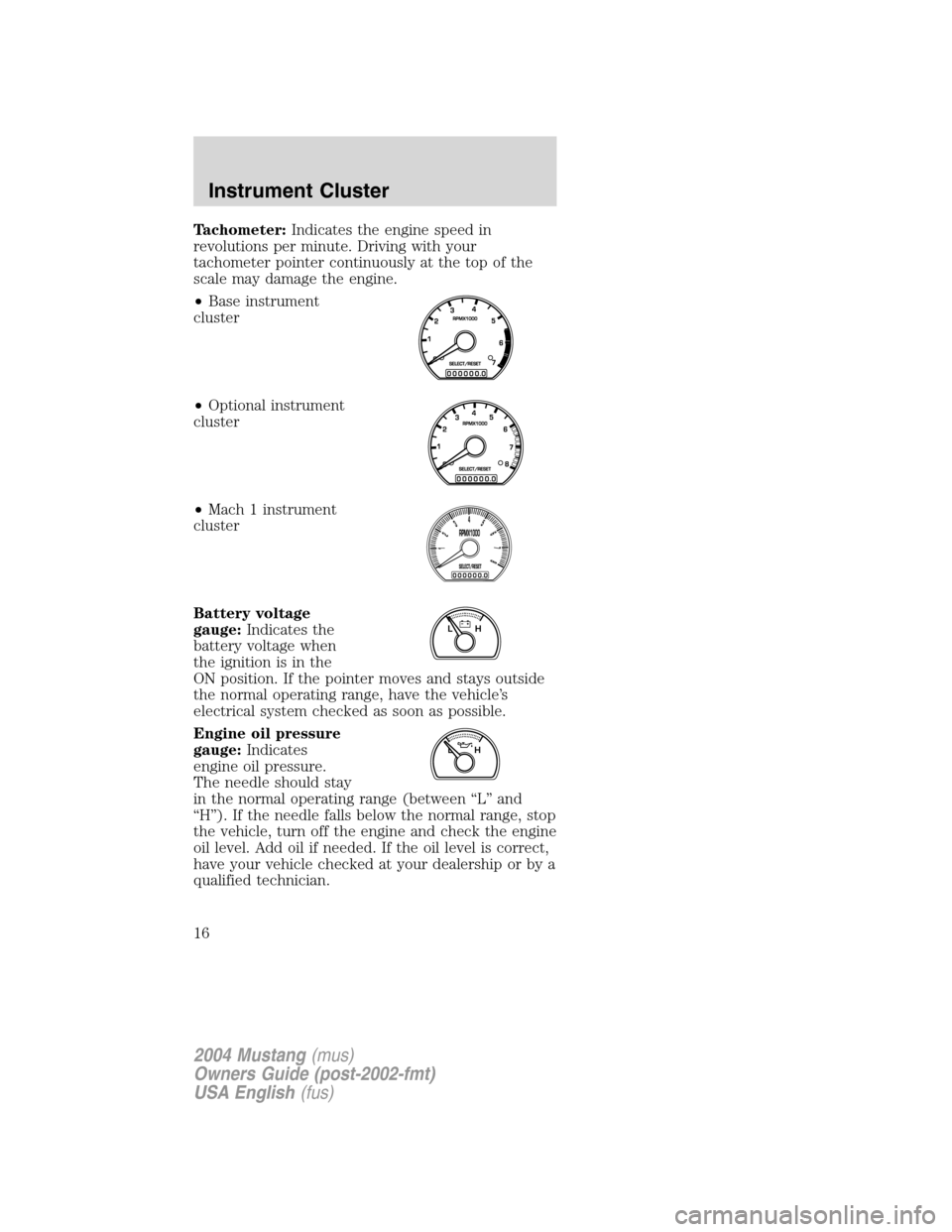

Tachometer:Indicates the engine speed in
revolutions per minute. Driving with your
tachometer pointer continuously at the top of the
scale may damage the engine.
•Base instrument
cluster
•Optional instrument
cluster
•Mach 1 instrument
cluster
Battery voltage
gauge:Indicates the
battery voltage when
the ignition is in the
ON position. If the pointer moves and stays outside
the normal operating range, have the vehicle’s
electrical system checked as soon as possible.
Engine oil pressure
gauge:Indicates
engine oil pressure.
The needle should stay
in the normal operating range (between“L”and
“H”). If the needle falls below the normal range, stop
the vehicle, turn off the engine and check the engine
oil level. Add oil if needed. If the oil level is correct,
have your vehicle checked at your dealership or by a
qualified technician.
LH
LH
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
16

Fuel gauge:Indicates
approximately how
much fuel is left in the
fuel tank (when the
ignition is in the ON position). The fuel gauge may
vary slightly when the vehicle is in motion or on a
grade.
Refer toFilling the tankin theMaintenance and
Specificationschapter for more information.F
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
17

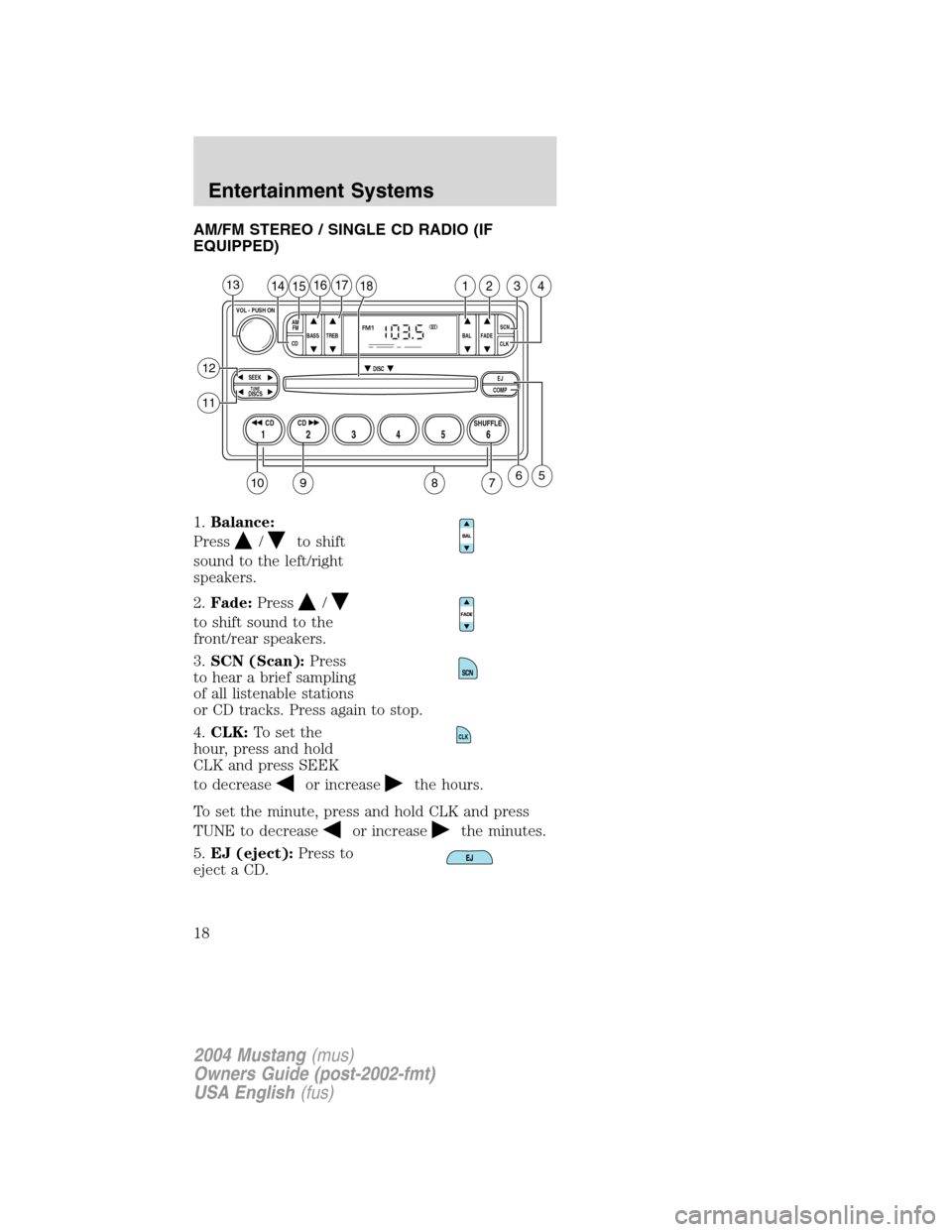

AM/FM STEREO / SINGLE CD RADIO (IF
EQUIPPED)
1.Balance:
Press
/to shift
sound to the left/right
speakers.
2.Fade:Press
/
to shift sound to the
front/rear speakers.
3.SCN (Scan):Press
to hear a brief sampling
of all listenable stations
or CD tracks. Press again to stop.
4.CLK:To set the
hour, press and hold
CLK and press SEEK
to decrease
or increasethe hours.
To set the minute, press and hold CLK and press
TUNE to decrease
or increasethe minutes.
5.EJ (eject):Press to
eject a CD.
BASS
CDTREB BAL FADESCN
CLK AM
FM
VOL - PUSH ON
SEEK
EJ
COMP DISC
DISCSTUNE
12 3456
FM1ST
SHUFFLE CD CD
1415161718123413
658
12
11
7910
CLK
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
18

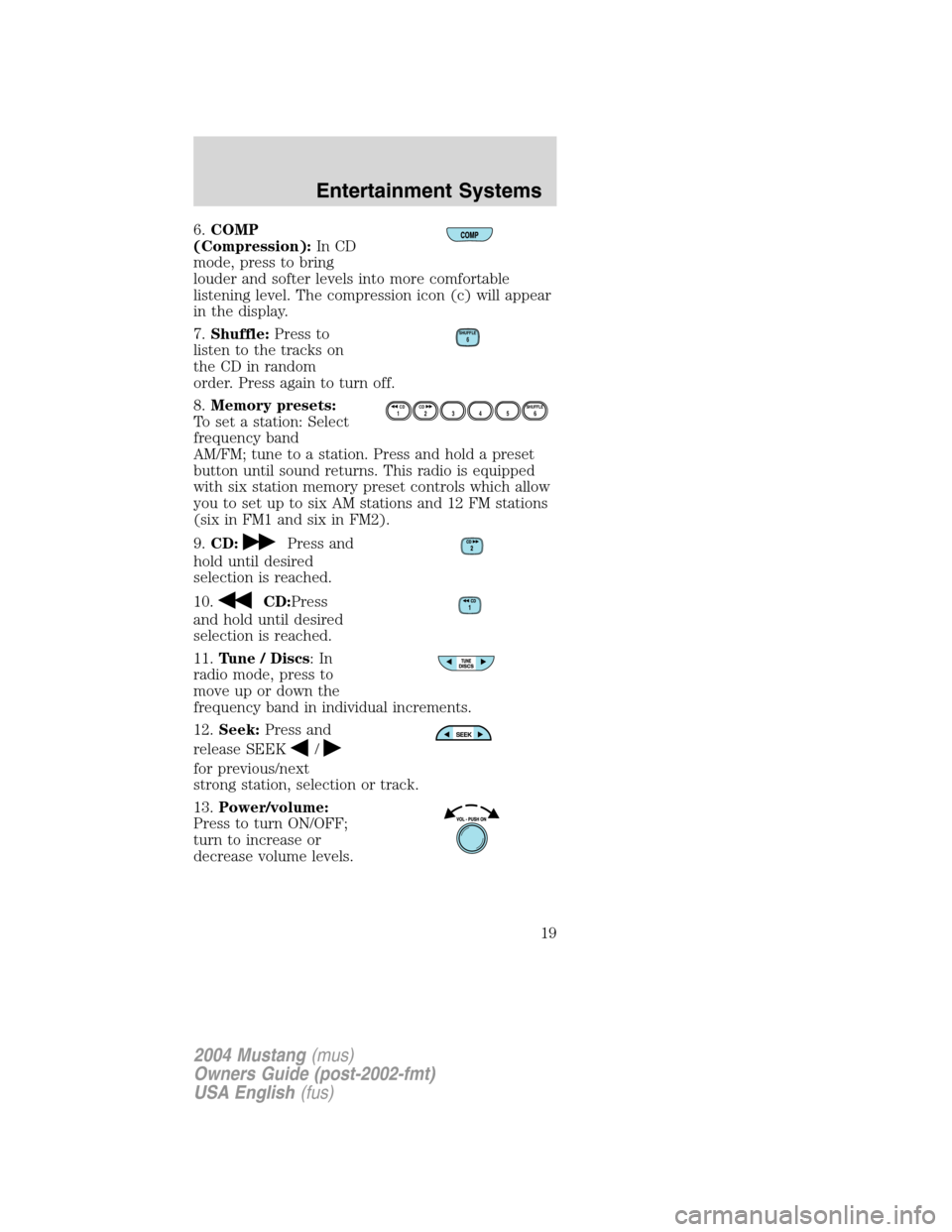

6.COMP
(Compression):In CD
mode, press to bring
louder and softer levels into more comfortable
listening level. The compression icon (c) will appear
in the display.
7.Shuffle:Press to
listen to the tracks on
the CD in random
order. Press again to turn off.
8.Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station. Press and hold a preset
button until sound returns. This radio is equipped
with six station memory preset controls which allow
you to set up to six AM stations and 12 FM stations
(six in FM1 and six in FM2).
9.CD:
Press and
hold until desired
selection is reached.
10.
CD:Press
and hold until desired
selection is reached.
11.Tune / Discs:In
radio mode, press to
move up or down the
frequency band in individual increments.
12.Seek:Press and
release SEEK
/
for previous/next
strong station, selection or track.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
SHUFFLE6
12 3456SHUFFLE CD CD
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
19

14.CD: Press to enter
CD mode or to play a
CD already loaded into
the system.
15.AM/FM:Press to
choose a frequency
band in radio mode.
16.Bass:
Press
/to
increase/decrease the
bass output.
17.Treble:
Press
/to
increase/decrease the
treble output.
18.CD door:Insert a
CD printed side up.

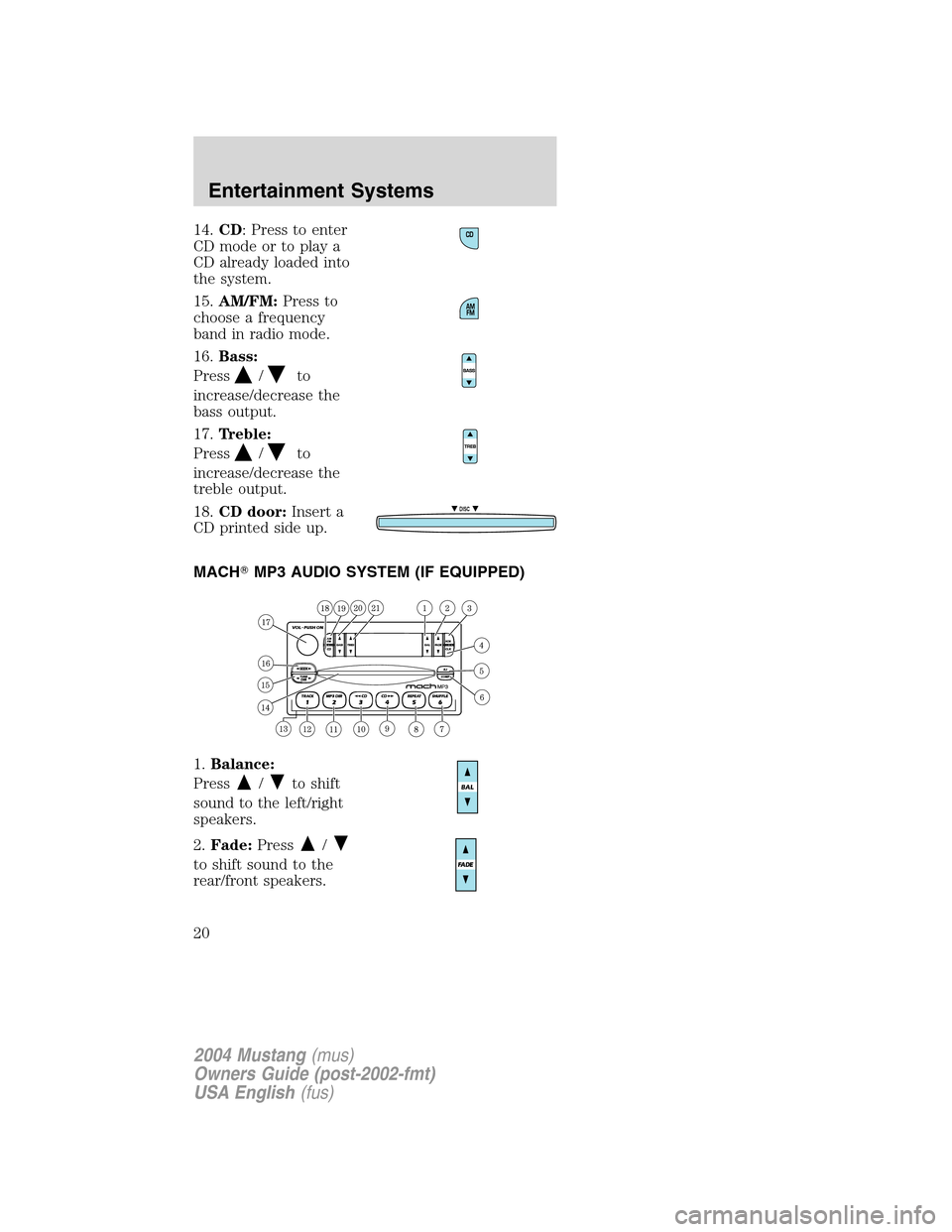

MACHMP3 AUDIO SYSTEM (IF EQUIPPED)
1.Balance:
Press
/to shift
sound to the left/right
speakers.
2.Fade:Press
/
to shift sound to the
rear/front speakers.
DISC
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
20
