FORD MUSTANG 2004 4.G Service Manual

Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the OFF
position and open the hood.
2. At the back of the
headlamp, pull two
retainer pins up to
release the headlamp
assembly.
3. Pull headlamp
assembly forward and
rotate the bulb socket
counterclockwise and remove from lamp assembly.
4. Pull the bulb straight
out from the socket
and push in the new
bulb.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open the trunk.
2. Inside trunk, locate
access hole under the
rear decklid.
3. Rotate the bulb
socket
counterclockwise and
pull it out of the lamp assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
41

Replacing foglamp bulbs
1. Make sure the
headlamp switch is in
the OFF position.
2. Rotate the foglamp
bulb socket
counterclockwise and
remove from foglamp.
3. Disconnect the
electrical connector and pull the bulb straight out.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open trunk and
remove bulb socket
from the trunk lid by
turning it
counterclockwise.
2. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing tail lamp/backup bulbs
For bulb replacement, see a dealer or qualified
technician.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
42

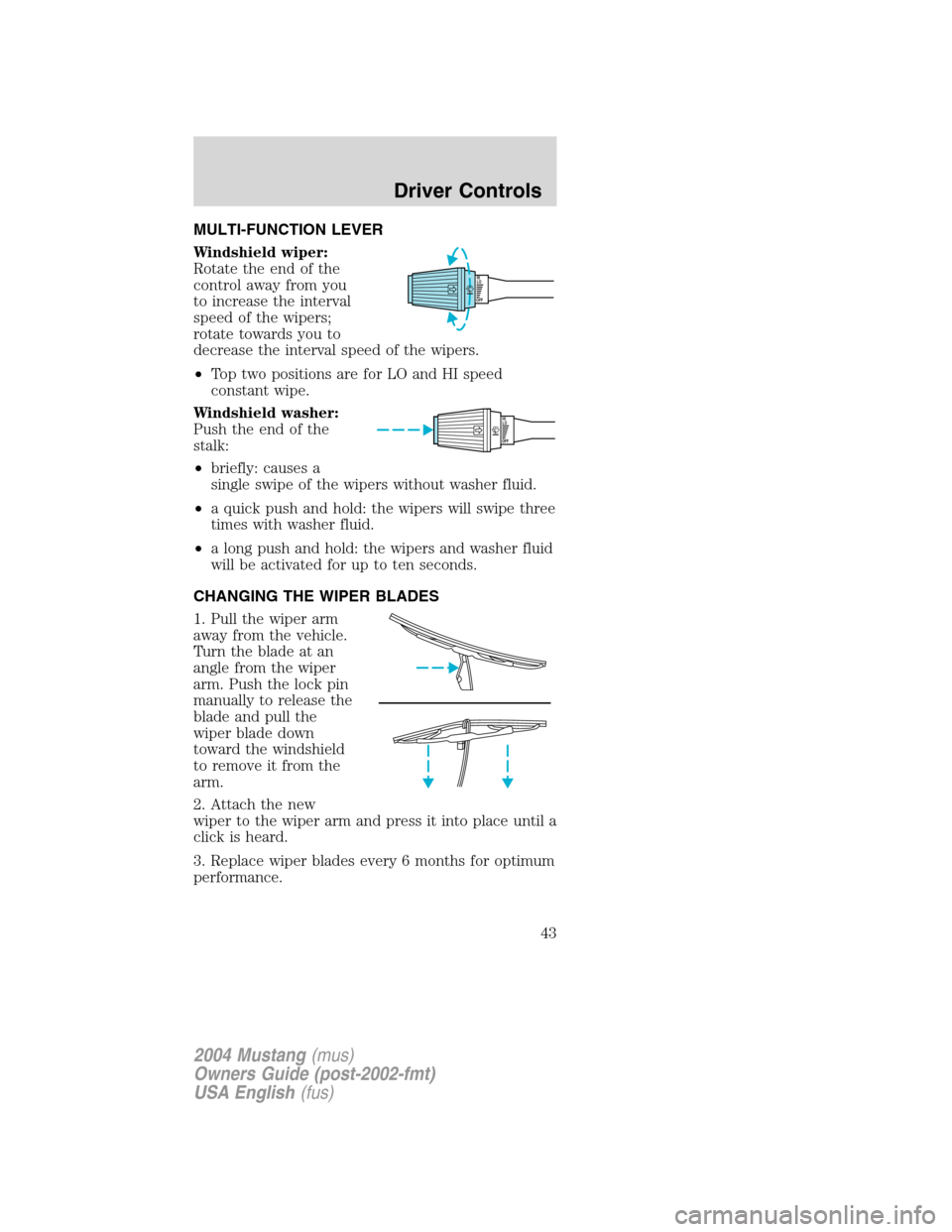

MULTI-FUNCTION LEVER
Windshield wiper:
Rotate the end of the
control away from you
to increase the interval
speed of the wipers;
rotate towards you to
decrease the interval speed of the wipers.
•Top two positions are for LO and HI speed
constant wipe.
Windshield washer:
Push the end of the
stalk:
•briefly: causes a
single swipe of the wipers without washer fluid.
•a quick push and hold: the wipers will swipe three
times with washer fluid.
•a long push and hold: the wipers and washer fluid
will be activated for up to ten seconds.
CHANGING THE WIPER BLADES
1. Pull the wiper arm
away from the vehicle.
Turn the blade at an
angle from the wiper
arm. Push the lock pin
manually to release the
blade and pull the
wiper blade down
toward the windshield
to remove it from the
arm.
2. Attach the new
wiper to the wiper arm and press it into place until a
click is heard.
3. Replace wiper blades every 6 months for optimum
performance.
OFFHI
LO
OFFHI
LO
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
43

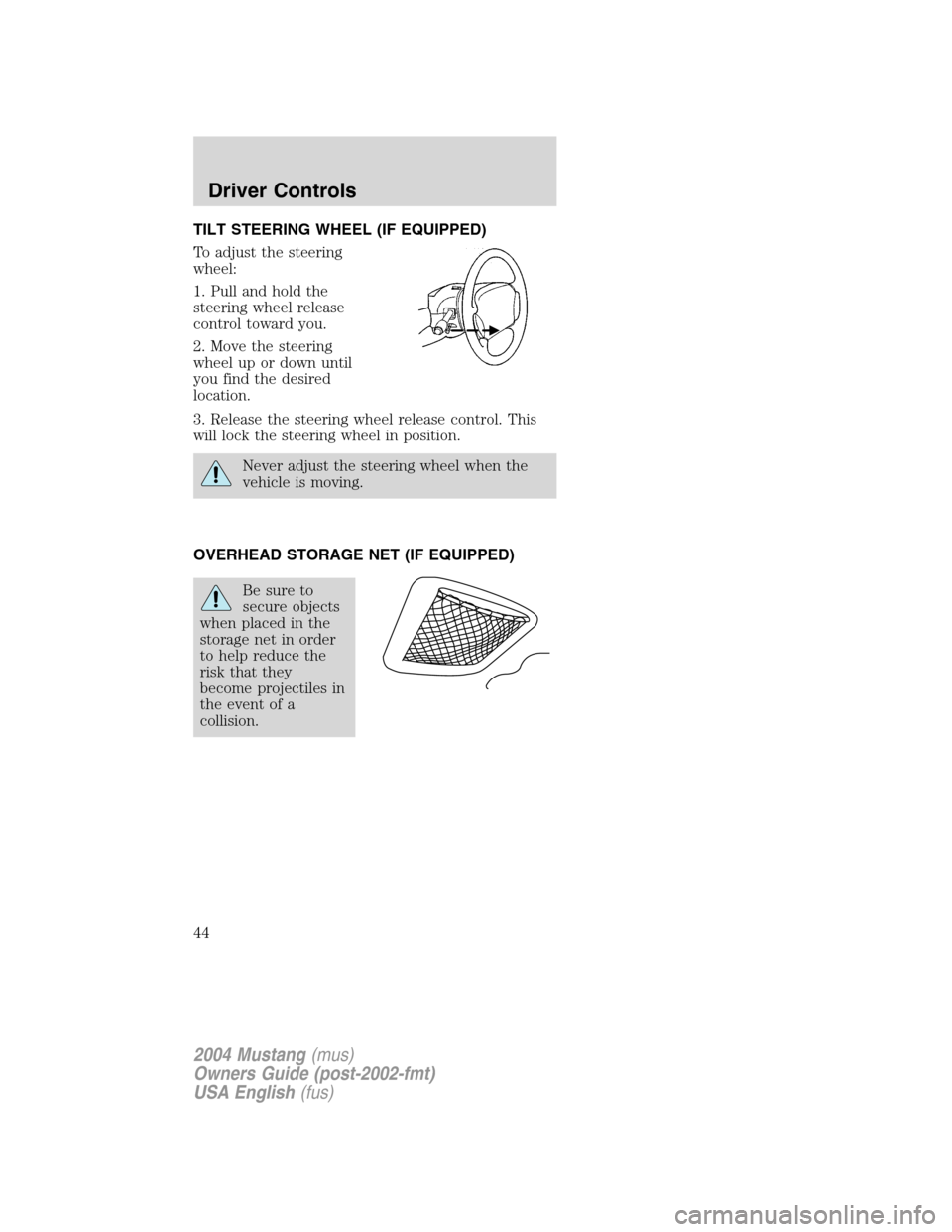

TILT STEERING WHEEL (IF EQUIPPED)
To adjust the steering
wheel:
1. Pull and hold the
steering wheel release
control toward you.
2. Move the steering
wheel up or down until
you find the desired
location.
3. Release the steering wheel release control. This
will lock the steering wheel in position.
Never adjust the steering wheel when the
vehicle is moving.
OVERHEAD STORAGE NET (IF EQUIPPED)
Be sure to
secure objects
when placed in the
storage net in order
to help reduce the
risk that they
become projectiles in
the event of a
collision.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
44

AUXILIARY POWER POINT
The power point is an
additional power
source for electrical
accessories. A power
point is located in front
of the center console
storage bin.
Do not plug optional
electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the
cigarette lighter element.
The Maximum power each power point can supply
depends on the fuse rating. For example: a 20A fuse
should supply a maximum of 240 Watts, a 15A fuse
should supply a maximum of 180 Watts and a 10A
fuse should supply a maximum of 120 Watts.
Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not
being used.
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use
of the power outlet can cause damage not
covered by your warranty.
POWER WINDOWS
When closing
the power
windows, you should
verify they are free
of obstructions and
ensure that children
and/or pets are not in
the proximity of the
window openings.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
45

Press and hold the bottom part of the rocker switch
to open the window. Press and hold the top part of
the rocker switch to close the window.
One touch down
Allows the driver’s
window to open fully
without holding the
control down. Press
completely down on
the bottom part of the
rocker switch and release quickly. Press again to
stop.
POWER SIDE VIEW MIRRORS
(IF EQUIPPED)
To adjust your mirrors:
1. Move the mirror
selector control all the
way to the left to
adjust the left mirror
or all the way to the
right to adjust the right
mirror.
2. Move the control in the direction you wish to tilt
the mirror.
3. Return the control to the center position.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of
48 km/h (30 mph) or more without keeping your
foot on the accelerator pedal. Speed control does
not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic
or on roads that are winding, slippery or
unpaved.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
46

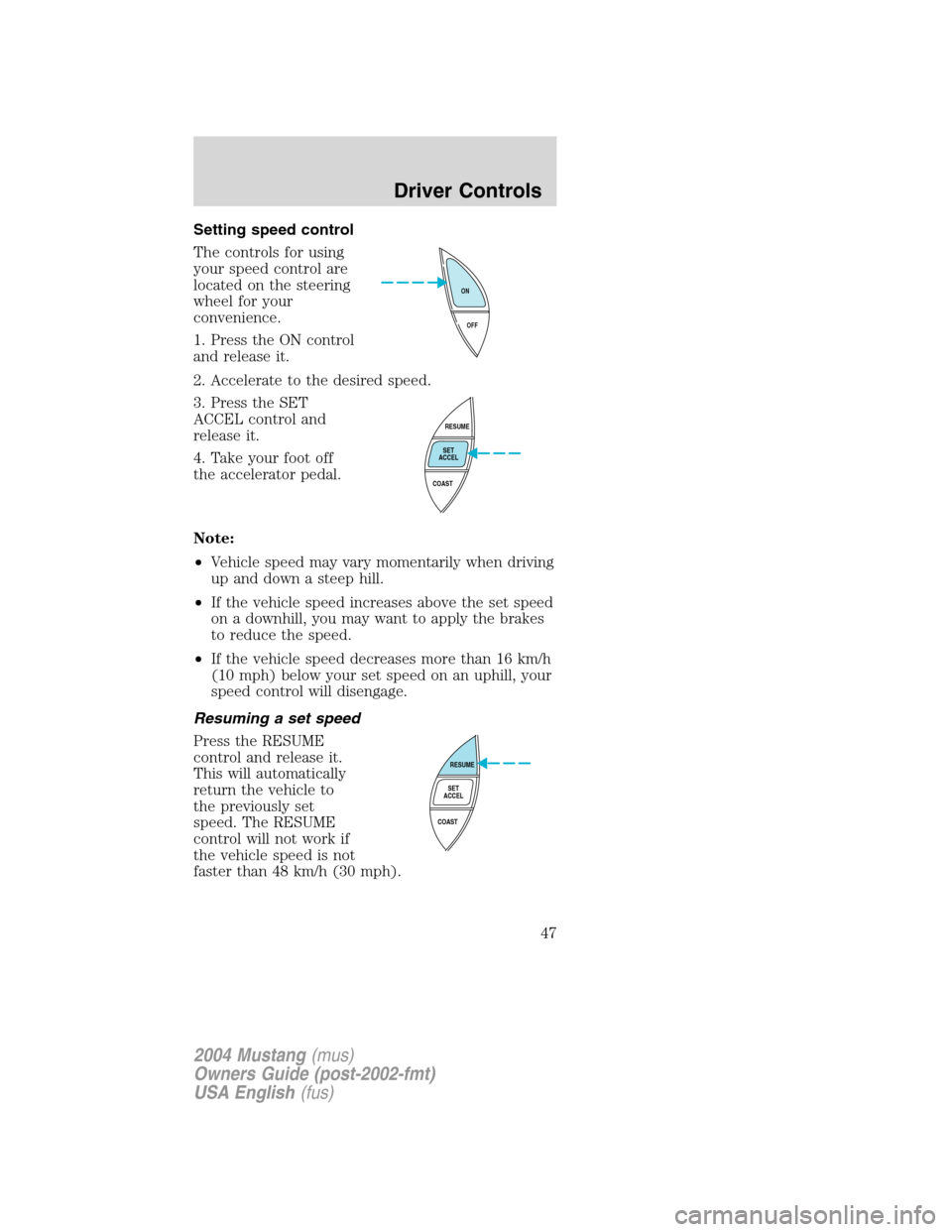

Setting speed control
The controls for using
your speed control are
located on the steering
wheel for your
convenience.
1. Press the ON control
and release it.
2. Accelerate to the desired speed.
3. Press the SET
ACCEL control and
release it.
4. Take your foot off
the accelerator pedal.
Note:
•Vehicle speed may vary momentarily when driving
up and down a steep hill.
•If the vehicle speed increases above the set speed
on a downhill, you may want to apply the brakes
to reduce the speed.
•If the vehicle speed decreases more than 16 km/h
(10 mph) below your set speed on an uphill, your
speed control will disengage.
Resuming a set speed
Press the RESUME
control and release it.
This will automatically
return the vehicle to
the previously set
speed. The RESUME
control will not work if
the vehicle speed is not
faster than 48 km/h (30 mph).
OFF ON
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
47

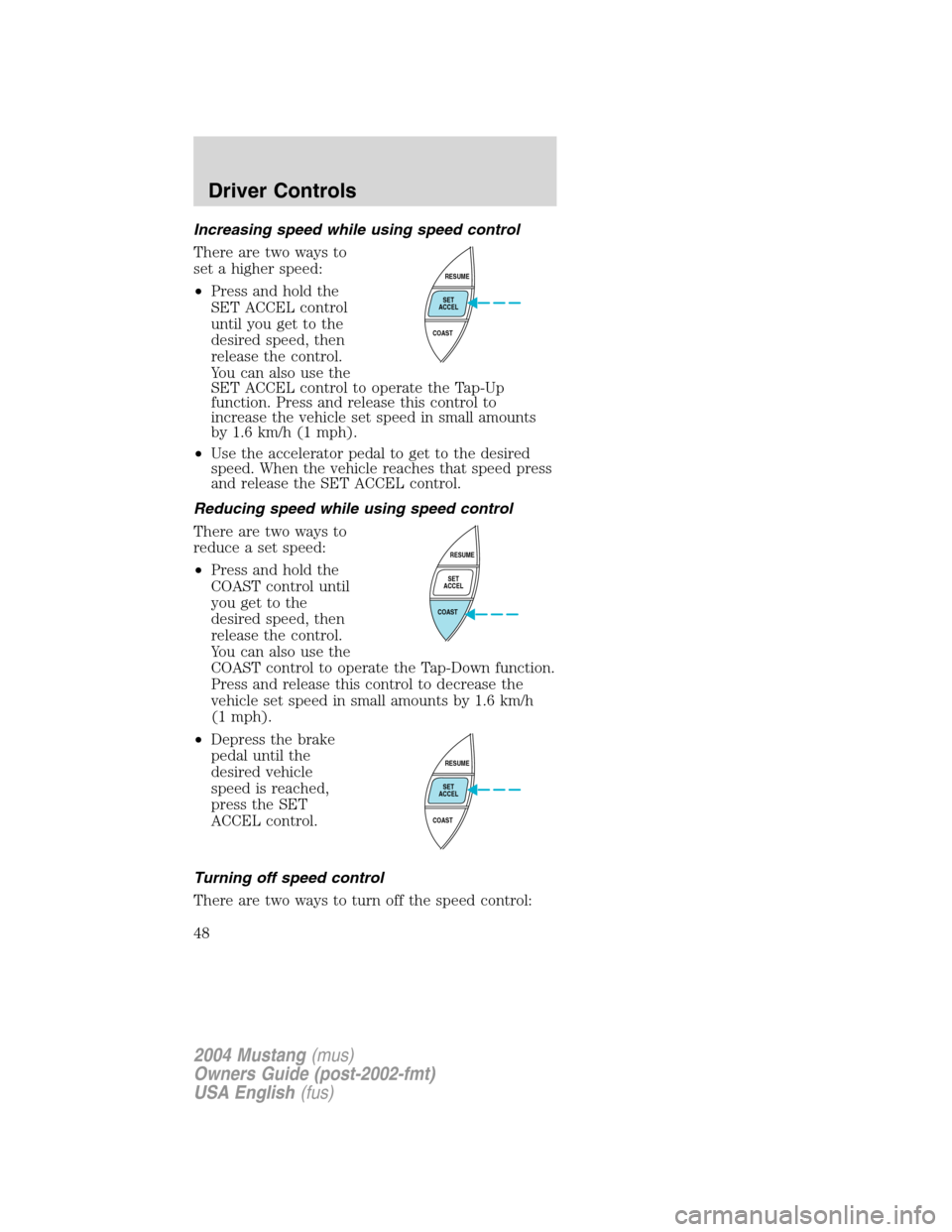

Increasing speed while using speed control
There are two ways to
set a higher speed:
•Press and hold the
SET ACCEL control
until you get to the
desired speed, then
release the control.
You can also use the
SET ACCEL control to operate the Tap-Up
function. Press and release this control to
increase the vehicle set speed in small amounts
by 1.6 km/h (1 mph).
•Use the accelerator pedal to get to the desired
speed. When the vehicle reaches that speed press
and release the SET ACCEL control.
Reducing speed while using speed control
There are two ways to
reduce a set speed:
•Press and hold the
COAST control until
you get to the
desired speed, then
release the control.
You can also use the
COAST control to operate the Tap-Down function.
Press and release this control to decrease the
vehicle set speed in small amounts by 1.6 km/h
(1 mph).
•Depress the brake
pedal until the
desired vehicle
speed is reached,
press the SET
ACCEL control.
Turning off speed control
There are two ways to turn off the speed control:
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
48

•Depress the brake pedal or the clutch pedal (if
equipped). This will not erase your vehicle’s
previously set speed.
•Press the speed
control OFF control.
Note:When you turn
off the speed control or
the ignition, your speed
control set speed
memory is erased.
CENTER CONSOLE
Your vehicle may be equipped with a variety of
console features. These include:
•Dual cupholders
•Auxiliary power point
•Coin holder slots (if equipped)
•Convertible top control (if equipped)
Use only soft cups in the cupholder. Hard
objects can injure you in a collision.
Cell phone use
The use of Mobile Communications Equipment has
become increasingly important in the conduct of
business and personal affairs. However, drivers must
not compromise their own or others’safety when
using such equipment. Mobile Communications can
enhance personal safety and security when
appropriately used, particularly in emergency
situations. Safety must be paramount when using
mobile communications equipment to avoid negating
these benefits.
Mobile Communication Equipment includes, but is
not limited to cellular phones, pagers, portable email
devices, in vehicle communications systems,
telematics devices and portable two-way radios.
OFF ON
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
49

A driver’s first responsibility is the safe
operation of the vehicle. The most important
thing you can do to prevent a crash is to avoid
distractions and pay attention to the road. Wait
until it is safe to operate Mobile Communications
Equipment.
POSITIVE RETENTION FLOOR MAT
(IF EQUIPPED)
Position the floor mat so
that the eyelet is over the
pointed end of the
retention post and rotate
forward to lock in. Make
sure that the mat does not
interfere with the operation
of the accelerator or the
brake pedal. To remove the
floor mat, reverse the installation procedure.
INTERIOR TRUNK CONTROL
The remote trunk release control is located in the
glove compartment. Press to open trunk.
CONVERTIBLE (IF EQUIPPED)
Do not store articles behind rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered.
Lowering the convertible top
The convertible top can be lowered with the side
windows either up or down.
The convertible topwill not operateunless the
parking brake is engaged. Do not lower the top while
the vehicle is moving because the top may be
severely damaged. Also, do not lower the top when
the top material is wet.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
