FORD MUSTANG 2013 5.G Owners Manual

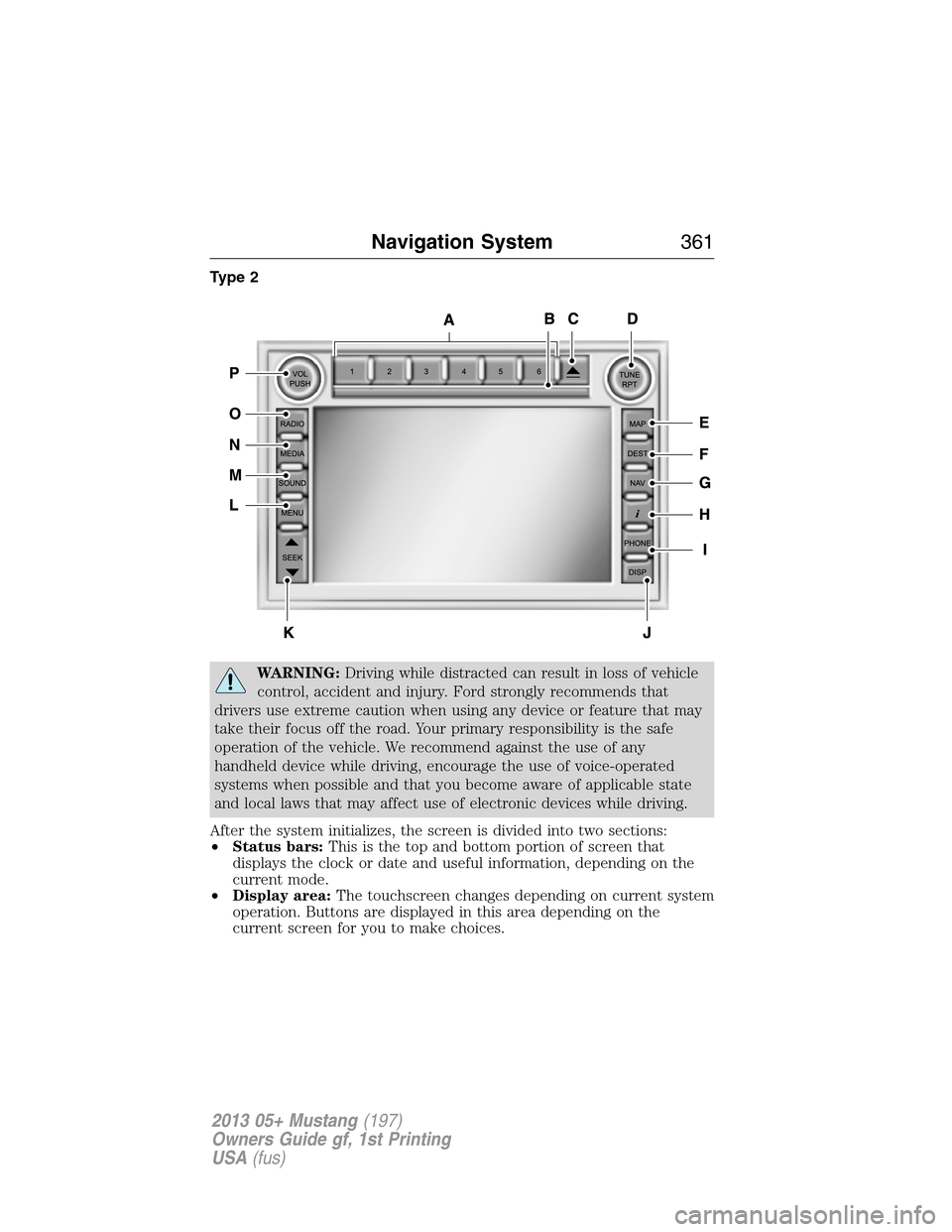

Type 2
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
After the system initializes, the screen is divided into two sections:
•Status bars:This is the top and bottom portion of screen that
displays the clock or date and useful information, depending on the
current mode.
•Display area:The touchscreen changes depending on current system
operation. Buttons are displayed in this area depending on the
current screen for you to make choices.
Navigation System361
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

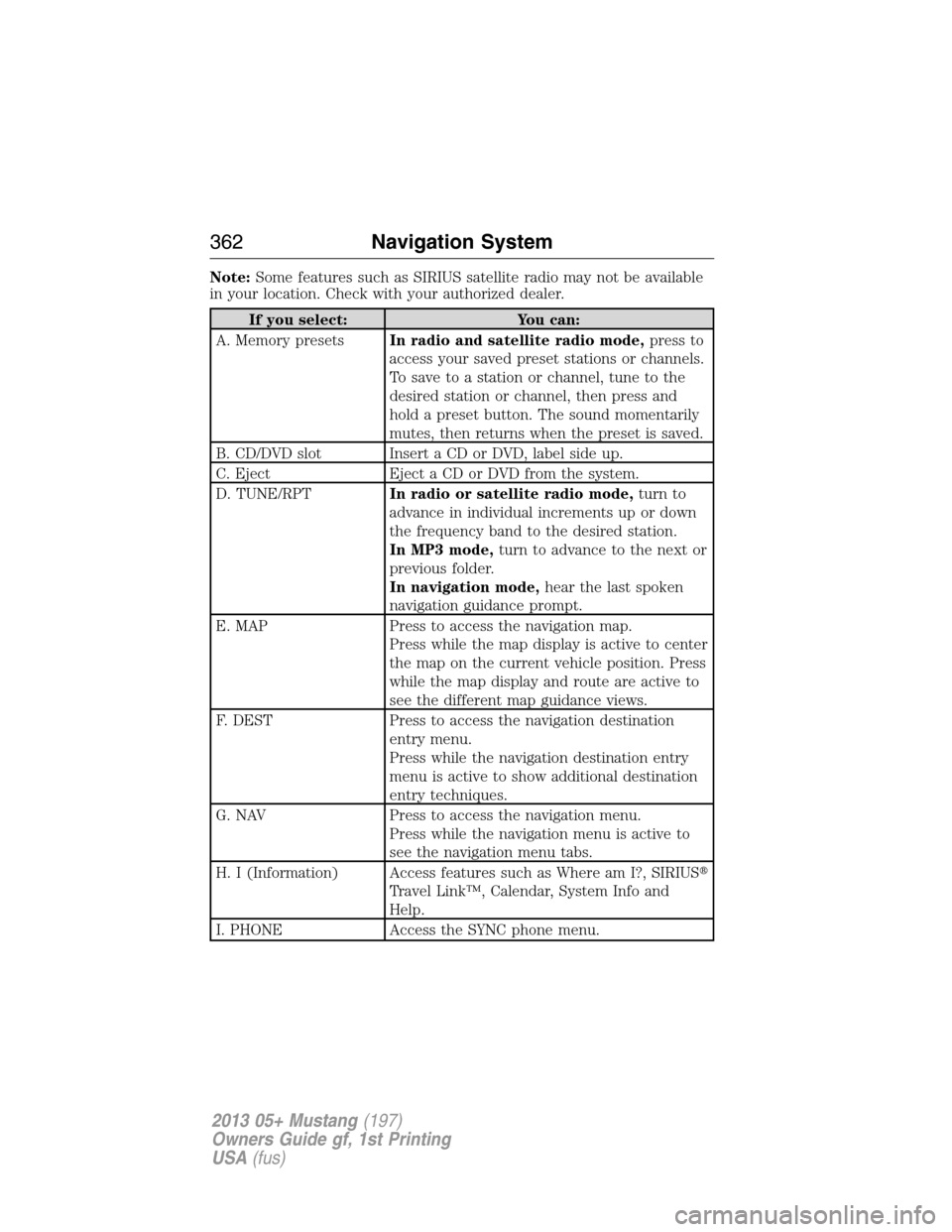

Note:Some features such as SIRIUS satellite radio may not be available
in your location. Check with your authorized dealer.
If you select: You can:
A. Memory presetsIn radio and satellite radio mode,press to
access your saved preset stations or channels.
To save to a station or channel, tune to the
desired station or channel, then press and
hold a preset button. The sound momentarily
mutes, then returns when the preset is saved.
B. CD/DVD slot Insert a CD or DVD, label side up.
C. Eject Eject a CD or DVD from the system.
D. TUNE/RPTIn radio or satellite radio mode,turn to
advance in individual increments up or down
the frequency band to the desired station.
In MP3 mode,turn to advance to the next or
previous folder.
In navigation mode,hear the last spoken
navigation guidance prompt.
E. MAP Press to access the navigation map.
Press while the map display is active to center
the map on the current vehicle position. Press
while the map display and route are active to
see the different map guidance views.
F. DEST Press to access the navigation destination
entry menu.
Press while the navigation destination entry
menu is active to show additional destination
entry techniques.
G. NAV Press to access the navigation menu.
Press while the navigation menu is active to
see the navigation menu tabs.
H. I (Information) Access features such as Where am I?, SIRIUS
Travel Link™, Calendar, System Info and
Help.
I. PHONE Access the SYNC phone menu.
362Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

If you select: You can:
J. DISP Select a display mode: On, Status Bar Only,
and Off.
K. SEEKIn radio and satellite radio mode,press
the arrow buttons to find previous or next
available stations or channels within the
currently selected Category or Genre.
In CD/DVD mode,press the arrow buttons
to select the previous or next track or
chapter.
L. MENU Press to access the system menu.
Press while the system menu is active to see
the menu tabs of Display, Clock, Feedback
Settings, System Settings and Valet Mode.
M. SOUND Access the sound menu.
Press while the sound menu is active to see
the menu tabs of Bass/Treble, Balance/Fade,
SCV (Speed Compensated Volume), DSP
(Digital Signal Processing) and Visualizer.
N. MEDIA Press to access the media menu.
Press while the media menu is active to see
the available sources of CD/DVD, Jukebox and
User Device.
O. RADIO Press to access the radio menu.
Press while the radio menu is active to see
the available sources of AM, FM1, FM2, SAT1,
SAT2, and SAT3 (satellite radio).
P. VOL/PUSH Turn to adjust the volume. Press and hold to
turn the system on and off.
Note:If a navigation route is active when the
navigation system is turned off, the route is
resumed when the system is turned on again.
Navigation System363
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

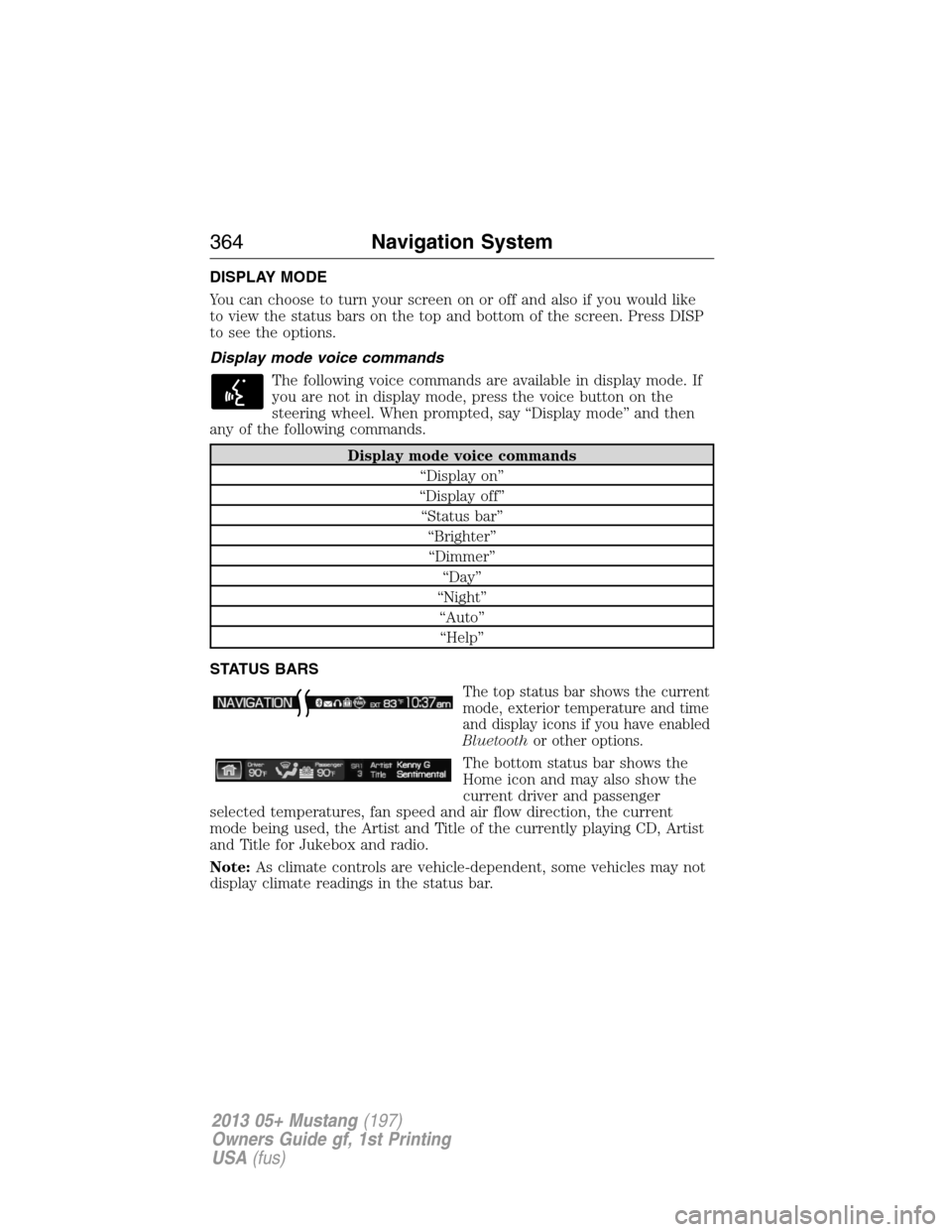

DISPLAY MODE
You can choose to turn your screen on or off and also if you would like
to view the status bars on the top and bottom of the screen. Press DISP
to see the options.
Display mode voice commands
The following voice commands are available in display mode. If
you are not in display mode, press the voice button on the
steering wheel. When prompted, say “Display mode” and then
any of the following commands.
Display mode voice commands
“Display on”
“Display off”
“Status bar”
“Brighter”
“Dimmer”
“Day”
“Night”
“Auto”
“Help”
STATUS BARS
The top status bar shows the current
mode, exterior temperature and time
and display icons if you have enabled
Bluetoothor other options.
The bottom status bar shows the
Home icon and may also show the
current driver and passenger
selected temperatures, fan speed and air flow direction, the current
mode being used, the Artist and Title of the currently playing CD, Artist
and Title for Jukebox and radio.
Note:As climate controls are vehicle-dependent, some vehicles may not
display climate readings in the status bar.
364Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

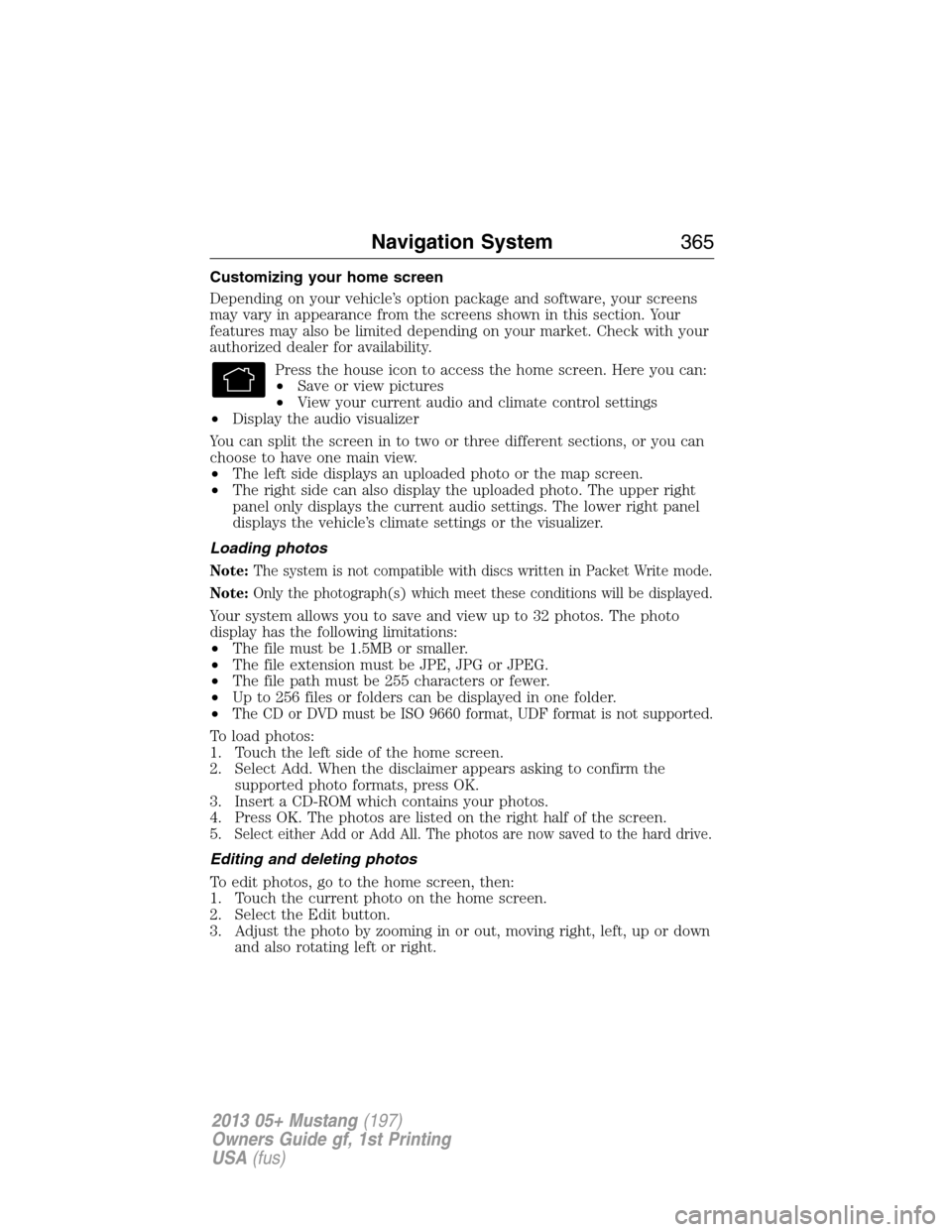

Customizing your home screen
Depending on your vehicle’s option package and software, your screens
may vary in appearance from the screens shown in this section. Your
features may also be limited depending on your market. Check with your
authorized dealer for availability.
Press the house icon to access the home screen. Here you can:
•Save or view pictures
•View your current audio and climate control settings
•Display the audio visualizer
You can split the screen in to two or three different sections, or you can
choose to have one main view.
•The left side displays an uploaded photo or the map screen.
•The right side can also display the uploaded photo. The upper right
panel only displays the current audio settings. The lower right panel
displays the vehicle’s climate settings or the visualizer.
Loading photos
Note:The system is not compatible with discs written in Packet Write mode.
Note:Only the photograph(s) which meet these conditions will be displayed.
Your system allows you to save and view up to 32 photos. The photo
display has the following limitations:
•The file must be 1.5MB or smaller.
•The file extension must be JPE, JPG or JPEG.
•The file path must be 255 characters or fewer.
•Up to 256 files or folders can be displayed in one folder.
•
The CD or DVD must be ISO 9660 format, UDF format is not supported.
To load photos:
1. Touch the left side of the home screen.
2. Select Add. When the disclaimer appears asking to confirm the
supported photo formats, press OK.
3. Insert a CD-ROM which contains your photos.
4. Press OK. The photos are listed on the right half of the screen.
5.
Select either Add or Add All. The photos are now saved to the hard drive.
Editing and deleting photos
To edit photos, go to the home screen, then:
1. Touch the current photo on the home screen.
2. Select the Edit button.
3. Adjust the photo by zooming in or out, moving right, left, up or down
and also rotating left or right.
Navigation System365
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

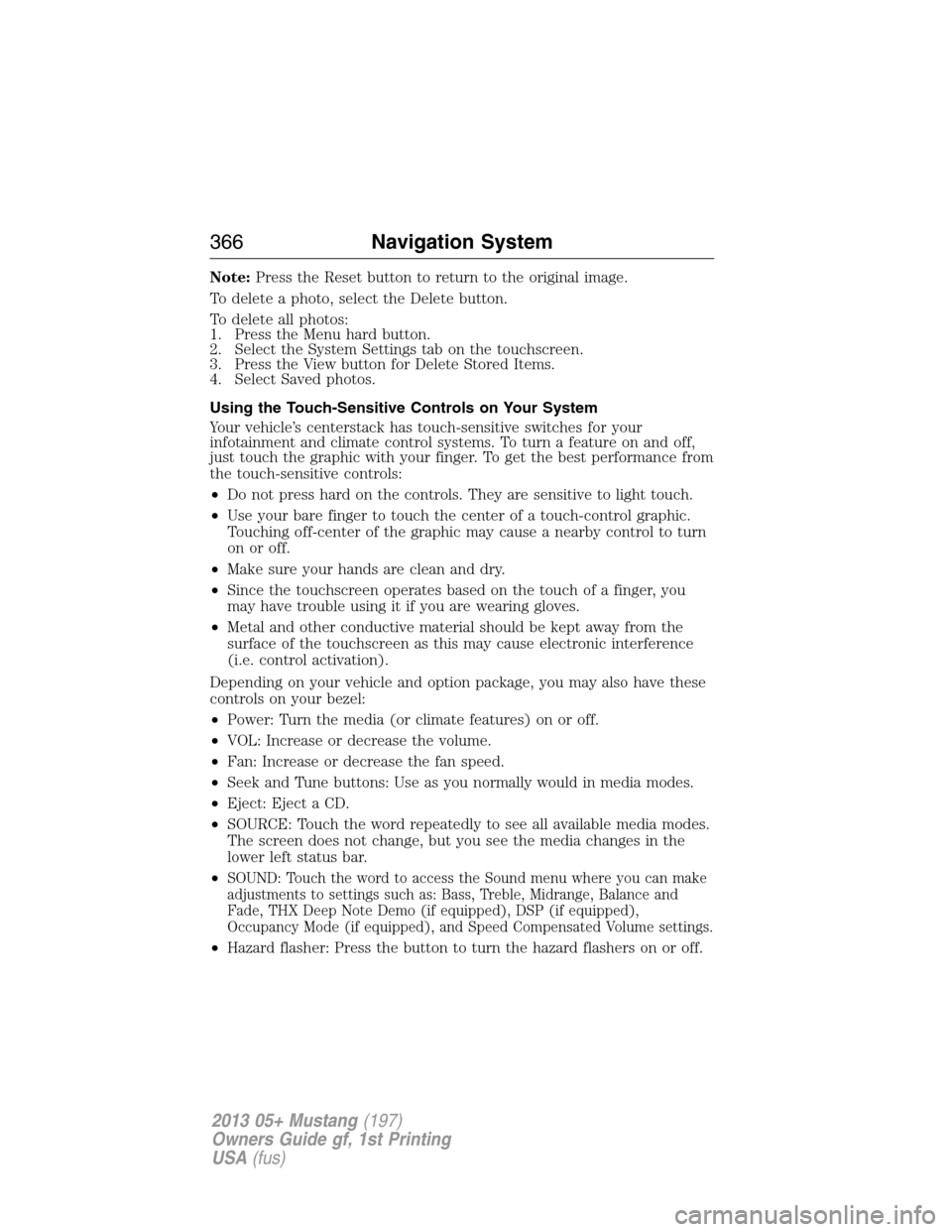

Note:Press the Reset button to return to the original image.
To delete a photo, select the Delete button.
To delete all photos:
1. Press the Menu hard button.
2. Select the System Settings tab on the touchscreen.
3. Press the View button for Delete Stored Items.
4. Select Saved photos.
Using the Touch-Sensitive Controls on Your System
Your vehicle’s centerstack has touch-sensitive switches for your
infotainment and climate control systems. To turn a feature on and off,
just touch the graphic with your finger. To get the best performance from
the touch-sensitive controls:
•Do not press hard on the controls. They are sensitive to light touch.
•Use your bare finger to touch the center of a touch-control graphic.
Touching off-center of the graphic may cause a nearby control to turn
on or off.
•Make sure your hands are clean and dry.
•Since the touchscreen operates based on the touch of a finger, you
may have trouble using it if you are wearing gloves.
•Metal and other conductive material should be kept away from the
surface of the touchscreen as this may cause electronic interference
(i.e. control activation).
Depending on your vehicle and option package, you may also have these
controls on your bezel:
•Power: Turn the media (or climate features) on or off.
•VOL: Increase or decrease the volume.
•Fan: Increase or decrease the fan speed.
•Seek and Tune buttons: Use as you normally would in media modes.
•Eject: Eject a CD.
•SOURCE: Touch the word repeatedly to see all available media modes.
The screen does not change, but you see the media changes in the
lower left status bar.
•
SOUND: Touch the word to access the Sound menu where you can make
adjustments to settings such as: Bass, Treble, Midrange, Balance and
Fade, THX Deep Note Demo (if equipped), DSP (if equipped),
Occupancy Mode (if equipped), and Speed Compensated Volume settings.
•Hazard flasher: Press the button to turn the hazard flashers on or off.
366Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

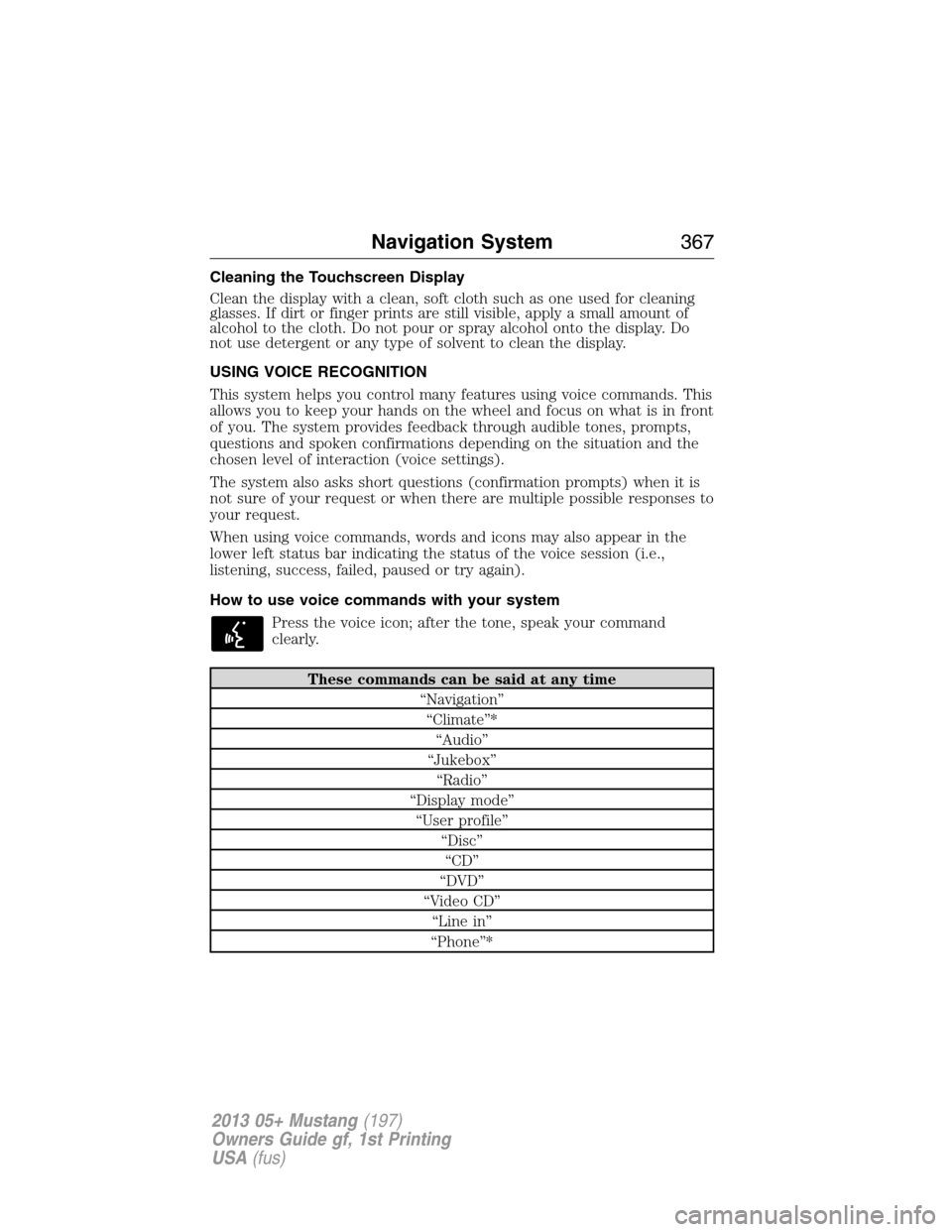

Cleaning the Touchscreen Display
Clean the display with a clean, soft cloth such as one used for cleaning
glasses. If dirt or finger prints are still visible, apply a small amount of
alcohol to the cloth. Do not pour or spray alcohol onto the display. Do
not use detergent or any type of solvent to clean the display.
USING VOICE RECOGNITION
This system helps you control many features using voice commands. This
allows you to keep your hands on the wheel and focus on what is in front
of you. The system provides feedback through audible tones, prompts,
questions and spoken confirmations depending on the situation and the
chosen level of interaction (voice settings).
The system also asks short questions (confirmation prompts) when it is
not sure of your request or when there are multiple possible responses to
your request.
When using voice commands, words and icons may also appear in the
lower left status bar indicating the status of the voice session (i.e.,
listening, success, failed, paused or try again).
How to use voice commands with your system
Press the voice icon; after the tone, speak your command
clearly.
These commands can be said at any time
“Navigation”
“Climate”*
“Audio”
“Jukebox”
“Radio”
“Display mode”
“User profile”
“Disc”
“CD”
“DVD”
“Video CD”
“Line in”
“Phone”*
Navigation System367
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

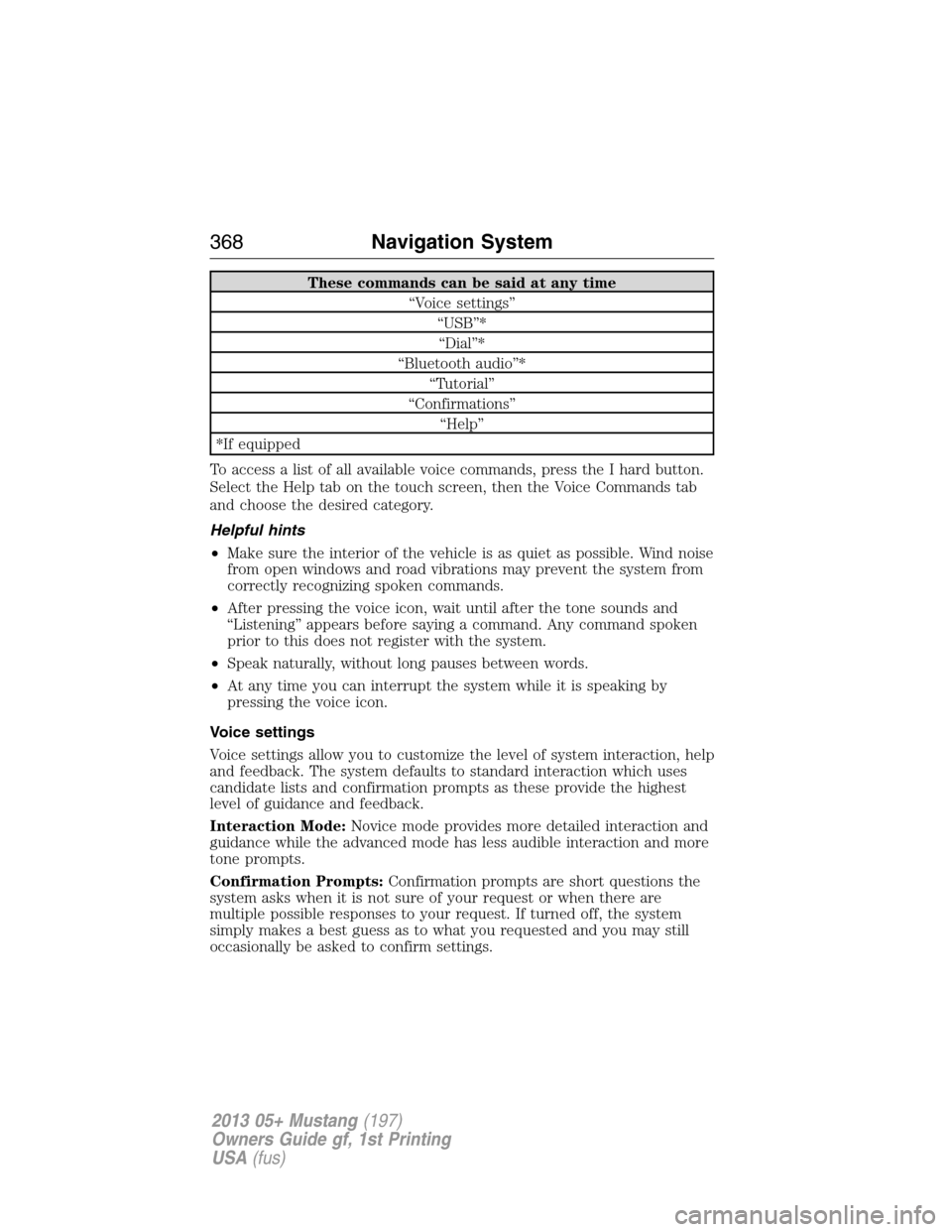

These commands can be said at any time
“Voice settings”
“USB”*
“Dial”*
“Bluetooth audio”*
“Tutorial”
“Confirmations”
“Help”
*If equipped
To access a list of all available voice commands, press the I hard button.
Select the Help tab on the touch screen, then the Voice Commands tab
and choose the desired category.
Helpful hints
•Make sure the interior of the vehicle is as quiet as possible. Wind noise
from open windows and road vibrations may prevent the system from
correctly recognizing spoken commands.
•After pressing the voice icon, wait until after the tone sounds and
“Listening” appears before saying a command. Any command spoken
prior to this does not register with the system.
•Speak naturally, without long pauses between words.
•At any time you can interrupt the system while it is speaking by
pressing the voice icon.
Voice settings
Voice settings allow you to customize the level of system interaction, help
and feedback. The system defaults to standard interaction which uses
candidate lists and confirmation prompts as these provide the highest
level of guidance and feedback.
Interaction Mode:Novice mode provides more detailed interaction and
guidance while the advanced mode has less audible interaction and more
tone prompts.
Confirmation Prompts:Confirmation prompts are short questions the
system asks when it is not sure of your request or when there are
multiple possible responses to your request. If turned off, the system
simply makes a best guess as to what you requested and you may still
occasionally be asked to confirm settings.
368Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

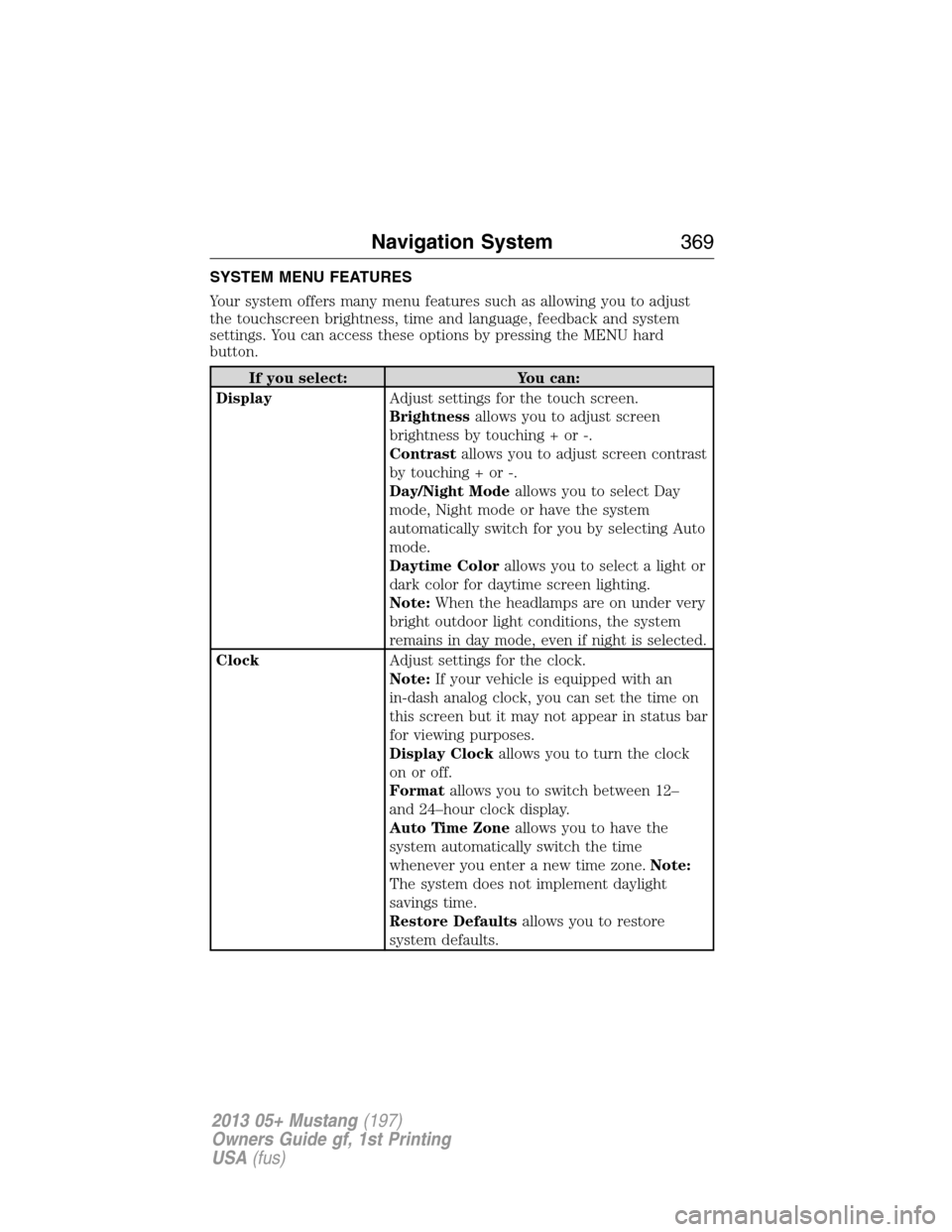

SYSTEM MENU FEATURES
Your system offers many menu features such as allowing you to adjust
the touchscreen brightness, time and language, feedback and system
settings. You can access these options by pressing the MENU hard
button.
If you select: You can:
DisplayAdjust settings for the touch screen.
Brightnessallows you to adjust screen
brightness by touching + or -.
Contrastallows you to adjust screen contrast
by touching + or -.
Day/Night Modeallows you to select Day
mode, Night mode or have the system
automatically switch for you by selecting Auto
mode.
Daytime Colorallows you to select a light or
dark color for daytime screen lighting.
Note:When the headlamps are on under very
bright outdoor light conditions, the system
remains in day mode, even if night is selected.
ClockAdjust settings for the clock.
Note:If your vehicle is equipped with an
in-dash analog clock, you can set the time on
this screen but it may not appear in status bar
for viewing purposes.
Display Clockallows you to turn the clock
on or off.
Formatallows you to switch between 12–
and 24–hour clock display.
Auto Time Zoneallows you to have the
system automatically switch the time
whenever you enter a new time zone.Note:
The system does not implement daylight
savings time.
Restore Defaultsallows you to restore
system defaults.
Navigation System369
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

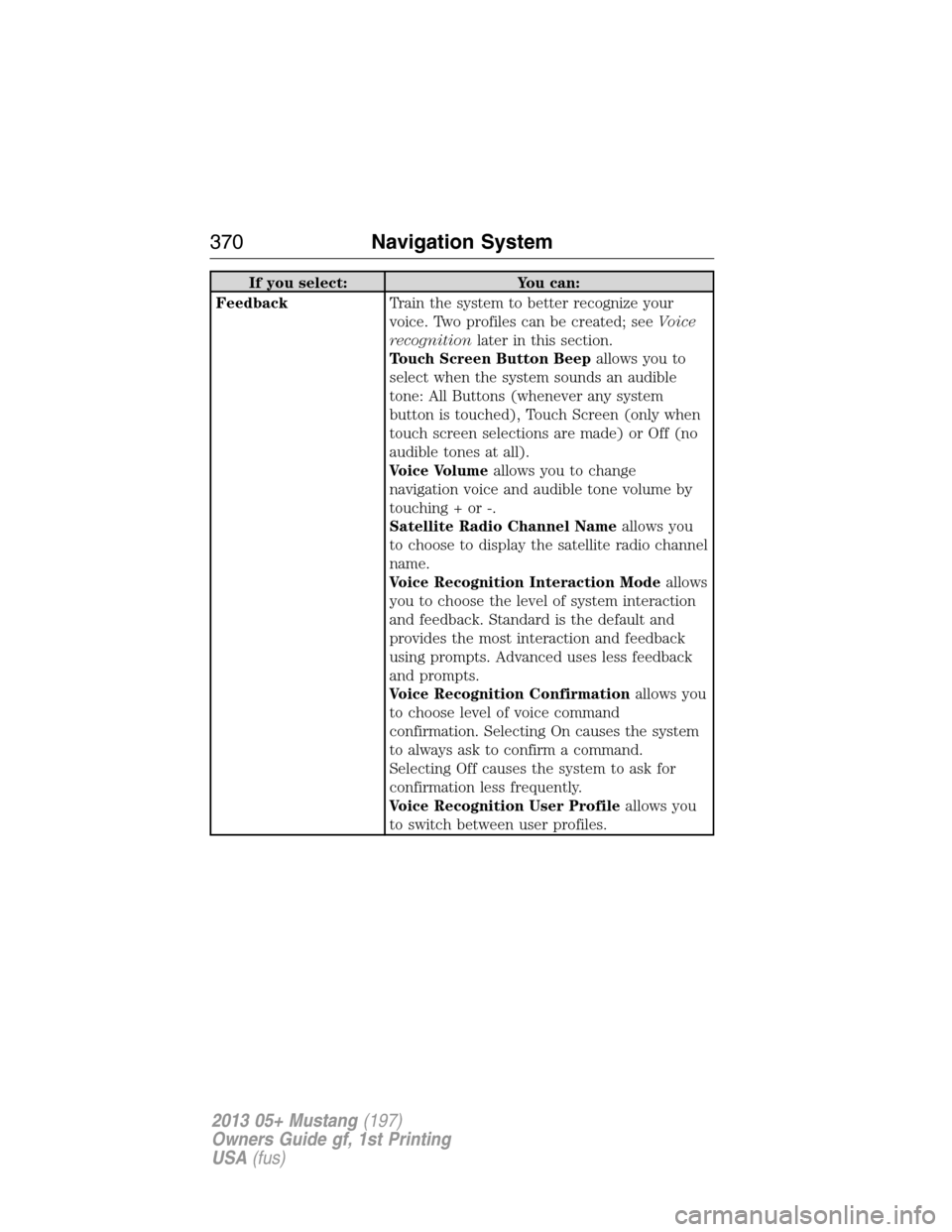

If you select: You can:
FeedbackTrain the system to better recognize your
voice. Two profiles can be created; seeVoice
recognitionlater in this section.
Touch Screen Button Beepallows you to
select when the system sounds an audible
tone: All Buttons (whenever any system
button is touched), Touch Screen (only when
touch screen selections are made) or Off (no
audible tones at all).
Voice Volumeallows you to change
navigation voice and audible tone volume by
touching + or -.
Satellite Radio Channel Nameallows you
to choose to display the satellite radio channel
name.
Voice Recognition Interaction Modeallows
you to choose the level of system interaction
and feedback. Standard is the default and
provides the most interaction and feedback
using prompts. Advanced uses less feedback
and prompts.
Voice Recognition Confirmationallows you
to choose level of voice command
confirmation. Selecting On causes the system
to always ask to confirm a command.
Selecting Off causes the system to ask for
confirmation less frequently.
Voice Recognition User Profileallows you
to switch between user profiles.
370Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)
