FORD MUSTANG 2013 5.G Owners Manual

If you select: You can:
System SettingsChoose basic system settings.
Languageallows you to choose between
English, Spanish and French.
Unitsallows you to choose between English
and Metric measurements.
Keyboard Layoutallows you to choose
between an ABC or QWERTY keyboard.
Delete Stored Itemsallows you to choose to
delete all of the entries from Address Book,
Previous Destinations, Avoid Areas, Saved
Photos and Voice Recognition Profiles. Touch
View to see what entries have been stored.
Restore Factory Default Settingsallows
you to restore factory default settings.
Valet ModeLock and unlock the system using a four-digit
PIN.
Note:The PIN can be reset by simultaneously
pressing and holding presets 1 and 5 while on
the PIN entry screen. After approximately five
seconds, the system transitions to the valet
mode screen indicating that the PIN is reset.
Once you have reset the PIN, the system then
allows you to set a new PIN.
Voice ControlSet the system to automatically listen for USB
or SYNC voice commands first. This
eliminates the need to say “USB” or “User
Device” before any SYNC media commands.
Navigation System371
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

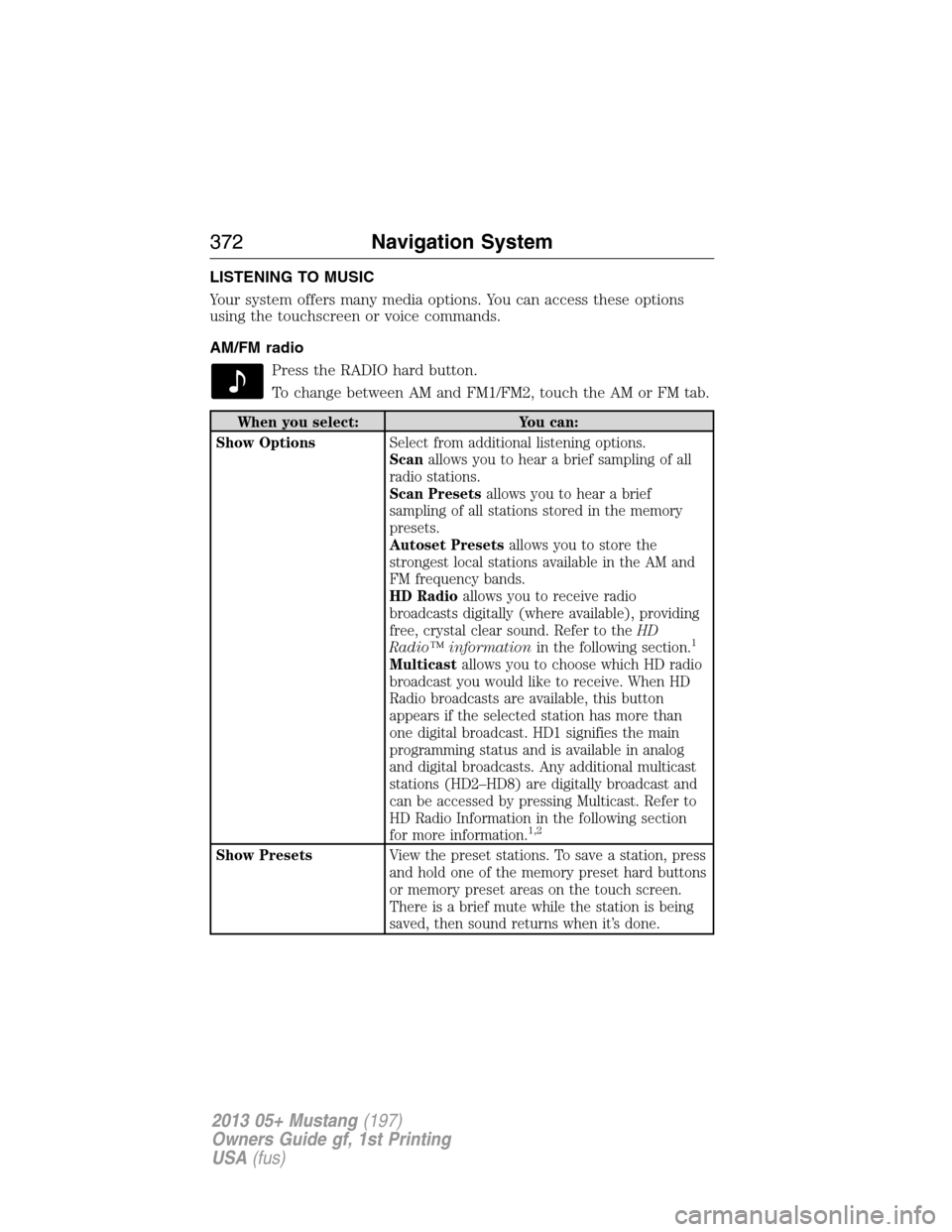

LISTENING TO MUSIC
Your system offers many media options. You can access these options
using the touchscreen or voice commands.
AM/FM radio
Press the RADIO hard button.
To change between AM and FM1/FM2, touch the AM or FM tab.
When you select: You can:
Show OptionsSelect from additional listening options.
Scanallows you to hear a brief sampling of all
radio stations.
Scan Presetsallows you to hear a brief
sampling of all stations stored in the memory
presets.
Autoset Presetsallows you to store the
strongest local stations available in the AM and
FM frequency bands.
HD Radioallows you to receive radio
broadcasts digitally (where available), providing
free, crystal clear sound. Refer to theHD
Radio™ informationin the following section.
1
Multicastallows you to choose which HD radio
broadcast you would like to receive. When HD
Radio broadcasts are available, this button
appears if the selected station has more than
one digital broadcast. HD1 signifies the main
programming status and is available in analog
and digital broadcasts. Any additional multicast
stations (HD2–HD8) are digitally broadcast and
can be accessed by pressing Multicast. Refer to
HD Radio Information in the following section
for more information.
1,2
Show PresetsView the preset stations. To save a station, press
and hold one of the memory preset hard buttons
or memory preset areas on the touch screen.
There is a brief mute while the station is being
saved, then sound returns when it’s done.
372Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

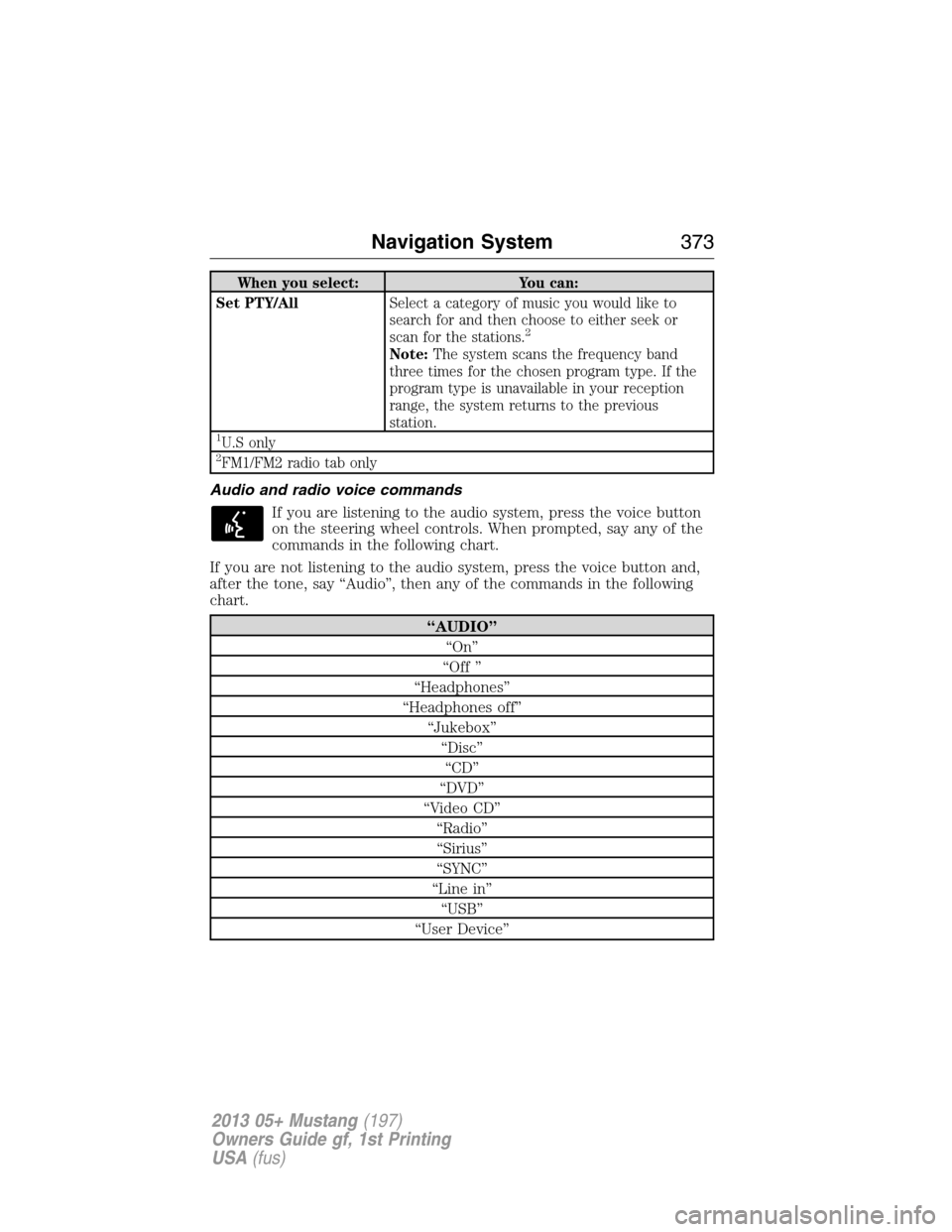

When you select: You can:
Set PTY/AllSelect a category of music you would like to
search for and then choose to either seek or
scan for the stations.
2
Note:The system scans the frequency band
three times for the chosen program type. If the
program type is unavailable in your reception
range, the system returns to the previous
station.
1U.S only2FM1/FM2 radio tab only
Audio and radio voice commands
If you are listening to the audio system, press the voice button
on the steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to the audio system, press the voice button and,
after the tone, say “Audio”, then any of the commands in the following
chart.
“AUDIO”
“On”
“Off ”
“Headphones”
“Headphones off”
“Jukebox”
“Disc”
“CD”
“DVD”
“Video CD”
“Radio”
“Sirius”
“SYNC”
“Line in”
“USB”
“User Device”
Navigation System373
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

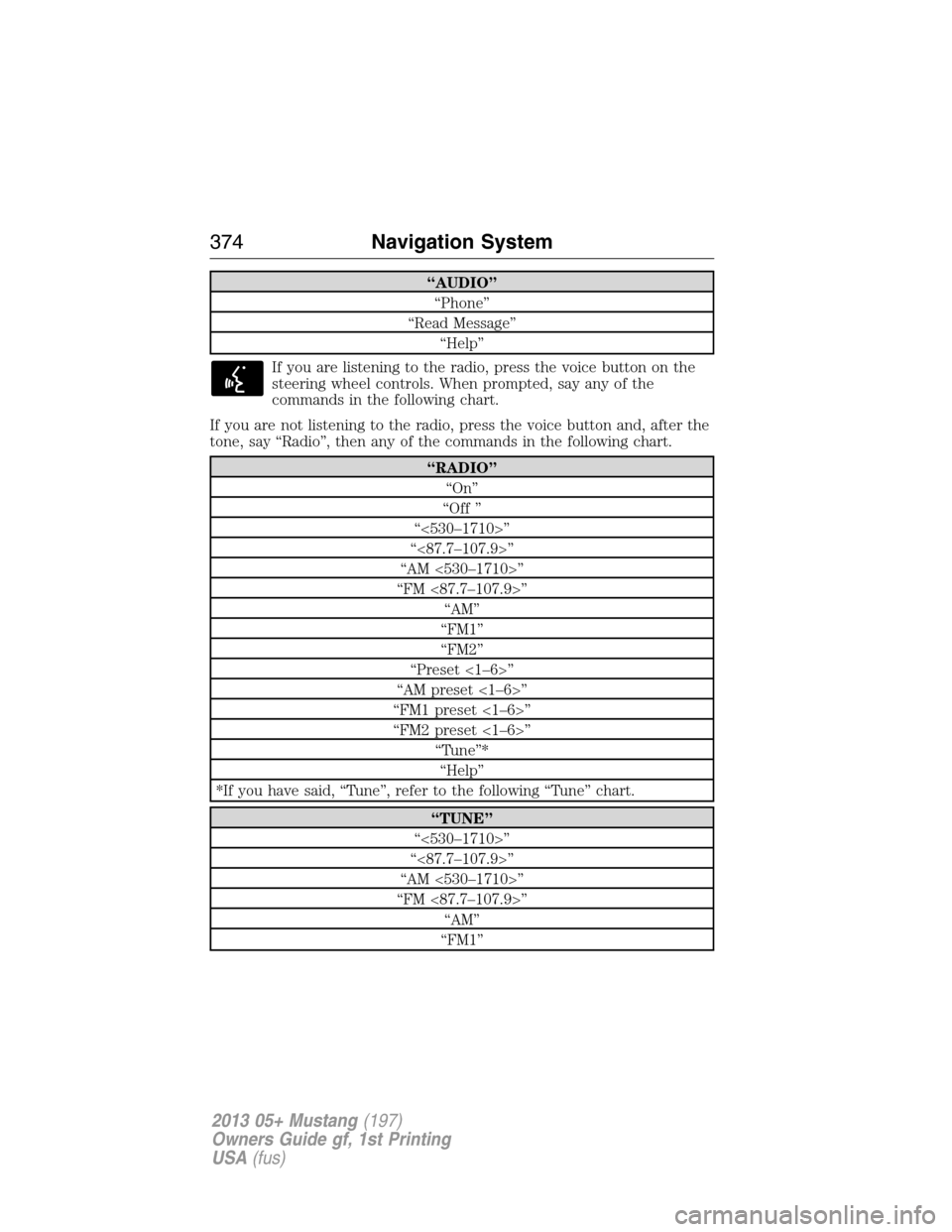

“AUDIO”
“Phone”
“Read Message”
“Help”
If you are listening to the radio, press the voice button on the
steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to the radio, press the voice button and, after the
tone, say “Radio”, then any of the commands in the following chart.
“RADIO”
“On”
“Off ”
“<530–1710>”
“<87.7–107.9>”
“AM <530–1710>”
“FM <87.7–107.9>”
“AM”
“FM1”
“FM2”
“Preset <1–6>”
“AM preset <1–6>”
“FM1 preset <1–6>”
“FM2 preset <1–6>”
“Tune”*
“Help”
*If you have said, “Tune”, refer to the following “Tune” chart.
“TUNE”
“<530–1710>”
“<87.7–107.9>”
“AM <530–1710>”
“FM <87.7–107.9>”
“AM”
“FM1”
374Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

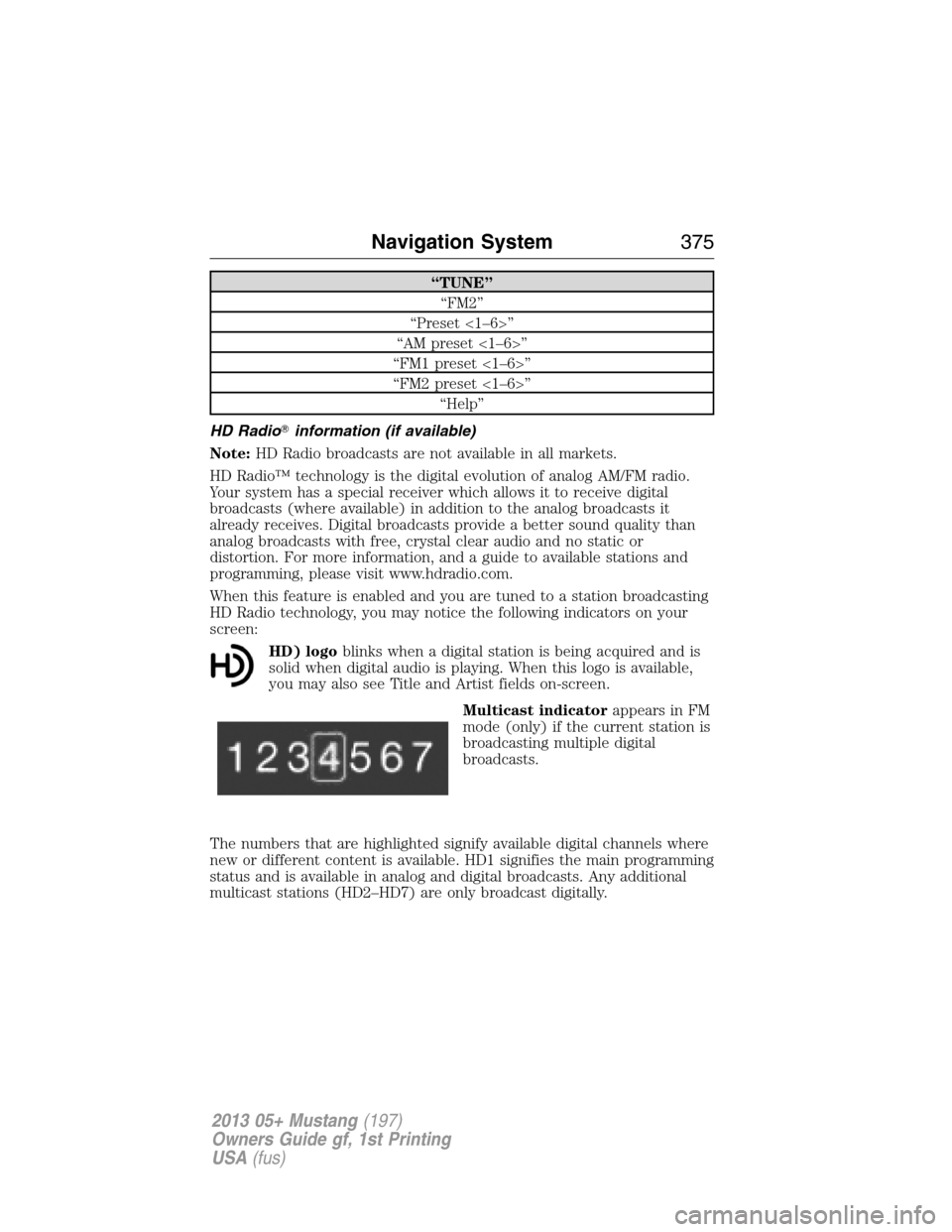

“TUNE”
“FM2”
“Preset <1–6>”
“AM preset <1–6>”
“FM1 preset <1–6>”
“FM2 preset <1–6>”
“Help”
HD Radioinformation (if available)
Note:HD Radio broadcasts are not available in all markets.
HD Radio™ technology is the digital evolution of analog AM/FM radio.
Your system has a special receiver which allows it to receive digital
broadcasts (where available) in addition to the analog broadcasts it
already receives. Digital broadcasts provide a better sound quality than
analog broadcasts with free, crystal clear audio and no static or
distortion. For more information, and a guide to available stations and
programming, please visit www.hdradio.com.
When this feature is enabled and you are tuned to a station broadcasting
HD Radio technology, you may notice the following indicators on your
screen:
HD) logoblinks when a digital station is being acquired and is
solid when digital audio is playing. When this logo is available,
you may also see Title and Artist fields on-screen.
Multicast indicatorappears in FM
mode (only) if the current station is
broadcasting multiple digital
broadcasts.
The numbers that are highlighted signify available digital channels where
new or different content is available. HD1 signifies the main programming
status and is available in analog and digital broadcasts. Any additional
multicast stations (HD2–HD7) are only broadcast digitally.
Navigation System375
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

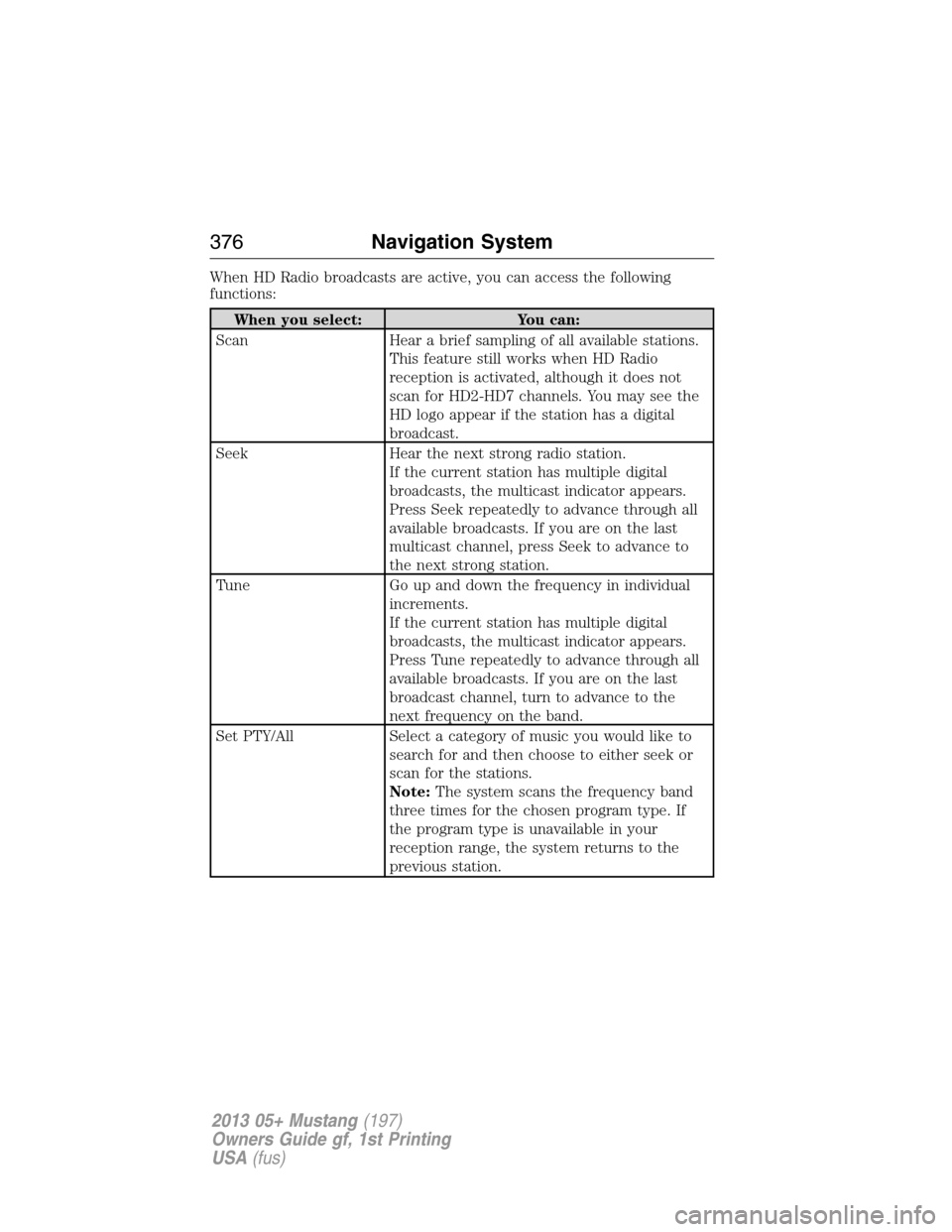

When HD Radio broadcasts are active, you can access the following
functions:
When you select: You can:
Scan Hear a brief sampling of all available stations.
This feature still works when HD Radio
reception is activated, although it does not
scan for HD2-HD7 channels. You may see the
HD logo appear if the station has a digital
broadcast.
Seek Hear the next strong radio station.
If the current station has multiple digital
broadcasts, the multicast indicator appears.
Press Seek repeatedly to advance through all
available broadcasts. If you are on the last
multicast channel, press Seek to advance to
the next strong station.
Tune Go up and down the frequency in individual
increments.
If the current station has multiple digital
broadcasts, the multicast indicator appears.
Press Tune repeatedly to advance through all
available broadcasts. If you are on the last
broadcast channel, turn to advance to the
next frequency on the band.
Set PTY/All Select a category of music you would like to
search for and then choose to either seek or
scan for the stations.
Note:The system scans the frequency band
three times for the chosen program type. If
the program type is unavailable in your
reception range, the system returns to the
previous station.
376Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

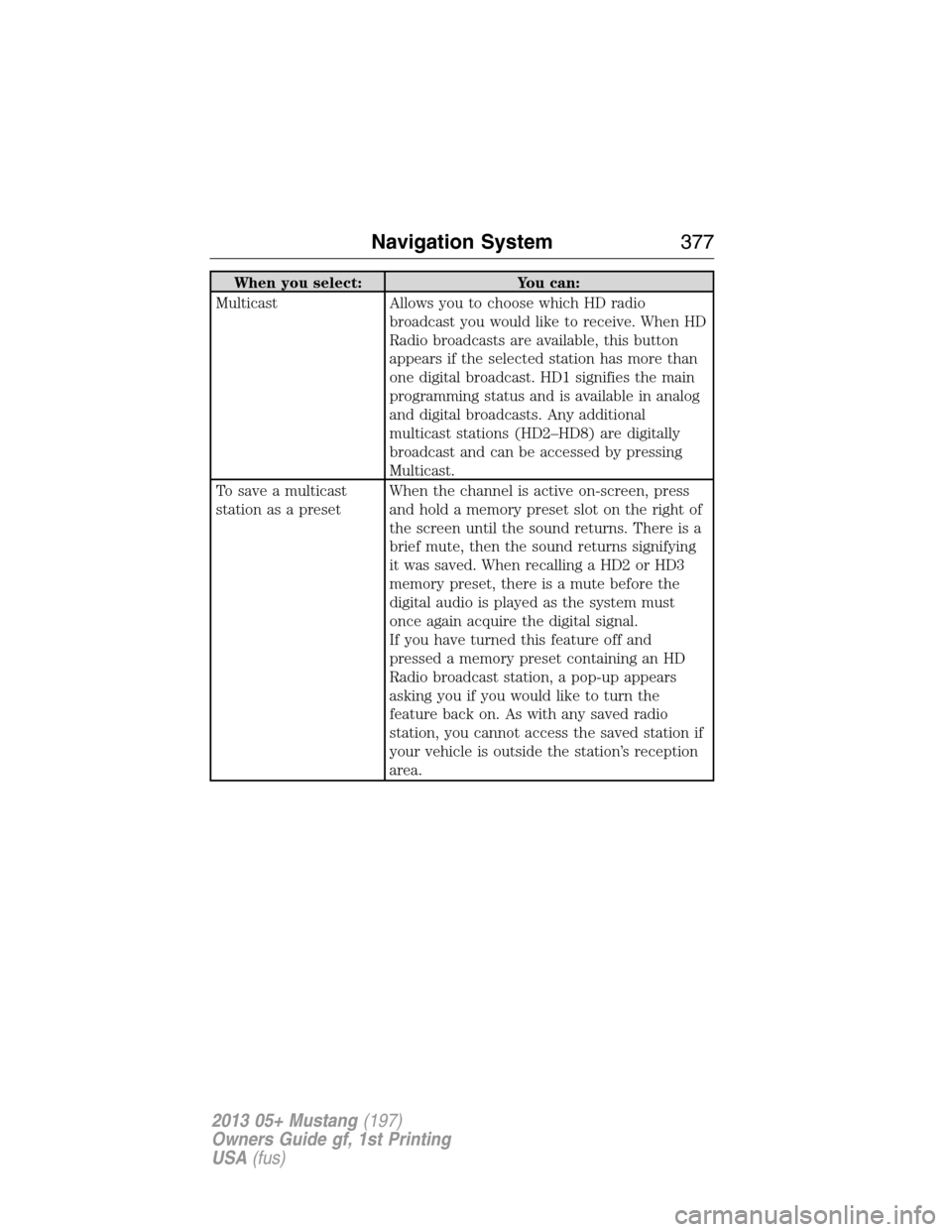

When you select: You can:
Multicast Allows you to choose which HD radio
broadcast you would like to receive. When HD
Radio broadcasts are available, this button
appears if the selected station has more than
one digital broadcast. HD1 signifies the main
programming status and is available in analog
and digital broadcasts. Any additional
multicast stations (HD2–HD8) are digitally
broadcast and can be accessed by pressing
Multicast.
To save a multicast
station as a presetWhen the channel is active on-screen, press
and hold a memory preset slot on the right of
the screen until the sound returns. There is a
brief mute, then the sound returns signifying
it was saved. When recalling a HD2 or HD3
memory preset, there is a mute before the
digital audio is played as the system must
once again acquire the digital signal.
If you have turned this feature off and
pressed a memory preset containing an HD
Radio broadcast station, a pop-up appears
asking you if you would like to turn the
feature back on. As with any saved radio
station, you cannot access the saved station if
your vehicle is outside the station’s reception
area.
Navigation System377
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

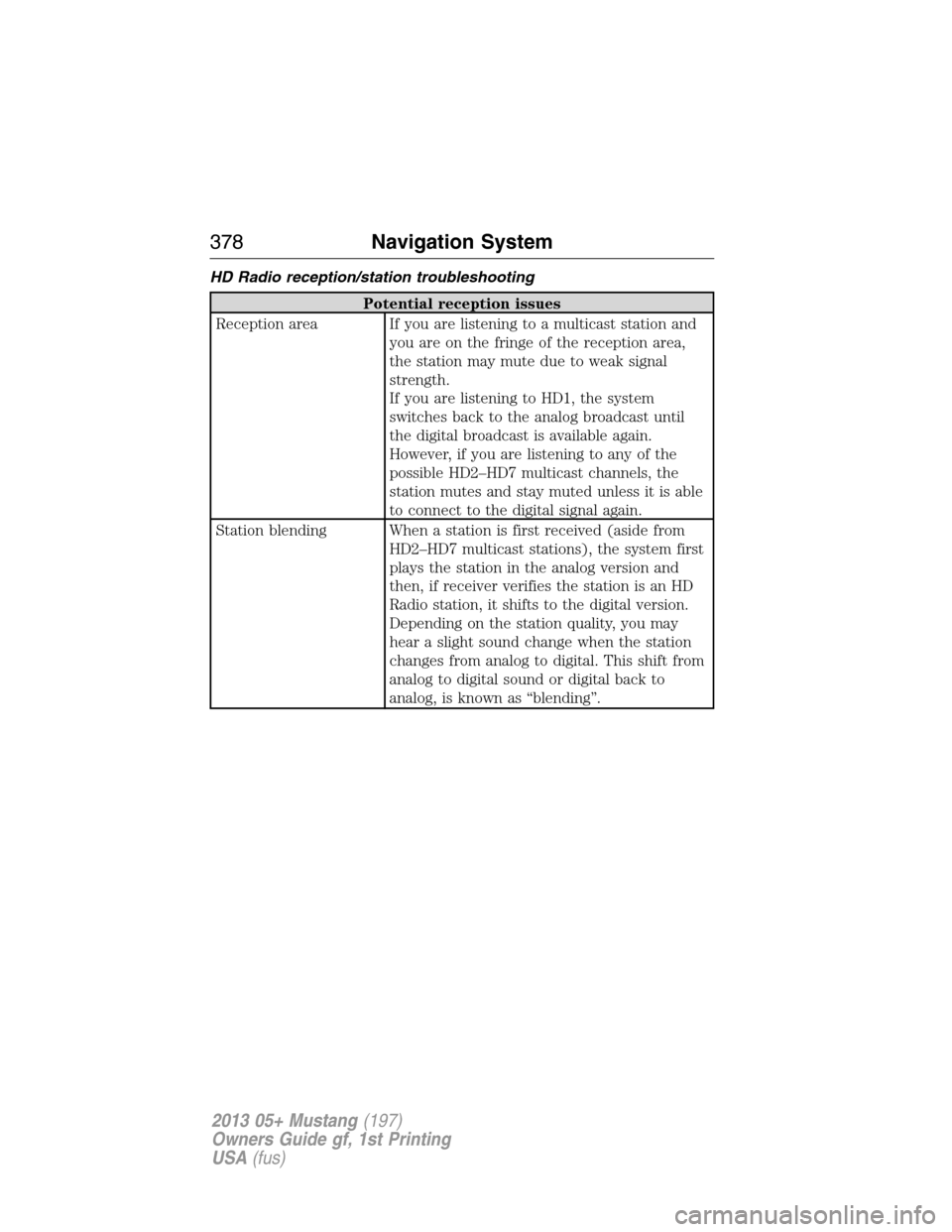

HD Radio reception/station troubleshooting
Potential reception issues
Reception area If you are listening to a multicast station and
you are on the fringe of the reception area,
the station may mute due to weak signal
strength.
If you are listening to HD1, the system
switches back to the analog broadcast until
the digital broadcast is available again.
However, if you are listening to any of the
possible HD2–HD7 multicast channels, the
station mutes and stay muted unless it is able
to connect to the digital signal again.
Station blending When a station is first received (aside from
HD2–HD7 multicast stations), the system first
plays the station in the analog version and
then, if receiver verifies the station is an HD
Radio station, it shifts to the digital version.
Depending on the station quality, you may
hear a slight sound change when the station
changes from analog to digital. This shift from
analog to digital sound or digital back to
analog, is known as “blending”.
378Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

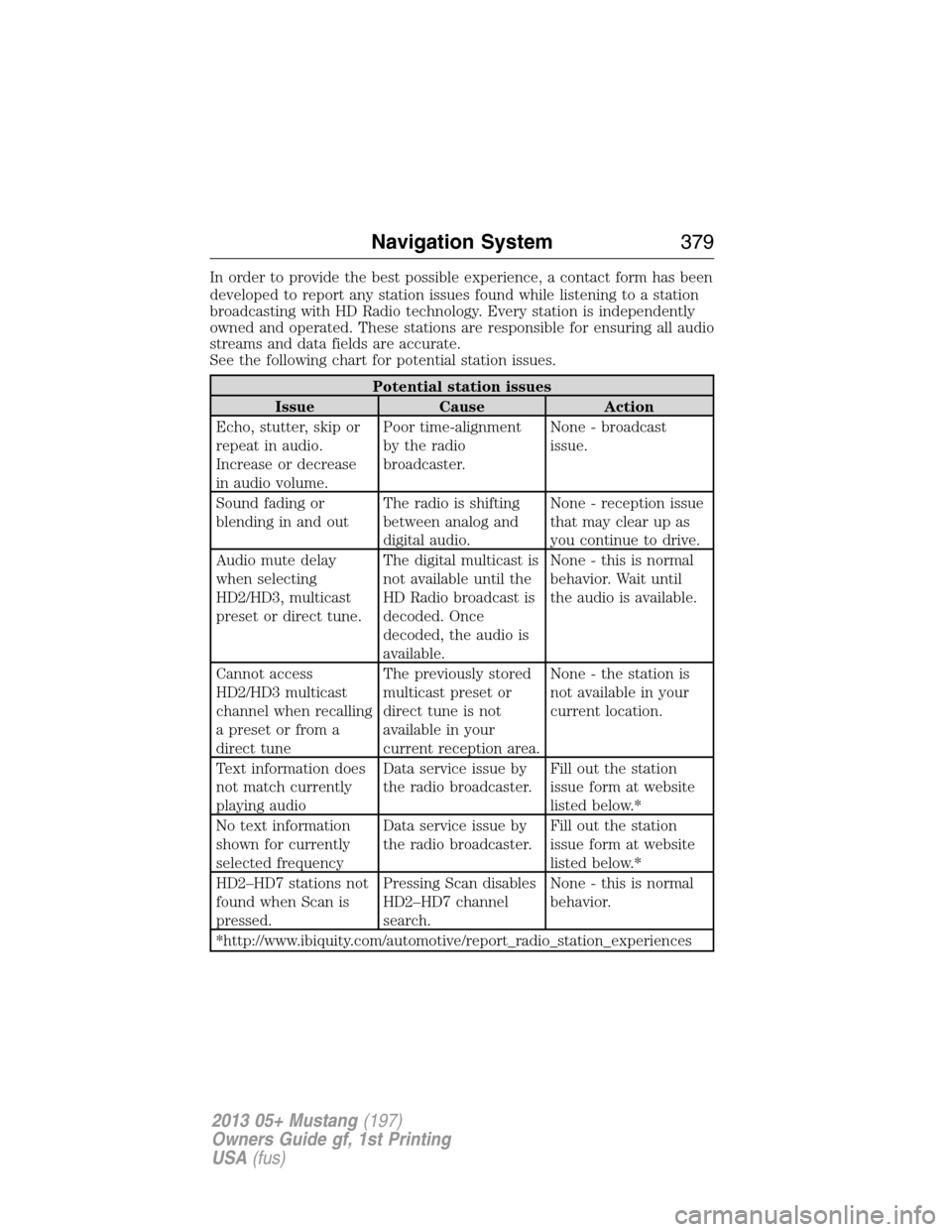

In order to provide the best possible experience, a contact form has been
developed to report any station issues found while listening to a station
broadcasting with HD Radio technology. Every station is independently
owned and operated. These stations are responsible for ensuring all audio
streams and data fields are accurate.
See the following chart for potential station issues.
Potential station issues
Issue Cause Action
Echo, stutter, skip or
repeat in audio.
Increase or decrease
in audio volume.Poor time-alignment
by the radio
broadcaster.None - broadcast
issue.
Sound fading or
blending in and outThe radio is shifting
between analog and
digital audio.None - reception issue
that may clear up as
you continue to drive.
Audio mute delay
when selecting
HD2/HD3, multicast
preset or direct tune.The digital multicast is
not available until the
HD Radio broadcast is
decoded. Once
decoded, the audio is
available.None - this is normal
behavior. Wait until
the audio is available.
Cannot access
HD2/HD3 multicast
channel when recalling
a preset or from a
direct tuneThe previously stored
multicast preset or
direct tune is not
available in your
current reception area.None - the station is
not available in your
current location.
Text information does
not match currently
playing audioData service issue by
the radio broadcaster.Fill out the station
issue form at website
listed below.*
No text information
shown for currently
selected frequencyData service issue by
the radio broadcaster.Fill out the station
issue form at website
listed below.*
HD2–HD7 stations not
found when Scan is
pressed.Pressing Scan disables
HD2–HD7 channel
search.None - this is normal
behavior.
*http://www.ibiquity.com/automotive/report_radio_station_experiences
Navigation System379
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

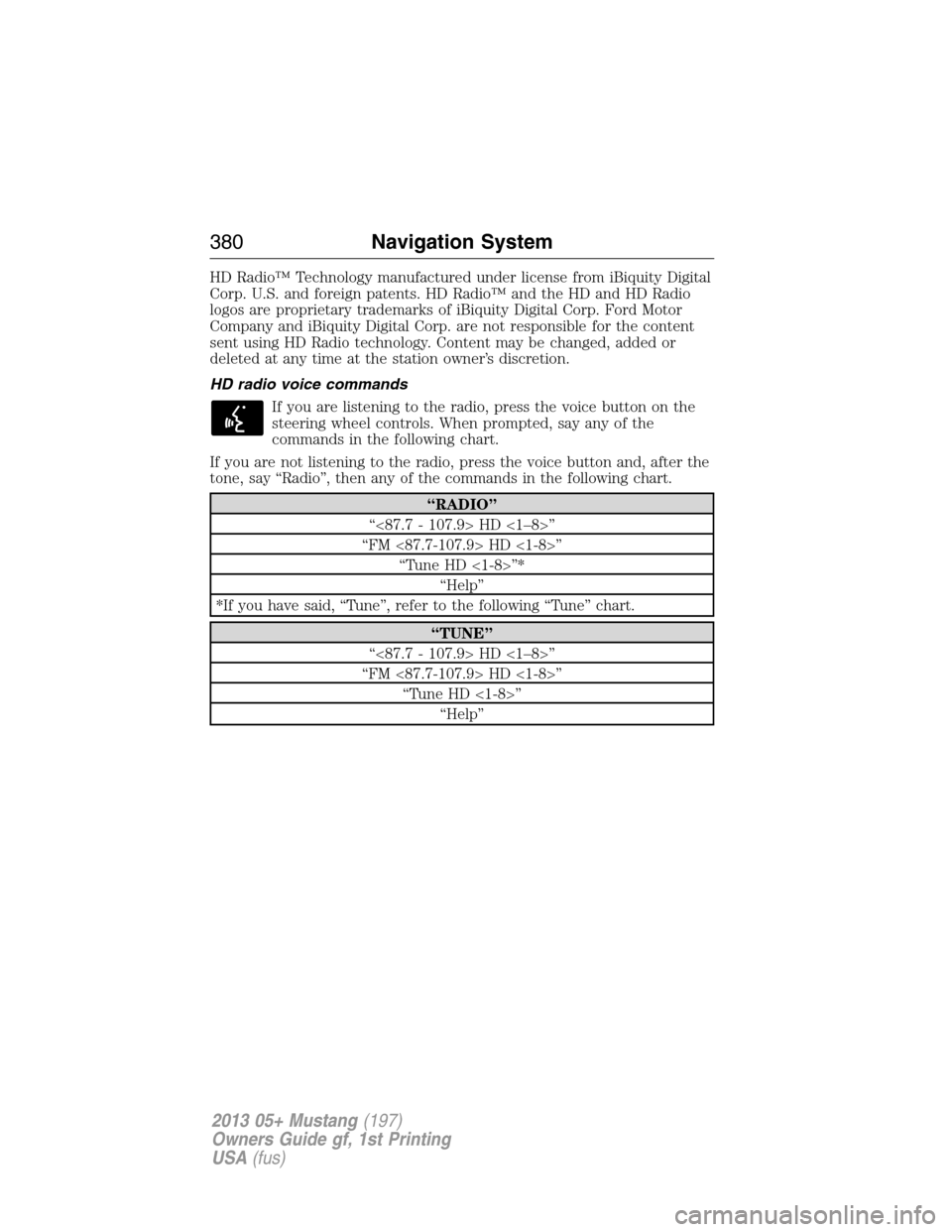

HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor
Company and iBiquity Digital Corp. are not responsible for the content
sent using HD Radio technology. Content may be changed, added or
deleted at any time at the station owner’s discretion.
HD radio voice commands
If you are listening to the radio, press the voice button on the
steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to the radio, press the voice button and, after the
tone, say “Radio”, then any of the commands in the following chart.
“RADIO”
“<87.7 - 107.9> HD <1–8>”
“FM <87.7-107.9> HD <1-8>”
“Tune HD <1-8>”*
“Help”
*If you have said, “Tune”, refer to the following “Tune” chart.
“TUNE”
“<87.7 - 107.9> HD <1–8>”
“FM <87.7-107.9> HD <1-8>”
“Tune HD <1-8>”
“Help”
380Navigation System
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)
