FORD MUSTANG 2014 5.G Owners Manual

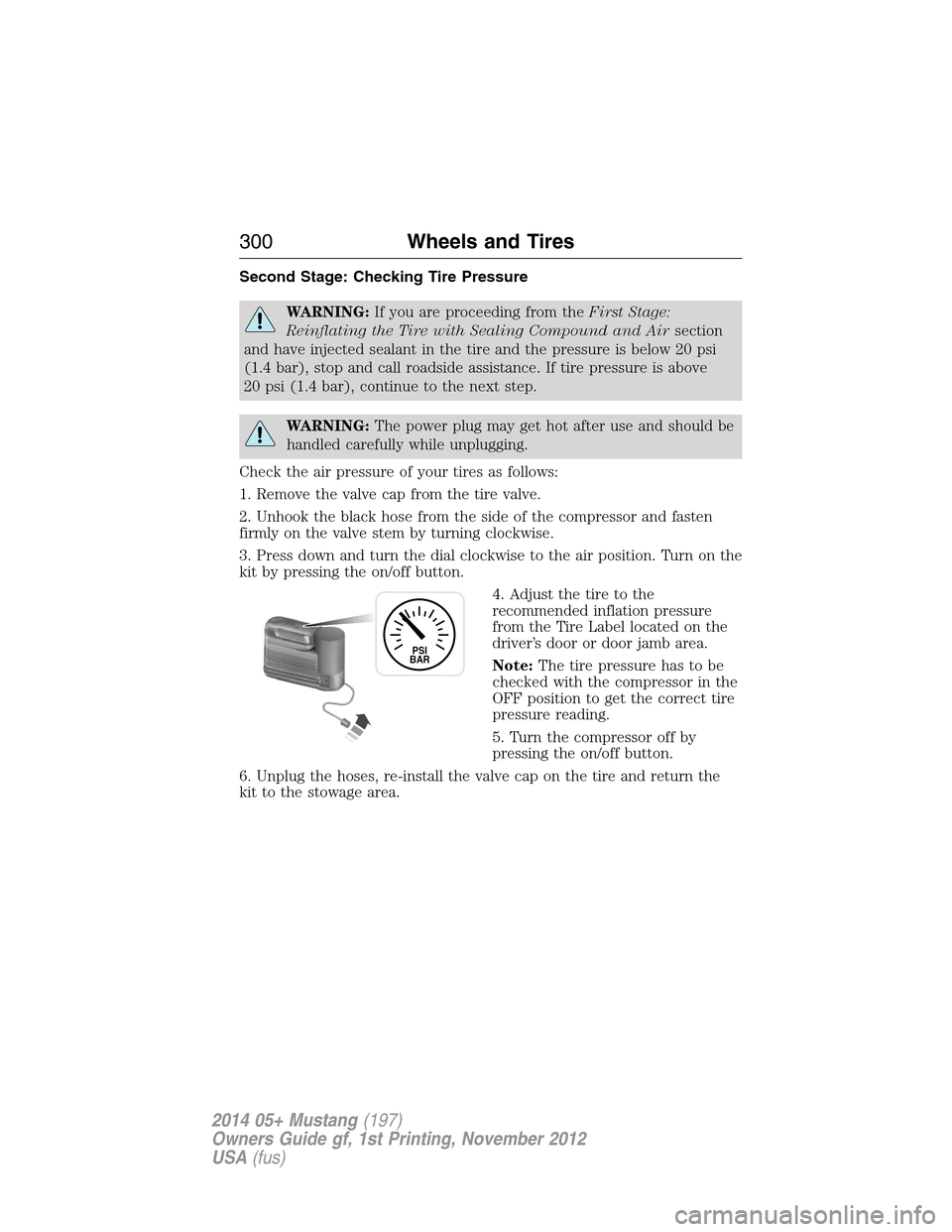

Second Stage: Checking Tire Pressure
WARNING:If you are proceeding from theFirst Stage:
Reinflating the Tire with Sealing Compound and Airsection
and have injected sealant in the tire and the pressure is below 20 psi
(1.4 bar), stop and call roadside assistance. If tire pressure is above
20 psi (1.4 bar), continue to the next step.
WARNING:The power plug may get hot after use and should be
handled carefully while unplugging.
Check the air pressure of your tires as follows:
1. Remove the valve cap from the tire valve.
2. Unhook the black hose from the side of the compressor and fasten
firmly on the valve stem by turning clockwise.
3. Press down and turn the dial clockwise to the air position. Turn on the
kit by pressing the on/off button.
4. Adjust the tire to the
recommended inflation pressure
from the Tire Label located on the
driver’s door or door jamb area.
Note:The tire pressure has to be
checked with the compressor in the
OFF position to get the correct tire
pressure reading.
5. Turn the compressor off by
pressing the on/off button.
6. Unplug the hoses, re-install the valve cap on the tire and return the
kit to the stowage area.
PSI
BAR
300Wheels and Tires
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

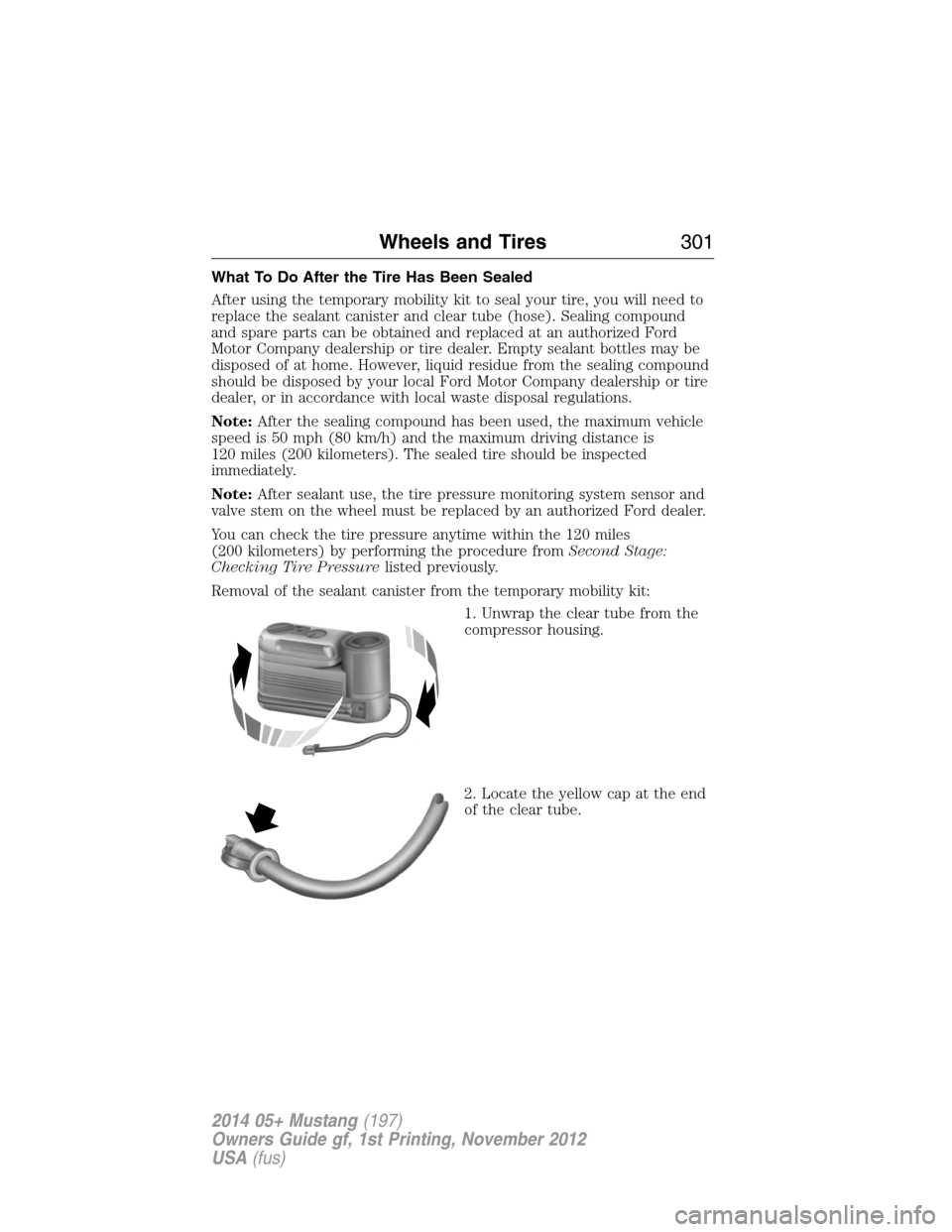

What To Do After the Tire Has Been Sealed
After using the temporary mobility kit to seal your tire, you will need to
replace the sealant canister and clear tube (hose). Sealing compound
and spare parts can be obtained and replaced at an authorized Ford
Motor Company dealership or tire dealer. Empty sealant bottles may be
disposed of at home. However, liquid residue from the sealing compound
should be disposed by your local Ford Motor Company dealership or tire
dealer, or in accordance with local waste disposal regulations.
Note:After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 kilometers). The sealed tire should be inspected
immediately.
Note:After sealant use, the tire pressure monitoring system sensor and
valve stem on the wheel must be replaced by an authorized Ford dealer.
You can check the tire pressure anytime within the 120 miles
(200 kilometers) by performing the procedure fromSecond Stage:
Checking Tire Pressurelisted previously.
Removal of the sealant canister from the temporary mobility kit:
1. Unwrap the clear tube from the
compressor housing.
2. Locate the yellow cap at the end
of the clear tube.
Wheels and Tires301
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

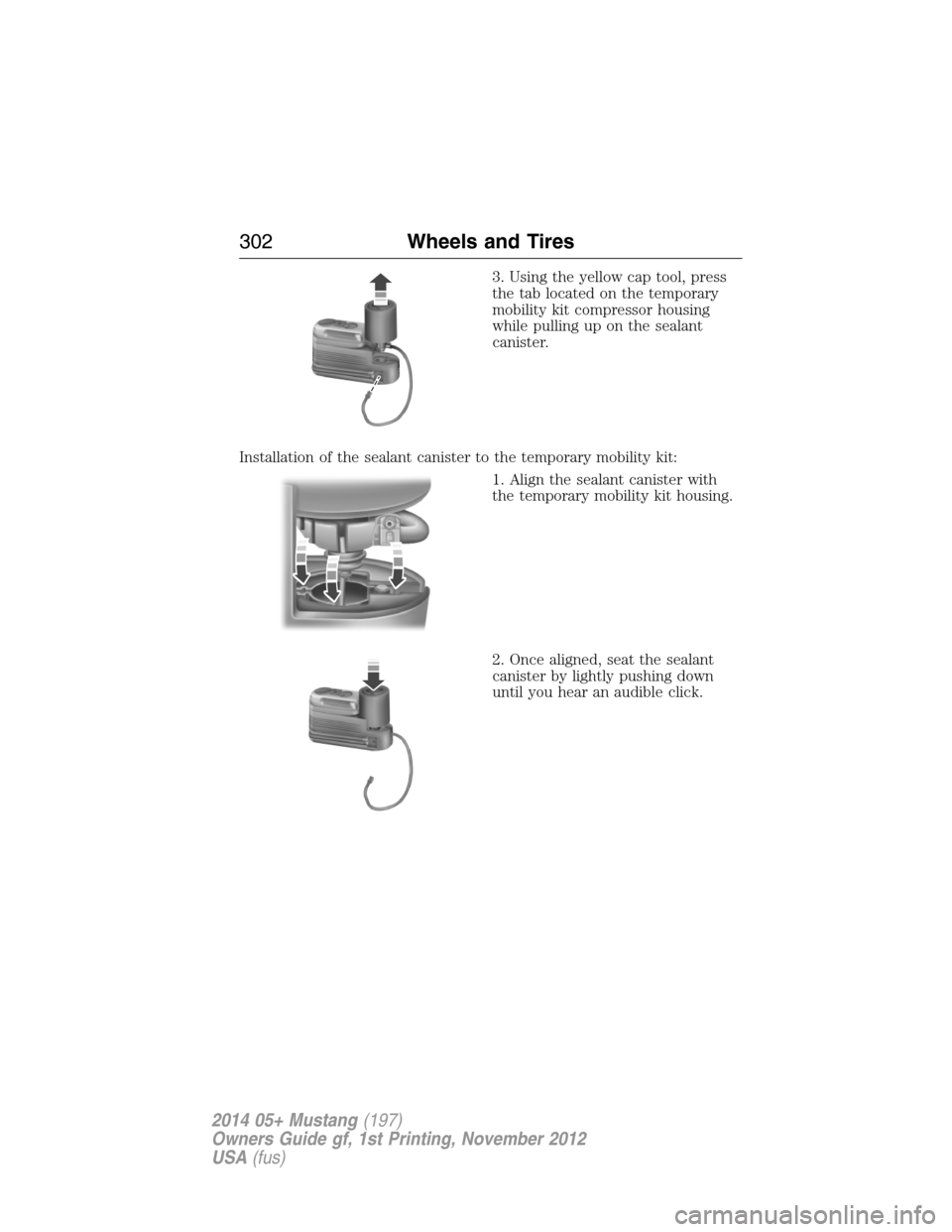

3. Using the yellow cap tool, press
the tab located on the temporary
mobility kit compressor housing
while pulling up on the sealant
canister.
Installation of the sealant canister to the temporary mobility kit:
1. Align the sealant canister with
the temporary mobility kit housing.
2. Once aligned, seat the sealant
canister by lightly pushing down
until you hear an audible click.
302Wheels and Tires
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

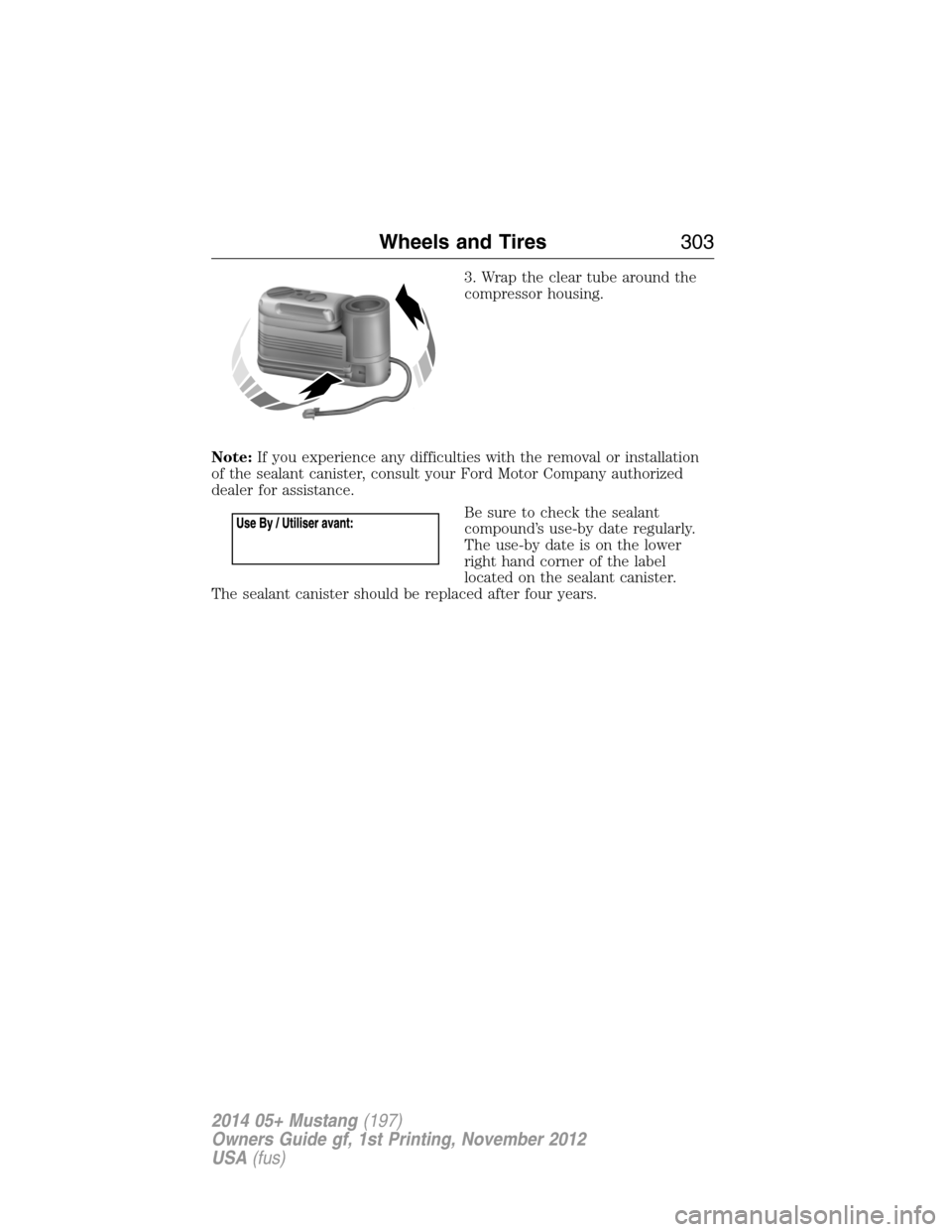

3. Wrap the clear tube around the
compressor housing.
Note:If you experience any difficulties with the removal or installation
of the sealant canister, consult your Ford Motor Company authorized
dealer for assistance.
Be sure to check the sealant
compound’s use-by date regularly.
The use-by date is on the lower
right hand corner of the label
located on the sealant canister.
The sealant canister should be replaced after four years.
Wheels and Tires303
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

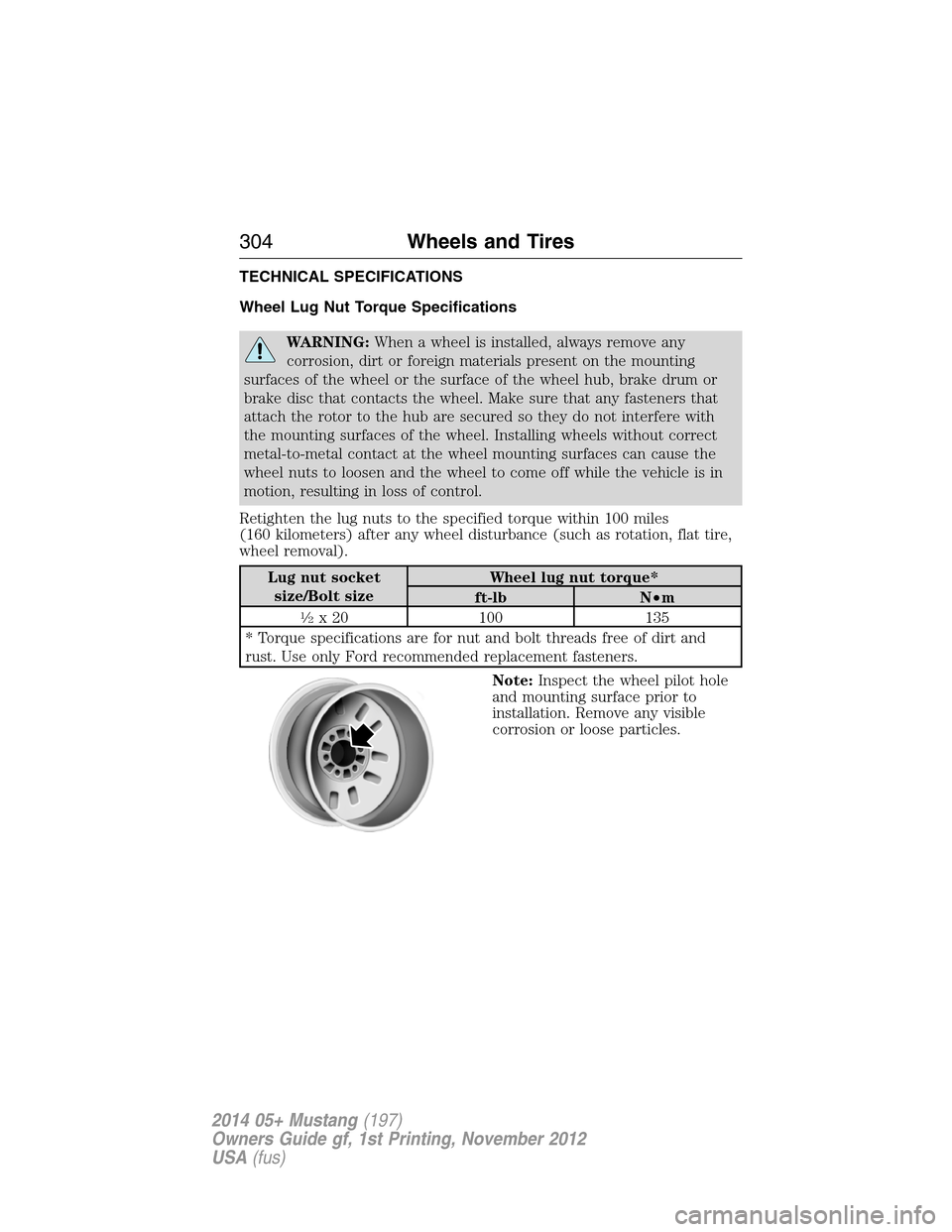

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (such as rotation, flat tire,
wheel removal).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
304Wheels and Tires
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

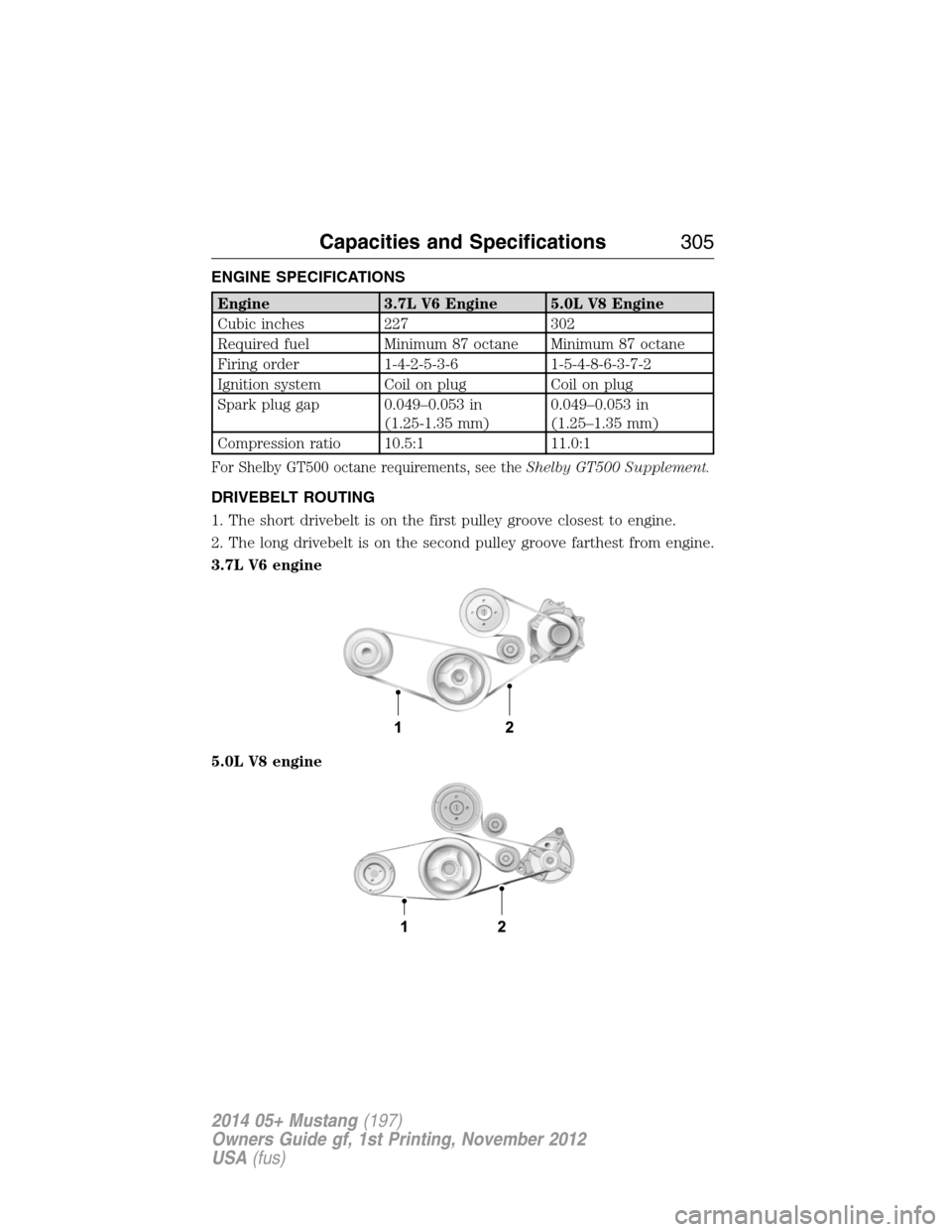

ENGINE SPECIFICATIONS
Engine 3.7L V6 Engine 5.0L V8 Engine
Cubic inches 227 302
Required fuel Minimum 87 octane Minimum 87 octane
Firing order 1-4-2-5-3-6 1-5-4-8-6-3-7-2
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 in
(1.25-1.35 mm)0.049–0.053 in
(1.25–1.35 mm)
Compression ratio 10.5:1 11.0:1
For Shelby GT500 octane requirements, see theShelby GT500 Supplement.
DRIVEBELT ROUTING
1. The short drivebelt is on the first pulley groove closest to engine.
2. The long drivebelt is on the second pulley groove farthest from engine.
3.7L V6 engine
5.0L V8 engine
Capacities and Specifications305
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

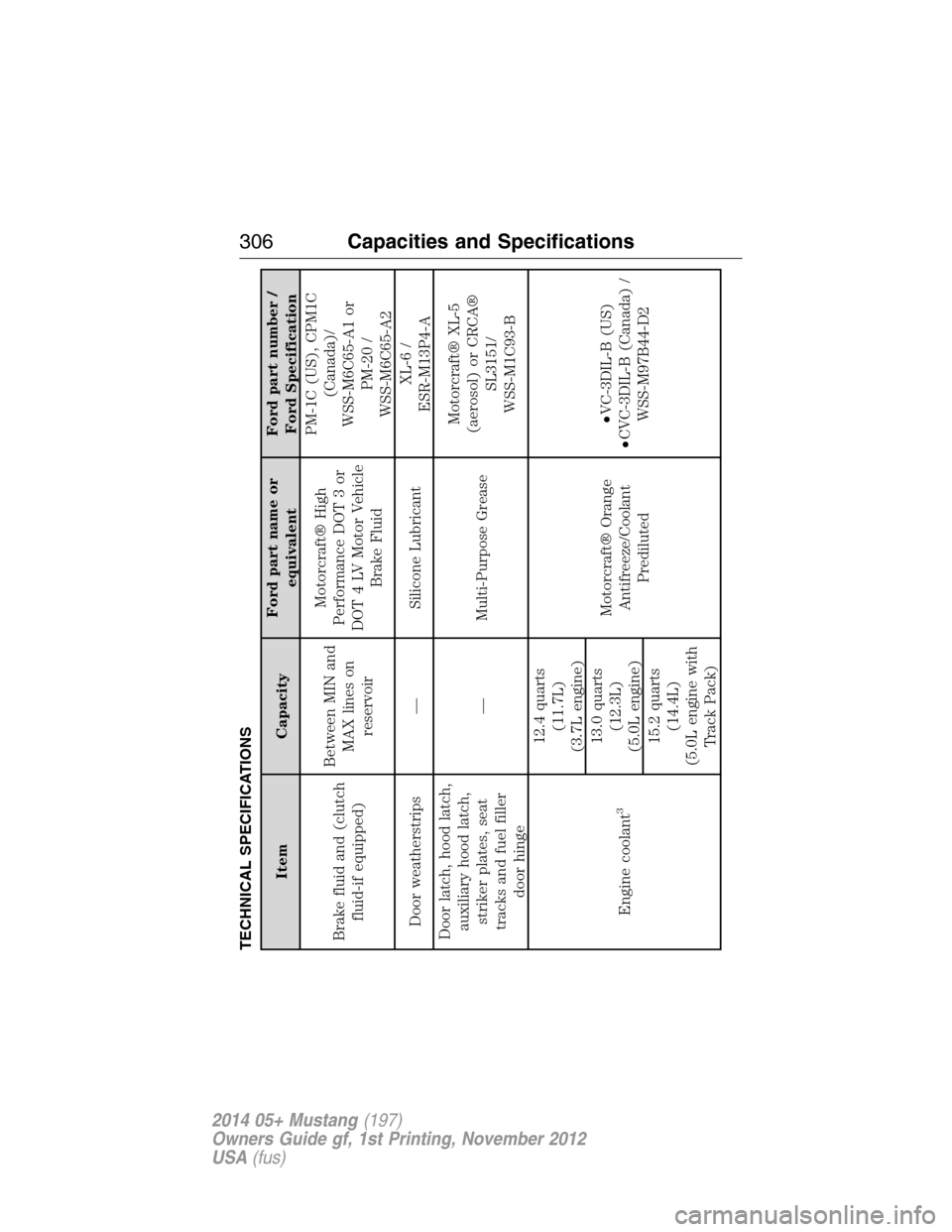

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Brake fluid and (clutch
fluid-if equipped)Between MIN and
MAX lines on
reservoirMotorcraft® High
Performance DOT 3 or
DOT 4 LV Motor Vehicle
Brake FluidPM-1C (US), CPM1C
(Canada)/
WSS-M6C65-A1 or
PM-20 /
WSS-M6C65-A2
Door weatherstrips — Silicone LubricantXL-6 /
ESR-M13P4-A
Door latch, hood latch,
auxiliary hood latch,
striker plates, seat
tracks and fuel filler
door hinge— Multi-Purpose GreaseMotorcraft® XL-5
(aerosol) or CRCA®
SL3151/
WSS-M1C93-B
Engine coolant
3
12.4 quarts
(11.7L)
(3.7L engine)
Motorcraft® Orange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 13.0 quarts
(12.3L)
(5.0L engine)
15.2 quarts
(14.4L)
(5.0L engine with
Track Pack)
306Capacities and Specifications
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

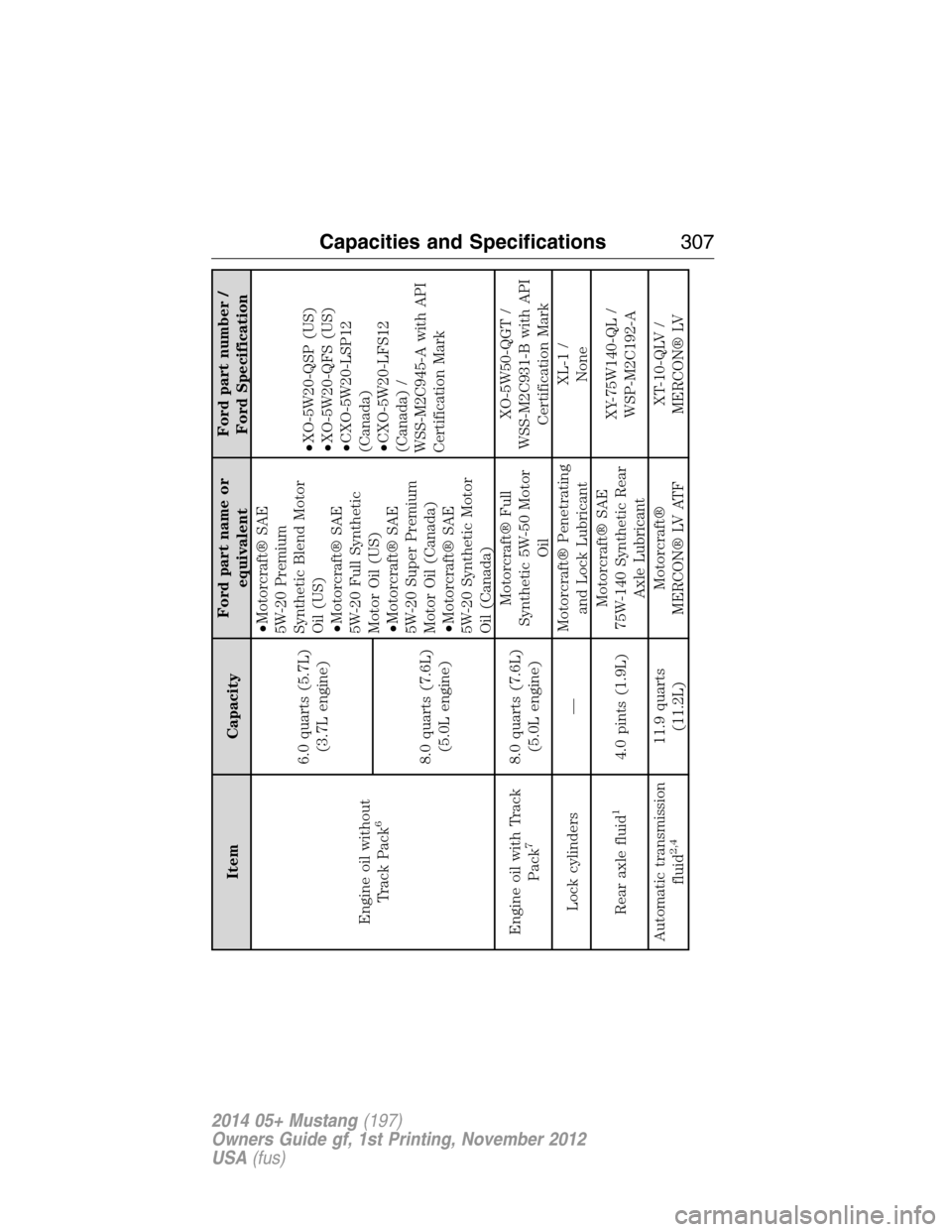

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Engine oil without
Track Pack
6
6.0 quarts (5.7L)
(3.7L engine)•Motorcraft® SAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•Motorcraft® SAE
5W-20 Full Synthetic
Motor Oil (US)
•Motorcraft® SAE
5W-20 Super Premium
Motor Oil (Canada)
•Motorcraft® SAE
5W-20 Synthetic Motor
Oil (Canada)•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A with API
Certification Mark 8.0 quarts (7.6L)
(5.0L engine)
Engine oil with Track
Pack
7
8.0 quarts (7.6L)
(5.0L engine)Motorcraft® Full
Synthetic 5W-50 Motor
OilXO-5W50-QGT /
WSS-M2C931-B with API
Certification Mark
Lock cylinders —Motorcraft® Penetrating
and Lock LubricantXL-1 /
None
Rear axle fluid
1
4.0 pints (1.9L)Motorcraft® SAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSP-M2C192-A
Automatic transmission
fluid
2,4
11.9 quarts
(11.2L)Motorcraft®
MERCON® LV ATFXT-10-QLV /
MERCON® LV
Capacities and Specifications307
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification

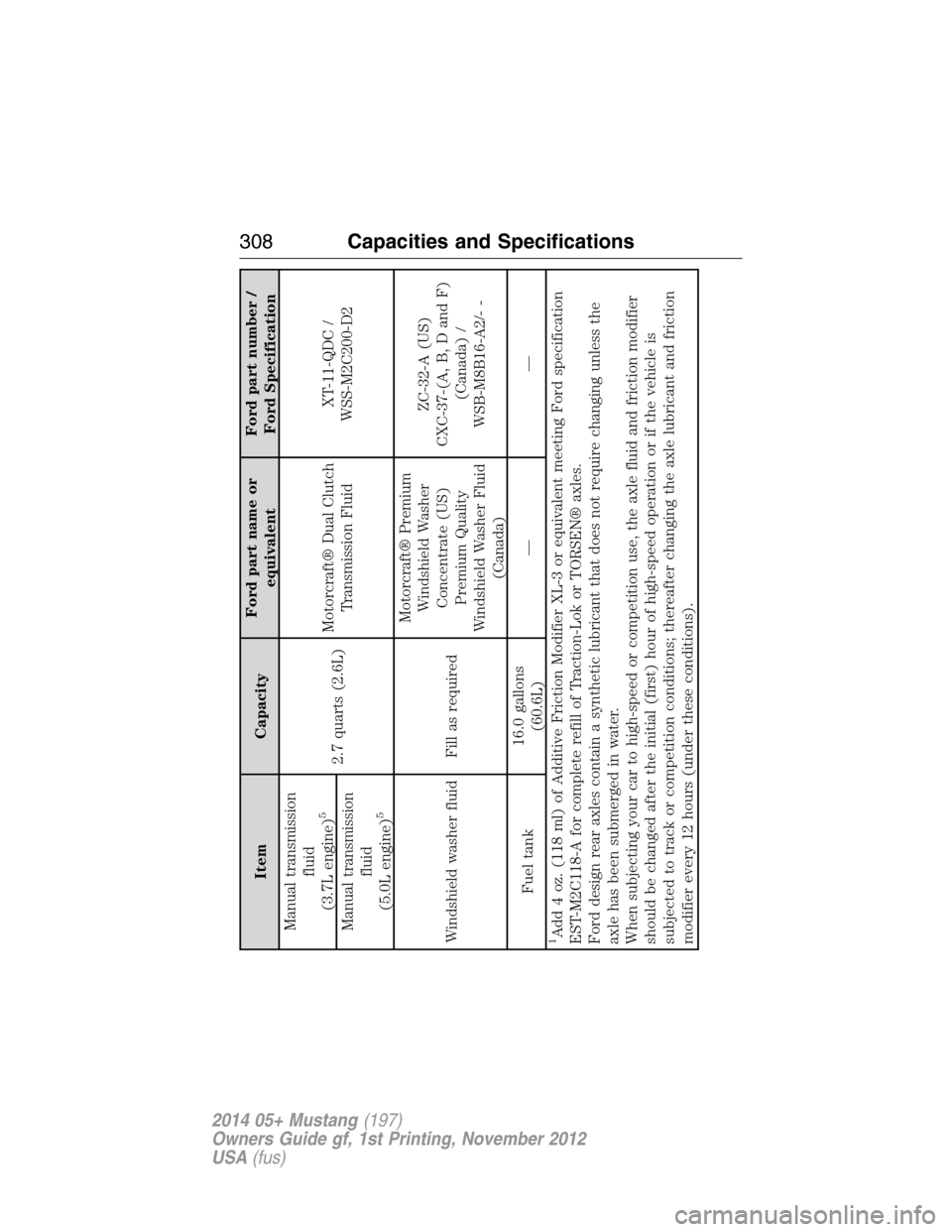

Manual transmission
fluid
(3.7L engine)
5
2.7 quarts (2.6L)Motorcraft® Dual Clutch
Transmission FluidXT-11-QDC /
WSS-M2C200-D2
Manual transmission
fluid
(5.0L engine)
5
Windshield washer fluid Fill as requiredMotorcraft® Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank16.0 gallons
(60.6L)——1Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok or TORSEN® axles.
Ford design rear axles contain a synthetic lubricant that does not require changing unless the
axle has been submerged in water.
When subjecting your car to high-speed or competition use, the axle fluid and friction modifier
should be changed after the initial (first) hour of high-speed operation or if the vehicle is
subjected to track or competition conditions; thereafter changing the axle lubricant and friction
modifier every 12 hours (under these conditions).
308Capacities and Specifications
2014 05+ Mustang(197)
Owners Guide gf, 1st Printing, November 2012
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification

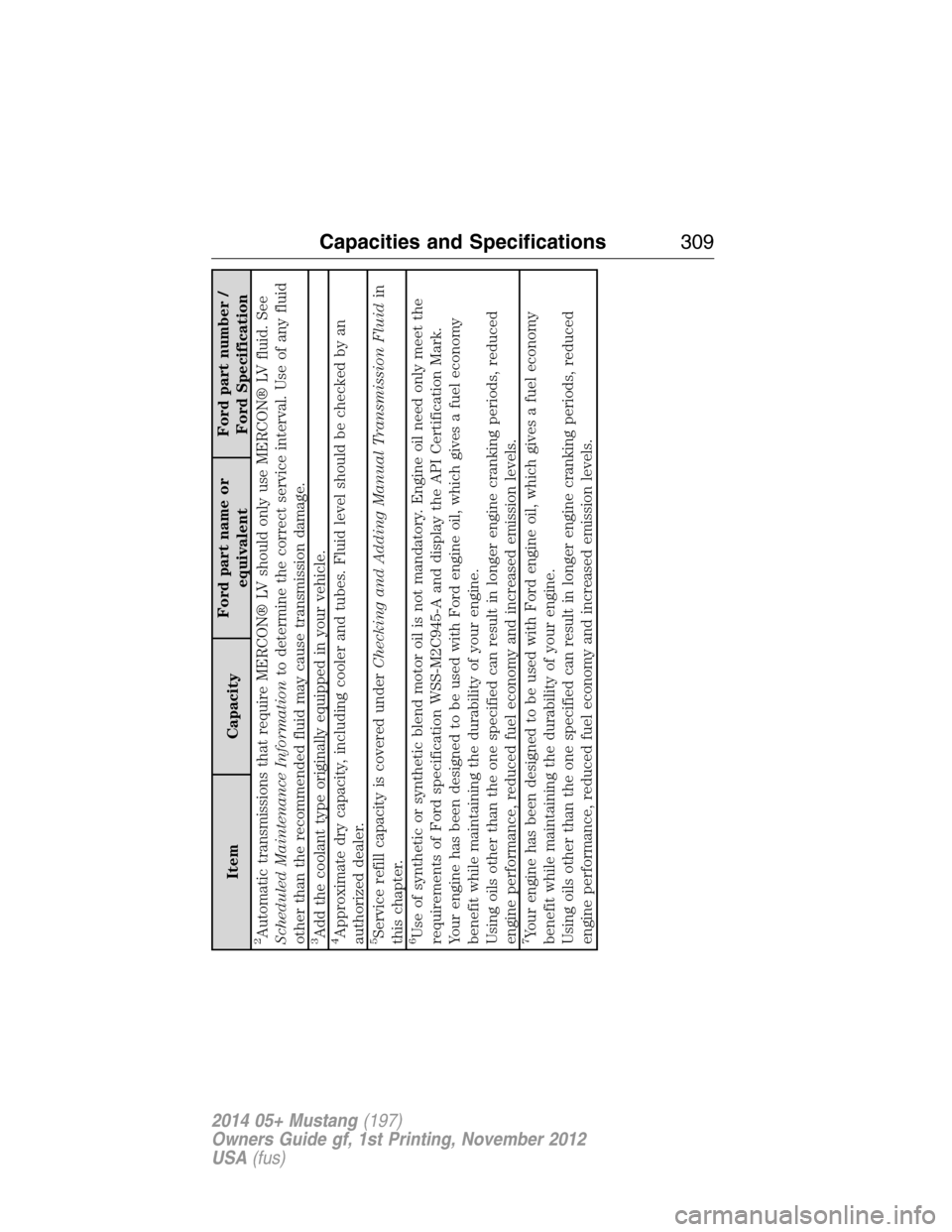

2Automatic transmissions that require MERCON® LV should only use MERCON® LV fluid. See
Scheduled Maintenance Informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Approximate dry capacity, including cooler and tubes. Fluid level should be checked by an
authorized dealer.5Service refill capacity is covered underChecking and Adding Manual Transmission Fluidin
this chapter.6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and display the API Certification Mark.
Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine.
Using oils other than the one specified can result in longer engine cranking periods, reduced
engine performance, reduced fuel economy and increased emission levels.7Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine.
Using oils other than the one specified can result in longer engine cranking periods, reduced
engine performance, reduced fuel economy and increased emission levels.
Capacities and Specifications309
