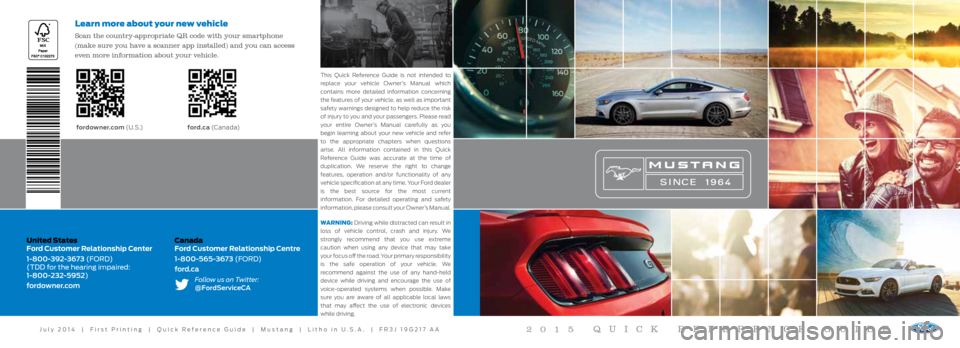

FORD MUSTANG 2015 6.G Quick Reference Guide United States
Ford Customer Relationship Center
1-800-392-3673 (FORD)
(TDD for the hearing impaired:
1-800-232-5952)
fordowner.comCanada
Ford Customer Relationship Centre
1-800-565-3673 (FORD)
f

Page 2 of 8

FORD MUSTANG 2015 6.G Quick Reference Guide Instrument Panel .................4–5
SYNC .................................... 6–7
SYNC with MyFord Touch ...... 8–10
Convertible Top .................... 11
Comfort/Function ................ 1

Page 3 of 8

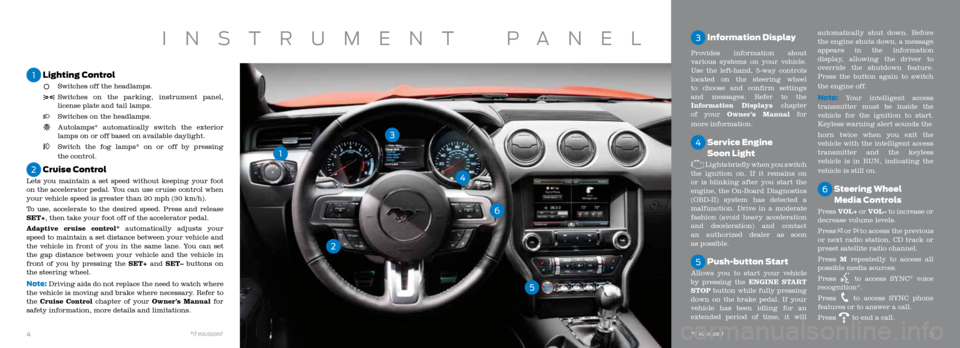

FORD MUSTANG 2015 6.G Quick Reference Guide 3 Information Display
Provides information about
various systems on your vehicle.
Use the left-hand, 5-way controls
located on the steering wheel
to choose and confirm settings
and messages. Ref

3 Information Display
Provides information about
various systems on your vehicle.
Use the left-hand, 5-way controls
located on the steering wheel
to choose and confirm settings
and messages. Refer to the
Information Displays chapter
of your
Owner’s Manual for
more information.
4
Service Engine
Soon Light
Lights briefly when you switch
the ignition on. If it remains on
or is blinking after you start the
engine, the On-Board Diagnostics
(OBD-II) system has detected a
malfunction. Drive in a moderate
fashion (avoid heavy acceleration
and deceleration) and contact
an authorized dealer as soon
as possible.
5 Push-button Start
Allows you to start your vehicle
by pressing the ENGINE START
STOP button while fully pressing
down on the brake pedal. If your
vehicle has been idling for an
extended period of time, it will automatically shut down. Before
the engine shuts down, a message
appears in the information
display, allowing the driver to
override the shutdown feature.
Press the button again to switch
the engine off.
Note: Your intelligent access
transmitter must be inside the
vehicle for the ignition to start.
Keyless warning alert sounds the
horn twice when you exit the
vehicle with the intelligent access
transmitter and the keyless
vehicle is in RUN, indicating the
vehicle is still on.
6
Steering Wheel
Media Controls
Press VOL+ or VOL– to increase or
decrease volume levels.
Press
or to access the previous
or next radio station, CD track or
preset satellite radio channel.
Press M repeatedly to access all
possible media sources.
Press
to access SYNC® voice
recognition*.
Press
to access SYNC phone
features or to answer a call.
Press
to end a call.
1
2
3
4
5
6
1 Lighting Control
Switches off the headlamps.

Switches on the parking, instrument panel,
license plate and tail lamps.
Switches on the headlamps.
Autolamps* automatically switch the exterior
lamps on or off based on available daylight.

Switch the fog lamps* on or off by pressing
the control.
2 Cruise Control
Lets you maintain a set speed without keeping your foot
on the accelerator pedal. You can use cruise control when
your vehicle speed is greater than 20 mph (30 km/h).
To use, accelerate to the desired speed. Press and release
SET+, then take your foot off of the accelerator pedal.
Adaptive cruise control* automatically adjusts your
speed to maintain a set distance between your vehicle and
the vehicle in front of you in the same lane. You can set
the gap distance between your vehicle and the vehicle in
front of you by pressing the SET+ and SET– buttons on
the steering wheel.
Note: Driving aids do not replace the need to watch where
the vehicle is moving and brake where necessary. Refer to
the
Cruise Control chapter of your Owner’s Manual for
safety information, more details and limitations.
INSTRUMENT PANEL
4
5*if equipped*if equipped

Page 4 of 8

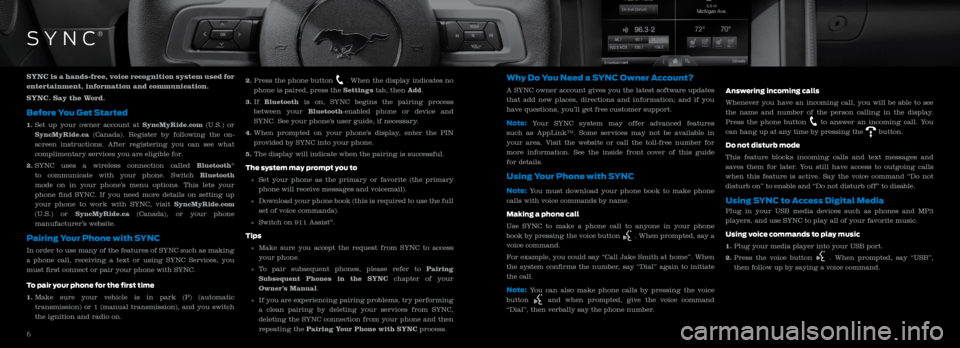

FORD MUSTANG 2015 6.G Quick Reference Guide SYNC is a hands-free, voice recognition system used for
entertainment, information and communication.
SYNC. Say the Word.
Before You Get Started
1. Set up your owner account at SyncMyRide.com (U.S

SYNC is a hands-free, voice recognition system used for
entertainment, information and communication.
SYNC. Say the Word.
Before You Get Started
1. Set up your owner account at SyncMyRide.com (U.S.) or
SyncMyRide.ca (Canada). Register by following the on-
screen instructions. After registering you can see what
complimentary services you are eligible for.
2. SYNC uses a wireless connection called Bluetooth
®
to communicate with your phone. Switch Bluetooth
mode on in your phone’s menu options. This lets your
phone find SYNC. If you need more details on setting up
your phone to work with SYNC, visit SyncMyRide.com
(U.S.) or SyncMyRide.ca (Canada), or your phone
manufacturer’s website.
Pairing Your Phone with SYNC
In order to use many of the features of SYNC such as making
a phone call, receiving a text or using SYNC Services, you
must first connect or pair your phone with SYNC.
To pair your phone for the first time
1. Make sure your vehicle is in park (P) (automatic
transmission) or 1 (manual transmission), and you switch
the ignition and radio on. 2.
Press the phone button
. When the display indicates no
phone is paired, press the Settings tab, then Add.
3. If Bluetooth is on, SYNC begins the pairing process
between your Bluetooth-enabled phone or device and
SYNC. See your phone’s user guide, if necessary.
4. When prompted on your phone’s display, enter the PIN
provided by SYNC into your phone.
5. The display will indicate when the pairing is successful.
The system may prompt you to
» Set your phone as the primary or favorite (the primary
phone will receive messages and voicemail).
» Download your phone book (this is required to use the full
set of voice commands).
» Switch on 911 Assist
®.
Tips
» Make sure you accept the request from SYNC to access
your phone.
» To pair subsequent phones, please refer to Pairing
Subsequent Phones in the SYNC chapter of your
Owner’s Manual.
» If you are experiencing pairing problems, try performing
a clean pairing by deleting your services from SYNC,
deleting the SYNC connection from your phone and then
repeating the Pairing Your Phone with SYNC process.
Why Do You Need a SYNC Owner Account?
A SYNC owner account gives you the latest software updates
that add new places, directions and information; and if you
have questions, you’ll get free customer support.
Note: Your SYNC system may offer advanced features
such as AppLink™. Some services may not be available in
your area. Visit the website or call the toll-free number for
more information. See the inside front cover of this guide
for details.
Using Your Phone with SYNC
Note: You must download your phone book to make phone
calls with voice commands by name.
Making a phone call
Use SYNC to make a phone call to anyone in your phone
book by pressing the voice button
. When prompted, say a
voice command.
For example, you could say “Call Jake Smith at home”. When
the system confirms the number, say “Dial” again to initiate
the call.
Note: You can also make phone calls by pressing the voice
button
and when prompted, give the voice command
“Dial”, then verbally say the phone number. Answering incoming calls
Whenever you have an incoming call, you will be able to see
the name and number of the person calling in the display.
Press the phone button
to answer an incoming call. You
can hang up at any time by pressing the
button.
Do not disturb mode
This feature blocks incoming calls and text messages and
saves them for later. You still have access to outgoing calls
when this feature is active. Say the voice command “Do not
disturb on” to enable and “Do not disturb off” to disable.
Using SYNC to Access Digital Media
Plug in your USB media devices such as phones and MP3
players, and use SYNC to play all of your favorite music.
Using voice commands to play music
1. Plug your media player into your USB port.
2. Press the voice button
. When prompted, say “USB”,
then follow up by saying a voice command.
SYN C®
7
6

Page 5 of 8

FORD MUSTANG 2015 6.G Quick Reference Guide A Revolutionary Way to Connect
with Your Vehicle
Use the four-corner, four-color touchscreen
to explore and interact with your vehicle.
The touchscreen works the same way as
traditional controls,

A Revolutionary Way to Connect
with Your Vehicle
Use the four-corner, four-color touchscreen
to explore and interact with your vehicle.
The touchscreen works the same way as
traditional controls, knobs and buttons do.
Press the various corners on your touchscreen
to personalize the many features and settings
of your vehicle all in one place. The system
provides easy interaction with your cellular
phone, multimedia entertainment, climate
controls and navigation system*.
General tips
» Press the home icon at any time to return
to your home screen or use the voice
command “Go back”.
» Press the desired icon on the sensitive
touchscreen accurately and firmly.
» Refer to your Owner’s Manual, visit the
website or call the toll-free number for
more information. See the inside front
cover of this guide for details.
Before you get started
» Pair your phone to SYNC.
» Make sure to insert your navigation
SD card* into the media port (located in
the center console) or your navigation
features will not work.
Get in Touch Using Your
Four-corner Touchscreen
Phone, Navigation*, Climate and
Entertainment are the four main
features of SYNC with MyFord
Touch. Each feature has its
own corner represented by its
own color.
Phone
Voice-control your phone for hands-free
calling with your phone securely put
away. With SYNC, you won’t even need
to know the phone number. Just say
the name of the person you want from
your contacts.
Your phone connects you with many
other features:
» Automatically connect to a 911
Operator in the event of an accident
(you need to activate this feature
prior to the event).
» Transfer calls seamlessly from
SYNC to phone as you get in or out
of your vehicle.
Refer to the MyFord Touch chapter
of your Owner’s Manual for
complete details.
SYN C® WITH MYFORD TOUCH®*
To pair your phone
» Touch Add Phone on your
touchscreen.
» Set Bluetooth ON and put
your cellular phone in the
proper mode.
» Select SYNC and a six-digit PIN
appears on your device.
» If the system prompts you to
enter a PIN on your device, it does not support Secure Simple
Pairing. To pair, enter the PIN
displayed on the touchscreen.
» When prompted on your phone’s
display, confirm that the PIN
provided by SYNC matches
the PIN displayed on your
cellular phone.
» The display will indicate when
pairing is successful.
Navigation*
Press the upper-right, green corner to
access features within your available,
voice-activated navigation system:
» SiriusXM Traffic
TM
» Sirius Travel LinkTM
» GPS (Global Positioning System)
technology
» 3-D mapping
» Turn-by-turn navigation
Some features may require activation.
Refer to the MyFord Touch chapter
of your Owner’s Manual for
complete details. Set a destination
Set a destination by using a street
address, a city center, a place on the
map or a point of interest (POI). The
easiest way, however, is by voice.
1.
Press the voice button
.
When prompted, say “Destination
street address”.
2. The system will ask you to say the
full address and will display an
example on screen.
3. You can then speak the address
naturally, such as: One two three
Main Street, Anytown.
You can also use the touchscreen to
enter a destination and narrow your
choices by city or street as you type.
You can choose from up to three
different types of routes:
» Fastest: Uses the fastest moving
roads possible.
» Shortest: Uses the shortest
distance possible.
» Eco (EcoRoute): Uses the most fuel
efficient route.
8*if equipped9
*if equipped

Page 6 of 8

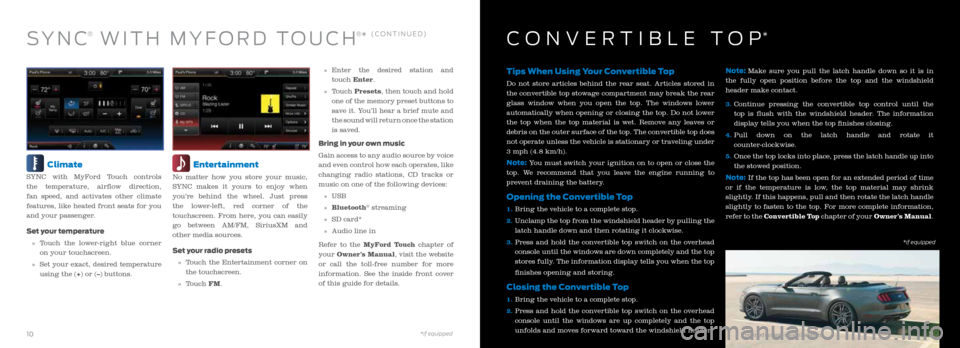

FORD MUSTANG 2015 6.G Quick Reference Guide Climate
SYNC with MyFord Touch controls
the temperature, airflow direction,
fan speed, and activates other climate
features, like heated front seats for you
and your passenger.
Set your temperat

Climate
SYNC with MyFord Touch controls
the temperature, airflow direction,
fan speed, and activates other climate
features, like heated front seats for you
and your passenger.
Set your temperature
» Touch the lower-right blue corner
on your touchscreen.
» Set your exact, desired temperature
using the (+) or (–) buttons.
Entertainment
No matter how you store your music,
SYNC makes it yours to enjoy when
you’re behind the wheel. Just press
the lower-left, red corner of the
touchscreen. From here, you can easily
go between AM/FM, SiriusXM and
other media sources.
Set your radio presets
» Touch the Entertainment corner on
the touchscreen.
» Touch FM.
» Enter the desired station and
touch Enter.
» Touch Presets, then touch and hold
one of the memory preset buttons to
save it. You’ll hear a brief mute and
the sound will return once the station
is saved.
Bring in your own music
Gain access to any audio source by voice
and even control how each operates, like
changing radio stations, CD tracks or
music on one of the following devices:
» USB
» Bluetooth
® streaming
» SD card*
» Audio line in
Refer to the MyFord Touch chapter of
your Owner’s Manual, visit the website
or call the toll-free number for more
information. See the inside front cover
of this guide for details.
Tips When Using Your Convertible Top
Do not store articles behind the rear seat. Articles stored in
the convertible top stowage compartment may break the rear
glass window when you open the top. The windows lower
automatically when opening or closing the top. Do not lower
the top when the top material is wet. Remove any leaves or
debris on the outer surface of the top. The convertible top does
not operate unless the vehicle is stationary or traveling under
3 mph (4.8 km/h).
Note: You must switch your ignition on to open or close the
top. We recommend that you leave the engine running to
prevent draining the battery.
Opening the Convertible Top
1. Bring the vehicle to a complete stop.
2. Unclamp the top from the windshield header by pulling the
latch handle down and then rotating it clockwise.
3. Press and hold the convertible top switch on the overhead
console until the windows are down completely and the top
stores fully. The information display tells you when the top
finishes opening and storing.
Closing the Convertible Top
1. Bring the vehicle to a complete stop.
2. Press and hold the convertible top switch on the overhead
console until the windows are up completely and the top
unfolds and moves forward toward the windshield header. Note:
Make sure you pull the latch handle down so it is in
the fully open position before the top and the windshield
header make contact.
3. Continue pressing the convertible top control until the
top is flush with the windshield header. The information
display tells you when the top finishes closing.
4. Pull down on the latch handle and rotate it
counter-clockwise.
5. Once the top locks into place, press the latch handle up into
the stowed position.
Note: If the top has been open for an extended period of time
or if the temperature is low, the top material may shrink
slightly. If this happens, pull and then rotate the latch handle
slightly to fasten to the top. For more complete information,
refer to the Convertible Top chapter of your Owner’s Manual.
SYN C® WITH MYFORD TOUCH®* (CONTINUED)CONVERTIBLE TOP*
Preproduction model shown*if equipped *if equipped10
11

Page 7 of 8

FORD MUSTANG 2015 6.G Quick Reference Guide Selectable Driving* and
Steering Modes
Through a suite of sophisticated
electronic vehicle systems, you can
optimize ride comfort, steering,
handling, powertrain response and
sound. To change the

Selectable Driving* and
Steering Modes
Through a suite of sophisticated
electronic vehicle systems, you can
optimize ride comfort, steering,
handling, powertrain response and
sound. To change the settings, use
the mode switch on the instrument
panel. The selected mode lights in the
information display. See the Driving
Aids chapter of your Owner’s Manual
for complete details.
Driving modes*
» Normal – Delivers a balanced
combination of comfortable,
controlled ride and confident
handling. This mode provides an
engaging drive experience and a
direct connection to the road without
sacrificing any of the composure
demanded from your vehicle.
» Sport+ – Provides a sportier
steering feel and throttle response.
Sport mode is ideal for use during
more spirited driving.
» Track – Provides a performance
driving experience. The engine
responds directly to your inputs
and takes on a more powerful tone.
Use track mode when you desire
pure performance.
» Snow/Wet – Provides a confident
handling driving experience during
poor weather without sacrificing
any of the composure demanded
from your vehicle.
Steering modes
» Standard – Default factory setting.
» Sport – Slightly higher effort
required for steering with more
road force felt through the
steering wheel.
» Comfort – Slightly less effort
required for steering with less
road force felt through the
steering wheel. After selecting the desired setting,
you may feel a soft feedback bump
in the steering wheel when the

changeover occurs.
Note: If your vehicle is equipped with
the selectable drive modes feature,
the steering feel will change when
you select a new drive mode. You can
override this automatic selection by
pressing the steering button.
AdvanceTrac™*
The system automatically activates
when you start your engine. The
electronic stability control portion
of the system is disabled when the
transmission is in reverse (R) or, on
some models, if you press and hold the
stability control button for more than
five seconds when you apply the brakes
and the vehicle is at a stop. You can
switch off the traction control portion
of the system independently. See the
Stability Control chapter of your
Owner’s Manual for details.
FUNCTION (CONTINUED)
Climate Controlled Front Seats*
Touch the heated seat symbol to cycle
through the various heat settings and off.
More lights indicate warmer settings.
Press the cooled seat symbol
to cycle
through the various cooling settings and
off. More lights indicate cooler settings.
Dual-zone Automatic
Temperature Control*
Use the touchscreen to set an independent
temperature for the front-seat passenger.
Touch Dual and then + or – to adjust. Touch
Dual again to switch the controls back to
the driver’s temperature setting.
Remote Start*
Use the remote start to start your engine.
1. Press the lock button
to lock all
the doors.
2. Press the remote start button
twice
within three seconds. The exterior lamps
will flash twice.
Pony Projection Lights*
The lights are on the bottom of the mirror
housings. This feature projects an image
onto the ground a short distance from
the vehicle with the illuminated entry and
exit feature.
Rear Seat Access
Use the seatback release to fold the back
of the front seat forward. This release
handle is on the upper back of the front
seat. The seatback has memory and locks
automatically in the original position.
Reverse Sensing System*
Sounds a warning tone if there is an
obstacle near the vehicle’s rear bumper
when the vehicle is in reverse (R) and is
traveling less than 3 mph (5 km/h). The
warning tone will increase in frequency as
the object gets closer.
COMFORT/FUNCTION
*if equipped *if equipped12
13

Page 8 of 8

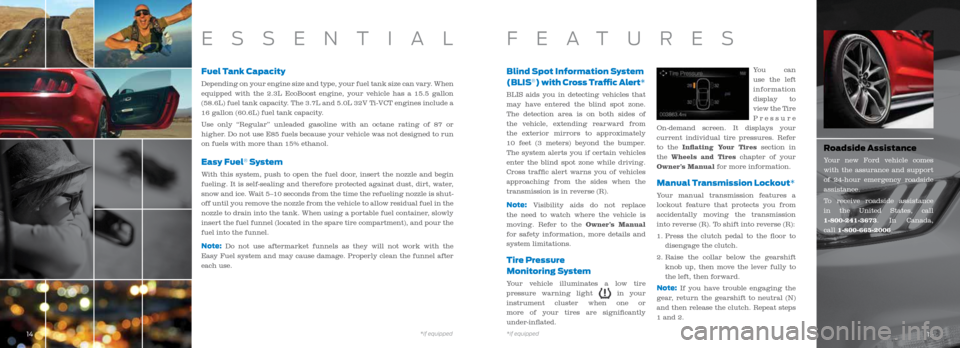

FORD MUSTANG 2015 6.G Quick Reference Guide Fuel Tank Capacity
Depending on your engine size and type, your fuel tank size can vary. When
equipped with the 2.3L EcoBoost engine, your vehicle has a 15.5 gallon
(58.6L) fuel tank capacity. The 3

Fuel Tank Capacity
Depending on your engine size and type, your fuel tank size can vary. When
equipped with the 2.3L EcoBoost engine, your vehicle has a 15.5 gallon
(58.6L) fuel tank capacity. The 3.7L and 5.0L 32V Ti-VCT engines include a
16 gallon (60.6L) fuel tank capacity.
Use only “Regular” unleaded gasoline with an octane rating of 87 o\
r
higher. Do not use E85 fuels because your vehicle was not designed to run
on fuels with more than 15% ethanol.
Easy Fuel® System
With this system, push to open the fuel door, insert the nozzle and begin
fueling. It is self-sealing and therefore protected against dust, dirt, \
water,
snow and ice. Wait 5–10 seconds from the time the refueling nozzle is shut-
off until you remove the nozzle from the vehicle to allow residual fuel \
in the
nozzle to drain into the tank. When using a portable fuel container, slowly
insert the fuel funnel (located in the spare tire compartment), and pour the
fuel into the funnel.
Note: Do not use aftermarket funnels as they will not work with the
Easy Fuel system and may cause damage. Properly clean the funnel after
each use.
Blind Spot Information System
(BLIS®) with Cross Traffic Alert*
BLIS aids you in detecting vehicles that
may have entered the blind spot zone.
The detection area is on both sides of
the vehicle, extending rearward from
the exterior mirrors to approximately
10 feet (3 meters) beyond the bumper.
The system alerts you if certain vehicles
enter the blind spot zone while driving.
Cross traffic alert warns you of vehicles
approaching from the sides when the
transmission is in reverse (R).
Note: Visibility aids do not replace
the need to watch where the vehicle is
moving. Refer to the Owner’s Manual
for safety information, more details and
system limitations.
Tire Pressure
Monitoring System
Your vehicle illuminates a low tire
pressure warning light
in your
instrument cluster when one or
more of your tires are significantly
under-inflated. You can
use the left
information
display to
view the Tire
Pressure
On-demand screen. It displays your
current individual tire pressures. Refer
to the Inflating Your Tires section in
the Wheels and Tires chapter of your
Owner’s Manual for more information.
Manual Transmission Lockout*
Your manual transmission features a
lockout feature that protects you from
accidentally moving the transmission
into reverse (R). To shift into reverse (R):
1. Press the clutch pedal to the floor to
disengage the clutch.
2. Raise the collar below the gearshift
knob up, then move the lever fully to
the left, then forward.
Note: If you have trouble engaging the
gear, return the gearshift to neutral (N)
and then release the clutch. Repeat steps
1 and 2.
ESSENTIALFEATURES
14*if equipped *if equipped15
Roadside Assistance
Your new Ford vehicle comes
with the assurance and support
of 24-hour emergency roadside
assistance.
To receive roadside assistance
in the United States, call
1-800-241-3673. In Canada,
call 1-800-665-2006.
