FORD MUSTANG 2023 Owners Manual

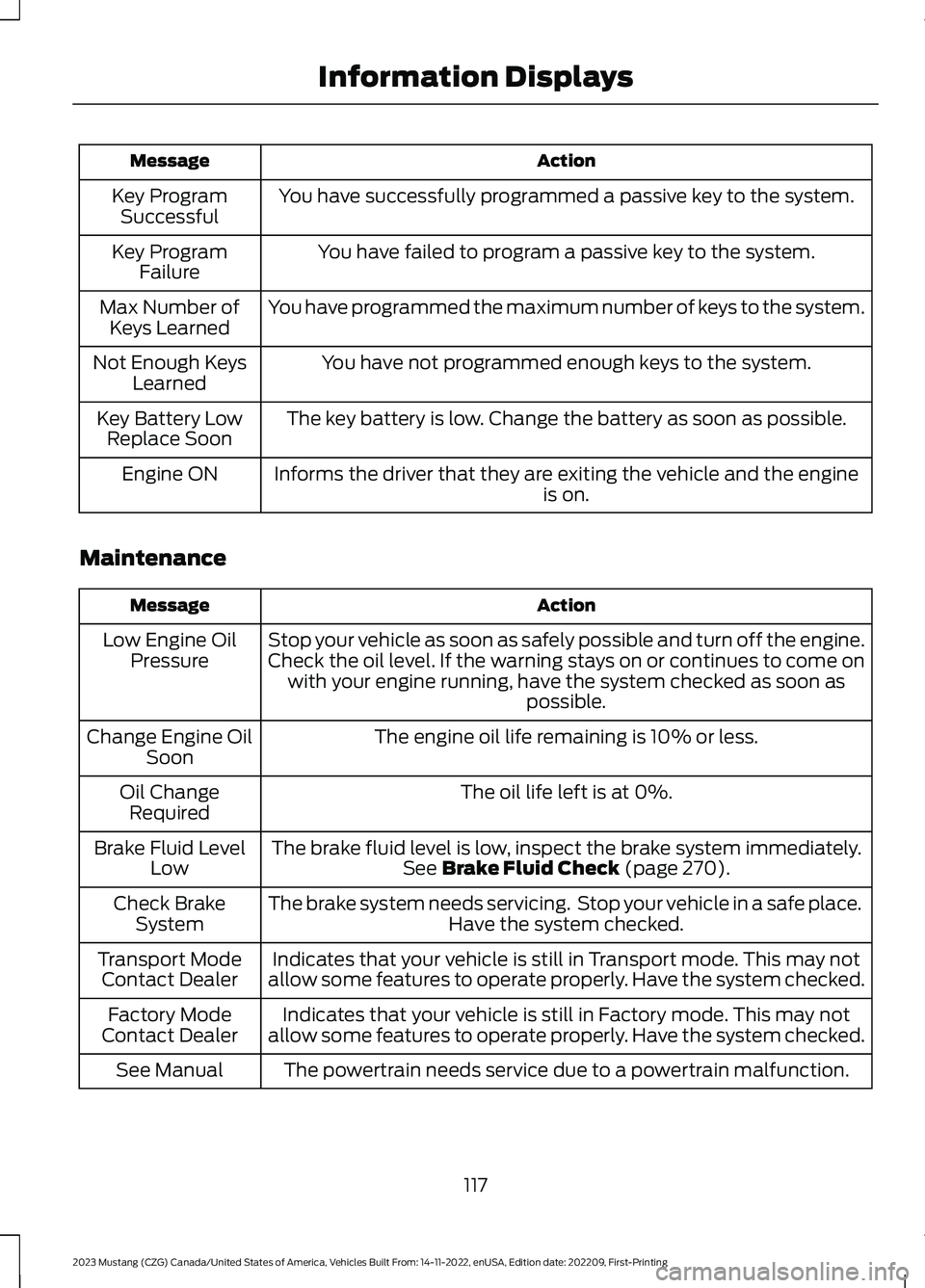

ActionMessage
You have successfully programmed a passive key to the system.Key ProgramSuccessful
You have failed to program a passive key to the system.Key ProgramFailure
You have programmed the maximum number of keys to the system.Max Number ofKeys Learned
You have not programmed enough keys to the system.Not Enough KeysLearned
The key battery is low. Change the battery as soon as possible.Key Battery LowReplace Soon
Informs the driver that they are exiting the vehicle and the engineis on.Engine ON
Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off the engine.Check the oil level. If the warning stays on or continues to come onwith your engine running, have the system checked as soon aspossible.
Low Engine OilPressure
The engine oil life remaining is 10% or less.Change Engine OilSoon
The oil life left is at 0%.Oil ChangeRequired
The brake fluid level is low, inspect the brake system immediately.See Brake Fluid Check (page 270).Brake Fluid LevelLow
The brake system needs servicing. Stop your vehicle in a safe place.Have the system checked.Check BrakeSystem
Indicates that your vehicle is still in Transport mode. This may notallow some features to operate properly. Have the system checked.Transport ModeContact Dealer
Indicates that your vehicle is still in Factory mode. This may notallow some features to operate properly. Have the system checked.Factory ModeContact Dealer
The powertrain needs service due to a powertrain malfunction.See Manual
117
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

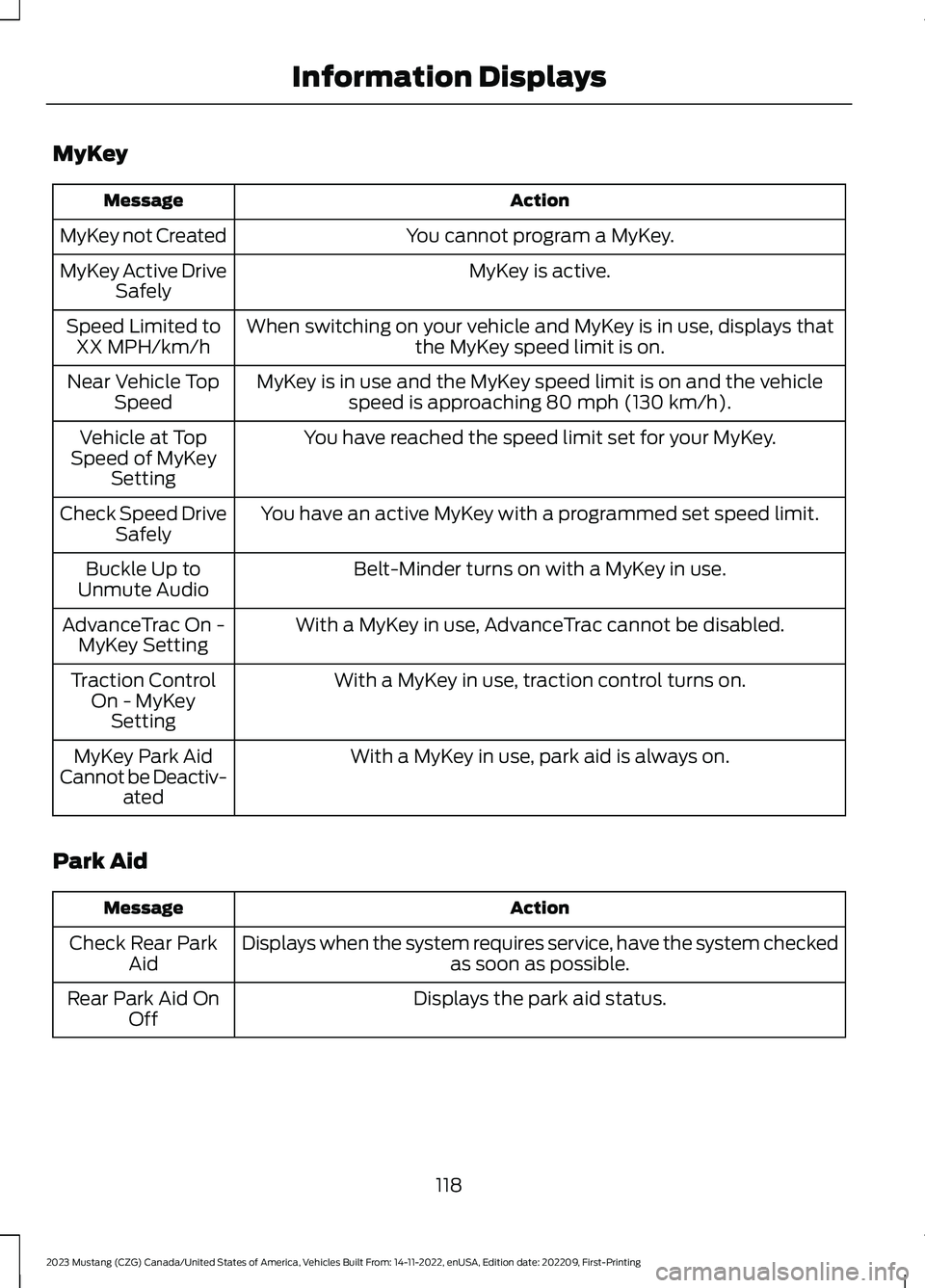

MyKey
ActionMessage
You cannot program a MyKey.MyKey not Created
MyKey is active.MyKey Active DriveSafely
When switching on your vehicle and MyKey is in use, displays thatthe MyKey speed limit is on.Speed Limited toXX MPH/km/h
MyKey is in use and the MyKey speed limit is on and the vehiclespeed is approaching 80 mph (130 km/h).Near Vehicle TopSpeed
You have reached the speed limit set for your MyKey.Vehicle at TopSpeed of MyKeySetting
You have an active MyKey with a programmed set speed limit.Check Speed DriveSafely
Belt-Minder turns on with a MyKey in use.Buckle Up toUnmute Audio
With a MyKey in use, AdvanceTrac cannot be disabled.AdvanceTrac On -MyKey Setting
With a MyKey in use, traction control turns on.Traction ControlOn - MyKeySetting
With a MyKey in use, park aid is always on.MyKey Park AidCannot be Deactiv-ated
Park Aid
ActionMessage
Displays when the system requires service, have the system checkedas soon as possible.Check Rear ParkAid
Displays the park aid status.Rear Park Aid OnOff
118
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Park Brake
ActionMessage
You have set the parking brake and you have driven the vehiclemore than 3 mph (5 km/h). If the warning stays on after you havereleased the parking brake, have the system checked.
Park BrakeEngaged
Pre-Collision Assist
ActionMessage
You have a blocked sensor due to inclement weather, ice, mud orwater in front of the radar sensor. You can typically clean the sensorto resolve.
Pre-CollisionAssist Not Avail-able SensorBlocked
A fault with the system has occurred. Have the system checked assoon as possible.Pre-CollisionAssist Not Avail-able
Rear Axle
ActionMessage
This message appears when the oil temperature in the rear differ-ential exceeds a safe limit. Reduce speed to allow the oil temper-ature to return to normal levels.
Axle Over Temper-ature ReduceSpeed
Remote Start
ActionMessage
A reminder to apply the brake and push the start button to driveyour vehicle after a remote start.To Drive: PressBrake and StartButton
A reminder to push the start button to drive your vehicle after aremote start.To Drive: PressStart Button
119
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

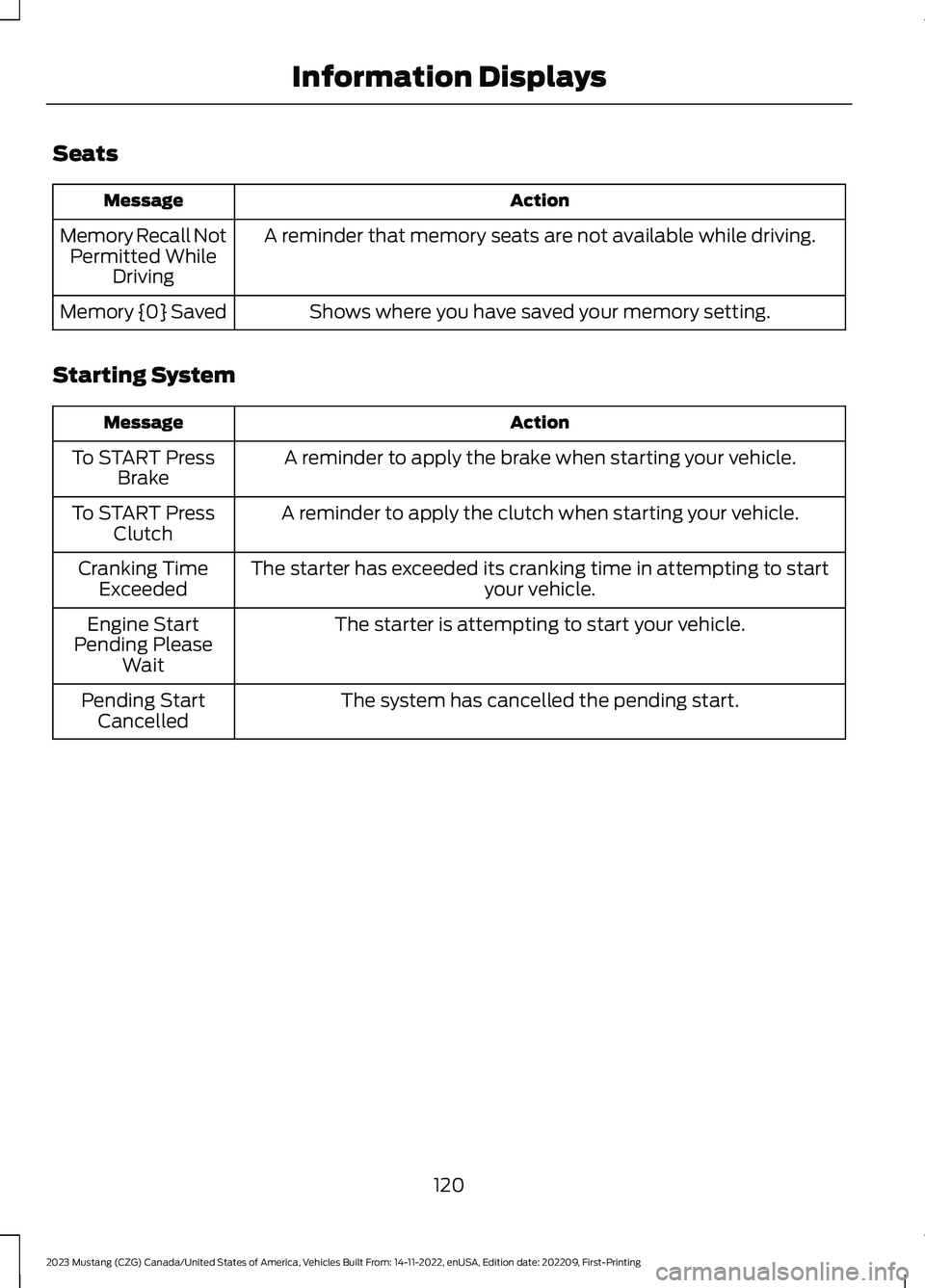

Seats
ActionMessage
A reminder that memory seats are not available while driving.Memory Recall NotPermitted WhileDriving
Shows where you have saved your memory setting.Memory {0} Saved
Starting System
ActionMessage
A reminder to apply the brake when starting your vehicle.To START PressBrake
A reminder to apply the clutch when starting your vehicle.To START PressClutch
The starter has exceeded its cranking time in attempting to startyour vehicle.Cranking TimeExceeded
The starter is attempting to start your vehicle.Engine StartPending PleaseWait
The system has cancelled the pending start.Pending StartCancelled
120
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Steering System
ActionMessage
The power steering system has detected a condition that requiresservice. Have the system checked.Steering FaultService Now
The power steering system is not working. Stop your vehicle in asafe place. Have the system checked.Steering Loss StopSafely
The power steering system has detected a condition within thepower steering system or passive entry or passive start system thatrequires service. Have the system checked.
Steering AssistFault ServiceRequired
The steering lock system has detected a condition that requiresservice. Have the system checked.Steering LockMalfunctionService Now
You need to turn your steering wheel when starting your vehicle tounlock your steering column.Steering ColumnLock Remove andre-insert key whileturning wheel tounlock
Suspension System
ActionMessage
Displays if the adaptive damping system detects a condition thatrequires service. Your vehicle speed is limited to 80 mph (130 km/h).Have your vehicle serviced soon.
Suspension FaultSpeed Limited toXX MPH/km/h
Tire Mobility Kit
ActionMessage
This message appears when the tire sealing compound in theTemporary Mobility Kit expires and you need to replace it. Whenyou replace the sealing compound you can reset any warningmessages through your settings menu. See General Information(page 98).
Service TireMobility Kit
121
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Tire Pressure Monitoring System
ActionMessage
One or more tires on your vehicle has low tire pressure. See TirePressure Monitoring System (page 326).Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If the warningstays on or continues to come on, have the system checked. SeeTire Pressure Monitoring System (page 326).
Tire PressureMonitor Fault
A tire pressure sensor is malfunctioning or your spare tire is in use.See Tire Pressure Monitoring System (page 326). If the warningstays on or continues to come on, have the system checked as soonas possible.
Tire PressureSensor Fault
Traction Control
ActionMessage
The status of the system after you switched it off.Traction ControlOff
The status of the system after you switched it on.Traction ControlOn
The system detects a spinout and turns on the hazard flashers.Spinout DetectedHazards Activated
Transmission
ActionMessage
Have the system checked.TransmissionMalfunctionService Now
Have the system checked.TransmissionService Required
A reminder to shift into park.Transmission Notin Park
122
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

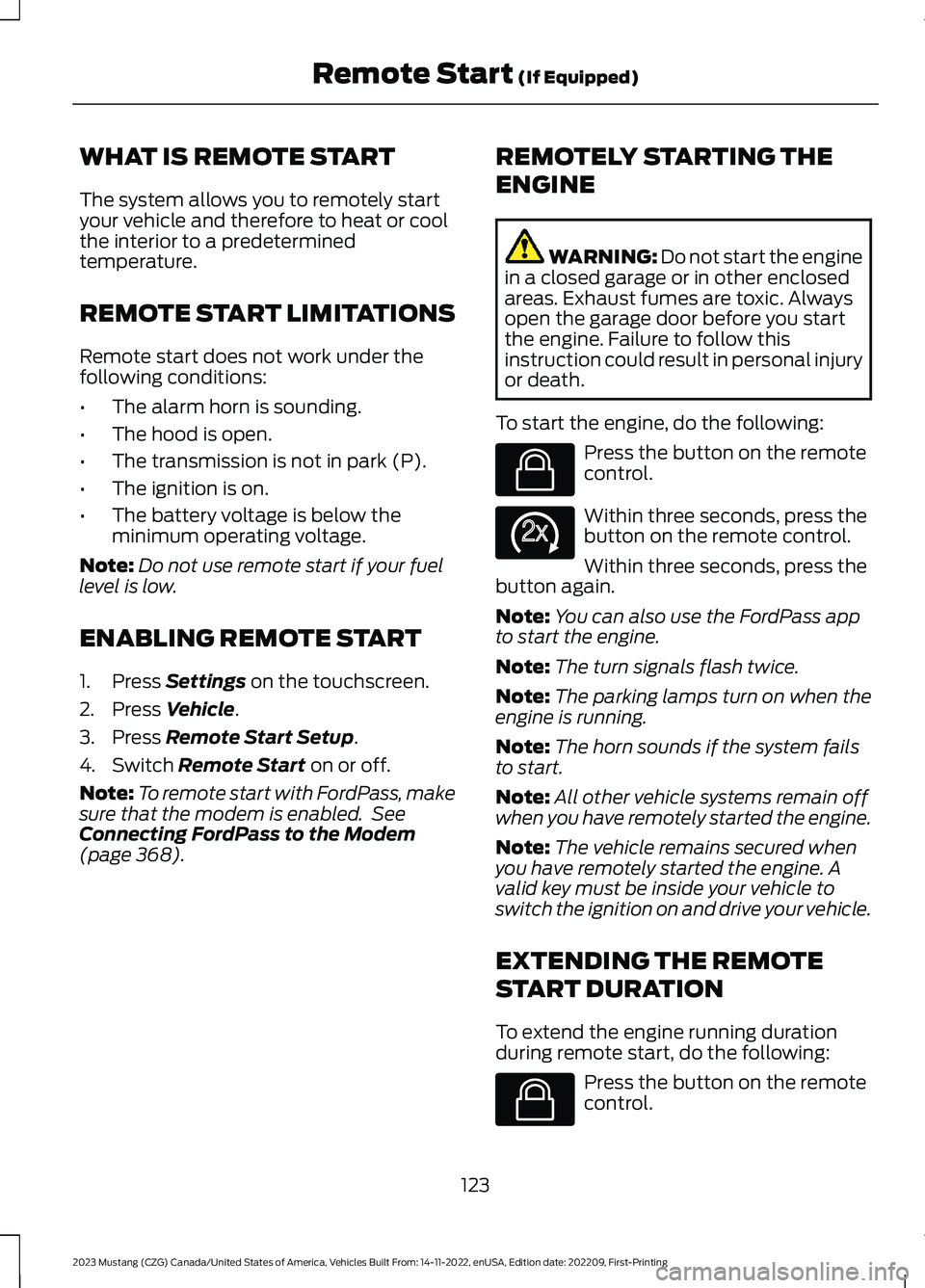

WHAT IS REMOTE START
The system allows you to remotely startyour vehicle and therefore to heat or coolthe interior to a predeterminedtemperature.
REMOTE START LIMITATIONS
Remote start does not work under thefollowing conditions:
•The alarm horn is sounding.
•The hood is open.
•The transmission is not in park (P).
•The ignition is on.
•The battery voltage is below theminimum operating voltage.
Note:Do not use remote start if your fuellevel is low.
ENABLING REMOTE START
1.Press Settings on the touchscreen.
2.Press Vehicle.
3.Press Remote Start Setup.
4.Switch Remote Start on or off.
Note:To remote start with FordPass, makesure that the modem is enabled. SeeConnecting FordPass to the Modem(page 368).
REMOTELY STARTING THE
ENGINE
WARNING: Do not start the enginein a closed garage or in other enclosedareas. Exhaust fumes are toxic. Alwaysopen the garage door before you startthe engine. Failure to follow thisinstruction could result in personal injuryor death.
To start the engine, do the following:
Press the button on the remotecontrol.
Within three seconds, press thebutton on the remote control.
Within three seconds, press thebutton again.
Note:You can also use the FordPass appto start the engine.
Note:The turn signals flash twice.
Note:The parking lamps turn on when theengine is running.
Note:The horn sounds if the system failsto start.
Note:All other vehicle systems remain offwhen you have remotely started the engine.
Note:The vehicle remains secured whenyou have remotely started the engine. Avalid key must be inside your vehicle toswitch the ignition on and drive your vehicle.
EXTENDING THE REMOTE
START DURATION
To extend the engine running durationduring remote start, do the following:
Press the button on the remotecontrol.
123
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRemote Start (If Equipped)E138623 E138625 E138623

Within three seconds, press thebutton on the remote control.
Within three seconds, press thebutton again.
Note:You can extend the engine runningduration to a maximum of 30 minutes.
REMOTELY STOPPING THE
ENGINE
Use the FordPass App to stop the engine.
REMOTE START REMOTE
CONTROL INDICATORS
Remote Control Feedback
An LED on the remote control providesstatus feedback of remote start or stopcommands.
StatusLED
Remote startsuccessful.Solid green.
Remote stopsuccessful.Solid red.
Request failed orstatus not received.Blinking red.
Status incomplete.Blinking green.
REMOTE START SETTINGS
SWITCHING CLIMATE CONTROLAUTO MODE ON AND OFF
1.Using the information display controlson the steering wheel, select Settings.
2.Select Vehicle.
3.Select Remote Start.
4.Select Climate Control.
5.Switch Auto on or off.
Note:If you switch the auto mode on, thesystem attempts to heat or cool the interiorto 72°F (22°C).
Note:When you switch the ignition on, theclimate control system returns to the lastused settings.
Note:The heated windshield, heated rearwindow, heated mirrors, heated seats andheated steering wheel could turn on in coldweather.
SWITCHING CLIMATE CONTROLLAST SETTINGS ON AND OFF
1.Using the information display controlson the steering wheel, select Settings.
2.Select Vehicle.
3.Select Remote Start.
4.Select Climate Control.
5.Switch Last Settings on or off.
Note:If you switch the last settings on, thesystem remembers the last used settings.
SWITCHING THE HEATED SEATSETTINGS ON AND OFF
1.Using the information display controlson the steering wheel, select Settings.
2.Select Vehicle.
3.Select Remote Start.
4.Select Front Seats.
5.Select Auto or Off.
Note:If you switch the heated seat settingson, the heated seats turn on during coldweather.
Note:You cannot adjust the heated seatsettings when you have remotely startedthe engine.
124
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRemote Start (If Equipped)E138625

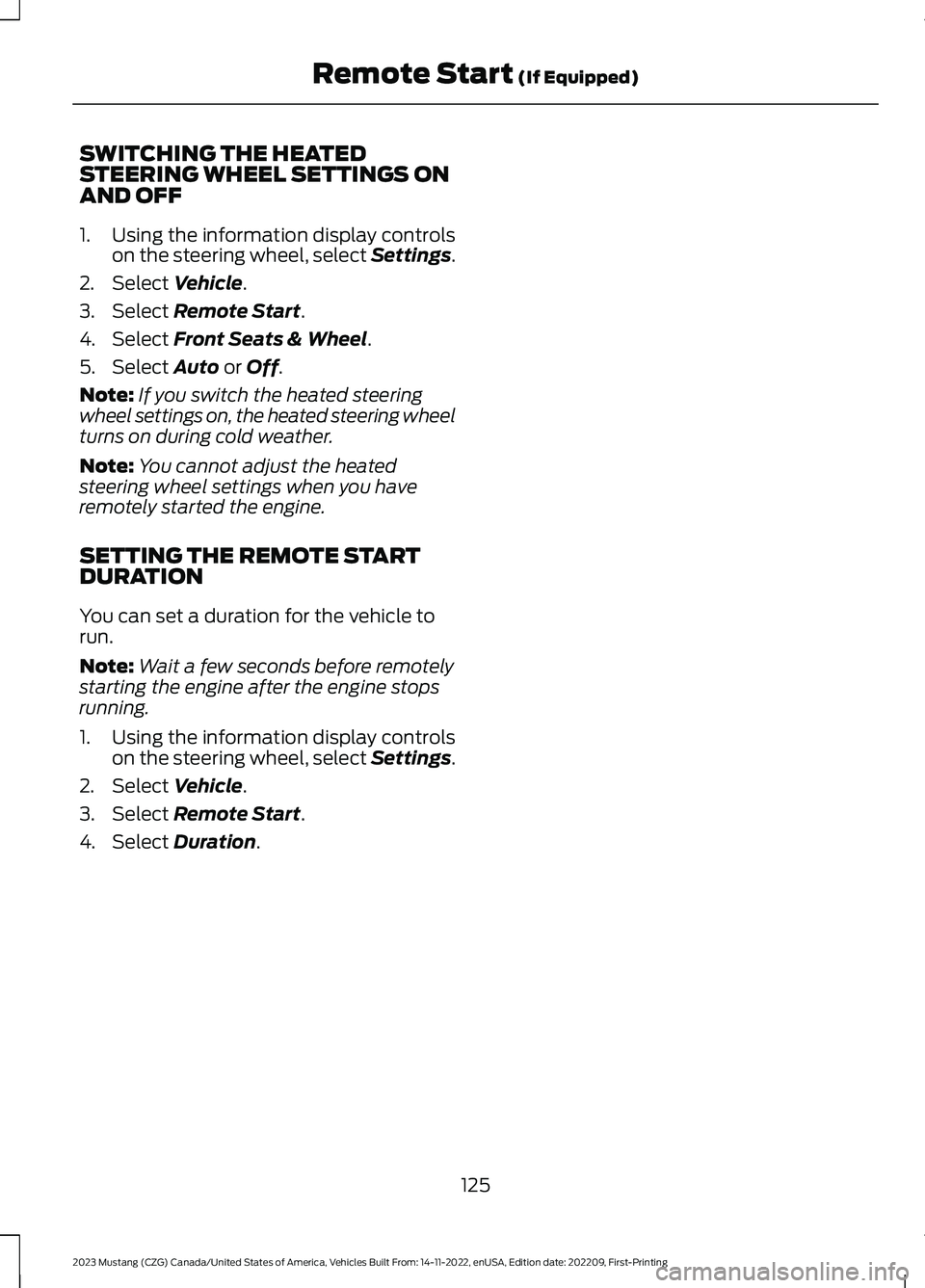

SWITCHING THE HEATEDSTEERING WHEEL SETTINGS ONAND OFF
1.Using the information display controlson the steering wheel, select Settings.
2.Select Vehicle.
3.Select Remote Start.
4.Select Front Seats & Wheel.
5.Select Auto or Off.
Note:If you switch the heated steeringwheel settings on, the heated steering wheelturns on during cold weather.
Note:You cannot adjust the heatedsteering wheel settings when you haveremotely started the engine.
SETTING THE REMOTE STARTDURATION
You can set a duration for the vehicle torun.
Note:Wait a few seconds before remotelystarting the engine after the engine stopsrunning.
1.Using the information display controlson the steering wheel, select Settings.
2.Select Vehicle.
3.Select Remote Start.
4.Select Duration.
125
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingRemote Start (If Equipped)

MANUAL CLIMATE CONTROL
(IF EQUIPPED)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Directing the Airflow
Press and release the button todirect airflow to the windshieldair vents and de-mister.
Press and release the button todirect airflow to the instrumentpanel air vents.
Press and release the button todirect airflow to the footwell airvents.
You can direct air through the windshieldand footwell air vents or the instrumentpanel and footwell air vents at the sametime.
Setting the Blower Motor Speed
Turn the control to adjust the volume ofair circulated in the vehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Air Conditioning Onand Off
Press and release the button.
126
