Page 111 of 535

Driver Assist
ModeLane Keeping Assist
Intensity
Hold OK to ResetTire Monitor
Settings
Settings
Choose your applicable setting.AlarmVehicle
Easy Entry/Exit
Choose your applicable setting.Lighting
Locks
Percent Oil Life XXX%Oil Life ResetHold OK to Reset
Park Lock Control
Choose your applicable setting.Remote Start
Tire Mobility Kit
Windows
Wipers
Choose your applicable setting.Gauge ColorMyColor
Halo
Ambient Light
Set MyColor
Displays the status of MyKeys,Admin Keys and MyKey distance.MyKey StatusMyKey
Hold OK to Create MyKeyCreate MyKey
Choose your applicable setting.911 Assist
AdvanceTrac
Do Not Disturb
107
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 112 of 535

Settings
Max Speed
Speed Minder
Volume Limiter
Hold OK to Clear All MyKeysClear MyKeys
Choose your applicable setting.DistanceDisplay Setup
Temperature
Tire Pressure
Language
1 See Track Use (page 278).Note:Quiet Start allows you to schedule when the Exhaust Mode turns on the Quietsetting. The time window can be from 1 to 24 hours.
GENERAL INFORMATION -
VEHICLES WITH: 12.3 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:Some items could appear slightlydifferent or not at all if the features areoptional.
Information Display Controls
You can control various systems on yourvehicle using the information displaycontrols on the steering wheel.
108
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 113 of 535

Back button.A
Arrow up.B
Voice control button.C
Arrow down.D
Pony menu button.E
Audio menu button.F
Phone buttons.G
Settings menu button.H
Navigation menu button.I
•Press one of the menu buttons to entera menu.
•Toggle (B) and (D) to scroll throughand highlight the options within amenu.
•Press the OK button.
•Press (A) to exit a menu.
•Press the open menu's button at anytime to close the menu (escapebutton).
•Press the OK button to choose andconfirm settings or messages.
Settings
Settings
Trip/Fuel Info
Auto Engine OffDriverAssistBlindspot
Pre-Collision Assist
Cross Traffic Alert
Cruise Control
Driver Alert
Hill Start Assist
Rear Park Aid
109
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE249038
Page 114 of 535

Settings
Lane Keeping System
Tire Monitor
Wipers
Speedometer MPH
Speedometer km/h
VehicleAdvancedSettingsMyKey
Display Setup
Pony
WARNING: Track Apps™ is fortrack use only. Remember that evenadvanced technology cannot defy thelaws of physics. It is always possible tolose control of a vehicle due toinappropriate driver input for theconditions. Aggressive driving on anyroad condition can cause you to losecontrol of your vehicle increasing the riskof personal injury or property damage.
Track Apps™ provides a suite of optionsto record and optimize your trackperformances. See Track Use (page 278).
Pony
Show StatusMyMode
MyMode must be configured and saved before selection enabled.AddMyMode
Choose your applicable setting.1ExhaustMode
Quiet Start
Acceleration TimerTrack Apps
Brake Performance
Line Lock
110
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 115 of 535

Pony
Lap Timer
Start Option
Shift PointPerform-ance ShiftIndicatorShift Tone
Shift Light Mode
Launch ControlLaunchControlRPM
Rev Match
Show GaugesGauges
Configure MyGauges
Primary ColorMyColor
Secondary Color
Ambient Light
Create MyColor
Change with Drive ModeClusterAppear-anceNormal
Sport
Track
1 See Track Use (page 278).Note:Quiet start allows you to schedule when the exhaust mode turns on the quiet setting.The time window can be from 1 to 24 hours.
Note:Your vehicle may not have optionalfeatures like exhaust mode and line lock.
Note:The menu options for performanceshift indicator, launch control, and rev matchare for manual transmissions only.
Phone
See General Information (page 400).
Audio
See General Information (page 400).
Navigation (If Equipped)
See General Information (page 400).
111
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 116 of 535

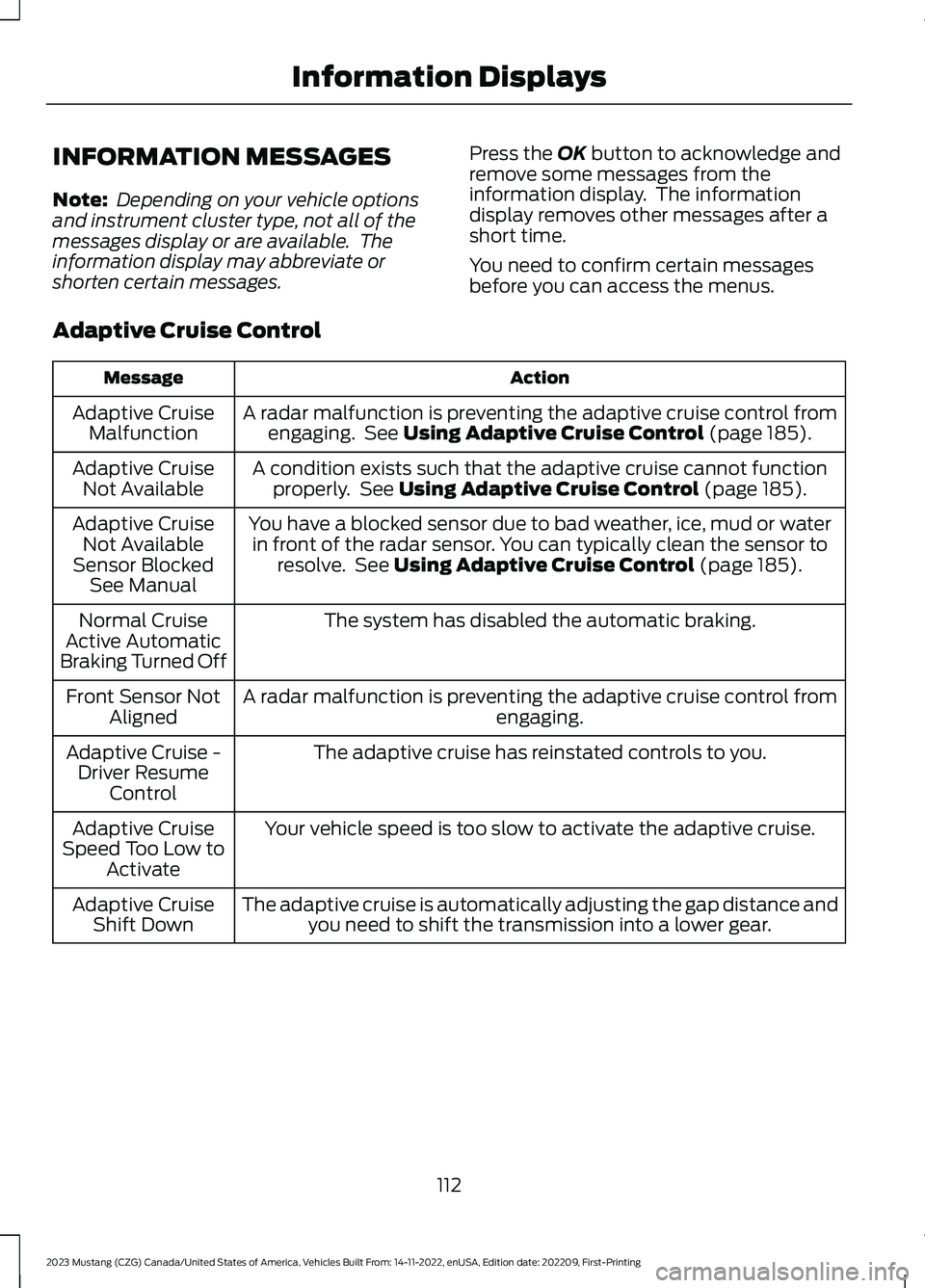

INFORMATION MESSAGES
Note: Depending on your vehicle optionsand instrument cluster type, not all of themessages display or are available. Theinformation display may abbreviate orshorten certain messages.
Press the OK button to acknowledge andremove some messages from theinformation display. The informationdisplay removes other messages after ashort time.
You need to confirm certain messagesbefore you can access the menus.
Adaptive Cruise Control
ActionMessage
A radar malfunction is preventing the adaptive cruise control fromengaging. See Using Adaptive Cruise Control (page 185).Adaptive CruiseMalfunction
A condition exists such that the adaptive cruise cannot functionproperly. See Using Adaptive Cruise Control (page 185).Adaptive CruiseNot Available
You have a blocked sensor due to bad weather, ice, mud or waterin front of the radar sensor. You can typically clean the sensor toresolve. See Using Adaptive Cruise Control (page 185).
Adaptive CruiseNot AvailableSensor BlockedSee Manual
The system has disabled the automatic braking.Normal CruiseActive AutomaticBraking Turned Off
A radar malfunction is preventing the adaptive cruise control fromengaging.Front Sensor NotAligned
The adaptive cruise has reinstated controls to you.Adaptive Cruise -Driver ResumeControl
Your vehicle speed is too slow to activate the adaptive cruise.Adaptive CruiseSpeed Too Low toActivate
The adaptive cruise is automatically adjusting the gap distance andyou need to shift the transmission into a lower gear.Adaptive CruiseShift Down
112
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 117 of 535

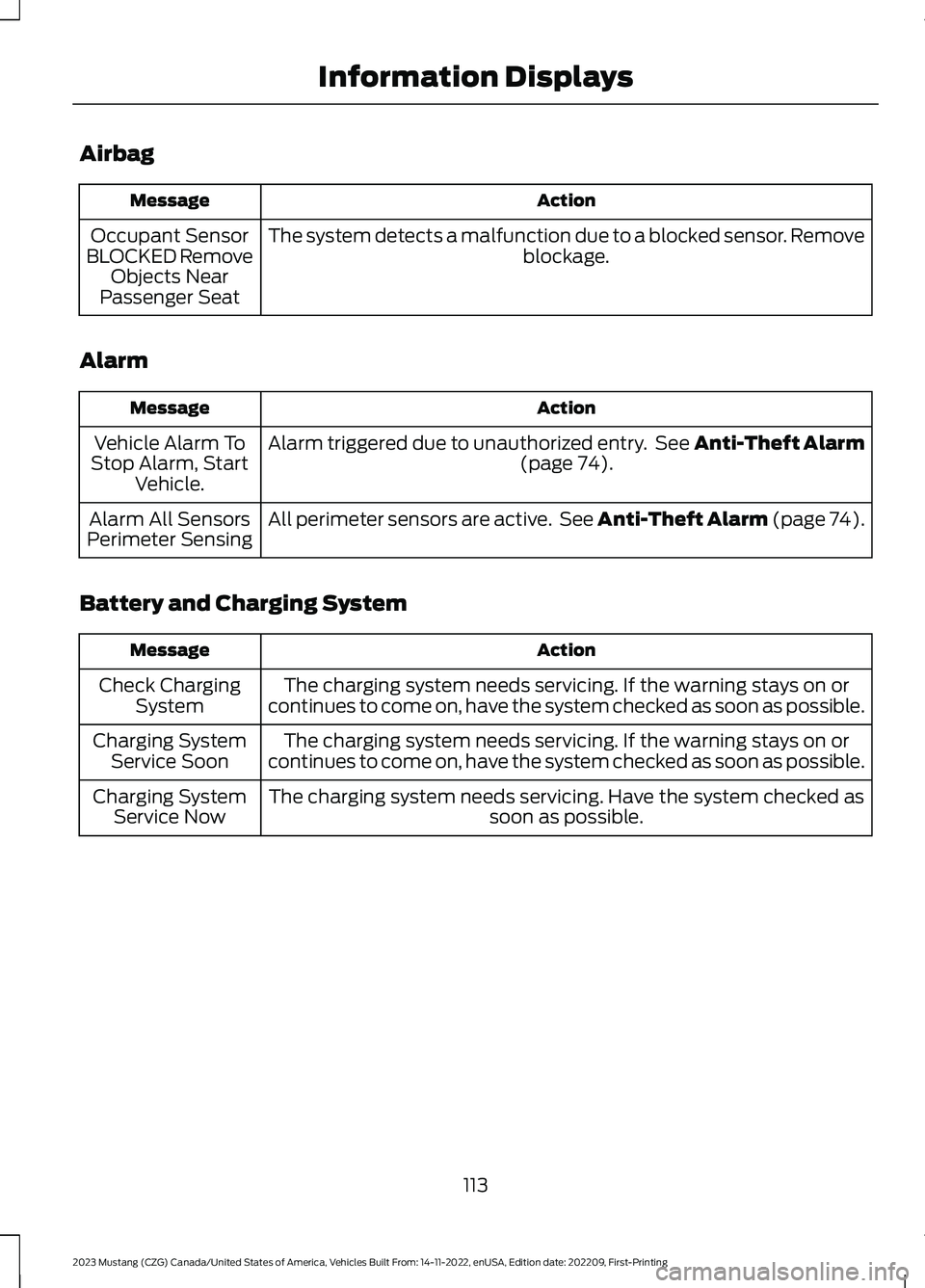

Airbag
ActionMessage
The system detects a malfunction due to a blocked sensor. Removeblockage.Occupant SensorBLOCKED RemoveObjects NearPassenger Seat
Alarm
ActionMessage
Alarm triggered due to unauthorized entry. See Anti-Theft Alarm(page 74).Vehicle Alarm ToStop Alarm, StartVehicle.
All perimeter sensors are active. See Anti-Theft Alarm (page 74).Alarm All SensorsPerimeter Sensing
Battery and Charging System
ActionMessage
The charging system needs servicing. If the warning stays on orcontinues to come on, have the system checked as soon as possible.Check ChargingSystem
The charging system needs servicing. If the warning stays on orcontinues to come on, have the system checked as soon as possible.Charging SystemService Soon
The charging system needs servicing. Have the system checked assoon as possible.Charging SystemService Now
113
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 118 of 535

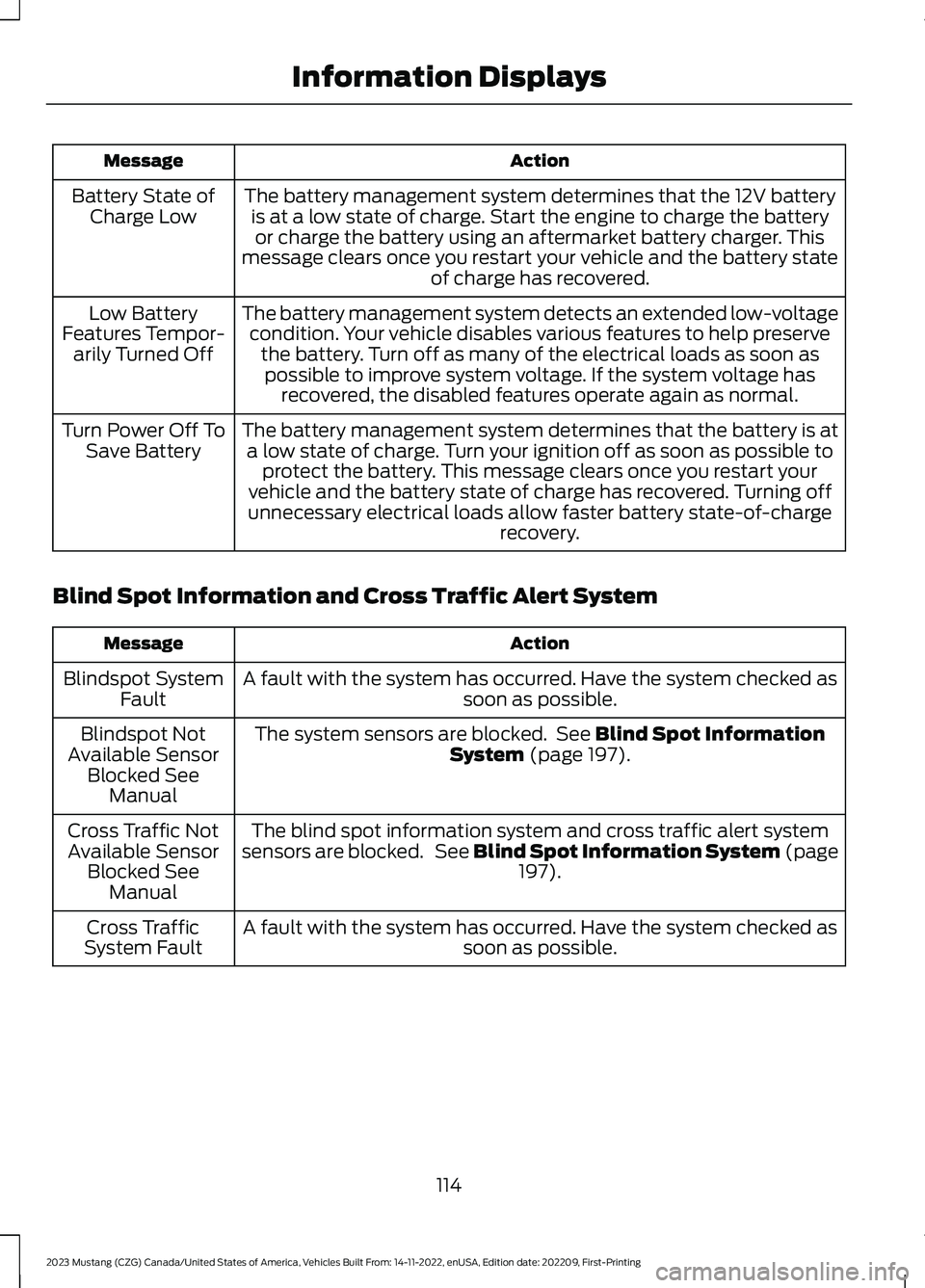

ActionMessage
The battery management system determines that the 12V batteryis at a low state of charge. Start the engine to charge the batteryor charge the battery using an aftermarket battery charger. Thismessage clears once you restart your vehicle and the battery stateof charge has recovered.
Battery State ofCharge Low
The battery management system detects an extended low-voltagecondition. Your vehicle disables various features to help preservethe battery. Turn off as many of the electrical loads as soon aspossible to improve system voltage. If the system voltage hasrecovered, the disabled features operate again as normal.
Low BatteryFeatures Tempor-arily Turned Off
The battery management system determines that the battery is ata low state of charge. Turn your ignition off as soon as possible toprotect the battery. This message clears once you restart yourvehicle and the battery state of charge has recovered. Turning offunnecessary electrical loads allow faster battery state-of-chargerecovery.
Turn Power Off ToSave Battery
Blind Spot Information and Cross Traffic Alert System
ActionMessage
A fault with the system has occurred. Have the system checked assoon as possible.Blindspot SystemFault
The system sensors are blocked. See Blind Spot InformationSystem (page 197).Blindspot NotAvailable SensorBlocked SeeManual
The blind spot information system and cross traffic alert systemsensors are blocked. See Blind Spot Information System (page197).
Cross Traffic NotAvailable SensorBlocked SeeManual
A fault with the system has occurred. Have the system checked assoon as possible.Cross TrafficSystem Fault
114
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 119 of 535

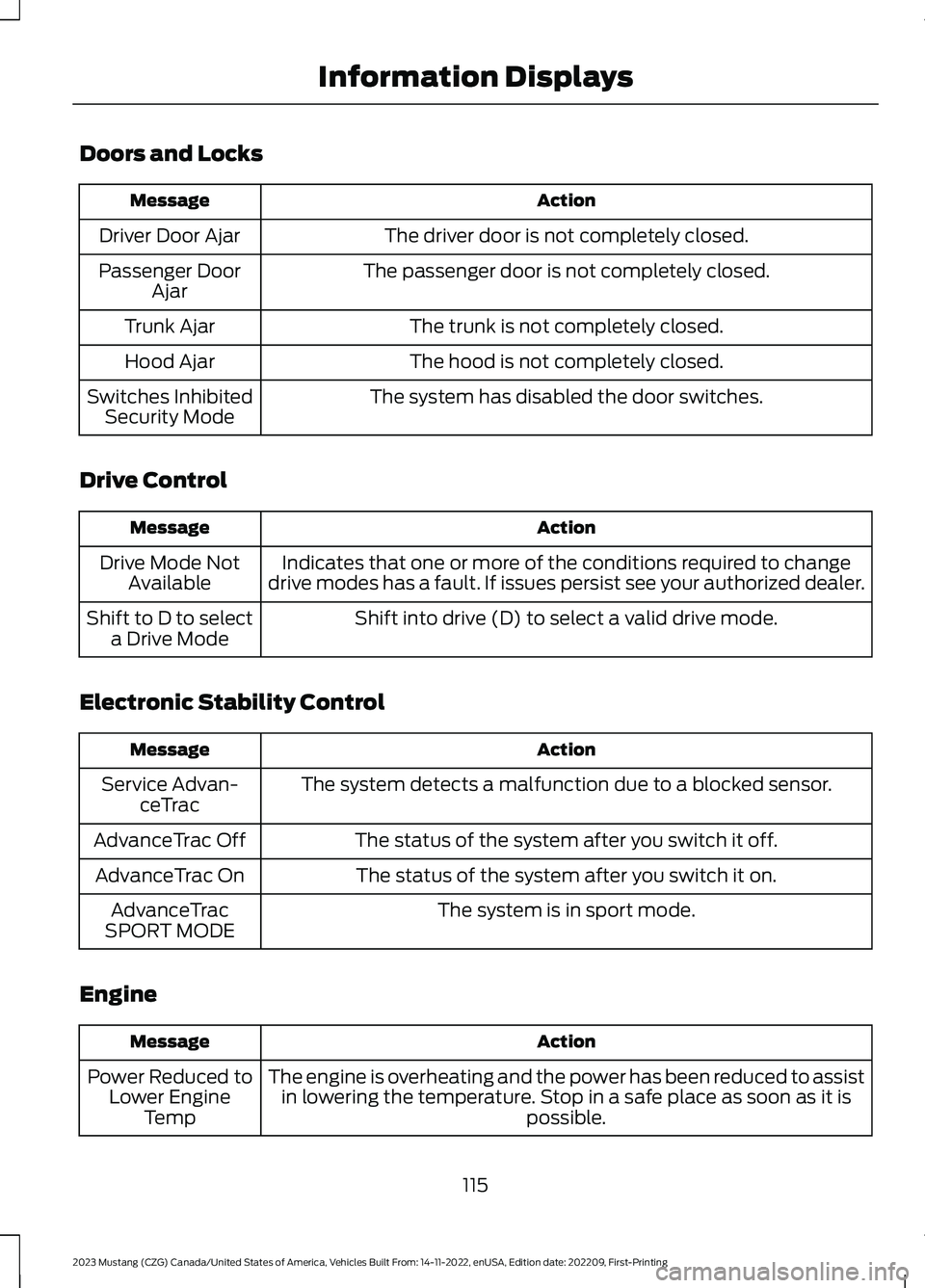

Doors and Locks
ActionMessage
The driver door is not completely closed.Driver Door Ajar
The passenger door is not completely closed.Passenger DoorAjar
The trunk is not completely closed.Trunk Ajar
The hood is not completely closed.Hood Ajar
The system has disabled the door switches.Switches InhibitedSecurity Mode
Drive Control
ActionMessage
Indicates that one or more of the conditions required to changedrive modes has a fault. If issues persist see your authorized dealer.Drive Mode NotAvailable
Shift into drive (D) to select a valid drive mode.Shift to D to selecta Drive Mode
Electronic Stability Control
ActionMessage
The system detects a malfunction due to a blocked sensor.Service Advan-ceTrac
The status of the system after you switch it off.AdvanceTrac Off
The status of the system after you switch it on.AdvanceTrac On
The system is in sport mode.AdvanceTracSPORT MODE
Engine
ActionMessage
The engine is overheating and the power has been reduced to assistin lowering the temperature. Stop in a safe place as soon as it ispossible.
Power Reduced toLower EngineTemp
115
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays
Page 120 of 535

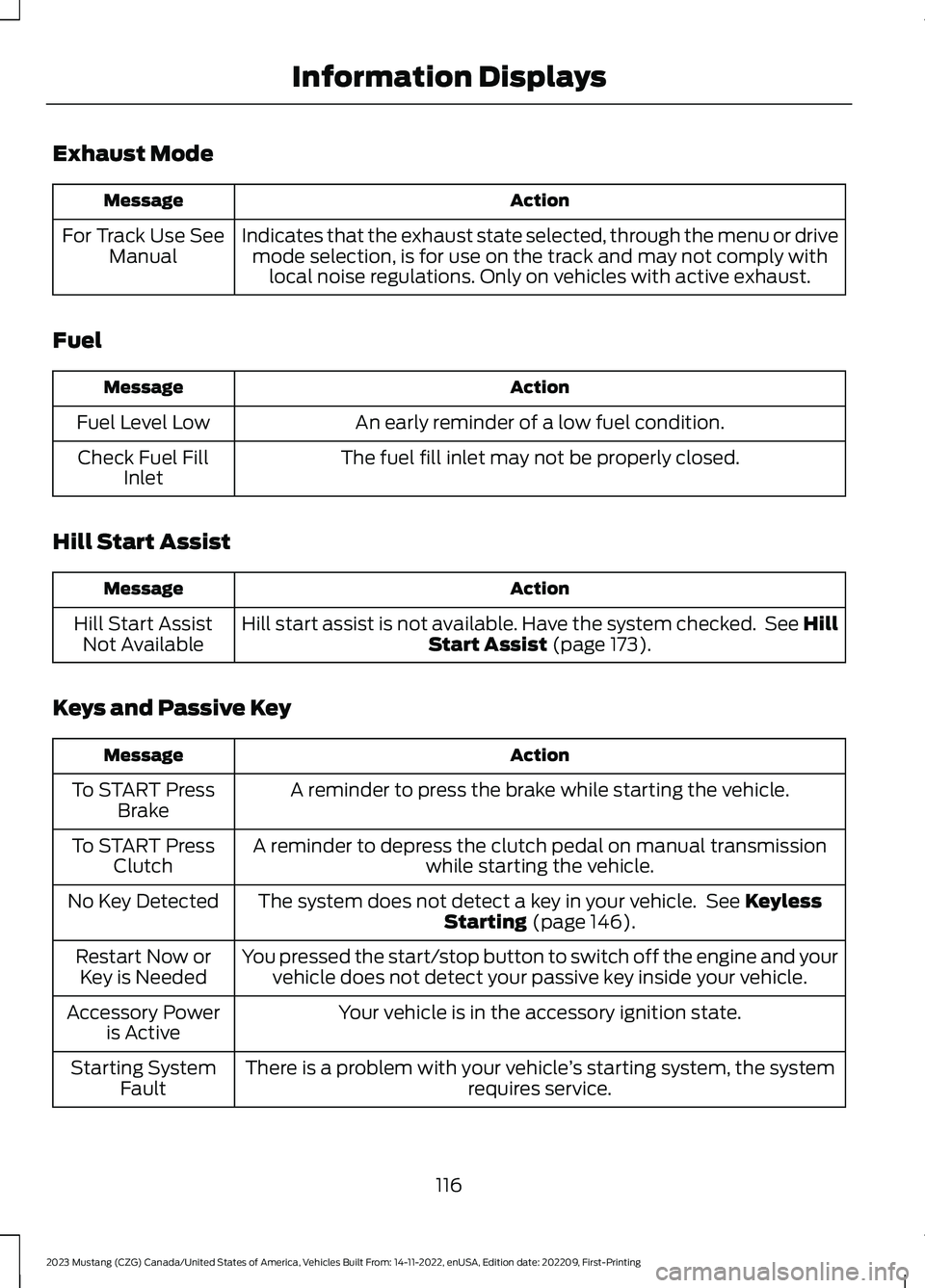

Exhaust Mode
ActionMessage
Indicates that the exhaust state selected, through the menu or drivemode selection, is for use on the track and may not comply withlocal noise regulations. Only on vehicles with active exhaust.
For Track Use SeeManual
Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel FillInlet
Hill Start Assist
ActionMessage
Hill start assist is not available. Have the system checked. See HillStart Assist (page 173).Hill Start AssistNot Available
Keys and Passive Key
ActionMessage
A reminder to press the brake while starting the vehicle.To START PressBrake
A reminder to depress the clutch pedal on manual transmissionwhile starting the vehicle.To START PressClutch
The system does not detect a key in your vehicle. See KeylessStarting (page 146).No Key Detected
You pressed the start/stop button to switch off the engine and yourvehicle does not detect your passive key inside your vehicle.Restart Now orKey is Needed
Your vehicle is in the accessory ignition state.Accessory Poweris Active
There is a problem with your vehicle’s starting system, the systemrequires service.Starting SystemFault
116
