FORD MUSTANG 2023 Owners Manual

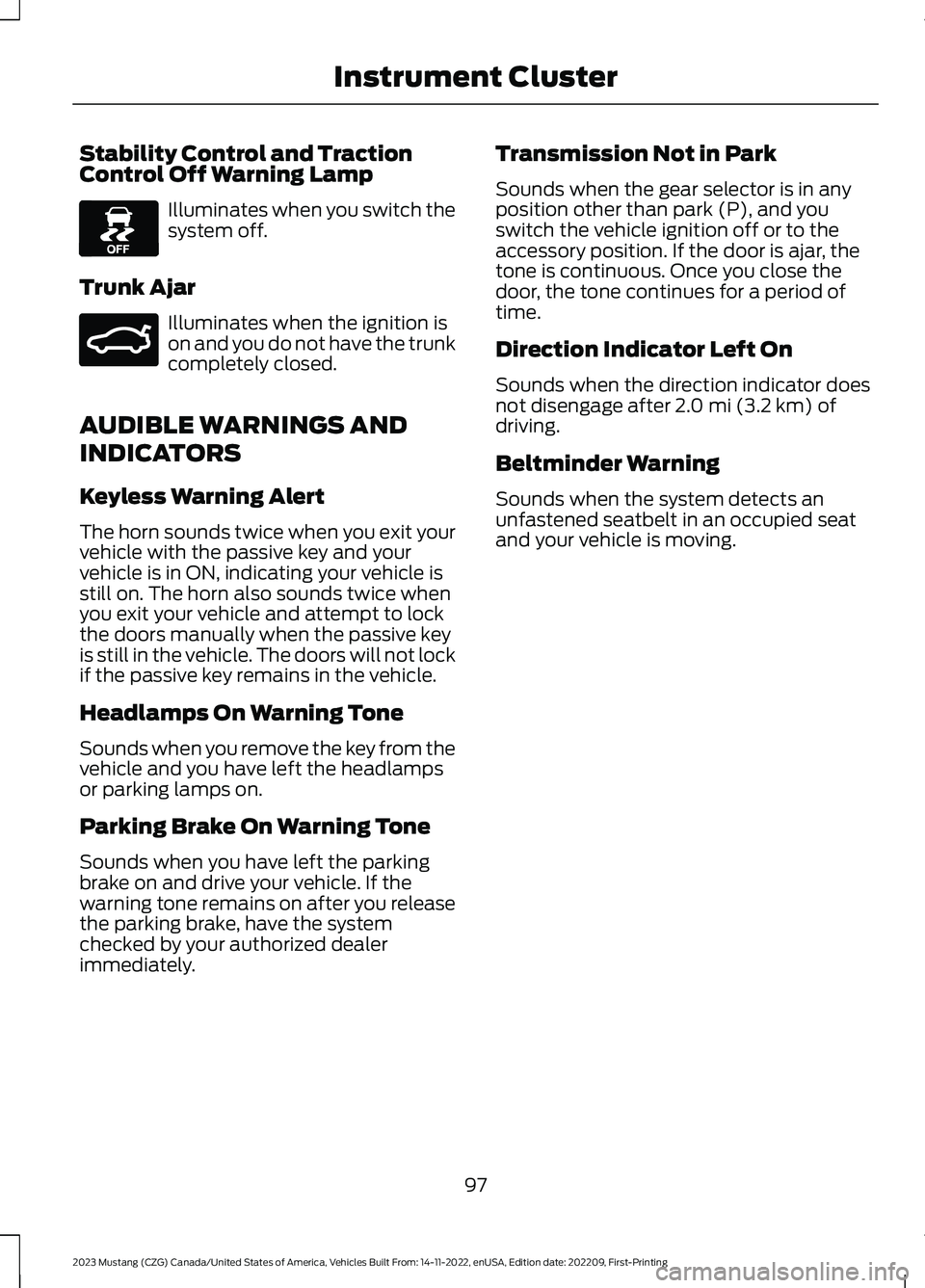

Stability Control and TractionControl Off Warning Lamp
Illuminates when you switch thesystem off.
Trunk Ajar
Illuminates when the ignition ison and you do not have the trunkcompletely closed.
AUDIBLE WARNINGS AND
INDICATORS
Keyless Warning Alert
The horn sounds twice when you exit yourvehicle with the passive key and yourvehicle is in ON, indicating your vehicle isstill on. The horn also sounds twice whenyou exit your vehicle and attempt to lockthe doors manually when the passive keyis still in the vehicle. The doors will not lockif the passive key remains in the vehicle.
Headlamps On Warning Tone
Sounds when you remove the key from thevehicle and you have left the headlampsor parking lamps on.
Parking Brake On Warning Tone
Sounds when you have left the parkingbrake on and drive your vehicle. If thewarning tone remains on after you releasethe parking brake, have the systemchecked by your authorized dealerimmediately.
Transmission Not in Park
Sounds when the gear selector is in anyposition other than park (P), and youswitch the vehicle ignition off or to theaccessory position. If the door is ajar, thetone is continuous. Once you close thedoor, the tone continues for a period oftime.
Direction Indicator Left On
Sounds when the direction indicator doesnot disengage after 2.0 mi (3.2 km) ofdriving.
Beltminder Warning
Sounds when the system detects anunfastened seatbelt in an occupied seatand your vehicle is moving.
97
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInstrument ClusterE130458 E159323

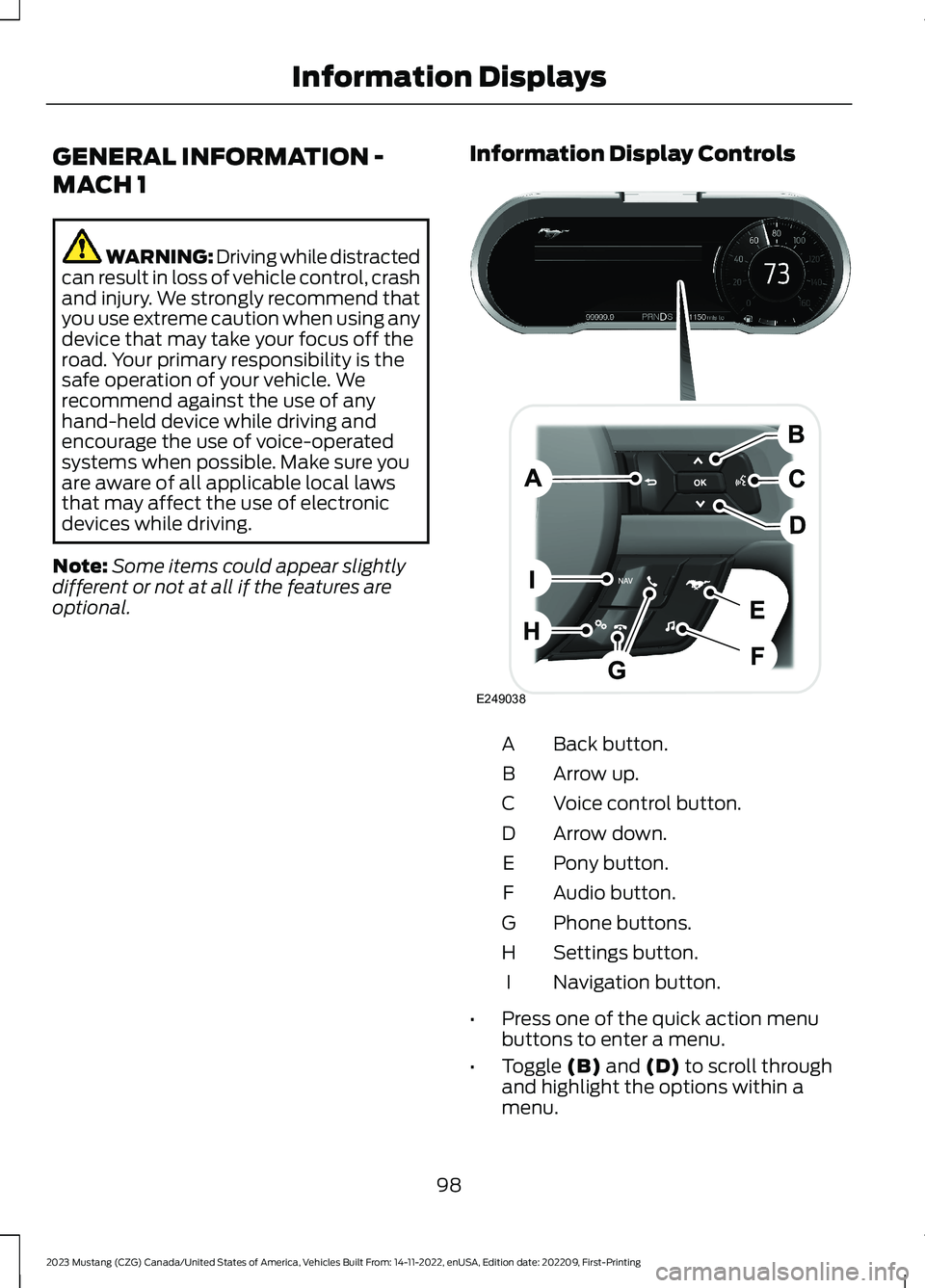

GENERAL INFORMATION -
MACH 1
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:Some items could appear slightlydifferent or not at all if the features areoptional.
Information Display Controls
Back button.A
Arrow up.B
Voice control button.C
Arrow down.D
Pony button.E
Audio button.F
Phone buttons.G
Settings button.H
Navigation button.I
•Press one of the quick action menubuttons to enter a menu.
•Toggle (B) and (D) to scroll throughand highlight the options within amenu.
98
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE249038

•Press the OK button.
•Press (A) to exit a menu.
•Press the open menu's quick actionmenu button at any time to close themenu.
•Press the OK button to choose andconfirm settings or messages.

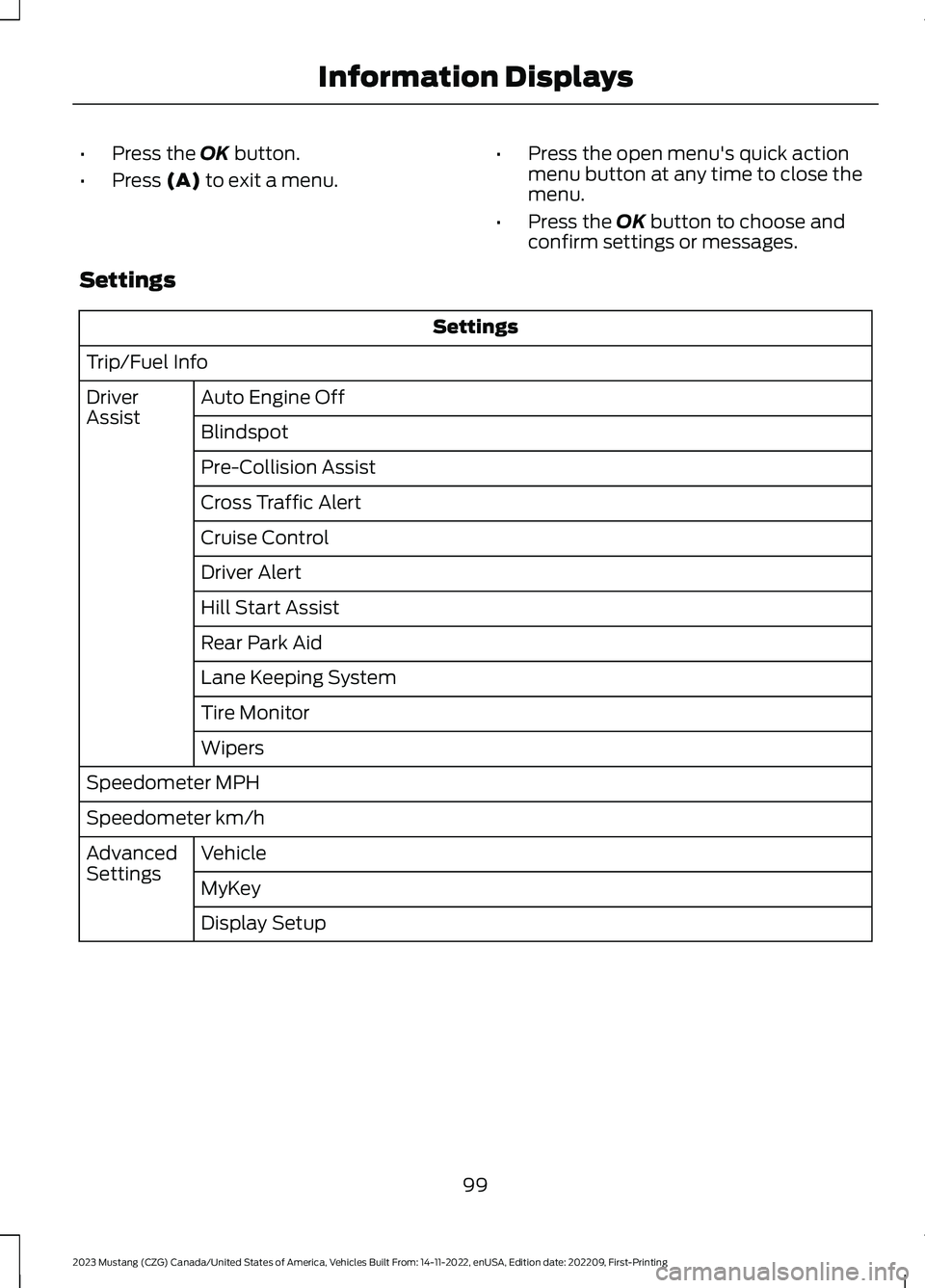

Settings
Settings
Trip/Fuel Info
Auto Engine OffDriverAssistBlindspot
Pre-Collision Assist
Cross Traffic Alert
Cruise Control
Driver Alert
Hill Start Assist
Rear Park Aid
Lane Keeping System
Tire Monitor
Wipers
Speedometer MPH
Speedometer km/h
VehicleAdvancedSettingsMyKey
Display Setup
99
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

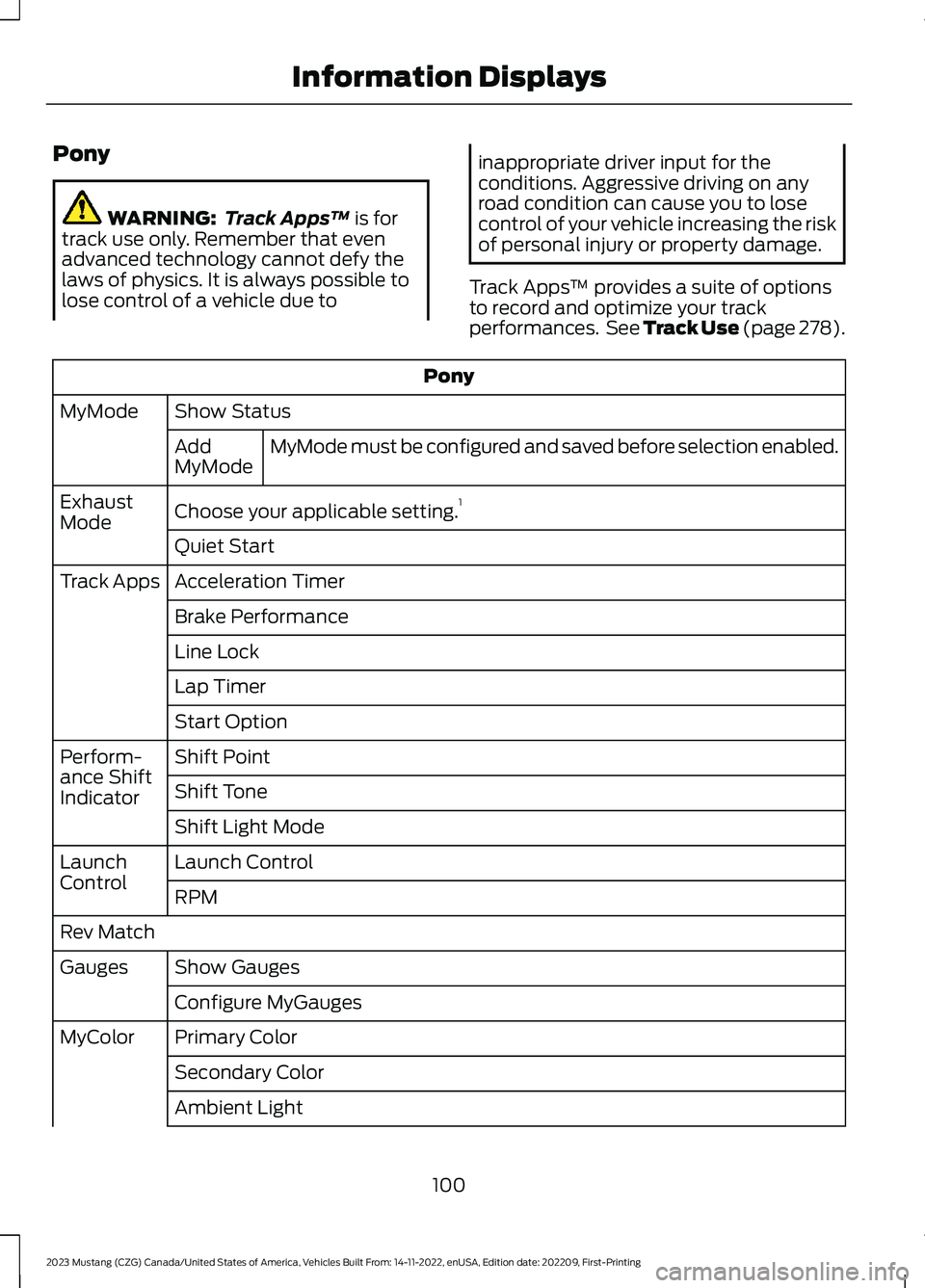

Pony
WARNING: Track Apps™ is fortrack use only. Remember that evenadvanced technology cannot defy thelaws of physics. It is always possible tolose control of a vehicle due to
inappropriate driver input for theconditions. Aggressive driving on anyroad condition can cause you to losecontrol of your vehicle increasing the riskof personal injury or property damage.
Track Apps™ provides a suite of optionsto record and optimize your trackperformances. See Track Use (page 278).
Pony
Show StatusMyMode
MyMode must be configured and saved before selection enabled.AddMyMode
Choose your applicable setting.1ExhaustMode
Quiet Start
Acceleration TimerTrack Apps
Brake Performance
Line Lock
Lap Timer
Start Option
Shift PointPerform-ance ShiftIndicatorShift Tone
Shift Light Mode
Launch ControlLaunchControlRPM
Rev Match
Show GaugesGauges
Configure MyGauges
Primary ColorMyColor
Secondary Color
Ambient Light
100
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Pony
Create MyColor
Change with Drive ModeClusterAppear-anceNormal
Sport
Track
1 See Track Use (page 278).Note:Quiet start allows you to schedule when the exhaust mode turns on the quiet setting.The time window can be from 1 to 24 hours.
Note:Depending on your vehicleconfiguration, some features such asExhaust Mode and Line Lock may be ifequipped.
Note:The menu options for PerformanceShift Indicator, Launch Control, and RevMatch are for manual transmissions only.
Phone
See General Information (page 400).
Audio
See General Information (page 400).
Navigation (If Equipped)
See General Information (page 400).

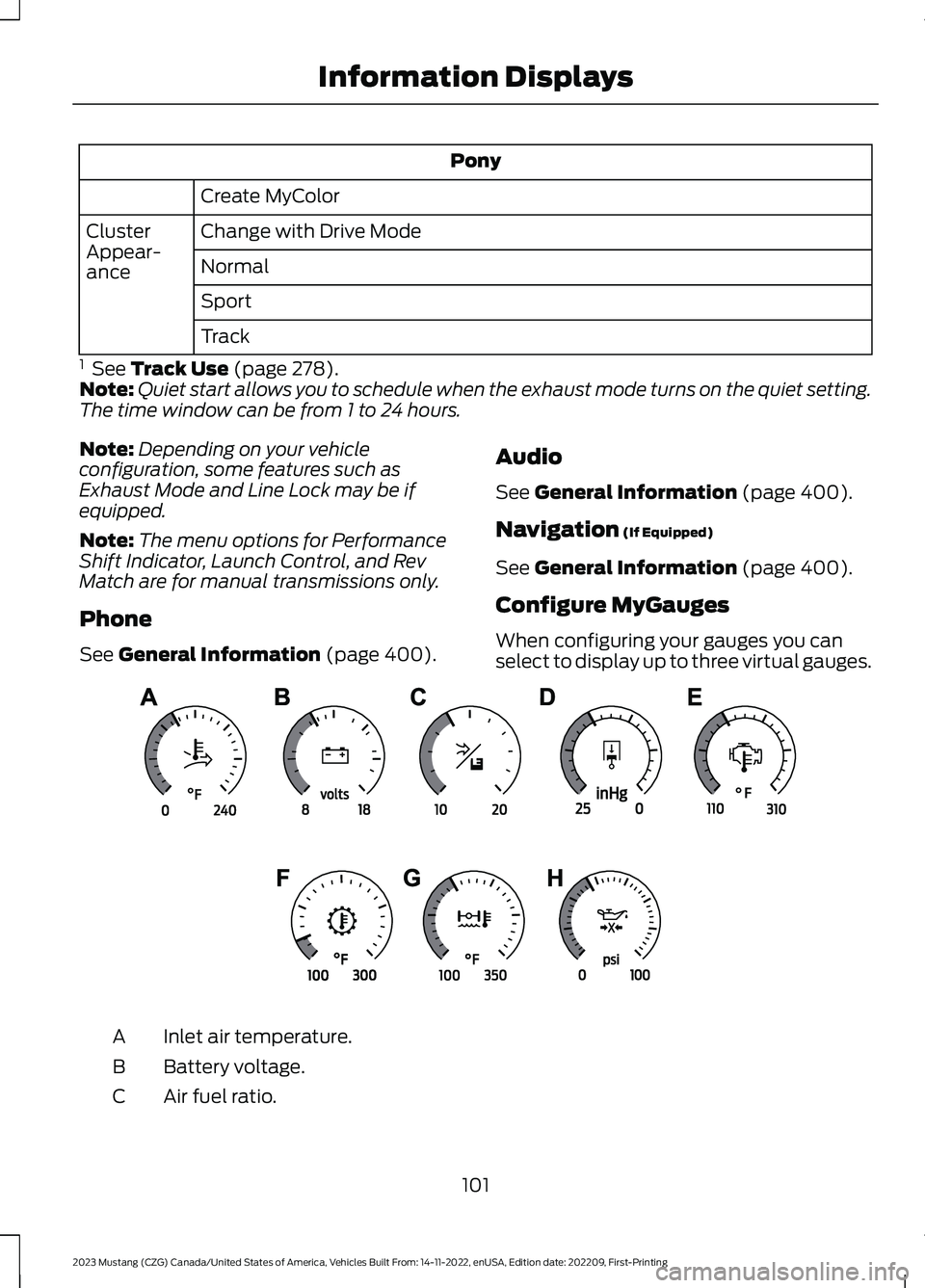

Configure MyGauges
When configuring your gauges you canselect to display up to three virtual gauges.
Inlet air temperature.A
Battery voltage.B
Air fuel ratio.C
101
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE339879

Vacuum.D
Cylinder head temperature.E
Transmission oil temperature.F
Axle temperature.G
Engine oil pressure.H
GENERAL INFORMATION -
VEHICLES WITH: 4.2 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is thesafe operation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note:Some items could appear slightlydifferent or not at all if the features areoptional.
Information Display Controls
•Press the up or down arrow buttons toscroll through the list and highlight theoptions within a menu.
•Press the right arrow button to enter asub-menu.
•Press the left arrow button to exit amenu.
102
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE249039

•Press and hold the left arrow button atany time to return to the main menudisplay (escape button).
•Press the OK button to choose andconfirm settings or messages.
Main Menu
Gauge Mode
Trip/Fuel
Track Apps™
Driver Assist
Settings
This icon shows the features onor off status. A check in the boxindicates the feature is on, andunchecked indicates the feature is off.
Note:Some items are optional and maynot appear.
Gauge Mode
Gauge Mode
Distance to Empty
Speedometer km/h or Speedometer MPH
Tire Pressure
Air/Fuel RatioGauge Detail
Axle Oil Temp
Boost/Vacuum
Cylinder Head Temp
Inlet Air Temp
Oil Pressure
Oil Temp
Trans Oil Temp
103
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation DisplaysE204495

Gauge Mode
Vacuum
Voltage
•Air/Fuel Ratio - Displays the current air to fuel mixture in the engine.
•Axle Oil Temp - Displays the axle's oil temperature.
•Boost/Vacuum - Displays the vacuum or boost pressure for the 2.3L engine.
•Cylinder Head Temp - Displays the engine's cylinder head temperature.
•Inlet Air Temp - Displays the temperature of the air in the cold air inlet tube.
•Oil Pressure - Displays the engine oil pressure.
•Oil Temp - Displays the engine oil temperature. If the temperature rises to the redarea, stop in a safe place and let your vehicle cool. If the problem persists, see anauthorized dealer.
•Trans Oil Temp - Displays the transmission fluid operating temperature. If thetemperature rises to the red area, stop in a safe place and let the transmission cool.If the problem persists, see an authorized dealer.
•Vacuum - Displays the vacuum pressure for the 5.0L engine.
•Voltage - Displays your vehicle's battery voltage. If the voltage is consistently toohigh or very low, contact an authorized dealer.
Note:In order to provide real-time values, some gauges may display more value fluctuationthan other gauges during normal operation.
Trip/Fuel
Trip/Fuel
Trip 1 or Trip 2 - Trip timer, Trip distance, distance to E and avg mpg
Instant fuel economyFuel Economy
AVG MPG
mi to E
Last 30 minutesFuel History
104
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Trip/Fuel
AVG MPG
mi to E
•Trip Timer - Registers the time of individual journeys.
•Trip Distance - Registers the distance of individual journeys.
•Distance to E - Shows the approximate distance your vehicle can travel before runningout of fuel.
•Avg MPG - Shows the average fuel usage based on time.
•Instant fuel economy - Shows your instantaneous fuel usage.
•Fuel History - Shows fuel usage as a bar graph based on time. The graph is updatedeach minute with the fuel economy that you achieved during 30 minutes of driving.
Note:Press and hold OK to reset the currently displayed information.
Track Apps™
WARNING: Track Apps™ is fortrack use only. Remember that evenadvanced technology cannot defy thelaws of physics. It is always possible tolose control of a vehicle due toinappropriate driver input for theconditions. Aggressive driving on anyroad condition can cause you to losecontrol of your vehicle increasing the riskof personal injury or property damage.
Track Apps™ provides a suite of optionsto record and optimize your trackperformances. See Track Use (page 278).
Track Apps™
Status Screen
Virtual gauge shownAccelerometer
Select your speed, distance and startsettingsAcceleration Timer
Choose your applicable setting.Brake Performance
Choose your applicable setting.Exhaust Mode
Quiet Start
Line Lock
105
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingInformation Displays

Track Apps™
Track (XXX)Lap Timer
Launch ControlLaunch Control
RPM
Rev Match
Acceleration TimerView/Clear Results
Brake Performance
Lap Timer
All Time Best
Clear Saved Data
Clear All Time Best
Clear Accel.
Driver Assist
Driver Assist
AdvanceTrac
Auto Engine Off
Blindspot
Driver Alert
SensitivityPre-Collision Assist
Active Braking
Distance Indication
Cross Traffic Alert
Rear Park Aid
Choose your applicable setting.Cruise Control
Hill Start Assist
106
