Page 211 of 535

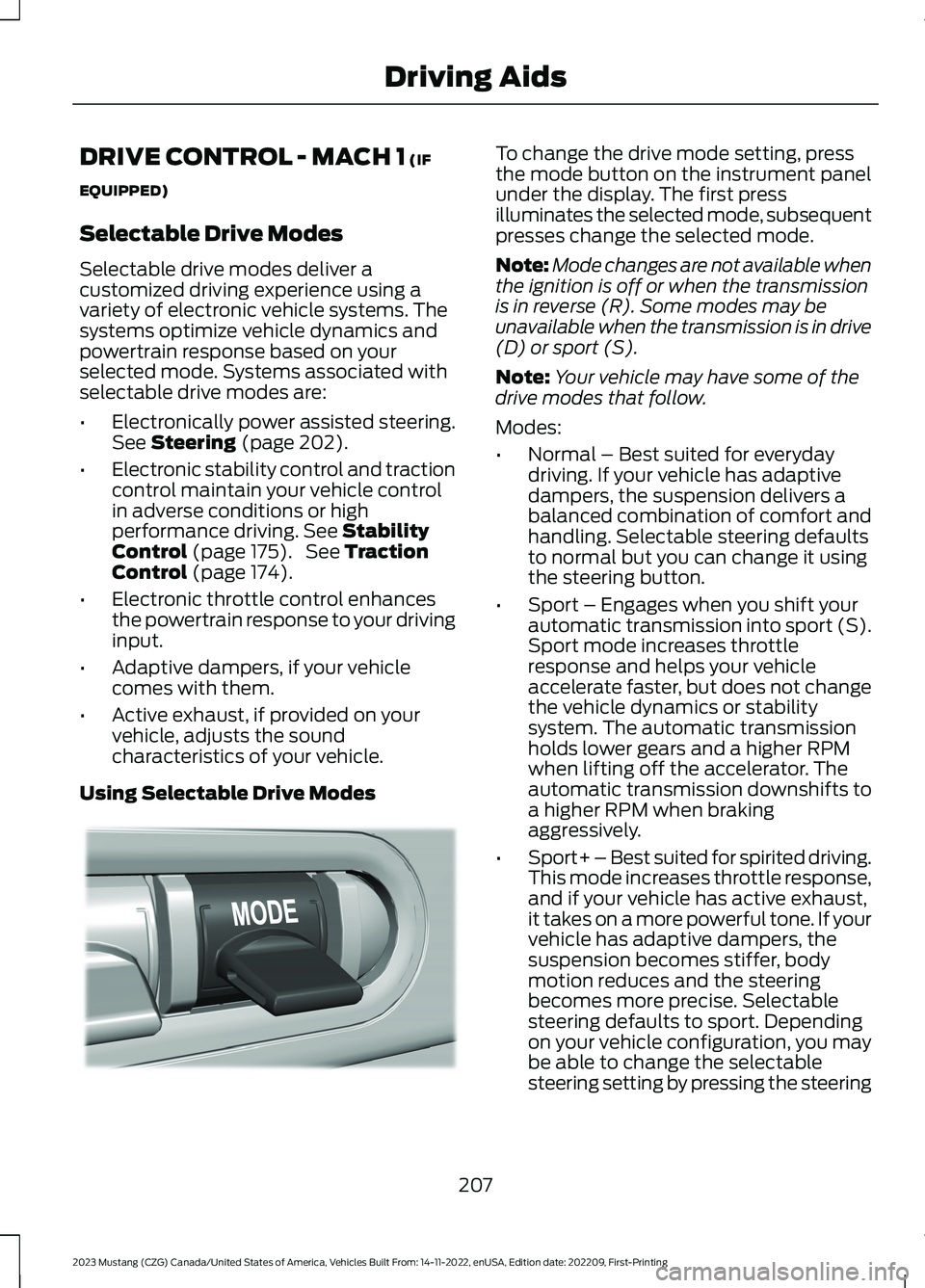

DRIVE CONTROL - MACH 1 (IF
EQUIPPED)
Selectable Drive Modes
Selectable drive modes deliver acustomized driving experience using avariety of electronic vehicle systems. Thesystems optimize vehicle dynamics andpowertrain response based on yourselected mode. Systems associated withselectable drive modes are:
•Electronically power assisted steering.See Steering (page 202).
•Electronic stability control and tractioncontrol maintain your vehicle controlin adverse conditions or highperformance driving. See StabilityControl (page 175). See TractionControl (page 174).
•Electronic throttle control enhancesthe powertrain response to your drivinginput.
•Adaptive dampers, if your vehiclecomes with them.
•Active exhaust, if provided on yourvehicle, adjusts the soundcharacteristics of your vehicle.
Using Selectable Drive Modes
To change the drive mode setting, pressthe mode button on the instrument panelunder the display. The first pressilluminates the selected mode, subsequentpresses change the selected mode.
Note:Mode changes are not available whenthe ignition is off or when the transmissionis in reverse (R). Some modes may beunavailable when the transmission is in drive(D) or sport (S).
Note:Your vehicle may have some of thedrive modes that follow.
Modes:
•Normal – Best suited for everydaydriving. If your vehicle has adaptivedampers, the suspension delivers abalanced combination of comfort andhandling. Selectable steering defaultsto normal but you can change it usingthe steering button.
•Sport – Engages when you shift yourautomatic transmission into sport (S).Sport mode increases throttleresponse and helps your vehicleaccelerate faster, but does not changethe vehicle dynamics or stabilitysystem. The automatic transmissionholds lower gears and a higher RPMwhen lifting off the accelerator. Theautomatic transmission downshifts toa higher RPM when brakingaggressively.
•Sport+ – Best suited for spirited driving.This mode increases throttle response,and if your vehicle has active exhaust,it takes on a more powerful tone. If yourvehicle has adaptive dampers, thesuspension becomes stiffer, bodymotion reduces and the steeringbecomes more precise. Selectablesteering defaults to sport. Dependingon your vehicle configuration, you maybe able to change the selectablesteering setting by pressing the steering
207
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE294773
Page 212 of 535

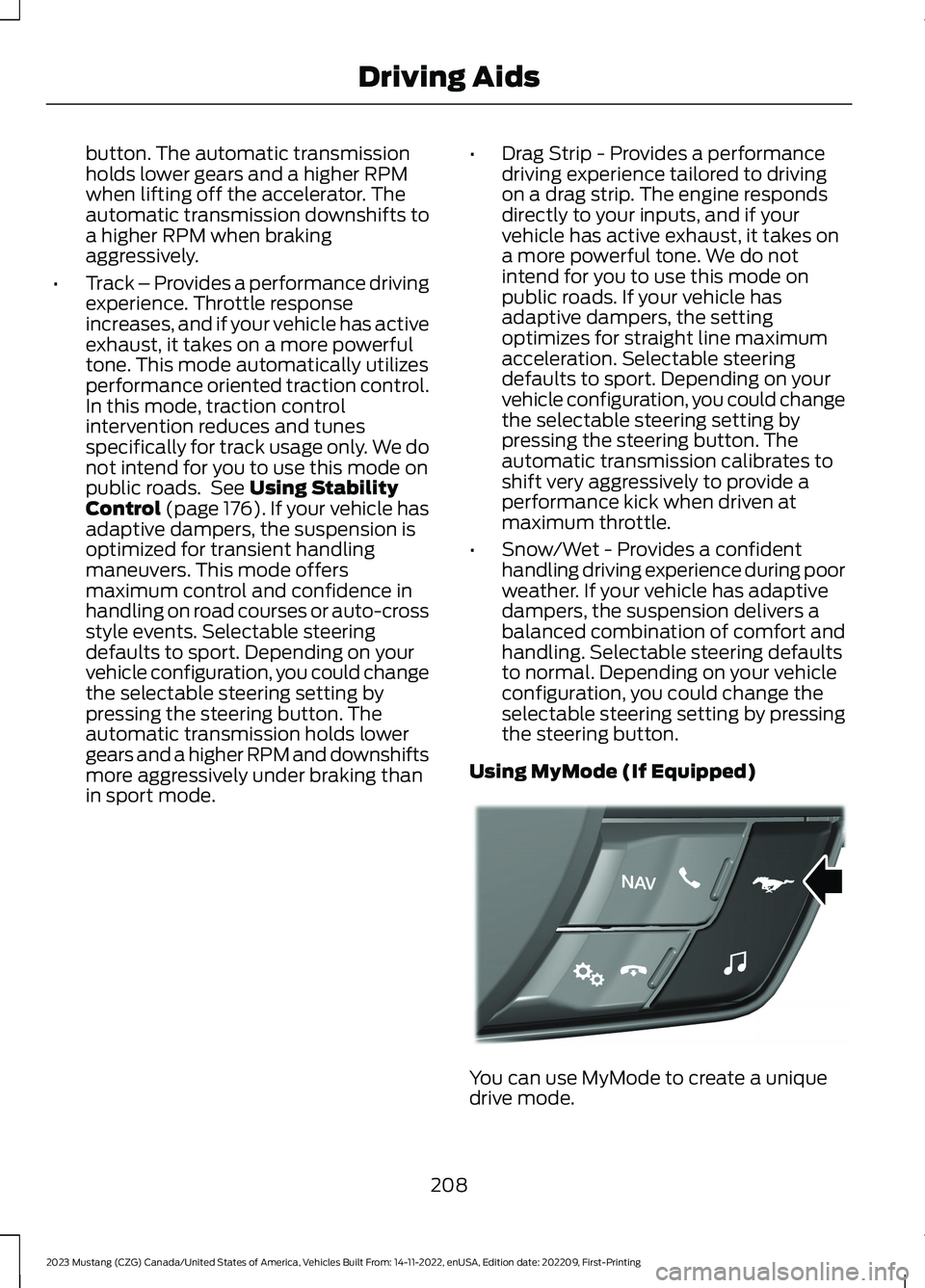

button. The automatic transmissionholds lower gears and a higher RPMwhen lifting off the accelerator. Theautomatic transmission downshifts toa higher RPM when brakingaggressively.
•Track – Provides a performance drivingexperience. Throttle responseincreases, and if your vehicle has activeexhaust, it takes on a more powerfultone. This mode automatically utilizesperformance oriented traction control.In this mode, traction controlintervention reduces and tunesspecifically for track usage only. We donot intend for you to use this mode onpublic roads. See Using StabilityControl (page 176).If your vehicle hasadaptive dampers, the suspension isoptimized for transient handlingmaneuvers. This mode offersmaximum control and confidence inhandling on road courses or auto-crossstyle events. Selectable steeringdefaults to sport. Depending on yourvehicle configuration, you could changethe selectable steering setting bypressing the steering button. Theautomatic transmission holds lowergears and a higher RPM and downshiftsmore aggressively under braking thanin sport mode.
•Drag Strip - Provides a performancedriving experience tailored to drivingon a drag strip. The engine respondsdirectly to your inputs, and if yourvehicle has active exhaust, it takes ona more powerful tone. We do notintend for you to use this mode onpublic roads. If your vehicle hasadaptive dampers, the settingoptimizes for straight line maximumacceleration. Selectable steeringdefaults to sport. Depending on yourvehicle configuration, you could changethe selectable steering setting bypressing the steering button. Theautomatic transmission calibrates toshift very aggressively to provide aperformance kick when driven atmaximum throttle.
•Snow/Wet - Provides a confidenthandling driving experience during poorweather. If your vehicle has adaptivedampers, the suspension delivers abalanced combination of comfort andhandling. Selectable steering defaultsto normal. Depending on your vehicleconfiguration, you could change theselectable steering setting by pressingthe steering button.
Using MyMode (If Equipped)
You can use MyMode to create a uniquedrive mode.
208
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE294774
Page 213 of 535

To create or save MyMode, press thebutton on the steering wheel and accessthe menu. See General Information(page 98).The available systems display.Choose your desired settings using theappropriate buttons and menus. Press andhold OK to save your settings. MyModeadds to the drive mode list and you canselect the next time you drive your vehicle.
Note:The system has diagnostic checksthat continuously monitor the system tomake sure it properly operates. If a mode isunavailable due to a system fault or changein gear position, the selected mode defaultsto normal.
Note:Pre-Collision Assist automaticallydisables when you select track mode. SeePre-Collision Assist (page 203).
Note:If your vehicle has adaptive dampers,the steering setting optimizes to work witheach drive mode. Other steering settingsmay not be available.
Selectable Steering
Press the steering button on theinstrument panel to change thesteering feel. The first pressilluminates the selected mode. Each timeyou press the button, it changes the mode.
Modes:
•Normal - Default factory setting.
•Sport - Slightly higher effort requiredfor steering with more road force feltthrough the steering wheel.
•Comfort - Slightly less effort requiredfor steering with less road force feltthrough the steering wheel.
Note:You may feel a soft feedback bumpin the steering wheel after you make aselection.
Note:The steering setting defaults tonormal if you disconnect or remove thebattery.
Active Exhaust (If Equipped)
Use the information display toadjust the tone of the exhaust.
Active Exhaust modes:
•Quiet - Lowers the noise of the exhaust.
•Normal - Default factory setting.
•Sport - Raises the noise of the exhaust.
•Track - Tunes the exhaust for trackperformance.
Note:The track exhaust mode setting isonly for use at tracks and not for use onpublic roadways. Use of this setting resultsin increased exterior noise, which may notmeet state and local laws and regulations.It is the obligation of the driver to operatethe vehicle in a manner that complies withstate and local requirements. Only use thetrack exhaust mode setting at a competitiontrack or an off-road course where elevatedexterior vehicle noise is acceptable.
Rev Match (If Equipped)
This feature provides a smoother drivingexperience, particularly during a downshiftevent. You can accomplish this by a shiftposition prediction that commands a quickengine RPM match to the selected gear.You can switch this feature on and offthrough the information display. SeeGeneral Information (page 98).
Note:The system remembers your lastselection through ignition cycles.
Note:Rev match is only available with amanual transmission.
209
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE174705 E287122
Page 214 of 535

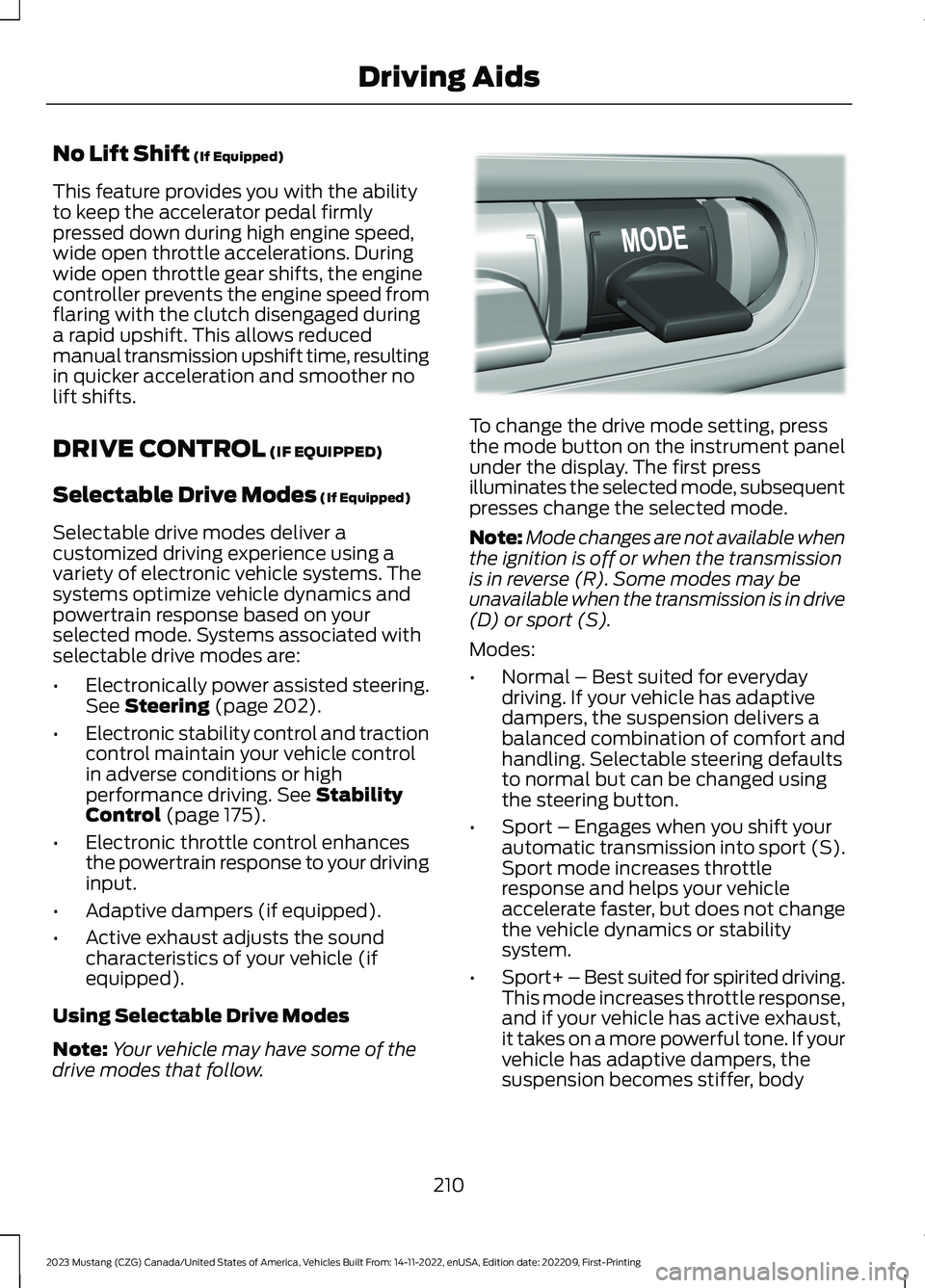

No Lift Shift (If Equipped)
This feature provides you with the abilityto keep the accelerator pedal firmlypressed down during high engine speed,wide open throttle accelerations. Duringwide open throttle gear shifts, the enginecontroller prevents the engine speed fromflaring with the clutch disengaged duringa rapid upshift. This allows reducedmanual transmission upshift time, resultingin quicker acceleration and smoother nolift shifts.
DRIVE CONTROL (IF EQUIPPED)
Selectable Drive Modes (If Equipped)
Selectable drive modes deliver acustomized driving experience using avariety of electronic vehicle systems. Thesystems optimize vehicle dynamics andpowertrain response based on yourselected mode. Systems associated withselectable drive modes are:
•Electronically power assisted steering.See Steering (page 202).
•Electronic stability control and tractioncontrol maintain your vehicle controlin adverse conditions or highperformance driving. See StabilityControl (page 175).
•Electronic throttle control enhancesthe powertrain response to your drivinginput.
•Adaptive dampers (if equipped).
•Active exhaust adjusts the soundcharacteristics of your vehicle (ifequipped).
Using Selectable Drive Modes
Note:Your vehicle may have some of thedrive modes that follow.
To change the drive mode setting, pressthe mode button on the instrument panelunder the display. The first pressilluminates the selected mode, subsequentpresses change the selected mode.
Note:Mode changes are not available whenthe ignition is off or when the transmissionis in reverse (R). Some modes may beunavailable when the transmission is in drive(D) or sport (S).
Modes:
•Normal – Best suited for everydaydriving. If your vehicle has adaptivedampers, the suspension delivers abalanced combination of comfort andhandling. Selectable steering defaultsto normal but can be changed usingthe steering button.
•Sport – Engages when you shift yourautomatic transmission into sport (S).Sport mode increases throttleresponse and helps your vehicleaccelerate faster, but does not changethe vehicle dynamics or stabilitysystem.
•Sport+ – Best suited for spirited driving.This mode increases throttle response,and if your vehicle has active exhaust,it takes on a more powerful tone. If yourvehicle has adaptive dampers, thesuspension becomes stiffer, body
210
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE294773
Page 215 of 535

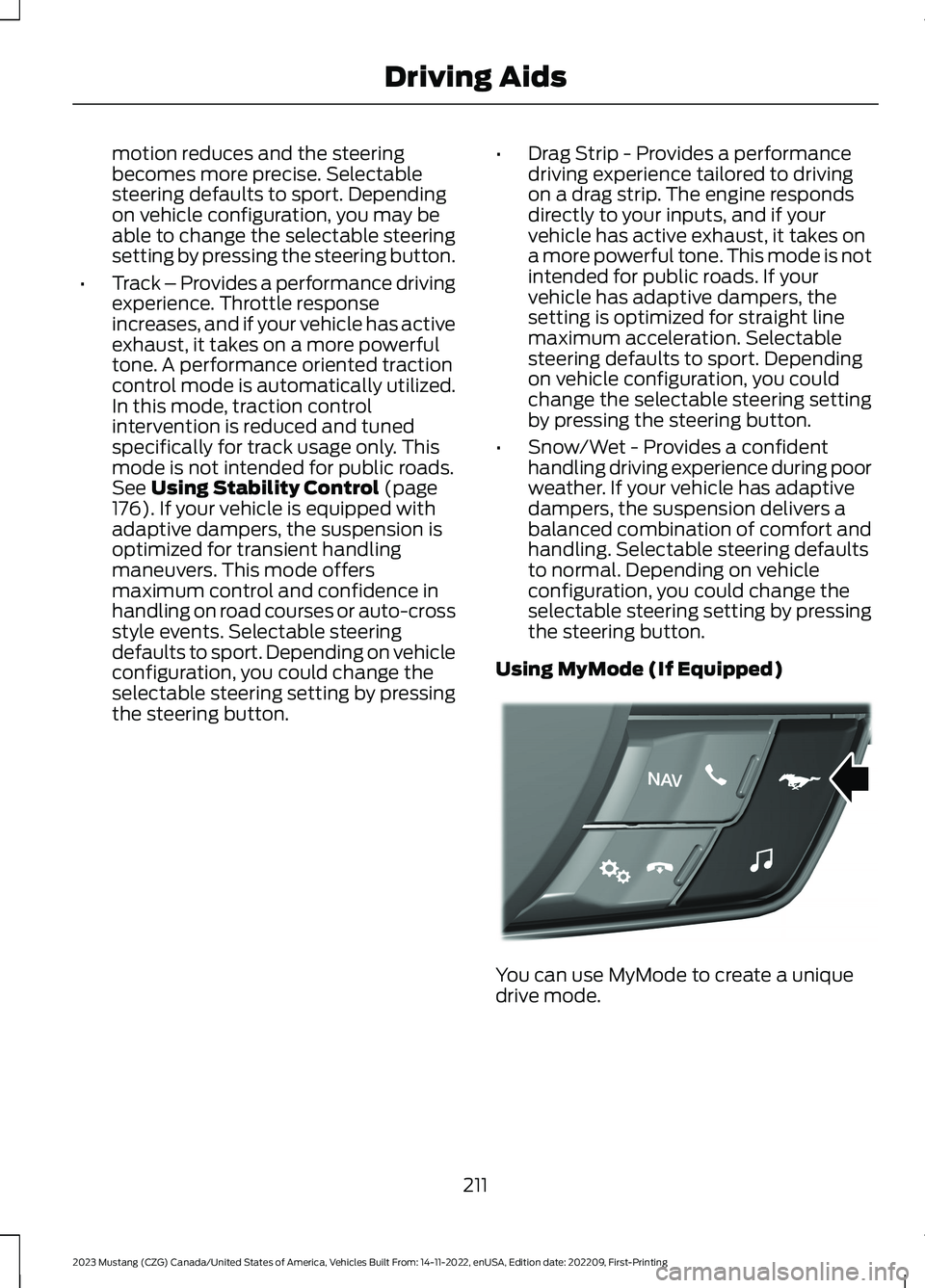

motion reduces and the steeringbecomes more precise. Selectablesteering defaults to sport. Dependingon vehicle configuration, you may beable to change the selectable steeringsetting by pressing the steering button.
•Track – Provides a performance drivingexperience. Throttle responseincreases, and if your vehicle has activeexhaust, it takes on a more powerfultone. A performance oriented tractioncontrol mode is automatically utilized.In this mode, traction controlintervention is reduced and tunedspecifically for track usage only. Thismode is not intended for public roads.See Using Stability Control (page176).If your vehicle is equipped withadaptive dampers, the suspension isoptimized for transient handlingmaneuvers. This mode offersmaximum control and confidence inhandling on road courses or auto-crossstyle events. Selectable steeringdefaults to sport. Depending on vehicleconfiguration, you could change theselectable steering setting by pressingthe steering button.
•Drag Strip - Provides a performancedriving experience tailored to drivingon a drag strip. The engine respondsdirectly to your inputs, and if yourvehicle has active exhaust, it takes ona more powerful tone. This mode is notintended for public roads. If yourvehicle has adaptive dampers, thesetting is optimized for straight linemaximum acceleration. Selectablesteering defaults to sport. Dependingon vehicle configuration, you couldchange the selectable steering settingby pressing the steering button.
•Snow/Wet - Provides a confidenthandling driving experience during poorweather. If your vehicle has adaptivedampers, the suspension delivers abalanced combination of comfort andhandling. Selectable steering defaultsto normal. Depending on vehicleconfiguration, you could change theselectable steering setting by pressingthe steering button.
Using MyMode (If Equipped)
You can use MyMode to create a uniquedrive mode.
211
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE294774

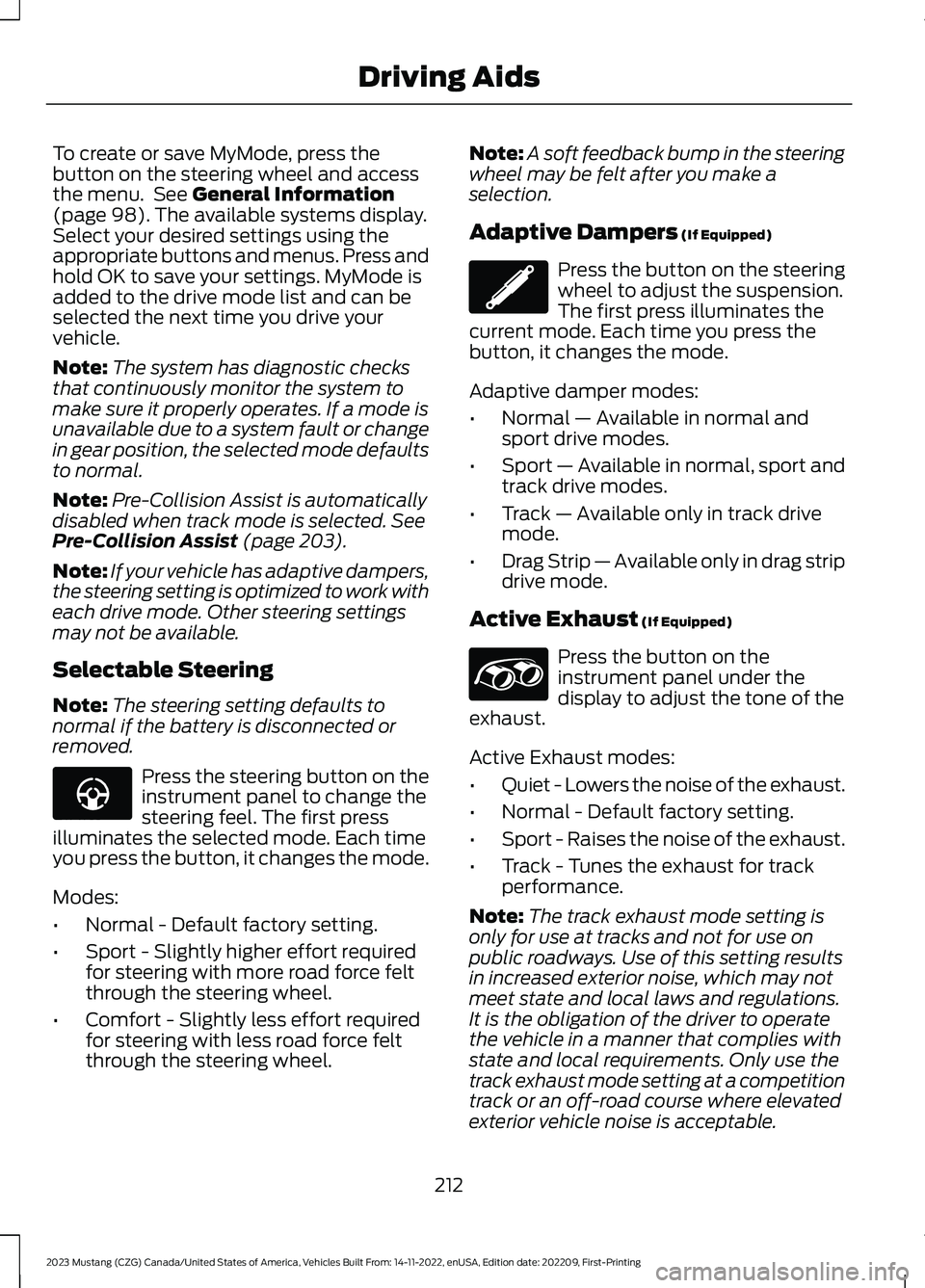

Page 216 of 535

To create or save MyMode, press thebutton on the steering wheel and accessthe menu. See General Information(page 98).The available systems display.Select your desired settings using theappropriate buttons and menus. Press andhold OK to save your settings. MyMode isadded to the drive mode list and can beselected the next time you drive yourvehicle.
Note:The system has diagnostic checksthat continuously monitor the system tomake sure it properly operates. If a mode isunavailable due to a system fault or changein gear position, the selected mode defaultsto normal.
Note:Pre-Collision Assist is automaticallydisabled when track mode is selected. SeePre-Collision Assist (page 203).
Note:If your vehicle has adaptive dampers,the steering setting is optimized to work witheach drive mode. Other steering settingsmay not be available.
Selectable Steering
Note:The steering setting defaults tonormal if the battery is disconnected orremoved.
Press the steering button on theinstrument panel to change thesteering feel. The first pressilluminates the selected mode. Each timeyou press the button, it changes the mode.
Modes:
•Normal - Default factory setting.
•Sport - Slightly higher effort requiredfor steering with more road force feltthrough the steering wheel.
•Comfort - Slightly less effort requiredfor steering with less road force feltthrough the steering wheel.
Note:A soft feedback bump in the steeringwheel may be felt after you make aselection.
Adaptive Dampers (If Equipped)
Press the button on the steeringwheel to adjust the suspension.The first press illuminates thecurrent mode. Each time you press thebutton, it changes the mode.
Adaptive damper modes:
•Normal — Available in normal andsport drive modes.
•Sport — Available in normal, sport andtrack drive modes.
•Track — Available only in track drivemode.
•Drag Strip — Available only in drag stripdrive mode.
Active Exhaust (If Equipped)
Press the button on theinstrument panel under thedisplay to adjust the tone of theexhaust.
Active Exhaust modes:
•Quiet - Lowers the noise of the exhaust.
•Normal - Default factory setting.
•Sport - Raises the noise of the exhaust.
•Track - Tunes the exhaust for trackperformance.
Note:The track exhaust mode setting isonly for use at tracks and not for use onpublic roadways. Use of this setting resultsin increased exterior noise, which may notmeet state and local laws and regulations.It is the obligation of the driver to operatethe vehicle in a manner that complies withstate and local requirements. Only use thetrack exhaust mode setting at a competitiontrack or an off-road course where elevatedexterior vehicle noise is acceptable.
212
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving AidsE174705 E282723 E287122
Page 217 of 535

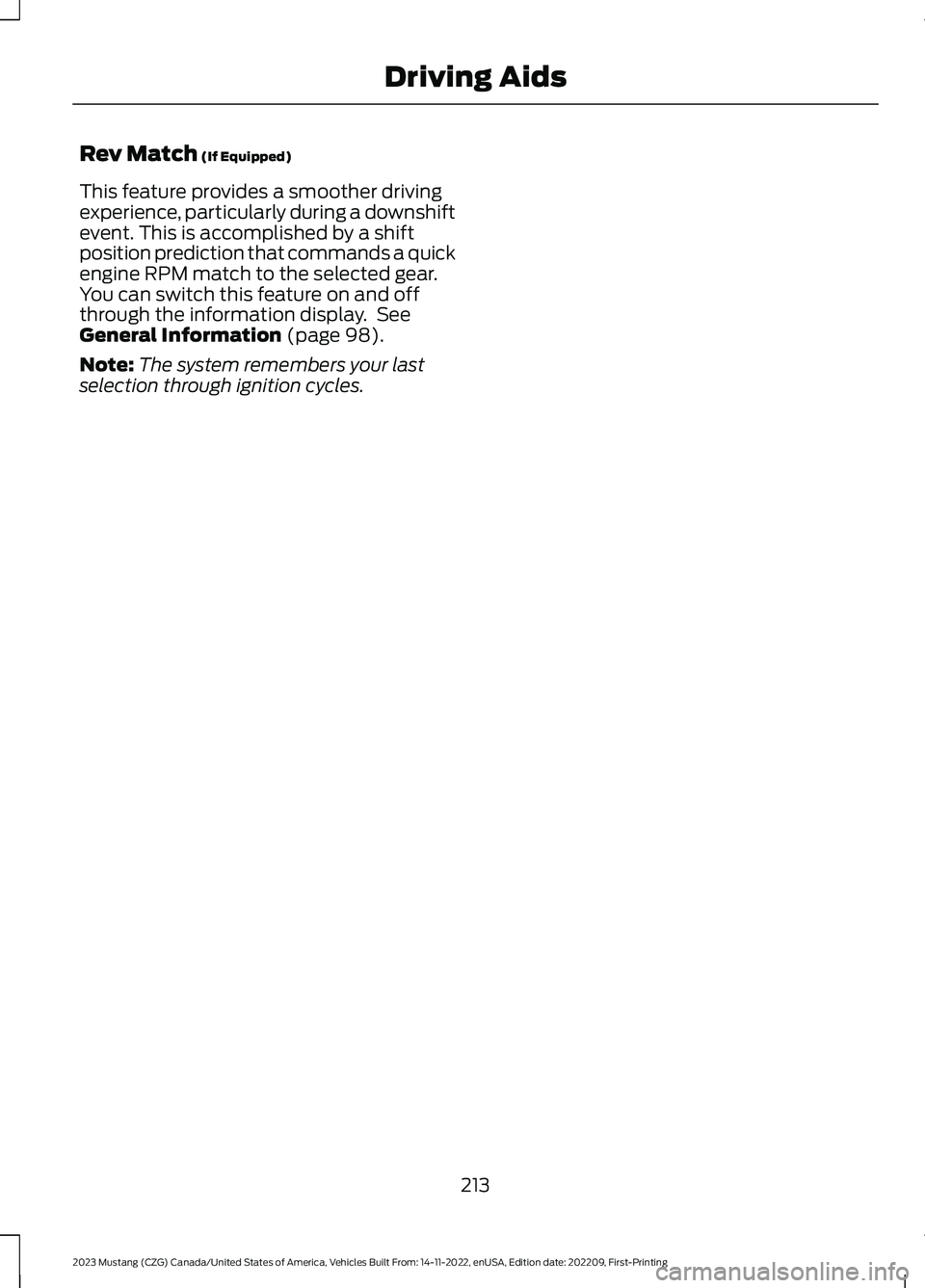

Rev Match (If Equipped)
This feature provides a smoother drivingexperience, particularly during a downshiftevent. This is accomplished by a shiftposition prediction that commands a quickengine RPM match to the selected gear.You can switch this feature on and offthrough the information display. SeeGeneral Information (page 98).
Note:The system remembers your lastselection through ignition cycles.
213
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingDriving Aids
Page 218 of 535

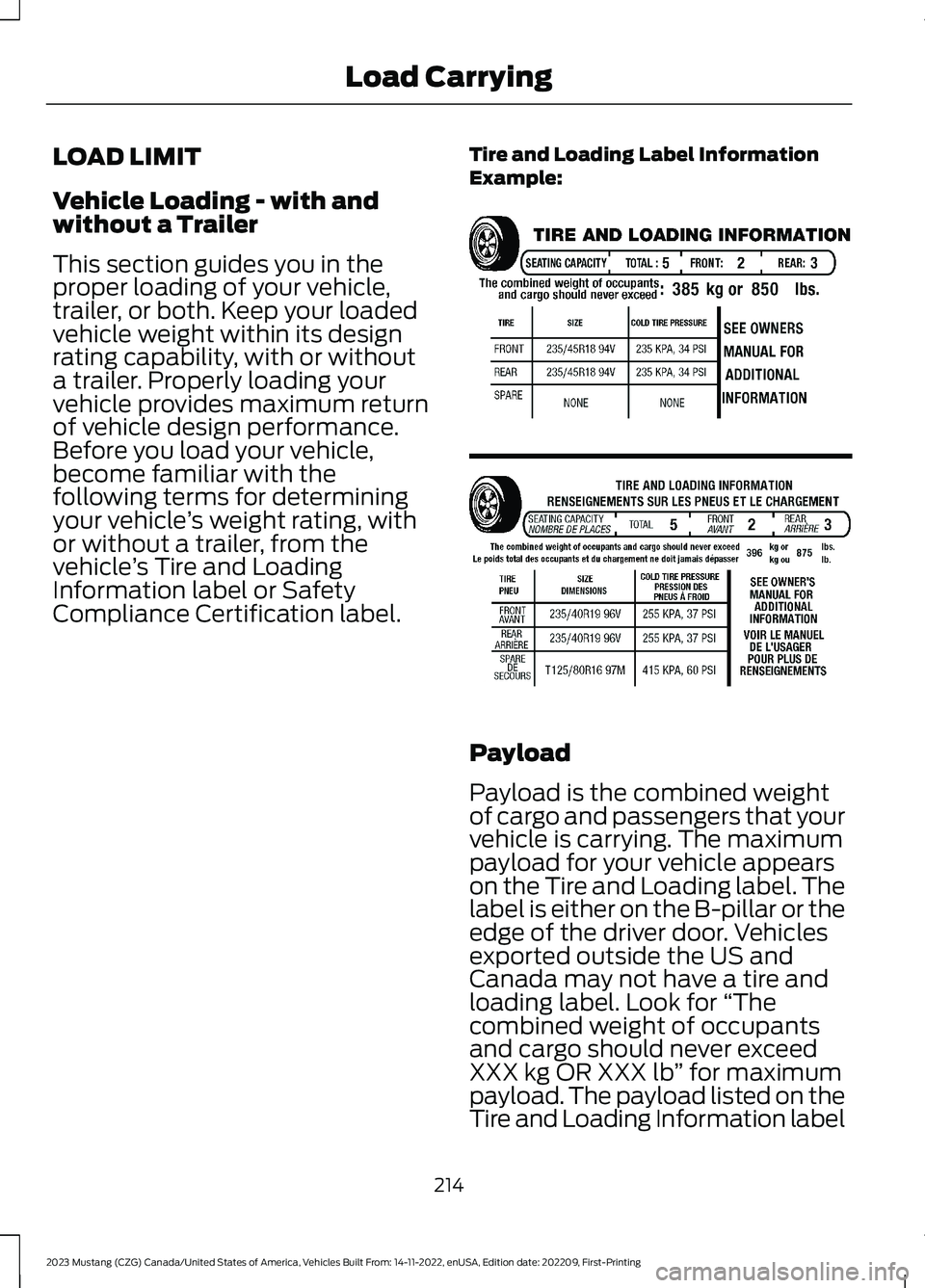

LOAD LIMIT
Vehicle Loading - with andwithout a Trailer
This section guides you in theproper loading of your vehicle,trailer, or both. Keep your loadedvehicle weight within its designrating capability, with or withouta trailer. Properly loading yourvehicle provides maximum returnof vehicle design performance.Before you load your vehicle,become familiar with thefollowing terms for determiningyour vehicle’s weight rating, withor without a trailer, from thevehicle’s Tire and LoadingInformation label or SafetyCompliance Certification label.
Tire and Loading Label InformationExample:
Payload
Payload is the combined weightof cargo and passengers that yourvehicle is carrying. The maximumpayload for your vehicle appearson the Tire and Loading label. Thelabel is either on the B-pillar or theedge of the driver door. Vehiclesexported outside the US andCanada may not have a tire andloading label. Look for “Thecombined weight of occupantsand cargo should never exceedXXX kg OR XXX lb” for maximumpayload. The payload listed on theTire and Loading Information label
214
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingLoad CarryingE198719
Page 219 of 535

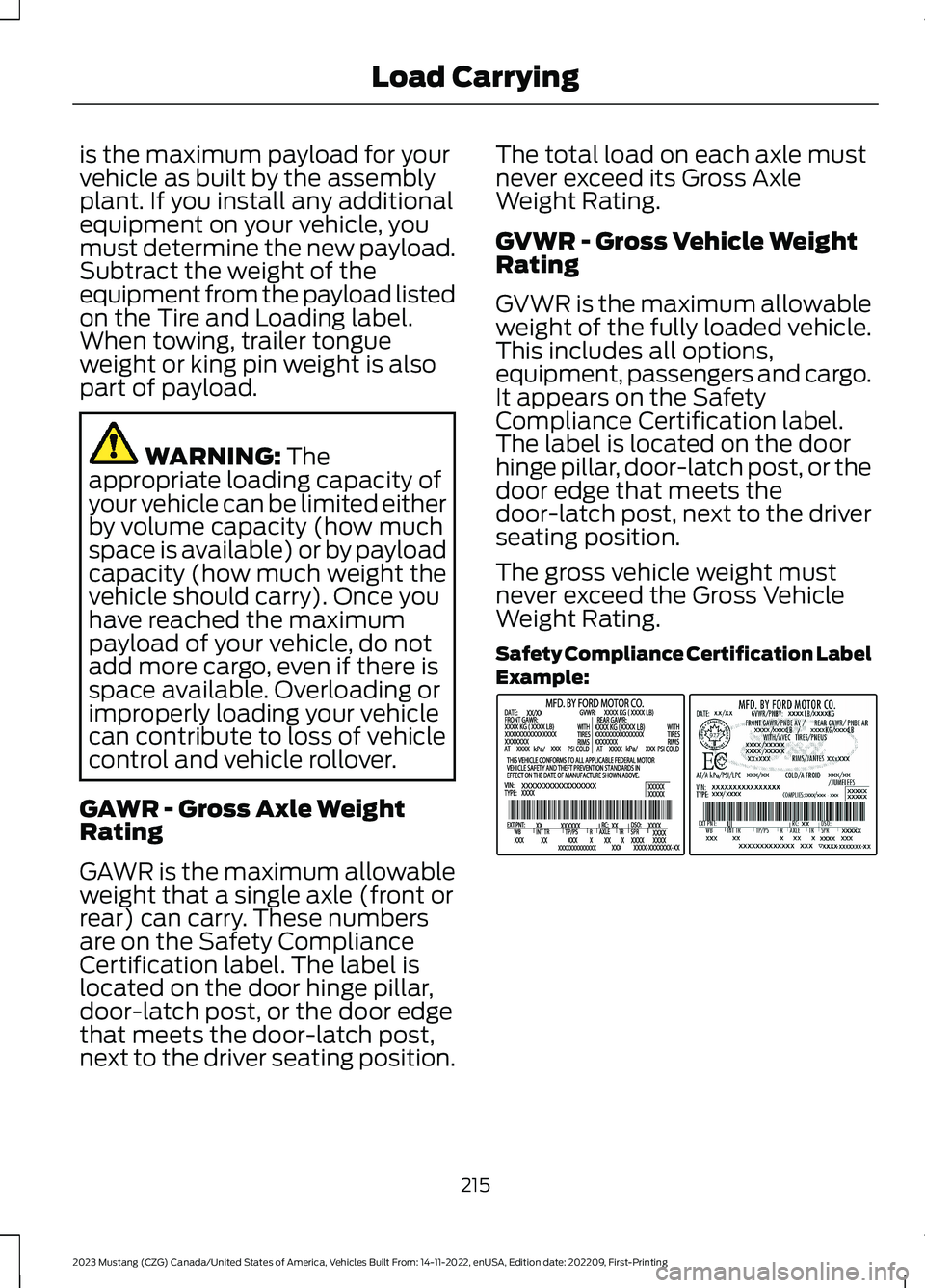

is the maximum payload for yourvehicle as built by the assemblyplant. If you install any additionalequipment on your vehicle, youmust determine the new payload.Subtract the weight of theequipment from the payload listedon the Tire and Loading label.When towing, trailer tongueweight or king pin weight is alsopart of payload.
WARNING: Theappropriate loading capacity ofyour vehicle can be limited eitherby volume capacity (how muchspace is available) or by payloadcapacity (how much weight thevehicle should carry). Once youhave reached the maximumpayload of your vehicle, do notadd more cargo, even if there isspace available. Overloading orimproperly loading your vehiclecan contribute to loss of vehiclecontrol and vehicle rollover.
GAWR - Gross Axle WeightRating
GAWR is the maximum allowableweight that a single axle (front orrear) can carry. These numbersare on the Safety ComplianceCertification label. The label islocated on the door hinge pillar,door-latch post, or the door edgethat meets the door-latch post,next to the driver seating position.
The total load on each axle mustnever exceed its Gross AxleWeight Rating.
GVWR - Gross Vehicle WeightRating
GVWR is the maximum allowableweight of the fully loaded vehicle.This includes all options,equipment, passengers and cargo.It appears on the SafetyCompliance Certification label.The label is located on the doorhinge pillar, door-latch post, or thedoor edge that meets thedoor-latch post, next to the driverseating position.
The gross vehicle weight mustnever exceed the Gross VehicleWeight Rating.
Safety Compliance Certification LabelExample:
215
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingLoad CarryingE198828
Page 220 of 535

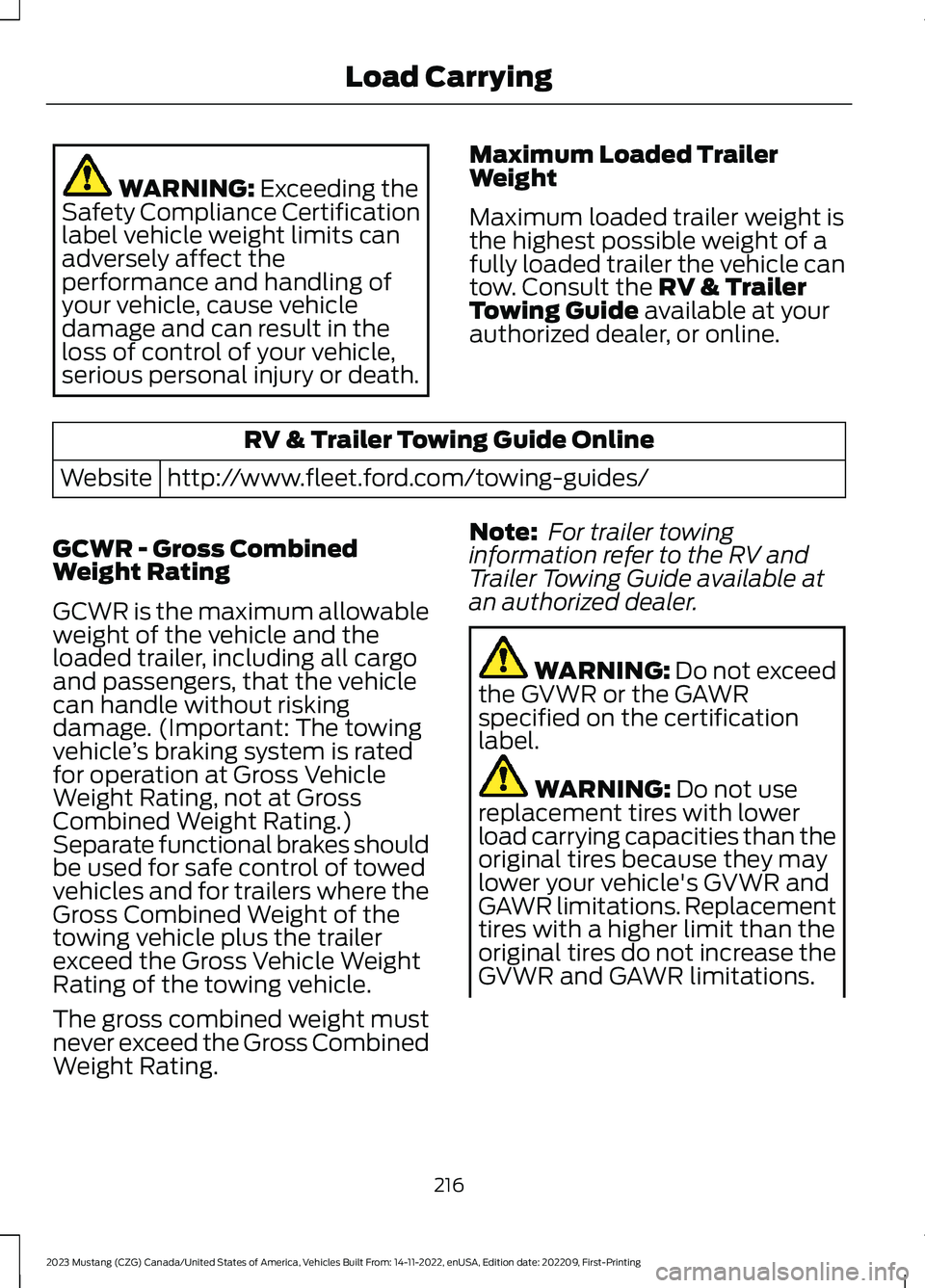

WARNING: Exceeding theSafety Compliance Certificationlabel vehicle weight limits canadversely affect theperformance and handling ofyour vehicle, cause vehicledamage and can result in theloss of control of your vehicle,serious personal injury or death.
Maximum Loaded TrailerWeight
Maximum loaded trailer weight isthe highest possible weight of afully loaded trailer the vehicle cantow. Consult the RV & TrailerTowing Guide available at yourauthorized dealer, or online.
RV & Trailer Towing Guide Online
http://www.fleet.ford.com/towing-guides/Website
GCWR - Gross CombinedWeight Rating
GCWR is the maximum allowable
weight of the vehicle and theloaded trailer, including all cargoand passengers, that the vehiclecan handle without riskingdamage. (Important: The towingvehicle’s braking system is ratedfor operation at Gross VehicleWeight Rating, not at GrossCombined Weight Rating.)Separate functional brakes shouldbe used for safe control of towedvehicles and for trailers where theGross Combined Weight of thetowing vehicle plus the trailerexceed the Gross Vehicle WeightRating of the towing vehicle.
The gross combined weight mustnever exceed the Gross CombinedWeight Rating.
Note: For trailer towinginformation refer to the RV andTrailer Towing Guide available atan authorized dealer.
WARNING: Do not exceedthe GVWR or the GAWRspecified on the certificationlabel.
WARNING: Do not usereplacement tires with lowerload carrying capacities than theoriginal tires because they maylower your vehicle's GVWR andGAWR limitations. Replacementtires with a higher limit than theoriginal tires do not increase theGVWR and GAWR limitations.
216
