FORD MUSTANG 2023 Owners Manual

Protected ComponentFuse RatingFuse or RelayNumber
Electronic fan 1 (GT500).60A11
Not used (base).—
Not used.—2
Electronic fan 1 (base).30A13
Not used (GT500).—
Electronic fan 3 (base).40A14
Not used (GT500).—
Automatic brake system pump.50A15
Body control module.50A16
Body control module.60A17
Body control module.50A18
Rear window defroster.40A19
Blower motor.40A110
Left-hand front window.30A211
Driver seat.30A212
Passenger seat.30A213
Climate controlled seat module.30A214
Convertible top slave motor (base).20A215
Not used (GT500).—
Charge air cooler pump (GT500).15A216
Not used (base).—
247
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Convertible top master motor (base).20A217
Not used (GT500).—
Not used.—18
Steering column lock relay (base).20A3
19Transmission control unit (GT500).10A3
Brake on-off switch.10A320
Horn.20A321
Powertrain control module relay.10A322
Air conditioning clutch.10A323
Voltage quality module.30A224
Steering column lock relay (GT500).20A225
Not used (base).—
Windshield wiper motor.25A226
Not used.—27
Automatic brake system valve.30A228
Not used.—29
Starter motor solenoid.30A230
Not used.—31
Latch relay coil.10A332
Run/start (base).15A3
33Left-hand high-intensity discharge head-lamps (GT500).20A3
Exhaust valves.15A334
248
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Right-hand high-intensity discharge head-lamps (GT500).20A335
Not used (base).—
Alternator sense.10A336
Not used.—37
Vehicle power 1.20A338
Not used.—39
Vehicle power 2.20A340
Fuel injectors.15A341
Vehicle power 3.15A342
Not used.—43
Vehicle power 4 (base).15A3
44Vehicle power 4 (GT500).30A3
Not used.—45
Differential pump (Mach 1, GT500).20A246
Not used (base).—
Not used.—47
Fuel pump #2 (GT500).30A248
Not used (base).—
Fuel pump.30A249
Steering column lock relay.—50
Not used.—51
Horn relay.—52
Cigar lighter.20A253
249
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Auxiliary power point.20A254
Electronic fan 2 (base).25A255
Not used (GT500).—
Not used.—56
Air conditioning clutch relay.—57
Not used.—58
Exhaust valves relay.—59
Powertrain control module.5A360
Not used.—61
Anti-lock brakes run/start switch.5A362
Not used.—63
Electronic power assist steering.5A364
Not used.—65
Blind spot information system.
5A366Rear view camera.Rear window defroster relay coils.Vehicle dynamics module.
Not used.—67
Headlamp leveling switch (base).10A368
Signature lighting (GT500).10A3
Cigar lighter relay.—69Auxiliary power point relay.
Mass air flow sensor (base).5A374
Not used (GT500).—
Rain sensor module (base).5A375
250
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Not used (GT500).—
Rear window defroster relay.—76
Electronic cooling fan 2 relay (base).—77
Not used (GT500).—
Run/start relay (base).—78
Not used (GT500).—
Charge air cooler pump relay (GT500).—79
Not used (base).—
Windshield wiper relay.—80
Starter motor solenoid relay.—81
Powertrain control module relay.—82
Cooling fan relay (GT500).—83
Not used (base).—
Heated exterior mirrors.10A387
Not used.—88
Electronic fan 1 relay (base).—89
Not used (GT500).—
Differential pump relay (Mach 1, GT500).—90
Not used (base).—
Electronic fan 3 relay (base).—91
Not used (GT500).—
Blower motor relay.—92
Fuel pump #2 relay (GT500).—93
251
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
Not used (base).—
Fuel pump relay.—94
1 J-case fuses.2 M-case fuses.3 Micro fuses.Note:Spare fuse amperage may vary.
Passenger Compartment FusePanel
The fuse panel is in the right-hand side ofthe passenger footwell behind a trim paneland plastic key code card.
To remove the trim panel, lift it from therear retaining hooks, while pulling it towardyou and swinging it away from the side. Toreinstall it, line up the tabs with the grooveson the panel, drop the panel back intoplace, and then push it shut.
To reach the fuse panel, first remove thekey code card.
After replacing a fuse, return the key codecard to the original position. To reinstallthe trim panel, lineup the tabs with thegrooves on the panel, drop the panel backinto place, and then push it shut to reinstallthe trim panel.
252
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFusesE174564

Protected ComponentFuse RatingFuse or RelayNumber
Not used.—1
Power windows.10A2Electrochromic mirror.Power door locks.
Power mirrors (base).7.5A3Memory seats (base).
Not used (GT500).—
Not used (spare).20A4
Not used.—5
Not used (spare).10A6
Not used (spare).10A7
Telematic control unit - modem.5A8
Not used.5A9
Not used.—10
Not used.—11
Electronic control panel.7.5A12Gateway module.Gear shift module (GT500).
Steering column control module.7.5A13Instrument cluster.
Not used.15A14
SYNC.15A15Gauges.
Not used.—16
Headlamp leveling switch (base).7.5A17
Not used (GT500).—
Not used.7.5A18
Not used.5A19
Intrusion sensor module.5A20
253
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

Protected ComponentFuse RatingFuse or RelayNumber
In-vehicle temperature and humiditysensor.5A21
Auxiliary body module.5A22
Amplifier.30A23
Vehicle dynamics module.30A24
Ambient lighting module (base).20A25Auxiliary body module.
Right-hand front-window motor (powerdistribution module).30A26
Passenger door control unit.
Left-hand rear-window power (base).30A27
Not used (GT500).—
Right-hand rear-window power (base).30A28
Not used (GT500).—
Gateway module (base).15A29Not used (spare) (GT500).
Not used (spare)5A30
Remote keyless entry.10A31
Audio unit.20A32
Not used.—33
Run/start bus.30A34
Power distribution box run/start relay(base).5A35
Not used (GT500).—
Front camera (base).15A36
Not used (GT500).—
Heated steering wheel module (base).20A37
Not used (GT500).—
Note:Spare fuse amperage may vary.
254
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses

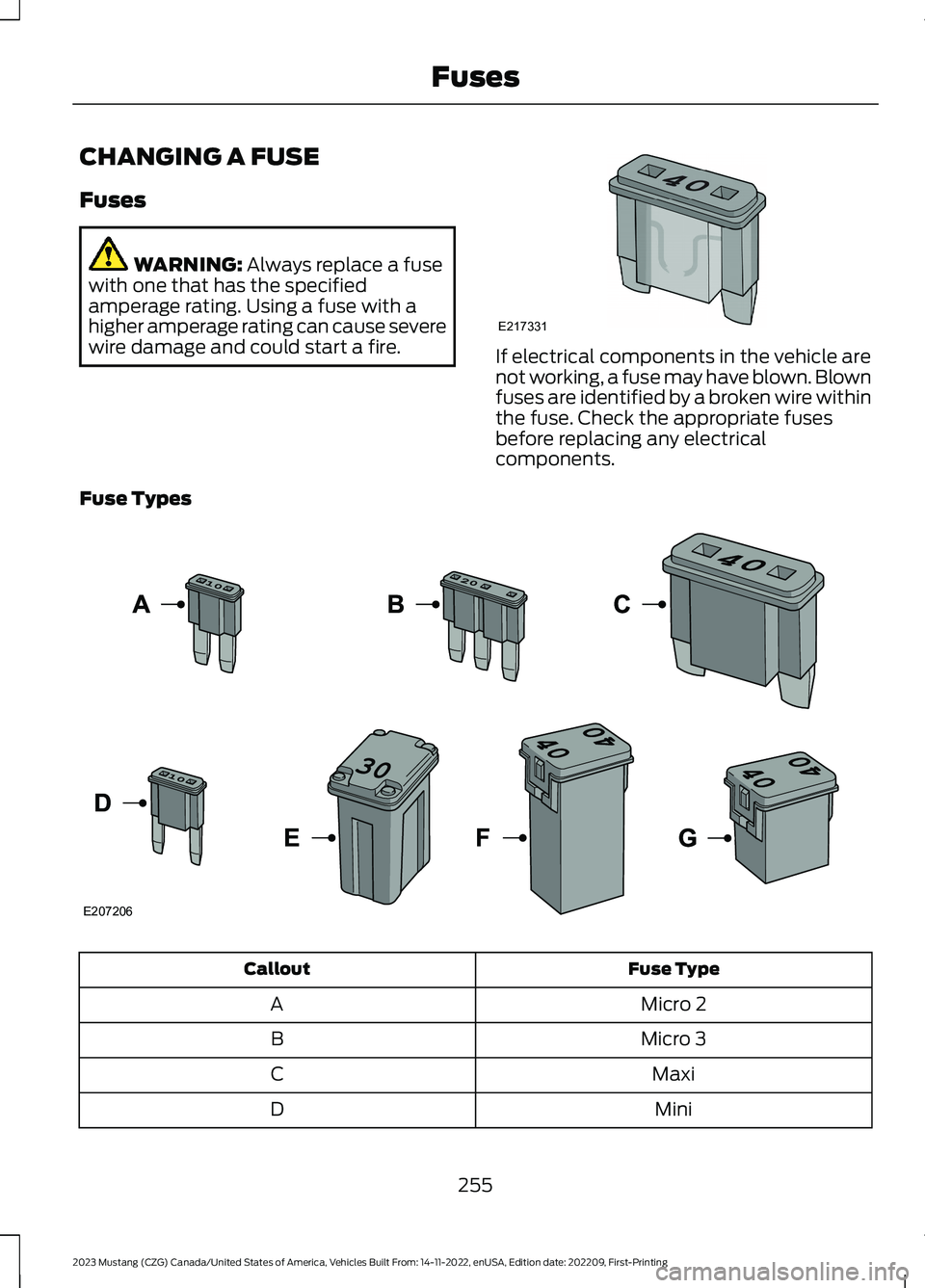

CHANGING A FUSE
Fuses
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
MiniD
255
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFusesE217331 E207206

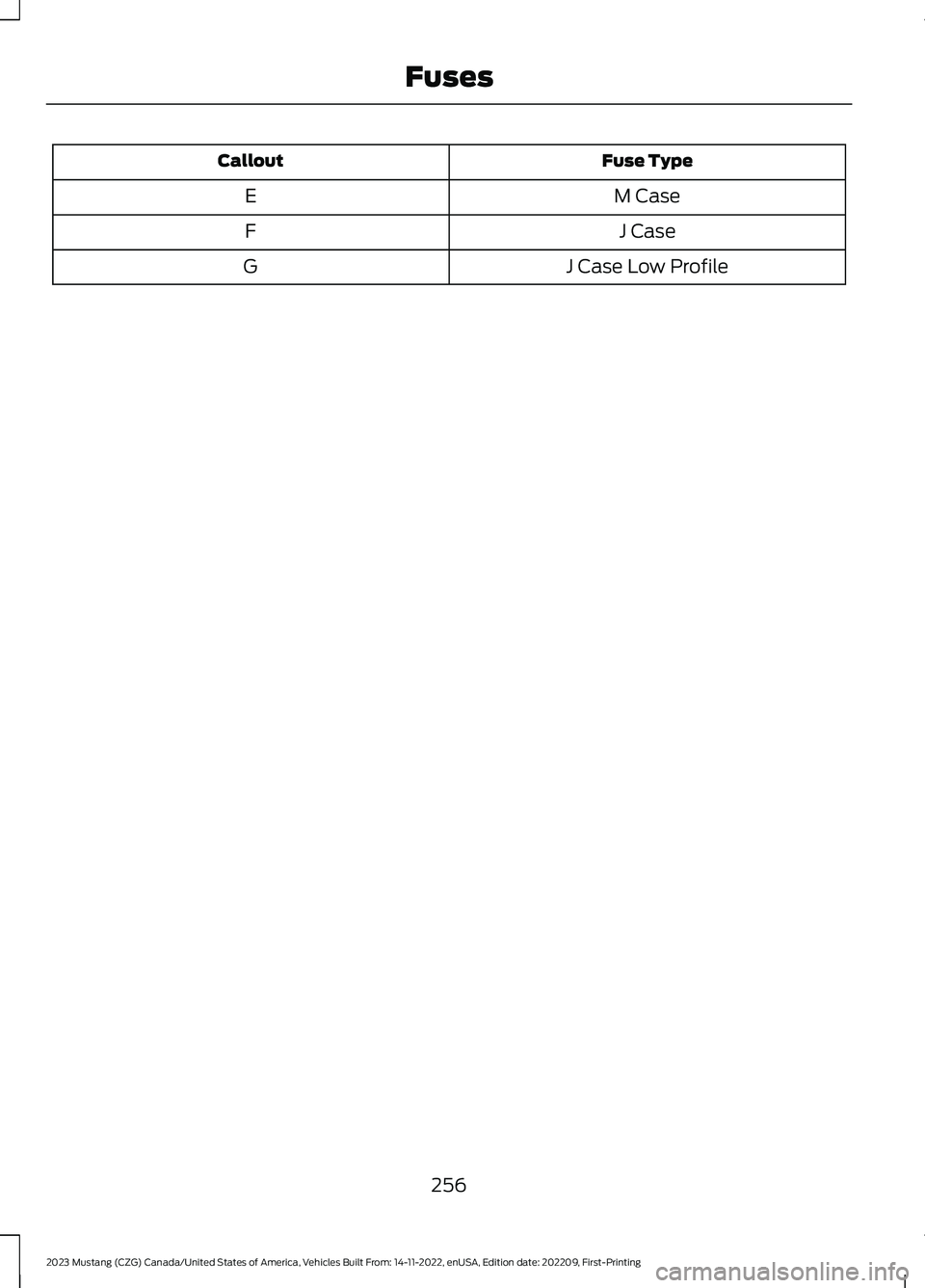

Fuse TypeCallout
M CaseE
J CaseF
J Case Low ProfileG
