Initiating Line Lock
The initiation stage verifies that the vehicleis ready for line lock function, and confirmsdriver intent. Follow the prompts in theinformation display to initiate line lock.
The following conditions must be met toinitialize line lock:
•The vehicle is on a level surface.
•The engine is running.
•The vehicle is traveling less than25 mph (40 km/h).
•Selectable drive mode is not in wetmode (if equipped).
•There are no electronic stability controlfaults.
If you want to cancel line lock once it isinitialized, press the left informationdisplay control. Once initiated, line lock isprepared for activation and remainsinitiated up to 25 mph (40 km/h). If vehiclespeed exceeds 25 mph (40 km/h), line lockautomatically cancels.
Engaging Line Lock
Follow the prompts in the informationdisplay to engage line lock after it isinitialized. To engage, firmly apply thebrakes. Then press the OK button. Onceengaged, release the brake pedal. Thefront brakes remain applied and the rearbrakes release. At this point, theengagement timer is initiated and shownon the driver information display.
The following conditions must be met toengage line lock:
•The vehicle is on a level surface.
•The engine is running.
•The vehicle is stopped.
•The parking brake is not applied.
•The driver door is closed.
•The transmission is in a forward gear.
•Selectable drive mode is not in wetmode (if equipped).
•There are no electronic stability controlfaults.
•The steering wheel must be in thestraight ahead position.
Releasing Line Lock
While line lock is engaged, you can exit(release) the feature using the OK button.When you press the OK button, line lockreleases immediately and normal vehiclefunction resumes. When line lock engages,a countdown timer shows the remainingtime before line lock is releasedautomatically. If you exceed the time limit,or another vehicle condition requires linelock to release, the system safelydisengages and normal vehicle functionresumes.
Note:If you apply the brake pedal whileline lock is engaged, line lock automaticallycancels and normal brake function resumes.
Performance Shift Indicator
The performance shift indicator displaysa row of colored lights that representengine RPM.
The performance shift indicator menuallows you to:
•Choose whether the indicator is shownon the windshield or informationdisplay.
•Set a shift point within the allowableRPM range in increments of 100.
•Enable or disable the associated shifttone, based on the set shift point.
•Set the between off, change with drivemode, tach, track and drag.
•Set the light intensity. The intensityadjusts between day time and nighttime.
287
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)
Page 292 of 535

Start Option
Allows you to select the type of countdownthe information display shows beforestarting an event.
Status Screen
Provides the status of your chosenperformance-related settings.
View/Clear Results
Allows you to view and clear the last andsaved results of the Acceleration Timer,Brake Performance, and All Time Bestresults.
Track Use Maintenance Intervals
Follow these maintenance intervals forwhen you use your vehicle on a track or ina high speed event.
Vehicle Use and ExampleInterval
Change the engine oil and filterOne track weekend or approximately 4hours of track use
Change the rear axle fluidEvery 500 mi (800 km)1
1 Change the fluid every 500 mi (800 km) or when a message appears in the informationdisplay stating that the axle fluid is over temperature.
Timing Chain
If you use your vehicle extensively at a racetrack or at high rpm, it is possible to exceedthe service life of the engine timing chain.A wrench indicator light illuminates whenit is time for you to replace your chain.Have your vehicle checked as soon aspossible.
Adjustable Camber Front StrutTop Mounts (If Equipped)
Your vehicle has adjustable strut mountswhich you can use to adjust the camber ofyour vehicle before and after a track eventto the specifications listed in the RoadCourse Alignment Recommendations tablepreviously shown.
Note:After your track day is complete,return your car to the street alignment andtire pressures.
Aerodynamics (If Equipped)
Adjustable Rear Wing
The rear wing generates aerodynamicdown-force at speeds greater than 50 mph(80 km/h).
Regularly inspect the rear wing panel andattachment points for damage orlooseness.
You can adjust the wing using the holepattern at the top of the stanchion.
Moving the wing up increases rear downforce and overall understeer. Moving thewing down decreases the rear down forceand overall understeer.
288
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)
Page 293 of 535

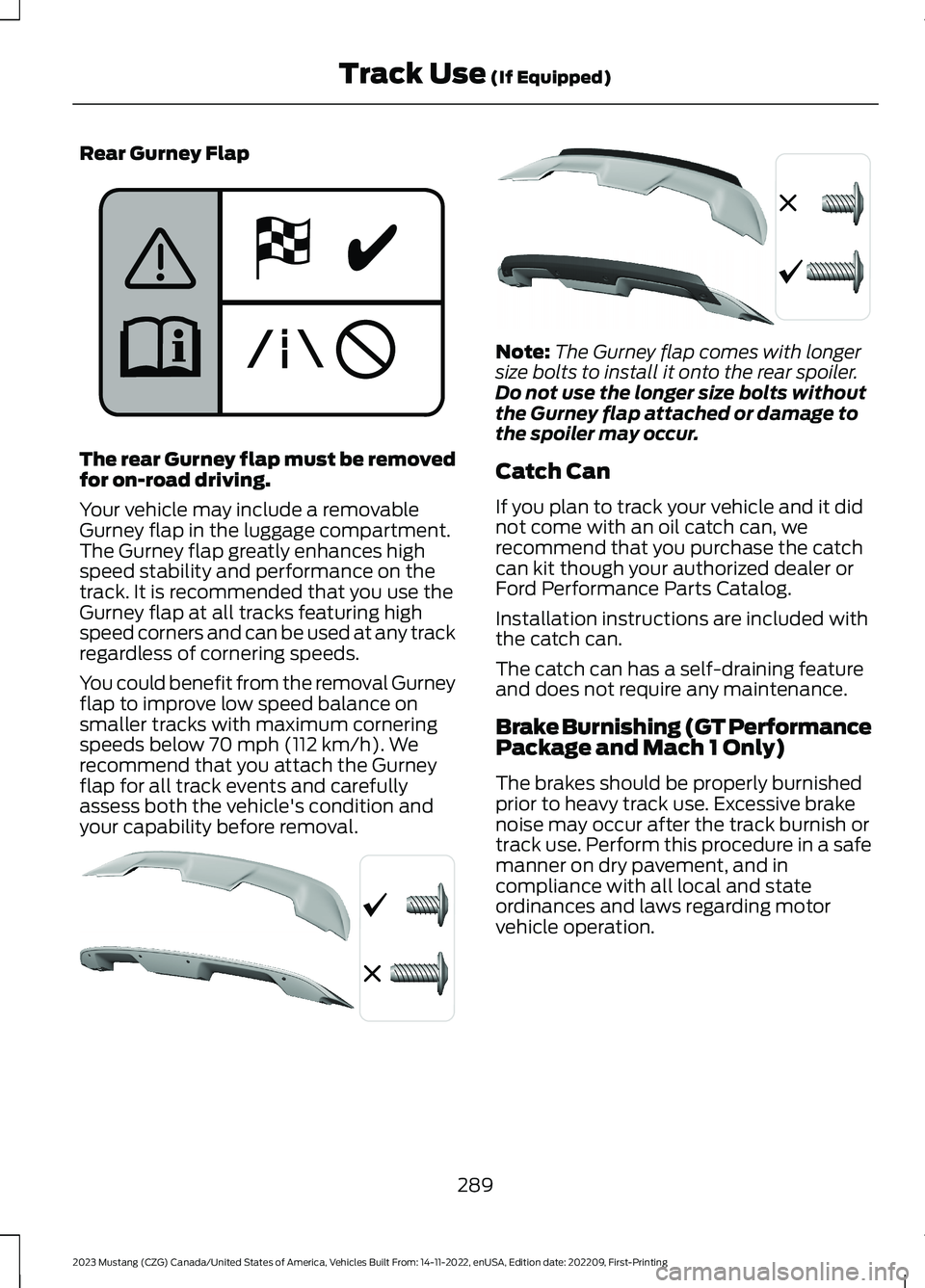

Rear Gurney Flap
The rear Gurney flap must be removedfor on-road driving.
Your vehicle may include a removableGurney flap in the luggage compartment.The Gurney flap greatly enhances highspeed stability and performance on thetrack. It is recommended that you use theGurney flap at all tracks featuring highspeed corners and can be used at any trackregardless of cornering speeds.
You could benefit from the removal Gurneyflap to improve low speed balance onsmaller tracks with maximum corneringspeeds below 70 mph (112 km/h). Werecommend that you attach the Gurneyflap for all track events and carefullyassess both the vehicle's condition andyour capability before removal.
Note:The Gurney flap comes with longersize bolts to install it onto the rear spoiler.Do not use the longer size bolts withoutthe Gurney flap attached or damage tothe spoiler may occur.
Catch Can
If you plan to track your vehicle and it didnot come with an oil catch can, werecommend that you purchase the catchcan kit though your authorized dealer orFord Performance Parts Catalog.
Installation instructions are included withthe catch can.
The catch can has a self-draining featureand does not require any maintenance.
Brake Burnishing (GT PerformancePackage and Mach 1 Only)
The brakes should be properly burnishedprior to heavy track use. Excessive brakenoise may occur after the track burnish ortrack use. Perform this procedure in a safemanner on dry pavement, and incompliance with all local and stateordinances and laws regarding motorvehicle operation.
289
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)E307008 E310471 E310472
Page 294 of 535

How to Burnish the Brakes
Initial low temperature bedding:
•If your brakes already have 200 mi(322 km) or more of city driving, skipthis step and go directly to the hightemperature bedding cycle procedure.Otherwise, perform at least 30 stopsfrom 50 mph (80 km/h) at 1/3 gdeceleration with 1 mi (1.2 km) spacingbetween stops. A deceleration gaugecan be accessed through theTrackApps menu in your instrumentdisplay.
High temperature bedding cycle:
•Beginning with cool brakes, perform 15consecutive stops back to back,accelerating at 3/4 throttle to 80 mph(128 km/h) and braking to 20 mph(32 km/h) at 1.0 g deceleration. Thebrakes may omit an odor or smokeduring this part of the procedure.
Cool down:
•Cool the brakes down by driving one ortwo laps,5 mi (8 km), at 60 mph(96 km/h) with minimal to no brakeusage.
Recovery low temperature bedding:
•Perform at least 30 stops from 50 mph(80 km/h) at 13 g deceleration with0.7 mi (1.2 km) spacing between stops.A deceleration gauge can be accessedthrough the TrackApps menu in theinstrument cluster display.
290
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)
Page 295 of 535

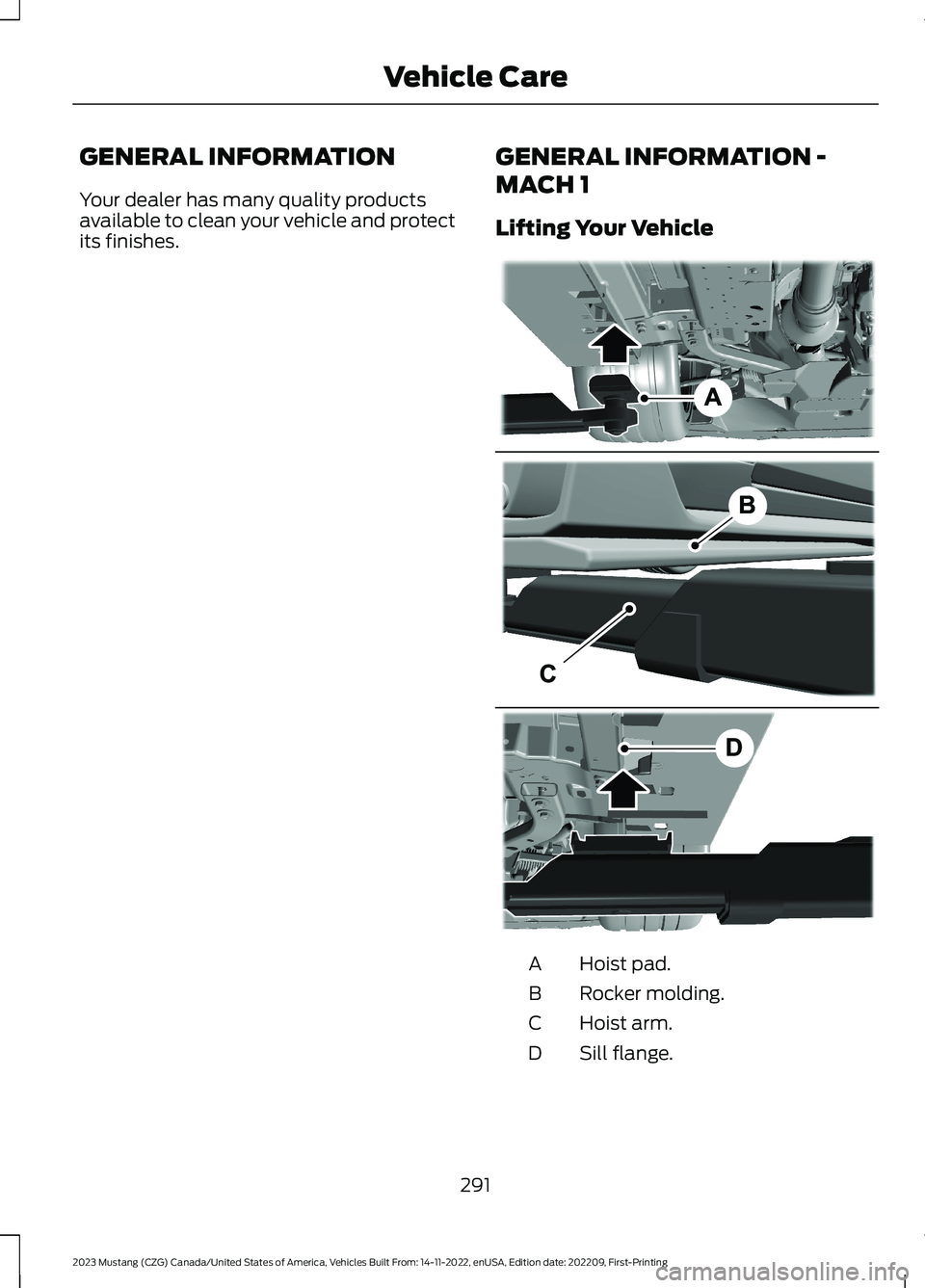

GENERAL INFORMATION
Your dealer has many quality productsavailable to clean your vehicle and protectits finishes.
GENERAL INFORMATION -
MACH 1
Lifting Your Vehicle
Hoist pad.A
Rocker molding.B
Hoist arm.C
Sill flange.D
291
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle CareABA12203AA E311783
Page 296 of 535

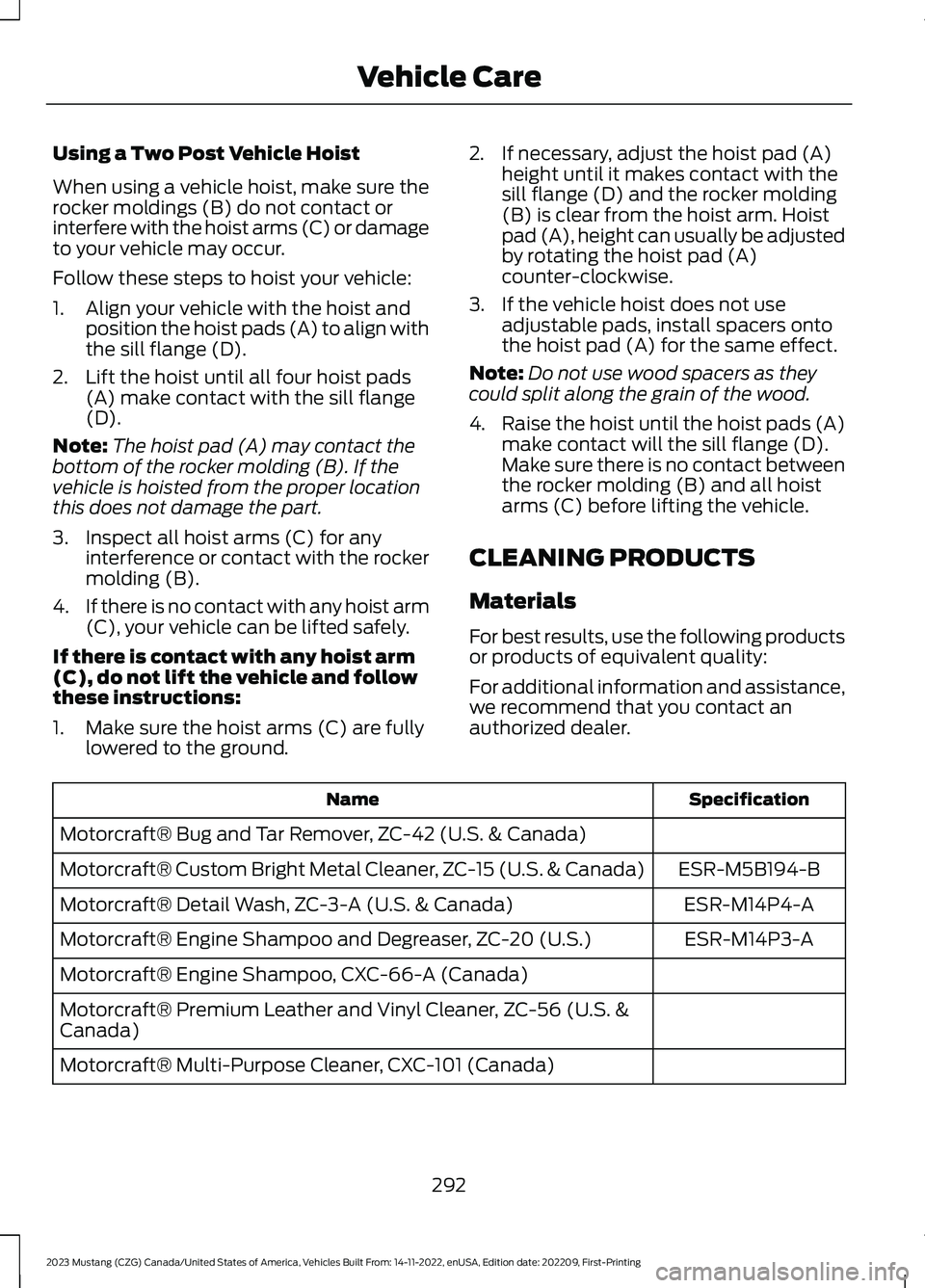

Using a Two Post Vehicle Hoist
When using a vehicle hoist, make sure therocker moldings (B) do not contact orinterfere with the hoist arms (C) or damageto your vehicle may occur.
Follow these steps to hoist your vehicle:
1.Align your vehicle with the hoist andposition the hoist pads (A) to align withthe sill flange (D).
2.Lift the hoist until all four hoist pads(A) make contact with the sill flange(D).
Note:The hoist pad (A) may contact thebottom of the rocker molding (B). If thevehicle is hoisted from the proper locationthis does not damage the part.
3.Inspect all hoist arms (C) for anyinterference or contact with the rockermolding (B).
4.If there is no contact with any hoist arm(C), your vehicle can be lifted safely.
If there is contact with any hoist arm(C), do not lift the vehicle and followthese instructions:
1.Make sure the hoist arms (C) are fullylowered to the ground.
2.If necessary, adjust the hoist pad (A)height until it makes contact with thesill flange (D) and the rocker molding(B) is clear from the hoist arm. Hoistpad (A), height can usually be adjustedby rotating the hoist pad (A)counter-clockwise.
3.If the vehicle hoist does not useadjustable pads, install spacers ontothe hoist pad (A) for the same effect.
Note:Do not use wood spacers as theycould split along the grain of the wood.
4.Raise the hoist until the hoist pads (A)make contact will the sill flange (D).Make sure there is no contact betweenthe rocker molding (B) and all hoistarms (C) before lifting the vehicle.
CLEANING PRODUCTS
Materials
For best results, use the following productsor products of equivalent quality:
For additional information and assistance,we recommend that you contact anauthorized dealer.
SpecificationName
Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada)
ESR-M5B194-BMotorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)
ESR-M14P4-AMotorcraft® Detail Wash, ZC-3-A (U.S. & Canada)
ESR-M14P3-AMotorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)
Motorcraft® Engine Shampoo, CXC-66-A (Canada)
Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. &Canada)
Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)
292
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
Page 297 of 535

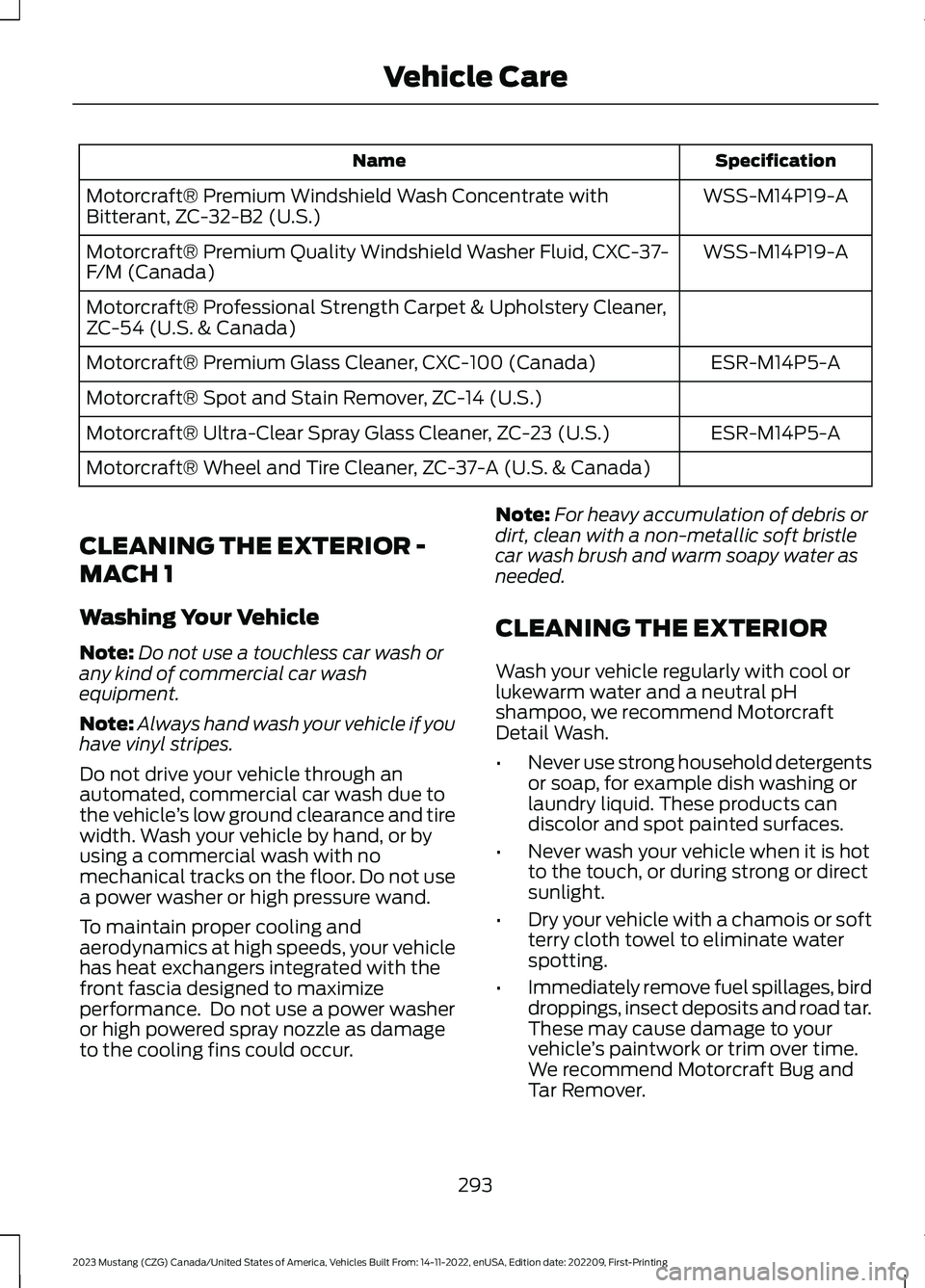

SpecificationName
WSS-M14P19-AMotorcraft® Premium Windshield Wash Concentrate withBitterant, ZC-32-B2 (U.S.)
WSS-M14P19-AMotorcraft® Premium Quality Windshield Washer Fluid, CXC-37-F/M (Canada)
Motorcraft® Professional Strength Carpet & Upholstery Cleaner,ZC-54 (U.S. & Canada)
ESR-M14P5-AMotorcraft® Premium Glass Cleaner, CXC-100 (Canada)
Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)
ESR-M14P5-AMotorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)
Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR -
MACH 1
Washing Your Vehicle
Note:Do not use a touchless car wash orany kind of commercial car washequipment.
Note:Always hand wash your vehicle if youhave vinyl stripes.
Do not drive your vehicle through anautomated, commercial car wash due tothe vehicle’s low ground clearance and tirewidth. Wash your vehicle by hand, or byusing a commercial wash with nomechanical tracks on the floor. Do not usea power washer or high pressure wand.
To maintain proper cooling andaerodynamics at high speeds, your vehiclehas heat exchangers integrated with thefront fascia designed to maximizeperformance. Do not use a power washeror high powered spray nozzle as damageto the cooling fins could occur.
Note:For heavy accumulation of debris ordirt, clean with a non-metallic soft bristlecar wash brush and warm soapy water asneeded.
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool orlukewarm water and a neutral pHshampoo, we recommend MotorcraftDetail Wash.
•Never use strong household detergentsor soap, for example dish washing orlaundry liquid. These products candiscolor and spot painted surfaces.
•Never wash your vehicle when it is hotto the touch, or during strong or directsunlight.
•Dry your vehicle with a chamois or softterry cloth towel to eliminate waterspotting.
•Immediately remove fuel spillages, birddroppings, insect deposits and road tar.These may cause damage to yourvehicle’s paintwork or trim over time.We recommend Motorcraft Bug andTar Remover.
293
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
Page 298 of 535

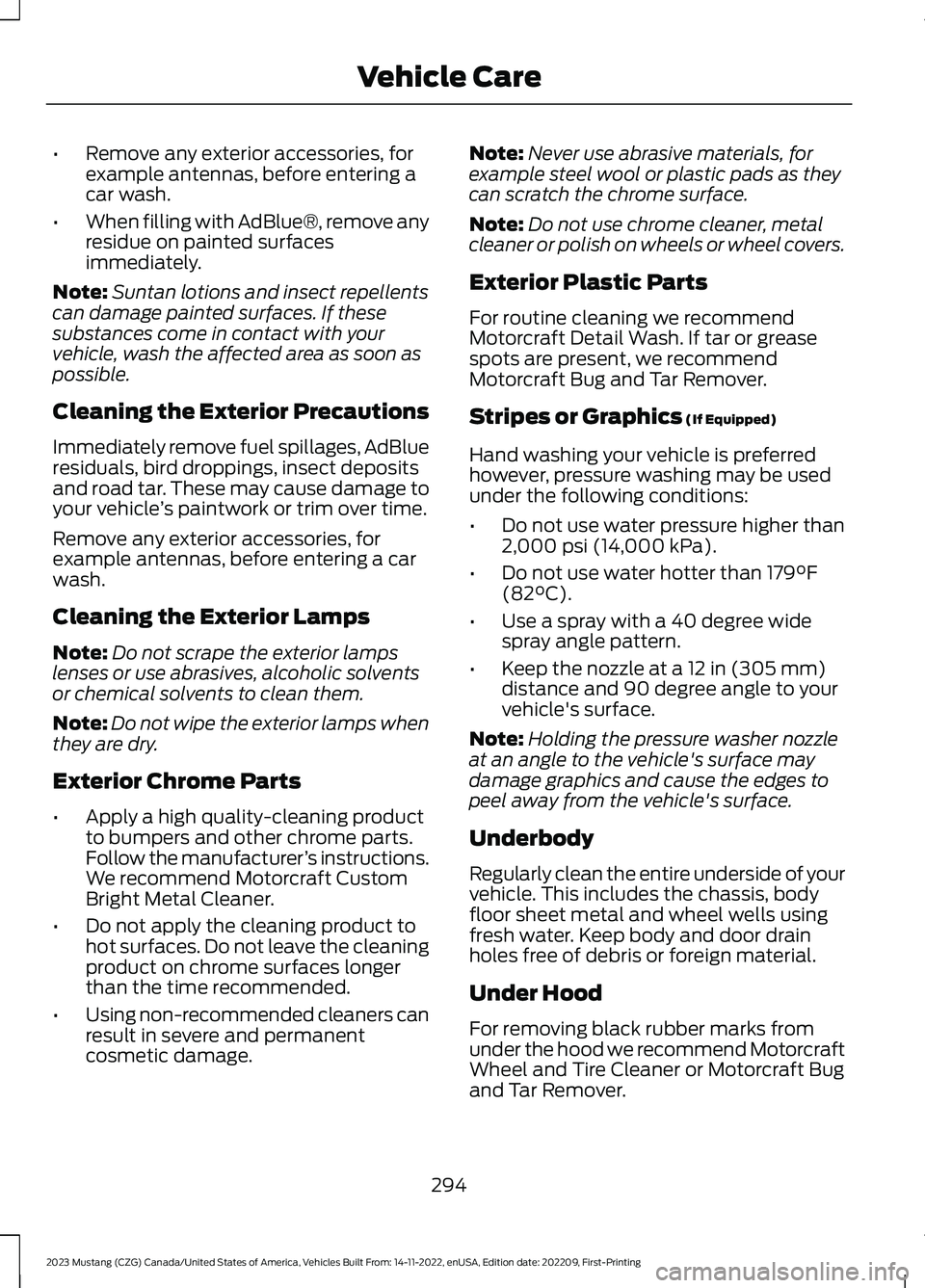

•Remove any exterior accessories, forexample antennas, before entering acar wash.
•When filling with AdBlue®, remove anyresidue on painted surfacesimmediately.
Note:Suntan lotions and insect repellentscan damage painted surfaces. If thesesubstances come in contact with yourvehicle, wash the affected area as soon aspossible.
Cleaning the Exterior Precautions
Immediately remove fuel spillages, AdBlueresiduals, bird droppings, insect depositsand road tar. These may cause damage toyour vehicle’s paintwork or trim over time.
Remove any exterior accessories, forexample antennas, before entering a carwash.
Cleaning the Exterior Lamps
Note:Do not scrape the exterior lampslenses or use abrasives, alcoholic solventsor chemical solvents to clean them.
Note:Do not wipe the exterior lamps whenthey are dry.
Exterior Chrome Parts
•Apply a high quality-cleaning productto bumpers and other chrome parts.Follow the manufacturer’s instructions.We recommend Motorcraft CustomBright Metal Cleaner.
•Do not apply the cleaning product tohot surfaces. Do not leave the cleaningproduct on chrome surfaces longerthan the time recommended.
•Using non-recommended cleaners canresult in severe and permanentcosmetic damage.
Note:Never use abrasive materials, forexample steel wool or plastic pads as theycan scratch the chrome surface.
Note:Do not use chrome cleaner, metalcleaner or polish on wheels or wheel covers.
Exterior Plastic Parts
For routine cleaning we recommendMotorcraft Detail Wash. If tar or greasespots are present, we recommendMotorcraft Bug and Tar Remover.
Stripes or Graphics (If Equipped)
Hand washing your vehicle is preferredhowever, pressure washing may be usedunder the following conditions:
•Do not use water pressure higher than2,000 psi (14,000 kPa).
•Do not use water hotter than 179°F(82°C).
•Use a spray with a 40 degree widespray angle pattern.
•Keep the nozzle at a 12 in (305 mm)distance and 90 degree angle to yourvehicle's surface.
Note:Holding the pressure washer nozzleat an angle to the vehicle's surface maydamage graphics and cause the edges topeel away from the vehicle's surface.
Underbody
Regularly clean the entire underside of yourvehicle. This includes the chassis, bodyfloor sheet metal and wheel wells usingfresh water. Keep body and door drainholes free of debris or foreign material.
Under Hood
For removing black rubber marks fromunder the hood we recommend MotorcraftWheel and Tire Cleaner or Motorcraft Bugand Tar Remover.
294
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
Page 299 of 535

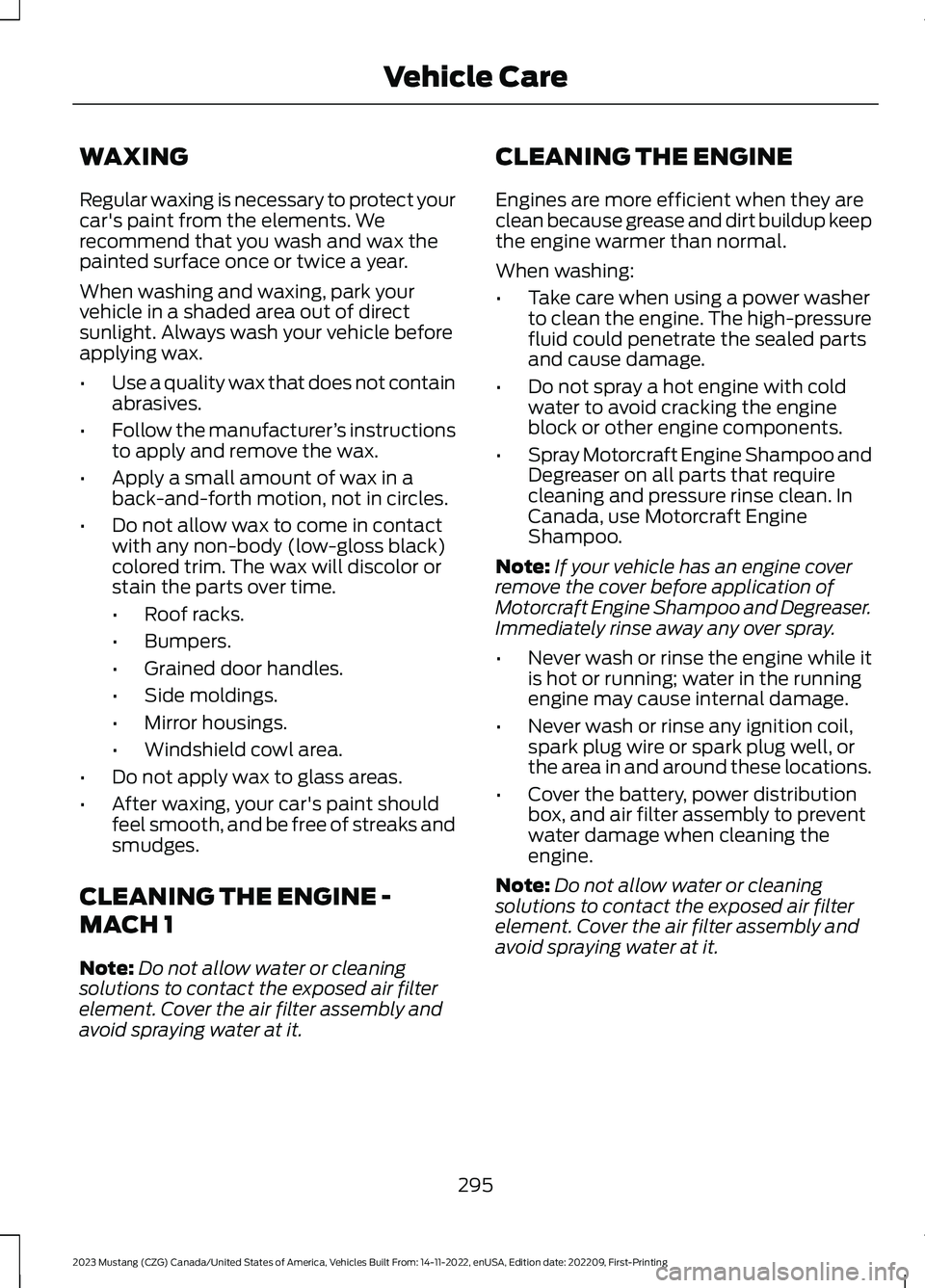

WAXING
Regular waxing is necessary to protect yourcar's paint from the elements. Werecommend that you wash and wax thepainted surface once or twice a year.
When washing and waxing, park yourvehicle in a shaded area out of directsunlight. Always wash your vehicle beforeapplying wax.
•Use a quality wax that does not containabrasives.
•Follow the manufacturer’s instructionsto apply and remove the wax.
•Apply a small amount of wax in aback-and-forth motion, not in circles.
•Do not allow wax to come in contactwith any non-body (low-gloss black)colored trim. The wax will discolor orstain the parts over time.
•Roof racks.
•Bumpers.
•Grained door handles.
•Side moldings.
•Mirror housings.
•Windshield cowl area.
•Do not apply wax to glass areas.
•After waxing, your car's paint shouldfeel smooth, and be free of streaks andsmudges.
CLEANING THE ENGINE -
MACH 1
Note:Do not allow water or cleaningsolutions to contact the exposed air filterelement. Cover the air filter assembly andavoid spraying water at it.
CLEANING THE ENGINE
Engines are more efficient when they areclean because grease and dirt buildup keepthe engine warmer than normal.
When washing:
•Take care when using a power washerto clean the engine. The high-pressurefluid could penetrate the sealed partsand cause damage.
•Do not spray a hot engine with coldwater to avoid cracking the engineblock or other engine components.
•Spray Motorcraft Engine Shampoo andDegreaser on all parts that requirecleaning and pressure rinse clean. InCanada, use Motorcraft EngineShampoo.
Note:If your vehicle has an engine coverremove the cover before application ofMotorcraft Engine Shampoo and Degreaser.Immediately rinse away any over spray.
•Never wash or rinse the engine while itis hot or running; water in the runningengine may cause internal damage.
•Never wash or rinse any ignition coil,spark plug wire or spark plug well, orthe area in and around these locations.
•Cover the battery, power distributionbox, and air filter assembly to preventwater damage when cleaning theengine.
Note:Do not allow water or cleaningsolutions to contact the exposed air filterelement. Cover the air filter assembly andavoid spraying water at it.
295
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
Page 300 of 535

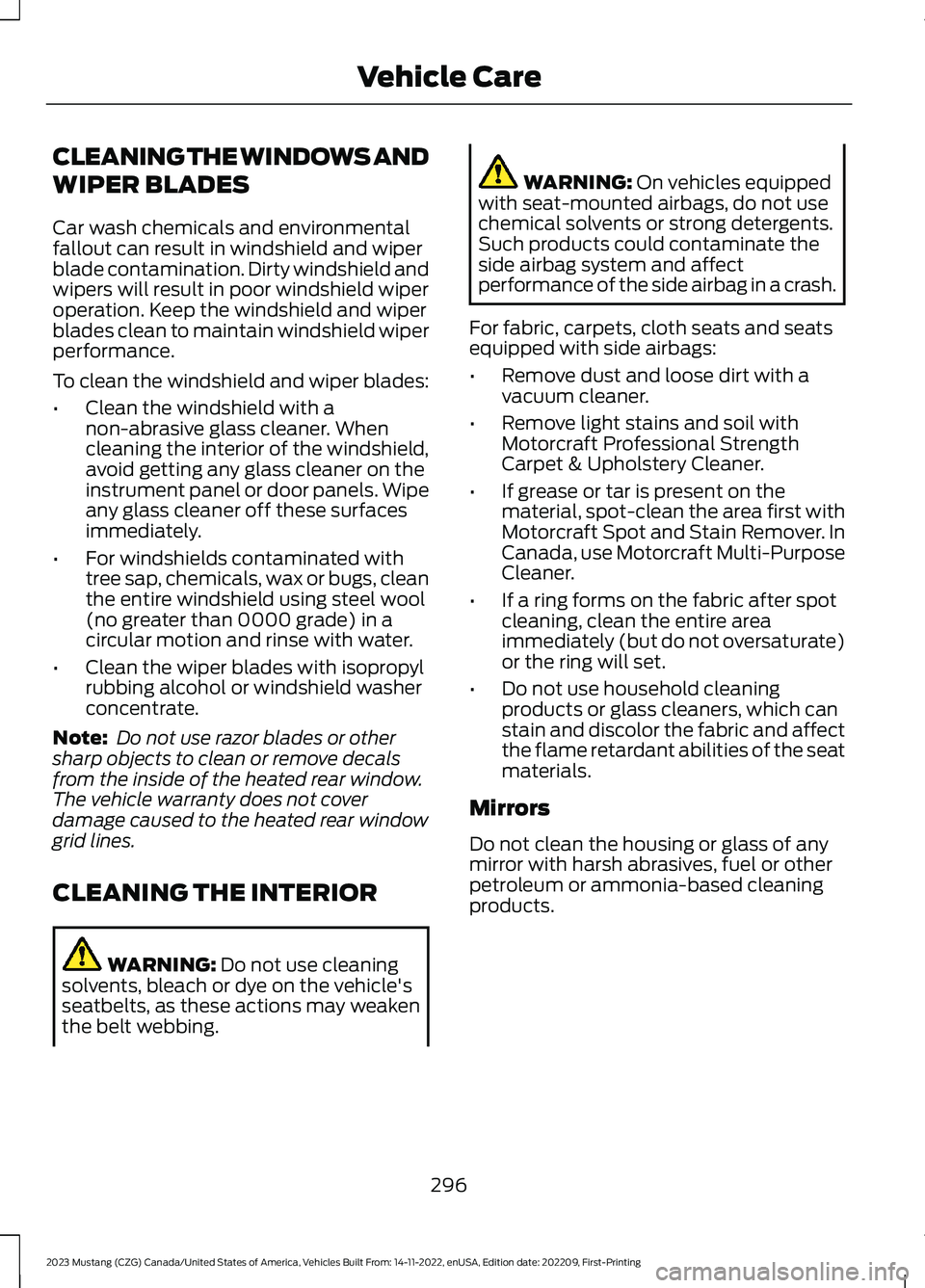

CLEANING THE WINDOWS AND
WIPER BLADES
Car wash chemicals and environmentalfallout can result in windshield and wiperblade contamination. Dirty windshield andwipers will result in poor windshield wiperoperation. Keep the windshield and wiperblades clean to maintain windshield wiperperformance.
To clean the windshield and wiper blades:
•Clean the windshield with anon-abrasive glass cleaner. Whencleaning the interior of the windshield,avoid getting any glass cleaner on theinstrument panel or door panels. Wipeany glass cleaner off these surfacesimmediately.
•For windshields contaminated withtree sap, chemicals, wax or bugs, cleanthe entire windshield using steel wool(no greater than 0000 grade) in acircular motion and rinse with water.
•Clean the wiper blades with isopropylrubbing alcohol or windshield washerconcentrate.
Note: Do not use razor blades or othersharp objects to clean or remove decalsfrom the inside of the heated rear window.The vehicle warranty does not coverdamage caused to the heated rear windowgrid lines.
CLEANING THE INTERIOR
WARNING: Do not use cleaningsolvents, bleach or dye on the vehicle'sseatbelts, as these actions may weakenthe belt webbing.
WARNING: On vehicles equippedwith seat-mounted airbags, do not usechemical solvents or strong detergents.Such products could contaminate theside airbag system and affectperformance of the side airbag in a crash.
For fabric, carpets, cloth seats and seatsequipped with side airbags:
•Remove dust and loose dirt with avacuum cleaner.
•Remove light stains and soil withMotorcraft Professional StrengthCarpet & Upholstery Cleaner.
•If grease or tar is present on thematerial, spot-clean the area first withMotorcraft Spot and Stain Remover. InCanada, use Motorcraft Multi-PurposeCleaner.
•If a ring forms on the fabric after spotcleaning, clean the entire areaimmediately (but do not oversaturate)or the ring will set.
•Do not use household cleaningproducts or glass cleaners, which canstain and discolor the fabric and affectthe flame retardant abilities of the seatmaterials.
Mirrors
Do not clean the housing or glass of anymirror with harsh abrasives, fuel or otherpetroleum or ammonia-based cleaningproducts.
296
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
