FORD PROBE 1996 2.G Owners Manual

204
*
[SV01000(ALL)03/95]
Ford Motor Company recommends that you
perform the Owner Maintenance Checks listed in
theMaintenance Schedule and Recordbooklet.
These services are important for the proper
operation of your vehicle. In addition to the
conditions listed in the Owner Maintenance
Checklist, be alert for any unusual noise,
vibration, or other indication that your vehicle
may need service. If you do notice something
unusual, see that your vehicle is serviced
promptly.
*
[SV01100(ALL)09/93]
Use only recommended fuels, lubricants, fluids,
and service parts that meet Ford Motor
Company specifications. Motorcraft parts are
designed and built to provide the best
performance in your vehicle. Using these parts
for replacement is your assurance that Ford-built
quality stays in your vehicle.
%*
[SV01150(ALL)04/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
*
[SV01600(ALL)03/95]
Precautions When Servicing Your
Vehicle
*
[SV01700(ALL)01/95]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
%*
[SV01800(ALL)03/95]
q
Do not work on a hot engine. The engine
cooling fan may come on unexpectedly.
Always turn the engine off and let it cool.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

205
*
[SV01850(ALL)05/95]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
*
[SV01900(ALL)03/95]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
*
[SV02000(ALL)01/95]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[SV02100(ALL)01/95]
q
Never get under a vehicle while it is
supported by a jack only. If you must work
under a vehicle, use safety stands.
*
[SV02200(ALL)01/95]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
*
[SV02500(ALL)03/95]
If you disconnect the battery, the engine must
ªrelearnº its idle conditions before your vehicle
will drive properly. To find out how the engine
does this, seeBatteryin this chapter.
*
[SV02700(ALL)03/95]
Working with the engine off:
[SV02750(ALL)02/95]
1. Set the parking brake fully and make sure
the gearshift is securely latched in P (Park)
(automatic transaxle) or Neutral (manual
transaxle).
*
[SV02800(ALL)03/95]
2. Remove the key from the ignition after you
turn the engine off.
*
[SV02850(ALL)03/95]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

206
*
[SV02900(ALL)03/95]
Working with the engine on:
*
[SV03000(ALL)04/95]
1. Set the parking brake fully and make sure
the gearshift is securely latched in P (Park)
(automatic transaxle) or Neutral (manual
transaxle).
*
[SV03100(ALL)03/95]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[SV03200(ALL)02/95]
RWARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
%*
[SV03400(ALL)03/95]
Opening the Hood
%*
[SV03500(ALL)01/95]
1. Inside the vehicle, pull the hood release
handle located under the bottom left corner
of the instrument panel.
%*
[SV03600(ALL)02/95]
2. Go to the front of the vehicle and release the
auxiliary latch that is located under the hood
at the center of the vehicle.
[SV03750(ALL)01/95]
3. Lift the hood and set the prop rod in the
hole in the hood marked with an arrow.
*
[SV03800(ALL)11/90]
When you close the hood, make sure the prop
rod is in its retainer and that the hood latches
securely.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

207 [SV03900(ALL)01/94]

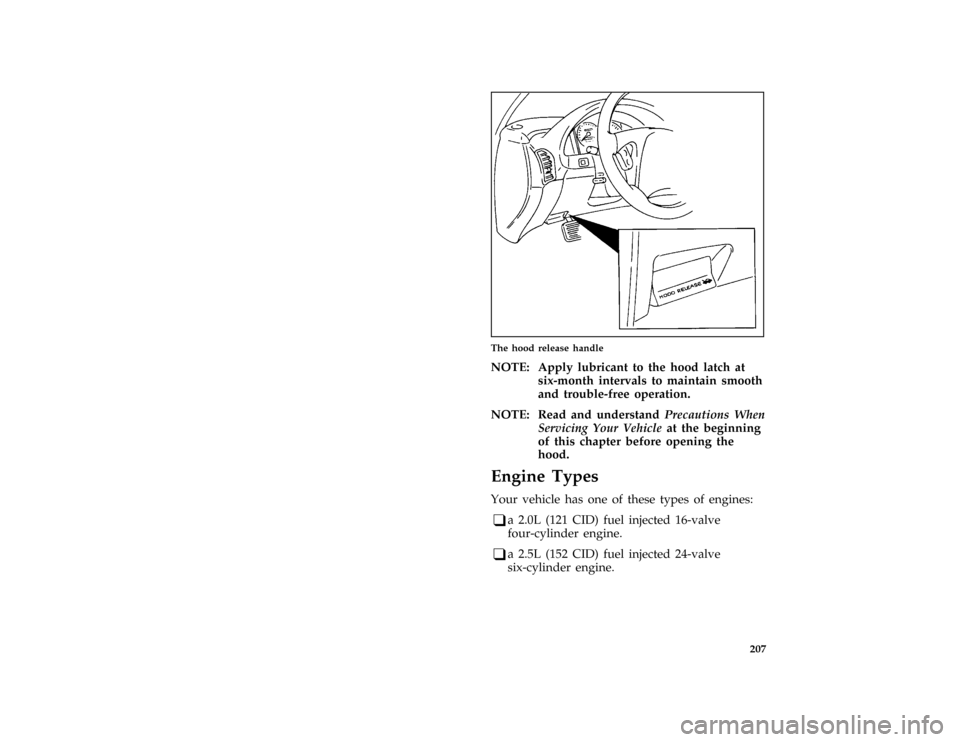

half page art:0032100-A
The hood release handle
[SV04100(ALL)01/95]
NOTE: Apply lubricant to the hood latch at
six-month intervals to maintain smooth
and trouble-free operation.
[SV04200(ALL)01/95]
NOTE: Read and understandPrecautions When
Servicing Your Vehicleat the beginning
of this chapter before opening the
hood.
[SV04450(ALL)01/92]Engine Types
*
[SV04600(ALL)09/93]
Your vehicle has one of these types of engines:
[SV04700(ALL)01/92]
q
a 2.0L (121 CID) fuel injected 16-valve
four-cylinder engine.
[SV04800(ALL)01/95]
q
a 2.5L (152 CID) fuel injected 24-valve
six-cylinder engine.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

208 [SV05400(ALL)06/94]

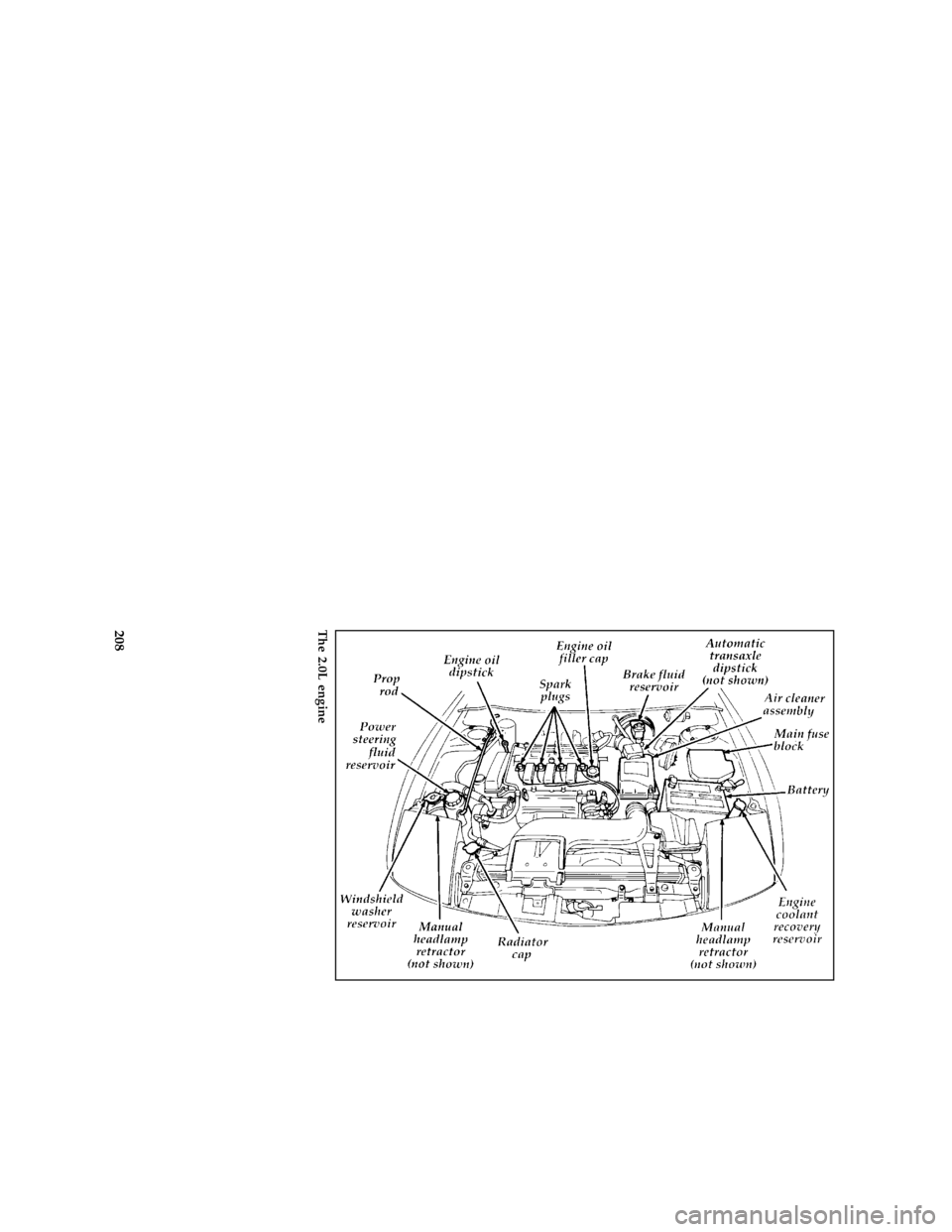

three fourths page art:0032074-BThe 2.0L engine
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

209 [SV05500(ALL)06/94]

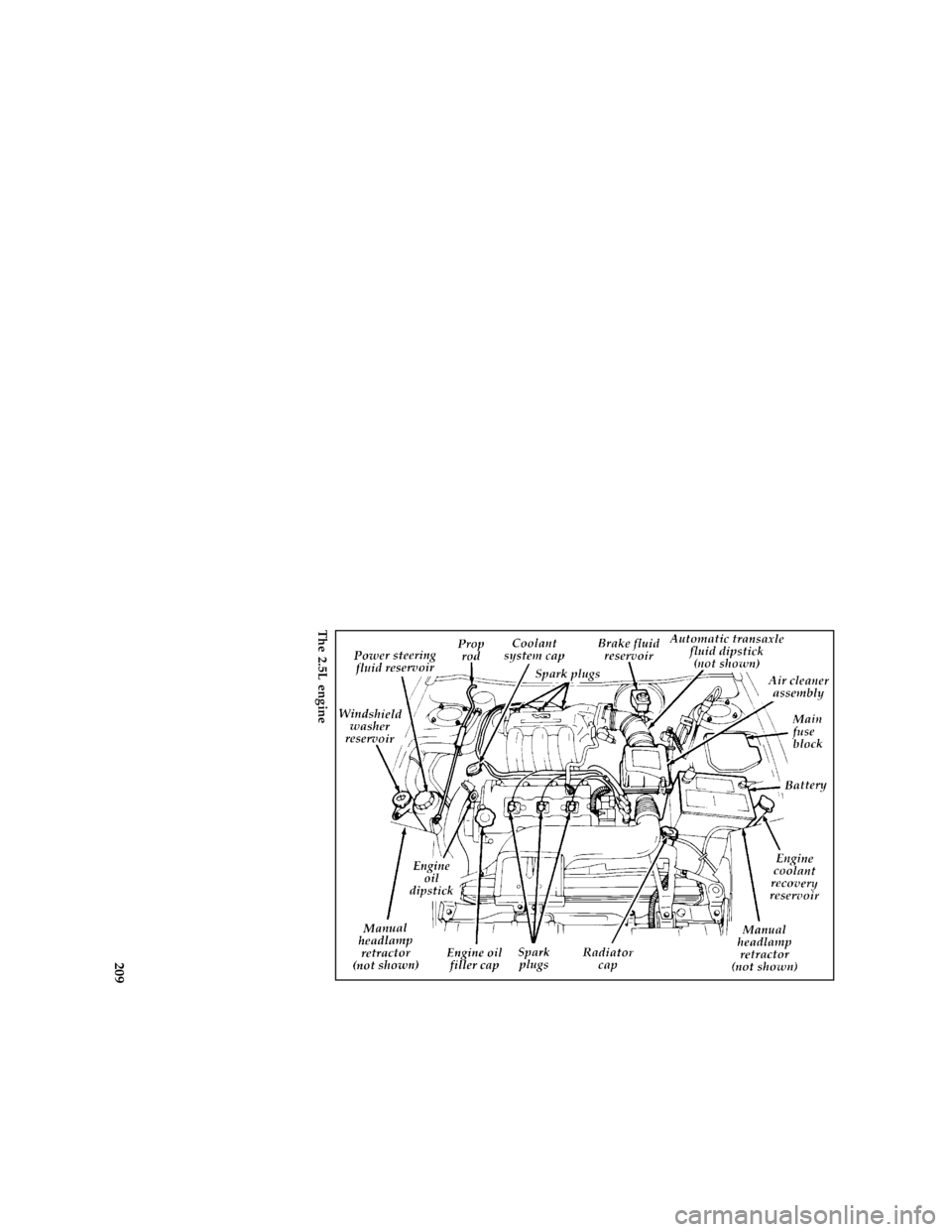

three fourths page art:0032081-E
The 2.5L engine
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

210 %
*
[SV05600(ALL)04/95]
Cleaning the Engine
*
[SV05610(ALL)04/95]
A clean engine is more efficient because the
engine is able to cool properly. A build up of
grease and dirt acts as an insulator, keeping the
engine warmer than normal.
*
[SV05620(ALL)05/95]
q
Extreme care must be used if a power washer
is used to clean the engine. The high pressure
fluid could penetrate sealed parts and
assemblies causing damage or malfunctions.
*
[SV05630(ALL)04/95]
q
In order to avoid possible cracking of the
engine block or fuel injection pump, do not
spray a hot engine or injection pump with
cold water.
*
[SV05640(ALL)06/95]
q
The alternator, distributor and air intake must
be covered. Covering these components will
help prevent water damage.
*
[SV05650(ALL)04/95]
Never wash or rinse the engine while it is
running. Water getting into the engine may
cause internal damage.
*
[SV06100(ALL)03/95]
Filling the Fuel Tank
[SV06200(ALL)03/90]
Fuel filler door release lever
[SV06300(ALL)11/91]
Your vehicle is equipped with a fuel filler door
release. To open the fuel filler door, pull up on
the release lever which is located in front of the
driver's seat and near the door.
[SV06350(ALL)01/94]
Remote Fuel Filler-Lid Release Override
[SV06410(ALL)01/95]
If the release does not operate, open the
hatchback, remove the trim on the left rear side,
reach into the opening and pull the latch toward
the rear (see the service manual for trim
removal). You should wear gloves to protect
your hands from any sharp edges when you use
the fuel filler-lid release override.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

211 [SV06450(ALL)03/94]

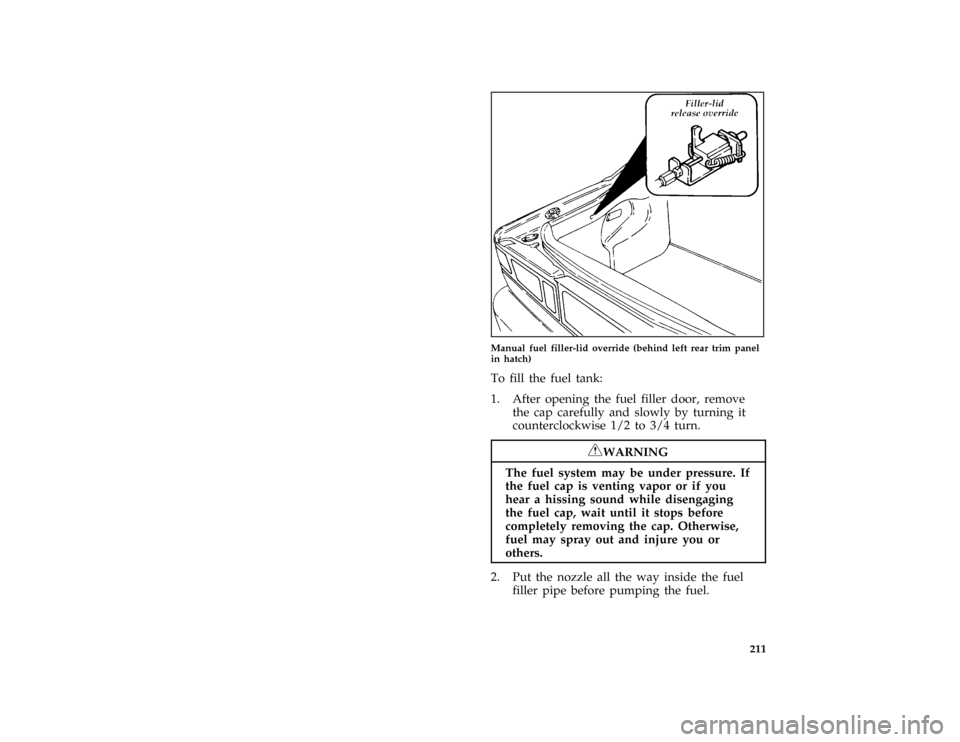

half page art:0032107-C
Manual fuel filler-lid override (behind left rear trim panel
in hatch)
[SV06505(ALL)05/95]
To fill the fuel tank:
*
[SV06550(ALL)05/95]
1. After opening the fuel filler door, remove
the cap carefully and slowly by turning it
counterclockwise 1/2 to 3/4 turn.
*
[SV06650(ALL)05/95]
RWARNING
The fuel system may be under pressure. If
the fuel cap is venting vapor or if you
hear a hissing sound while disengaging
the fuel cap, wait until it stops before
completely removing the cap. Otherwise,
fuel may spray out and injure you or
others.
*
[SV06700(ALL)05/95]
2. Put the nozzle all the way inside the fuel
filler pipe before pumping the fuel.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

212
*
[SV06800(ALL)05/95]
NOTE: If you spill any fuel on the body of
your vehicle, clean it off immediately.
The fuel may dull or soften the paint
if you do not wash it off.
*
[SV06850(ALL)05/95]
3. Replace the fuel cap completely when you
are finished. Turn it clockwise 1/4 turn until
it is tight. It will click when it is fully
tightened.
*
[SV06875(ALL)05/95]
4. Push the fuel door closed.
[SV07545(ALL)05/95]
If you lose the fuel cap, replace it with an
authorized Motorcraft or equivalent part.
%*
[SV07550(ALL)05/95]
RWARNING
If you do not use the proper fuel cap, the
pressure in the fuel tank can damage the
fuel system or cause it to work improperly
in a collision.
*
[SV07560(ALL)05/95]
NOTE: If you replace your fuel cap with an
aftermarket fuel filler cap, the customer
warranty may be void for any damage
to the fuel tank and/or fuel system.
%*
[SV07670(ALL)05/95]
Choosing the Right Fuel
*
[SV07680(ALL)05/95]
Use only UNLEADED FUEL in your vehicle.
Using leaded fuel is prohibited by federal law.
Your warranty may not apply if your vehicle is
damaged because you used the wrong fuel.
*
[SV07690(ALL)05/95]
Using a high-quality fuel makes your vehicle
more responsive and maintain its good fuel
economy and emissions. It should not be
necessary to add any aftermarket products to
your fuel tank if you continue to use a
high-quality fuel.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

213 [SV08750(ALL)05/95]
Octane recommendations
*
[SV08850(ALL)05/95]
Your engine is designed to use fuel with an
octane rating of 87. In most cases it is not
necessary to use a fuel with an octane rating
higher than 87. At service stations, the octane
rating is displayed in a label on the pumps.
[SV09000(ALL)05/95]
Your 2.5L engine is designed to use fuel with
an octane rating of 91 or higher.In some parts
of the country ªpremiumº grade fuels are sold
with octane ratings of less than 91 especially in
high altitude areas. We recommend that you use
only those ªpremiumº fuels with an octane
rating of 91 or higher.
*
[SV09100(ALL)05/95]
Using a fuel with a lower octane rating can
cause persistent and heavy knocking, which can
damage the engine.
*
[SV09200(ALL)05/95]
Do not be concerned if your vehicle sometimes
knocks lightly when you drive up a hill or when
you accelerate. However, see your dealer or a
qualified service technician if persistent heavy
knocking occurs because this can damage the
engine.
