FORD PROBE 1997 2.G Owners Manual

158
*
[ER00940(ALL)03/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER00950(ALL)03/96]
1. Turn the key in the ignition to the LOCK
position.
*
[ER00960(ALL)03/96]
2. Check under the vehicle for leaking fuel.
*
[ER00970(ALL)03/96]
3. If you do not see or smell fuel, push the red
reset button on the fuel pump shut-off
switch down.
[ER00980(ALL)03/96]
The reset switch on your vehicle is located on
the left side of the luggage compartment
under the carpet. The red reset button is
under the raised area of the rubber cover.
*
[ER00990(ALL)03/96]
4. Attempt to start your vehicle. If the vehicle
starts, let it run a few seconds, then turn the
key to the LOCK position.
*
[ER00995(ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ER02000(ALL)05/96]
Fuses
[ER02100(ALL)04/96]
If electrical parts in your vehicle are not
working, the system may have been overloaded
and blown a fuse. If a fuse blows, all the parts
of your vehicle that use the fuse will not work.
[ER02200(ALL)04/96]
Your vehicle has two fuse panels. The interior
fuse panel is below the instrument panel in front
of the driver's door. The main panel is under
the hood behind the battery.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

159 [ER02300(ALL)01/96]
half page art:0032039-A

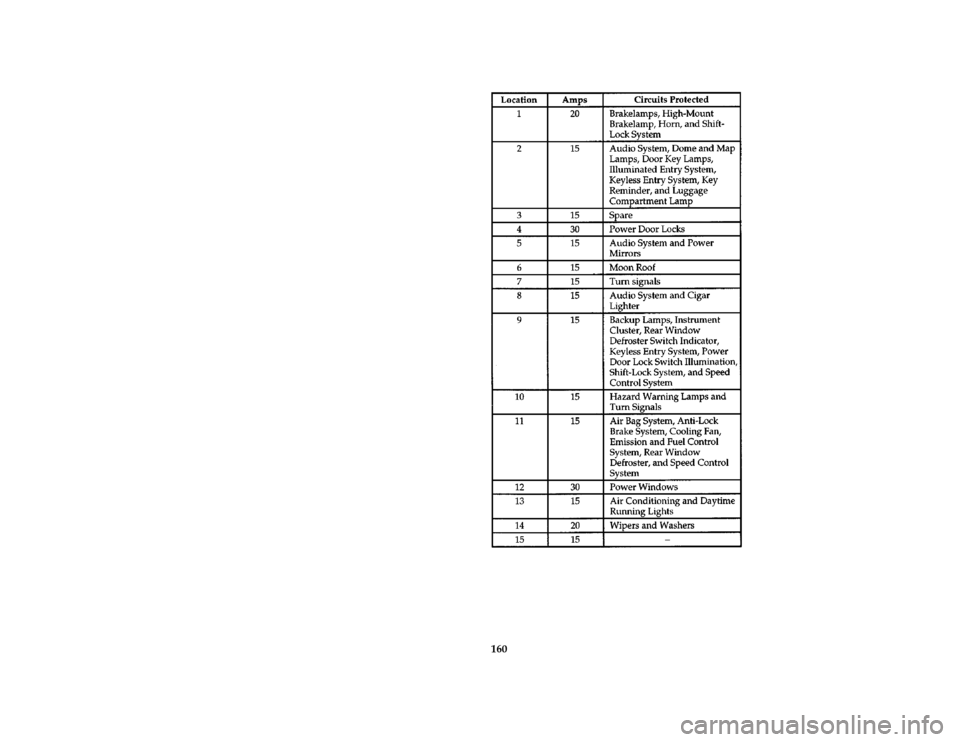

Fuse panel under instrument panel
[ER02400(ALL)05/96]
one third page art:0032067-D
Inside of the instrument fuse panel cover
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

160
File:10prerp.ex

161 [ER02600(ALL)01/96]
half page art:0032063-A
Fuse panel located under hood
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

162
*
[ER02650(ALL)05/96]

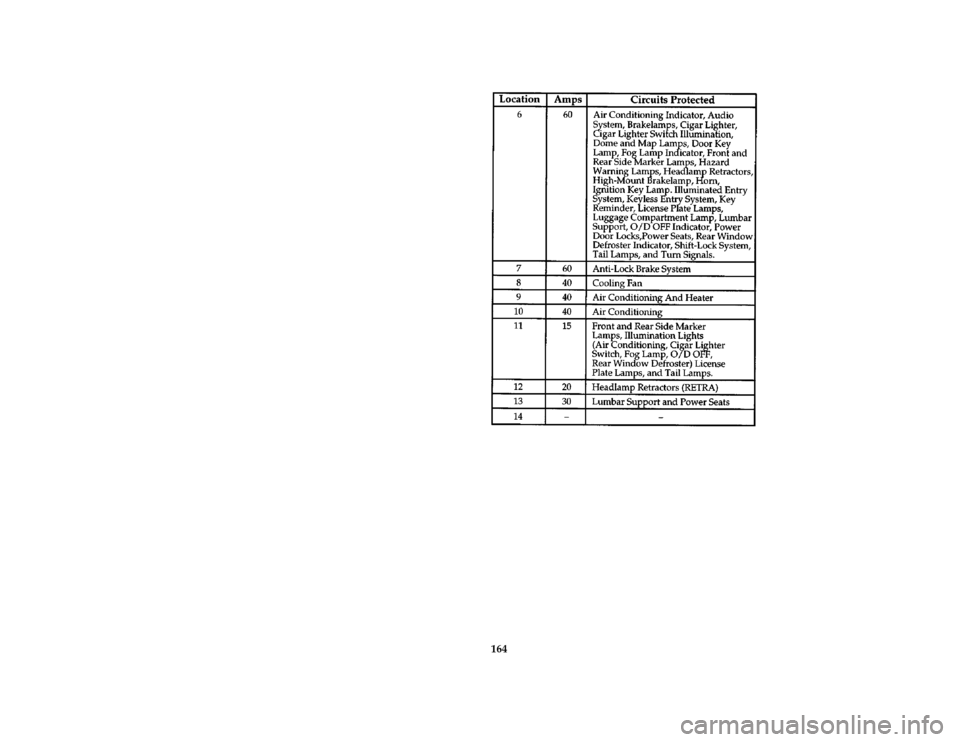

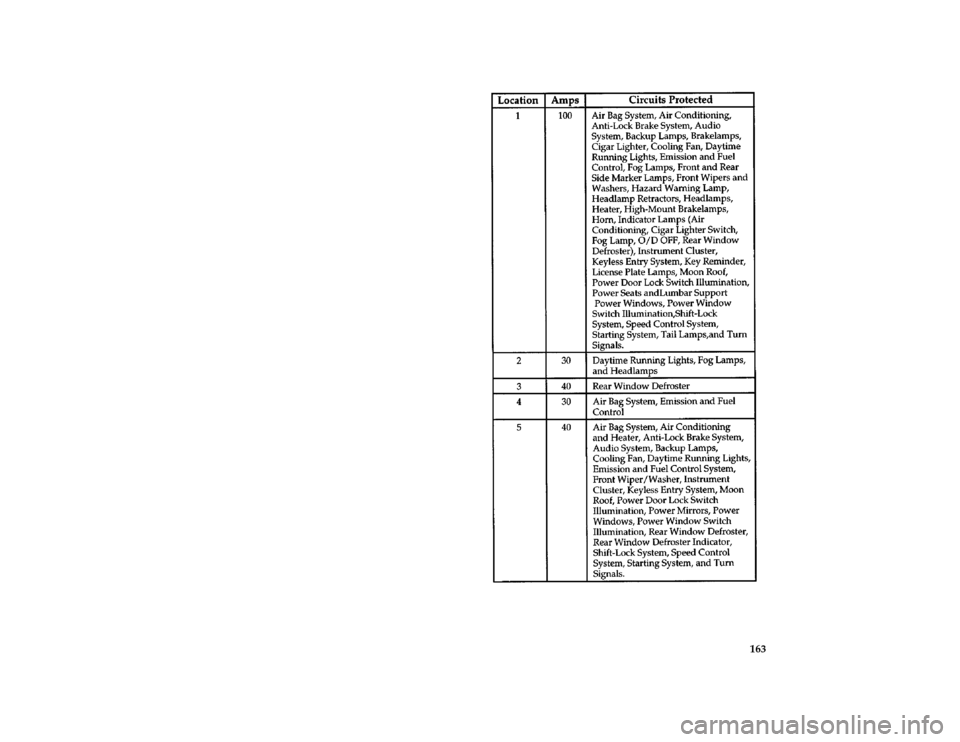

Fuses
[ER02700(ALL)05/96]
half page art:0032076-E
Fuse panel cover located under the hood
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

163
File:10prerp.ex

164
File:10prerp.ex

165
*
[ER03100(ALL)01/96]
To remove and replace a fuse, use the fuse
puller provided.
*
[ER03200(ALL)01/96]
quarter page art:0030248-C
Fuse puller tool and fuse
%*
[ER03220(ALL)05/96]

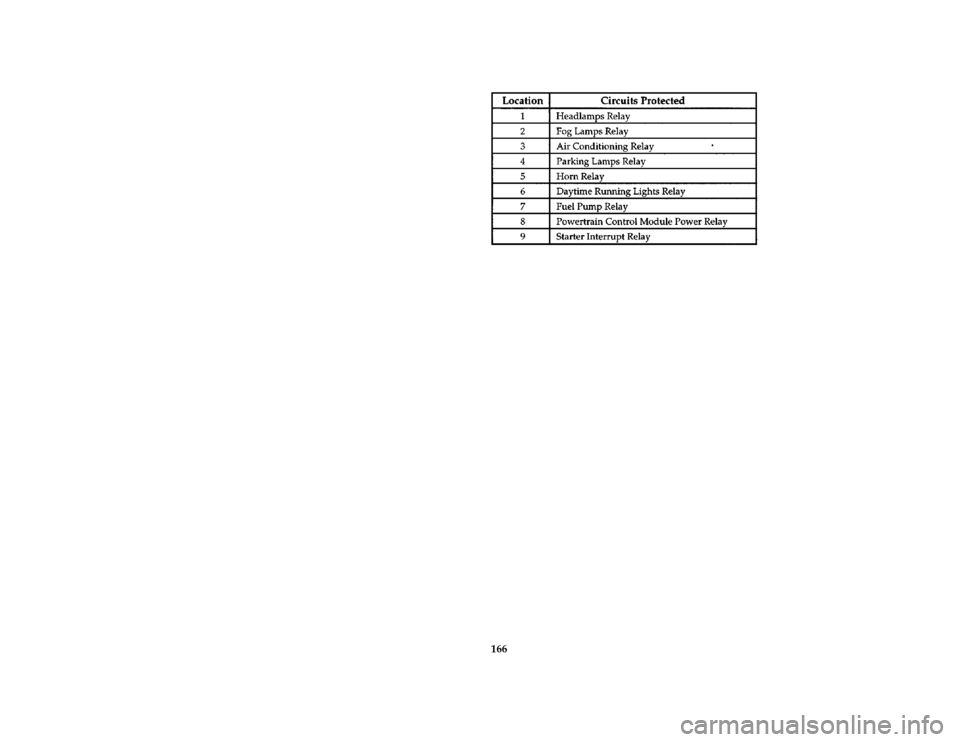

Relays
[ER03240(ALL)05/96]
half page art:0032398-AFile:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

166
File:10prerp.ex

167
*
[ER03300(ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER03400(ALL)04/96]
To find a fuse's amperage rating, check the
number on the fuse or check the color.
[ER03500(ALL)01/96]
twelve pica chart:0032119-A*
[ER03600(ALL)04/96]
Even after you replace a fuse, it may continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
%
*
[ER03800(ALL)02/96]
Changing a Tire
*
[ER03900(ALL)02/96]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996
