FORD PROBE 1997 2.G Owners Manual

229 [MC46800(ALL)01/96]
two third page art:0032122-A

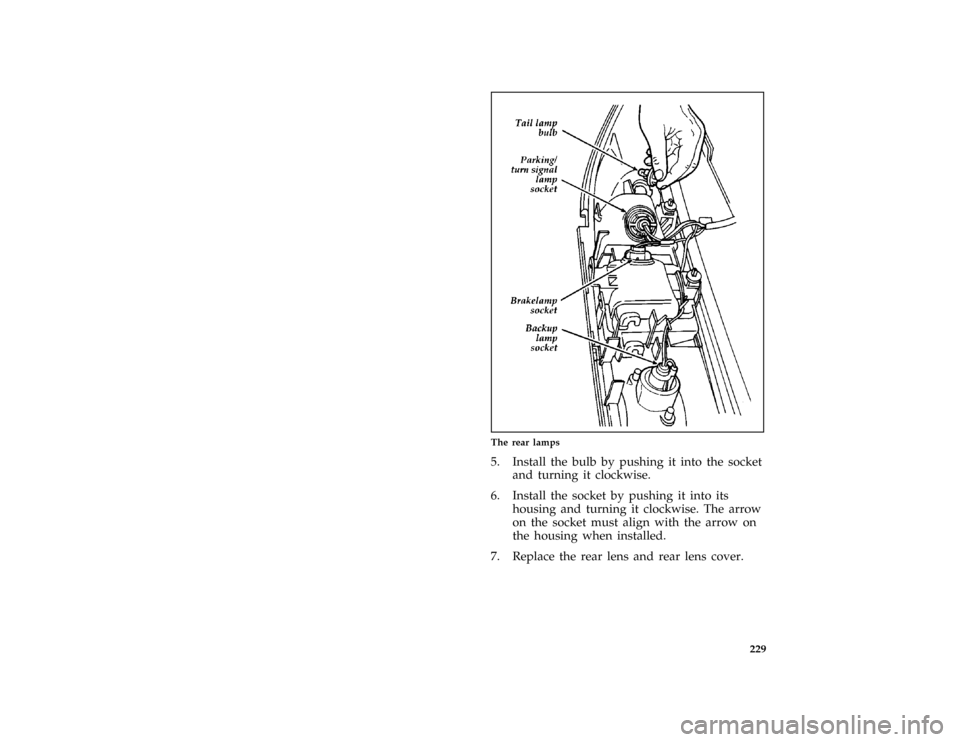

The rear lamps
[MC46900(ALL)01/96]
5. Install the bulb by pushing it into the socket
and turning it clockwise.
[MC47000(ALL)01/96]
6. Install the socket by pushing it into its
housing and turning it clockwise. The arrow
on the socket must align with the arrow on
the housing when installed.
[MC47100(ALL)01/96]
7. Replace the rear lens and rear lens cover.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

230
*
[MC47200(ALL)02/96]

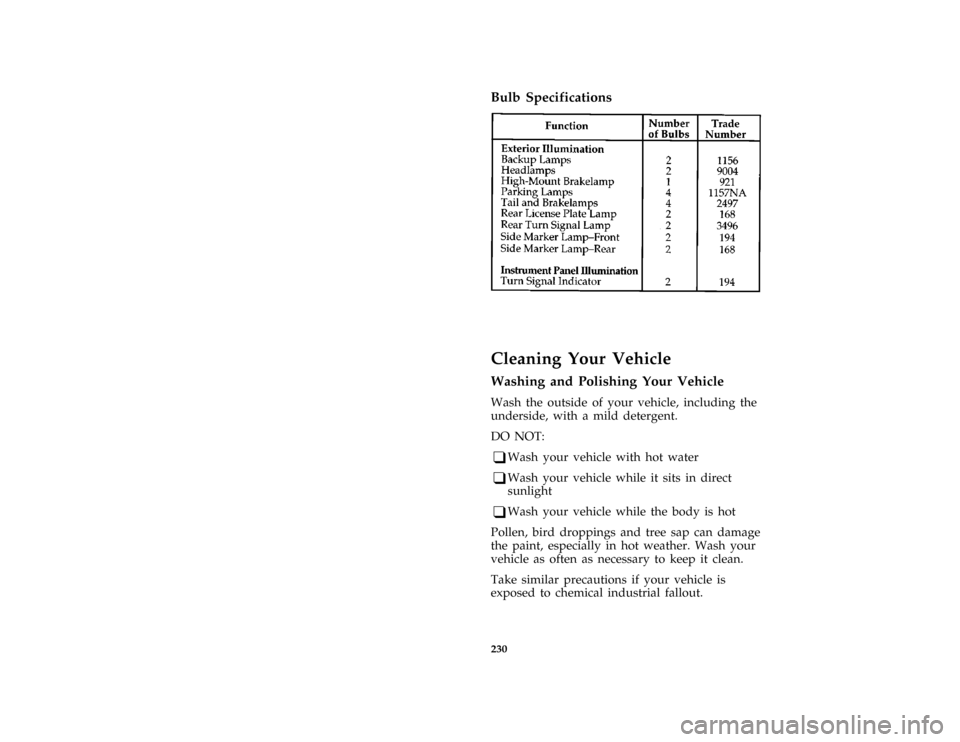

Bulb Specifications
[MC47300(ALL)01/96]
sixteen pica chart:0030275-G%*
[MC60000(ALL)04/96]
Cleaning Your Vehicle
%*
[MC60100(ALL)01/96]
Washing and Polishing Your Vehicle
*
[MC60200(ALL)01/96]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[MC60300(ALL)01/96]
DO NOT:
*
[MC60400(ALL)01/96]
q
Wash your vehicle with hot water
*
[MC60500(ALL)01/96]
q
Wash your vehicle while it sits in direct
sunlight
*
[MC60600(ALL)01/96]
q
Wash your vehicle while the body is hot
*
[MC60700(ALL)01/96]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[MC60800(ALL)01/96]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

231
*
[MC60900(ALL)01/96]
Paint damage resulting from fallout is not
related to a defect in paint materials or
workmanship and therefore is not covered by
warranty. Ford, however, believes that continual
improvement in customer satisfaction is a high
priority. For this reason, Ford has authorized its
dealers to repair, at no charge to the owner, the
surfaces of new vehicles damaged by
environmental fallout within 12 months or 12,000
miles (20,000 km) of purchase, whichever comes
first. Customers may be required to bring their
vehicle in for inspection by a Ford
representative.
*
[MC61000(ALL)01/96]
Polish your vehicle to remove harmful deposits
and protect the finish.
%*
[MC61100(ALL)01/96]
Cleaning Chrome and Aluminum Parts
*
[MC61200(ALL)01/96]
Wash chrome and aluminum parts with a mild
detergent. Do not use steel wool, abrasive
cleaners, fuel or strong detergents.
%*
[MC61300(ALL)01/96]
Cleaning Plastic Parts
*
[MC61400(ALL)01/96]
Some of your vehicle's exterior trim parts are
plastic. Clean with a tar and road oil remover if
necessary. Use a vinyl cleaner for routine
cleaning.
*
[MC61500(ALL)01/96]
Do not clean plastic parts with thinners, solvents
or petroleum-based cleaners.
%*
[MC61600(ALL)01/96]
If you have your vehicle rustproofed, remove
oversprayed rustproofing with a tar and road oil
remover. If rustproofing is not removed from
plastic and rubber parts, it can cause
deterioration.
*
[MC61700(ALL)01/96]
Because your vehicle's side mouldings are
painted in lacquer, do not use thinners or
solvents to clean them.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

232 %
*
[MC62000(ALL)01/96]
Cleaning the Exterior Lamps
*
[MC62100(ALL)01/96]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
*
[MC63000(ALL)01/96]
Cleaning the Engine
*
[MC63100(ALL)01/96]
A clean engine is more efficient because the
engine is able to cool properly. A build up of
grease and dirt acts as an insulator, keeping the
engine warmer than normal.
*
[MC63200(ALL)01/96]
q
Extreme care must be used if a power washer
is used to clean the engine. The high pressure
fluid could penetrate sealed parts and
assemblies causing damage or malfunctions.
*
[MC63300(ALL)04/96]
q
In order to avoid possible cracking of the
engine block or fuel injection pump, do not
spray a hot engine or injection pump with
cold water.
*
[MC63400(ALL)04/96]
q
The alternator, distributor and air intake must
be covered. Covering these components will
help prevent water damage.
*
[MC63500(ALL)01/96]
Never wash or rinse the engine while it is
running. Water getting into the engine may
cause internal damage.
%*
[MC63600(ALL)03/96]
Cleaning the Wheels
*
[MC63700(ALL)03/96]
Wash the wheels with the same detergent you
use to wash your vehicle's body. Do not use
acid-based wheel cleaners, steel wool, abrasives,
fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil
remover to remove grease and tar.
*
[MC63800(ALL)03/96]
NOTE: Before going to a car wash, find out if
the brushes are abrasive.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

233
*
[MC63900(ALL)05/96]
If you have whitewall tires that are difficult to
clean with regular detergent, use whitewall tire
cleaner. Follow the directions on the container
and rinse the tires with plenty of clean water.
%*
[MC64000(ALL)02/96]
Cleaning the Interior Lamps
*
[MC64100(ALL)02/96]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
[MC64110(ALL)03/96]
Cleaning the Instrument Panel Lenses
[MC64120(ALL)04/96]
To clean the lenses on your instrument panel,
use Ford Glass Cleaner and a soft cloth. Never
use paper towels or abrasive cleaners; they can
scratch the lenses.
%*
[MC64500(ALL)03/96]
Cleaning the Seats
*
[MC64600(ALL)01/96]
Leather
*
[MC64700(ALL)01/96]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
%*
[MC64800(ALL)05/96]
Fabric
*
[MC64900(ALL)05/96]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[MC65000(ALL)05/96]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

234 %
*
[MC66000(ALL)02/96]
Cleaning the Safety Belts
*
[MC66100(ALL)02/96]
Clean the safety belts with any mild soap
solution that is recommended for cleaning
upholstery or carpets. Do not bleach or dye the
belt webbing because this may weaken it.
%
*
[MC70000(ALL)01/96]
Vehicle Storage
*
[MC70100(ALL)01/96]
Maintenance Tips
*
[MC70200(ALL)01/96]
If you plan on storing your vehicle for an
extended period of time (60 days or more), refer
to the following maintenance recommendations
to ensure your vehicle stays in good operating
condition.
*
[MC70300(ALL)01/96]
General
*
[MC70400(ALL)01/96]
q
Store all vehicles in a dry, ventilated place.
*
[MC70500(ALL)01/96]
q
Protect from sunlight, if possible.
*
[MC70600(ALL)01/96]
q
If vehicles are stored outside, they require
regular maintenance to protect against rust
and damage.
*
[MC70700(ALL)01/96]
Body
*
[MC70800(ALL)01/96]
q
Wash vehicle thoroughly to remove dirt,
grease, oil, tar or mud from exterior surfaces,
rear wheel housing and underside of front
fenders.
*
[MC70900(ALL)01/96]
q
Periodically wash vehicles stored in exposed
locations.
*
[MC71000(ALL)01/96]
q
Touch-up raw or primed metal to prevent
rust.
*
[MC71100(ALL)01/96]
q
Cover chrome and stainless steel parts with a
thick coat of auto wax to prevent
discoloration. Re-wax as necessary when the
vehicle is washed.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

235
*
[MC71200(ALL)01/96]
q
Lubricate all hood, door and trunk lid hinges
and latches with a light grade oil.
*
[MC71300(ALL)01/96]
q
Cover interior soft trim to prevent fading.
*
[MC71400(ALL)01/96]
q
Keep all rubber parts free from oil and
solvents.
%*
[MC71500(ALL)01/96]
Engine
*
[MC71600(ALL)01/96]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[MC71700(ALL)01/96]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[MC71800(ALL)01/96]
Fuel system
%*
[MC71900(ALL)01/96]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[MC72000(ALL)01/96]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
*
[MC72100(ALL)01/96]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
*
[MC72200(ALL)01/96]
A volatile corrosion inhibitor added to the fuel
system will protect the fuel system's inner
surfaces from corrosion. Follow the instructions
packaged with the product.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

236 %
*
[MC72300(ALL)01/96]
Cooling system
*
[MC72400(ALL)01/96]
q
Protect against freezing temperatures.
%*
[MC72500(ALL)01/96]
Battery
*
[MC72600(ALL)01/96]
q
Check and recharge as necessary.
*
[MC72700(ALL)01/96]
q
Keep connections clean and covered with a
light coat of grease.
%*
[MC72800(ALL)01/96]
Brakes
*
[MC72900(ALL)01/96]
q
Make sure brakes and parking brake are fully
released.
%*
[MC73000(ALL)01/96]
Tires
*
[MC73100(ALL)01/96]
q
Maintain recommended air pressure.
*
[MC73200(ALL)01/96]
Miscellaneous
*
[MC73300(ALL)01/96]
q
Make sure all linkages, cables, levers and
clevis pins under vehicle are covered with
grease to prevent rust.
*
[MC73400(ALL)01/96]
q
Move vehicles at least 25 feet (10 m) every 15
days to lubricate working parts to prevent
corrosion.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

237

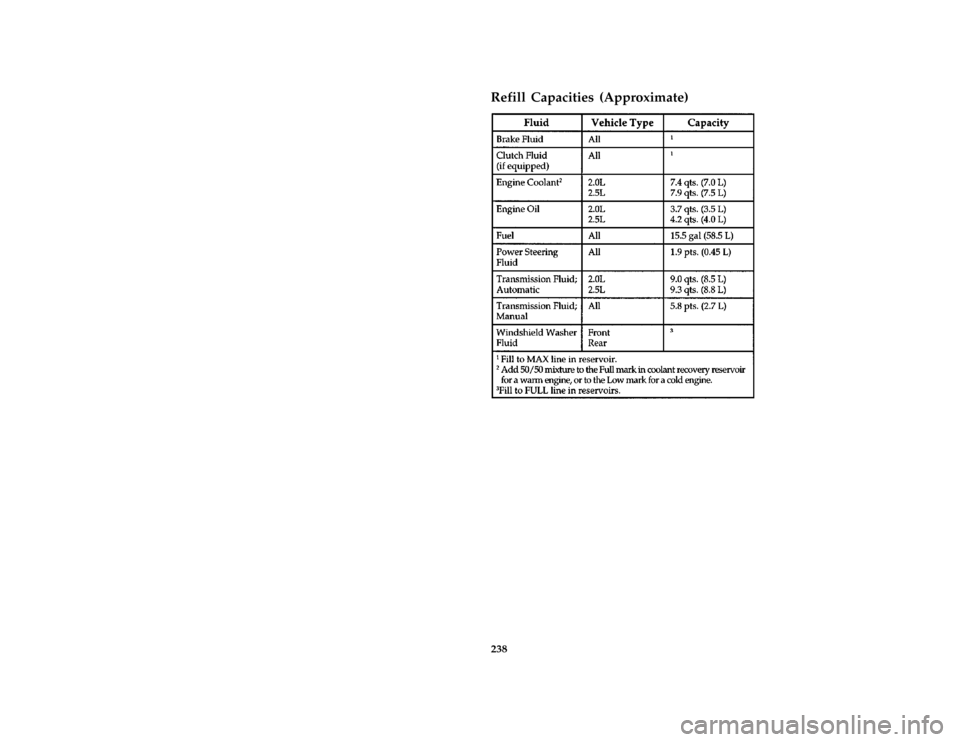

Capacitiesand
*
File:12prcsp.ex

238
File:12prcsp.ex
