Roadside Emergencies
231
[RE21151(ALL)04/94]

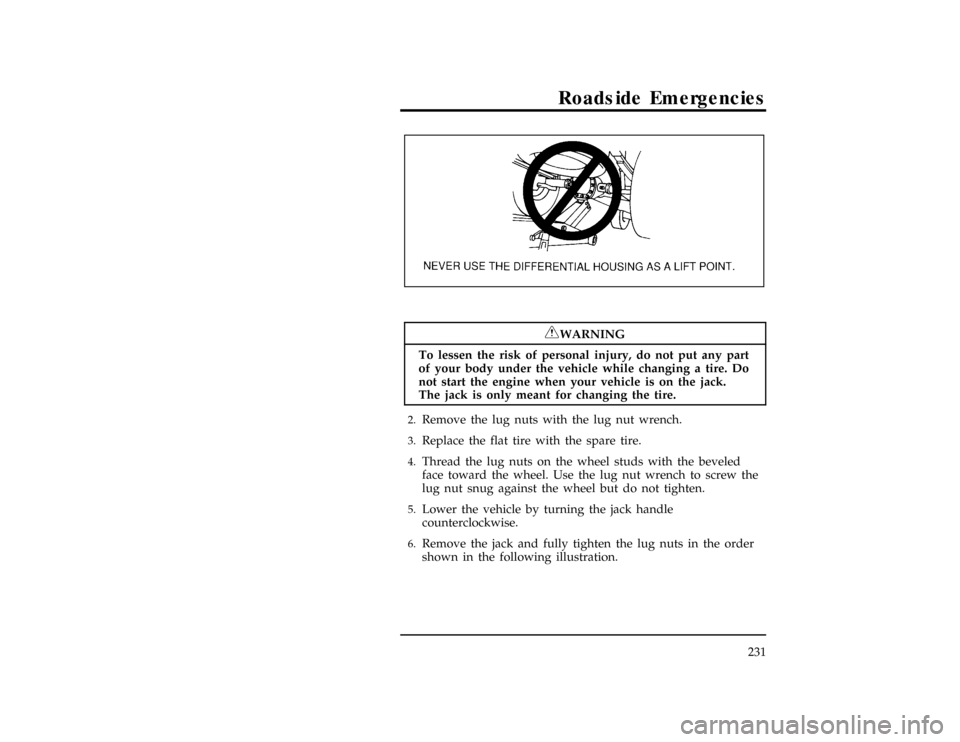

10-1/2 pica
art:0021188-A*
[RE21200(ALL)05/95]
RWARNING
To lessen the risk of personal injury, do not put any part
of your body under the vehicle while changing a tire. Do
not start the engine when your vehicle is on the jack.
The jack is only meant for changing the tire.
*
[RE21400(ALL)06/95]2.
Remove the lug nuts with the lug nut wrench.
*
[RE21500(ALL)06/95]3.
Replace the flat tire with the spare tire.
*
[RE21700(ALL)06/95]4.
Thread the lug nuts on the wheel studs with the beveled
face toward the wheel. Use the lug nut wrench to screw the
lug nut snug against the wheel but do not tighten.
*
[RE22200(ALL)01/95]5.
Lower the vehicle by turning the jack handle
counterclockwise.
*
[RE22300(ALL)06/95]6.
Remove the jack and fully tighten the lug nuts in the order
shown in the following illustration.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

232
[RE22400(ALL)04/94]
7-1/2 pica art:0021189-A
Lug nut tightening sequence
*
[RE23400(ALL)05/95]
RWARNING
Use of wheels or lug nuts other than original equipment
could cause damage to the wheel or mounting system
and allow the wheels to come off while the vehicle is in
motion.
*
[RE23500(ALL)07/95]7.
Replace any wheel covers, ornaments, or hub caps that your
vehicle has. Make sure that they are screwed or snapped into
place.
[RE23600(ALL)01/95]8.
Put the tire, jack, and wrench away. (Make sure jack is
securely fastened so it does not rattle when you drive.)
*
[RE23700(ALL)06/95]9.
Unblock the wheels.
[RE23750(R )09/95]
NOTE: If your vehicle is equipped with P265 75R15 AT tires
or P235 75R15 AT tires do not stow a flat or inflated
full size tire in the spare tire carrier. The carrier is
designed to hold the temporary spare which comes
with your vehicle. The stowage of a full size tire in
the spare tire carrier may damage the tire or the
vehicle. The flat full size tire should be stowed and
tied down in the pickup box bed until it can be
repaired.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
233
*
[RE23800(ALL)06/93]
Retighten the wheel lug nuts to the specified torque at 500 miles
(800 km) of new vehicle operation and at intervals specified in
theMaintenance Schedule and Recordbooklet.
*
[RE24200(ALL)10/89]
Also retighten to the specified torque at 500 miles (800 km) of
operation after any wheel change or any time the lug nuts are
loosened.
*
[RE24301(ALL)05/95]
RWARNING
Failure to retighten wheel lug nuts at mileages specified
could allow wheels to come off while the vehicle is in
motion.
[RE24360(R )04/94]
eight pica
chart:0020316-B[RE24400(ALL)10/94]
The Fuel Pump Shut-off Switch
*
[RE24500(ALL)07/95]
If the engine cranks but does not start or if you have had a
collision, the fuel pump shut-off switch may have been
triggered. The shut-off switch is a device that stops the fuel
pump when your vehicle has been involved in a substantial jolt.
*
[RE24600(ALL)07/95]
For information on how to check and reset the fuel pump
shut-off switch, seeFuel pump shut-off switchin the Index.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

234
%*
[RE24700(ALL)05/95]
Towing Your Vehicle
[RE24800(ALL)09/95]
If you need to have your vehicle towed, contact a professional
towing service or, if you are a member, your roadside assistance
center.
[RE24806(R )09/95]
Ranger 4x2/4x4
[RE24811(R )09/95]
The recommended method to tow your Ranger is with flatbed
or wheel lift equipment. However, slingbelt towing is
acceptable.
[RE24816(R )09/95]
Ranger without rear bumper
[RE24821(R )09/95]
The recommended method to tow your Ranger is with flatbed
or wheel lift equipment. However, slingbelt towing is
acceptable. Be sure to remove the undervehicle spare tire before
attaching slingbelt towing equipment.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
235
[RE24825(R )09/95]
three fourths page
art:0090196-A*
[RE24850(ALL)03/95]
When calling for a tow truck, tell the operator what kind of
vehicle you have. A towing manual is available from Ford
Motor Company for all authorized tow truck operators. Have
your tow truck driver refer to this manual for the proper
hook-up and towing procedures for your vehicle.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

236
[RE27600(ALL)12/91]
Recreational Towing Ð All wheels on the ground
[RE27700(ALL)05/91]
Towing your vehicle can be successfully performed by following
the appropriate guidelines for the type of powertrain on the
vehicle to be towed. The following guidelines, by powertrain
combination, are designed to ensure that the transmission is not
damaged due to insufficient lubrication.
[RE27800(ALL)12/91]
4x2ÐAutomatictransmission
*
[RE27900(ALL)03/95]
n
Release the parking brake.
[RE28000(ALL)01/95]
n
Place transmission gearshift in N (neutral).
[RE28100(ALL)10/94]
n
Maximum speed is 35 mph (56 km/h).
[RE28200(ALL)10/94]
n
Maximum distance is 50 miles (80 km).
[RE28300(ALL)06/94]
If a distance of 50 miles (80 km) or speed of 35 mph (56 km/h)
will be exceeded, youmust:
[RE28400(ALL)05/91]
n
Disconnect the driveshaft at the rear differential and properly
support it under the vehicle.
[RE28500(ALL)01/95]
n
Mark the driveshaft and axle flanges to ensure proper
position when reconnecting the driveshaft. Refer to service
manual for proper driveshaft fastener torque specification.
(See theAccessorieschapter for information on ordering
service manuals.)
[RE28600(ALL)05/95]
RWARNING
When disconnecting/installing the driveshaft, the parking
brake must be set and the wheels blocked to ensure the
vehicle does not roll.
[RE28700(ALL)06/94]
n
Maximum speed is 55 mph (88 km/h), unlimited distance.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
237
[RE28720(ALL)12/91]
4x2ÐManualtransmission
*
[RE28740(ALL)03/95]
n
Release the parking brake.
[RE28750(ALL)01/95]
n
Place the transmission gearshift in the neutral position.
[RE28770(ALL)12/91]
n
Maximum speed is limited by towing equipment
manufacturer's recommendation, unlimited distance.
[RE28800(R )06/94]
4x4ÐManualshifttransfercase
*
[RE28900(R )03/95]
n
Release the parking brake.
[RE29000(R )01/95]
n
Place the transmission gearshift in the neutral position.
[RE29100(R )01/95]
n
Place the transfer case gearshift in the neutral position.
[RE29200(R )06/94]
n
Set the manual locking hubs in the FREE position.
[RE29300(R )06/94]
n
Maximum speed is 55 mph (88 km/h), unlimited distance.
[RE29400(R )06/94]
4 x 4 Electric shift transfer case
*
[RE29500(ALL)03/95]
n
Release the parking brake.
[RE29600(ALL)01/95]
n
Place the transmission gearshift in the neutral position.
[RE29700(R )06/94]
n
Ensure the transfer case is in 2H and the hubs are unlocked.
[RE29800(ALL)10/94]
NOTE: Both the 4WD and 4WD Low indicator lights in the
instrument panel will be off when the 4WD switch is
in 2WD.
[RE29850(ALL)10/92]
For automatic transmissions:
[RE29900(ALL)10/94]
n
Maximum speed is 35 mph (56 km/h).
[RE30000(ALL)10/94]
n
Maximum distance is 50 miles (80 km).
[RE30100(ALL)06/94]
If a distance of 50 miles (80 km) or speed of 35 mph (56 km/h)
will be exceeded, youmust:
[RE30200(R )06/94]
n
Remove the rear driveshaft.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

238
[RE30300(ALL)06/94]
n
Mark the driveshaft and transfer case/axle flanges to ensure
proper position when installing the driveshaft. Refer to
service manual for proper driveshaft torque specification.
[RE30400(ALL)05/95]
RWARNING
When disconnecting/installing the driveshaft, the parking
brake must be set and the wheels blocked to ensure the
vehicle does not roll.
[RE30500(ALL)06/94]
n
Maximum speed is 55 mph (88 km/h), unlimited distance.
[RE30525(ALL)10/92]
For manual transmissions:
[RE30550(ALL)06/94]
n
Maximum speed is 55 mph (88 km/h), unlimited distance.
[RE30600(ALL)10/94]
Limited vehicle operation, such as driving the vehicle while at a
campsite, can be accomplished with the rear driveshaftremoved
by using the front drive to propel the vehicle. To operate the
vehicle in this condition, youmustfollow the following
guidelines:
[RE30700(ALL)10/94]
n
Place the transfer case in 4WD by rotating 4WD switch to
4WD HIGH.
[RE30800(ALL)10/94]
n
Drive the vehicleonlyon good surface roads to avoid
excessive loads on the front-wheel drive system.
[RE30900(ALL)10/94]
n
Maximum speed is 35 mph (56 km/h).
[RE31000(ALL)10/94]
n
Maximum distance is 50 miles (80 km).
[RE31100(ALL)10/94]
n
Avoid quick acceleration and steep grades.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
239
[RE31200(ALL)10/94]
To return the vehicle to a towable condition, youmust:
[RE31300(ALL)10/94]
n
Place the transfer case in 2WD by rotating the 4WD switch
to 2WD.
[RE31400(ALL)10/94]
NOTE: Both the 4WD and 4WD Low indicator lights in the
instrument cluster will be off when the transfer case
is in 2WD.
[RE31500(ALL)10/94]
n
After 2WD is selected, the front hubs must be ªunlockedº by
moving the vehicle in reverse direction for a minimum of ten
feet.
[RE31600(ALL)10/94]
n
Confirm the front hubs are unlocked by inspecting the front
drive shaft to verify it does not turn when the vehicle is
towed.
[RE31700(ALL)10/94]
In addition to the above guidelines, it is recommended that you
follow the instructions provided by the manufacturer of the
towing apparatus.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

241
Customer Assistance
%*
[HS00205(ALL)06/94]
Roadside Assistance
*
[HS00210(ALL)10/95]
Ford Motor Company has set up a 24-hour, seven-day-a-week
hotline with trained operators who put you in touch with the
help you need if you experience a problem with your vehicle.
This complimentary service is provided to you throughout your
warranty period of 3 years or 36,000 miles (60,000 km),
whichever comes first. To purchase Roadside Assistance
coverages beyond this period (available through Ford Auto Club
in the United States or Ford and Lincoln-Mercury dealers in
Canada), contact your Ford or Lincoln-Mercury dealer.
Additional Roadside Assistance coverage is unavailable in
Puerto Rico and the Virgin Islands.
*
[HS00215(ALL)06/94]
Roadside Assistance will cover the following:
*
[HS00220(ALL)06/94]
n
Mount your spare if you have a flat tire.
*
[HS00225(ALL)06/94]
n
Jump-start your battery if it is dead.
*
[HS00230(ALL)06/94]
n
Unlock your vehicle if you are locked out.
*
[HS00235(ALL)06/94]
n
Bring you fuel if you run out.
*
[HS00240(ALL)06/94]
n
Tow your vehicle if you are stranded. Even non-warranty
related tows, like accidents or getting stuck in mud or snow,
are covered (some exclusions apply, such as impound towing
and repossession).
*
[HS00245(ALL)06/94]
How to use Roadside Assistance
*
[HS00250(ALL)06/94]
Your Roadside Assistance identification card can be found in the
Owner Guide portfolio in your glove compartment. Complete
the card and place it in your wallet for quick reference.
*
[HS00255(ALL)04/95]
To receive roadside assistance in the United States call
1-800-241-FORD (in Canada call 1-800-665-2006).
*
[HS00260(ALL)04/95]
Should you need to arrange for roadside assistance yourself,
Ford Motor Company will reimburse the reasonable cost. To
obtain information about reimbursement call 1-800-241-FORD (in
Canada call 1-800-665-2006).
File:13unhsr.ex
Update:Wed May 1 13:53:43 1996
