Front Axle Reserve Capacity in Pounds (kgs): If this value is
given as 83 pounds (38 kgs) on the label, does this mean that
you are limited to adding only 83 pounds (38 kgs) of
accessories to the front end capacity? Not exactly. This says that
you can load 83 pounds (38 kgs) of options on the front axle,
add 150 pound (68 kgs) passengers to all seating positions, and
add evenly distributed cargo in the box without exceeding the
GAWR F.
*
[DR31950(ALL)06/92]
It is possible to hang heavier equipment on the front as long as
the vehicle owner/operator compensates. This can be
accomplished, if necessary, by carrying fewer passengers, less
cargo or positioning cargo more toward the rear, which has the
effect of reducing the load on the front. Keep in mind that the
GAWR F, GAWR R, nor the GVWR should ever be exceeded.
*
[DR32001(ALL)08/95]
Total Accessory Reserve Capacity in Pounds (kgs): If, for
example, this value is given as 112 pounds (51 kgs), does this
mean that you are limited to adding 112 pounds (51 kgs) of
accessories to your vehicle? Not exactly. This is a number that is
related to government crash test standards, and only indirectly
reflects on the amount of accessory weight that can be carried.
*
[DR32050(ALL)06/94]
In the case of both these numbers (83 and 112 pounds) (38 and
51 kgs), the important thing to remember is that for safe
operation, an owner/operator should calculate the amount and
the distribution of all weights (passengers, accessory equipment
and cargo). These combined weights should fall below the
vehicle's GVWR and GAWR.
*
[DR32101(R )05/91]
Camper Bodies
[DR32175(R )01/95]
NOTE: Your Ranger Pickup is not recommended for slide-in
camper bodies.
File:10undrr.ex
Update:Wed May 1 13:52:06 1996

202
*
[DR32201(ALL)01/93]
Trailers
*
[DR32251(ALL)10/94]
Towing a trailer safely means having the proper weight on the
tongue (usually 10% of the trailer weight). Load-equalizing
hitches on large rigs may transfer weight to each of the vehicle's
axles. This weight must be included in capacity calculations
when determining if the vehicle is loaded within safe limits.
*
[DR32301(ALL)01/95]
If your vehicle exceeds the GVWR, remove cargo from your
vehicle accordingly. If your vehicle exceeds the GAWR for
either axle, shift the load or remove cargo accordingly.
*
[DR32350(ALL)02/95]
RWARNING
If the GVWR or the GAWR specified on the Safety
Compliance Certification Label is exceeded, your vehicle
may be damaged or you may lose control and injure
someone.
*
[DR32401(ALL)05/95]
RWARNING
Towing trailers beyond the maximum recommended
gross trailer weight could result in engine damage,
transmission/axle damage, structural damage, loss of
control, and personal injury.
*
[DR32450(ALL)05/95]

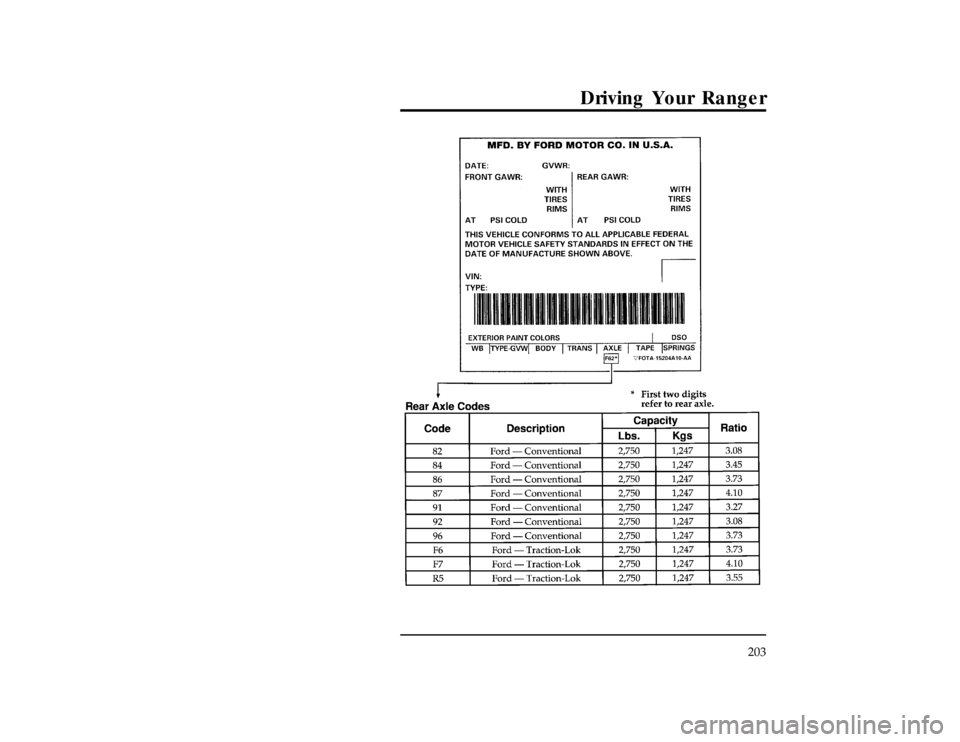

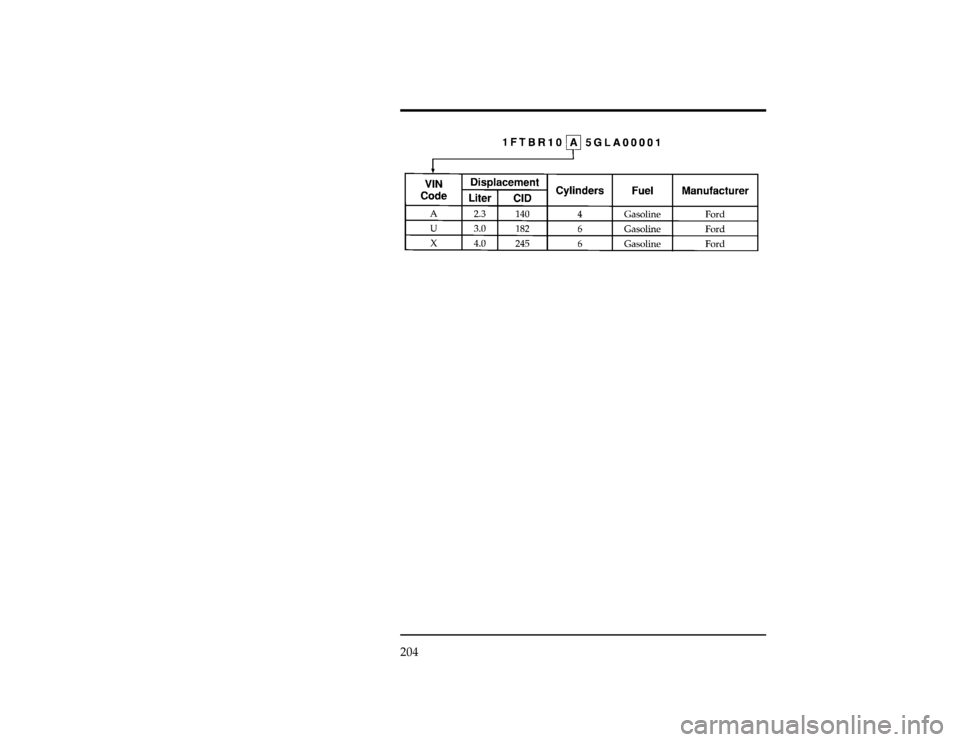

Use the Safety Compliance Certification Label to find the axle
code number and the engine type for your vehicle.
*
[DR32500(ALL)03/91]
Use the appropriate Maximum Gross Combined Weight Rating
(GCWR) chart to find the Maximum GCWR for your type
engine and rear axle ratio.
*
[DR32551(ALL)03/91]
Subtract your Loaded Vehicle Weight from the Maximum
GCWR found in the chart. This is the maximum trailer weight
your vehicle can tow and must fall below the maximum shown
under Trailer Weight on the chart.
File:10undrr.ex
Update:Wed May 1 13:52:06 1996

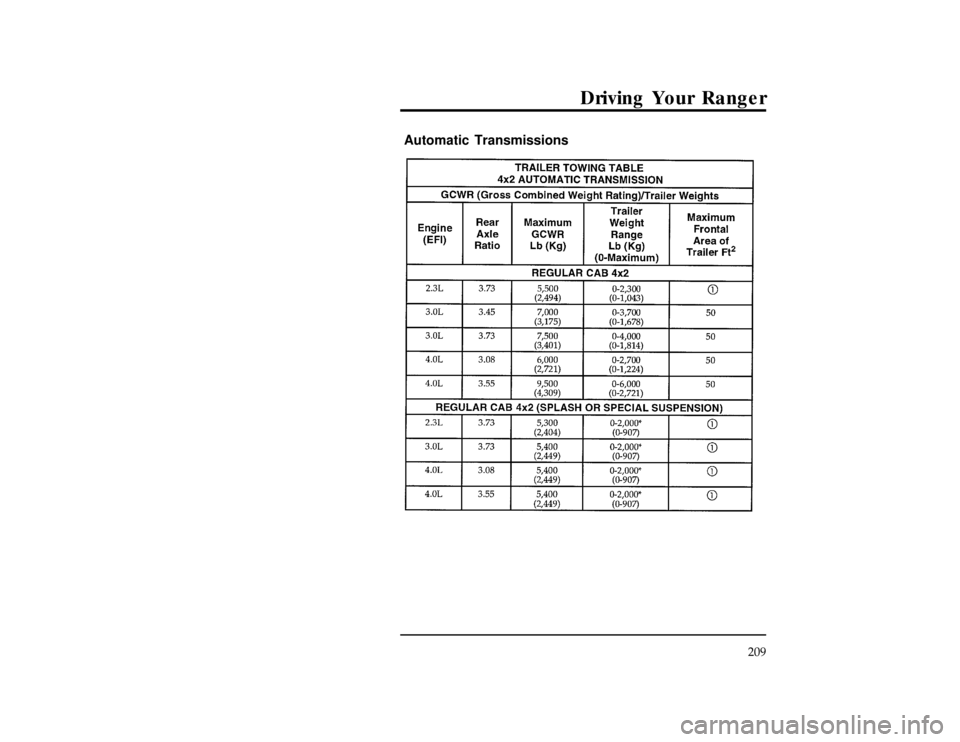

Driving Your Ranger
203
[DR35200(R )04/94]
thirty-four pica

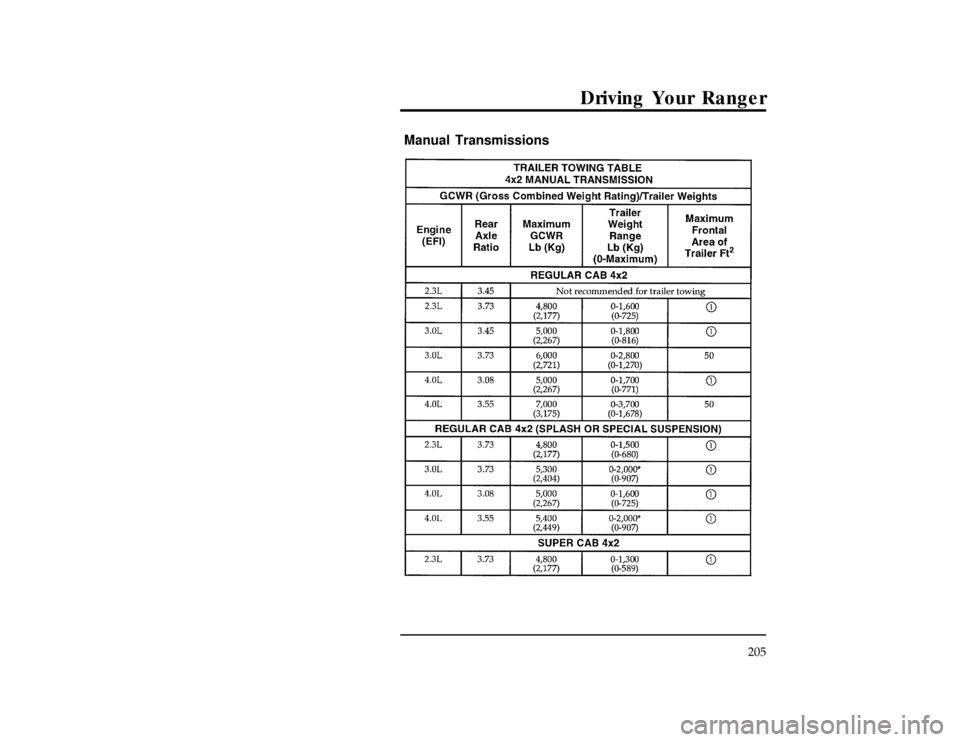

chart:0020174-GFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

204
[DR35250(R )04/94]

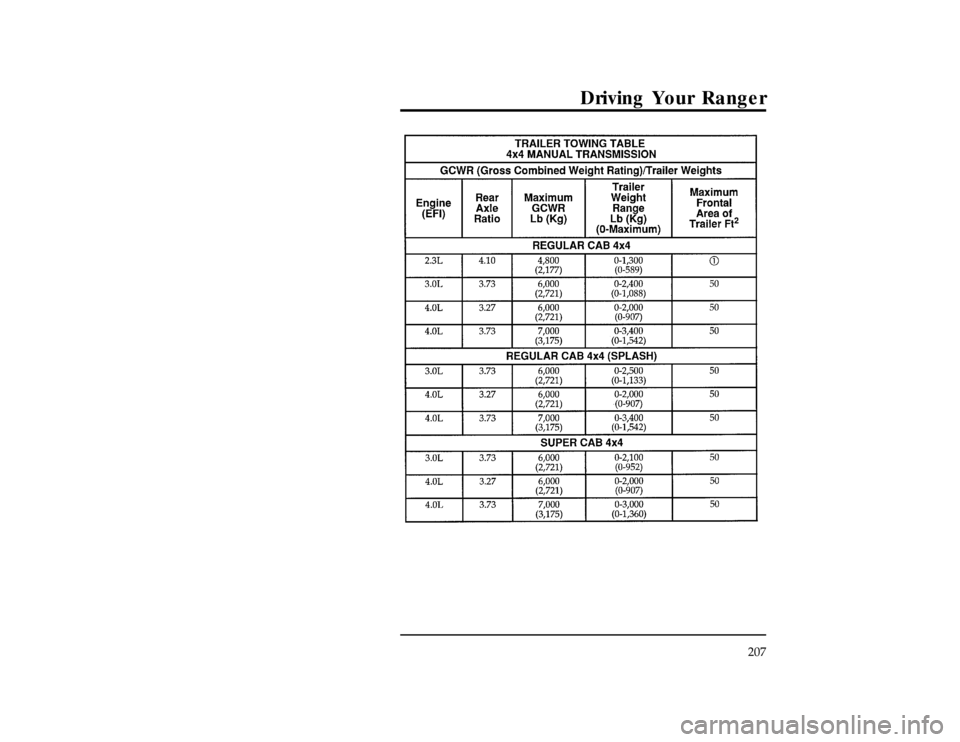

ten pica chart:0020474-EFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

Driving Your Ranger
205
*
[DR35280(R )04/89]
Manual Transmissions
[DR35300(R )10/94]

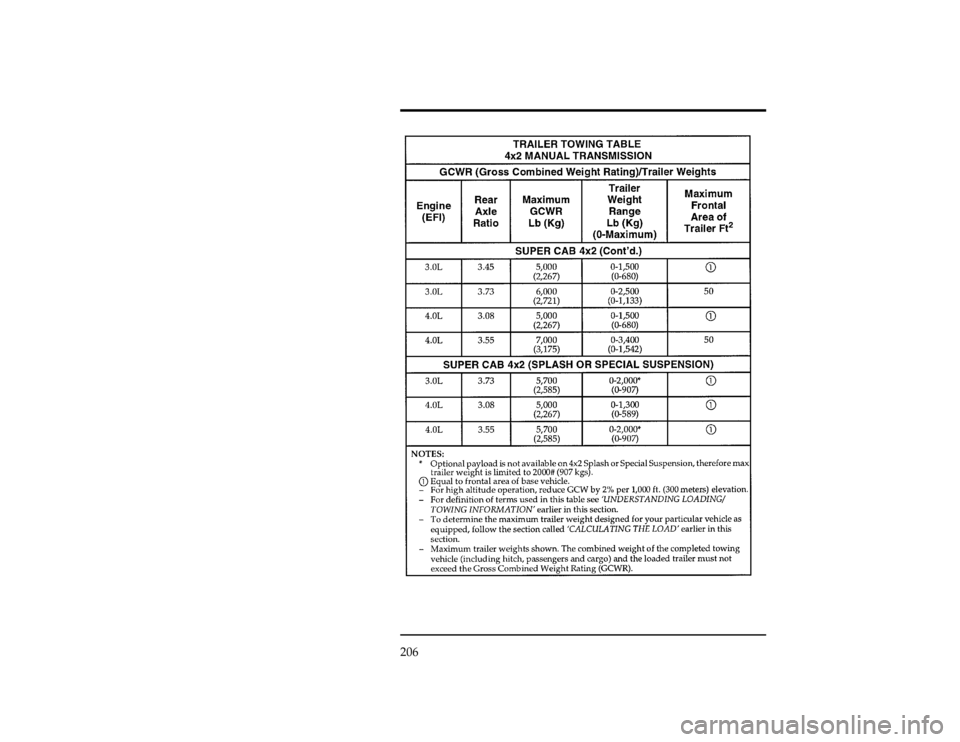

thirty-two pica
chart:0020175-MFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

206
[DR35325(R )10/94]
thirty-four pica
chart:0020961-GFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

Driving Your Ranger
207
[DR35350(R )06/94]

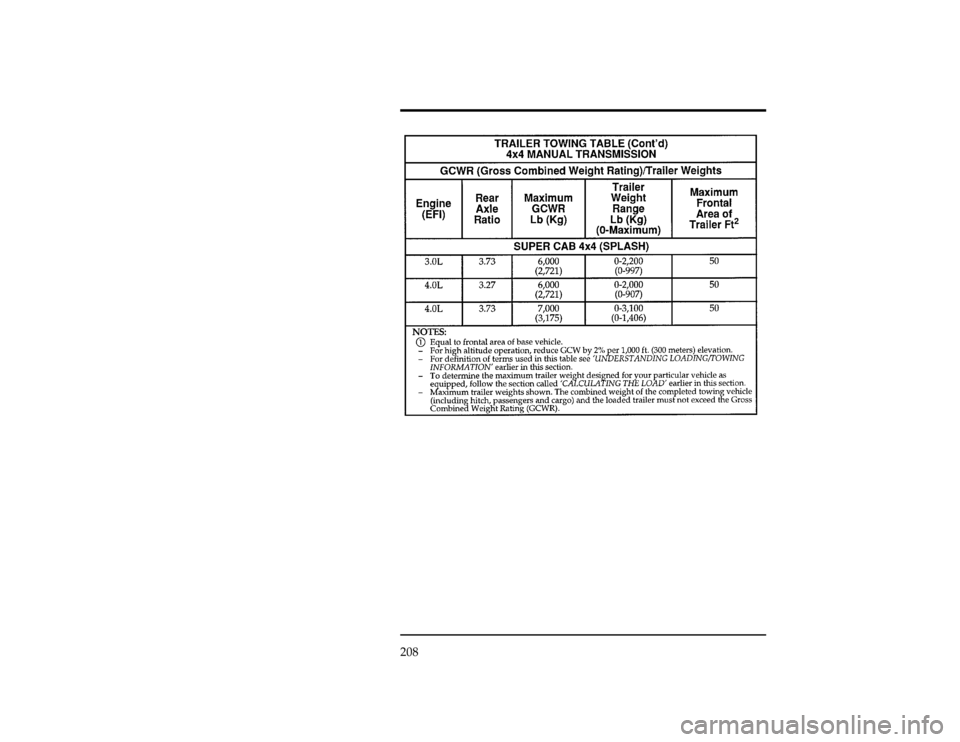

thirty-four pica
chart:0020927-EFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

208
[DR35360(R )06/94]
twenty pica
chart:0021259-AFile:10undrr.ex
Update:Wed May 1 13:52:06 1996

Driving Your Ranger
209
*
[DR35380(R )06/94]
Automatic Transmissions
[DR35400(R )10/94]

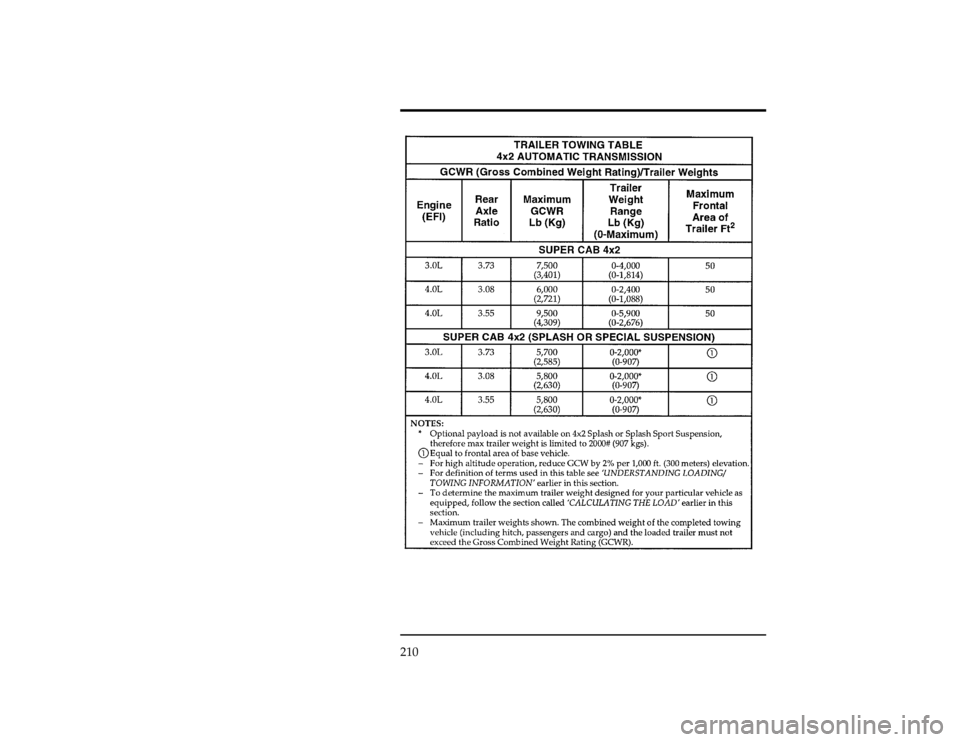

twenty-eight pica
