Connecting the jumper cables
*
[RE01800(ALL)03/95]1.
Connect one end of the first jumper cable to the positive (+)
terminal of the discharged battery. (You can connect either
jumper cable to the positive (+) terminal, as long as you use
the same cable for both positive terminals.) Most jumper
cables have a red cable and a black cable. The red cable is
generally used for the positive terminals and the black for
the negative ones.
*
[RE01900(ALL)04/95]2.
Connect the other end of the first cable to the positive (+)
terminal of the booster battery.
*
[RE02000(ALL)07/95]3.
Connect one end of the second cable to the negative (s)
terminal of the booster battery Ð NOT to the discharged
battery.
*
[RE02100(ALL)03/95]4.
Connect the other end of that cable to a good metallic
surface on the engine or frame of the disabled vehicle. The
following illustration shows where you can find a metallic
surface.
*
[RE02200(ALL)07/95]
RWARNING
Do not connect the end of the second cable to the
negative (s) terminal of the battery to be jumped. A
spark may cause an explosion of the gases that surround
the battery.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

222
[RE02300(ALL)08/94]
10-1/2 pica
art:0021186-B

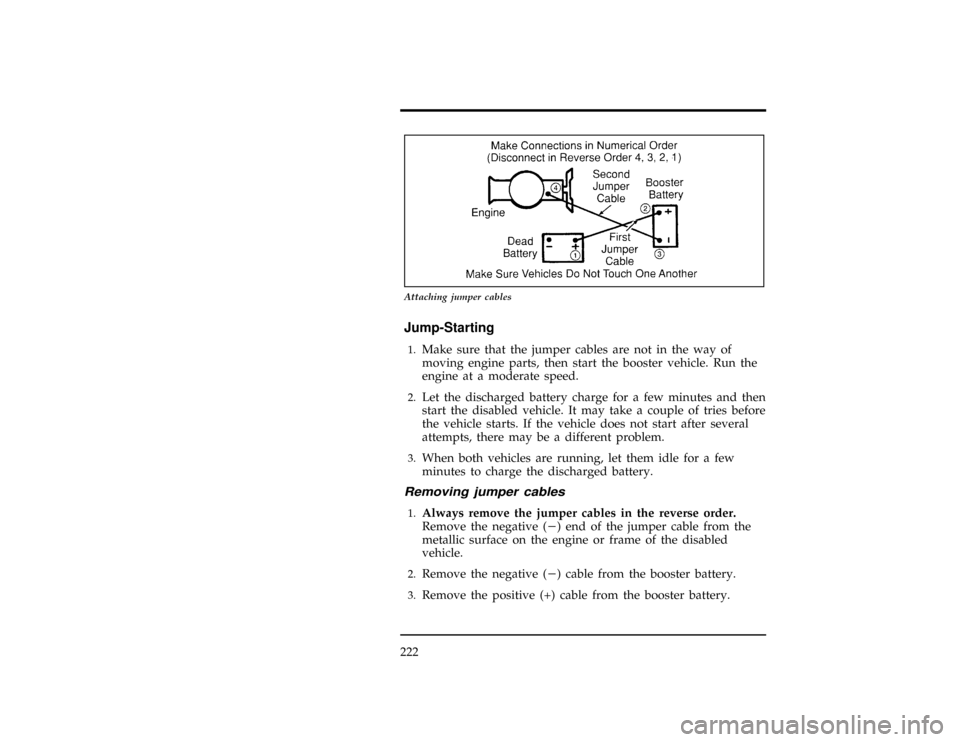

Attaching jumper cables
*
[RE02500(ALL)03/95]
Jump-Starting
*
[RE02600(ALL)03/95]1.
Make sure that the jumper cables are not in the way of
moving engine parts, then start the booster vehicle. Run the
engine at a moderate speed.
*
[RE02700(ALL)03/95]2.
Let the discharged battery charge for a few minutes and then
start the disabled vehicle. It may take a couple of tries before
the vehicle starts. If the vehicle does not start after several
attempts, there may be a different problem.
*
[RE02800(ALL)03/95]3.
When both vehicles are running, let them idle for a few
minutes to charge the discharged battery.
%*
[RE02900(ALL)03/95]
Removing jumper cables
*
[RE03000(ALL)03/95]1.
Always remove the jumper cables in the reverse order.
Remove the negative (s) end of the jumper cable from the
metallic surface on the engine or frame of the disabled
vehicle.
*
[RE03100(ALL)06/95]2.
Remove the negative (s) cable from the booster battery.
*
[RE03200(ALL)06/95]3.
Remove the positive (+) cable from the booster battery.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
223
*
[RE03400(ALL)05/95]4.
Remove the other end of the positive (+) cable from the
discharged battery.
*
[RE03500(ALL)04/95]
After the vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions. Drive it around for a while
with all electrical accessories turned off to let the battery
recharge. Driveability may be deteriorated slightly until all drive
modes are ªrelearned.ºYou may need to use a battery charger
to fully recharge the battery.
*
[RE03550(R )01/95]
If you need to replace your battery, seeBatteryin theServicing
Your Rangerchapter.
%*
[RE03600(ALL)03/95]
Changing a Tire
*
[RE03700(ALL)01/95]
If you get a flat tire while you are driving, do not apply the
brake heavily. Instead, gradually decrease the speed. Hold the
steering wheel firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off the ignition, set
the parking brake, and turn on the hazard flashers.
%*
[RE03800(ALL)03/95]
The Conventional Spare Tire
*
[RE03900(R )01/95]
If you have the conventional spare tire, you can use it as a
spare or as a regular tire. This spare tire is identical to the other
tires that come with your vehicle, although the wheel may not
match.
*
[RE03930(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
%*
[RE04000(ALL)03/95]
The Temporary Spare Tire
*
[RE04100(ALL)03/95]
You may have a high pressure temporary spare tire. This spare
tire is smaller than a regular tire and is designed for emergency
use only. Use it only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with the words
ªTEMPORARY USE ONLYº so that you can easily identify it.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

224
[RE04150(ALL)01/95]
It is not recommended that the vehicle be operated in the 4WD
modes with a temporary spare. If 4WD operation is necessary,
do not operate at speeds above 10 mph (16 km/h) or for
distances above 50 miles (80 km). Extended operation in 4WD
with a temporary spare may result in damage to powertrain
components.
*
[RE04200(ALL)01/93]
RWARNING
If you use the temporary spare tire continuously or do
not follow these precautions, the tire could fail, causing
you to lose control of the vehicle, possibly injuring
yourself or others.
*
[RE04275(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[RE04280(ALL)10/94]
Extended use of other than matching size spare tires on a
Traction-Lok axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal
driving and should not be noticeable to the driver.
*
[RE04300(ALL)01/95]
When you drive with the temporary spare tire, DO NOT:
*
[RE04400(ALL)01/95]
n
exceed 50 mph (80 km/h) under any circumstances.
*
[RE04500(ALL)01/95]
n
load your vehicle so that it is heavier than the maximum
vehicle load rating listed on the tire decal.
*
[RE04600(ALL)01/95]
n
tow a trailer.
*
[RE04700(ALL)01/95]
n
use tire chains on this tire.
*
[RE04800(ALL)01/95]
n
try to repair the temporary spare tire or remove it from its
wheel.
*
[RE04900(ALL)01/95]
n
use the wheel for any other type of vehicle.
[RE04950(ALL)10/94]
n
engage four-wheel drive on dry, hard-surfaced roads.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
225
*
[RE05000(ALL)01/95]
n
drive through an automatic car wash with this tire. Because
the temporary spare tire is smaller than a conventional tire,
it reduces the ground clearance. Your vehicle may get caught
in the rails and it could be damaged.
%*
[RE05100(ALL)03/95]
Spare Tire Location
*
[RE05250(ALL)06/94]
The spare tire for your vehicle is stowed at the rear under the
frame.

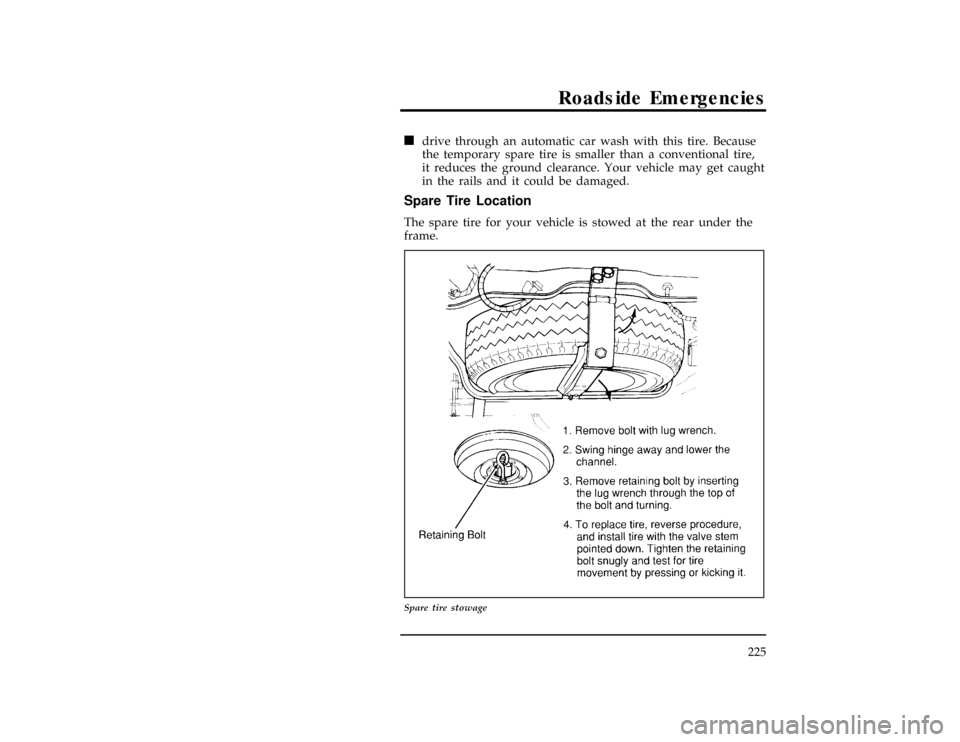

[RE13850(R )04/94]
24 pica art:0020284-C
Spare tire stowage
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

226
*
[RE13900(R )03/91]
To remove the spare tire:
[RE14000(R )10/94]1.
Use the hex portion of the lug nut wrench to remove the
bolt that fastens the hinge to the channel.
[RE14100(R )10/94]2.
Swing the hinge away and lower the channel.
[RE14200(R )12/91]3.
Unscrew the retaining bolt using the tapered end of the lug
nut wrench through the eye of the bolt.
[RE14300(R )10/94]4.
Slide the spare tire out.
*
[RE14400(R )03/91]
To stow spare tire:
[RE14500(R )10/94]1.
Position spare tire, valve stem down, so it is balanced on the
support.
[RE14600(R )04/89]2.
Replace and tighten retaining bolt using the tapered end of
the lug nut wrench through the eye of the bolt.
[RE14700(R )01/89]3.
Raise channel to hinge and line up the bolt hole.
[RE14800(R )01/89]4.
Install bolt and tighten with the wrench.
[RE14900(R )09/95]
NOTE: If your vehicle is equipped with P265 75R15 AT tires
or P235 75R15 AT tires do not stow a flat or inflated
full size tire in the spare tire carrier. The carrier is
designed to hold the temporary spare which comes
with your vehicle. The stowage of a full size tire in
the spare tire carrier may damage the tire or the
vehicle. The flat full size tire should be stowed and
tied down in the pickup box bed until it can be
repaired.
*
[RE15100(ALL)05/95]
RWARNING
Make sure the spare tire and jacking equipment are
stowed and secured in the proper storage location.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
227
%*
[RE15200(ALL)03/95]
Preparing to Change the Tire
*
[RE15250(ALL)12/91]
NOTE: To lift your vehicle by other than the front or rear
jacking points, be sure to use only hoist adapters with
a wide contact surface.
*
[RE15300(ALL)03/91]1.
Make sure that your vehicle will not move or roll. If you
have an automatic transmission, put the gearshift in Park. If
you have a manual transmission, put the gearshift in
Reverse. Set the parking brake and block the wheel that is
diagonally opposite the tire that you are changing.
*
[RE15335(ALL)12/91]
NOTE: Make sure the ignition is in the OFF position.
*
[RE15350(R )06/94]
If you have a four-wheel drive vehicles with manual locking
hubs, put transfer case lever in 2H, 4H, or 4L.
*
[RE15390(ALL)05/95]
When one of the back wheels is off the ground, the transmission
alone will not prevent the vehicle from moving or slipping off
the jack, even if the vehicle is in P (Park) or 1 (First). To
prevent the vehicle from moving when you change a tire, be
sure the parking brake is set, then block the wheel (both
directions) that is diagonally opposite (other side and end of the
vehicle) to the tire that is being changed.
[RE15400(ALL)05/95]
RWARNING
If the vehicle slips off the jack, someone could be
seriously injured.
*
[RE15440(R )05/95]
RWARNING
Do not leave the vehicle unattended with the transfer
case in the N (Neutral) position. Always set the parking
brake fully and turn off the ignition when leaving the
vehicle.
*
[RE15550(ALL)03/95]2.
Get out the spare tire and jack.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

228
[RE16200(R )08/94]
10-1/2 pica art:0020288-E
Jack handle location and installation

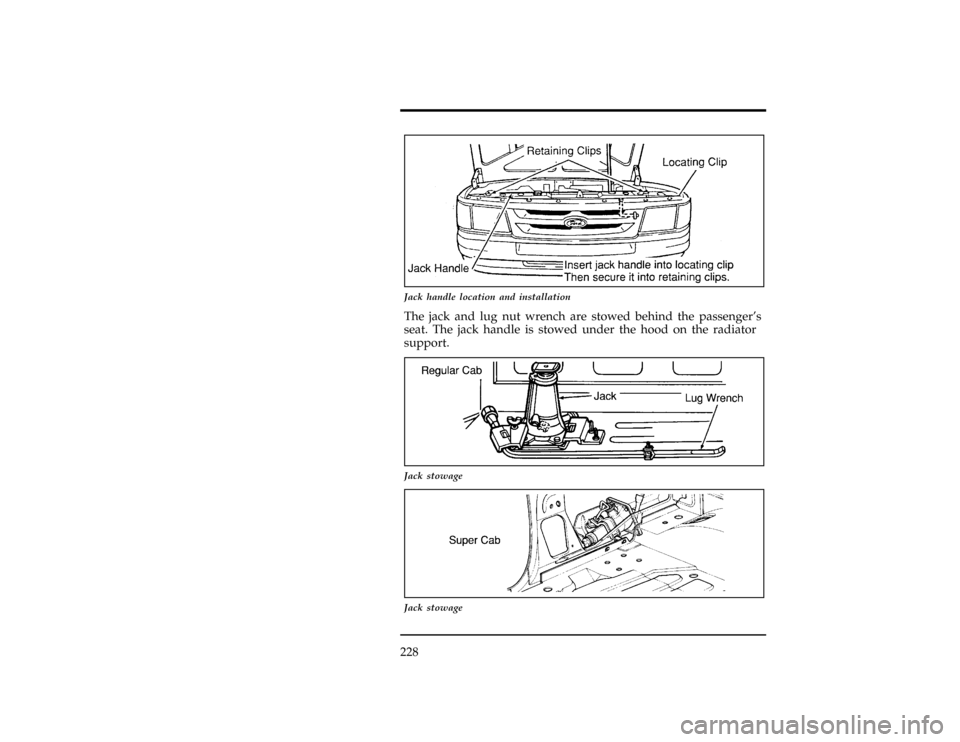

[RE16500(R )01/89]
The jack and lug nut wrench are stowed behind the passenger's
seat. The jack handle is stowed under the hood on the radiator
support.
[RE16600(R )04/94]
7-1/2 pica art:0020291-B
Jack stowage
[RE16700(R )04/94]
7-1/2 pica art:0020292-B
Jack stowage
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

Roadside Emergencies
229
[RE16800(ALL)07/94]3.
Insert the tapered end of the lug nut wrench behind wheel
covers or hubcaps and twist off.
[RE16830(ALL)05/95]
RWARNING
Use only the lug nut wrench provided to remove wheel
ornaments. Not using the tapered end of the lug nut
wrench at the pry-off notches may result in damage to
the finish of the wheel and ornament.
[RE16850(ALL)06/94]
RWARNING
Not using the tapered end of the lug nut wrench at the
pry-off notches may result in damage to the finish of the
wheel and ornament.
*
[RE16900(ALL)10/89]4.
Loosen the wheel nuts by pulling up on the handle of the
lug nut wrench about one-half turn (counterclockwise). Do
not remove the wheel lug nuts until you raise the tire off the
ground.
*
[RE17100(ALL)02/95]5.
Insert the jack handle into the jack and use the handle to
slide the jack under the vehicle.
*
[RE17175(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
%*
[RE17225(ALL)05/95]
Removing and Replacing the Tire
%*
[RE17300(ALL)06/95]1.
Positioning the jack

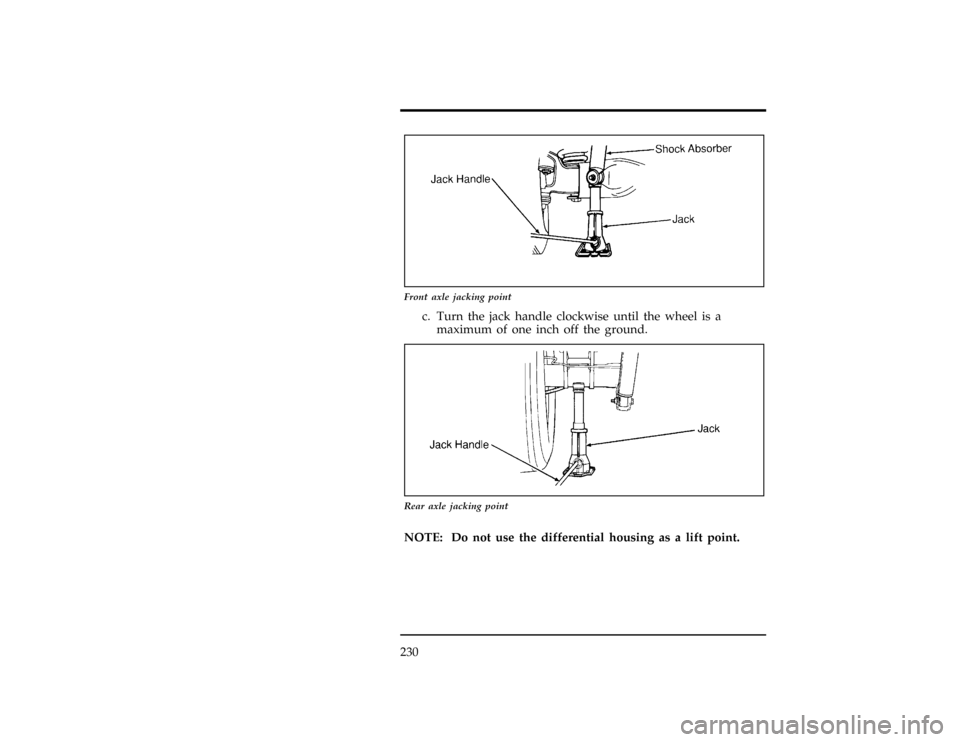

[RE18150(R )06/94]
a. To raise a front wheel, place the jack directly under the
shock absorber so that it contacts the bottom of the shock.
[RE18201(R )11/89]
b. To raise a rear tire place the jack under the rear axle
between the spring shackle bolts.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996

230
[RE18301(R )10/94]
10-1/2 pica art:0020297-E
Front axle jacking point
[RE18401(ALL)06/94]
c. Turn the jack handle clockwise until the wheel is a
maximum of one inch off the ground.
[RE18551(R )10/94]
10-1/2 pica
art:0021187-B
Rear axle jacking point
[RE18650(ALL)09/95]
NOTE: Do not use the differential housing as a lift point.
File:12unrer.ex
Update:Wed May 1 13:53:18 1996
