Page 152 of 248

FORD RANGER 2003 2.G Service Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
34—Not used
35 15A or Not
Used15A: Horn relay (if not equipped with a
truck CSM)
36—Not used
Power distribution box
T

Page 153 of 248

FORD RANGER 2003 2.G Service Manual 2.3L engine (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 50A** I/P fuse panel
2—Not used
3—Not used
4—Not use

Page 156 of 248

FORD RANGER 2003 2.G Service Manual 3.0L and 4.0L engines (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 50A** I/P fuse panel
2 50A** Amplifier
3—Not u

Page 162 of 248

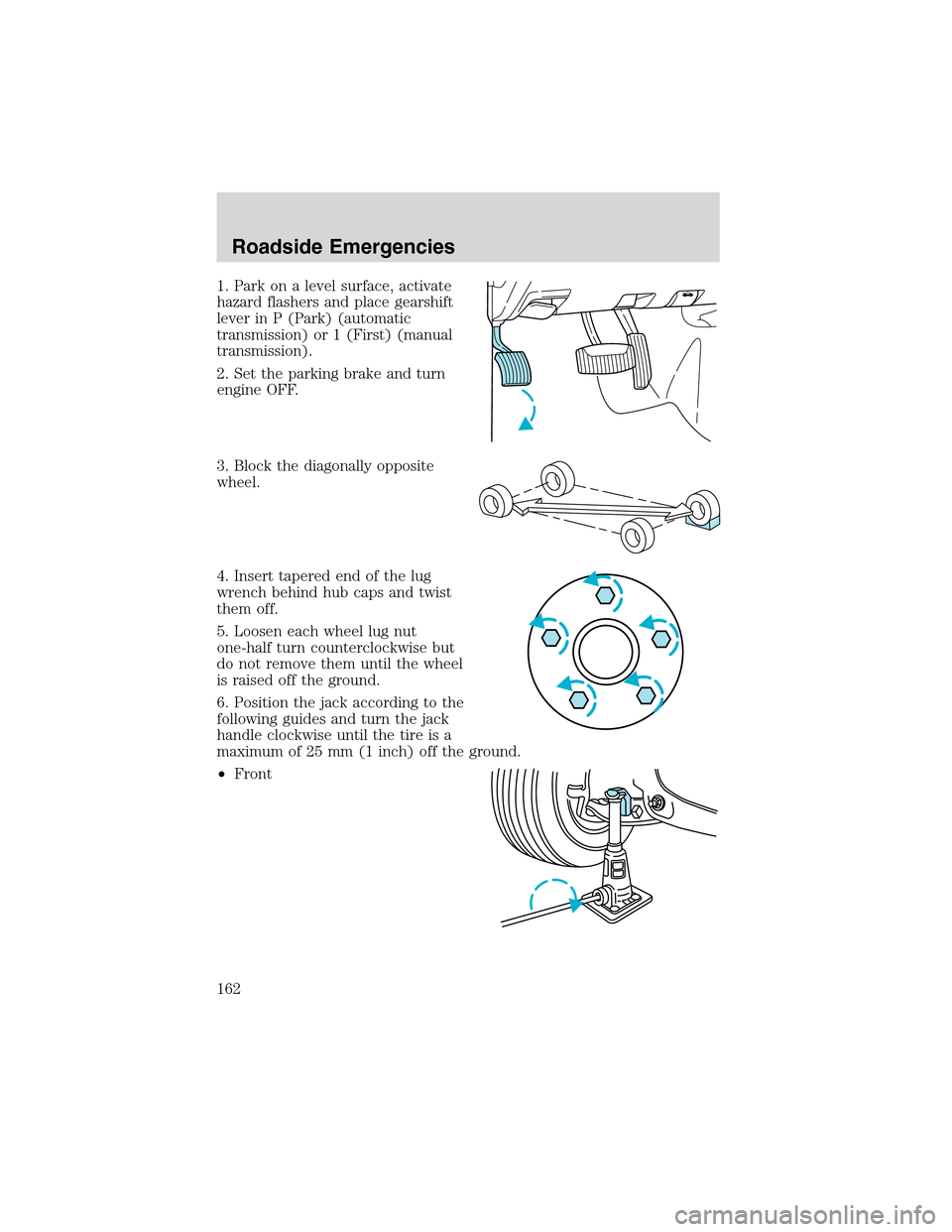

FORD RANGER 2003 2.G Service Manual 1. Park on a level surface, activate
hazard flashers and place gearshift
lever in P (Park) (automatic
transmission) or 1 (First) (manual
transmission).
2. Set the parking brake and turn
engine OFF.
3.

Page 163 of 248

FORD RANGER 2003 2.G Service Manual •Rear
To lessen the risk of
personal injury, do not put
any part of your body under the
vehicle while changing a tire. Do
not start the engine when your
vehicle is on the jack. The jack is
only mean

Page 165 of 248

FORD RANGER 2003 2.G Service Manual JUMP STARTING YOUR VEHICLE
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric a

Page 167 of 248

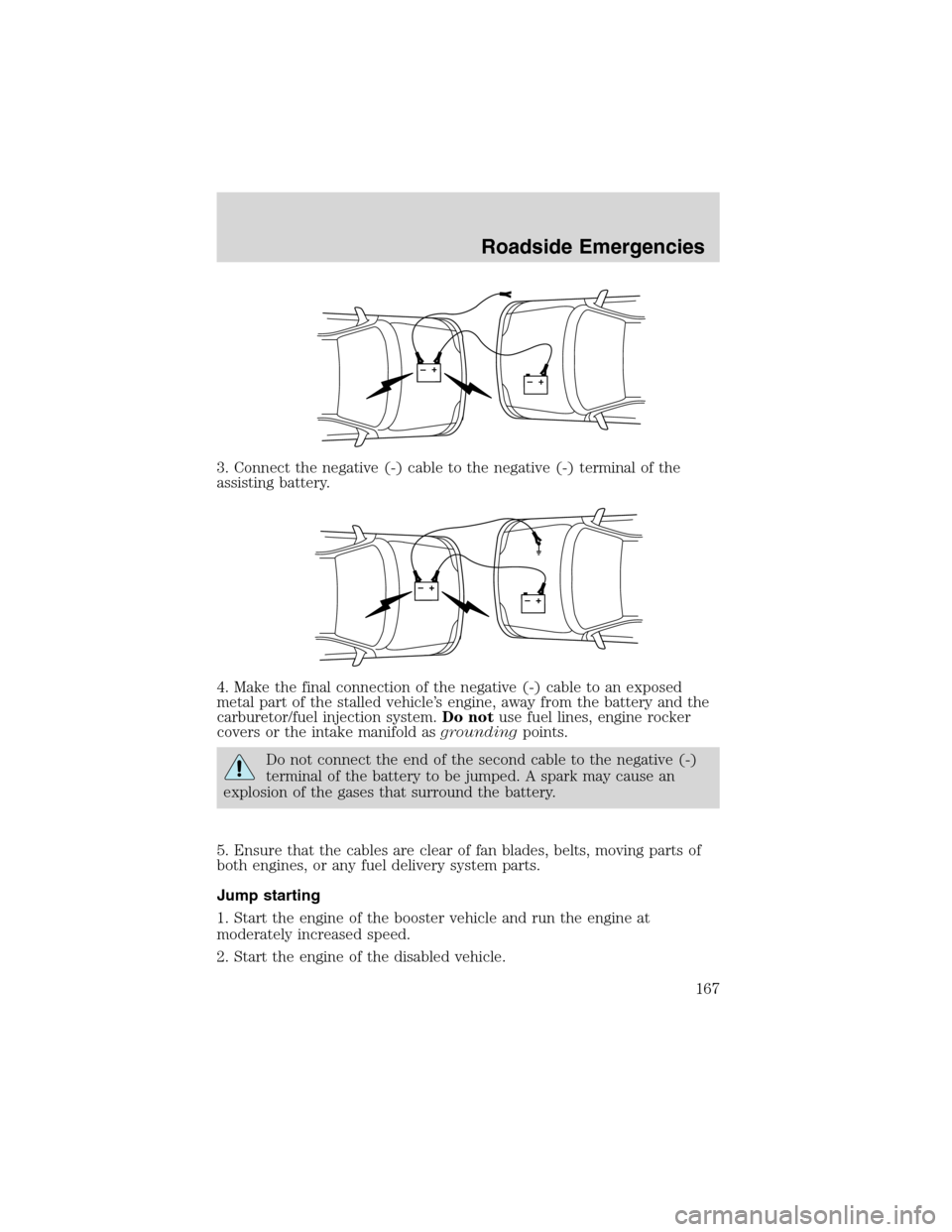

FORD RANGER 2003 2.G Service Manual 3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engi

Page 168 of 248

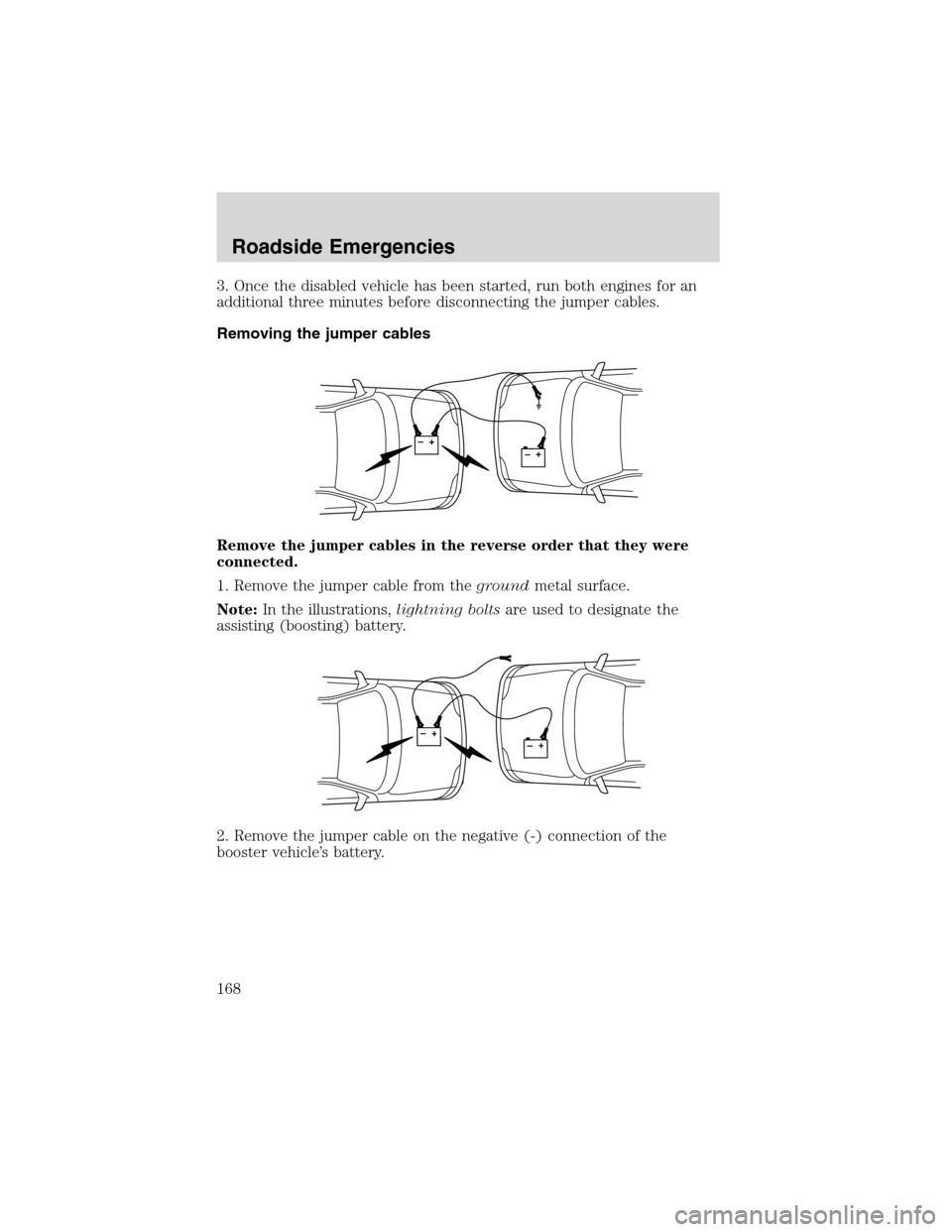

FORD RANGER 2003 2.G Service Manual 3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the rever

Page 169 of 248

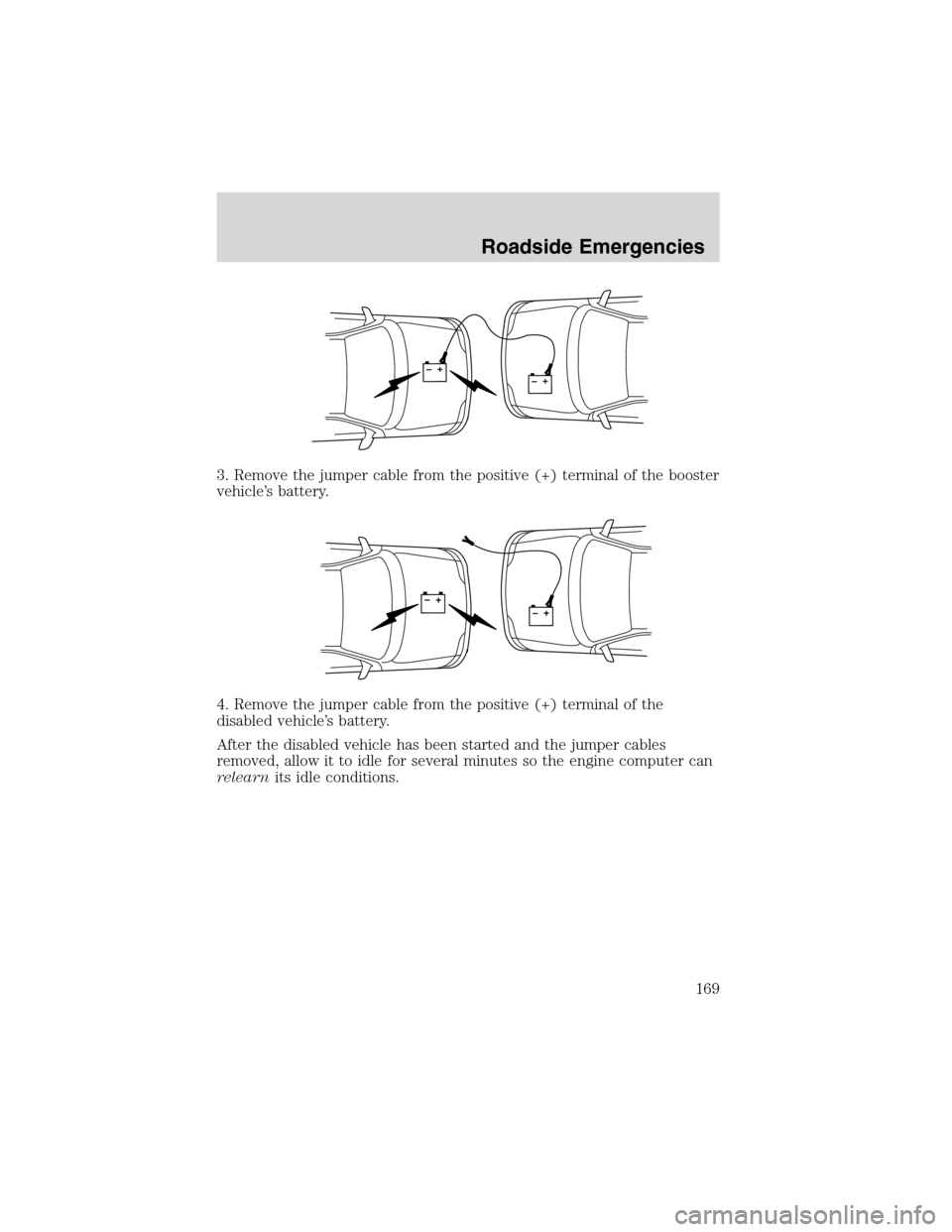

FORD RANGER 2003 2.G Service Manual 3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the d

Page 177 of 248

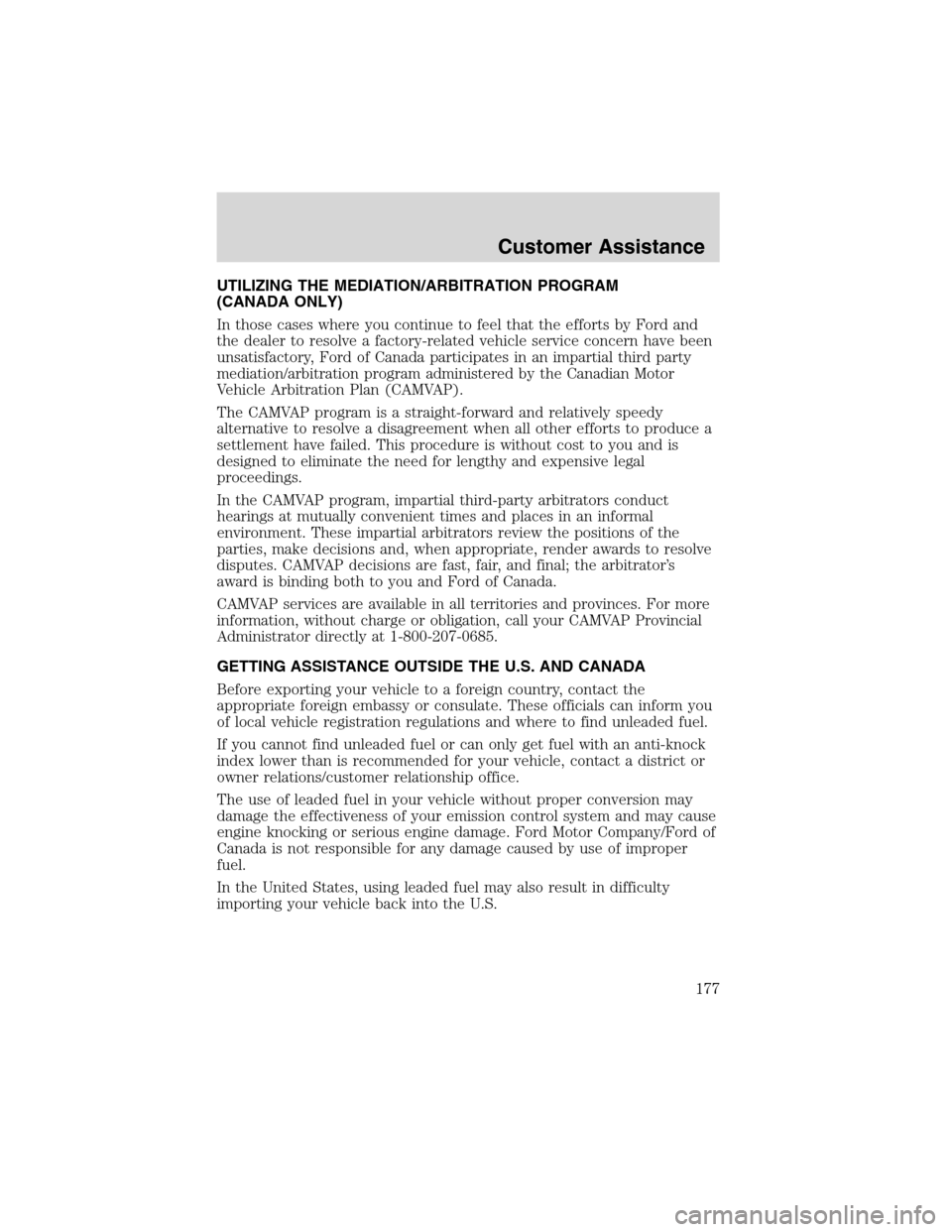

FORD RANGER 2003 2.G Service Manual UTILIZING THE MEDIATION/ARBITRATION PROGRAM
(CANADA ONLY)
In those cases where you continue to feel that the efforts by Ford and
the dealer to resolve a factory-related vehicle service concern have be
