FORD SIERRA 1987 2.G Wiring Diagrams Owner's Manual

13•46Wiring diagrams

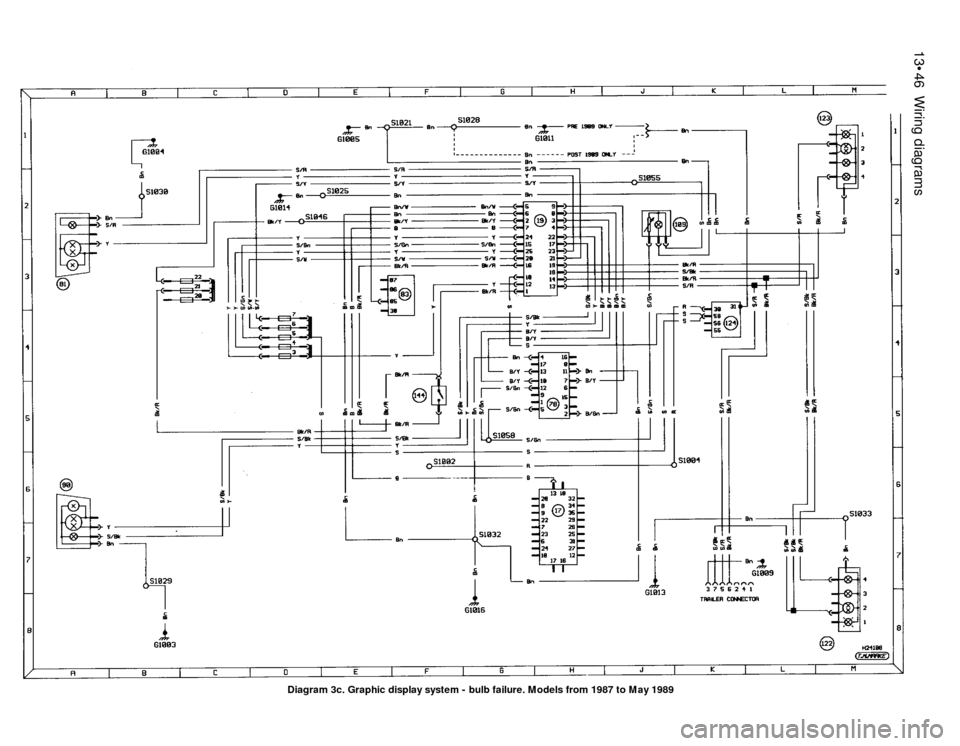

Diagram 3c. Graphic display system - bulb failure. Models from 1987 to May 1989

Wiring diagrams 13•47
13
Diagram 3d. Graphic display system - auxiliary warning, door ajar and fuel computer. Models from 1987 to May 1989

13•48Wiring diagrams

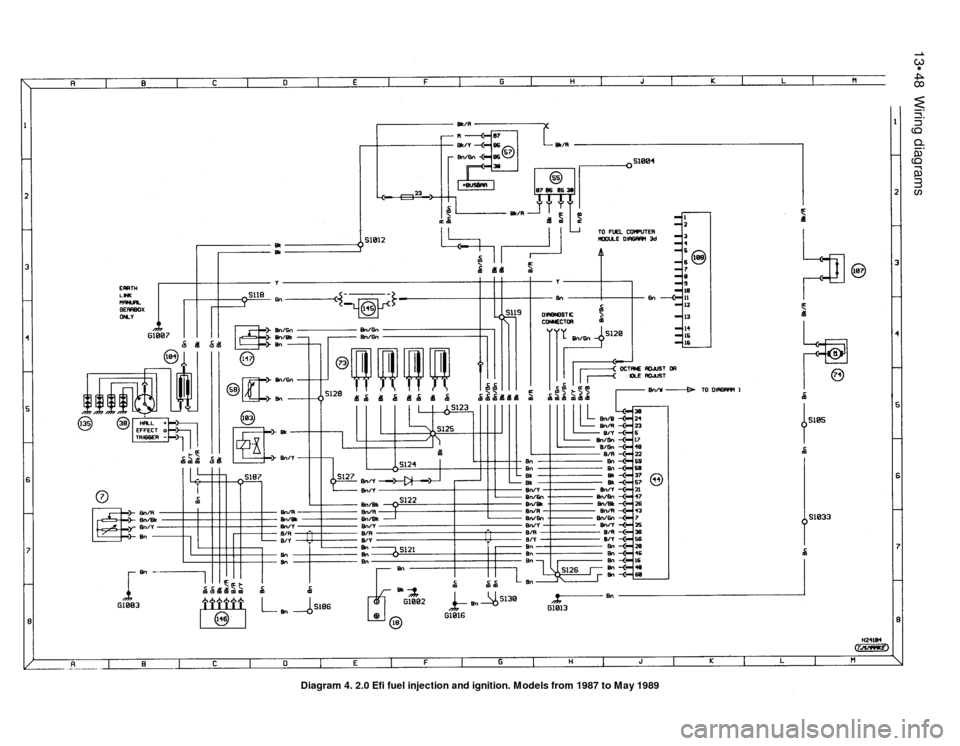

Diagram 4. 2.0 Efi fuel injection and ignition. Models from 1987 to May 1989

Wiring diagrams 13•49
13

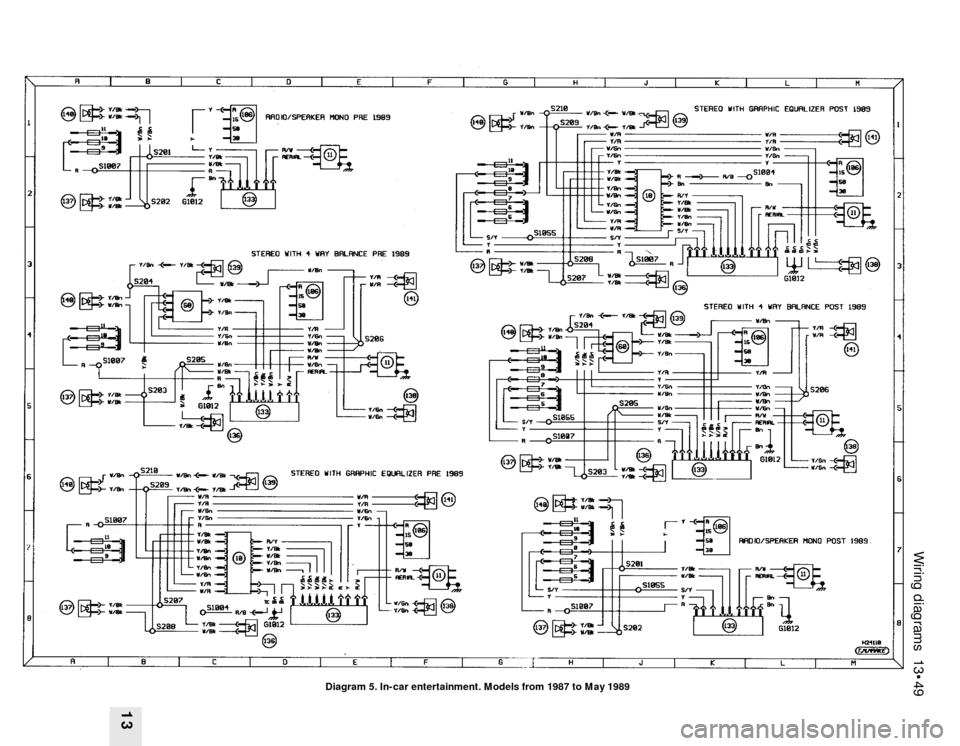

Diagram 5. In-car entertainment. Models from 1987 to May 1989

13•50Wiring diagrams
Notes, tables, wire colours and key to symbols on wiring diagrams. Models from 1990 onwards

Wiring diagrams 13•51
13

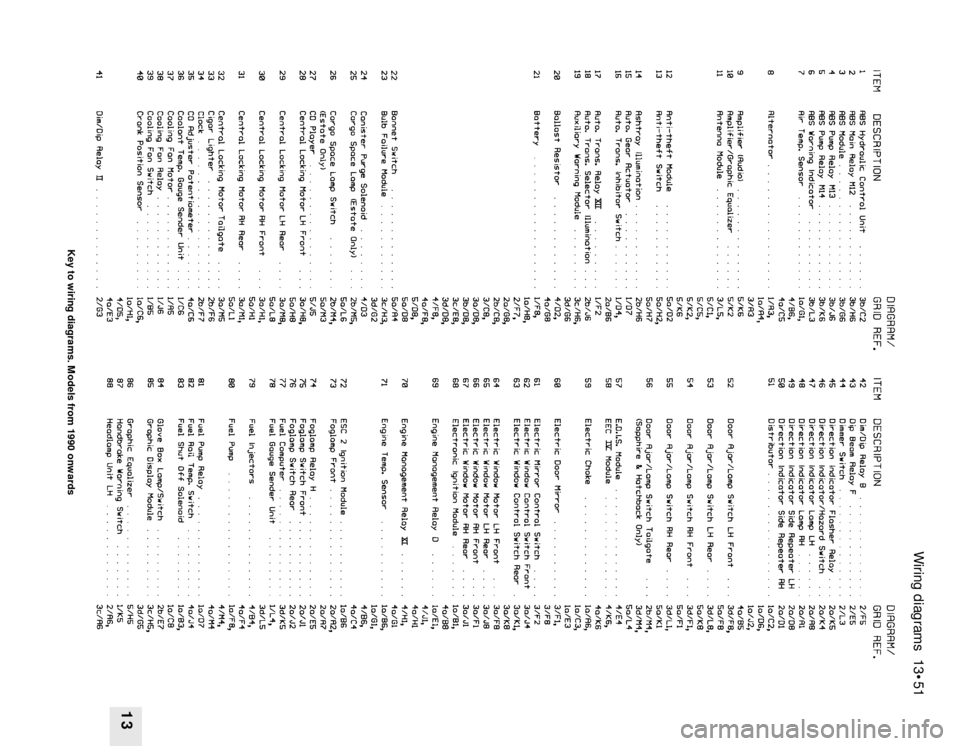

Key to wiring diagrams. Models from 1990 onwards

13•52Wiring diagrams

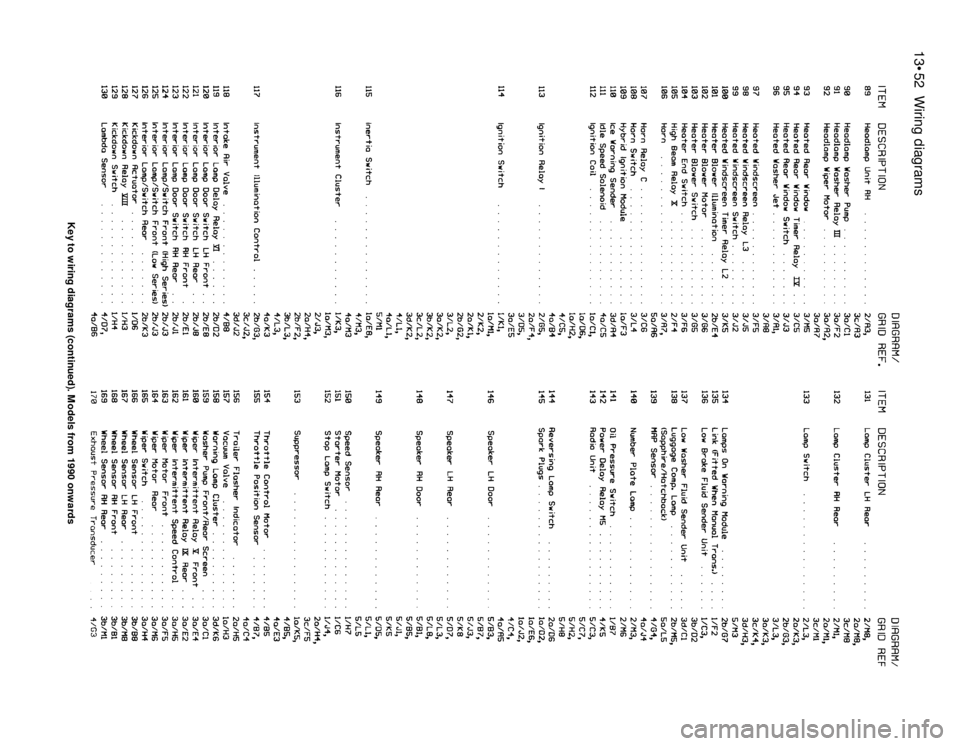

Key to wiring diagrams (continued). Models from 1990 onwards

Wiring diagrams 13•53
13
Internal connection details. Models from 1990 onwards

13•54Wiring diagrams

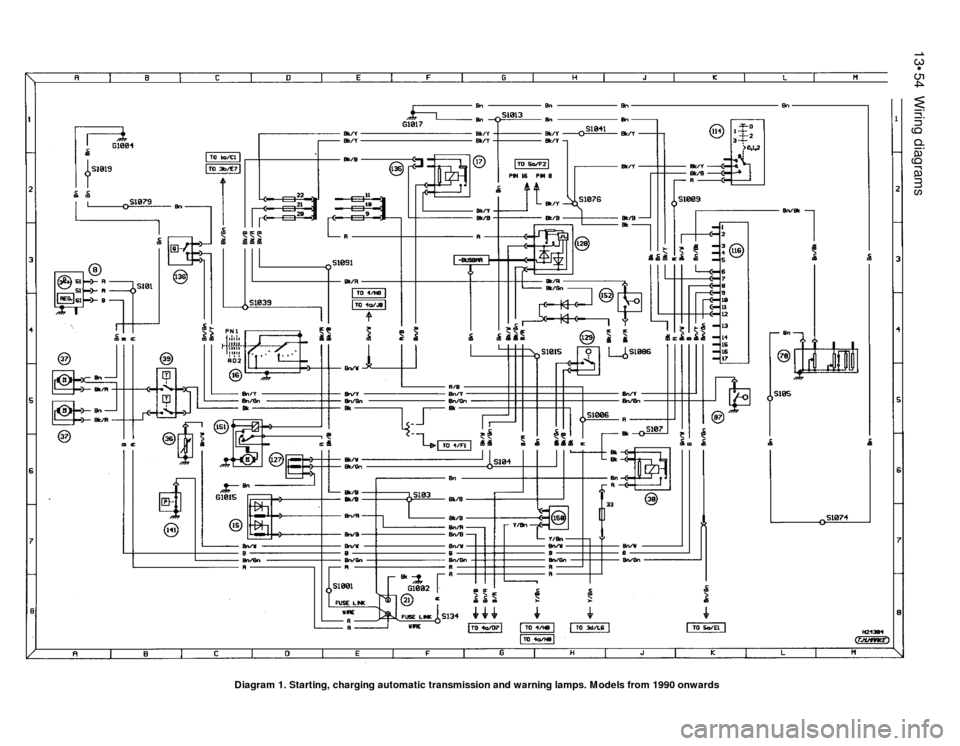

Diagram 1. Starting, charging automatic transmission and warning lamps. Models from 1990 onwards

Wiring diagrams 13•55
13

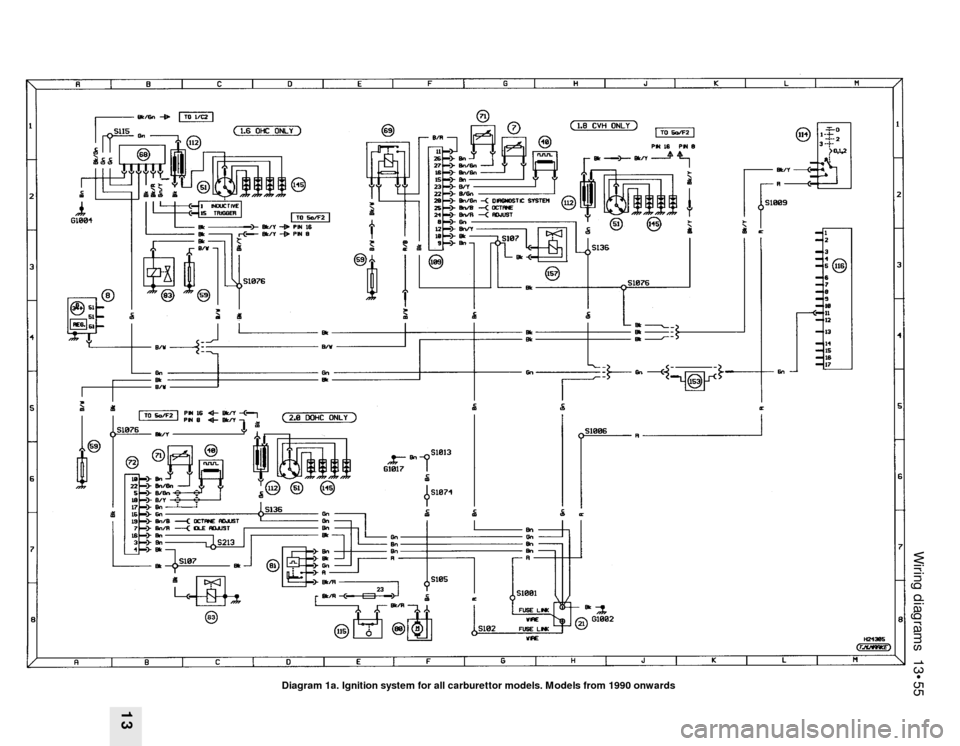

Diagram 1a. Ignition system for all carburettor models. Models from 1990 onwards
