FORD SIERRA 1987 2.G Wiring Diagrams User Guide

Manufacturer: FORD, Model Year: 1987, Model line: SIERRA, Model: FORD SIERRA 1987 2.G
Pages: 47, PDF Size: 2.54 MB
FORD SIERRA 1987 2.G Wiring Diagrams User Guide SIERRA 1987 2.G FORD FORD https://www.carmanualsonline.info/img/11/5464/w960_5464-0.png FORD SIERRA 1987 2.G Wiring Diagrams User Guide
Search: (service interval, language, run flat, service indicator, tailgate, TPMS reset)
Trending: heater, AUX, warning, light, window, display, bulb
Jump to page (1-47):

Page 11 of 47

FORD SIERRA 1987 2.G Wiring Diagrams User Guide 13•36Wiring diagrams Internal connection details. Models from 1987 to May 1989

Page 12 of 47

FORD SIERRA 1987 2.G Wiring Diagrams User Guide Wiring diagrams 13•37 13 Internal connection details (continued). Models from 1987 to May 1989

Page 13 of 47

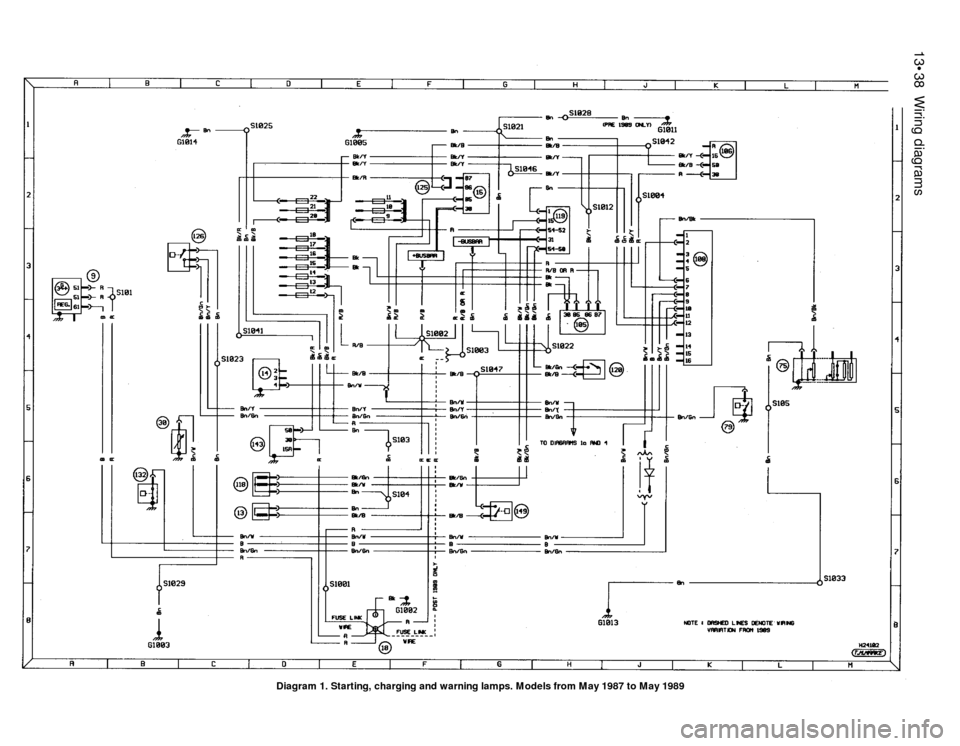

FORD SIERRA 1987 2.G Wiring Diagrams User Guide 13•38Wiring diagrams Diagram 1. Starting, charging and warning lamps. Models from May 1987 to May 1989

Page 14 of 47

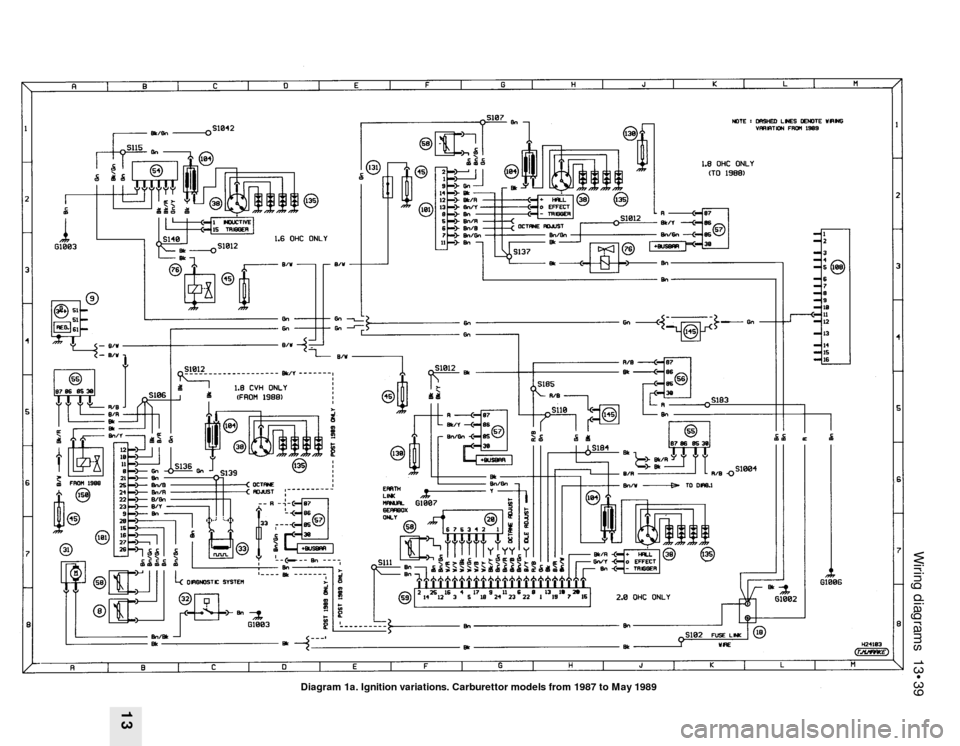

FORD SIERRA 1987 2.G Wiring Diagrams User Guide Wiring diagrams 13•39 13 Diagram 1a. Ignition variations. Carburettor models from 1987 to May 1989

Page 15 of 47

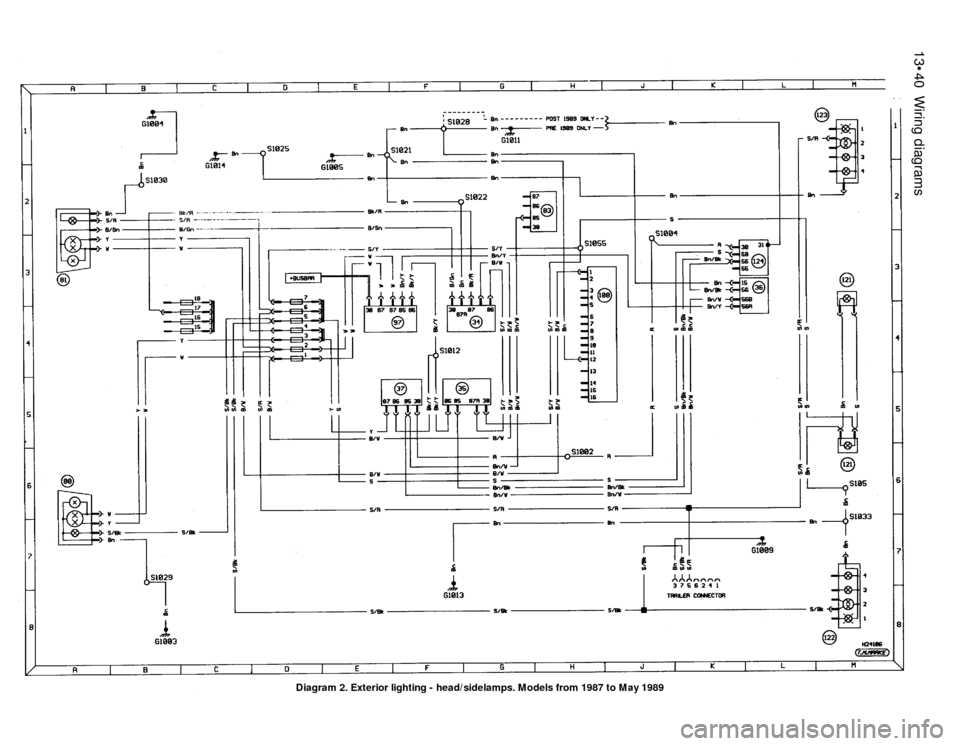

FORD SIERRA 1987 2.G Wiring Diagrams User Guide 13•40Wiring diagrams Diagram 2. Exterior lighting - head/sidelamps. Models from 1987 to May 1989

Page 16 of 47

FORD SIERRA 1987 2.G Wiring Diagrams User Guide Wiring diagrams 13•41 13 Diagram 2a. Exterior lighting - signal warning lamps. Models from 1987 to May 1989

Page 17 of 47

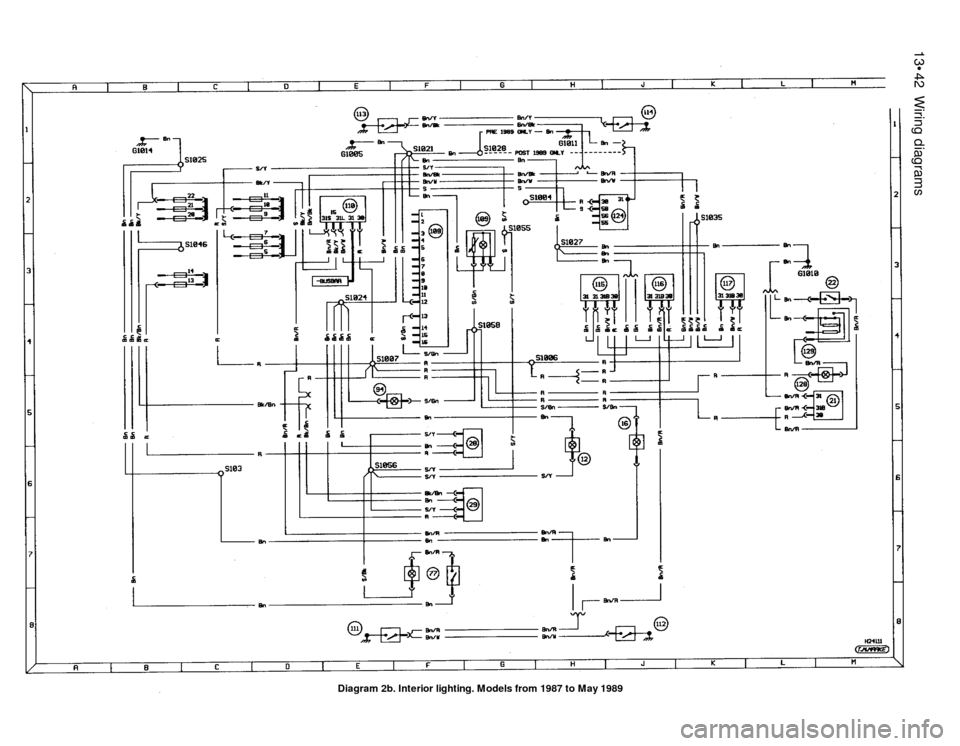

FORD SIERRA 1987 2.G Wiring Diagrams User Guide 13•42Wiring diagrams Diagram 2b. Interior lighting. Models from 1987 to May 1989

Page 18 of 47

FORD SIERRA 1987 2.G Wiring Diagrams User Guide Wiring diagrams 13•43 13 Diagram 3. Ancillary circuits - horn, heater blower, heated mirrors and screens. Models from 1987 to May 1989

Page 19 of 47

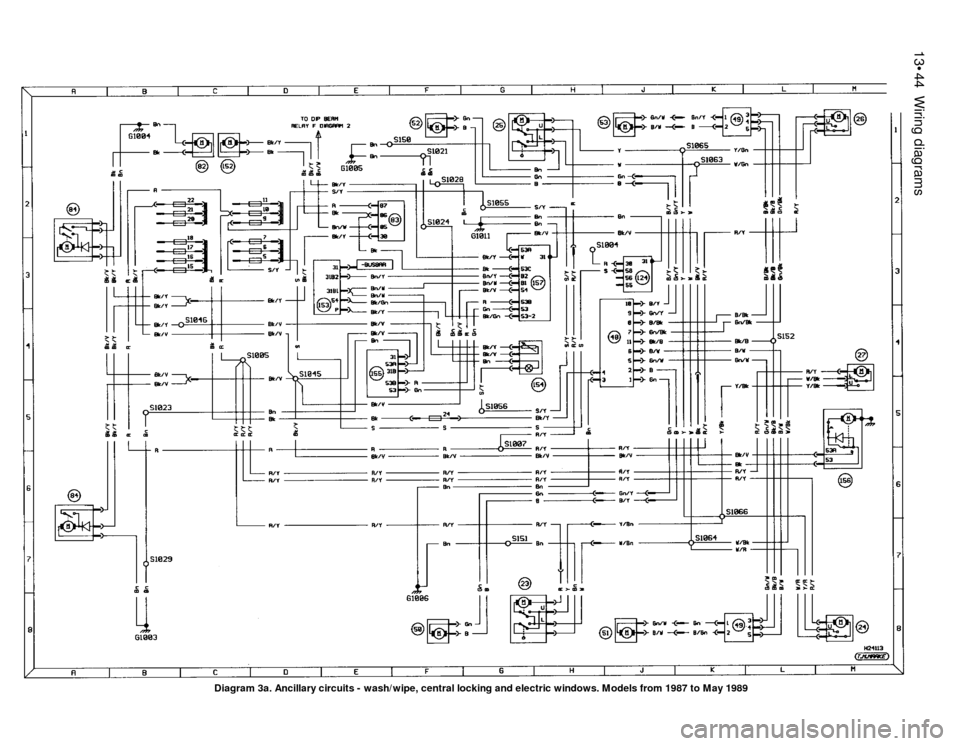

FORD SIERRA 1987 2.G Wiring Diagrams User Guide 13•44Wiring diagrams Diagram 3a. Ancillary circuits - wash/wipe, central locking and electric windows. Models from 1987 to May 1989

Page 20 of 47

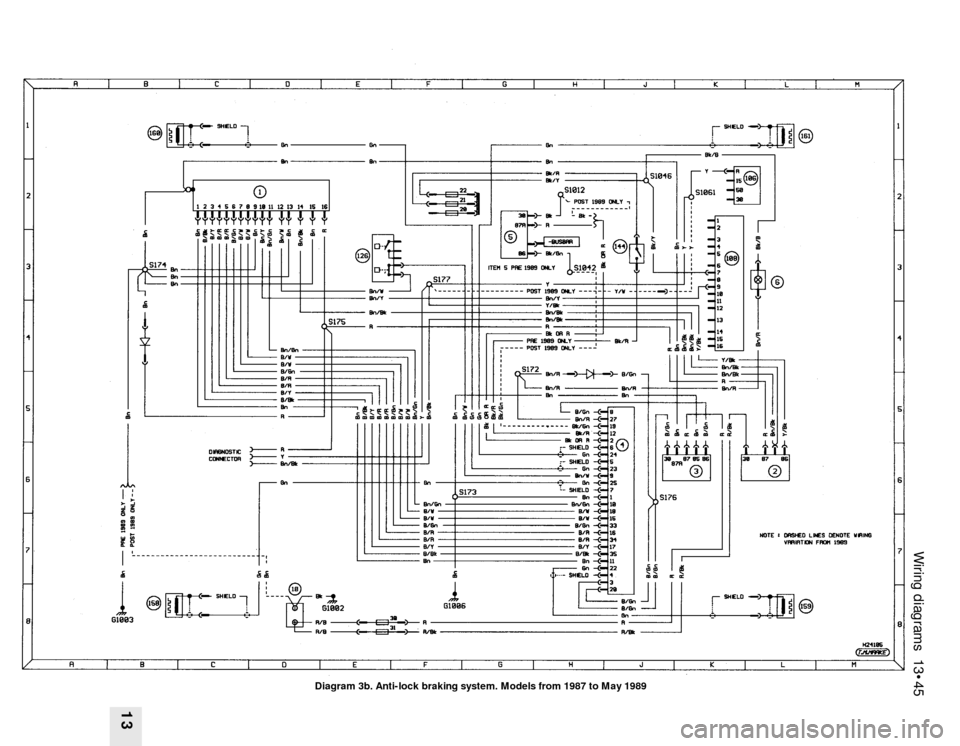

FORD SIERRA 1987 2.G Wiring Diagrams User Guide Wiring diagrams 13•45 13 Diagram 3b. Anti-lock braking system. Models from 1987 to May 1989
