FORD SIERRA 1987 2.G Wiring Diagrams Service Manual

13•66Wiring diagrams

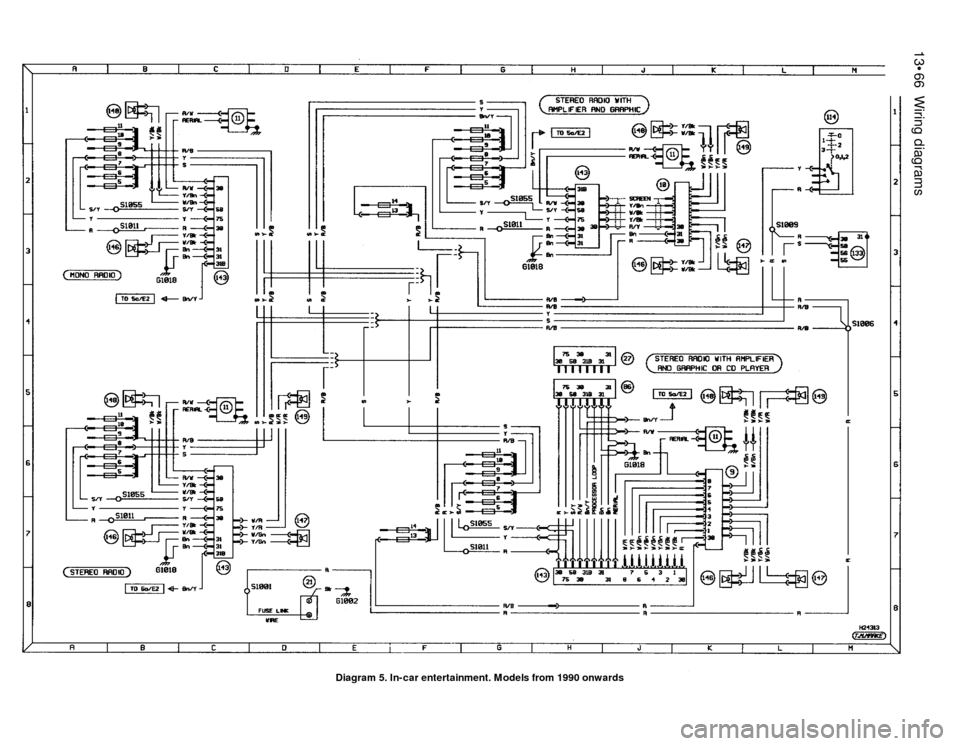

Diagram 5. In-car entertainment. Models from 1990 onwards

Wiring diagrams 13•67
13

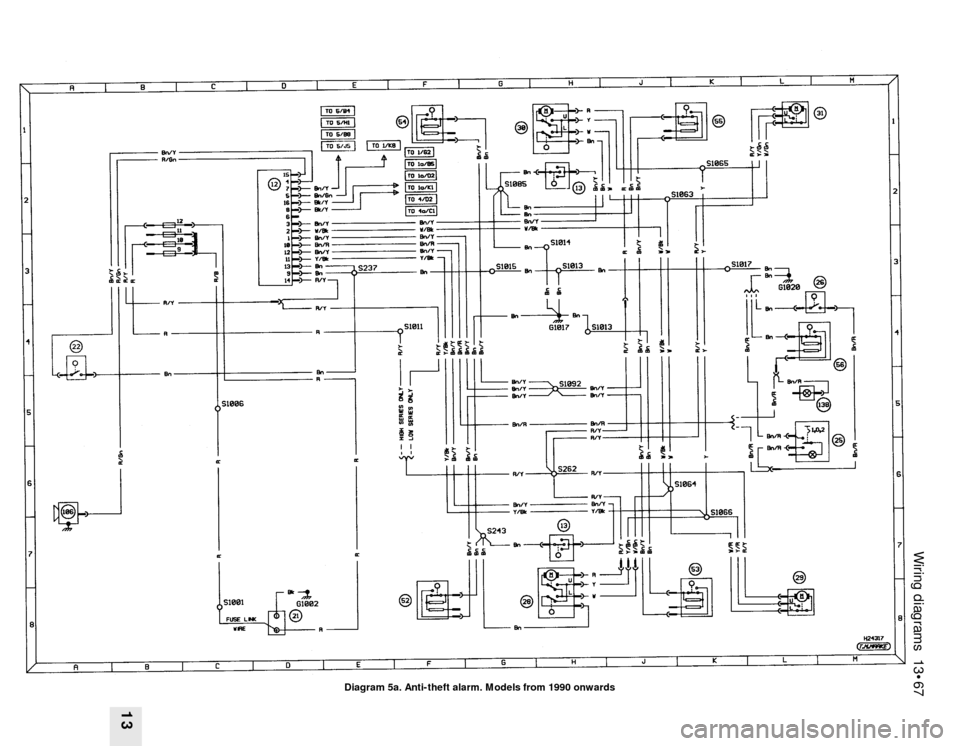

Diagram 5a. Anti-theft alarm. Models from 1990 onwards

13•68Wiring diagrams
Notes, tables, wire colours and key to wiring diagrams. P100 models from 1988 onwards

Wiring diagrams 13•69
13
Internal connection details. P100 models from 1988 onwards

13•70Wiring diagrams

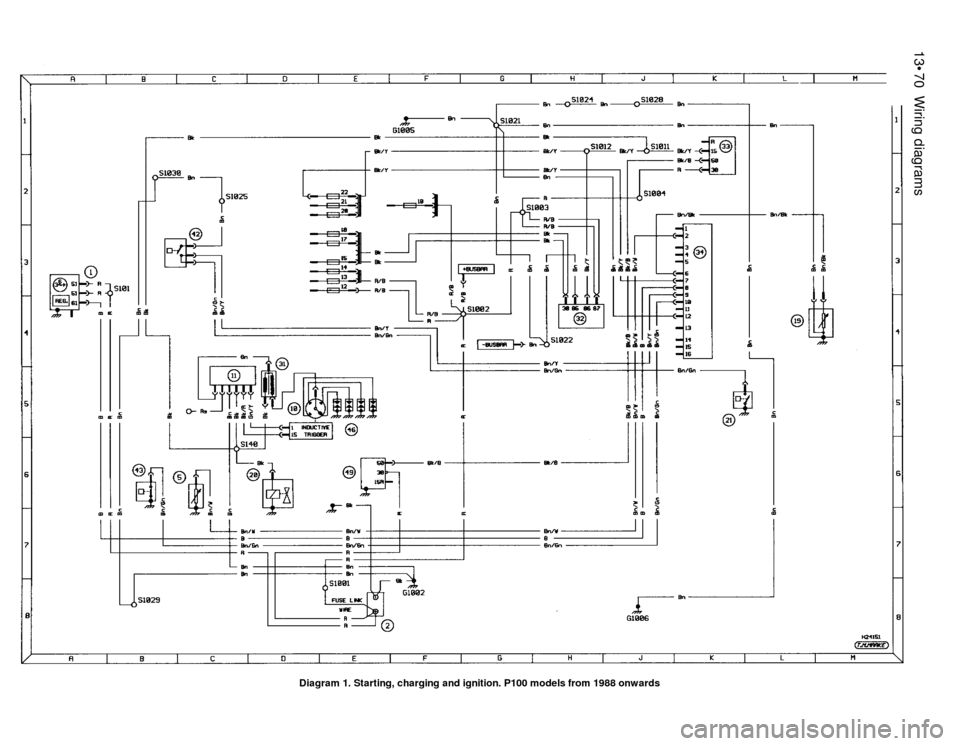

Diagram 1. Starting, charging and ignition. P100 models from 1988 onwards

Wiring diagrams 13•71
13

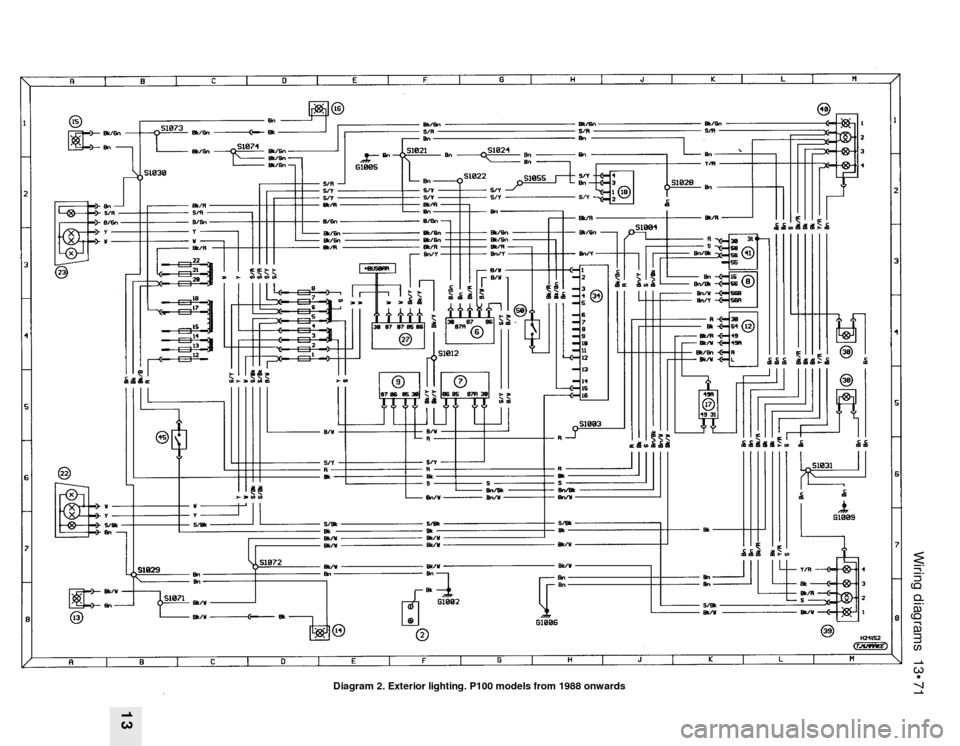

Diagram 2. Exterior lighting. P100 models from 1988 onwards

13•72Wiring diagrams

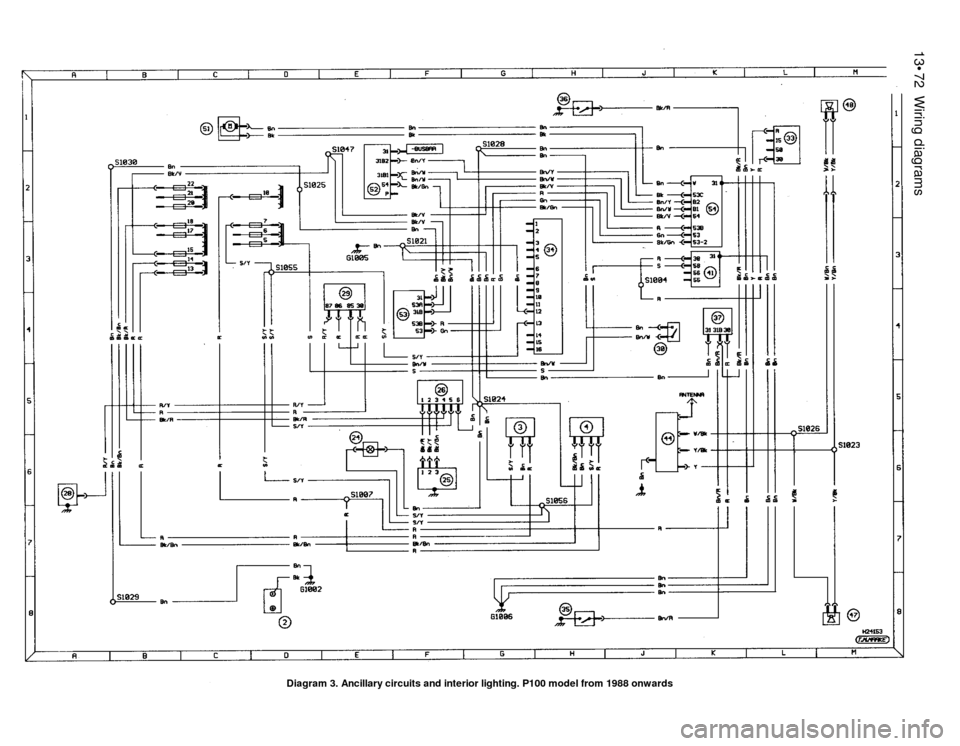

Diagram 3. Ancillary circuits and interior lighting. P100 model from 1988 onwards
