FORD SIERRA 1987 2.G Wiring Diagrams Workshop Manual

13•26Wiring diagrams

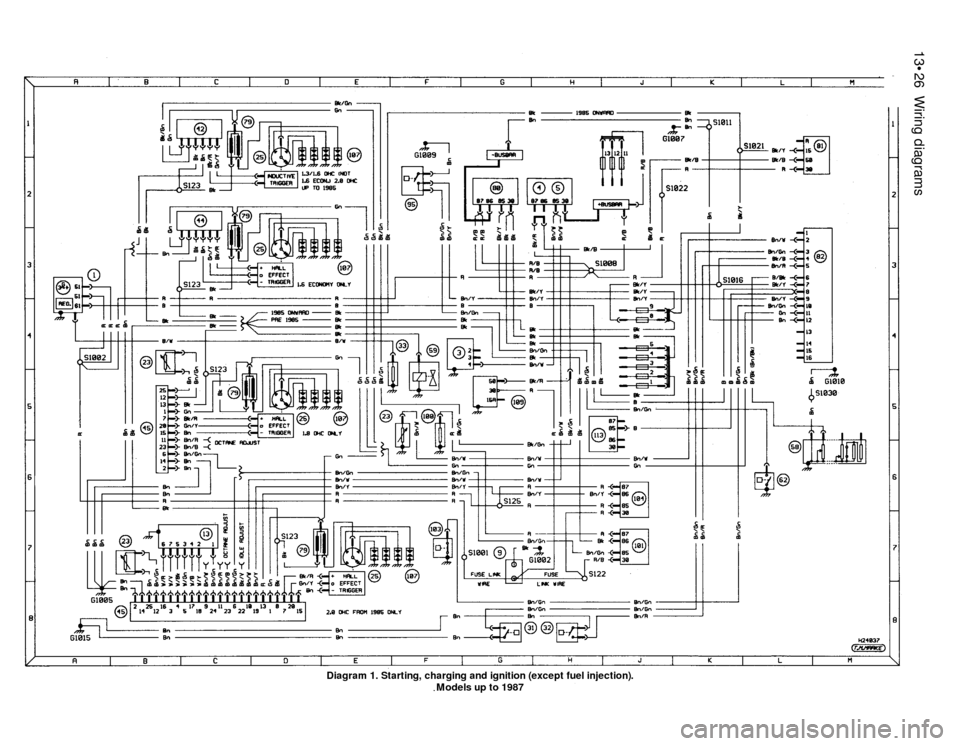

Diagram 1. Starting, charging and ignition (except fuel injection).
Models up to 1987

Wiring diagrams 13•27
13

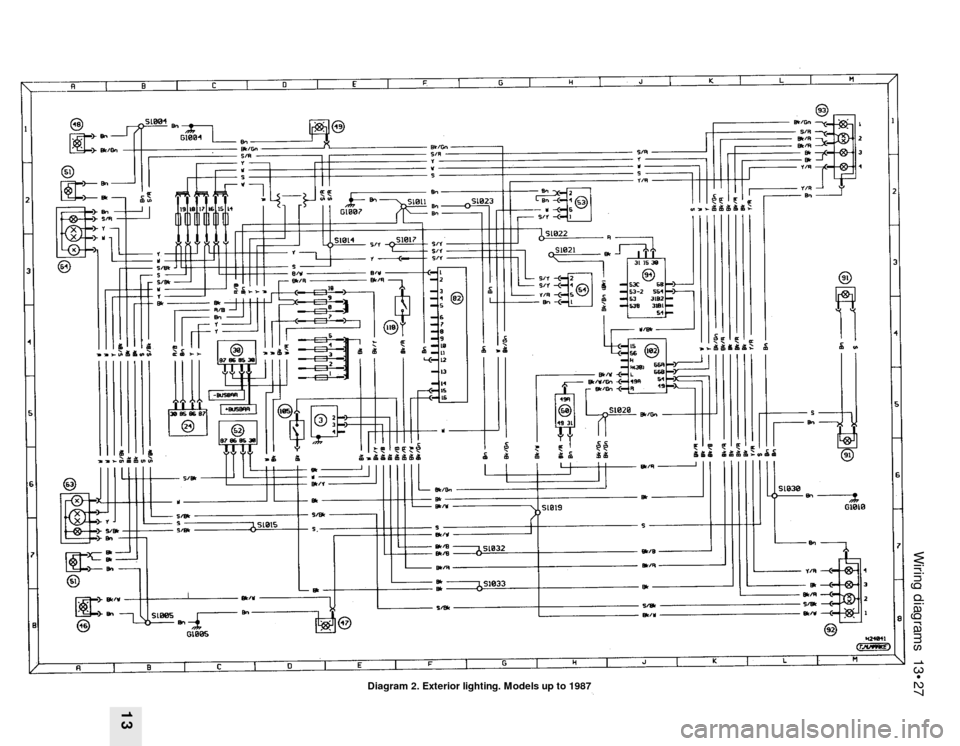

Diagram 2. Exterior lighting. Models up to 1987

13•28Wiring diagrams

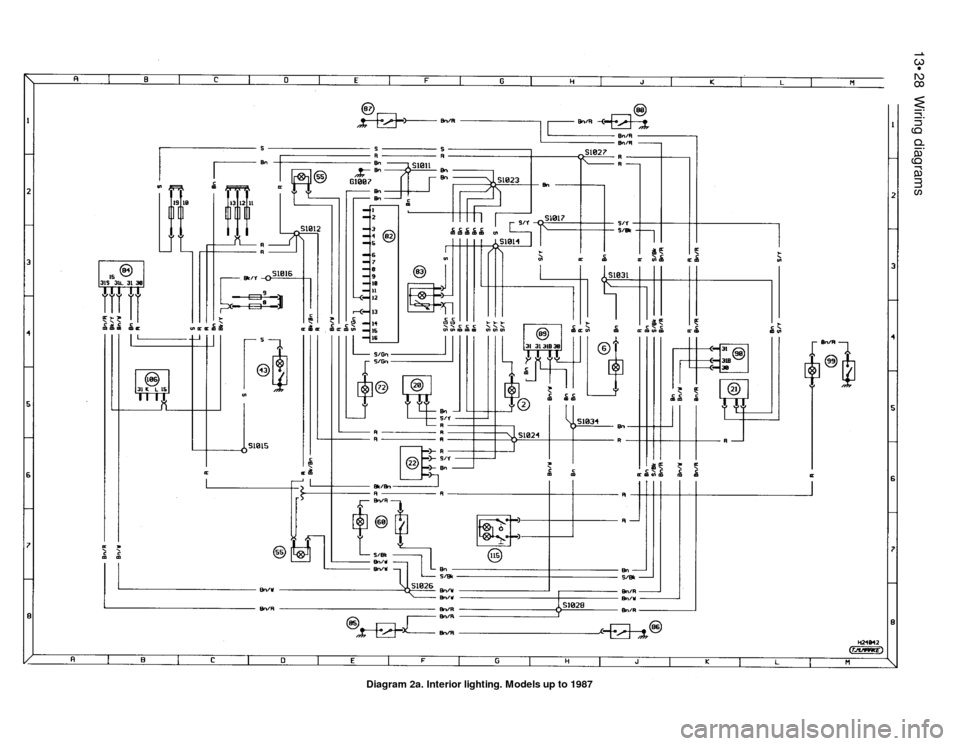

Diagram 2a. Interior lighting. Models up to 1987

Wiring diagrams 13•29
13

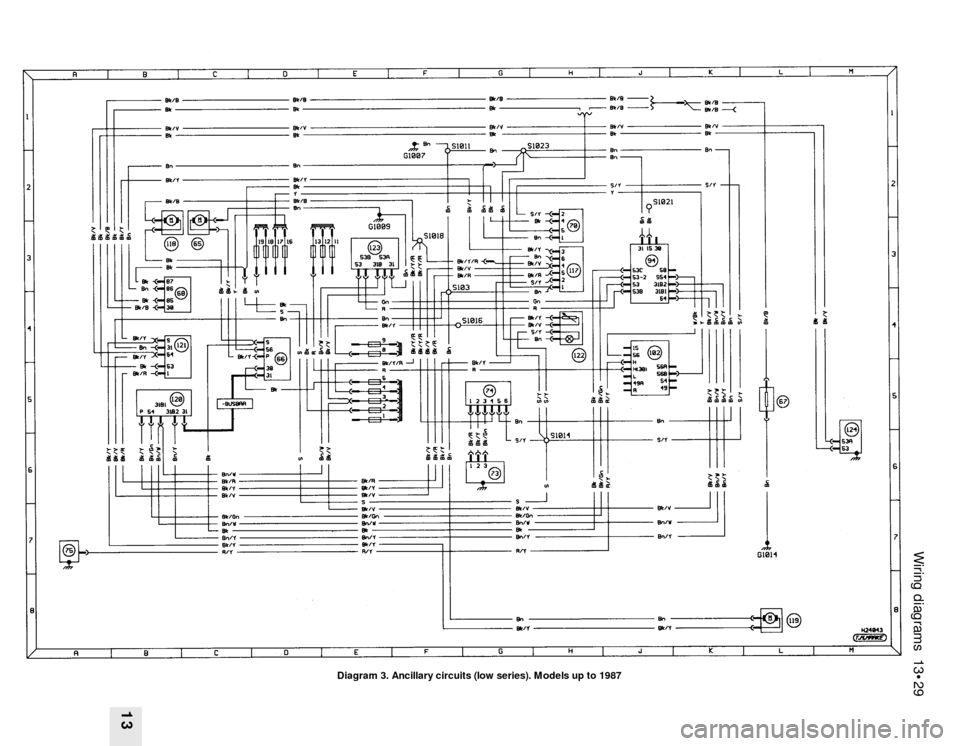

Diagram 3. Ancillary circuits (low series). Models up to 1987

13•30Wiring diagrams

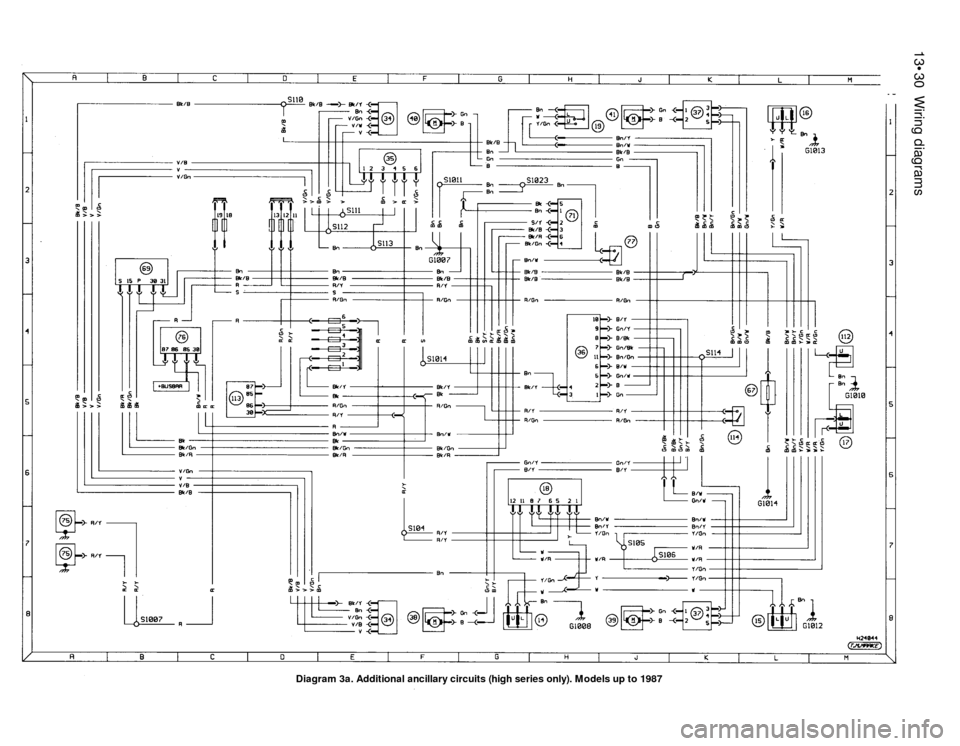

Diagram 3a. Additional ancillary circuits (high series only). Models up to 1987

Wiring diagrams 13•31
13

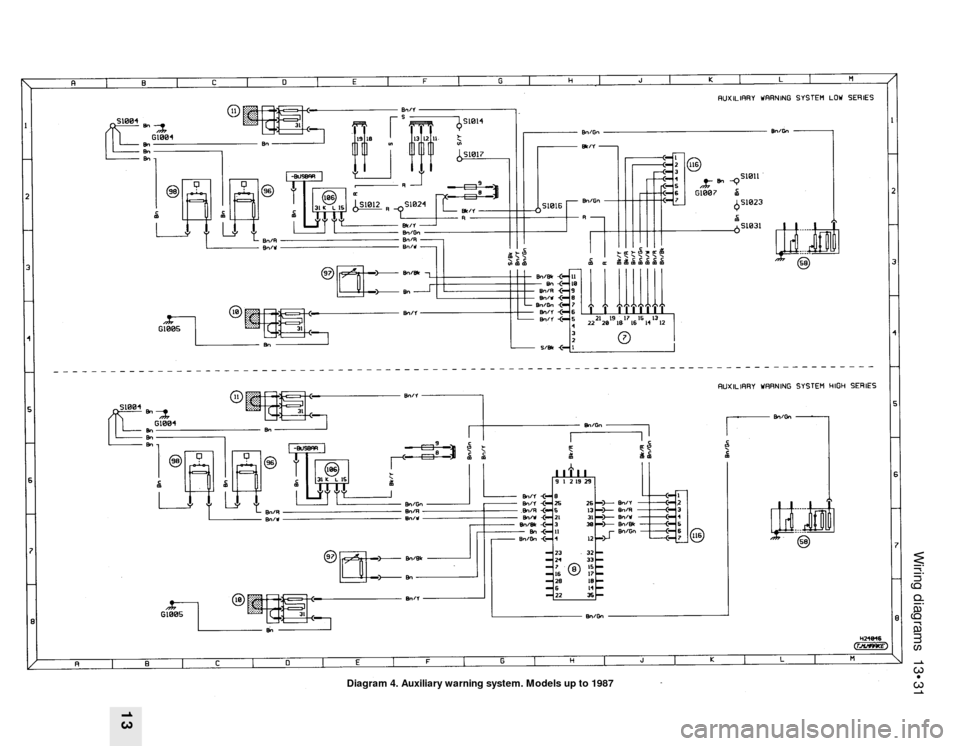

Diagram 4. Auxiliary warning system. Models up to 1987

13•32Wiring diagrams

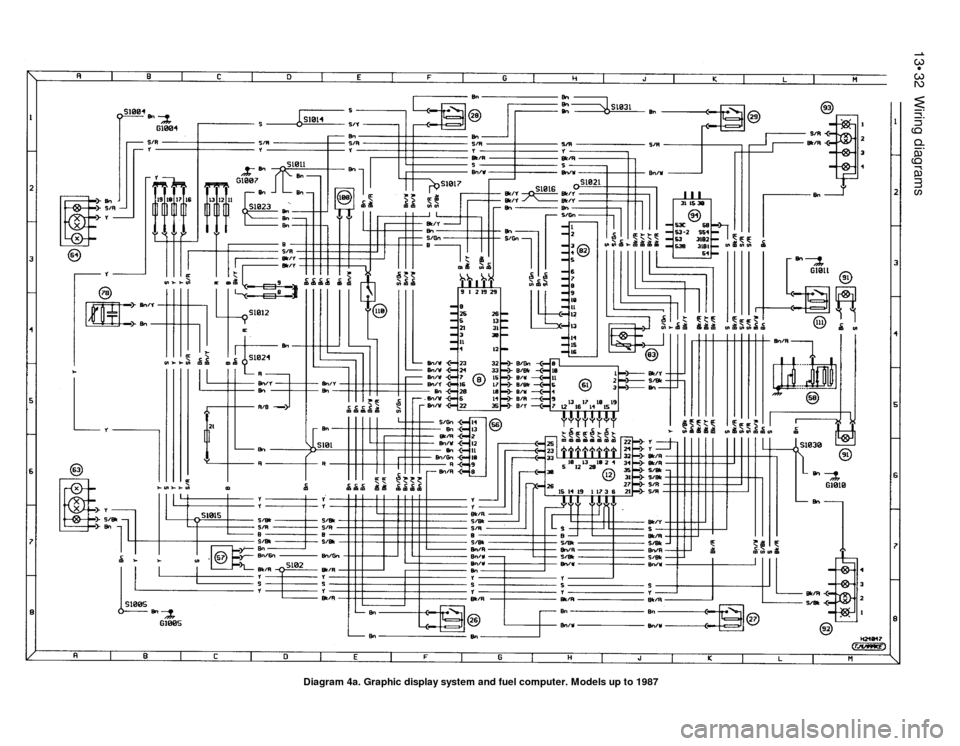

Diagram 4a. Graphic display system and fuel computer. Models up to 1987

Wiring diagrams 13•33
13
Notes, tables, wire colours and key to symbols on wiring diagrams. Models from 1987 to May 1989

13•34Wiring diagrams
Key to wiring diagrams. Models from 1987 to May 1989

Wiring diagrams 13•35
13
Key to wiring diagrams (continued). Models from 1987 to May 1989
