FORD SIERRA 1987 2.G Wiring Diagrams Owner's Guide

13•56Wiring diagrams

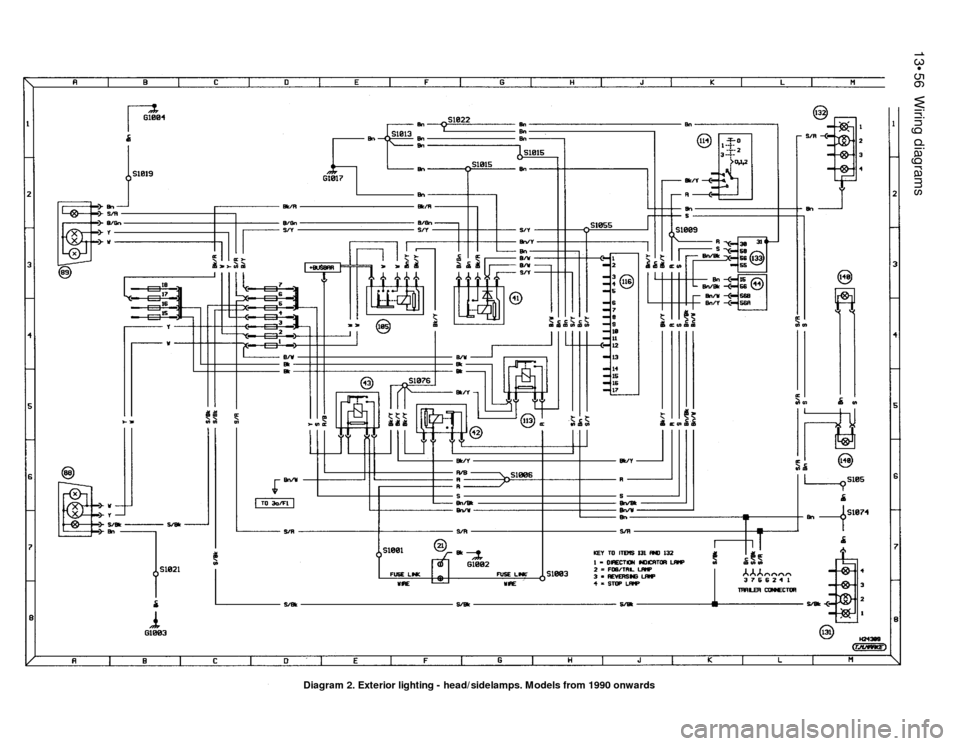

Diagram 2. Exterior lighting - head/sidelamps. Models from 1990 onwards

Wiring diagrams 13•57
13

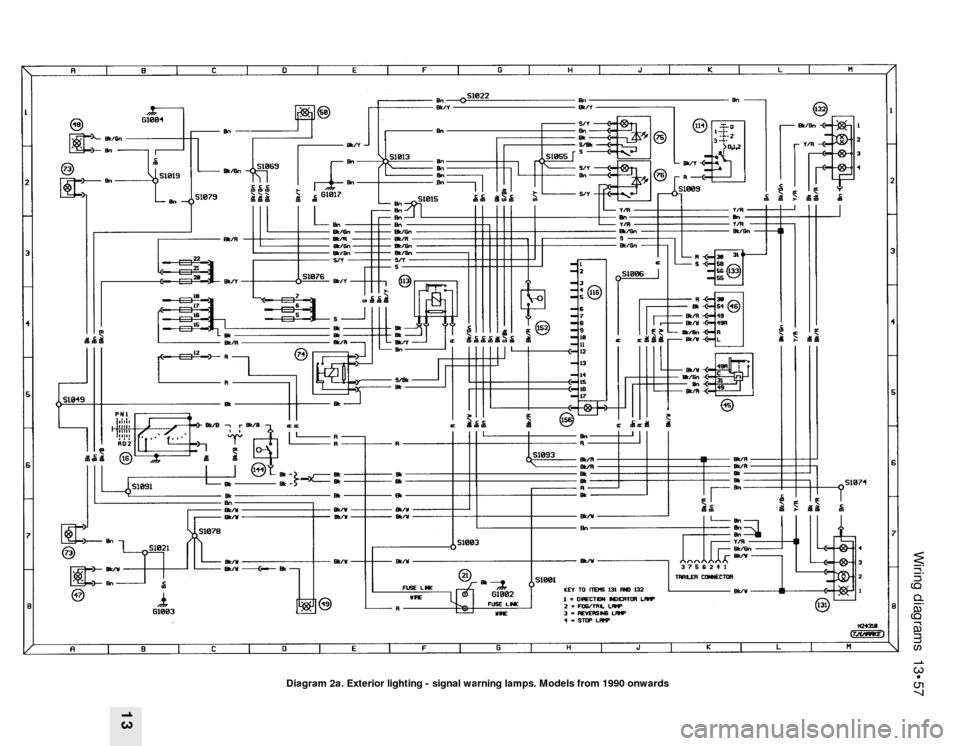

Diagram 2a. Exterior lighting - signal warning lamps. Models from 1990 onwards

13•58Wiring diagrams

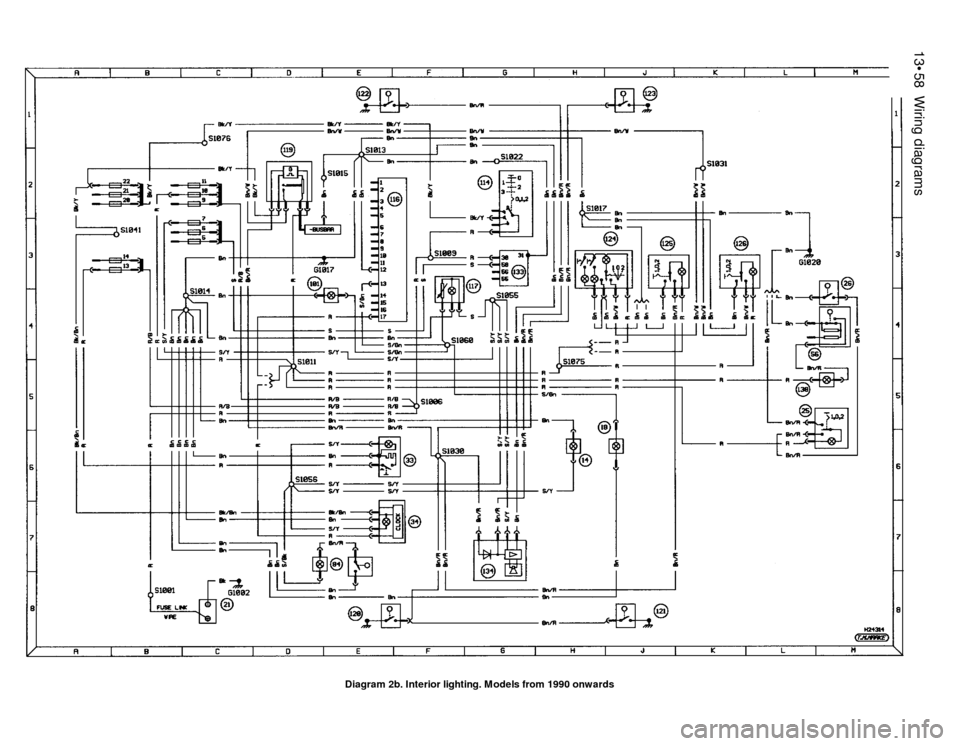

Diagram 2b. Interior lighting. Models from 1990 onwards

Wiring diagrams 13•59
13

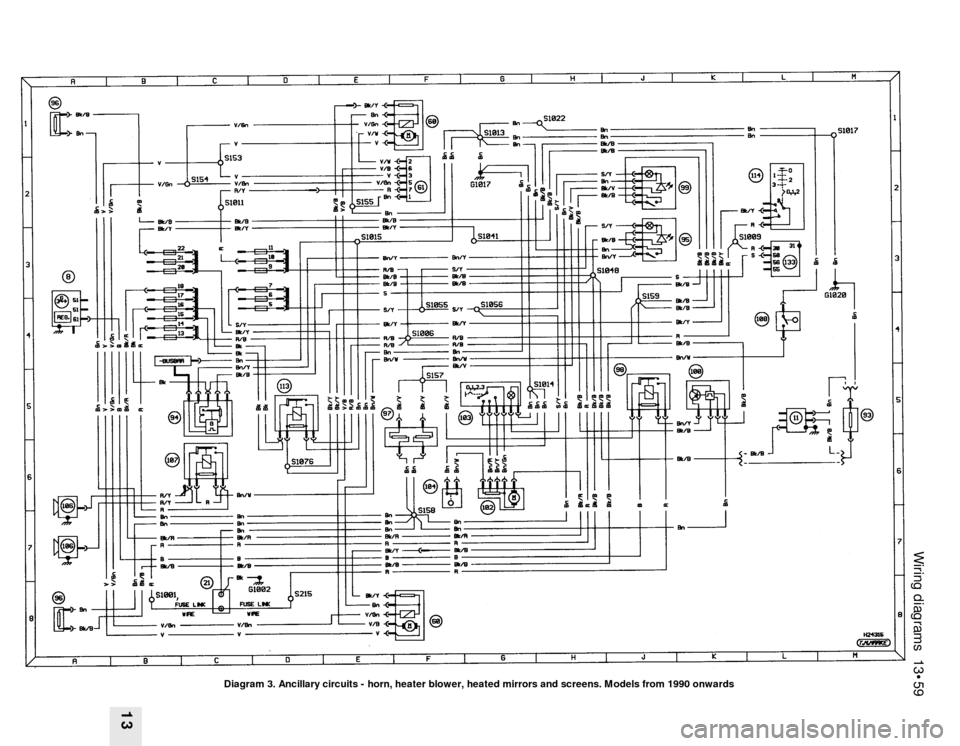

Diagram 3. Ancillary circuits - horn, heater blower, heated mirrors and screens. Models from 1990 onwards

13•60Wiring diagrams

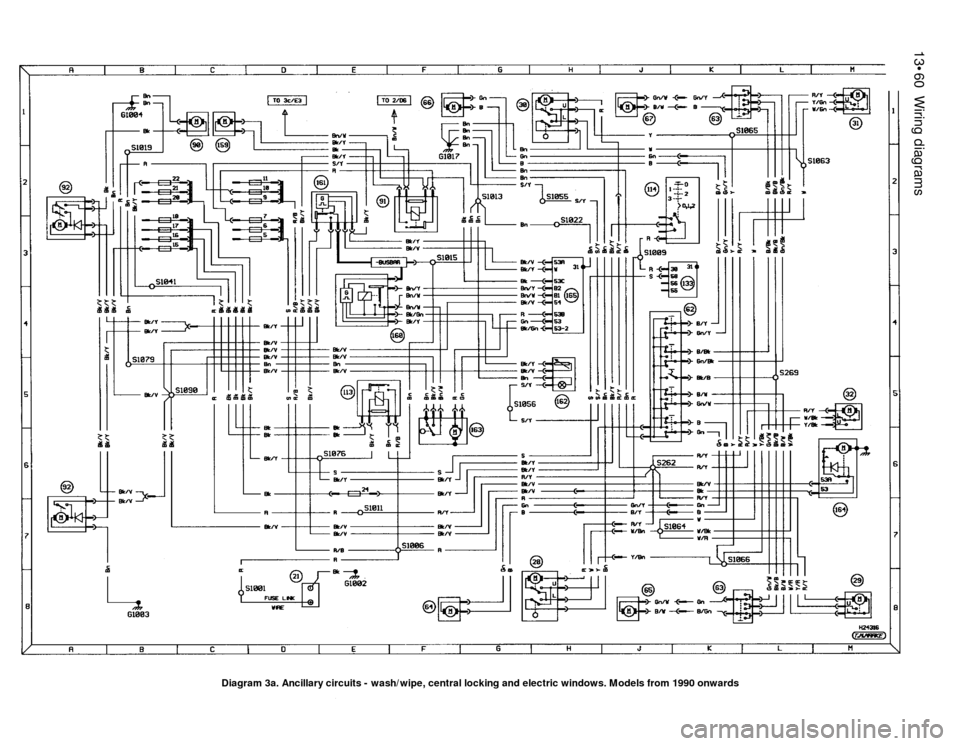

Diagram 3a. Ancillary circuits - wash/wipe, central locking and electric windows. Models from 1990 onwards

Wiring diagrams 13•61
13

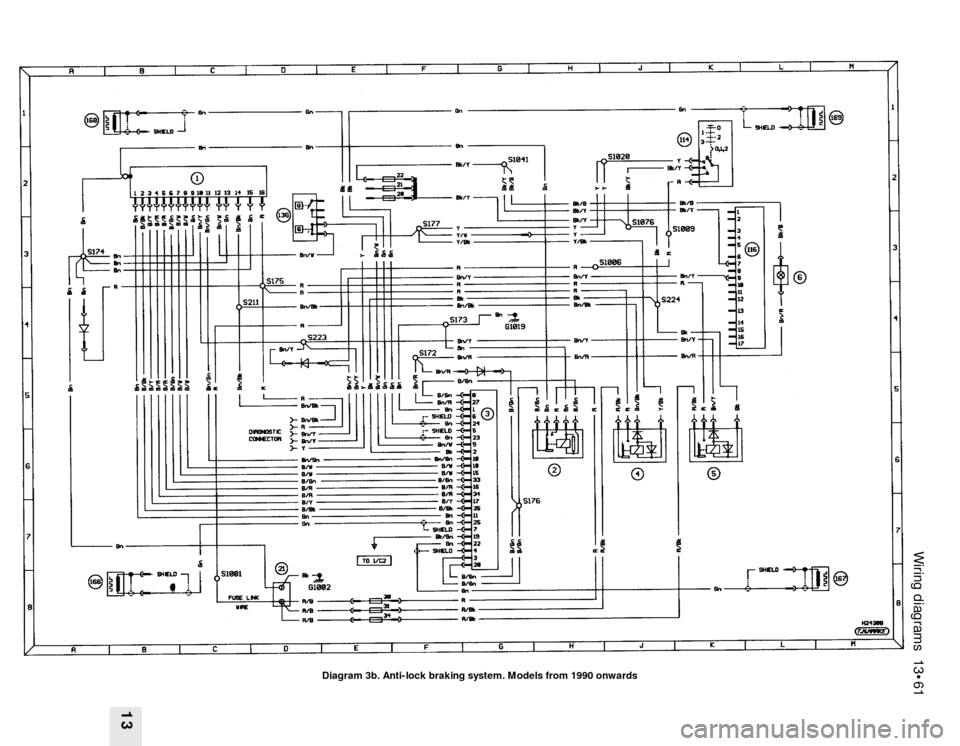

Diagram 3b. Anti-lock braking system. Models from 1990 onwards

13•62Wiring diagrams

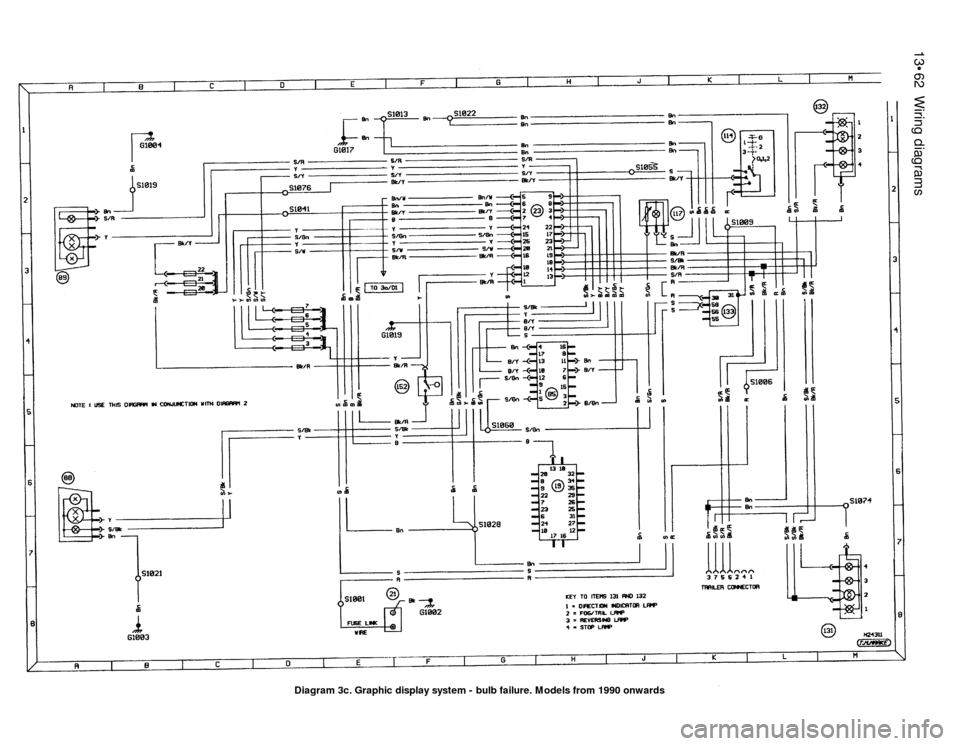

Diagram 3c. Graphic display system - bulb failure. Models from 1990 onwards

Wiring diagrams 13•63
13
Diagram 3d. Graphic display system - auxiliary warning, door ajar and fuel computer. Models from 1990 onwards

13•64Wiring diagrams
Diagram 4. 1.6 and 1.8 CVH engine CfI fuel injection and ignition systems. Models from 1990 onwards

Wiring diagrams 13•65
13
Diagram 4a. 2.0 litre DOHC engine EFI fuel injection and ignition systems. Models from 1990 onwards
