FORD SUPER DUTY 2008 2.G Diesel Supplement Manual

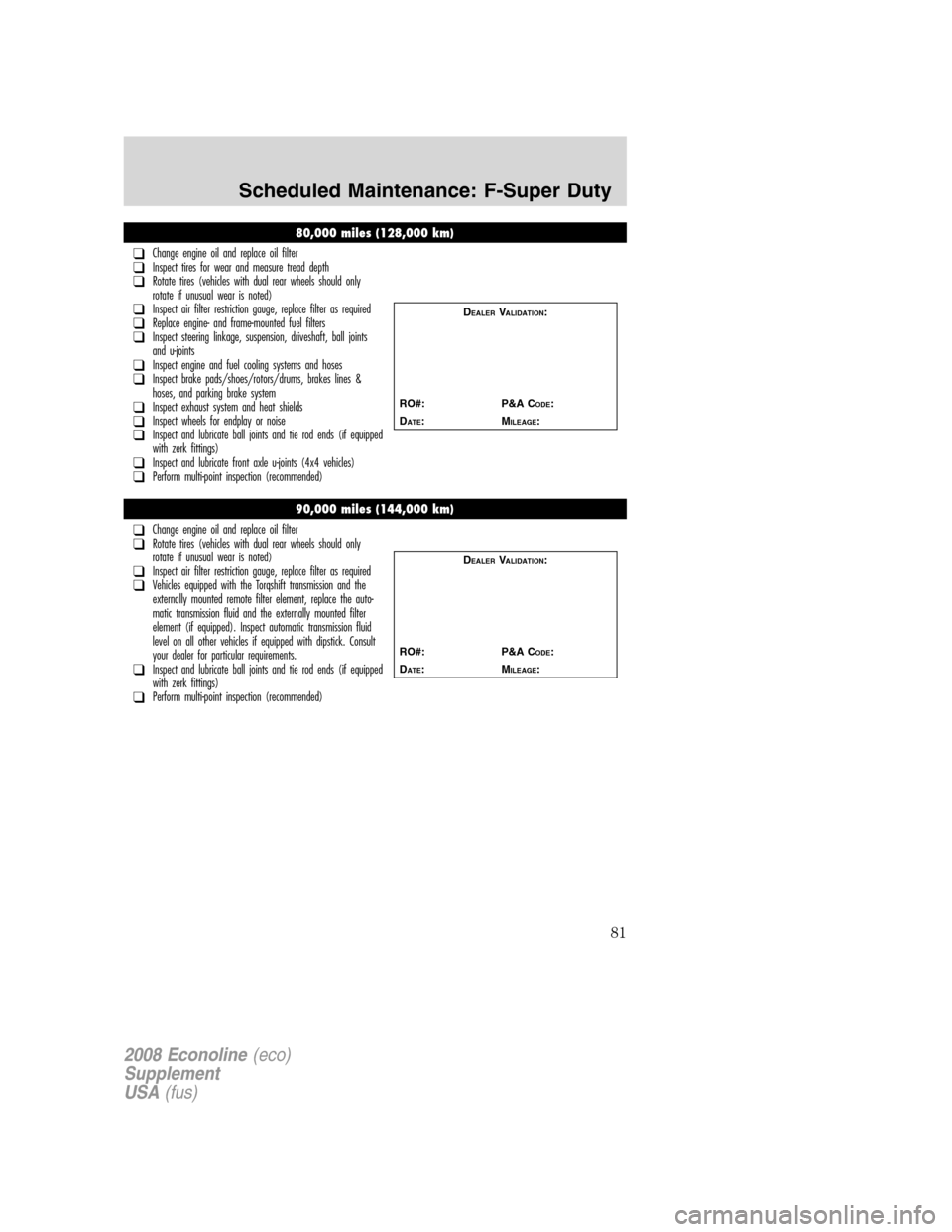

80,000 miles (128,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
90,000 miles (144,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Vehicles equipped with the Torqshift transmission and the
externally mounted remote filter element, replace the auto-
matic transmission fluid and the externally mounted filter
element (if equipped). Inspect automatic transmission fluid
level on all other vehicles if equipped with dipstick. Consult
your dealer for particular requirements.
❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
81

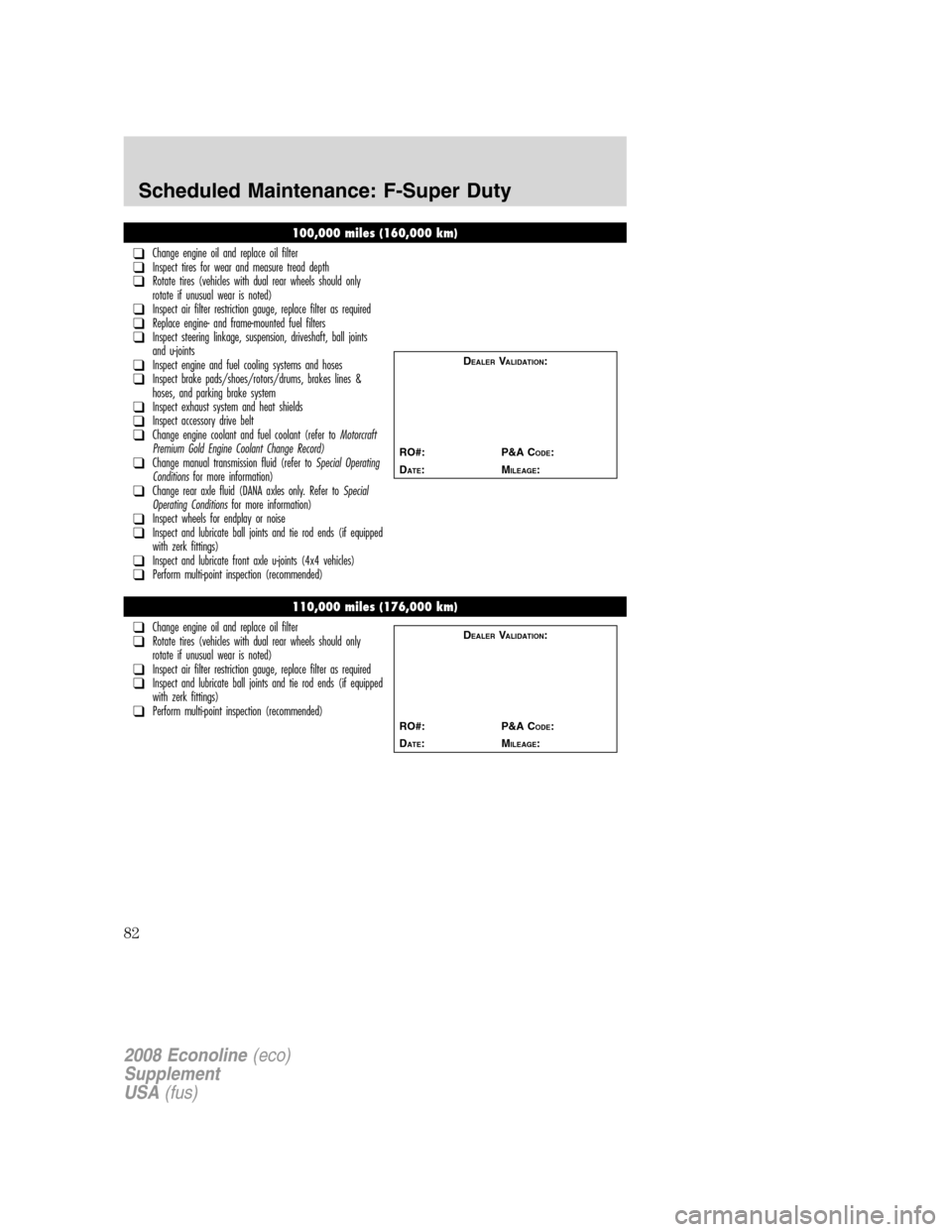

100,000 miles (160,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect accessory drive belt❑Change engine coolant and fuel coolant (refer toMotorcraft
Premium Gold Engine Coolant Change Record)
❑Change manual transmission fluid (refer toSpecial Operating
Conditionsfor more information)❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
110,000 miles (176,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
82

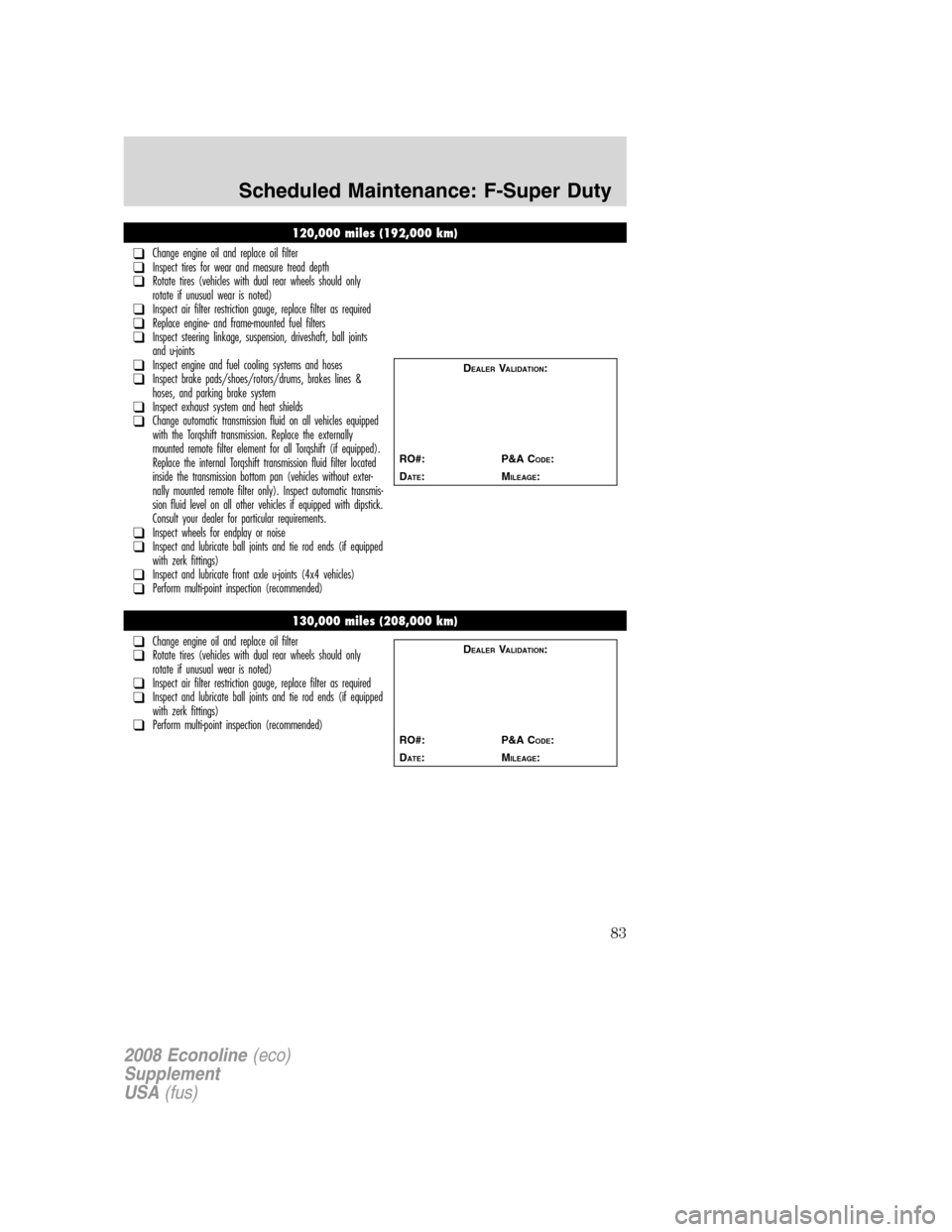

120,000 miles (192,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Change automatic transmission fluid on all vehicles equipped
with the Torqshift transmission. Replace the externally
mounted remote filter element for all Torqshift (if equipped).
Replace the internal Torqshift transmission fluid filter located
inside the transmission bottom pan (vehicles without exter-
nally mounted remote filter only). Inspect automatic transmis-
sion fluid level on all other vehicles if equipped with dipstick.
Consult your dealer for particular requirements.
❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
130,000 miles (208,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
83

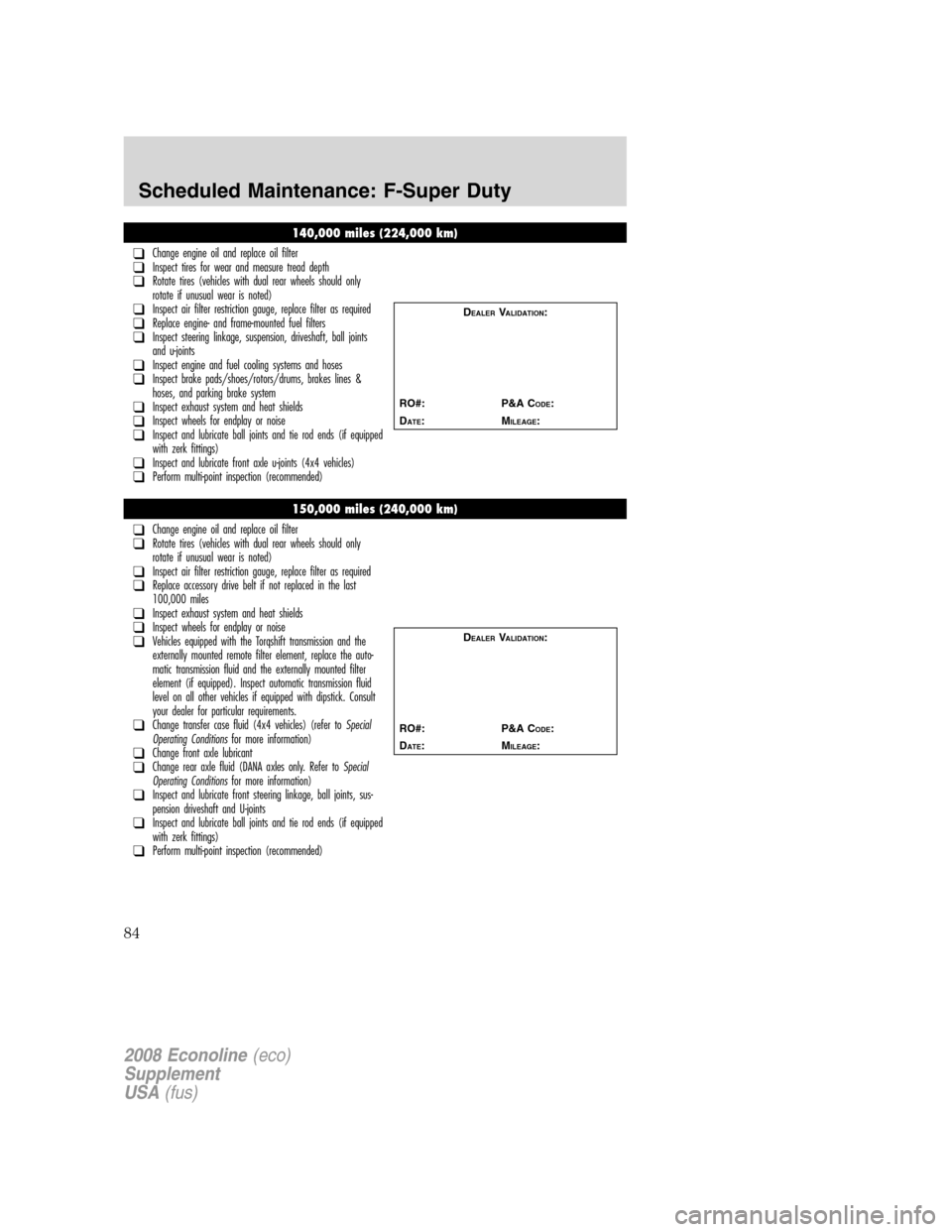

140,000 miles (224,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace engine- and frame-mounted fuel filters❑Inspect steering linkage, suspension, driveshaft, ball joints
and u-joints
❑Inspect engine and fuel cooling systems and hoses❑Inspect brake pads/shoes/rotors/drums, brakes lines &
hoses, and parking brake system
❑Inspect exhaust system and heat shields❑Inspect wheels for endplay or noise❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Inspect and lubricate front axle u-joints (4x4 vehicles)❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
150,000 miles (240,000 km)
❑Change engine oil and replace oil filter❑Rotate tires (vehicles with dual rear wheels should only
rotate if unusual wear is noted)
❑Inspect air filter restriction gauge, replace filter as required❑Replace accessory drive belt if not replaced in the last
100,000 miles
❑Inspect exhaust system and heat shields❑Inspect wheels for endplay or noise❑Vehicles equipped with the Torqshift transmission and the
externally mounted remote filter element, replace the auto-
matic transmission fluid and the externally mounted filter
element (if equipped). Inspect automatic transmission fluid
level on all other vehicles if equipped with dipstick. Consult
your dealer for particular requirements.
❑Change transfer case fluid (4x4 vehicles) (refer toSpecial
Operating Conditionsfor more information)❑Change front axle lubricant❑Change rear axle fluid (DANA axles only. Refer toSpecial
Operating Conditionsfor more information)❑Inspect and lubricate front steering linkage, ball joints, sus-
pension driveshaft and U-joints
❑Inspect and lubricate ball joints and tie rod ends (if equipped
with zerk fittings)
❑Perform multi-point inspection (recommended)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
84

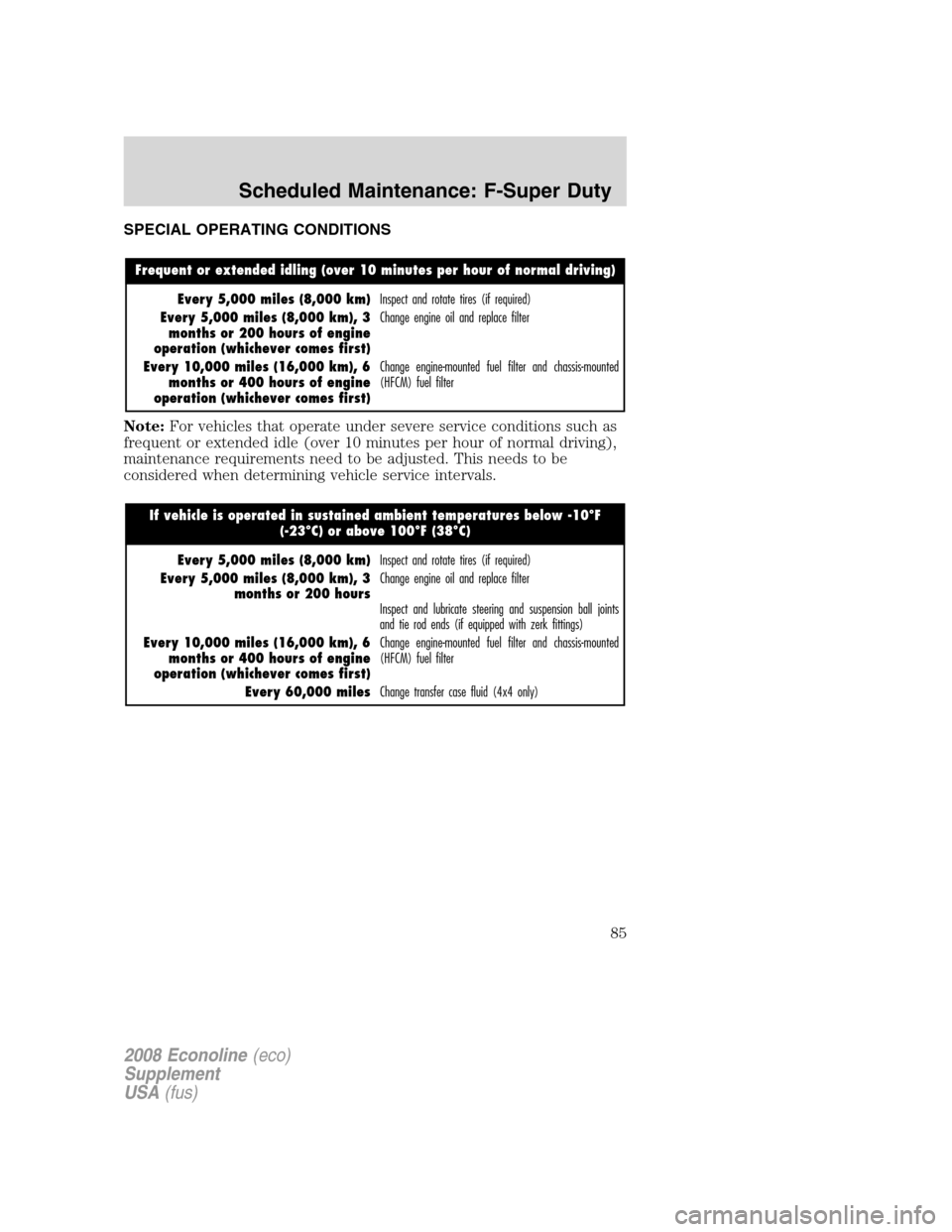

SPECIAL OPERATING CONDITIONS
Frequent or extended idling (over 10 minutes per hour of normal driving)
Every 5,000 miles (8,000 km)Inspect and rotate tires (if required)
Every 5,000 miles (8,000 km), 3
months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km), 6
months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Note:For vehicles that operate under severe service conditions such as
frequent or extended idle (over 10 minutes per hour of normal driving),
maintenance requirements need to be adjusted. This needs to be
considered when determining vehicle service intervals.
If vehicle is operated in sustained ambient temperatures below -10°F
(-23°C) or above 100°F (38°C)
Every 5,000 miles (8,000 km)Inspect and rotate tires (if required)
Every 5,000 miles (8,000 km), 3
months or 200 hoursChange engine oil and replace filter
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Every 10,000 miles (16,000 km), 6
months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 60,000 milesChange transfer case fluid (4x4 only)
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
85

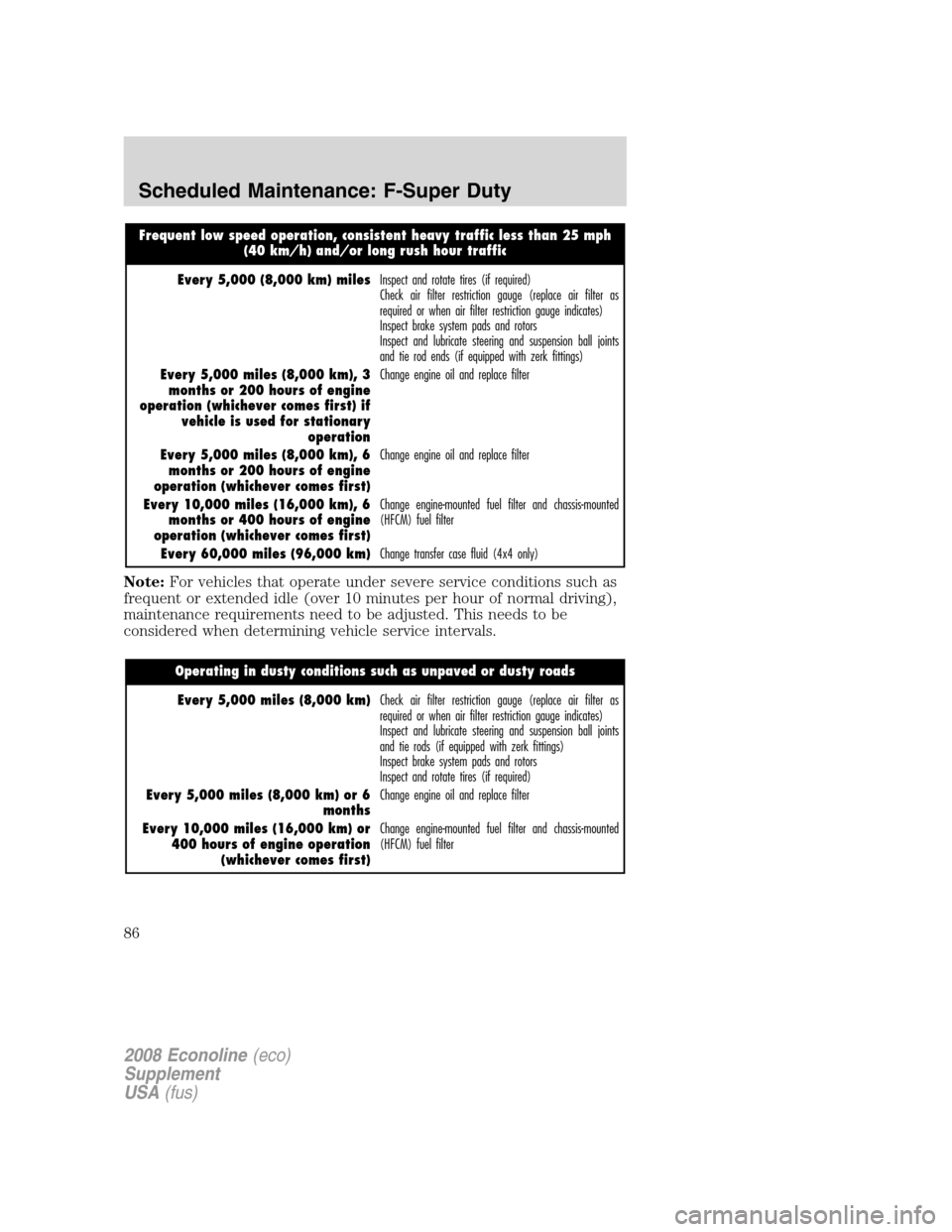

Frequent low speed operation, consistent heavy traffic less than 25 mph
(40 km/h) and/or long rush hour traffic
Every 5,000 (8,000 km) milesInspect and rotate tires (if required)
Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect brake system pads and rotors
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Every 5,000 miles (8,000 km), 3
months or 200 hours of engine
operation (whichever comes first) if
vehicle is used for stationary
operationChange engine oil and replace filter
Every 5,000 miles (8,000 km), 6
months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km), 6
months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Note:For vehicles that operate under severe service conditions such as
frequent or extended idle (over 10 minutes per hour of normal driving),
maintenance requirements need to be adjusted. This needs to be
considered when determining vehicle service intervals.
Operating in dusty conditions such as unpaved or dusty roads
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect and lubricate steering and suspension ball joints
and tie rods (if equipped with zerk fittings)
Inspect brake system pads and rotors
Inspect and rotate tires (if required)
Every 5,000 miles (8,000 km) or 6
monthsChange engine oil and replace filter
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
86

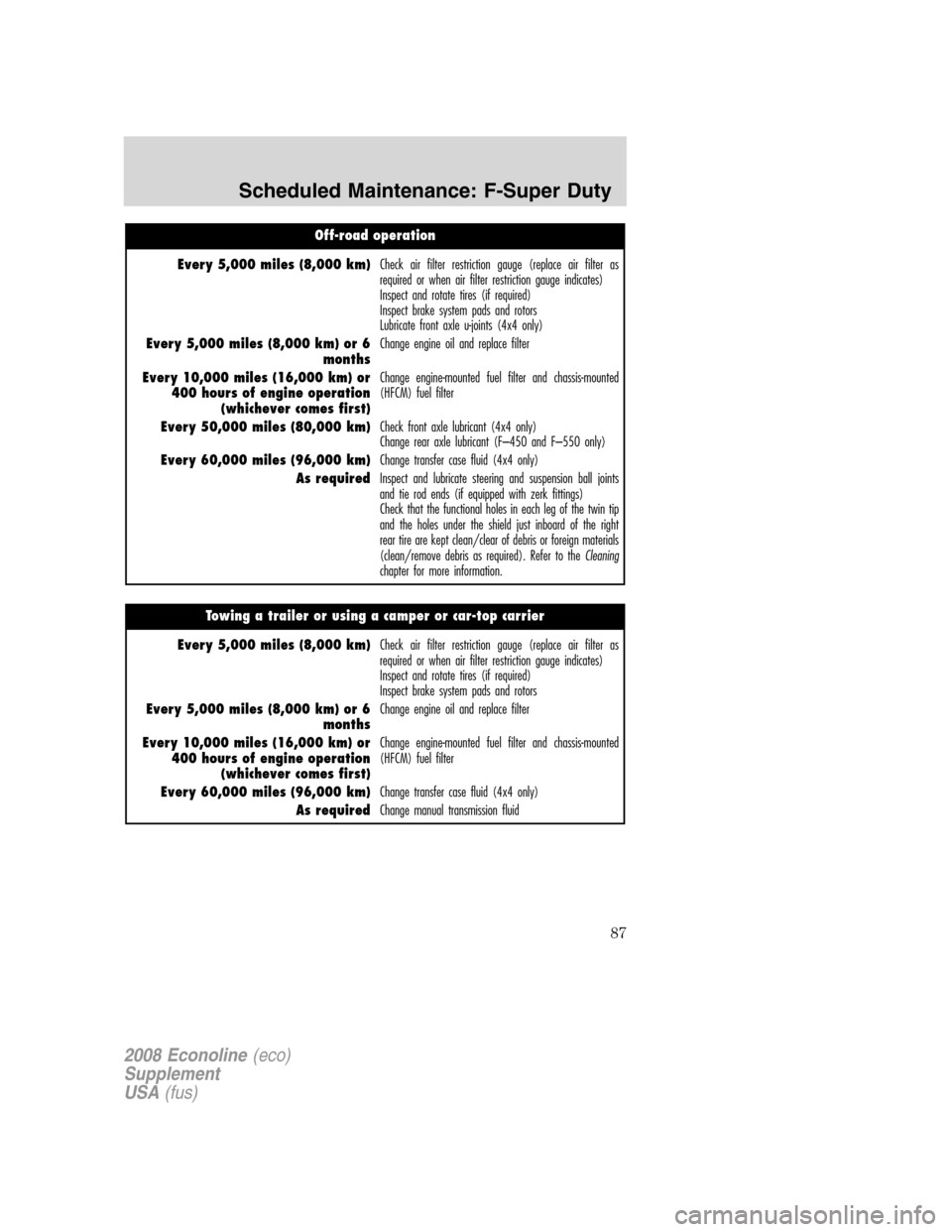

Off-road operation
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect and rotate tires (if required)
Inspect brake system pads and rotors
Lubricate front axle u-joints (4x4 only)
Every 5,000 miles (8,000 km) or 6
monthsChange engine oil and replace filter
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 50,000 miles (80,000 km)Check front axle lubricant (4x4 only)
Change rear axle lubricant (F–450 and F–550 only)
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
As requiredInspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Check that the functional holes in each leg of the twin tip
and the holes under the shield just inboard of the right
rear tire are kept clean/clear of debris or foreign materials
(clean/remove debris as required). Refer to the
Cleaningchapter for more information.
Towing a trailer or using a camper or car-top carrier
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect and rotate tires (if required)
Inspect brake system pads and rotors
Every 5,000 miles (8,000 km) or 6
monthsChange engine oil and replace filter
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
As requiredChange manual transmission fluid
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
87

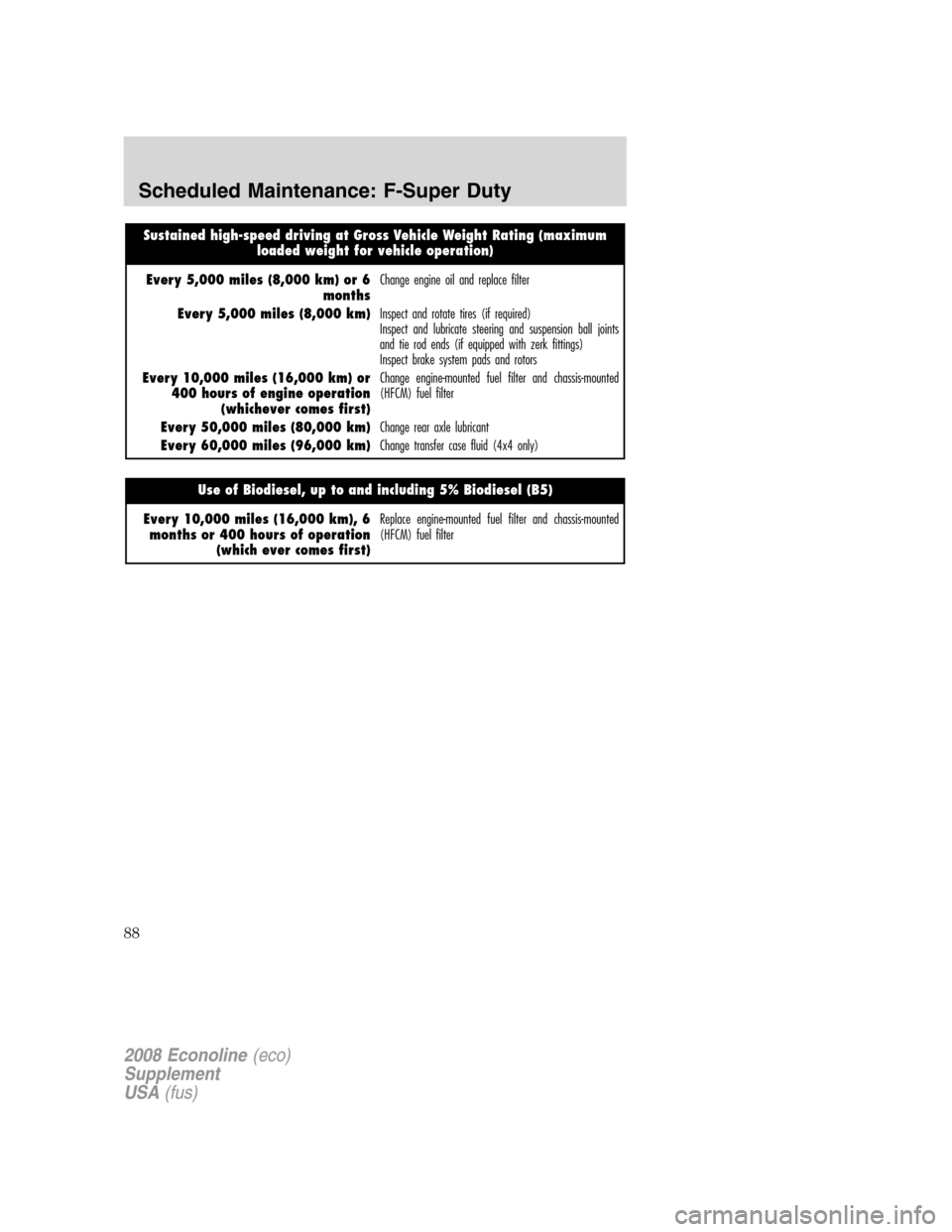

Sustained high-speed driving at Gross Vehicle Weight Rating (maximum
loaded weight for vehicle operation)
Every 5,000 miles (8,000 km) or 6
monthsChange engine oil and replace filter
Every 5,000 miles (8,000 km)Inspect and rotate tires (if required)
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Inspect brake system pads and rotors
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 50,000 miles (80,000 km)Change rear axle lubricant
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Use of Biodiesel, up to and including 5% Biodiesel (B5)
Every 10,000 miles (16,000 km), 6
months or 400 hours of operation
(which ever comes first)Replace engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
88

Special Operating Conditions Log
DEALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
89

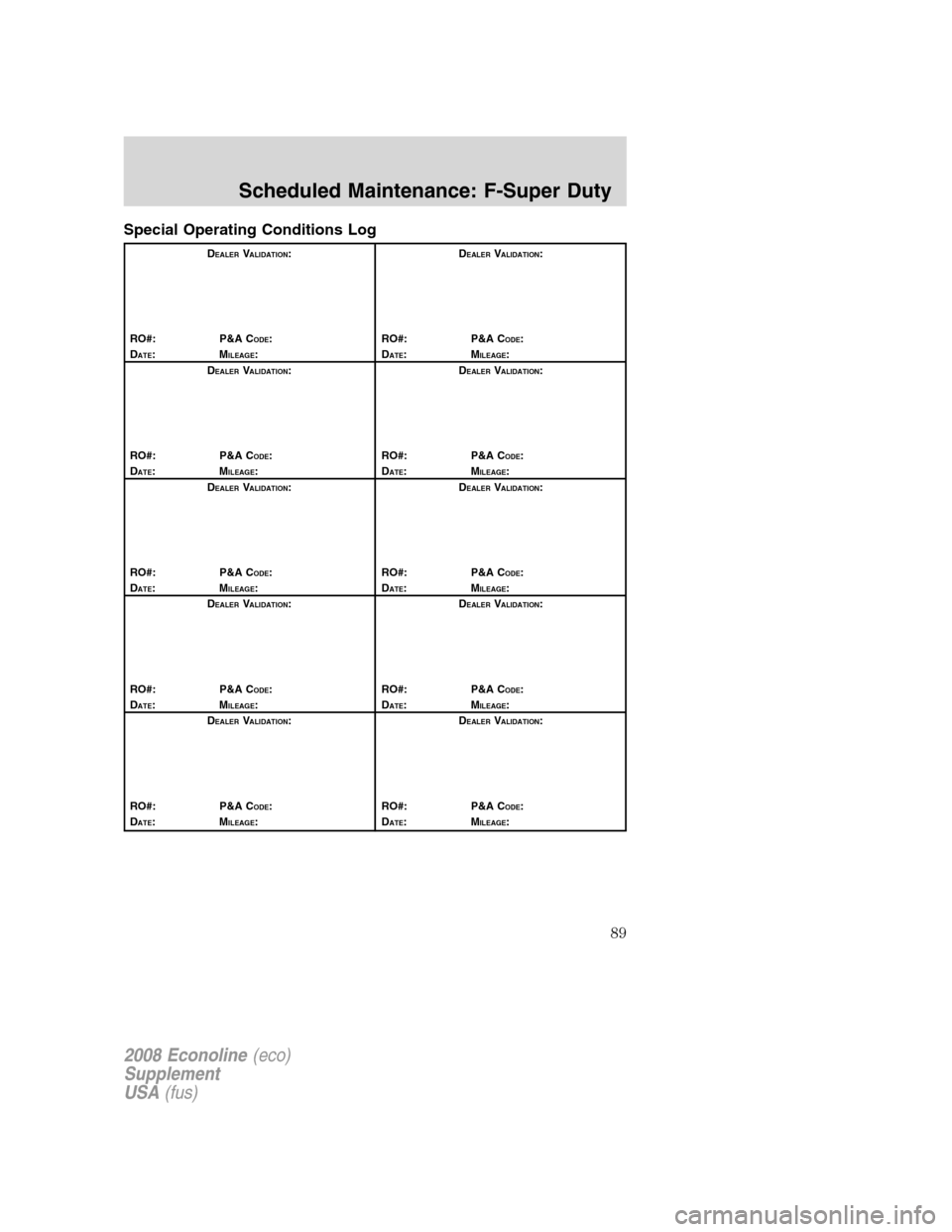

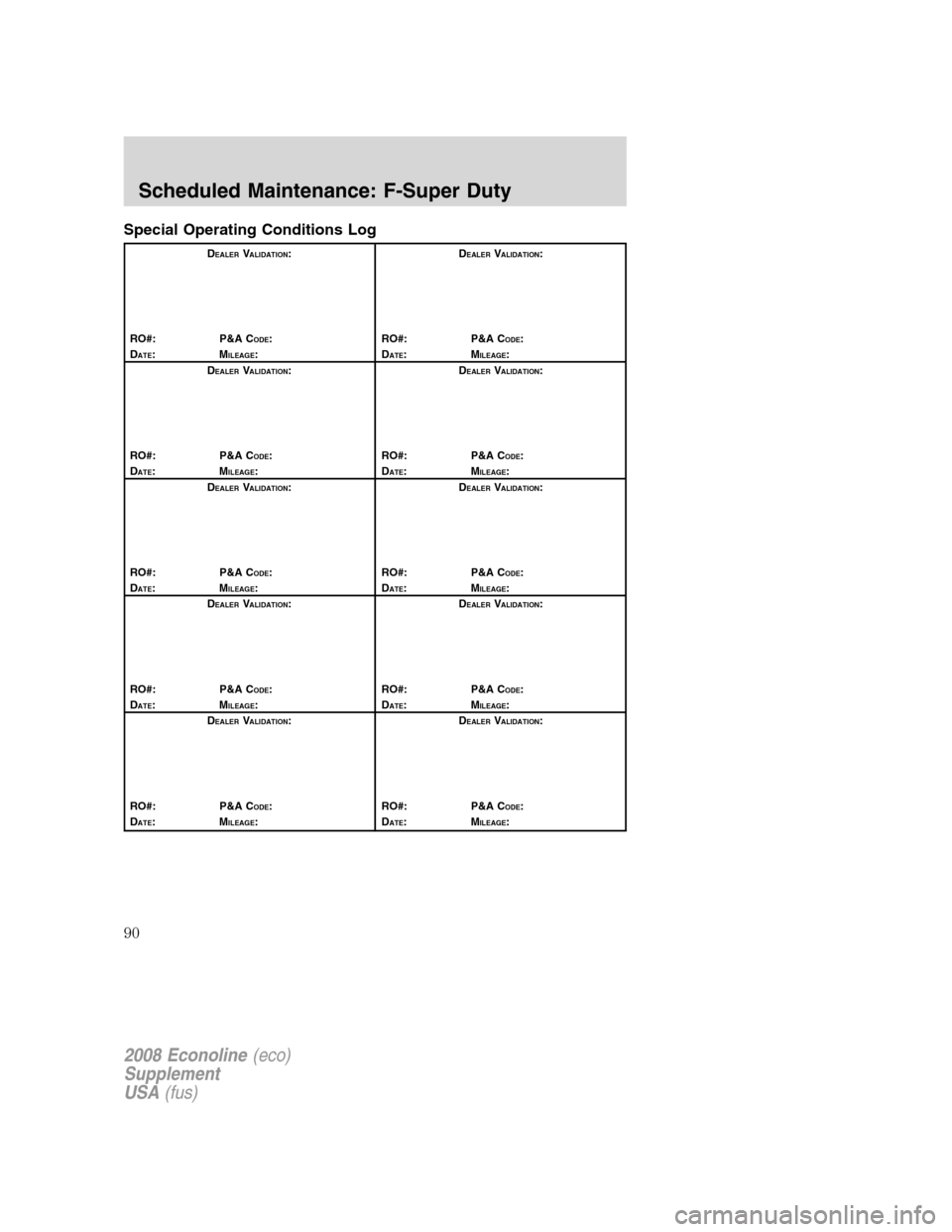

Special Operating Conditions Log
DEALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
2008 Econoline(eco)
Supplement
USA(fus)
Scheduled Maintenance: F-Super Duty
90
