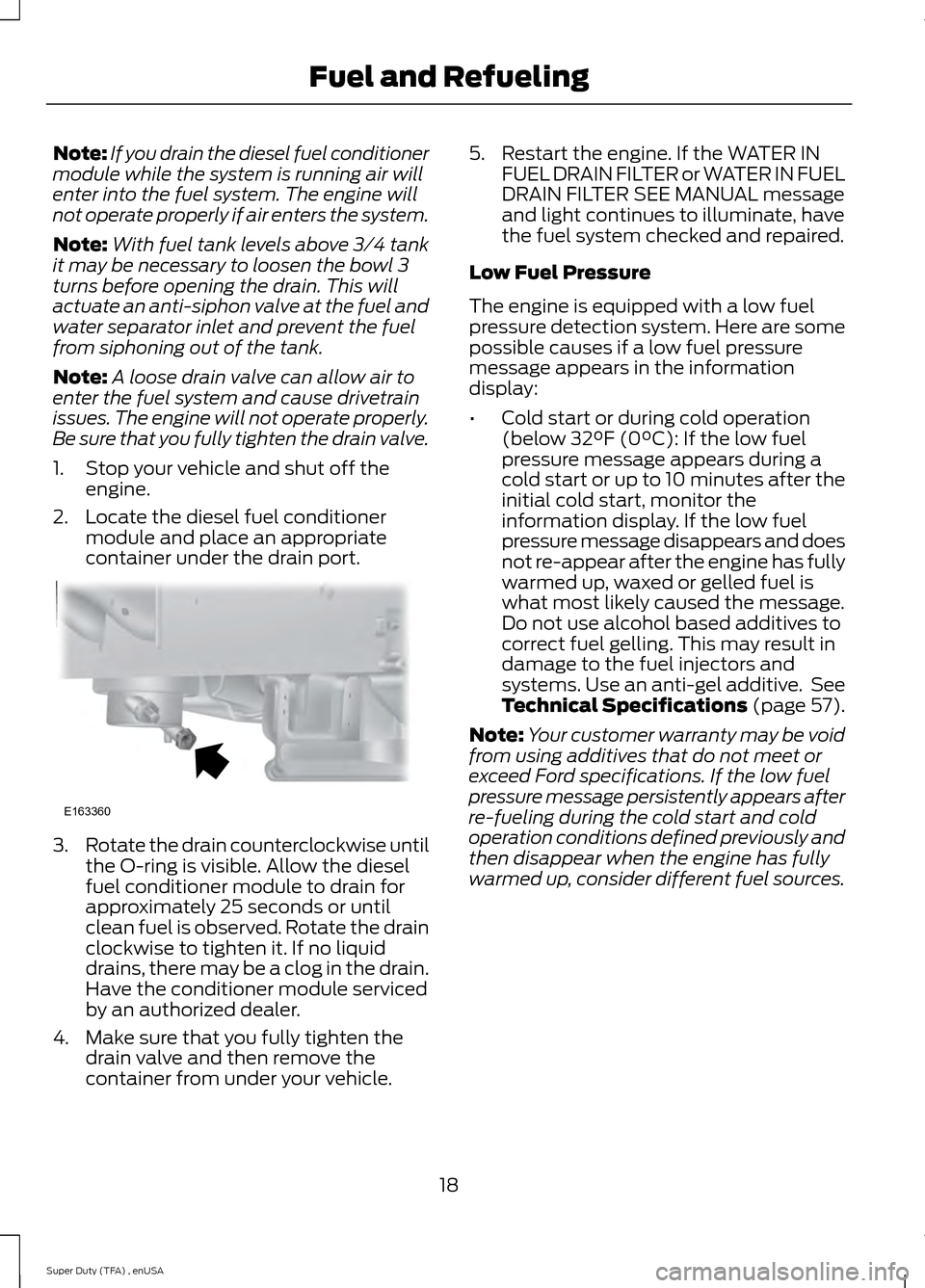

Note:
If you drain the diesel fuel conditioner
module while the system is running air will
enter into the fuel system. The engine will
not operate properly if air enters the system.
Note: With fuel tank levels above 3⁄4 tank
it may be necessary to loosen the bowl 3
turns before opening the drain. This will
actuate an anti-siphon valve at the fuel and
water separator inlet and prevent the fuel
from siphoning out of the tank.
Note: A loose drain valve can allow air to
enter the fuel system and cause drivetrain
issues. The engine will not operate properly.
Be sure that you fully tighten the drain valve.
1. Stop your vehicle and shut off the engine.
2. Locate the diesel fuel conditioner module and place an appropriate
container under the drain port. 3.
Rotate the drain counterclockwise until
the O-ring is visible. Allow the diesel
fuel conditioner module to drain for
approximately 25 seconds or until
clean fuel is observed. Rotate the drain
clockwise to tighten it. If no liquid
drains, there may be a clog in the drain.
Have the conditioner module serviced
by an authorized dealer.
4. Make sure that you fully tighten the drain valve and then remove the
container from under your vehicle. 5. Restart the engine. If the WATER IN
FUEL DRAIN FILTER or WATER IN FUEL
DRAIN FILTER SEE MANUAL message
and light continues to illuminate, have
the fuel system checked and repaired.
Low Fuel Pressure
The engine is equipped with a low fuel
pressure detection system. Here are some
possible causes if a low fuel pressure
message appears in the information
display:
• Cold start or during cold operation
(below 32°F (0°C): If the low fuel
pressure message appears during a
cold start or up to 10 minutes after the
initial cold start, monitor the
information display. If the low fuel
pressure message disappears and does
not re-appear after the engine has fully
warmed up, waxed or gelled fuel is
what most likely caused the message.
Do not use alcohol based additives to
correct fuel gelling. This may result in
damage to the fuel injectors and
systems. Use an anti-gel additive. See
Technical Specifications (page 57).
Note: Your customer warranty may be void
from using additives that do not meet or
exceed Ford specifications. If the low fuel
pressure message persistently appears after
re-fueling during the cold start and cold
operation conditions defined previously and
then disappear when the engine has fully
warmed up, consider different fuel sources.
18
Super Duty (TFA) , enUSA Fuel and RefuelingE163360
Page 22 of 84
•

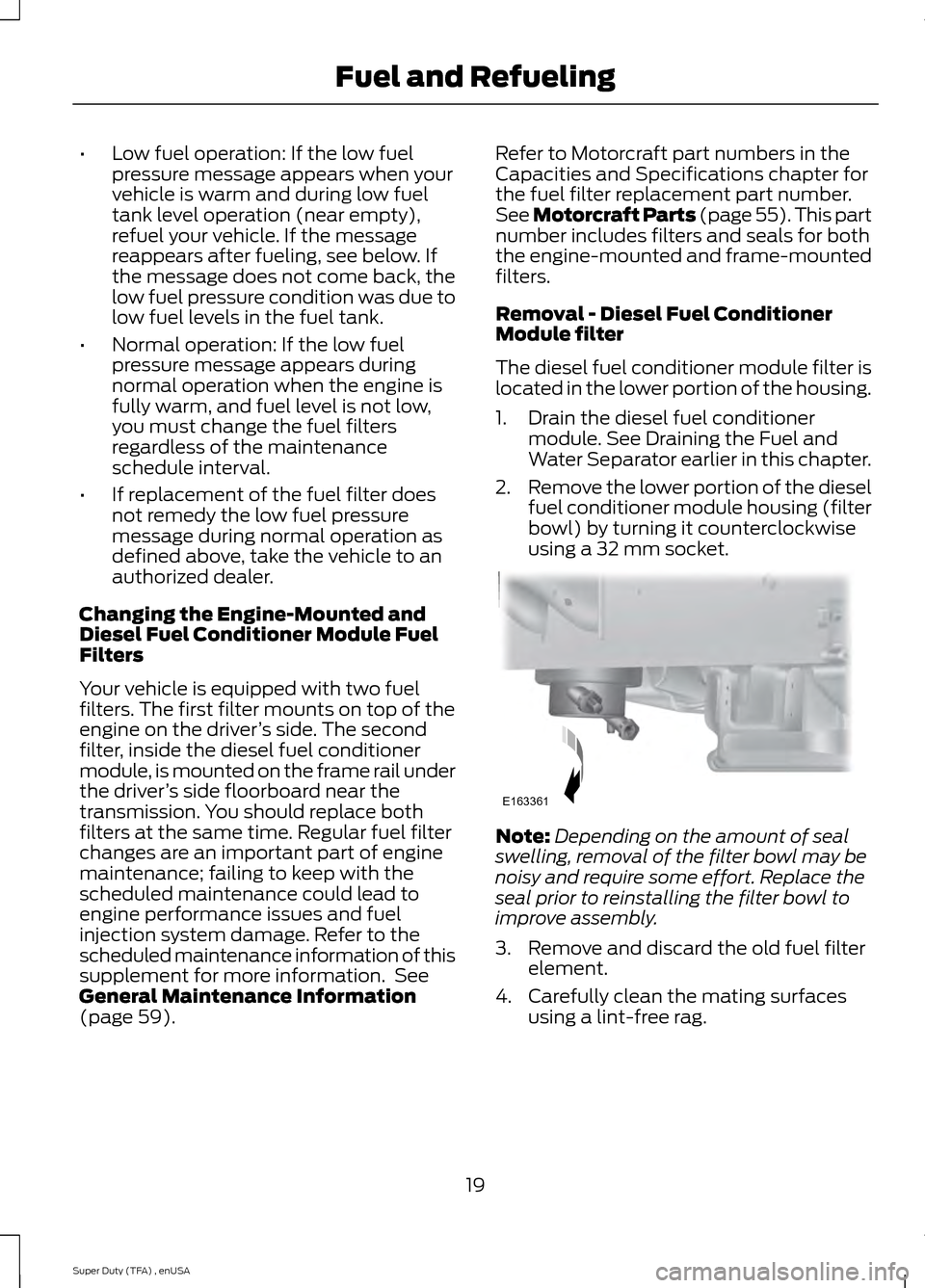

Low fuel operation: If the low fuel
pressure message appears when your
vehicle is warm and during low fuel
tank level operation (near empty),
refuel your vehicle. If the message
reappears after fueling, see below. If
the message does not come back, the
low fuel pressure condition was due to
low fuel levels in the fuel tank.
• Normal operation: If the low fuel
pressure message appears during
normal operation when the engine is
fully warm, and fuel level is not low,
you must change the fuel filters
regardless of the maintenance
schedule interval.
• If replacement of the fuel filter does
not remedy the low fuel pressure
message during normal operation as
defined above, take the vehicle to an
authorized dealer.
Changing the Engine-Mounted and
Diesel Fuel Conditioner Module Fuel
Filters
Your vehicle is equipped with two fuel
filters. The first filter mounts on top of the
engine on the driver ’s side. The second
filter, inside the diesel fuel conditioner
module, is mounted on the frame rail under
the driver ’s side floorboard near the
transmission. You should replace both
filters at the same time. Regular fuel filter
changes are an important part of engine
maintenance; failing to keep with the
scheduled maintenance could lead to
engine performance issues and fuel
injection system damage. Refer to the
scheduled maintenance information of this
supplement for more information. See
General Maintenance Information
(page 59). Refer to Motorcraft part numbers in the
Capacities and Specifications chapter for
the fuel filter replacement part number.
See Motorcraft Parts (page 55). This part
number includes filters and seals for both
the engine-mounted and frame-mounted
filters.
Removal - Diesel Fuel Conditioner
Module filter
The diesel fuel conditioner module filter is
located in the lower portion of the housing.
1. Drain the diesel fuel conditioner
module. See Draining the Fuel and
Water Separator earlier in this chapter.
2. Remove the lower portion of the diesel
fuel conditioner module housing (filter
bowl) by turning it counterclockwise
using a 32 mm socket. Note:
Depending on the amount of seal
swelling, removal of the filter bowl may be
noisy and require some effort. Replace the
seal prior to reinstalling the filter bowl to
improve assembly.
3. Remove and discard the old fuel filter element.
4. Carefully clean the mating surfaces using a lint-free rag.
19
Super Duty (TFA) , enUSA Fuel and RefuelingE163361
Page 23 of 84
Installation – Diesel Fuel Conditioner
Module filter
1.
Install the new filter into the filter bowl
tabs and replace the seal on the diesel
fuel conditioner module header (top
portion of separator). Refer to
Motorcraft part numbers in the
Capacities and Specifications chapter
for the fuel filter kit part number. See
Motorcraft Parts (page 55).
2. Lube O-ring with lubricant packet in the filter kit. This will assist in making
sure the filter is properly tightened. 3. Reinstall the lower portion of the
housing by slowly turning it clockwise
onto diesel fuel conditioner module
housing, allowing fuel to soak into the
fuel filter element. Tighten the lower
housing until it contacts the
mechanical stop.
Note: The engine will not run properly if you
do not install the diesel fuel conditioner
module fuel filter in the housing or if the
filter bowl is not tightened to the
mechanical stop.
Note: You will need to purge the system of
air after removal or changing of the filter.
See purging air from the fuel system later
in this chapter. Removal - Engine-mounted fuel filter
The engine-mounted fuel filter is a plastic
disposable cartridge. To remove it, do the
following:
1.
Disconnect both fuel lines by squeezing
the connector tabs and pulling the lines
straight off. Note:
Although the fuel system is not fully
pressurized when the vehicle is off, some
residual pressure may remain in the fuel
system since it can take some time for the
pressure to completely bleed off. Therefore,
we recommend you place a shop rag below
the filter connectors to absorb the small
amount of fuel that will drain.
2. Rotate the filter fully counterclockwise
until the peg is at the far end of the slot.
3. Pull the filter straight up from the bracket and discard the filter.
20
Super Duty (TFA) , enUSA Fuel and RefuelingE163362 E163363 E163364
Page 24 of 84

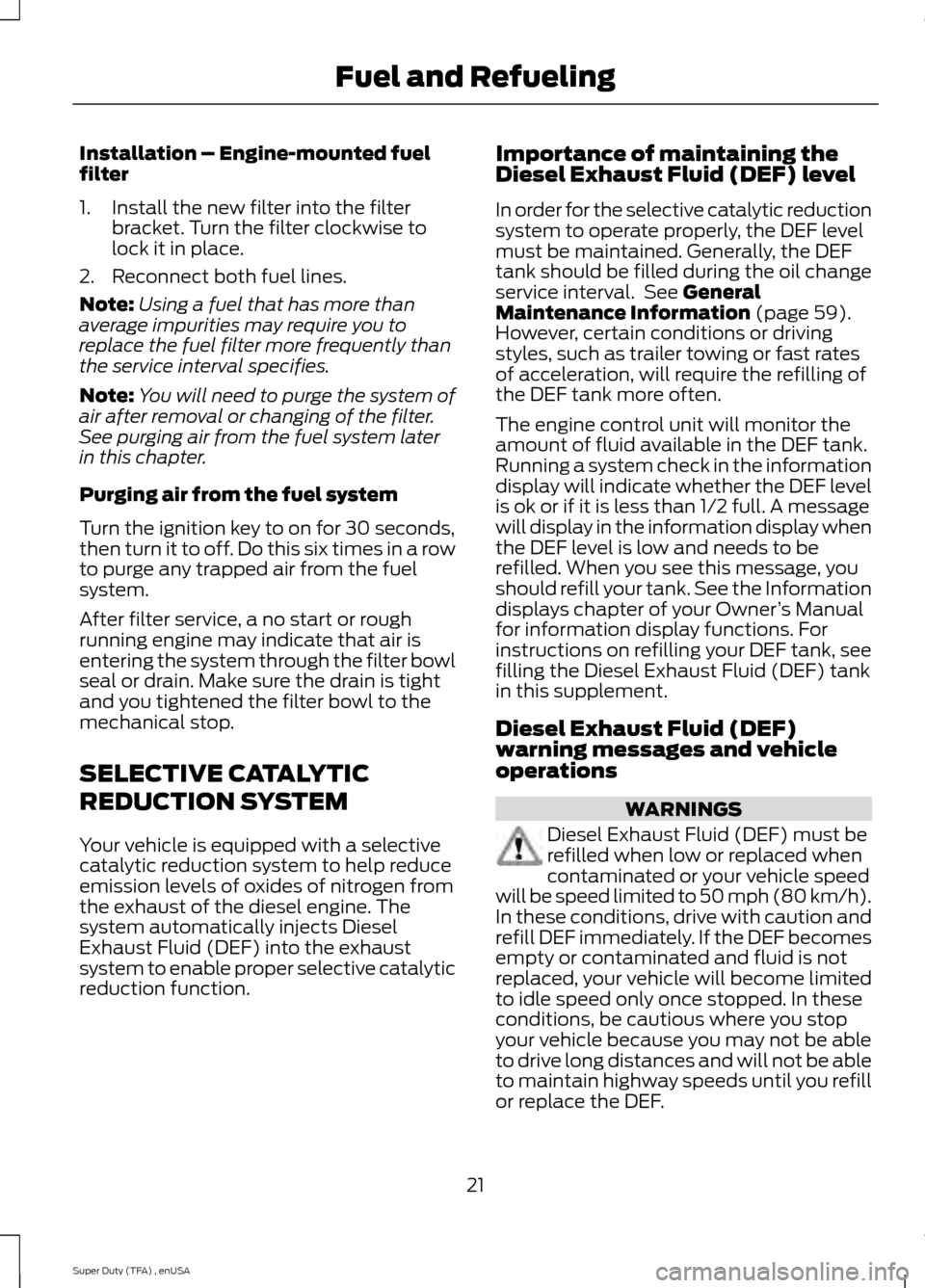

Installation – Engine-mounted fuel
filter
1. Install the new filter into the filter
bracket. Turn the filter clockwise to
lock it in place.
2. Reconnect both fuel lines.
Note: Using a fuel that has more than
average impurities may require you to
replace the fuel filter more frequently than
the service interval specifies.
Note: You will need to purge the system of
air after removal or changing of the filter.
See purging air from the fuel system later
in this chapter.
Purging air from the fuel system
Turn the ignition key to on for 30 seconds,
then turn it to off. Do this six times in a row
to purge any trapped air from the fuel
system.
After filter service, a no start or rough
running engine may indicate that air is
entering the system through the filter bowl
seal or drain. Make sure the drain is tight
and you tightened the filter bowl to the
mechanical stop.
SELECTIVE CATALYTIC
REDUCTION SYSTEM
Your vehicle is equipped with a selective
catalytic reduction system to help reduce
emission levels of oxides of nitrogen from
the exhaust of the diesel engine. The
system automatically injects Diesel
Exhaust Fluid (DEF) into the exhaust
system to enable proper selective catalytic
reduction function. Importance of maintaining the
Diesel Exhaust Fluid (DEF) level
In order for the selective catalytic reduction
system to operate properly, the DEF level
must be maintained. Generally, the DEF
tank should be filled during the oil change
service interval. See General
Maintenance Information (page 59).
However, certain conditions or driving
styles, such as trailer towing or fast rates
of acceleration, will require the refilling of
the DEF tank more often.
The engine control unit will monitor the
amount of fluid available in the DEF tank.
Running a system check in the information
display will indicate whether the DEF level
is ok or if it is less than 1/2 full. A message
will display in the information display when
the DEF level is low and needs to be
refilled. When you see this message, you
should refill your tank. See the Information
displays chapter of your Owner ’s Manual
for information display functions. For
instructions on refilling your DEF tank, see
filling the Diesel Exhaust Fluid (DEF) tank
in this supplement.
Diesel Exhaust Fluid (DEF)
warning messages and vehicle
operations WARNINGS
Diesel Exhaust Fluid (DEF) must be
refilled when low or replaced when
contaminated or your vehicle speed
will be speed limited to 50 mph (80 km/h).
In these conditions, drive with caution and
refill DEF immediately. If the DEF becomes
empty or contaminated and fluid is not
replaced, your vehicle will become limited
to idle speed only once stopped. In these
conditions, be cautious where you stop
your vehicle because you may not be able
to drive long distances and will not be able
to maintain highway speeds until you refill
or replace the DEF.
21
Super Duty (TFA) , enUSA Fuel and Refueling
Page 25 of 84

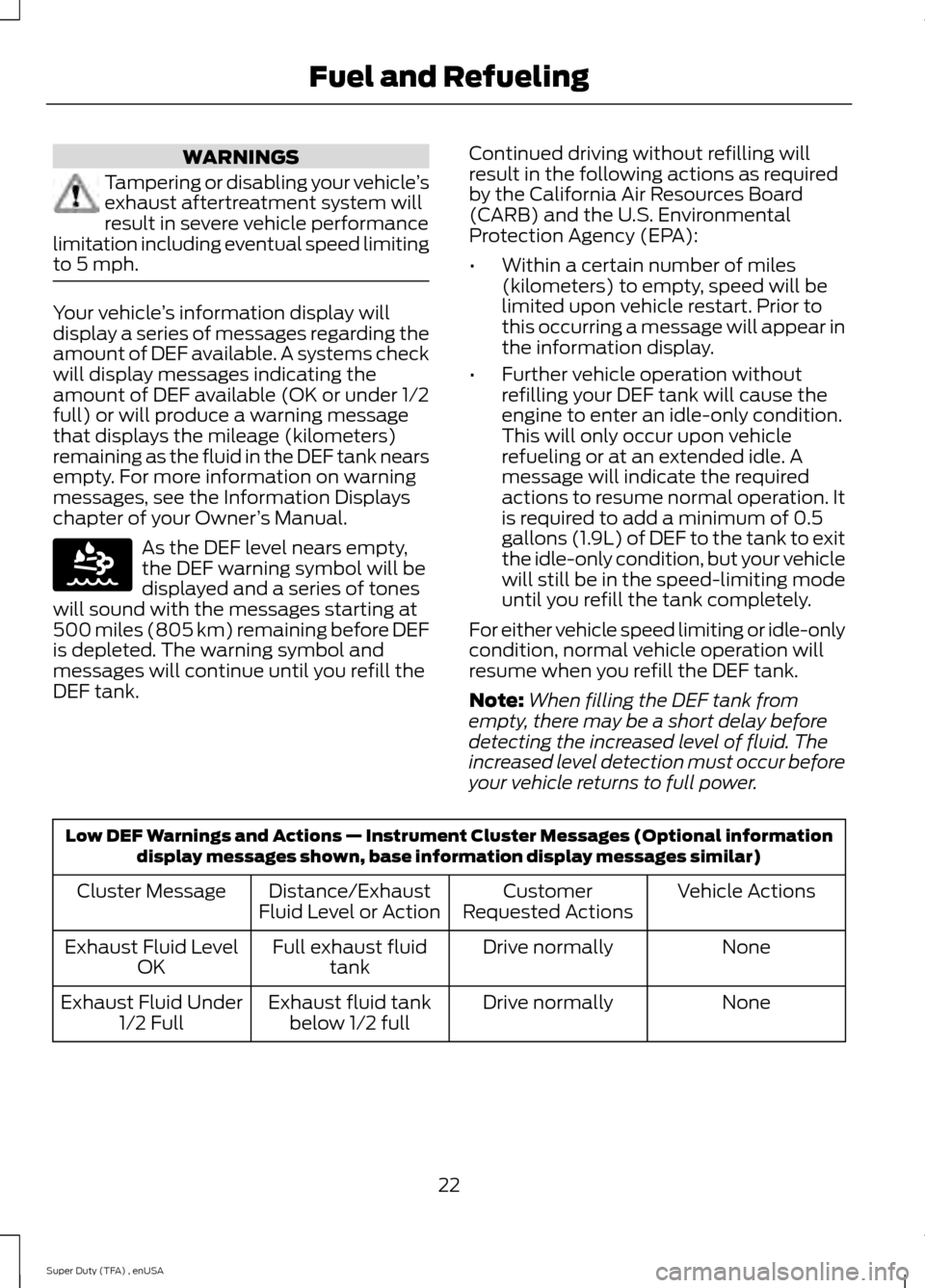

WARNINGS
Tampering or disabling your vehicle
’s
exhaust aftertreatment system will
result in severe vehicle performance
limitation including eventual speed limiting
to 5 mph. Your vehicle
’s information display will
display a series of messages regarding the
amount of DEF available. A systems check
will display messages indicating the
amount of DEF available (OK or under 1⁄2
full) or will produce a warning message
that displays the mileage (kilometers)
remaining as the fluid in the DEF tank nears
empty. For more information on warning
messages, see the Information Displays
chapter of your Owner ’s Manual. As the DEF level nears empty,
the DEF warning symbol will be
displayed and a series of tones
will sound with the messages starting at
500 miles (805 km) remaining before DEF
is depleted. The warning symbol and
messages will continue until you refill the
DEF tank. Continued driving without refilling will
result in the following actions as required
by the California Air Resources Board
(CARB) and the U.S. Environmental
Protection Agency (EPA):
•
Within a certain number of miles
(kilometers) to empty, speed will be
limited upon vehicle restart. Prior to
this occurring a message will appear in
the information display.
• Further vehicle operation without
refilling your DEF tank will cause the
engine to enter an idle-only condition.
This will only occur upon vehicle
refueling or at an extended idle. A
message will indicate the required
actions to resume normal operation. It
is required to add a minimum of 0.5
gallons (1.9L) of DEF to the tank to exit
the idle-only condition, but your vehicle
will still be in the speed-limiting mode
until you refill the tank completely.
For either vehicle speed limiting or idle-only
condition, normal vehicle operation will
resume when you refill the DEF tank.
Note: When filling the DEF tank from
empty, there may be a short delay before
detecting the increased level of fluid. The
increased level detection must occur before
your vehicle returns to full power. Low DEF Warnings and Actions — Instrument Cluster Messages (Optional information
display messages shown, base information display messages similar)
Vehicle Actions
Customer
Requested Actions
Distance/Exhaust
Fluid Level or Action
Cluster Message
None
Drive normally
Full exhaust fluid
tank
Exhaust Fluid Level
OK
None
Drive normally
Exhaust fluid tank
below 1⁄2 full
Exhaust Fluid Under
1⁄2 Full
22
Super Duty (TFA) , enUSA Fuel and RefuelingE163176
Page 26 of 84

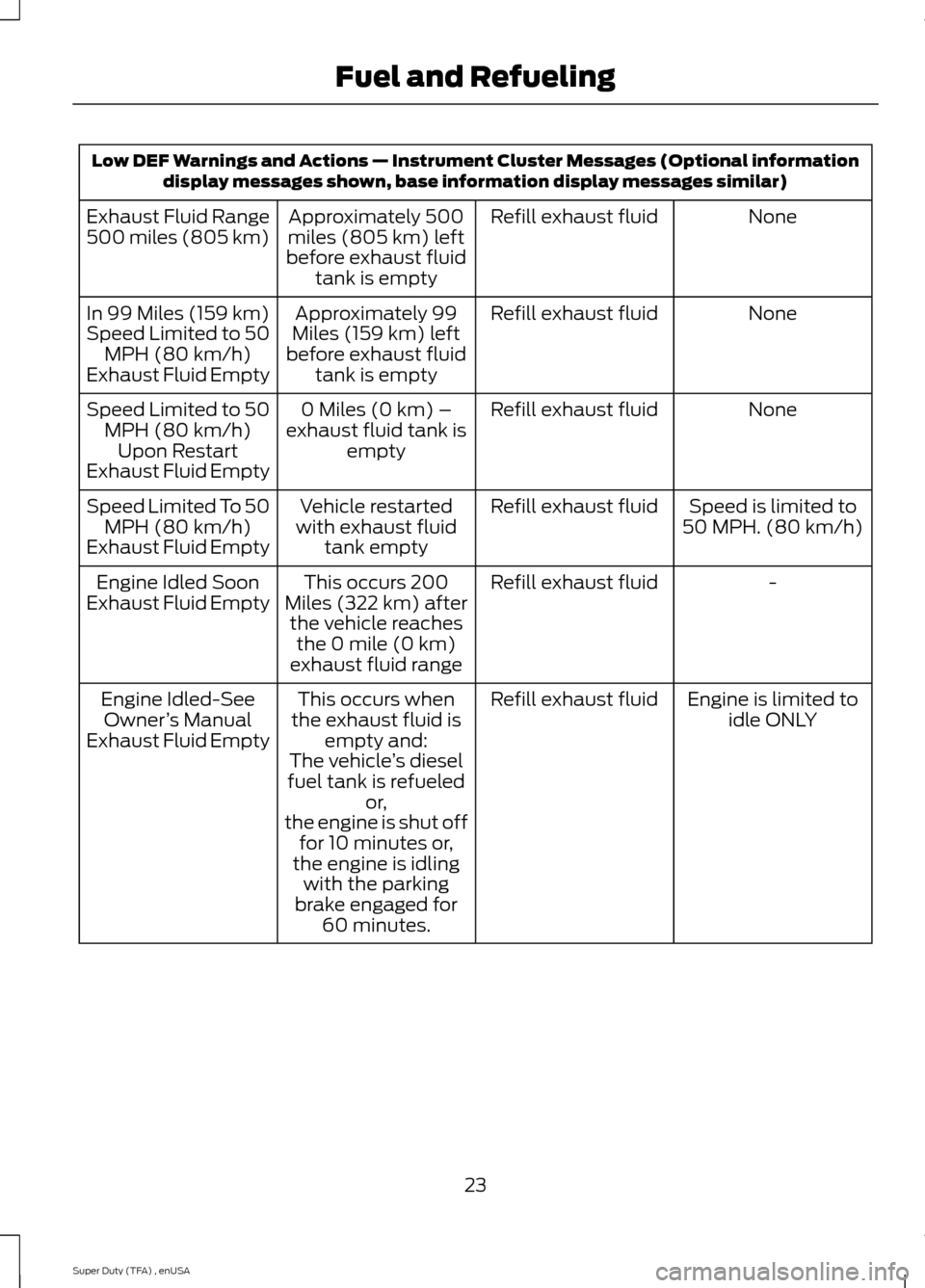

Low DEF Warnings and Actions — Instrument Cluster Messages (Optional information
display messages shown, base information display messages similar)
None
Refill exhaust fluid
Approximately 500
miles (805 km) left
before exhaust fluid tank is empty
Exhaust Fluid Range
500 miles (805 km)
None
Refill exhaust fluid
Approximately 99
Miles (159 km) left
before exhaust fluid tank is empty
In 99 Miles (159 km)
Speed Limited to 50
MPH (80 km/h)
Exhaust Fluid Empty
None
Refill exhaust fluid
0 Miles (0 km) –
exhaust fluid tank is empty
Speed Limited to 50
MPH (80 km/h)Upon Restart
Exhaust Fluid Empty
Speed is limited to
50 MPH. (80 km/h)
Refill exhaust fluid
Vehicle restarted
with exhaust fluid tank empty
Speed Limited To 50
MPH (80 km/h)
Exhaust Fluid Empty
-
Refill exhaust fluid
This occurs 200
Miles (322 km) after the vehicle reaches the 0 mile (0 km)
exhaust fluid range
Engine Idled Soon
Exhaust Fluid Empty
Engine is limited toidle ONLY
Refill exhaust fluid
This occurs when
the exhaust fluid is empty and:
Engine Idled-See
Owner ’s Manual
Exhaust Fluid Empty The vehicle’s diesel
fuel tank is refueled or,
the engine is shut off for 10 minutes or,
the engine is idling with the parking
brake engaged for 60 minutes.
23
Super Duty (TFA) , enUSA Fuel and Refueling
Page 27 of 84

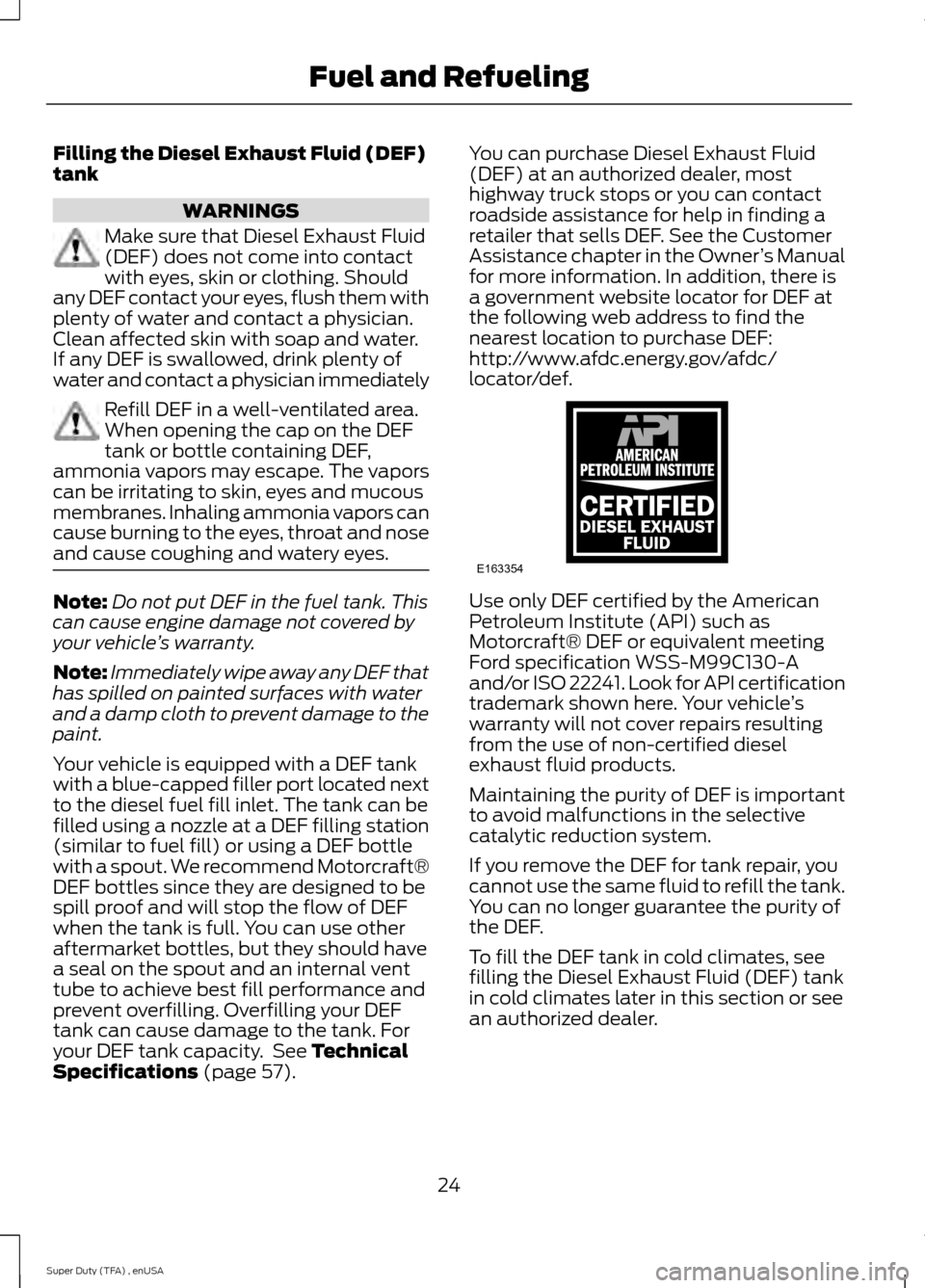

Filling the Diesel Exhaust Fluid (DEF)
tank
WARNINGS
Make sure that Diesel Exhaust Fluid
(DEF) does not come into contact
with eyes, skin or clothing. Should
any DEF contact your eyes, flush them with
plenty of water and contact a physician.
Clean affected skin with soap and water.
If any DEF is swallowed, drink plenty of
water and contact a physician immediately Refill DEF in a well-ventilated area.
When opening the cap on the DEF
tank or bottle containing DEF,
ammonia vapors may escape. The vapors
can be irritating to skin, eyes and mucous
membranes. Inhaling ammonia vapors can
cause burning to the eyes, throat and nose
and cause coughing and watery eyes. Note:
Do not put DEF in the fuel tank. This
can cause engine damage not covered by
your vehicle ’s warranty.
Note: Immediately wipe away any DEF that
has spilled on painted surfaces with water
and a damp cloth to prevent damage to the
paint.
Your vehicle is equipped with a DEF tank
with a blue-capped filler port located next
to the diesel fuel fill inlet. The tank can be
filled using a nozzle at a DEF filling station
(similar to fuel fill) or using a DEF bottle
with a spout. We recommend Motorcraft®
DEF bottles since they are designed to be
spill proof and will stop the flow of DEF
when the tank is full. You can use other
aftermarket bottles, but they should have
a seal on the spout and an internal vent
tube to achieve best fill performance and
prevent overfilling. Overfilling your DEF
tank can cause damage to the tank. For
your DEF tank capacity. See Technical
Specifications (page 57). You can purchase Diesel Exhaust Fluid
(DEF) at an authorized dealer, most
highway truck stops or you can contact
roadside assistance for help in finding a
retailer that sells DEF. See the Customer
Assistance chapter in the Owner
’s Manual
for more information. In addition, there is
a government website locator for DEF at
the following web address to find the
nearest location to purchase DEF:
http://www.afdc.energy.gov/afdc/
locator/def. Use only DEF certified by the American
Petroleum Institute (API) such as
Motorcraft® DEF or equivalent meeting
Ford specification WSS-M99C130-A
and/or ISO 22241. Look for API certification
trademark shown here. Your vehicle
’s
warranty will not cover repairs resulting
from the use of non-certified diesel
exhaust fluid products.
Maintaining the purity of DEF is important
to avoid malfunctions in the selective
catalytic reduction system.
If you remove the DEF for tank repair, you
cannot use the same fluid to refill the tank.
You can no longer guarantee the purity of
the DEF.
To fill the DEF tank in cold climates, see
filling the Diesel Exhaust Fluid (DEF) tank
in cold climates later in this section or see
an authorized dealer.
24
Super Duty (TFA) , enUSA Fuel and RefuelingE163354)E163354
Page 28 of 84

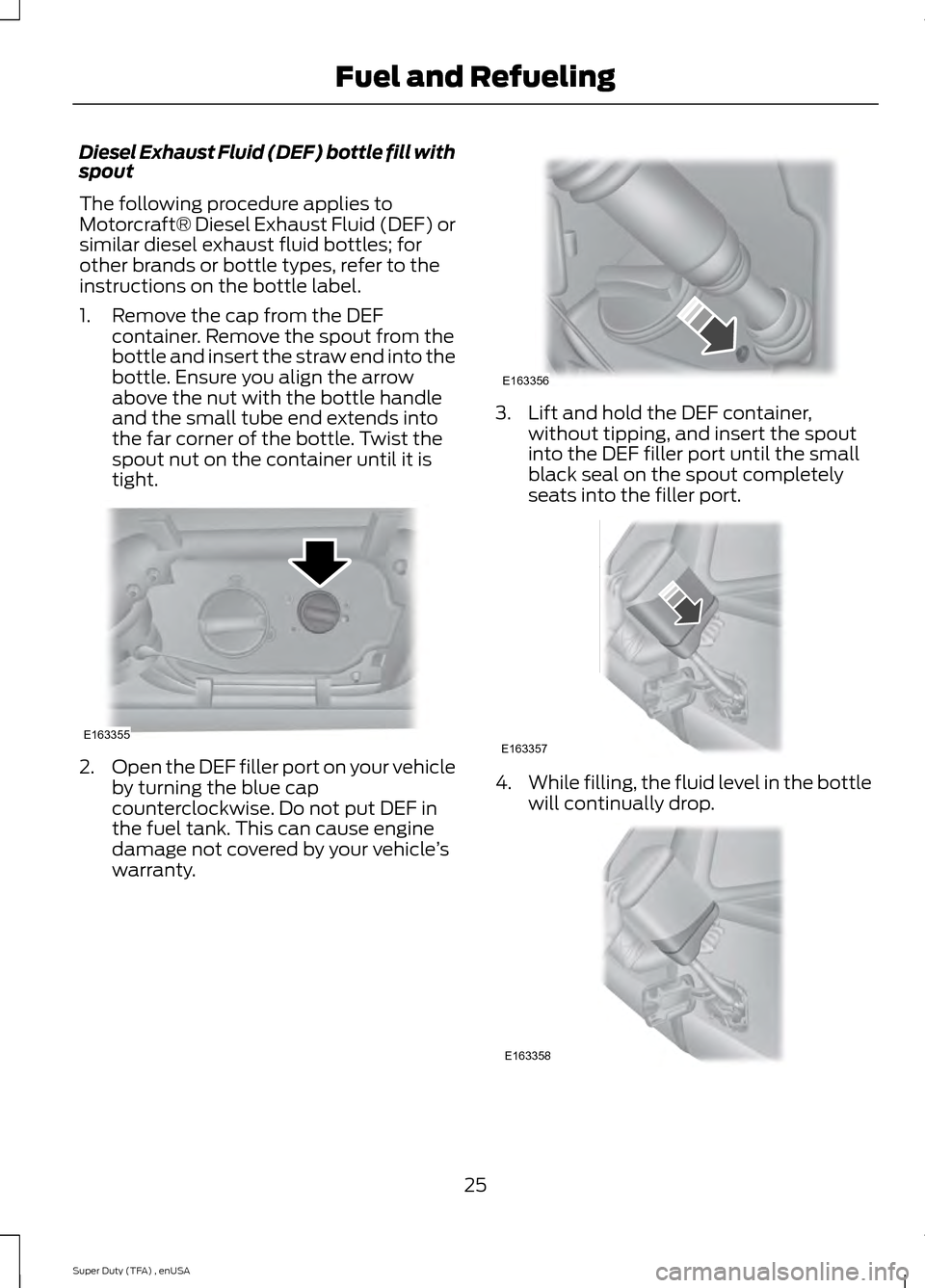

Diesel Exhaust Fluid (DEF) bottle fill with
spout
The following procedure applies to
Motorcraft® Diesel Exhaust Fluid (DEF) or
similar diesel exhaust fluid bottles; for
other brands or bottle types, refer to the
instructions on the bottle label.
1. Remove the cap from the DEF
container. Remove the spout from the
bottle and insert the straw end into the
bottle. Ensure you align the arrow
above the nut with the bottle handle
and the small tube end extends into
the far corner of the bottle. Twist the
spout nut on the container until it is
tight. 2.
Open the DEF filler port on your vehicle
by turning the blue cap
counterclockwise. Do not put DEF in
the fuel tank. This can cause engine
damage not covered by your vehicle ’s
warranty. 3. Lift and hold the DEF container,
without tipping, and insert the spout
into the DEF filler port until the small
black seal on the spout completely
seats into the filler port. 4.
While filling, the fluid level in the bottle
will continually drop. 25
Super Duty (TFA) , enUSA Fuel and RefuelingE163355 E163356 E163357 E163358
Page 29 of 84

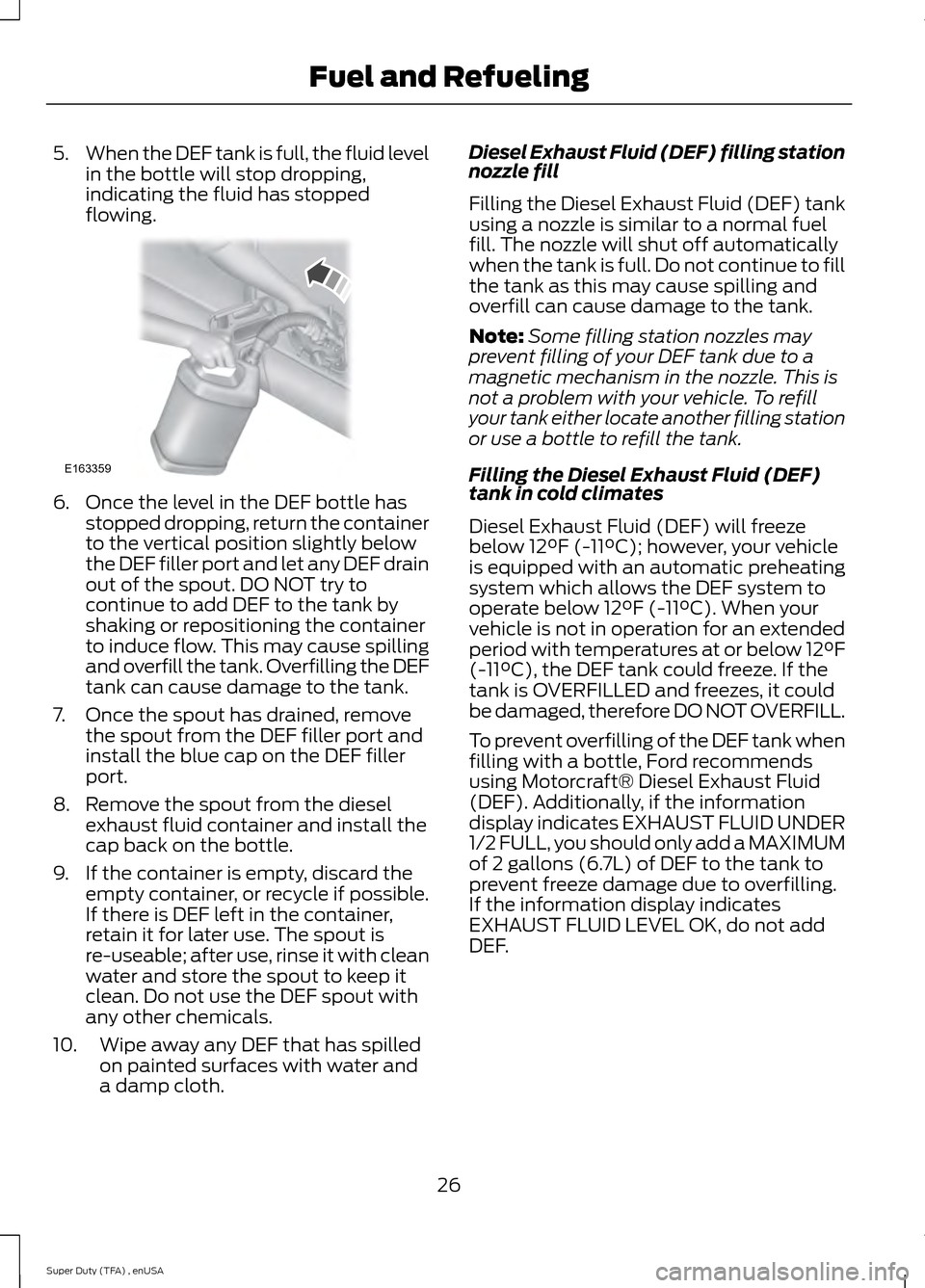

5.
When the DEF tank is full, the fluid level
in the bottle will stop dropping,
indicating the fluid has stopped
flowing. 6. Once the level in the DEF bottle has
stopped dropping, return the container
to the vertical position slightly below
the DEF filler port and let any DEF drain
out of the spout. DO NOT try to
continue to add DEF to the tank by
shaking or repositioning the container
to induce flow. This may cause spilling
and overfill the tank. Overfilling the DEF
tank can cause damage to the tank.
7. Once the spout has drained, remove the spout from the DEF filler port and
install the blue cap on the DEF filler
port.
8. Remove the spout from the diesel exhaust fluid container and install the
cap back on the bottle.
9. If the container is empty, discard the empty container, or recycle if possible.
If there is DEF left in the container,
retain it for later use. The spout is
re-useable; after use, rinse it with clean
water and store the spout to keep it
clean. Do not use the DEF spout with
any other chemicals.
10. Wipe away any DEF that has spilled on painted surfaces with water and
a damp cloth. Diesel Exhaust Fluid (DEF) filling station
nozzle fill
Filling the Diesel Exhaust Fluid (DEF) tank
using a nozzle is similar to a normal fuel
fill. The nozzle will shut off automatically
when the tank is full. Do not continue to fill
the tank as this may cause spilling and
overfill can cause damage to the tank.
Note:
Some filling station nozzles may
prevent filling of your DEF tank due to a
magnetic mechanism in the nozzle. This is
not a problem with your vehicle. To refill
your tank either locate another filling station
or use a bottle to refill the tank.
Filling the Diesel Exhaust Fluid (DEF)
tank in cold climates
Diesel Exhaust Fluid (DEF) will freeze
below 12°F (-11°C); however, your vehicle
is equipped with an automatic preheating
system which allows the DEF system to
operate below 12°F (-11°C). When your
vehicle is not in operation for an extended
period with temperatures at or below 12°F
(-11°C), the DEF tank could freeze. If the
tank is OVERFILLED and freezes, it could
be damaged, therefore DO NOT OVERFILL.
To prevent overfilling of the DEF tank when
filling with a bottle, Ford recommends
using Motorcraft® Diesel Exhaust Fluid
(DEF). Additionally, if the information
display indicates EXHAUST FLUID UNDER
1/2 FULL, you should only add a MAXIMUM
of 2 gallons (6.7L) of DEF to the tank to
prevent freeze damage due to overfilling.
If the information display indicates
EXHAUST FLUID LEVEL OK, do not add
DEF.
26
Super Duty (TFA) , enUSA Fuel and RefuelingE163359
Page 30 of 84

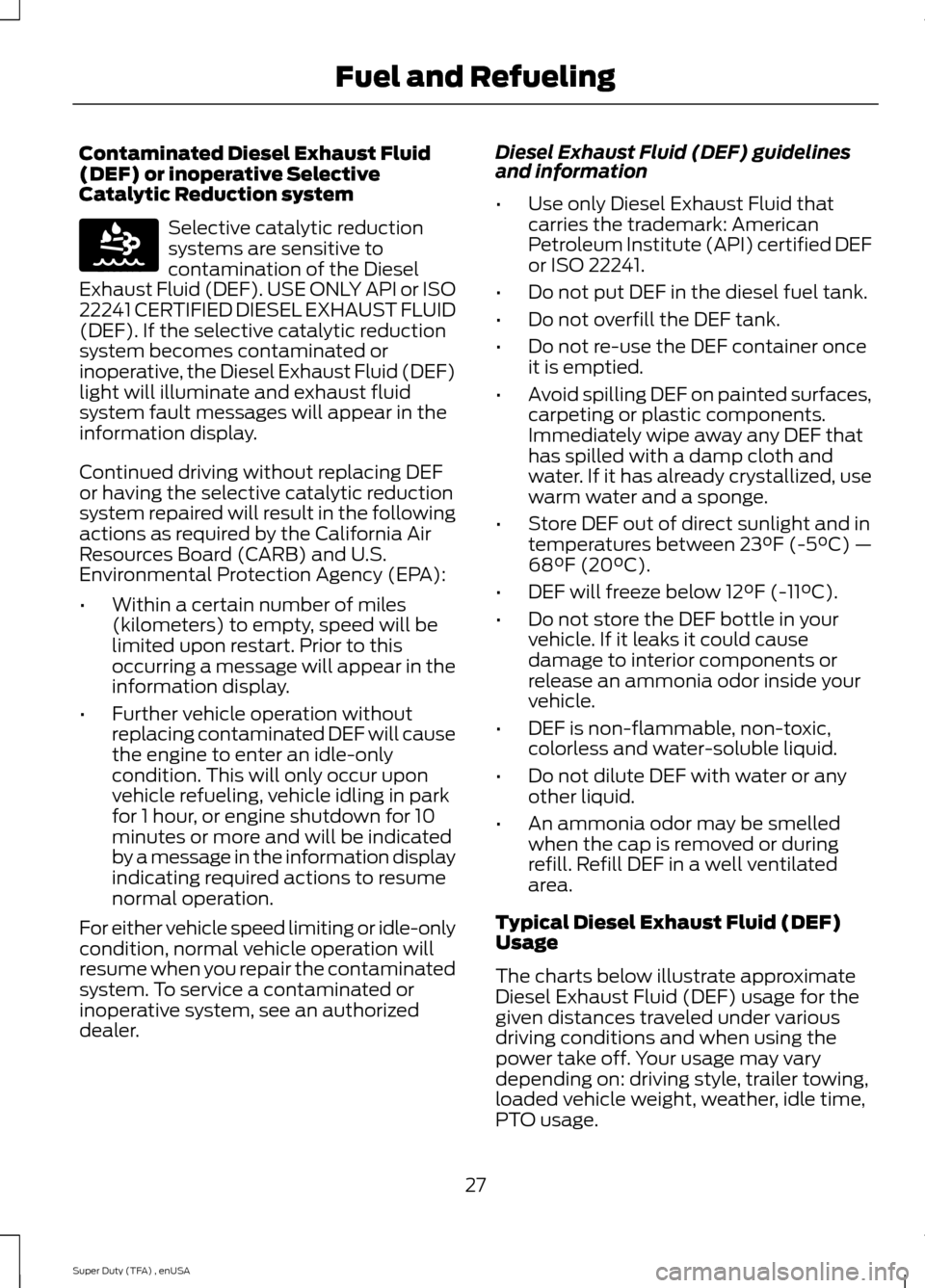

Contaminated Diesel Exhaust Fluid
(DEF) or inoperative Selective
Catalytic Reduction system
Selective catalytic reduction
systems are sensitive to
contamination of the Diesel
Exhaust Fluid (DEF). USE ONLY API or ISO
22241 CERTIFIED DIESEL EXHAUST FLUID
(DEF). If the selective catalytic reduction
system becomes contaminated or
inoperative, the Diesel Exhaust Fluid (DEF)
light will illuminate and exhaust fluid
system fault messages will appear in the
information display.
Continued driving without replacing DEF
or having the selective catalytic reduction
system repaired will result in the following
actions as required by the California Air
Resources Board (CARB) and U.S.
Environmental Protection Agency (EPA):
• Within a certain number of miles
(kilometers) to empty, speed will be
limited upon restart. Prior to this
occurring a message will appear in the
information display.
• Further vehicle operation without
replacing contaminated DEF will cause
the engine to enter an idle-only
condition. This will only occur upon
vehicle refueling, vehicle idling in park
for 1 hour, or engine shutdown for 10
minutes or more and will be indicated
by a message in the information display
indicating required actions to resume
normal operation.
For either vehicle speed limiting or idle-only
condition, normal vehicle operation will
resume when you repair the contaminated
system. To service a contaminated or
inoperative system, see an authorized
dealer. Diesel Exhaust Fluid (DEF) guidelines
and information
•
Use only Diesel Exhaust Fluid that
carries the trademark: American
Petroleum Institute (API) certified DEF
or ISO 22241.
• Do not put DEF in the diesel fuel tank.
• Do not overfill the DEF tank.
• Do not re-use the DEF container once
it is emptied.
• Avoid spilling DEF on painted surfaces,
carpeting or plastic components.
Immediately wipe away any DEF that
has spilled with a damp cloth and
water. If it has already crystallized, use
warm water and a sponge.
• Store DEF out of direct sunlight and in
temperatures between 23°F (-5°C) —
68°F (20°C).
• DEF will freeze below 12°F (-11°C).
• Do not store the DEF bottle in your
vehicle. If it leaks it could cause
damage to interior components or
release an ammonia odor inside your
vehicle.
• DEF is non-flammable, non-toxic,
colorless and water-soluble liquid.
• Do not dilute DEF with water or any
other liquid.
• An ammonia odor may be smelled
when the cap is removed or during
refill. Refill DEF in a well ventilated
area.
Typical Diesel Exhaust Fluid (DEF)
Usage
The charts below illustrate approximate
Diesel Exhaust Fluid (DEF) usage for the
given distances traveled under various
driving conditions and when using the
power take off. Your usage may vary
depending on: driving style, trailer towing,
loaded vehicle weight, weather, idle time,
PTO usage.
27
Super Duty (TFA) , enUSA Fuel and RefuelingE163176
