FORD TAURUS 1996 Owners Manual

254 [AC01200( T)04/95]
thirty-six pica chart:0001394-A
File:14fcact.ex
Update:Mon Jan 22 16:03:51 1996
ProCarManuals.com

255
Servicing Your Taurus
%*
[SV00300(ALL)03/95]
Service Made Easy
*
[SV00400(ALL)01/95]
Ford has two goals for servicing your vehicle.
*
[SV00500(ALL)01/95]
1. When we can, we design parts that do not
need to be serviced.
*
[SV00600(ALL)01/95]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[SV00700(ALL)01/95]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[SV00800(ALL)01/95]
q
When possible, we design parts Ð such as
the headlamp bulbs Ð that can be replaced
without tools.
*
[SV00900(ALL)05/94]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedule and Record
booklet.
*
[SV01000(ALL)01/95]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[SV01100(ALL)03/95]
If your vehicle needs professional servicing, see
theCustomer Assistancechapter.
*
[SV01200(ALL)03/95]
Check yourWarranty Information Bookletto find
out which parts are covered.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

256
*
[SV01250(ALL)03/95]
Ford Motor Company recommends that you
perform the Owner Maintenance Checks listed in
theMaintenance Schedule and Recordbooklet.
These services are important for the proper
operation of your vehicle. In addition to the
conditions listed in the Owner Maintenance
Checklist, be alert for any unusual noise,
vibration, or other indication that your vehicle
may need service. If you do notice something
unusual, see that your vehicle is serviced
promptly.
[SV01275(ALL)03/95]
Use only recommended fuels, lubricants, fluids,
and service parts conforming to specifications.
Motorcraft parts are designed and built to
provide the best performance in your vehicle.
Using these parts for replacement is your
assurance that Ford-built quality stays in your
vehicle.
%*
[SV01300(ALL)09/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[SV01600(ALL)06/95]
Precautions When Servicing Your
Vehicle
*
[SV01700(ALL)06/95]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
[SV01800(ALL)10/95]
q
Do not work on a hot engine. The engine
cooling fans may come on unexpectedly.
Always turn the engine off and let it cool.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

257 [SV01850(ALL)10/95]
RWARNING
The cooling fans are automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
*
[SV01900(ALL)06/95]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
*
[SV02000(ALL)06/95]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[SV02100(ALL)08/95]
q
Never get under a vehicle while it is
supported by a jack only. If you must work
under a vehicle, use safety stands.
*
[SV02200(ALL)06/95]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
*
[SV02250(ALL)03/95]
If you disconnect the battery, the engine must
ªrelearnº its idle conditions before your vehicle
will drive properly. To find out how the engine
does this, seeBatteryin this chapter.
*
[SV02550(ALL)03/95]
Working with the engine off:
*
[SV02600(ALL)03/95]
1. Set the parking brake fully and make sure
that the gearshift is securely latched in P
(Park).
*
[SV02625(ALL)06/95]
2. Remove the key from the ignition after you
turn the engine off.
*
[SV02650(ALL)06/95]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

258
*
[SV02700(ALL)03/95]
Working with the engine on:
*
[SV02800(ALL)03/95]
1. Set the parking brake fully and make sure
that the gearshift is securely latched in P
(Park).
*
[SV02825(ALL)03/95]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[SV03000(ALL)02/95]
RWARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
%*
[SV03100(ALL)03/95]
Opening the Hood
%*
[SV03200(ALL)01/95]
1. Inside the vehicle, pull the hood release
handle located under the bottom left corner
of the instrument panel.
%*
[SV03300(ALL)02/95]
2. Go to the front of the vehicle and release the
auxiliary latch that is located under the hood
at the center of the vehicle.
*
[SV03400(ALL)01/95]
3. Lift the hood until the lift cylinders hold it
open.
*
[SV03500(ALL)01/95]
Whenever you close the hood, latch it securely.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

259 [SV03550(ALL)11/94]
full page art:0000689-E
The hood release, hood latch, and lift cylinder assembly
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

260
*
[SV04350(ALL)09/95]
NOTE: Read and understandPrecautions When
Servicing Your Vehicleat the beginning
of this chapter before opening the
hood.
%
*
[SV04500(ALL)04/95]
Engine Compartment
*
[SV04600(ALL)09/93]
Your vehicle has one of these types of engines:
[SV04700(ALL)10/95]
q
a 3.0L Vulcan engine
[SV04750(ALL)10/95]
q
a 3.0L Duratec engine
[SV04775( T)08/95]
q
a 3.4L SHO engine
*
[SV04850(ALL)11/94]
The following pages show diagrams of each
engine type and where to find items that you
should regularly service.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

261 % [SV05000(ALL)02/95]
full page art:0000299-H

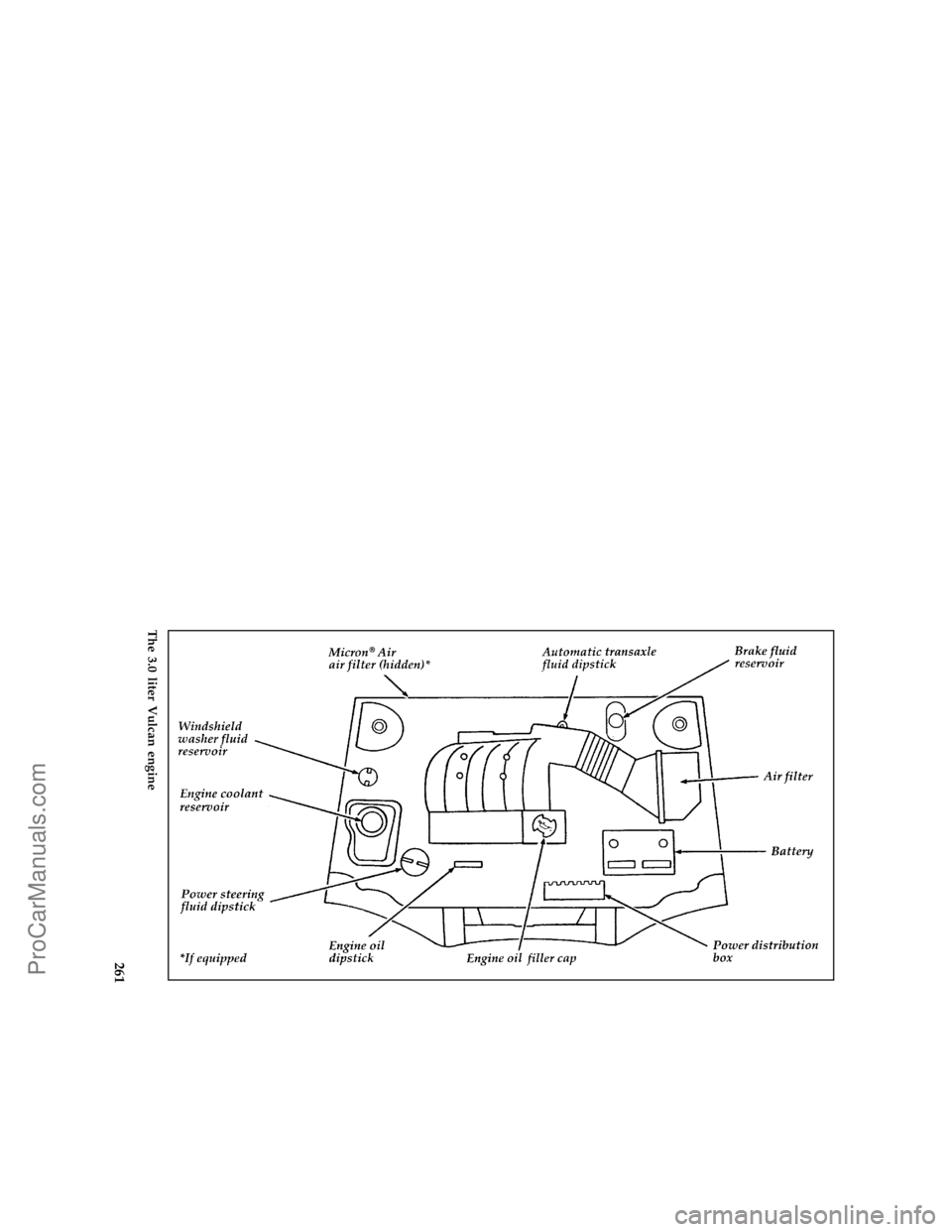

The 3.0 liter Vulcan engine
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

262 [SV05025(ALL)02/95]
full page art:0000301-HThe 3.0 liter Duratec engine
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

263 [SV05050( T)02/95]
full page art:0000300-H

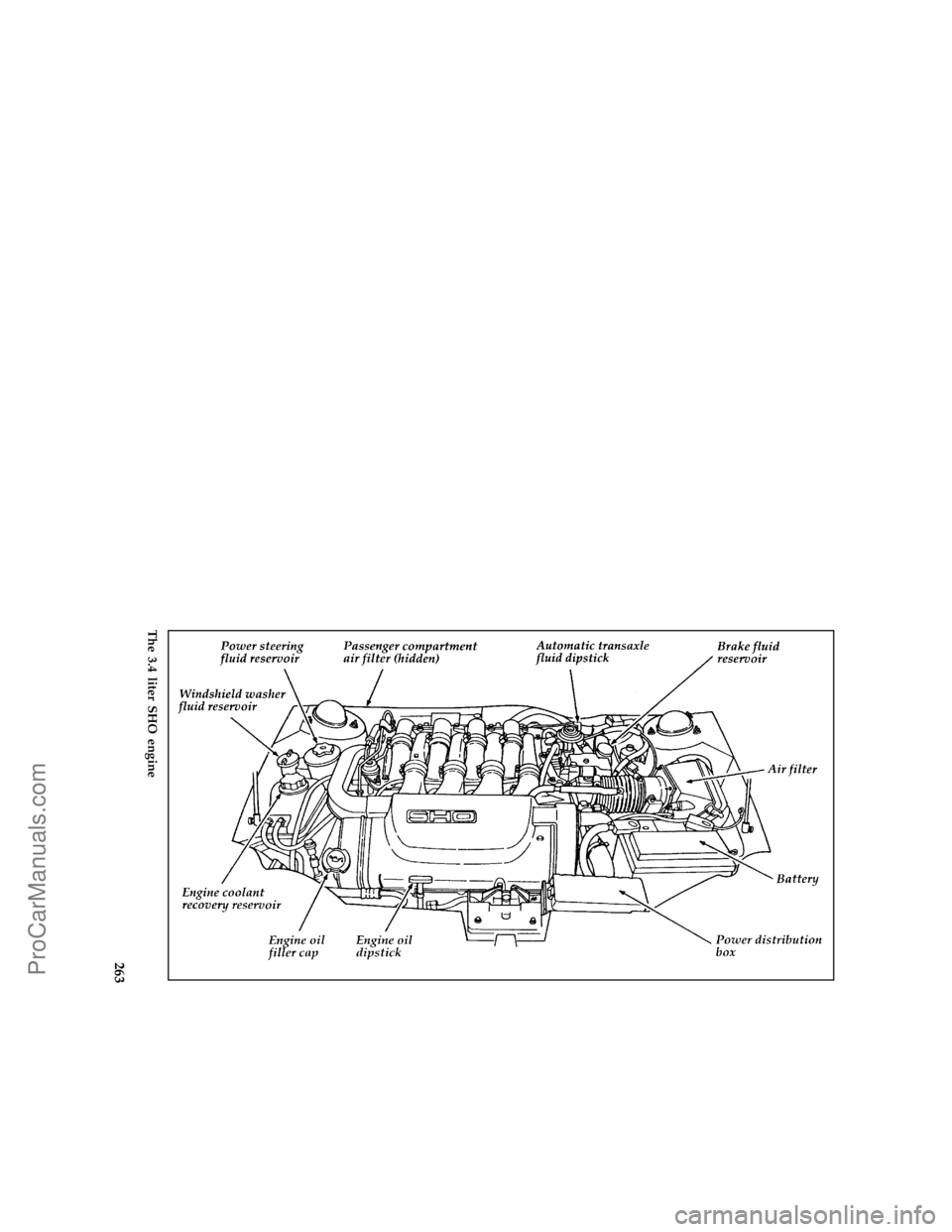

The 3.4 liter SHO engine
