FORD TAURUS 1996 Owners Manual

223
*
[RE05000(ALL)01/95]
When you drive with the temporary spare tire,
DO NOT:
*
[RE05100(ALL)01/95]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[RE05200(ALL)01/95]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[RE05300(ALL)01/95]
q
tow a trailer.
*
[RE05400(ALL)01/95]
q
use tire chains on this tire.
*
[RE05500(ALL)01/95]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[RE05600(ALL)01/95]
q
use the wheel for any other type of vehicle.
*
[RE05700(ALL)01/95]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
% [RE05800(ALL)11/94]
The Conventional Spare Tire (If equipped)
*
[RE05900(ALL)01/95]
If you have the conventional spare tire, you can
use it as a spare or as a regular tire. This spare
tire is identical to the other tires that come with
your vehicle, although the wheel may not match.
%*
[RE06000(ALL)03/95]
Spare Tire Location
[RE06100(ALL)04/95]
In a sedan, the spare tire is stored in the trunk
under the floor carpet.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

224 [RE06200( T)12/95]

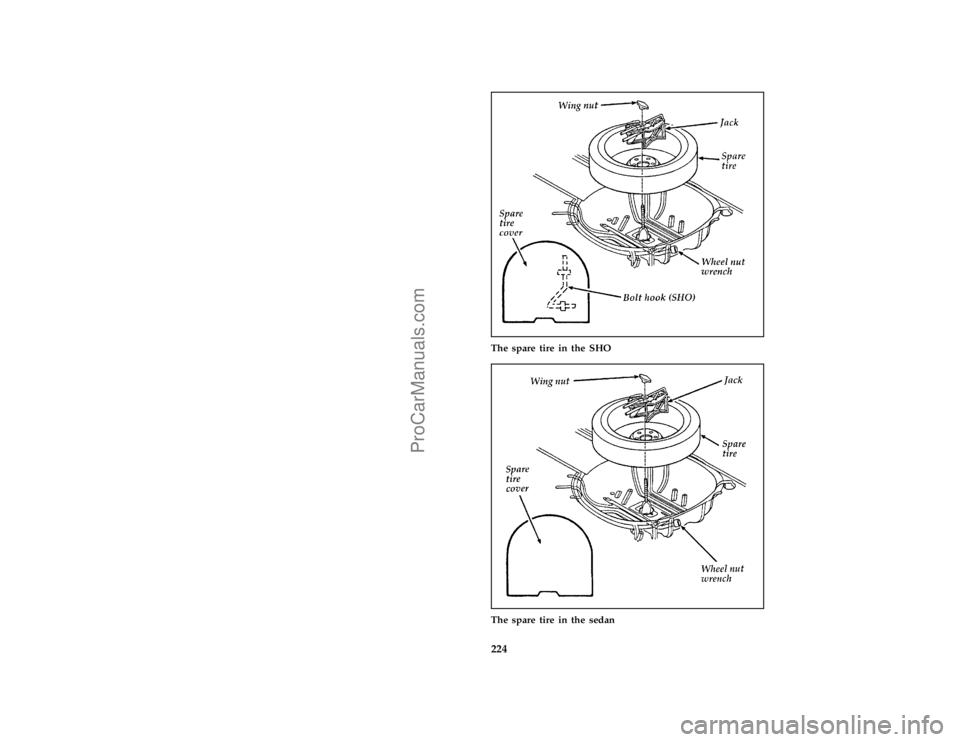

half page art:0000391-BThe spare tire in the SHO
[RE06250(ALL)02/95]
half page art:0001423-B
The spare tire in the sedan
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

225 [RE06300(ALL)11/94]
In the wagon, the temporary spare tire is stored
in the left side rear trim panel.
[RE06400(ALL)02/95]
one third page art:0000392-B
The temporary spare tire in the wagon
[RE06700(ALL)11/94]
To remove the cover for the temporary spare
tire in the wagon:
[RE06800(ALL)04/95]
1. Twist the three fasteners 90 degrees into a
vertical position.
[RE06900(ALL)02/95]
2. Lift the the cover to disengage the three
retainers.
[RE07000(ALL)05/94]
3. Pull the front of the cover out slightly and
remove the cover by sliding it toward the
front of the vehicle.
*
[RE07100(ALL)01/89]
4. Lift out the spare tire, jack, and lug wrench.
%*
[RE07400(ALL)03/95]
Preparing to Change the Tire
*
[RE07500(ALL)05/94]
You should only raise your vehicle with a jack
properly placed at the front or rear jacking
points.
*
[RE07600(ALL)03/95]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

226 [RE07700(ALL)07/95]When one of the front wheels is off the ground,
the transaxle alone will not prevent the vehicle
from moving or slipping off the jack, even if the
vehicle is in P (Park). To prevent the vehicle
from moving when you change a tire, block (in
both directions) the wheel that is diagonally
opposite to the tire being changed.
*
[RE08400(ALL)09/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE08800(ALL)03/95]
2. Get out the spare tire and jack.
*
[RE08850(ALL)05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
% [RE08900(ALL)02/93]
3. Remove wheel covers or aluminum wheel
ornaments with the tapered end of a wheel
nut wrench. Insert the handle of the wrench
between the wheel and ornament and twist
it against the inner wheel cover flange.
*
[RE09200(ALL)09/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

227 %
*
[RE09250(ALL)05/95]
Removing and Replacing the Tire
%*
[RE09300(ALL)11/94]
1. Find the jack notch next to the door of the
tire that you are changing. Put the jack in
the jack notch and turn the handle of the
jack clockwise until the wheel is completely
off the ground.
*
[RE09500(ALL)05/95]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
[RE10000(ALL)02/95]
half page art:0000394-C

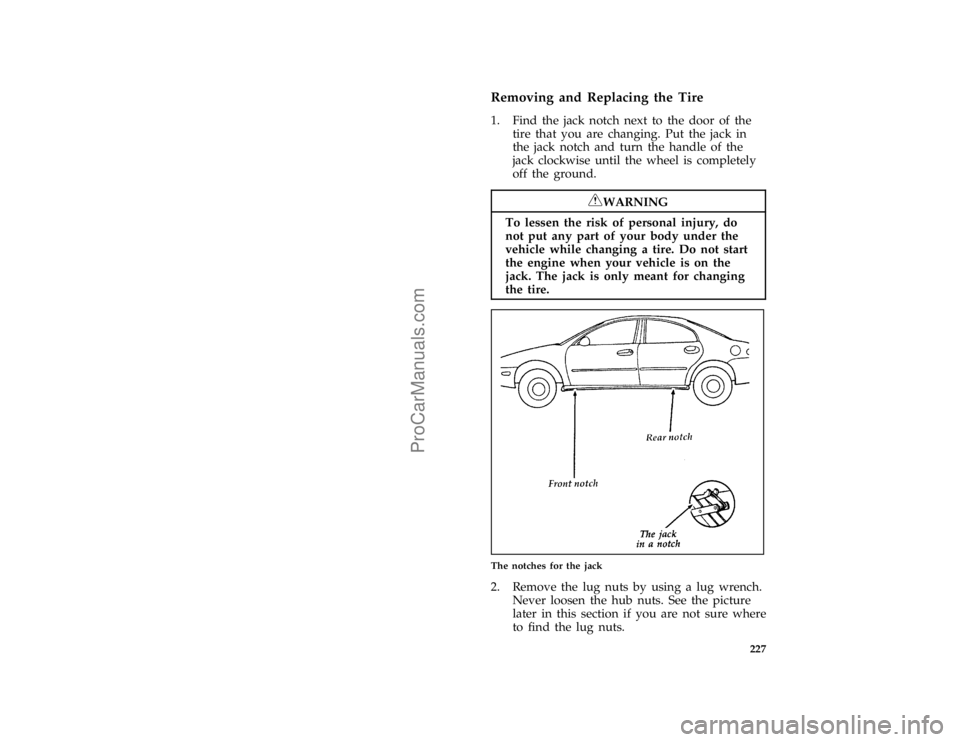

The notches for the jack
% [RE12000(ALL)11/94]
2. Remove the lug nuts by using a lug wrench.
Never loosen the hub nuts. See the picture
later in this section if you are not sure where
to find the lug nuts.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

228
*
[RE12002(ALL)08/95]
Your vehicle has metric (12 mm) wheel studs
and lug nuts. During wheel removal and
replacement, make certain that you use the same
lug nuts to reinstall the wheel or replace them
with nuts of the same metric size and threading.
*
[RE12005(ALL)08/95]
RWARNING
Installation of an English thread nut on a
metric stud (or vice-versa) will not
properly secure the wheel to the hub.
Damaged studs may result in wheel
separation and possible injury.
*
[RE12100(ALL)01/95]
3. Replace the flat tire with the spare tire,
making sure that the air valve stem is facing
outward.
*
[RE12200(ALL)03/95]
4. Reinstall the lug nuts, tightening until the
wheel is snug against the hub. The beveled
edges on the lug nuts face inward. Do not
fully tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
*
[RE12300(ALL)01/95]
5. Lower the vehicle by turning the jack handle
counterclockwise.
*
[RE12400(ALL)01/95]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration. As soon as possible, have your
dealer or a qualified service technician check
the lug nuts for proper torque specifications.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

229 % [RE12500(ALL)12/91]
one third page art:0000395-B

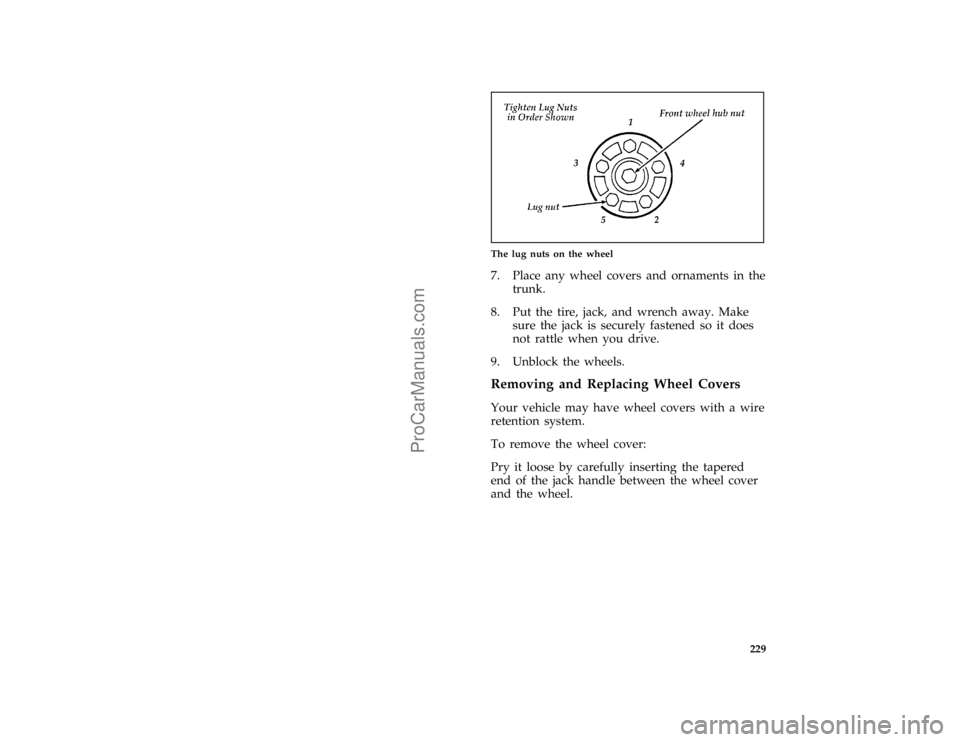

The lug nuts on the wheel
*
[RE12600(ALL)01/95]
7. Place any wheel covers and ornaments in the
trunk.
*
[RE12700(ALL)03/95]
8. Put the tire, jack, and wrench away. Make
sure the jack is securely fastened so it does
not rattle when you drive.
*
[RE12750(ALL)06/95]
9. Unblock the wheels.
[RE13007(ALL)04/95]
Removing and Replacing Wheel Covers
[RE13008(ALL)04/95]
Your vehicle may have wheel covers with a wire
retention system.
*
[RE13009(ALL)03/95]
To remove the wheel cover:
[RE13010(ALL)04/95]
Pry it loose by carefully inserting the tapered
end of the jack handle between the wheel cover
and the wheel.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

230
*
[RE13011(ALL)04/95]
To replace the wheel cover:
[RE13012(ALL)04/95]
1. One of the windows on the wheel cover is
identified with a valve stem logo on the
back side of the cover. Install the wheel
cover to the wheel with the window at the
valve stem.
[RE13013(ALL)04/95]
2. Hold the wheel cover in this position and
press the cover onto the wheel with the
palm of your hand. Do not force or hammer
the cover.
%*
[RE13015(ALL)02/95]
Center Wheel Cover
*
[RE13020(ALL)03/95]
To remove the wheel cover:
[RE13022(ALL)11/94]
1. Pry the center ornament off the wheelcover
with the lug wrench. Pry only at the notch.
Do not use a screwdriver or any other tool,
as this may damage the wheelcover or the
surface finish.
[RE13024(ALL)04/95]
2. Remove the center bolt on the wheelcover
with the lug wrench tip.
[RE13026(ALL)11/94]
3. To remove the wheelcover, pry it loose by
carefully inserting the tapered end of the lug
wrench between the wheelcover and wheel
at the outer edge.
[RE13028(ALL)11/94]
4. To service the wheel or tire, remove the
pedestal by removing the lug nuts. Put the
pedestal in a safe place for reinstallation of
the wheelcover.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

231 [RE13040(ALL)11/94]
half page art:0000654-C

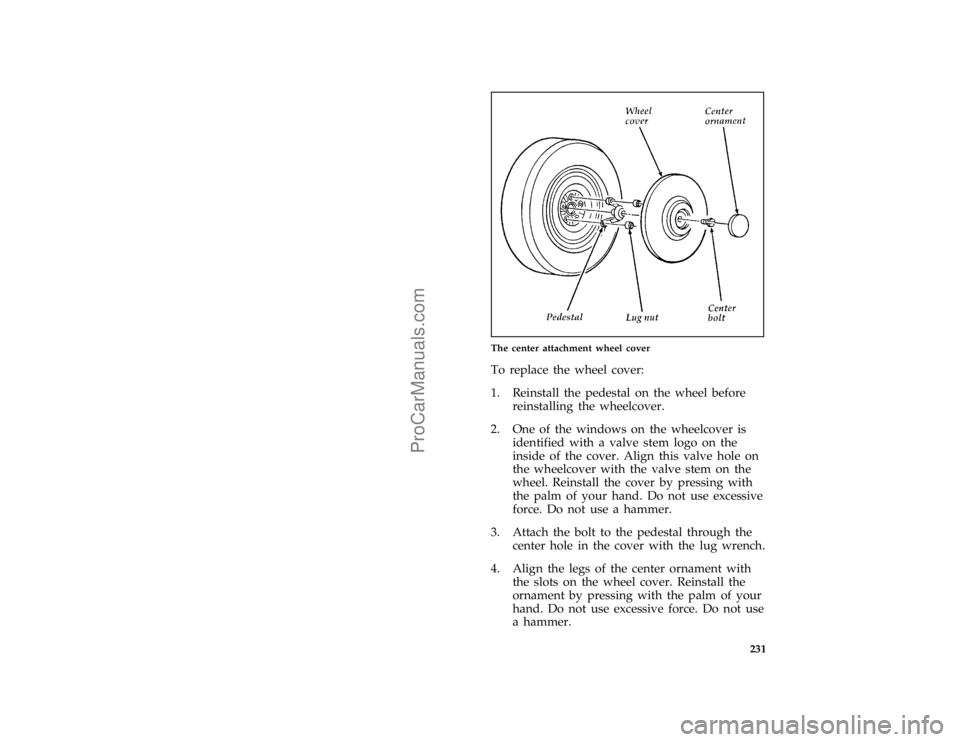

The center attachment wheel cover
*
[RE13050(ALL)04/95]
To replace the wheel cover:
[RE13070(ALL)11/94]
1. Reinstall the pedestal on the wheel before
reinstalling the wheelcover.
[RE13080(ALL)11/94]
2. One of the windows on the wheelcover is
identified with a valve stem logo on the
inside of the cover. Align this valve hole on
the wheelcover with the valve stem on the
wheel. Reinstall the cover by pressing with
the palm of your hand. Do not use excessive
force. Do not use a hammer.
[RE13090(ALL)11/94]
3. Attach the bolt to the pedestal through the
center hole in the cover with the lug wrench.
[RE14000(ALL)11/94]
4. Align the legs of the center ornament with
the slots on the wheel cover. Reinstall the
ornament by pressing with the palm of your
hand. Do not use excessive force. Do not use
a hammer.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

232 %
*
[RE14100(ALL)03/95]
Anti-Theft Wheel Lug Nuts (If equipped)
[RE14200(ALL)03/95]
If your vehicle has this feature, one of the lug
nuts on each wheel lock must be removed and
replaced with a special key. The key and
registration card are attached to the lug wrench
and stored with the spare tire. If you lose the
key, send the registration card to the
manufacturer (not to the dealer) to get a
replacement key.
*
[RE14250(ALL)03/95]
NOTE: If entire lug wrench/lug nut key
assembly is lost, see your nearest Ford
or Lincoln-Mercury dealer who has
access to a master set of keys.
[RE14275(ALL)11/94]
DO NOT USE THE KEY WITH AN IMPACT
WRENCH.
[RE14300(ALL)04/95]
quarter page art:0010357-B
The anti-theft lug nut and key
[RE14350( T)02/95]
one third page art:0000398-A
The anti-theft lug nut and key (SHO only)
