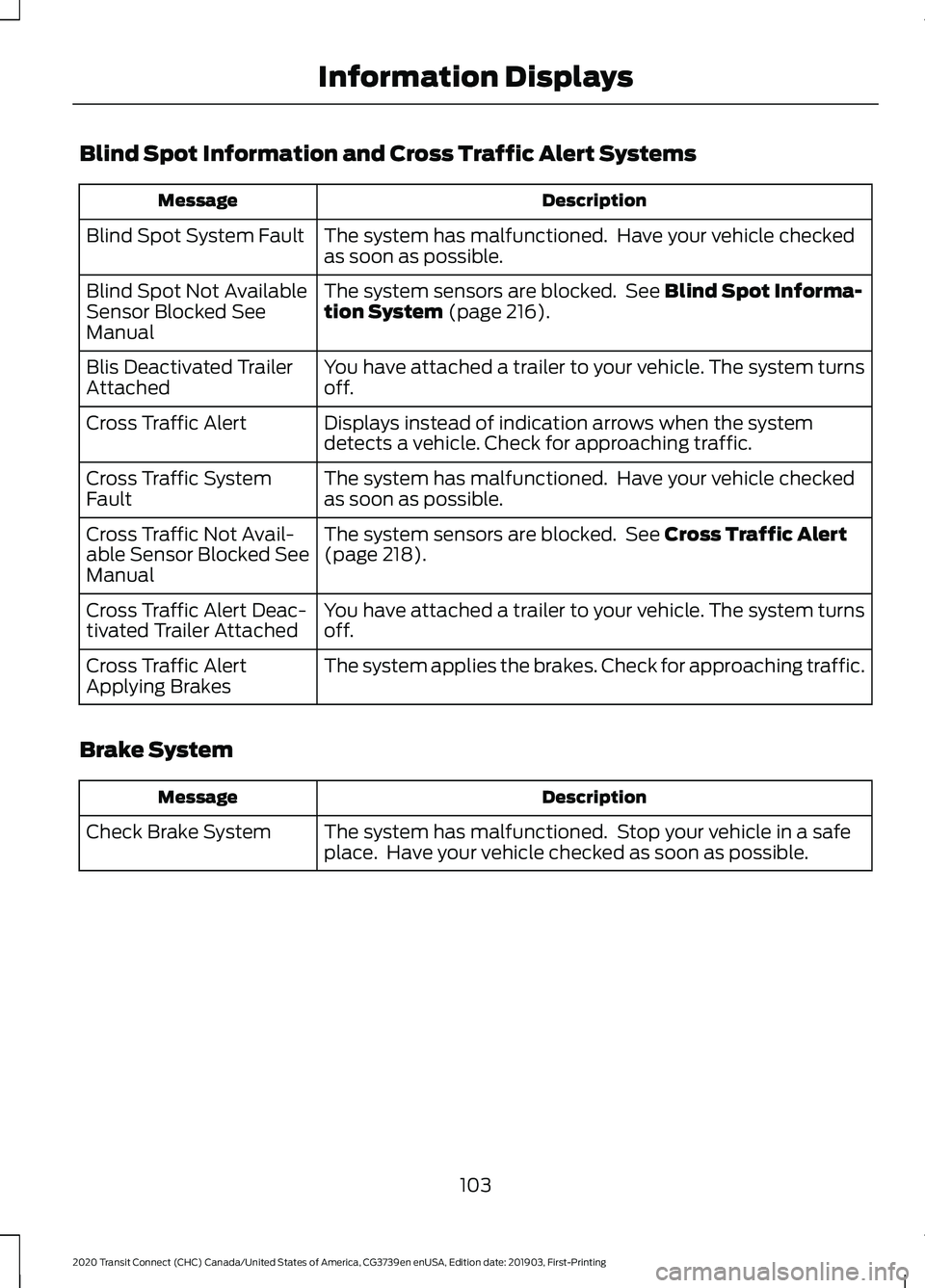

Blind Spot Information and Cross Traffic Alert Systems
Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Blind Spot System Fault
The system sensors are blocked. See Blind Spot Informa-
tion System (page 216).
Blind Spot Not Available
Sensor Blocked See
Manual
You have attached a trailer to your vehicle. The system turns
off.
Blis Deactivated Trailer
Attached
Displays instead of indication arrows when the system
detects a vehicle. Check for approaching traffic.
Cross Traffic Alert
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Cross Traffic System
Fault
The system sensors are blocked. See
Cross Traffic Alert
(page 218).
Cross Traffic Not Avail-
able Sensor Blocked See
Manual
You have attached a trailer to your vehicle. The system turns
off.
Cross Traffic Alert Deac-
tivated Trailer Attached
The system applies the brakes. Check for approaching traffic.
Cross Traffic Alert
Applying Brakes
Brake System Description
Message
The system has malfunctioned. Stop your vehicle in a safe
place. Have your vehicle checked as soon as possible.
Check Brake System
103
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

Doors and Locks
Description
Message
The door listed is not completely closed.
Driver Door Ajar
Passenger Door Ajar
Rear Left Door Ajar
Rear Right Door Ajar
Liftgate Ajar
The hood is not completely closed.
Hood Ajar
The system has disabled the door switches.
Switches Inhibited
Security Mode
Driver Alert Description
Message
Take a break due to low alertness levels.
Driver Alert Warning Rest
Now
We recommend that you take a break due to low alertness
levels.
Driver Alert Warning Rest
Suggested
Engine Description
Message
Displays when the engine temperature is too high. Stop your
vehicle as soon as it is safe to do so, switch the engine off
and allow it to cool. Have your vehicle checked as soon as
possible.
Engine Coolant Over
Temperature
104
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

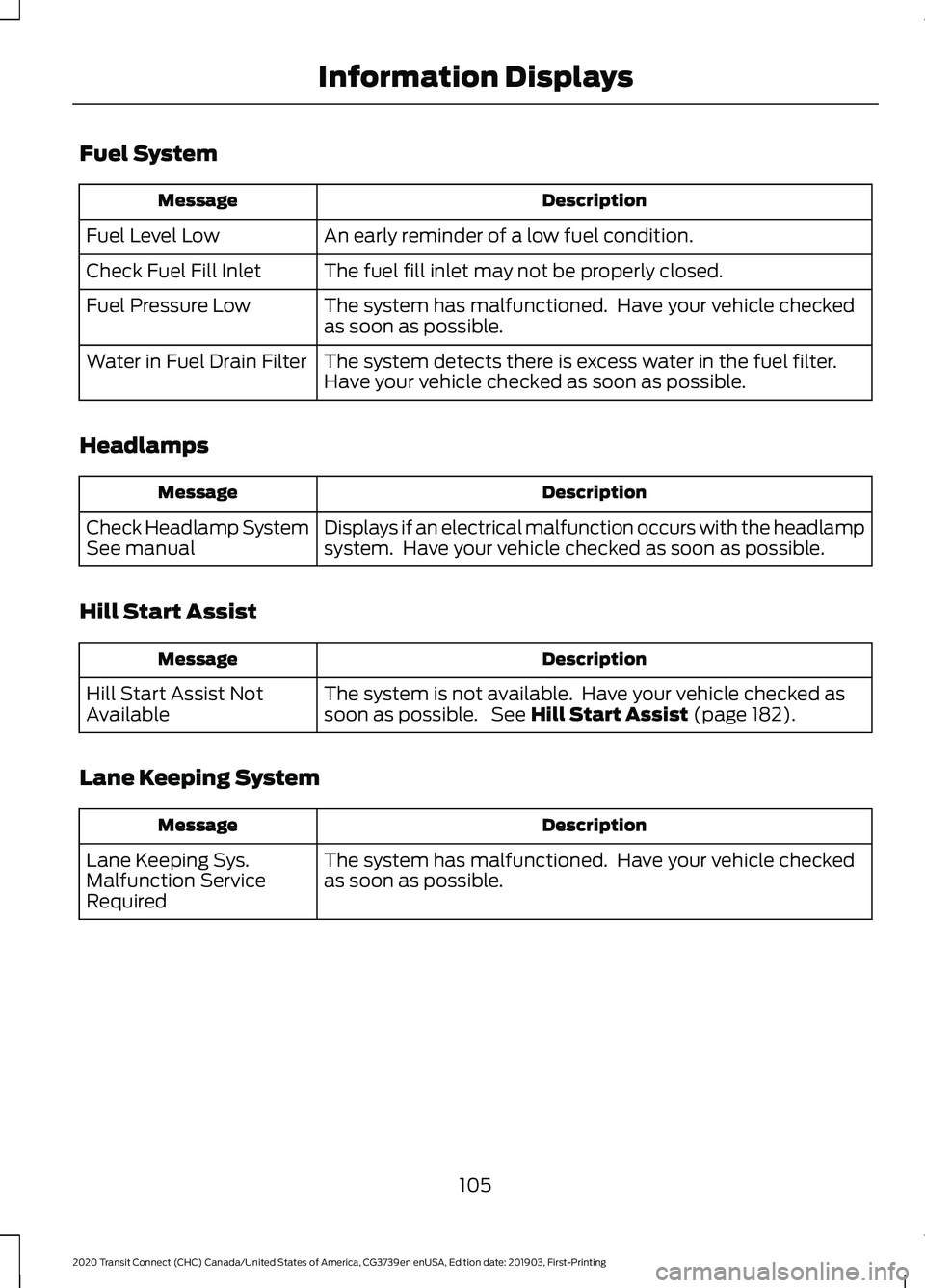

Fuel System
Description
Message
An early reminder of a low fuel condition.
Fuel Level Low
The fuel fill inlet may not be properly closed.
Check Fuel Fill Inlet
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Fuel Pressure Low
The system detects there is excess water in the fuel filter.
Have your vehicle checked as soon as possible.
Water in Fuel Drain Filter
Headlamps Description
Message
Displays if an electrical malfunction occurs with the headlamp
system. Have your vehicle checked as soon as possible.
Check Headlamp System
See manual
Hill Start Assist Description
Message
The system is not available. Have your vehicle checked as
soon as possible. See Hill Start Assist (page 182).
Hill Start Assist Not
Available
Lane Keeping System Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Lane Keeping Sys.
Malfunction Service
Required
105
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

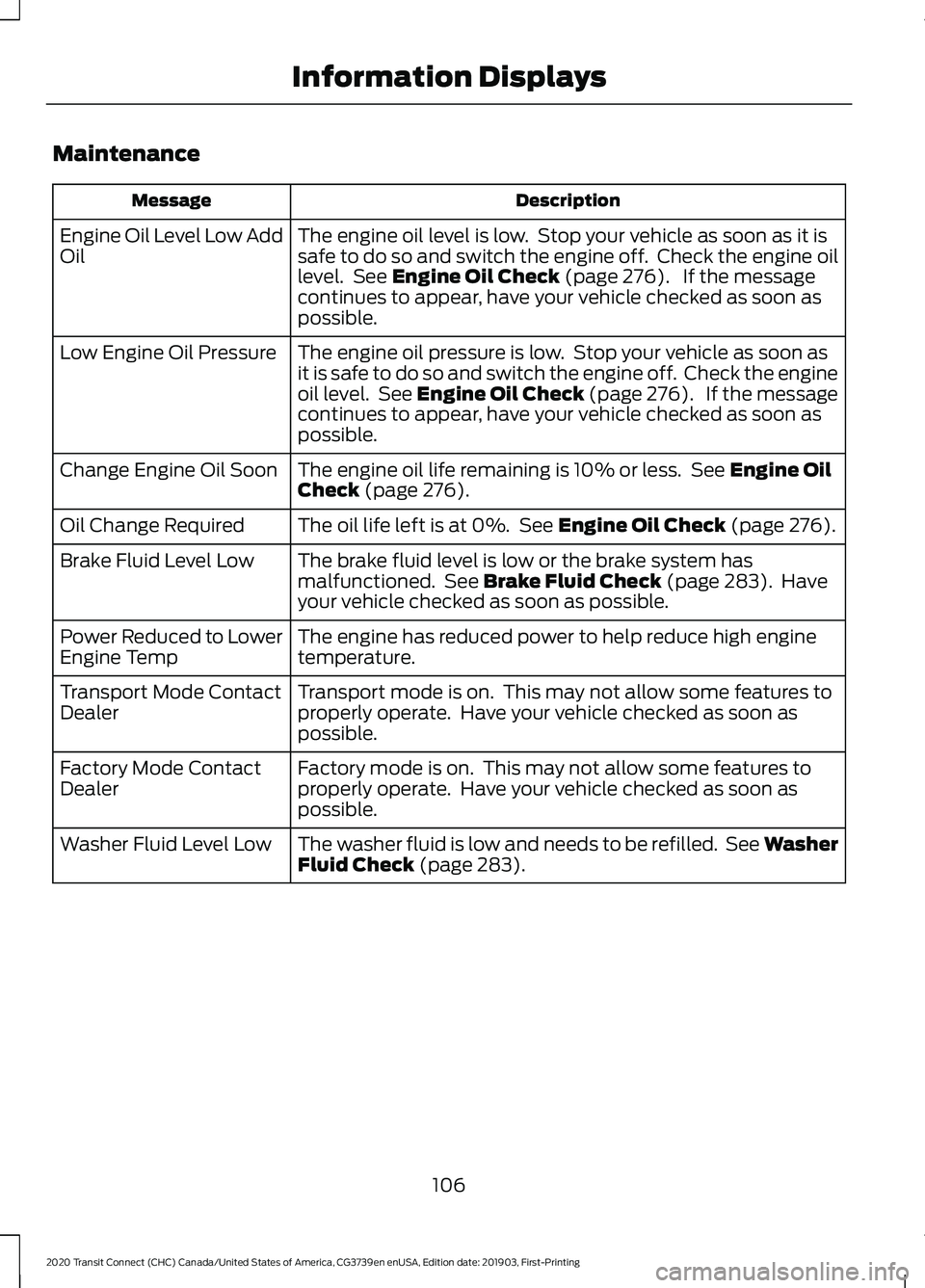

Maintenance
Description
Message
The engine oil level is low. Stop your vehicle as soon as it is
safe to do so and switch the engine off. Check the engine oil
level. See Engine Oil Check (page 276). If the message
continues to appear, have your vehicle checked as soon as
possible.
Engine Oil Level Low Add
Oil
The engine oil pressure is low. Stop your vehicle as soon as
it is safe to do so and switch the engine off. Check the engine
oil level. See Engine Oil Check (page 276). If the message
continues to appear, have your vehicle checked as soon as
possible.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less. See
Engine Oil
Check (page 276).
Change Engine Oil Soon
The oil life left is at 0%. See
Engine Oil Check (page 276).
Oil Change Required
The brake fluid level is low or the brake system has
malfunctioned. See
Brake Fluid Check (page 283). Have
your vehicle checked as soon as possible.
Brake Fluid Level Low
The engine has reduced power to help reduce high engine
temperature.
Power Reduced to Lower
Engine Temp
Transport mode is on. This may not allow some features to
properly operate. Have your vehicle checked as soon as
possible.
Transport Mode Contact
Dealer
Factory mode is on. This may not allow some features to
properly operate. Have your vehicle checked as soon as
possible.
Factory Mode Contact
Dealer
The washer fluid is low and needs to be refilled. See Washer
Fluid Check
(page 283).
Washer Fluid Level Low
106
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

MyKey
Description
Message
Displays when trying to create a MyKey and the key is not
placed in the backup position. See Passive Key Backup
Position (page 58).
Place Key in Backup
Location
Displays when trying to create a MyKey with a key already
designated as a MyKey.
Key is Already a MyKey
Displays when creating a MyKey.
Hold OK to Create MyKey
Displays to confirm that a MyKey has been created.
Creation Completed
Displays to confirm that the key is restricted after you switch
the ignition off.
This Key restricted at
Next Key Cycle. Label
Key as MyKey
Displays if the system fails to create a MyKey.
MyKey not Created
Displays when clearing all MyKeys.
Hold OK to Clear MyKeys
Displays to confirm that all MyKeys have been cleared.
All MyKeys Cleared
Parking Aid Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Park Aid Fault
Check Park Aid
Check Front Park Aid
Check Rear Park Aid
The system sensors are blocked. See
Parking Aids (page
187).
Park Aid Not Available
Sensor Blocked See
Manual
Front Park Aid Not Avail-
able Sensor Blocked See
Manual
Rear Park Aid Not Avail-
able Sensor Blocked See
Manual
You have attached a bike rack, trailer or other object near the
sensors on the front or rear of your vehicle.
Rear Park Aid Deactiv-
ated Trailer attached
107
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

Parking Brake
Description
Message
You have not released the parking brake and your vehicle
reaches 3 mph (5 km/h). If the message continues to appear
after you have released the parking brake, have your vehicle
checked as soon as possible.
Park Brake Engaged
Pre-Collision Assist Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Pre-Collision Assist Not
Available
The system sensors are blocked. See
Pre-Collision Assist
(page 223).
Pre-Collision Assist Not
Available Sensor Blocked
Rear Window Lock Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Child Lock Malfunction
See Manual
Remote Control Description
Message
The key battery is low. Change the battery as soon as
possible.
Key Battery Low Replace
Soon
108
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

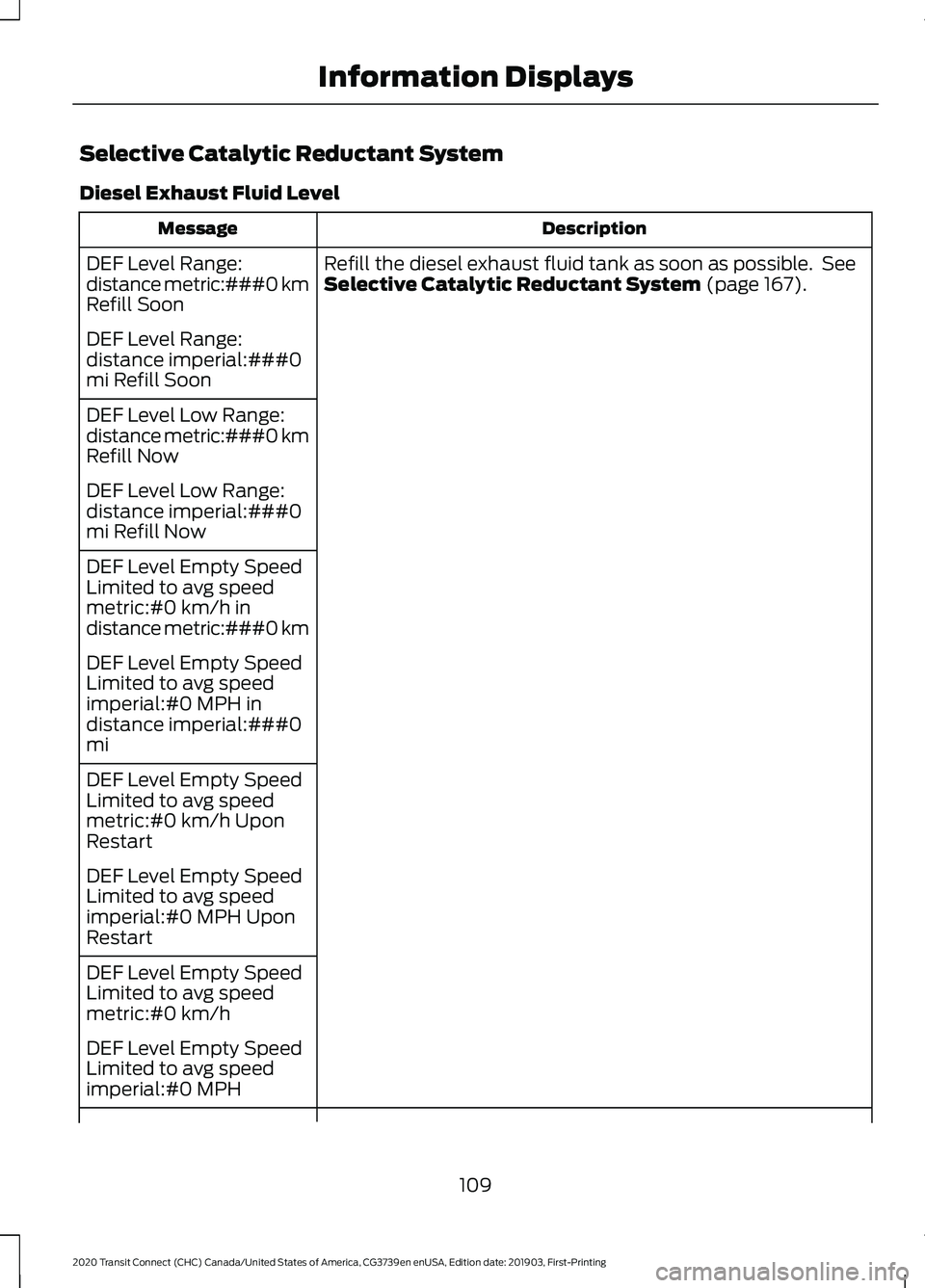

Selective Catalytic Reductant System
Diesel Exhaust Fluid Level
Description
Message
Refill the diesel exhaust fluid tank as soon as possible. See
Selective Catalytic Reductant System (page 167).
DEF Level Range:
distance metric:###0 km
Refill Soon
DEF Level Range:
distance imperial:###0
mi Refill Soon
DEF Level Low Range:
distance metric:###0 km
Refill Now
DEF Level Low Range:
distance imperial:###0
mi Refill Now
DEF Level Empty Speed
Limited to avg speed
metric:#0 km/h in
distance metric:###0 km
DEF Level Empty Speed
Limited to avg speed
imperial:#0 MPH in
distance imperial:###0
mi
DEF Level Empty Speed
Limited to avg speed
metric:#0 km/h Upon
Restart
DEF Level Empty Speed
Limited to avg speed
imperial:#0 MPH Upon
Restart
DEF Level Empty Speed
Limited to avg speed
metric:#0 km/h
DEF Level Empty Speed
Limited to avg speed
imperial:#0 MPH
109
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

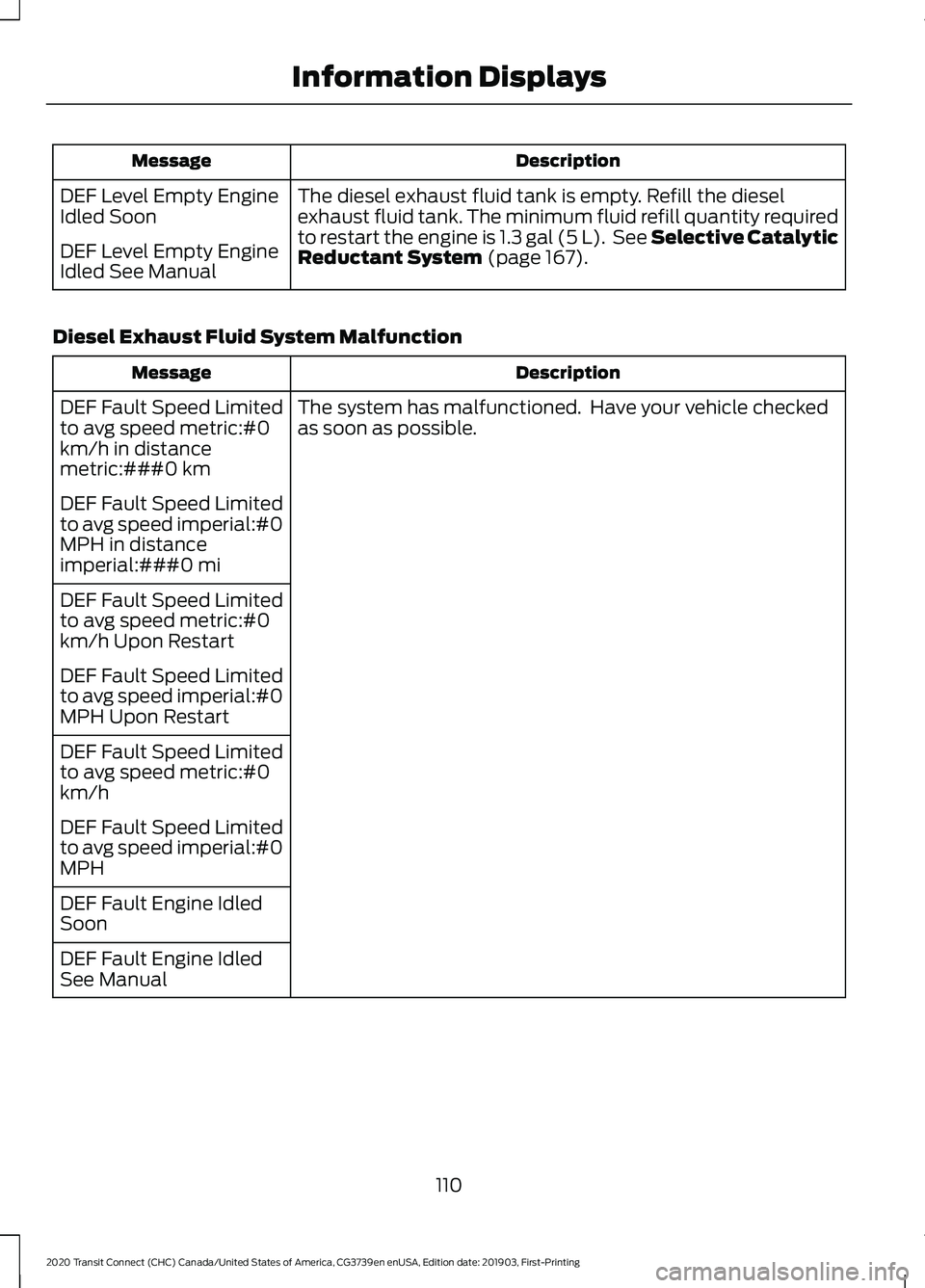

Description
Message
DEF Level Empty Engine
Idled Soon The diesel exhaust fluid tank is empty. Refill the diesel
exhaust fluid tank. The minimum fluid refill quantity required
to restart the engine is 1.3 gal (5 L). See Selective Catalytic
Reductant System (page 167).
DEF Level Empty Engine
Idled See Manual
Diesel Exhaust Fluid System Malfunction Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
DEF Fault Speed Limited
to avg speed metric:#0
km/h in distance
metric:###0 km
DEF Fault Speed Limited
to avg speed imperial:#0
MPH in distance
imperial:###0 mi
DEF Fault Speed Limited
to avg speed metric:#0
km/h Upon Restart
DEF Fault Speed Limited
to avg speed imperial:#0
MPH Upon Restart
DEF Fault Speed Limited
to avg speed metric:#0
km/h
DEF Fault Speed Limited
to avg speed imperial:#0
MPH
DEF Fault Engine Idled
Soon
DEF Fault Engine Idled
See Manual
110
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

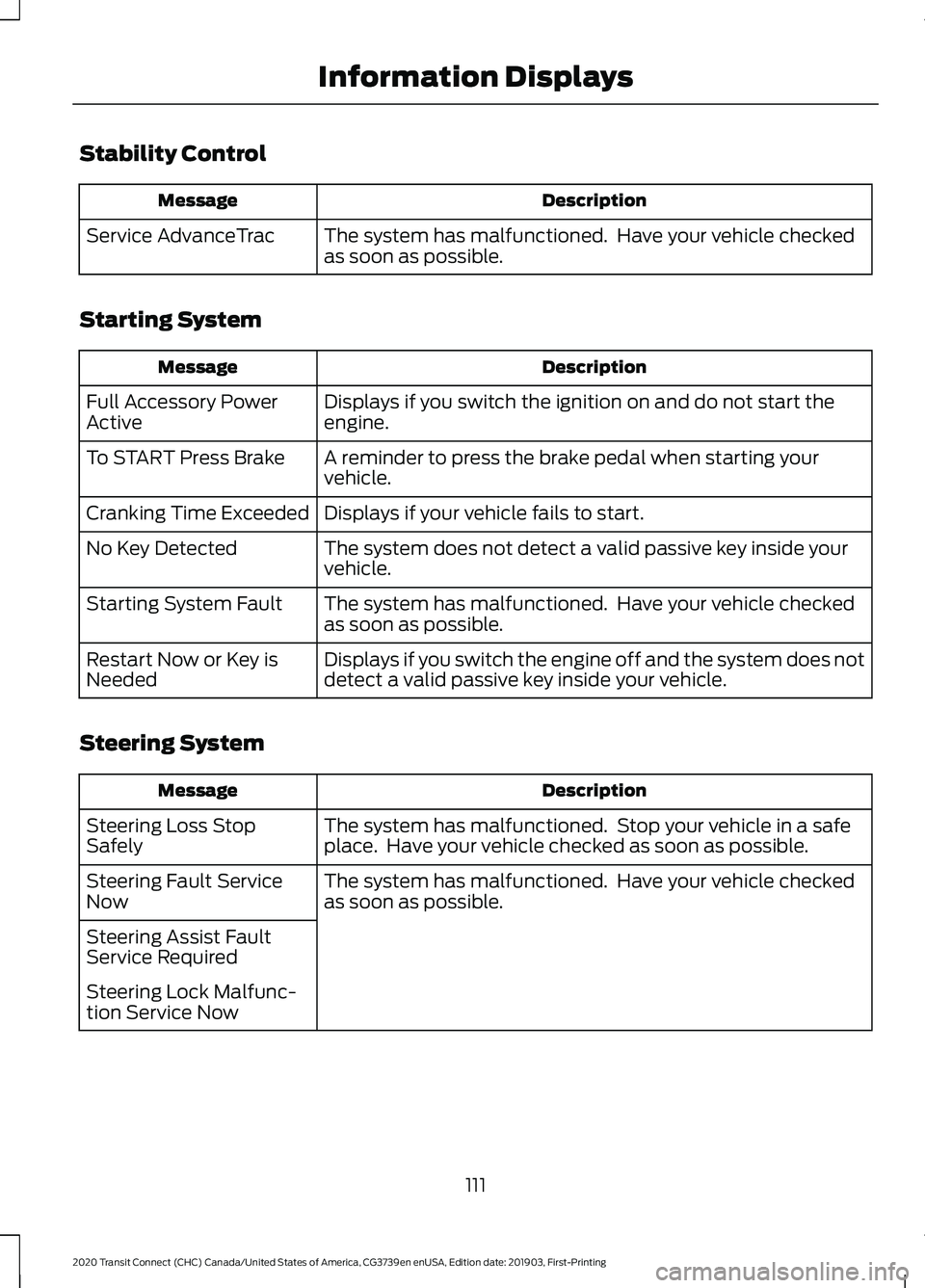

Stability Control
Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Service AdvanceTrac
Starting System Description
Message
Displays if you switch the ignition on and do not start the
engine.
Full Accessory Power
Active
A reminder to press the brake pedal when starting your
vehicle.
To START Press Brake
Displays if your vehicle fails to start.
Cranking Time Exceeded
The system does not detect a valid passive key inside your
vehicle.
No Key Detected
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Starting System Fault
Displays if you switch the engine off and the system does not
detect a valid passive key inside your vehicle.
Restart Now or Key is
Needed
Steering System Description
Message
The system has malfunctioned. Stop your vehicle in a safe
place. Have your vehicle checked as soon as possible.
Steering Loss Stop
Safely
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Steering Fault Service
Now
Steering Assist Fault
Service Required
Steering Lock Malfunc-
tion Service Now
111
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays

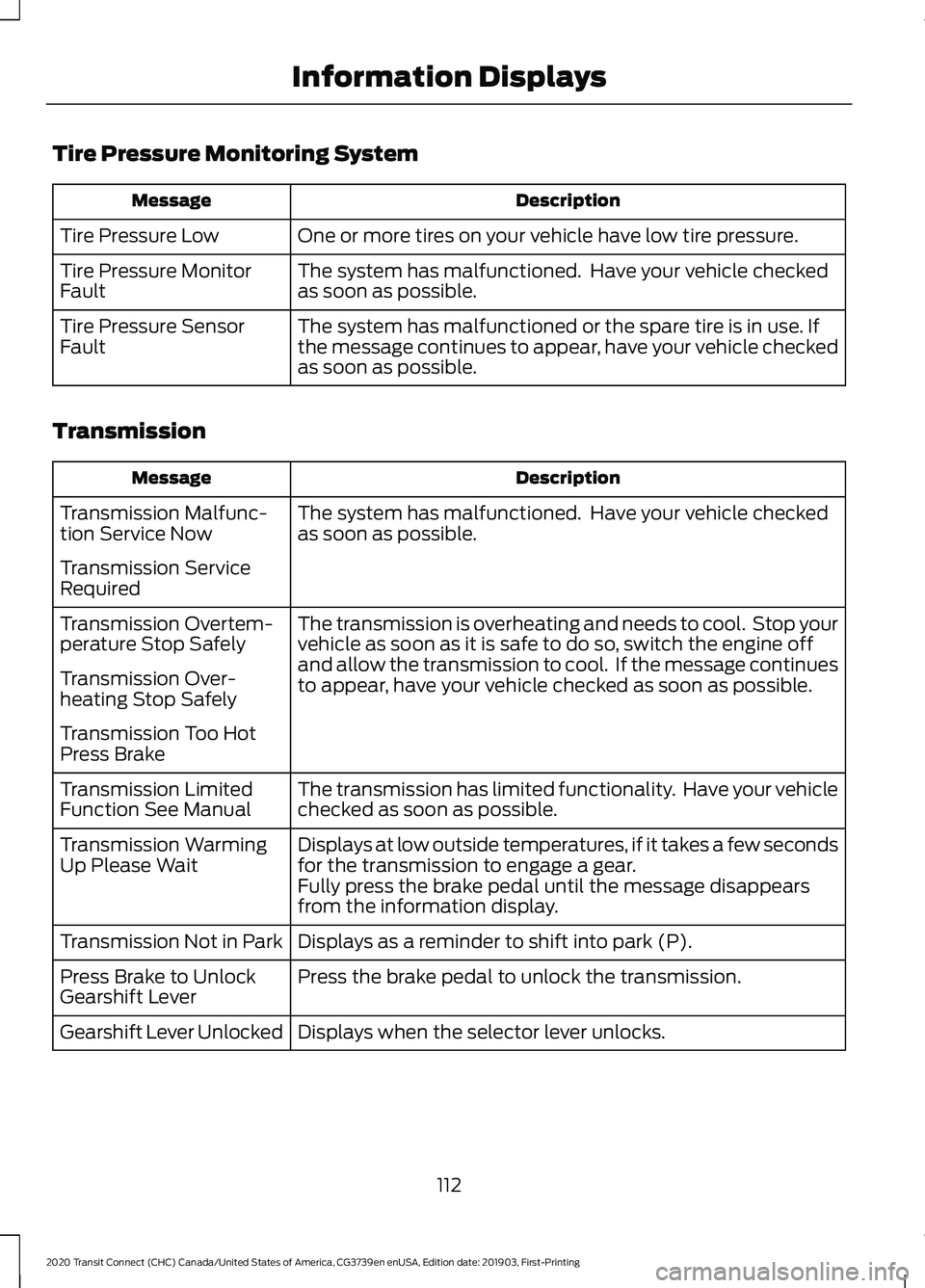

Tire Pressure Monitoring System
Description
Message
One or more tires on your vehicle have low tire pressure.
Tire Pressure Low
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Tire Pressure Monitor
Fault
The system has malfunctioned or the spare tire is in use. If
the message continues to appear, have your vehicle checked
as soon as possible.
Tire Pressure Sensor
Fault
Transmission Description
Message
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Transmission Malfunc-
tion Service Now
Transmission Service
Required
The transmission is overheating and needs to cool. Stop your
vehicle as soon as it is safe to do so, switch the engine off
and allow the transmission to cool. If the message continues
to appear, have your vehicle checked as soon as possible.
Transmission Overtem-
perature Stop Safely
Transmission Over-
heating Stop Safely
Transmission Too Hot
Press Brake
The transmission has limited functionality. Have your vehicle
checked as soon as possible.
Transmission Limited
Function See Manual
Displays at low outside temperatures, if it takes a few seconds
for the transmission to engage a gear.
Transmission Warming
Up Please Wait
Fully press the brake pedal until the message disappears
from the information display.
Displays as a reminder to shift into park (P).
Transmission Not in Park
Press the brake pedal to unlock the transmission.
Press Brake to Unlock
Gearshift Lever
Displays when the selector lever unlocks.
Gearshift Lever Unlocked
112
2020 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201903, First-Printing Information Displays
