FORD WINDSTAR 1997 1.G Repair Manual

60
*
[AS10600(ALL)08/95]
n
Using the ªSCANº function with your cassette tape player
*
[AS10700(ALL)03/96]
Press the ªSCAN/TUNEº button to enter the scan mode
(display indicates ªSCNº). Pushing the right
aside of the
ªSEEKº button will begin the forward scan mode on the tape
currently playing, stopping on each tape selection for
approximately an eight-second sampling.
*
[AS10800(ALL)03/96]
Pushing the left
bside of the ªSEEKº button will begin the
reverse scan mode, stopping on each previous tape selection
for approximately an eight-second sampling. While scanning,
the display indicates whirling sprockets plus an ªSºm.
*
[AS10810(ALL)03/96]
To stop the scan mode on the presently sampled tape
selection, press the ªSCAN/TUNEº button again.
*
[AS10820(ALL)08/95]
How to eject the tape
*
[AS10830(ALL)08/95]
To stop the tape and eject the cassette, press the ªEJCTº button.
The radio will resume playing if the radio power is on. The
tape cartridge can be ejected with radio power (and/or ignition)
on or off.
*
[AS10840(ALL)08/95]
How to store the tape
*
[AS10850(ALL)08/95]
Press the ªAM/FMº button to stop the tape player and resume
radio play. The cassette will be stored in the tape player and
the
Xsymbol in the display will be lit until you push the
ªPLAY PROGº button to resume tape play. Fast forward and
fast rewind can be used while the tape is in storage mode
without interrupting radio play.
*
[AS10860(ALL)02/96]
Using the DolbyHB noise reduction feature
[AS10870(ALL)07/93]
DolbyHis a Registered Trademark of Dolby Laboratories
Licensing Corp.
*
[AS10880(ALL)08/95]
Push thekbutton to activate. When on, theksymbol
above the button will be lit.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

Electronic Sound Systems
61
*
[AS10905(ALL)05/96]
Tips on Caring for the Cassette Player and Tapes
*
[AS10910(ALL)08/95]
In order to keep your cassette tape player performing the way it
was meant to, read and follow these simple precautions:
*
[AS10915(ALL)05/96]
n
Using a Ford or equivalent cassette cleaning cartridge to
clean the tape player head after 10-12 hours of play will help
maintain the best playback sound and proper tape operation.
*
[AS10920(ALL)08/95]
n
Only cassettes that are 90 minutes long or less should be
used. Tapes longer than 90 minutes are thinner and subject
to breakage or may jam the tape player mechanism.
*
[AS10925(ALL)08/95]
n
Protect cassettes from exposure to direct sunlight, high
humidity and extreme heat or cold. If they are exposed to
extreme conditions, allow them to reach a moderate
temperature before playing.
*
[AS10930(ALL)08/95]
n
If a tape is loose inside the cassette, tighten it before playing
by putting your finger or a pencil into one of the holes and
turning the hub until the tape is tight.
*
[AS10935(ALL)08/95]
n
Loose labels on cassette tapes can become lodged in the
mechanism. Remove any loose label material before inserting
a cassette.
*
[AS10940(ALL)08/95]
n
Do not leave a tape in the cassette tape player when not in
use. High heat in the vehicle can cause the cassette to warp.
*
[AS11010(ALL)08/95]
Tape error messages
*
[AS11020(ALL)08/95]
Your cassette tape player is equipped to diagnose certain
problems you may experience. Error codes are as follows:
*
[AS11030(ALL)08/95]
Error 0Ð Communication error between the radio controller
and the tape controller. The cassette player will eject the tape.
Insert the tape again. If the same error code appears, turn the
ignition off, then back on again and insert the tape.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

62
*
[AS11040(ALL)08/95]
Error 1Ð Possible problem cartridge. The cassette tape player
will eject the tape. Insert the tape again. If the same error code
appears in the display, try a different cartridge.
*
[AS11050(ALL)08/95]
Error 2Ð Tape eject or load failure. Your cassette tape player
will go into the pause mode. Push ªEJCTº to eject the tape. If
the tape doesn't eject, refer the problem to qualified personnel
for service.
%*
[AS11060(ALL)05/96]

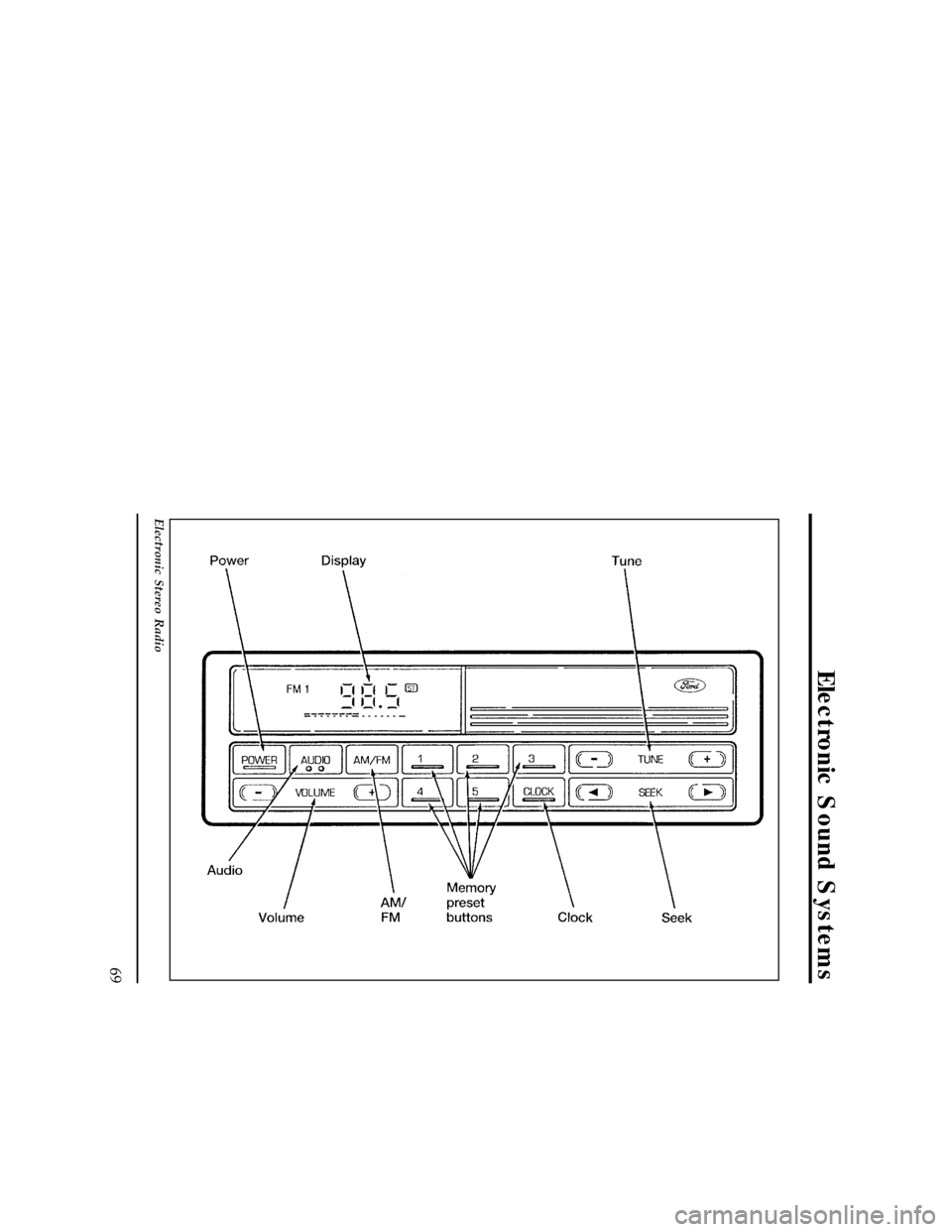

Clock Operation
*
[AS11080(ALL)05/96]
How to view the clock mode
*
[AS11090(ALL)08/95]
Press the ªCLOCKº button to alternate the frequency and time
in the display. In the clock mode, pressing any radio function
will automatically display the radio frequency for approximately
ten seconds before changing back to the clock mode.
*
[AS11100(ALL)05/96]
How to set the clock
[AS11120(ALL)12/93]
Press and hold in the ªCLOCKº button, press the ªSEEKº
button left (
b) to advance the hours and right (
a) to advance
the minutes.
*
[AS11130(ALL)05/96]
NOTE: The clock displays 12-hour time with no AM/PM
indications.
*
[AS11135(ALL)09/95]
NOTE: On the High-Level Audio System, the clock can be set
with the radio power on or off.
[AS12000(ALL)09/95]
NOTE: In order to maintain the performance of your cassette
stereo system, refer to ªTips on Caring for the
Cassette Player and Tapesº later in this chapter.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

Electronic Sound Systems
63
[AS12003(ALL)04/95]
The Ford 10-CD Changer System
[AS12006(ALL)05/95]
The Ford 10-CD Changer is mounted in your center floor
console and holds 10 CDs, all controlled by using the buttons
on your High-Level Audio System.
[AS12012(ALL)05/95]
Center Floor Console Loading Instructions

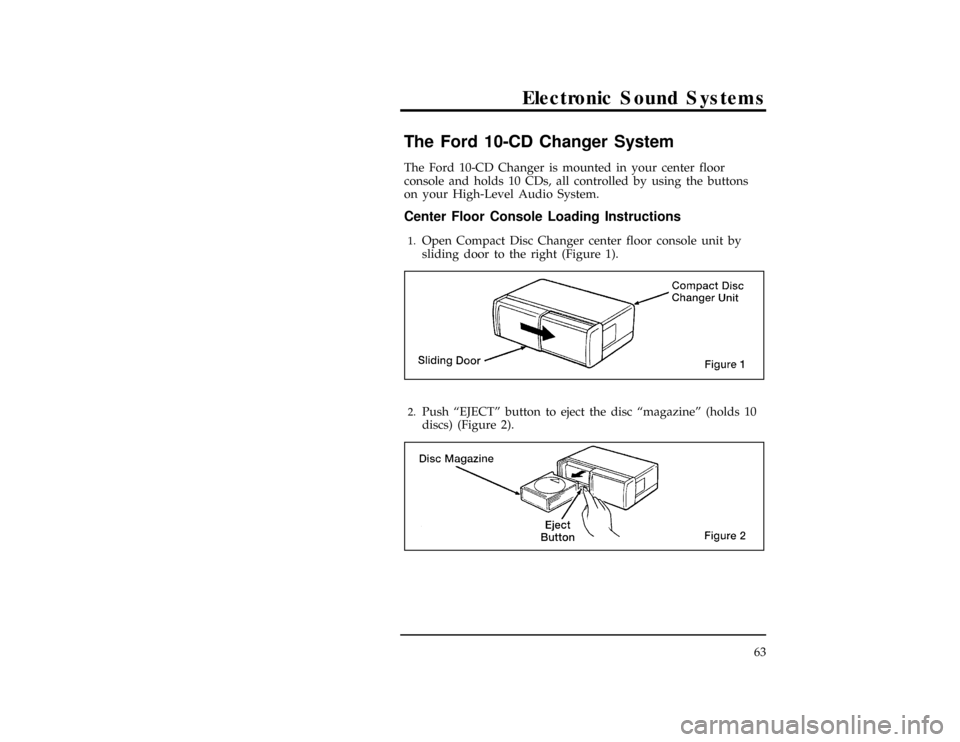

[AS12015(ALL)05/95]1.
Open Compact Disc Changer center floor console unit by
sliding door to the right (Figure 1).
[AS12018(ALL)05/95]
7-1/2 pica art:0050265-A[AS12021(ALL)04/95]2.
Push ªEJECTº button to eject the disc ªmagazineº (holds 10
discs) (Figure 2).
[AS12024(ALL)05/95]
7-1/2 pica art:0050266-AFile:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

64
*

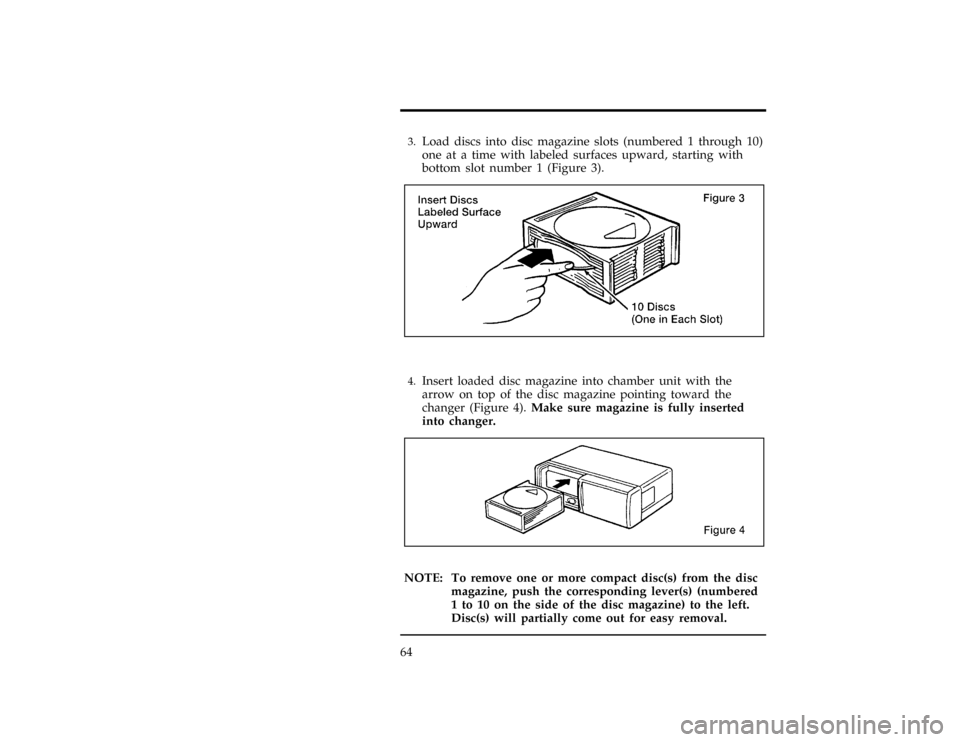

[AS12027(ALL)04/95]3.
Load discs into disc magazine slots (numbered 1 through 10)
one at a time with labeled surfaces upward, starting with
bottom slot number 1 (Figure 3).
[AS12030(ALL)05/95]
10-1/2 pica
art:0050267-A[AS12033(ALL)04/95]4.
Insert loaded disc magazine into chamber unit with the
arrow on top of the disc magazine pointing toward the
changer (Figure 4).Make sure magazine is fully inserted
into changer.
[AS12036(ALL)06/95]
7-1/2 pica art:0050268-A*
[AS12039(ALL)09/95]
NOTE: To remove one or more compact disc(s) from the disc
magazine, push the corresponding lever(s) (numbered
1 to 10 on the side of the disc magazine) to the left.
Disc(s) will partially come out for easy removal.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

Electronic Sound Systems
65
*
[AS12045(ALL)01/95]5.
Close unit by sliding changer panel door to the left.
[AS12048(ALL)05/95]
The Compact Disc Changer center floor console unit is now
ready to play using the controls of your High-Level Audio
System.
*
[AS12051(ALL)04/95]
How to Operate the Ford 10-CD Changer Using the
Controls on the Radio
[AS12054(ALL)07/95]
If your vehicle is equipped with the Ford 10-CD Changer
System, you can operate it through the controls of your
High-Level Audio System.
*
[AS12057(ALL)05/95]
Several of the controls on the radio operate in the same manner
in CD mode as they do in radio or cassette mode: turning the
power on, volume control and adjusting the bass, treble, speaker
balance or fade.
*
[AS12060(ALL)02/95]
How to begin CD Changer play
*
[AS12063(ALL)09/95]
NOTE: Radio power must be on to operate the Compact Disc
Changer.
[AS12066(ALL)04/95]
Push the ªPLAY PROGº button to begin CD play. (The radio
will revert to the CD mode when ªPLAY PROGº button is
pushed and there is no cassette stored or playing in the cassette
deck.) The 10-CD Changer will automatically begin playing the
first track (selection) of the first disc loaded in the trunk unit.
The display will indicate ªCD-##º for track number. Three
seconds after displaying ªTR-##º, the display will indicate
ª##-##º (CD number-Track number).
*
[AS12069(ALL)02/95]
How to change the disc being played
[AS12072(ALL)04/95]
When in the CD mode, you can change discs by pressing the
ªFFº button (to select the next discs) or the ªREWº button (to
select previous discs). Play willl begin on the first track of the
selected disc.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

66
*
[AS12075(ALL)04/95]
If either button is pressed and held, the CD Changer will
continue fast-forwarding or reversing through the discs in the
disc magazine. During these functions, the display will indicate
the disc number.
*
[AS12078(ALL)10/95]
How to change the track being played
*
[AS12081(ALL)02/96]
Press the right (
a) side of the ªSEEKº button to seek forward
to the next track of current disc. If the button is held and the
last track is reached, the disc changer will automatically begin
playing the last track of the current disc. After the last track has
been completed, the disc changer advances to the next disc and
begins play of track 1. The display indicates the track number
while seeking.
[AS12084(ALL)02/96]
Press the left (
b) side of the ªSEEKº button to seek in reverse
to the previous track on the current disc. If a selection has been
playing for three seconds or more and you press the left (
b)
side of the ªSEEKº button, the CD Changer will replay that
selection from the beginning.
*
[AS12087(ALL)04/95]
Operating the CD Compression feature
*
[AS12090(ALL)05/96]
The compression feature will bring soft and loud passages closer
together for a more consistent listening level.
[AS12093(ALL)04/95]
To turn the compression on, press the Dolby B noise reduction
kbutton. (While in the CD Changer mode, the Dolby button
controls the compression function.) When the compression
feature is activated, the display will indicate ªCº.
*
[AS12096(ALL)06/96]
HowtostopCDplay
[AS12099(ALL)03/96]
While in the CD Changer mode, press the ªEJCTº button to
stop CD play and resume radio play. Also, loading a cassette
into the cassette deck will stop CD play and begin cassette play.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

Electronic Sound Systems
67
*
[AS21050(ALL)08/95]
Rear Seat Radio Controls
*
[AS21055(ALL)08/95]
Using the Rear Seat Radio Controls
[AS21060(ALL)12/93]
Rear seat radio controls are standard equipment on all models.
*
[AS21065(ALL)12/93]

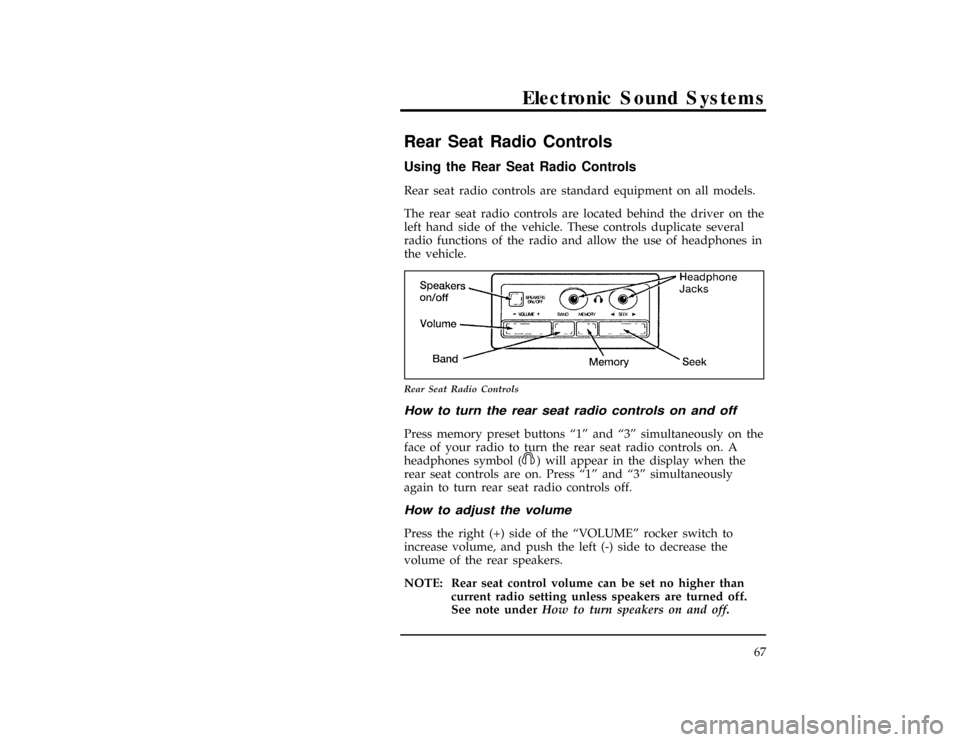

The rear seat radio controls are located behind the driver on the
left hand side of the vehicle. These controls duplicate several
radio functions of the radio and allow the use of headphones in
the vehicle.
[AS21068(ALL)04/95]
7-1/2 pica art:0060676-B
Rear Seat Radio Controls
*
[AS21070(ALL)06/95]
How to turn the rear seat radio controls on and off
[AS21075(ALL)04/96]
Press memory preset buttons ª1º and ª3º simultaneously on the
face of your radio to turn the rear seat radio controls on. A
headphones symbol (j) will appear in the display when the
rear seat controls are on. Press ª1º and ª3º simultaneously
again to turn rear seat radio controls off.
*
[AS21080(ALL)03/96]
How to adjust the volume
*
[AS21085(ALL)12/93]
Press the right (+) side of the ªVOLUMEº rocker switch to
increase volume, and push the left (-) side to decrease the
volume of the rear speakers.
[AS21090(ALL)09/95]
NOTE: Rear seat control volume can be set no higher than
current radio setting unless speakers are turned off.
See note underHow to turn speakers on and off.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

68
*
[AS21095(ALL)06/95]
Setting the AM or FM frequency band
*
[AS21100(ALL)06/95]
Push the ªBANDº button to change the frequency band.
*
[AS21105(ALL)06/95]
Using the ªMEMORYº button
*
[AS21110(ALL)06/95]
Push the ªMEMORYº button to access the station you have set
into memory button 1 on the face of the radio. Successively
pushing this button will access, numerically, all stations set into
the Station Memory Preset buttons (1 through 5).
*
[AS21115(ALL)06/95]
How to turn the speakers on and off
*
[AS21120(ALL)06/95]
When the rear seat controls are on, push the ªSPKRS ON-OFFº
button to turn all speakers off. Push again to turn all speakers
on.
[AS21125(ALL)04/96]
NOTE: Turning the ignition off, then on again will not turn
the speakers back on, if previously turned off by the
ªSPKRS ON-OFFº button on the rear seat controls.
*
[AS21130(ALL)06/95]
Using the ªSEEKº function
[AS21135(ALL)04/96]
Press the right (
a) side of the ªSEEKº rocker switch to seek to
the next radio station. Press the left (
b) side of the ªSEEKº
rocker switch to seek to the previous radio station.
*
[AS21140(ALL)09/95]
NOTE: When using the rear seat controls with a High-Level
Audio System, the ªSEEKº function on the rear seat
controls will also function with cassettes, seeking the
next (ªSEEK
aº) or previous (ª
bSEEKº) selection
on the tape.
*
[AS21145(ALL)06/95]
Using headphones with the rear seat controls
*
[AS21150(ALL)10/95]
Two 3.5 mm headphone jacks have been provided on the rear
seat controls. Plug headphone(s) into the provided jack(s) to
operate headphones.
File:04wnass.ex
Update:Mon Jul 8 14:13:42 1996

Electronic Sound Systems
69
