The air conditioner may be used to cool the outside air being
drawn into your vehicle, but using recirculated air is more
economical and cools your vehicle more quickly.
*
[CF06200(ALL)01/96]
Cooling your vehicle with outside air
*
[CF06300(ALL)01/96]
Cooling your vehicle with air conditioned outside air is quieter
but less economical than using recirculated air. It also has less
cooling capacity.
[CF06400(ALL)01/96]
To cool your vehicle with outside air:
[CF06500(ALL)01/96]1.
Turn the Function Selector Knob to the A/C orS
(PANEL/FLOOR).
[CF06600(ALL)01/96]2.
Turn the Temperature Control Knob to COOL.
[CF06700(ALL)01/96]3.
Turn the Fan Speed Knob to the position of your choice.
[CF06800(ALL)01/96]4.
Make sure that the registers in the instrument panel are open
and adjusted to the positions of your choice.
[CF06900(ALL)01/96]
During periods of high humidity, vapor may be emitted from
the air outlets when using the A/C with outside air. Correct
this by switching the Function Control Knob to MAX A/C.
*
[CF07000(ALL)01/96]
Improving fuel economy
[CF07100(ALL)01/96]
Whenever you turn on the air conditioning, your vehicle uses
more fuel because the air conditioning compressor is running.
To get better fuel economy while cooling your vehicle, do not
use the air conditioner on mild days. Instead, set the function
control knob toQ(PANEL) and turn the temperature control
knob to COOL.
*
[CF07200(ALL)01/96]
Operating tips
[CF07300(ALL)01/96]
To vary the temperature inside your vehicle, move the
Temperature Control Knob toward WARM (red) for warmer
temperatures and toward COOL (blue) for cooler temperatures.
The Temperature Control Knob setting determines the
temperature of the air being discharged from the system in all
operating modes (heating or A/C).
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
91
[CF07400(ALL)01/96]
When stopped in traffic for long periods of time in hot weather,
place the automatic transaxle gearshift selector lever in Park (P)
or in Neutral (N). This aids in engine cooling and air
conditioner efficiency. (If the engine overheats, turn the
Function Selector Knob toQ(PANEL) and turn the
Temperature Control Knob to WARM.)
*
[CF07500(ALL)01/96]
When your vehicle's engine is operated at full throttle, the air
conditioner compressor will automatically be turned off to allow
maximum engine power. This may occur during passing or
when climbing steep grades. The compressor will return to
normal operation within a few seconds after full throttle is no
longer needed.
[CF07600(ALL)01/96]
NOTE: The compressor will not operate when the outside
temperature is less than about45ÊF (7ÊC).
% [CF07700(ALL)01/96]
Rear Climate Control System (If equipped)
[CF07800(ALL)01/96]
If your vehicle is equipped with a rear climate control system,
the rear seat occupants can select their own personal fan speed
settings.
[CF07900(ALL)01/96]
The rear seat climate control system is controlled from the main
climate control system on the instrument panel. If the rear
passenger compartment climate control knob in the front climate
control panel is set in OFF, the fan in the rear seat climate
control system will also be off. If the knob is set in any of the
fan speed positions (Medium Low, Medium High, or High), air
will be discharged from the rear seat vents at the corresponding
speed. However, when the knob is set at REAR CTRL, rear seat
passengers can control their own fan speed.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

92
[CF08000(ALL)01/96]
7-1/2 pica art:0050048-D

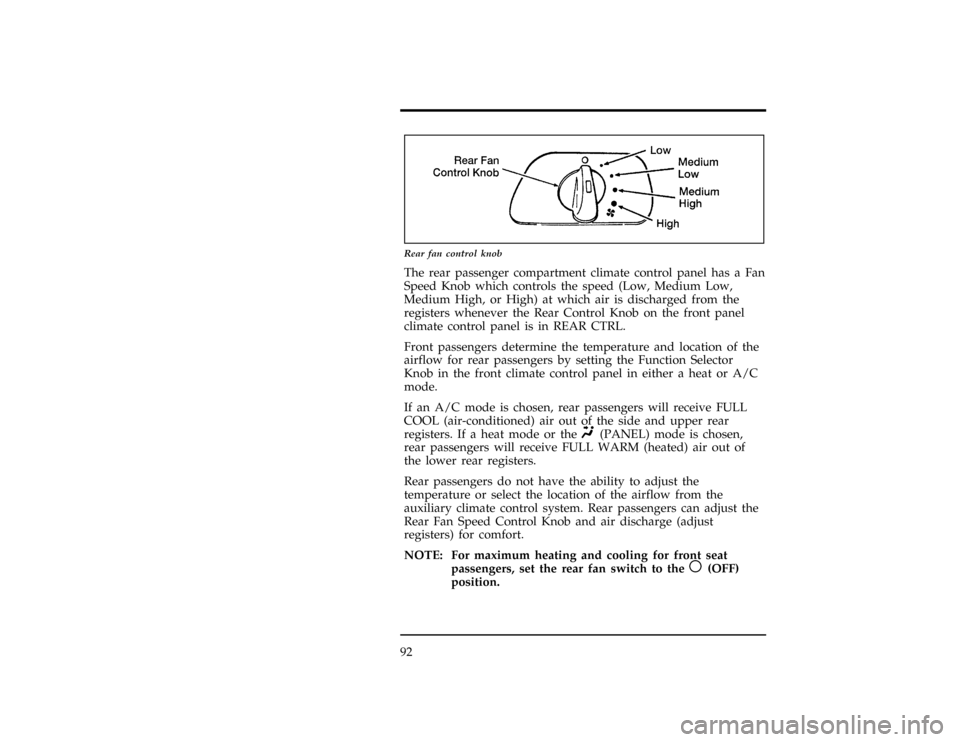

Rear fan control knob
[CF08100(ALL)01/96]
The rear passenger compartment climate control panel has a Fan
Speed Knob which controls the speed (Low, Medium Low,
Medium High, or High) at which air is discharged from the
registers whenever the Rear Control Knob on the front panel
climate control panel is in REAR CTRL.
[CF08200(ALL)01/96]
Front passengers determine the temperature and location of the
airflow for rear passengers by setting the Function Selector
Knob in the front climate control panel in either a heat or A/C
mode.
[CF08300(ALL)01/96]
If an A/C mode is chosen, rear passengers will receive FULL
COOL (air-conditioned) air out of the side and upper rear
registers. If a heat mode or theQ(PANEL) mode is chosen,
rear passengers will receive FULL WARM (heated) air out of
the lower rear registers.
[CF08400(ALL)01/96]
Rear passengers do not have the ability to adjust the
temperature or select the location of the airflow from the
auxiliary climate control system. Rear passengers can adjust the
Rear Fan Speed Control Knob and air discharge (adjust
registers) for comfort.
[CF08500(ALL)01/96]
NOTE: For maximum heating and cooling for front seat
passengers, set the rear fan switch to them(OFF)
position.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
93
*
[CF08600(ALL)01/96]
Liftgate Window Features
%*
[CF08700(ALL)01/96]
Rear Window Defogger (If equipped)
*
[CF08800(ALL)01/96]
The defogger for the rear liftgate window clears frost, fog, or
thin ice from both the inside and outside of the rear window.
The defogger operates with the ignition in the ON position.
[CF08900(ALL)01/96]
The control switch is located on the instrument panel to the
right of the steering column and below the climate control
system.
[CF09000(ALL)01/96]
10-1/2 pica
art:0050036-B

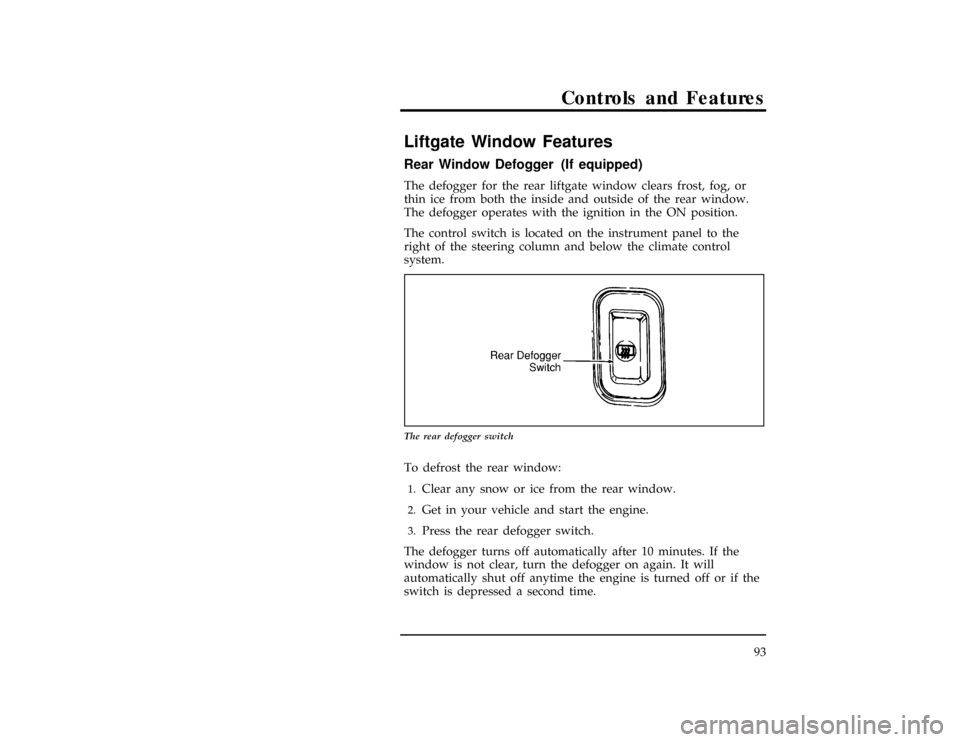

The rear defogger switch
*
[CF09100(ALL)03/96]
To defrost the rear window:
*
[CF09200(ALL)03/96]1.
Clear any snow or ice from the rear window.
*
[CF09300(ALL)03/96]2.
Get in your vehicle and start the engine.
[CF09400(ALL)01/96]3.
Press the rear defogger switch.
[CF09500(ALL)01/96]
The defogger turns off automatically after 10 minutes. If the
window is not clear, turn the defogger on again. It will
automatically shut off anytime the engine is turned off or if the
switch is depressed a second time.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

94
[CF09600(ALL)01/96]
NOTE: Operating the rear defogger will also turn on the
heated side view mirrors (if equipped).
*
[CF09700(ALL)01/96]
Never use sharp instruments or abrasive window cleaners to
clean the inside of your rear window. If you do, you may
damage the wires that are bonded to the inside of the rear
window, and cause damage to the rear window defogger.
% [CF09800(ALL)01/96]
Rear Wiper and Washer (If equipped)
[CF09900(ALL)01/96]
The controls for the rear wiper and washer can be found on the
instrument panel to the right of the instrument cluster below the
climate control system. The rear wiper and washer controls
operate with the ignition in the ACC or ON positions.
[CF10000(ALL)01/96]
10-1/2 pica
art:0050037-A

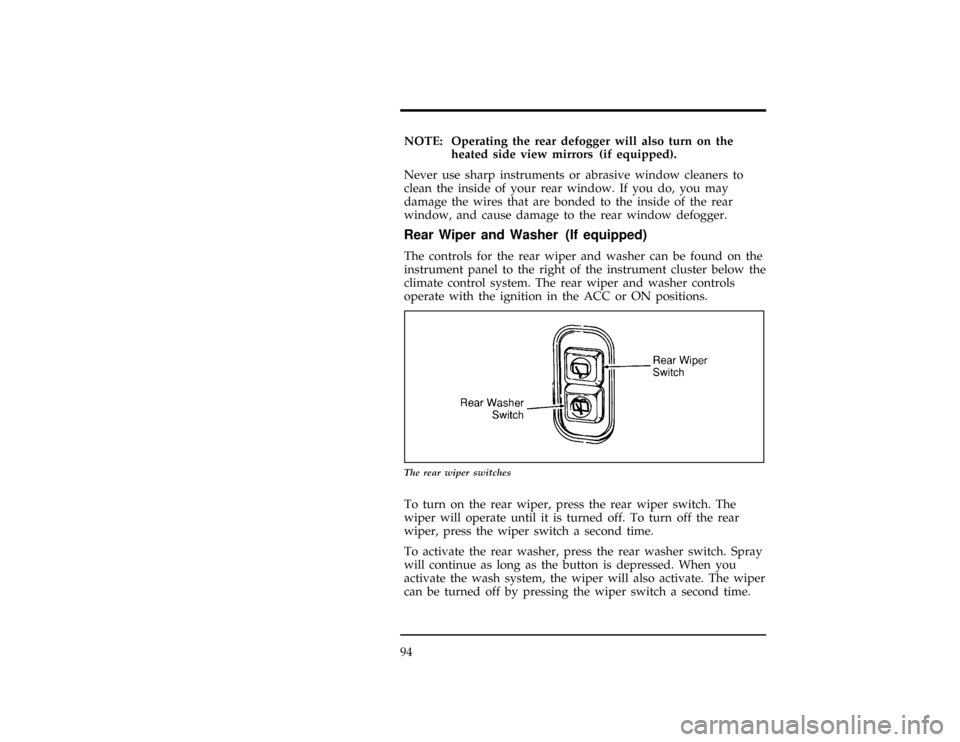

The rear wiper switches
[CF10100(ALL)01/96]
To turn on the rear wiper, press the rear wiper switch. The
wiper will operate until it is turned off. To turn off the rear
wiper, press the wiper switch a second time.
[CF10200(ALL)01/96]
To activate the rear washer, press the rear washer switch. Spray
will continue as long as the button is depressed. When you
activate the wash system, the wiper will also activate. The wiper
can be turned off by pressing the wiper switch a second time.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
95
*
[CF10300(ALL)01/96]
Do not activate the washer for longer than fifteen seconds
continuously. This could damage the washer pump system.
% [CF10700(ALL)01/96]
Exterior Lamps
*
[CF10800(ALL)05/96]
To turn on the headlamps, parking lamps, marker lamps, tail
lamps, license plate lamps and instrument panel lamps, use the
headlamp knob, to the left of the instrument cluster.
*
[CF10900(ALL)05/96]1.
Turn the headlamp knob to the first position to turn on the
parking lamps, tail lamps, license plate lamps, marker lamps
and instrument panel lamps.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

96
*
[CF11000(ALL)05/96]2.
Turn the headlamp knob to the second position to turn on
the headlamps in addition to the parking lamps, tail lamps,
license plate lamps, marker lamps and instrument panel
lamps.
[CF11100(ALL)01/96]
10-1/2 pica
art:0050040-A

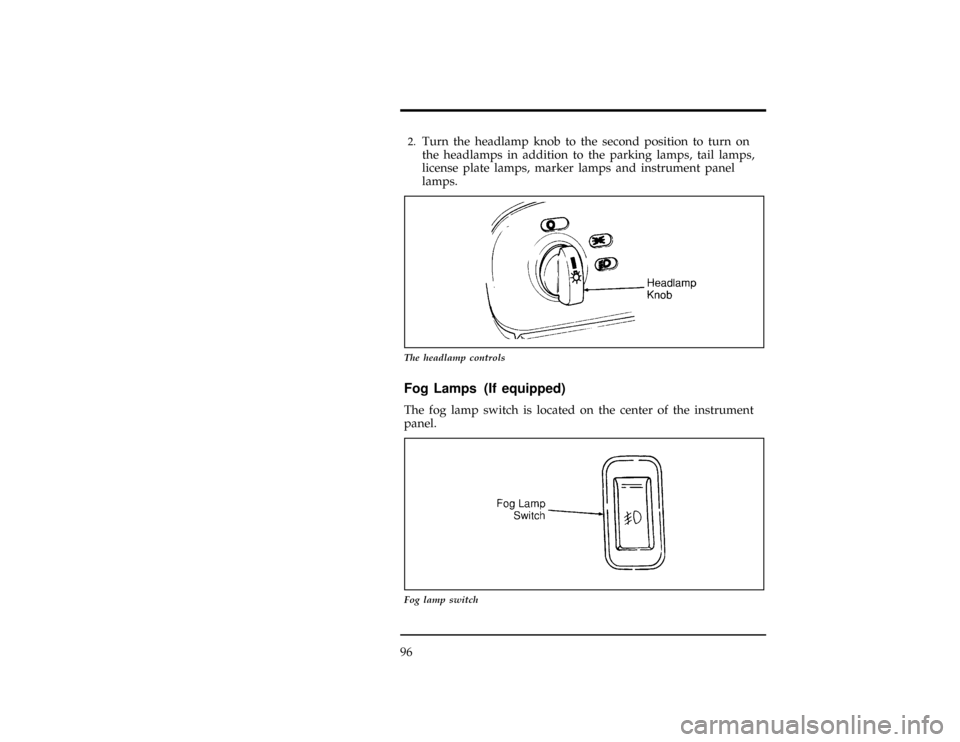

The headlamp controls
%*
[CF11200(ALL)05/96]
Fog Lamps (If equipped)
[CF11300(ALL)01/96]
The fog lamp switch is located on the center of the instrument
panel.
[CF11400(ALL)01/96]
10-1/2 pica
art:0050232-A
Fog lamp switch
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
97
*
[CF11500(ALL)03/96]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog and operate only when the low beam headlamps are on.
*
[CF11600(ALL)03/96]
To maximize fog lamp bulb life, it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
[CF11700(ALL)01/96]
n
To turn the fog lamps on, push the switch. An indicator light
will glow when the lamps are on.
*
[CF11800(ALL)03/96]
n
To turn off, push the switch again.
%*
[CF11900(ALL)03/96]
ªHeadlamps Onº Alert Chime
[CF12000(ALL)01/96]
The ªheadlamps onº alert chime acts as an indicator that you
have left the headlamps or parking lights on. This continuous
chime will activate when the following conditions are present:
[CF12100(ALL)01/96]
n
The headlamp and/or parking lamps are on
[CF12200(ALL)01/96]
n
There is no key in the ignition
[CF12300(ALL)01/96]
n
The driver's door is ajar (open)
%*
[CF12400(ALL)01/96]
Daytime Running Light (DRL) System
(Canadian vehicles only)
*
[CF12500(ALL)01/96]
The Daytime Running Light (DRL) system is designed to turn
the high beam headlamps on, with a reduced light output and
without illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates when all of the
following conditions are met:
*
[CF12600(ALL)01/96]
n
the vehicle is ªrunningº
*
[CF12700(ALL)02/96]
n
the vehicle has a fully released parking brake
*
[CF12800(ALL)01/96]
n
the headlamp system is in the OFF position
*
[CF12900(ALL)01/96]
NOTE: You may notice that the lights flicker when the engine
is turned on or off. This is a normal condition.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

98
*
[CF13000(ALL)03/96]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
% [CF13100(ALL)01/96]
Interior Lamps
%*
[CF13200(ALL)01/96]
Lighting Up the Instrument Panel
[CF13300(ALL)01/96]
The instrument panel lights can be turned on by turning the
headlamp control knob to either the first or second position.
You can brighten or dim the instrument panel lights by rotating
the dim switch up or down to the desired brightness. The dim
switch is located to the right of the steering column next to the
radio.
[CF13400(ALL)01/96]
10-1/2 pica
art:0050041-B

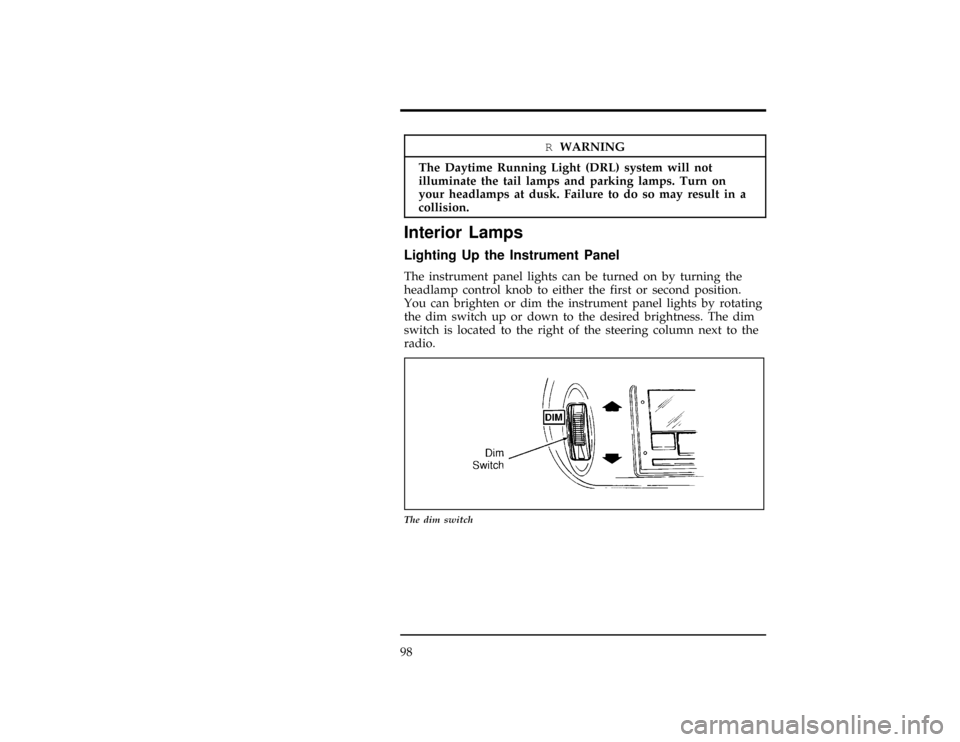

The dim switch
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
99
*
[CF13500(ALL)01/96]
Clock Controls on Electronic Radios
[CF13600(ALL)01/96]
The electronic radios have a built-in clock. For complete
operating instructions, refer to theElectronic Sound Systems
chapter of this Owner Guide.
%*
[CF13700(ALL)03/96]
Radio Antenna
*
[CF13800(ALL)01/96]
The fixed radio antenna is mounted on the front fender on the
passenger's side of the vehicle.
% [CF13900(ALL)01/96]
Cupholders
[CF14000(ALL)01/96]
The front seat cupholders are located with the ashtray. To access
the cupholders, pull open the ashtray drawer which is located
to the right of the steering column, above the compact disc and
cassette storage console.
[CF14100(ALL)01/96]
As you close the ashtray drawer, the cupholders will
automatically fold back into place.
[CF14200(ALL)01/96]
13-1/2 pica
art:0050010-A

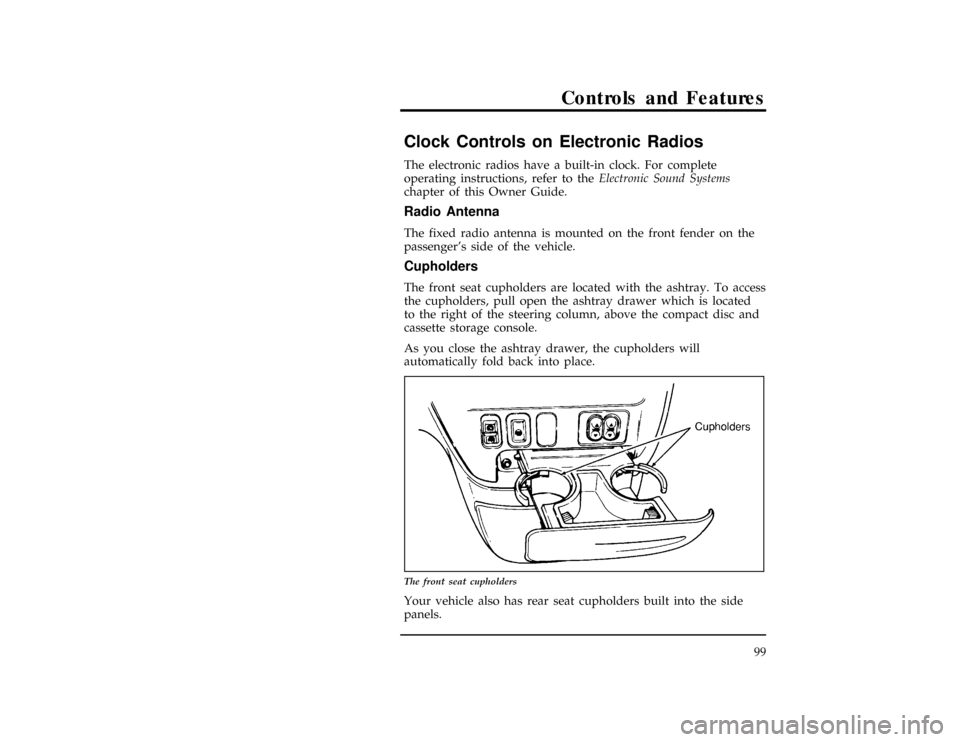

The front seat cupholders
[CF14300(ALL)01/96]
Your vehicle also has rear seat cupholders built into the side
panels.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996
