FORD WINDSTAR 1997 1.G Owners Manual

100
*
[CF14400(ALL)04/96]
NOTE: Do not place heavy objects in the cupholders.
*
[CF14500(ALL)05/96]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[CF14600(ALL)01/96]
Ignition
%*
[CF14700(ALL)01/96]
Understanding the Positions of the Ignition
*
[CF14800(ALL)01/96]
13-1/2 pica
art:0040047-D
The ignition positions
% [CF14900(ALL)12/95]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
[CF15000(ALL)12/95]
LOCK locks the steering wheel and the gearshift lever.
*
[CF15100(ALL)06/96]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[CF15200(ALL)01/96]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
101
[CF15300(ALL)12/95]
START cranks the engine. Release the key once the engine starts
so that you don't damage the starter. The key should return to
the ON position when you release it. The START position also
allows you to test the brake warning light.
%*
[CF15400(ALL)03/96]
Removing the Key From the Ignition
[CF15500(ALL)12/95]
LOCK is the only position that allows you to remove the key
from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[CF15600(ALL)01/96]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[CF15700(ALL)01/96]
To remove your key from the ignition:
*
[CF15800(ALL)01/96]1.
Put the gearshift lever in P (Park).
*
[CF15900(ALL)01/96]2.
Set the parking brake fully.
*
[CF16000(ALL)06/96]3.
Turn the ignition key to LOCK.
*
[CF16100(ALL)03/96]4.
Remove the key.
*
[CF16200(ALL)01/96]
RWARNING
When you leave your vehicle, place the gearshift lever in
P (Park). Set the parking brake fully, and shut off the
engine. Never park your vehicle in N (Neutral). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
*
[CF16300(ALL)05/96]
RWARNING
Do not leave children, unreliable adults, or pets
unattended in your vehicle.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

102
*
[CF16400(ALL)01/96]
Turn Signal Lever
*
[CF16500(ALL)02/96]
You can use the turn signal lever on the left side of the steering
column to:
*
[CF16600(ALL)01/96]
n
operate the turn signals.
*
[CF16700(ALL)01/96]
n
turn the headlamps to high beam.
*
[CF16800(ALL)01/96]
n
flash the headlamps.
*
[CF16900(ALL)01/96]
n
turn the windshield wipers and washer on/off.
%*
[CF17000(ALL)01/96]
Turn Signals
[CF17100(ALL)01/96]
To turn on the right turn signal, push the turn signal lever up.
The right-side arrow on the instrument panel will flash.
[CF17200(ALL)01/96]
To turn on the left turn signal, pull the turn signal lever down.
The left-side arrow on the instrument panel will flash.
*
[CF17300(ALL)01/96]
7-1/2 pica art:0040085-D
The turn signal lever
[CF17400(ALL)01/96]
Usually, the turn signals turn off automatically after you turn
your vehicle. If the turn signal continues to flash after you have
made the turn, pull the lever back to the neutral position.
[CF17500(ALL)01/96]
To indicate a lane change to the right, push the turn signal
lever up slightly (without latching) and hold it in position. To
indicate a lane change to the left, pull the turn signal lever
down slightly (without latching) and hold it in position. The
lever will return to the OFF position when you release it.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
103
*
[CF17600(ALL)01/96]
If the turn indicator light in the instrument panel does not
illuminate or remains on (does not flash) when you signal a
turn, the turn signaling system is malfunctioning. Have this
condition corrected as soon as possible, and use the accepted
hand signals until the turn signal system is repaired.
%*
[CF17700(ALL)01/96]
High Beams
*
[CF17800(ALL)01/96]
To turn on the high beams, turn the headlamps on and push
the turn signal lever away from you until it latches. When the
high beams are on, the high beam indicator light on the
instrument panel is illuminated.
*
[CF17900(ALL)01/96]
To return to the low beam setting, pull the turn signal lever
toward you until it latches back into the neutral position. The
high beam indicator light turns off.
*
[CF18000(ALL)01/96]
7-1/2 pica art:0040086-D
High beam and flash-to-pass operation
%*
[CF18100(ALL)01/96]
Flashing the Lights
*
[CF18200(ALL)01/96]
To flash the headlamps, pull the turn signal lever toward you
for a moment and then release it. The high beam headlamps
will flash whether the headlamps are on or off.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

104
%*
[CF18300(ALL)01/96]
Windshield Wipers and Washer
%*
[CF18400(ALL)06/96]
Variable Interval Wipers
[CF18500(ALL)01/96]
Your vehicle has wipers that operate at varying intervals. For
example, you can set the interval so they wipe less often in
light rain or more often in heavier rain. The wiper delays range
from about 1.5 to 20 seconds.
*
[CF18600(ALL)01/96]
10-1/2 pica art:0040087-E
Variable interval wiper control
*
[CF18700(ALL)01/96]
To set the interval wipers, rotate the knob at the end of the turn
signal lever to the most effective interval. The farther the knob
is from the OFF position, the faster the wipers move.
[CF18800(ALL)01/96]
Speed Dependent Wipers
[CF18900(ALL)01/96]
This feature compensates for the extra moisture that
accumulates on your windshield at higher speeds during rain.
At higher speeds, the Speed Dependent feature shortens the
delay between wipes when you use the variable interval wipers.
Delay will automatically adjust at speeds between 10 and
65 mph (16 and 105 km/h).
[CF19000(ALL)01/96]
The Speed Dependent feature comes disabled from the factory,
but can be activated at any time by using the following
procedure.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
105
[CF19100(ALL)01/96]1.
Make sure the two front doors are securely closed.
[CF19200(ALL)01/96]2.
Insert the key into the ignition and turn first to the ON
position (the gauges on the instrument panel willnot
illuminate) and then back to the OFF position. Remove the
key and within 30 seconds:
[CF19300(ALL)01/96]3.
Press and hold the washer button on the end of the turn
signal lever.
[CF19400(ALL)01/96]4.
Within two seconds, put the key back in the ignition and
turn to the ON position.
[CF19500(ALL)01/96]5.
Hold the washer button down until a long (two second) tone
is heard. Release the button while the tone is active.
[CF19600(ALL)01/96]6.
After the long tone, a confirmation sequence will be heard.
One beep indicates the feature is inactive. Two beeps
indicates the feature is active.
[CF19700(ALL)01/96]
Repeat this procedure any time you want to cancel or reactivate
the Speed Dependent feature.
*
[CF19800(ALL)01/96]
Windshield Washer
[CF19900(ALL)01/96]
To clean the windshield, push in the washer button on the end
of the turn signal lever. For a constant spray, push and hold the
button. If the windshield wipers are off, one momentary push
results in one wipe and a longer push in three wipes and
activation of washer fluid. If the windshield wipers are in
interval mode a quick tap results in two wipe cycles and a
longer tap in three wipes and washer fluid activation.
*
[CF20000(ALL)01/96]
Do not try to clean the windshield when the washer fluid
container is empty and never activate the washers for more than
fifteen seconds continuously. This could damage the washer
pump system.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

106
*
[CF20100(ALL)01/96]
RWARNING
Always warm up the windshield with the defroster
before you use the washer fluid. In freezing weather, the
washer solution may freeze on the windshield and
obscure your vision.
*
[CF20200(ALL)03/96]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
%*
[CF20300(ALL)01/96]
Gearshift Lever
[CF20400(ALL)01/96]
The gearshift lever on your vehicle is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button and the OVERDRIVE OFF lamp. For additional
information about the gearshift lever and the Overdrive On/Off
button, see theDrivingchapter.
[CF20500(ALL)01/96]
13-1/2 pica
art:0050016-A

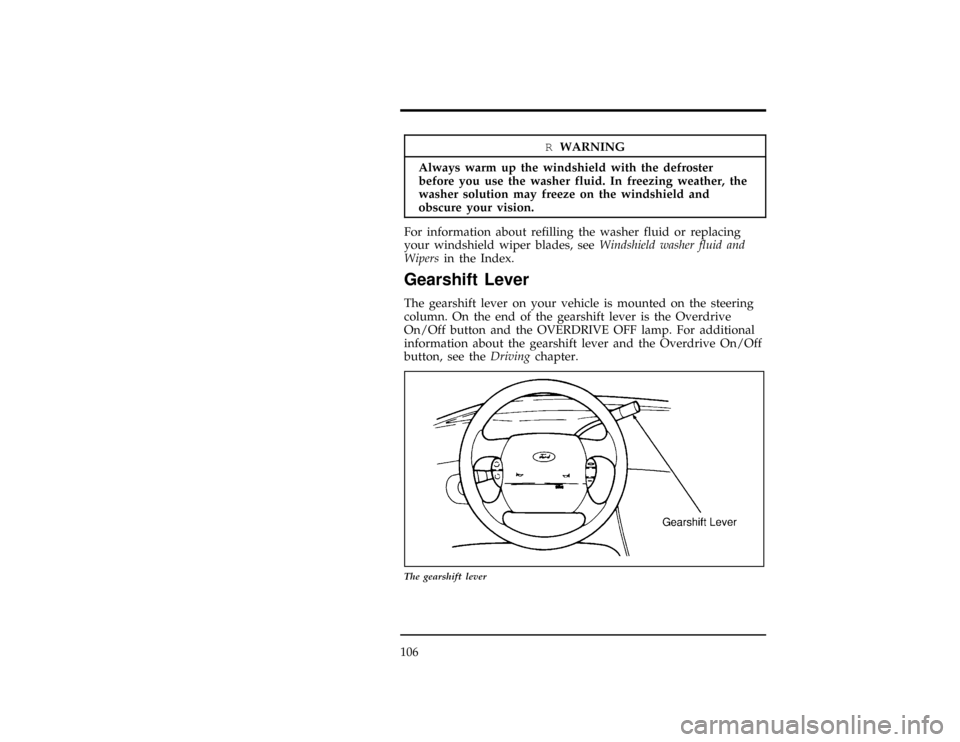

The gearshift lever
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
107
*
[CF20600(ALL)05/96]
OVERDRIVE OFF Lamp
[CF20700(ALL)01/96]
This lamp indicates the operating range of the transaxle. This
lamp will illuminate when the Overdrive On/Off button is
depressed.
[CF20800(ALL)01/96]
6 pica art:0050187-C

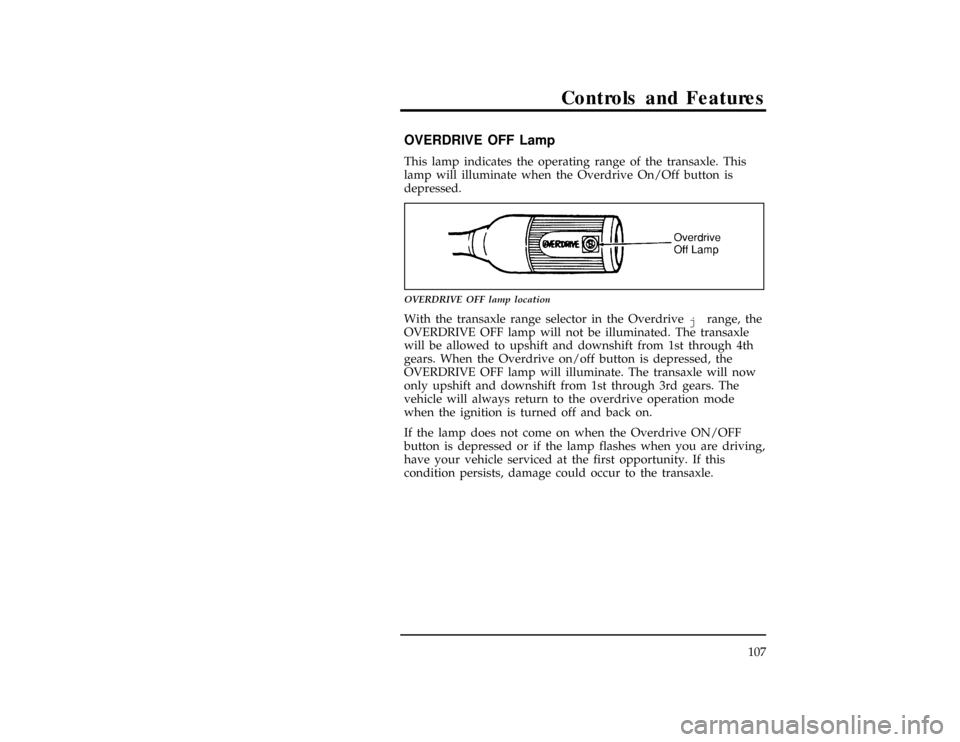

OVERDRIVE OFF lamp location
[CF20900(ALL)01/96]
With the transaxle range selector in the Overdrive
jrange, the
OVERDRIVE OFF lamp will not be illuminated. The transaxle
will be allowed to upshift and downshift from 1st through 4th
gears. When the Overdrive on/off button is depressed, the
OVERDRIVE OFF lamp will illuminate. The transaxle will now
only upshift and downshift from 1st through 3rd gears. The
vehicle will always return to the overdrive operation mode
when the ignition is turned off and back on.
[CF21000(ALL)01/96]
If the lamp does not come on when the Overdrive ON/OFF
button is depressed or if the lamp flashes when you are driving,
have your vehicle serviced at the first opportunity. If this
condition persists, damage could occur to the transaxle.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

108
%*
[CF21200(ALL)05/96]
Horn
[CF21300(ALL)01/96]
To sound the horn, press the center of the steering wheel. Check
the horn regularly to make sure it operates properly.
[CF21400(ALL)01/96]
13-1/2 pica
art:0050017-A

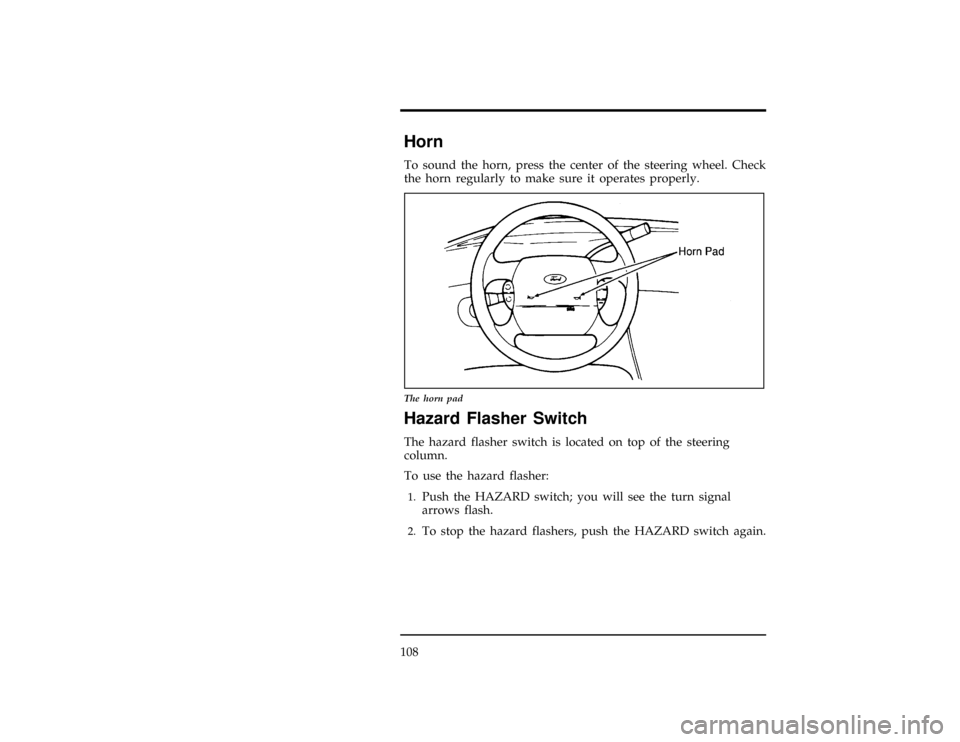

The horn pad
%*
[CF21500(ALL)05/96]
Hazard Flasher Switch
[CF21600(ALL)01/96]
The hazard flasher switch is located on top of the steering
column.
*
[CF21700(ALL)01/96]
To use the hazard flasher:
*
[CF21800(ALL)01/96]1.
Push the HAZARD switch; you will see the turn signal
arrows flash.
*
[CF21900(ALL)01/96]2.
To stop the hazard flashers, push the HAZARD switch again.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
109
%*
[CF22000(ALL)05/96]
Tilt Steering (If equipped)
[CF22100(ALL)01/96]
With the tilt steering option, you can move your steering wheel
up or down.
[CF22200(ALL)01/96]
17-1/2 pica
art:0050101-A

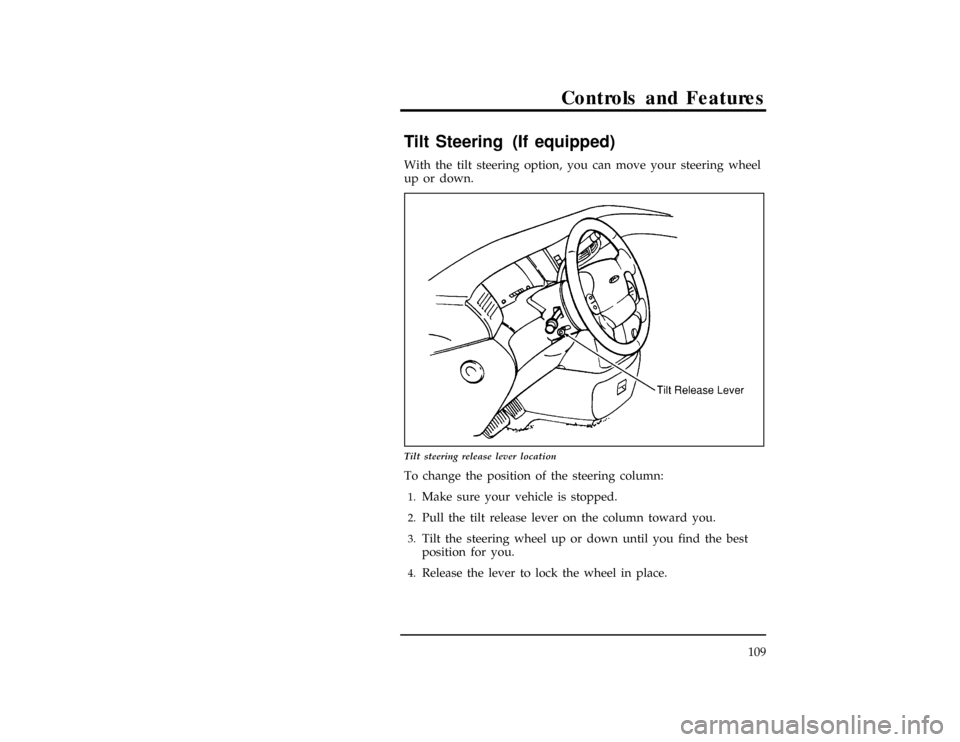

Tilt steering release lever location
[CF22300(ALL)04/96]
To change the position of the steering column:
[CF22400(ALL)04/96]1.
Make sure your vehicle is stopped.
[CF22500(ALL)04/96]2.
Pull the tilt release lever on the column toward you.
[CF22600(ALL)01/96]3.
Tilt the steering wheel up or down until you find the best
position for you.
[CF22700(ALL)04/96]4.
Release the lever to lock the wheel in place.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996
