GEELY FC 2008 Workshop Manual

Inner trim board of top
Change
Hint:
zWhen assembling, please work by the sequence which is opposite with disassembling
sequence; if necessary, it will have assembling instruction.
zChanging procedure for right side is same as the left side.
1. Disassemble trim board of right front door pedal [68010021]
Fixing
clamp
Exterior/inner trim board--Inner trim board of top
 390
(a) Use screw driver to disassemble trim board of right front
door pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
2. Disassemble stop trim board of left front door
[68010020]
3. Disassemble stop trim board of right rear door
[68010024]
(a) Use screw driver to disassemble trim board of right rear door
pedal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
4. Disassemble trim board of left rear door pedal
[68010022]
5. Disassemble lower inner trim board at the front of
right fender [68010016]
(a) Disassemble fixing clamp.
(b) Use screw driver to disassemble right trim board.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(C) Use same method to disassemble the trim board at the
other side.
6. Disassemble lower inner trim board at the front of
left fender [68010015]
7. Disassemble inner fender assembly of right front door [68010050]
8. Disassemble inner fender assembly of left front door [68010049]
9. Disassemble inner trim board assembly of right rear
door [68010058]
10. Disassemble inner trim board assembly of left rear
door [68010057]
11.Disassemble lower inner trim board assemblyco
(a) Pull out lower inner trim board assembly of right stand pole
to disassemble it.
(b) Use same method to disassemble the trim board at the
other side.
12. Disassemble lower inner trim board assembly of

Exterior/inner trim board--Inner trim board of top
left pillar [68010018]
13. Disassemble upper inner trim board assembly of
right pillar [68010025]
(a) Disassemble the bolt and upper fixing bolt trim cover of front
safety belt.
(b) Use screw driver to disassemble upper inner trim board of
right stand pole.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(C) Use same method to disassemble the trim board at the
other side.
14. Disassemble upper inner trim board assembly of
left pillar [68010023]
15. Disassemble rear row chair cushion (referring to
page 352).
16. Disassemble rear row chair backrest (fixing type)
(referring to page 354).
17. Disassemble rear row chair right backrest assem-
bly (referring to page 352).
18. Disassemble rear row chair left backrest assembly
(referring to page 352).
19. Disassemble inner trim board of right rear pillar
assembly [68010027]
(a) Use screw driver to disassemble inner trim board of right
rear pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
20. Disassemble inner trim board of left rear pillar as-
sembly [68010026]
21. Disassemble inner trim board of right front pillar
assembly [68010017]
(a) Use screw driver to disassemble inner trim board of right
front pillar assembly.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Use same method to disassemble the trim board at the
other side.
22. Disassemble inner trim board of left front pillar as-
sembly [68010014]
23. Disassemble inner rear view mirror assembly [67010013]
(a) Use screw driver to disassemble trim cover of inner rearview
mirror pedestal.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble two screws and inner rearview mirror assembly.
Fixing
clamp
Fixing
clamp
Fixing
clamp
 391

Exterior/inner trim board--Inner trim board of top
Fixing
clamp
24. Disassemble right sun shade assembly [68010085]
(a) Liking that shown in figure, use screw driver to unclench the
trim cover of fixing pedestal, then pull down the trim cover.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Liking that shown in figure, use screw driver to release fixing
claw and disassemble sun shade.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(c) Use same method to disassemble the trim board at the
other side.
25. Disassemble left sun shade assembly [68010084]
26. Disassemble indoor front top light assembly
[67010005]
Use screw driver to disassemble front top light cover, and dis-
assemble fixing screw with cross wrench, then disconnect the
joint.
Hint: before using screw driver, its needled top should be
twisted by adhesive tape.
27. Disassemble indoor rear top light assembly
[67010006]
(a) Disassemble two screws and indoor light, then disconnect
the joint.
28. Disassemble passenger hand rail [68010088]
(a) Use screw driver to disassemble trim cover of handrail.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble two screws and passenger handrail.
 392

Exterior/inner trim board--Inner trim board of top29. Disassemble the pothook of sun shade [68010086]Turn the pothook of sun shade to left for 90°, then disassemble
it.30. Disassemble fixing pedestal of rear window sun
blind.Use screw driver to turn the fixing pedestal of sun blind for 90°,
then disassemble it.31. Disassemble trim tape of top sunroof [67010010]
32. Disassemble inner trim board of top [68010035](a) Use screw driver to disassemble inner trim board of top.
Hint: before using screw driver, its needled top should
be twisted by adhesive tape.
(b) Disassemble three fixing clamps and inner trim board of
top.
(c) Take out inner trim board of top from rear door.33. Assemble inner trim board of top [68010035](a) Liking that shown in figure, align the mark, then fix the wir-
ing harness of top with adhesive tape.
(b) Use three fixing clamps to assemble inner trim board of top.34. Assemble the pothook of sun shade [68010086]Turn the pothook of sun shade to make fixing claw proturde,
then assemble sun shade.35. Assemble rear row chair left backrest assembly
[68010078]
36. Assemble rear row chair right backrest assembly
[68010079]
37. Assemble rear row chair backrest assembly
[68010076]Fixing
clamp
Adhesive
tape393

Automobile control system--Ignition switch and anti-versa lock key warning switch
Phenomenon
Ignition switch could not insert on any
positionPossible malfunction part
1. Ignition switch
2. Circuit of power supplyReference page
394
-
Automobile control system
Ignition switch and anti-versa lock key warning switch
Malfunction phenomenon table
Inspection
1. Check the ignition switch.
Check the conduction of ignition switch joint and terminal
If the conduction does not accord with the regulation, change
the switch.
2. Check the anti-versa lock key warning switch.
If the conduction does not accord with the regulation, change
the switch.
 394
Position of switch Terminal connected by avometerRegulated situation
LOCK - Not conduction
ACC 1-3 Conduction
ON 1-2-3, 5-6Conduction
START 1-2, 4-5-6Conduction
Position of switch Terminal connected by avometerRegulated situation
OFF (key does not insert)- Not conduction
ON (key inserts)1-2 Conduction

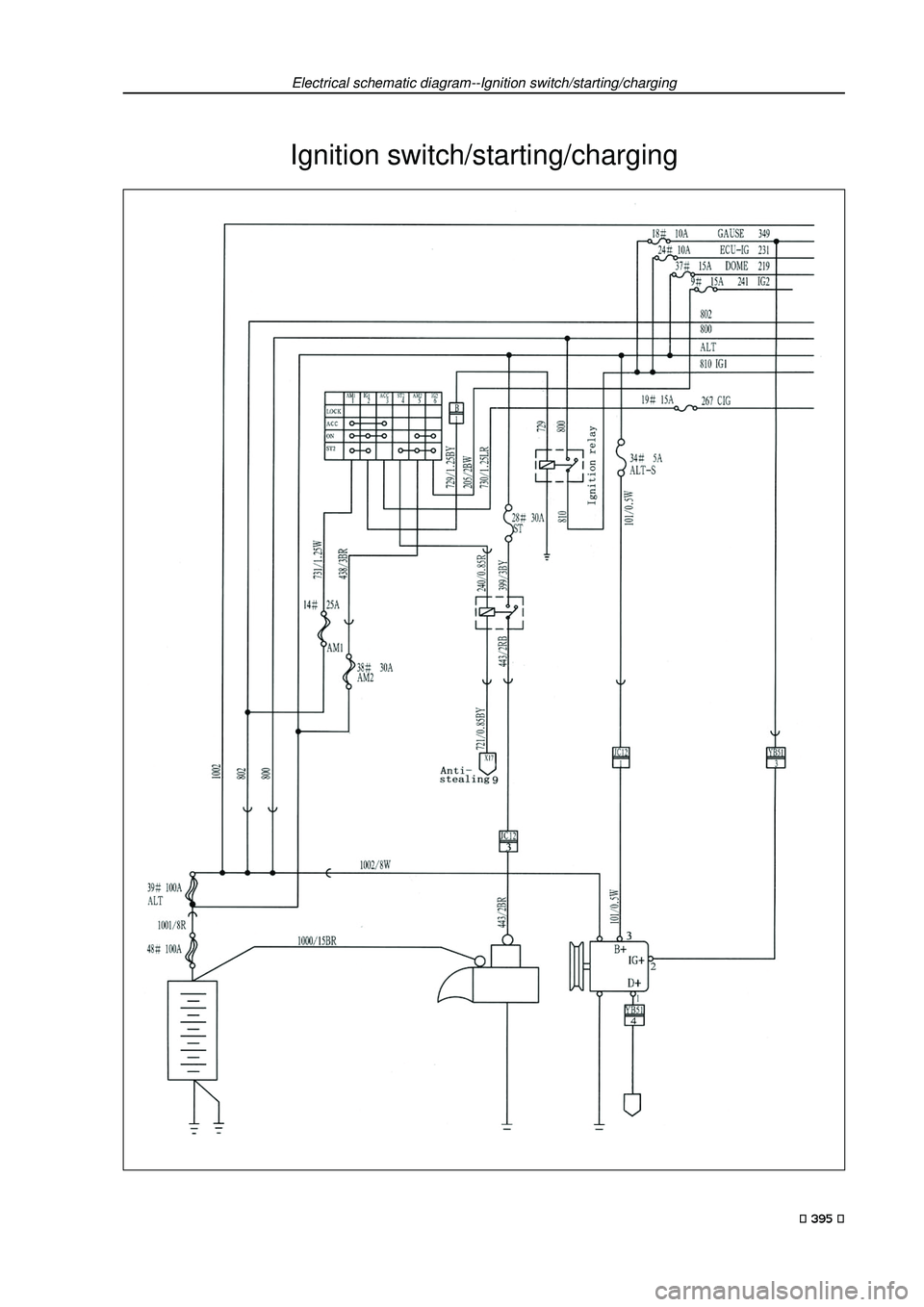

Ignition switch/starting/chargingElectrical schematic diagram--Ignition switch/starting/charging 395
