GEELY FC 2008 Workshop Manual

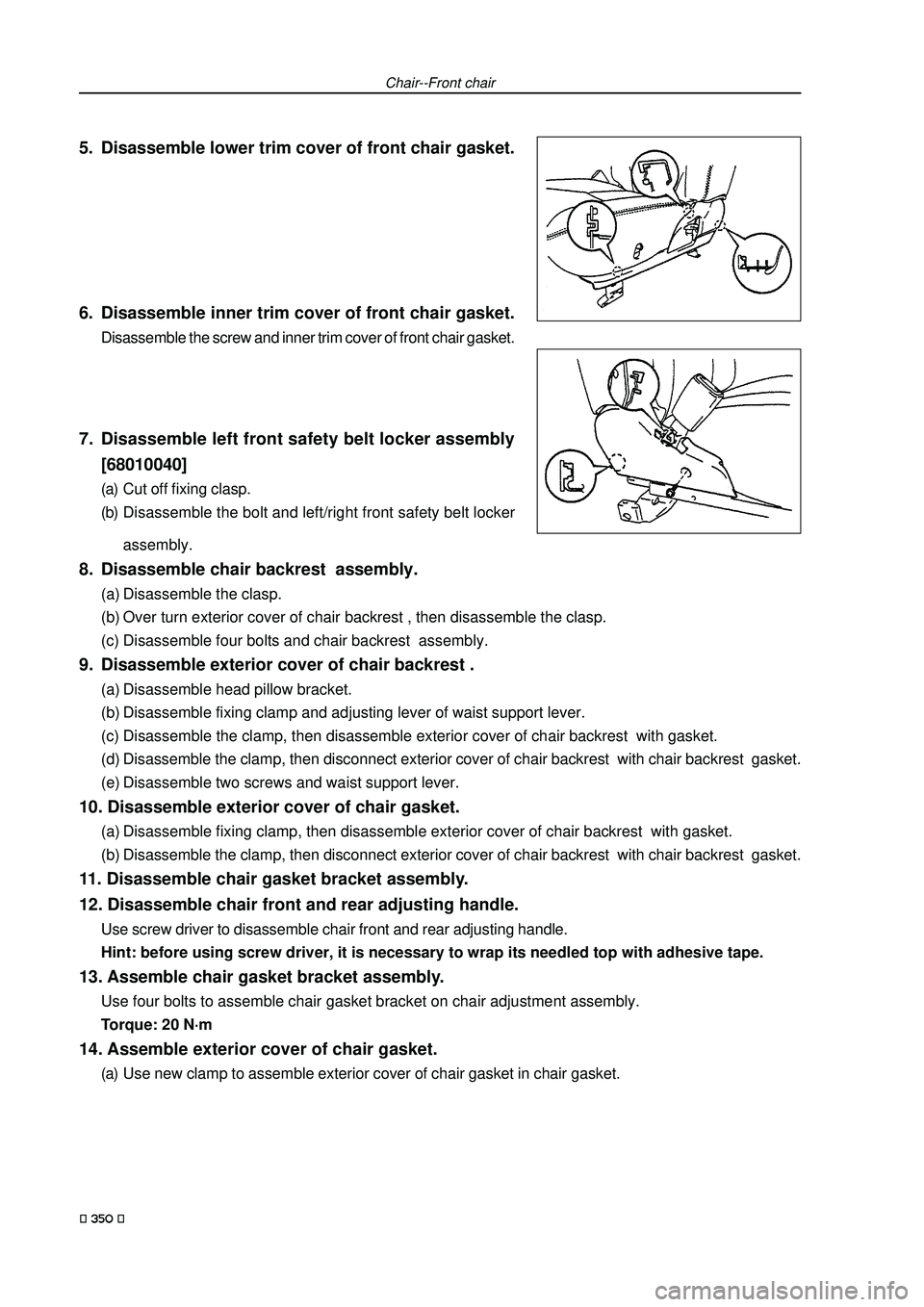

5. Disassemble lower trim cover of front chair gasket.
6. Disassemble inner trim cover of front chair gasket.
Disassemble the screw and inner trim cover of front chair gasket.
7. Disassemble left front safety belt locker assembly
[68010040]
(a) Cut off fixing clasp.
(b) Disassemble the bolt and left/right front safety belt locker
Chair--Front chair
 350
assembly.
8. Disassemble chair backrest assembly.
(a) Disassemble the clasp.
(b) Over turn exterior cover of chair backrest , then disassemble the clasp.
(c) Disassemble four bolts and chair backrest assembly.
9. Disassemble exterior cover of chair backrest .
(a) Disassemble head pillow bracket.
(b) Disassemble fixing clamp and adjusting lever of waist support lever.
(c) Disassemble the clamp, then disassemble exterior cover of chair backrest with gasket.
(d) Disassemble the clamp, then disconnect exterior cover of chair backrest with chair backrest gasket.
(e) Disassemble two screws and waist support lever.
10. Disassemble exterior cover of chair gasket.
(a) Disassemble fixing clamp, then disassemble exterior cover of chair backrest with gasket.
(b) Disassemble the clamp, then disconnect exterior cover of chair backrest with chair backrest gasket.
11. Disassemble chair gasket bracket assembly.
12. Disassemble chair front and rear adjusting handle.
Use screw driver to disassemble chair front and rear adjusting handle.
Hint: before using screw driver, it is necessary to wrap its needled top with adhesive tape.
13. Assemble chair gasket bracket assembly.
Use four bolts to assemble chair gasket bracket on chair adjustment assembly.
Torque: 20 N
⋅ ⋅⋅ ⋅
⋅m
14. Assemble exterior cover of chair gasket.
(a) Use new clamp to assemble exterior cover of chair gasket in chair gasket.

(b) Use new clamp to assemble chair gasket on chair gasket
bracket.
Hint:
zDo not damage or dirty exterior cover of chair
gasket.
zWhen assembling clamp, it is necessary to prevent
exterior cover of chair gasket from crinkling.
15. Assemble exterior cover of chair backrest .
(a) Use new clamp to assemble exterior cover of chair backrest
in chair gasket.
(b) Use new clamp to assemble chair backrest on chair
backrest bracket.
Hint:
zDo not damage or dirty exterior cover of chair
backrest .
zWhen assembling clamp, it is necessary to prevent
Chair--Front chair
Locking loop pliers
Locking loop pliers
 351
exterior cover of chair backrest from crinkling.
16. Assemble chair backrest assembly.
(a) Use four bolts to assemble chair backrest assembly.
Torque: 45 N
⋅ ⋅⋅ ⋅
⋅m
(b) Over turn exterior cover of chair backrest to assemble clamp.
(c) Assemble the clamp.
17. Assemble left front safety belt locking assembly [68010040]
(a) Use the bolt to assemble left front safety belt locking assembly.
Torque: 42 N
⋅ ⋅⋅ ⋅
⋅m
(b) Assemble fixing clasp.
18. Assemble driver chair assembly.
(a) Assemble driver chair.
Note: do not damage automobile body.
(b) Connect the joint.
(c) Assemble four bolts.
Torque: 47 N
⋅ ⋅⋅ ⋅
⋅m
(d) Assemble right front lower trim board, right rear lower trim board and left lower trim board of driver chair.

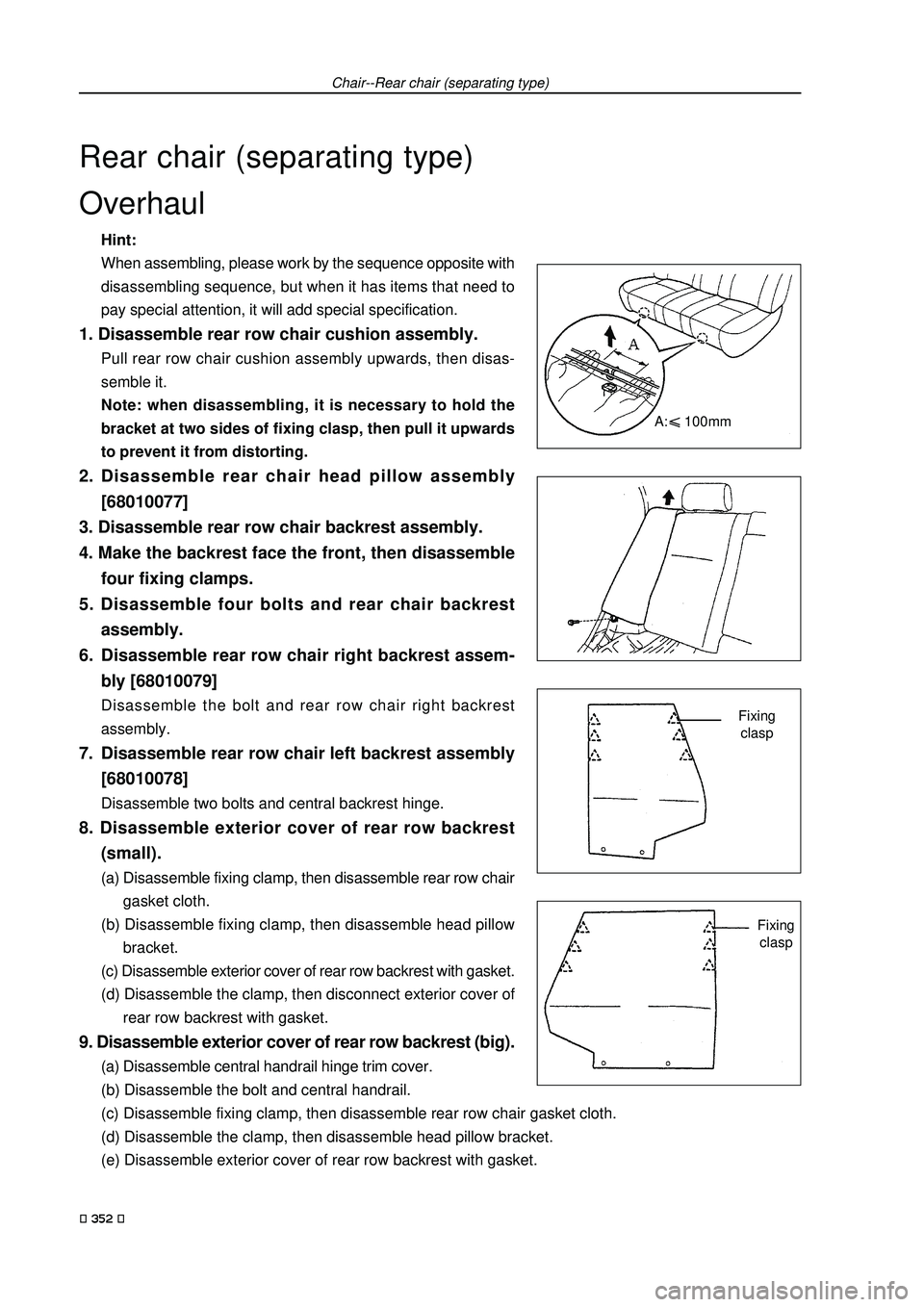

Chair--Rear chair (separating type)
Rear chair (separating type)
Overhaul
Hint:
When assembling, please work by the sequence opposite with
disassembling sequence, but when it has items that need to
pay special attention, it will add special specification.
1. Disassemble rear row chair cushion assembly.
Pull rear row chair cushion assembly upwards, then disas-
semble it.
Note: when disassembling, it is necessary to hold the
bracket at two sides of fixing clasp, then pull it upwards
to prevent it from distorting.
2. Disassemble rear chair head pillow assembly
[68010077]
3. Disassemble rear row chair backrest assembly.
4. Make the backrest face the front, then disassemble
four fixing clamps.
5. Disassemble four bolts and rear chair backrest
assembly.
6. Disassemble rear row chair right backrest assem-
bly [68010079]
Disassemble the bolt and rear row chair right backrest
assembly.
7. Disassemble rear row chair left backrest assembly
[68010078]
Disassemble two bolts and central backrest hinge.
8. Disassemble exterior cover of rear row backrest
(small).
(a) Disassemble fixing clamp, then disassemble rear row chair
gasket cloth.
(b) Disassemble fixing clamp, then disassemble head pillow
bracket.
(c) Disassemble exterior cover of rear row backrest with gasket.
(d) Disassemble the clamp, then disconnect exterior cover of
rear row backrest with gasket.
9. Disassemble exterior cover of rear row backrest (big).
(a) Disassemble central handrail hinge trim cover.
(b) Disassemble the bolt and central handrail.
A:100mm
Fixing
clasp
Fixing
clasp
 352
(c) Disassemble fixing clamp, then disassemble rear row chair gasket cloth.
(d) Disassemble the clamp, then disassemble head pillow bracket.
(e) Disassemble exterior cover of rear row backrest with gasket.

Chair--Rear chair (separating type)
(f) Disassemble the clamp, then disconnect exterior cover of
rear row backrest with gasket.
10. Disassemble exterior cover of rear row chair
cushion.
Disassemble the clamp, then disconnect exterior cover of cush-
ion with gasket.
11. Assemble exterior cover of rear row chair cushion.
Use new clamp to assemble exterior cover of rear row chair
Locking loop pliers
 353
cushion in gasket.
Hint:
zDo not damage or dirty exterior cover of cushion.
zWhen assembling clamp, it is necessary to prevent exterior cover of cushion from crinkling.
12. Assemble exterior cover of rear row chair backrest (big).
Hint:
zDo not damage or dirty exterior cover of cushion.
zWhen assembling clamp, it is necessary to prevent exterior cover of cushion from crinkling.
13. Assemble exterior cover of rear row chair backrest (small).
Use new clamp to assemble exterior cover of rear row chair backrest in gasket.
Hint:
zDo not damage or dirty exterior cover of cushion.
zWhen assembling clamp, it is necessary to prevent exterior cover of cushion from crinkling.
14.Assemble rear backrest central hinge assembly.
Use two bolts to assemble central hinge assembly.
Torque: 20 N
⋅ ⋅⋅ ⋅
⋅m
15. Assemble rear chair backrest side hinge assembly.
Use two bolts to assemble two side hinge assemblies.
16. Assemble rear row chair left backrest assembly [68010078]
Use the bolt to assemble left backrest assembly.
Torque: 8.0 N
⋅ ⋅⋅ ⋅
⋅m
17. Assemble rear row chair right backrest assembly [68010079]
Use the bolt to assemble right backrest assembly.
Torque: 8.0 N
⋅ ⋅⋅ ⋅
⋅m
18. Assemble rear row chair backrest assembly.
Use four bolts to assemble backrest assembly.
Torque: 18 N
⋅ ⋅⋅ ⋅
⋅m

Rear chair (fixing type)
Overhaul
Hint: When assembling, please work by the sequence
opposite with disassembling sequence, but when it has
items that need to pay special attention, it will add special
specification.
1. Disassemble rear row chair cushion assembly.
Pull rear row chair cushion assembly upwards, then disas-
semble it.
Note: when disassembling, it is necessary to hold the
bracket at two sides of fixing clasp, then pull it upwards
to prevent it from distorting.
2. Disassemble rear row chair backrest assembly
[68010076]
Disassemble three bolts and rear row chair backrest assembly.
3. Disassemble rear chair head pillow assembly
[68010077]
4. Disassemble exterior cover of rear row chair
backrest.
(a) Disassemble head pillow bracket.
(b) Disassemble the clamp, then disconnect exterior cover of
rear row chair backrest with gasket.
5. Disassemble exterior cover of rear row chair cushion.
Disassemble the clamp, then disconnect exterior cover of cush-
ion with gasket.
6. Assemble exterior cover of rear row chair cushion.
Use new clamp to assemble exterior cover of rear row chair
cushion in gasket.
Hint: Do not damage or dirty exterior cover of cushion.
When assembling clamp, it is necessary to prevent exterior
cover of cushion from crinkling.
7. Assemble exterior cover of rear row chair backrest.
Use new clamp to assemble exterior cover of rear row chair
backrest in gasket.
Hint: Do not damage or dirty exterior cover of cushion.
When assembling clamp, it is necessary to prevent exterior
cover of cushion from crinkling.
8. Assemble rear row chair backrest assembly
[68010076]
Torque: 8.0 N·m
Chair--Rear chair (fixing type)
Locking loop pliers
Locking loop pliers
A:100mm
 354

Anti-stealing and door lock--Electric door lock control system
Anti-stealing and door lock
Electric door lock control system
Position of parts (only for reference)
Inspection on automobile
1. Basic inspection for electric door locker.
(a) Press middle control switch to locker closing side, and check the all doors should be locked; then
press middle control switch to locker opening side, and check all doors should be opened.
(b) Insert key in door locker and turn it anticlockwise, and check all doors should be locked; then turn the
key clockwise, and check all doors should be opened.
(c) Check the keeping protection function of the key.
Note: When checking the keeping protection function of the key, it is necessary to open elec-
tric window at the side of driver to prevent its function from losing and lock the key in
automobile.
(1) Insert key in ignition switch.
(2) Open the door, and press middle control switch on the door at the side of driver to locker closing
side, at this time, door locker could not close.
(3) Open the door, and press locker button on the door at the side of driver to locker closing side, at
this time, door locker could not close.
(4) After pressing locker button upwards for over two seconds, and locking driver door; when driver
door is closed and key is not used to lock, check whether all doors could open automatically.
 355
Door control switch of electric
window main switch assembly
(Used for handle operation)
Door control switch of left front
door locker assembly
(Used for key operation)
Door control light switch
Left rear door locker
assembly
Right front door
locker assembly
Right rear door
locker assembly

Anti-stealing and door lock--Electric door lock control system
3. Check panel junction box assembly.
(a) Check 25A DOOR fuse.
(b) Check conformity relay.
(1) Disassemble F, G, H and I joint on instrument junction
box.
(2) Check the voltage and conduction of every terminal of
joint. (d) Check security function:
(1) When closing all doors, open the driver window to operate door control switch out of automobile.
(2) Take down the key, open driver door, then close the door and lock (not use key). In this situation
above, check that door could not open locker even if door control switch (handle operation) is
pressed to locker opening side out of automobile.
(3) Take down the key, close and use the key to lock driver door. In this situation above, check that
door could not open locker even if door control switch (handle operation) is pressed to locker
opening side out of automobile.
(4) Take down the key, close and use remote control key to lock driver door. In this situation above,
check that door could not open locker even if door control switch (handle operation) is pressed to
locker closing side out of automobile (only applicable for the automobile equipping with remote
control door locker control system).
Hint:
zIn following situation, check whether security has been canceled.
zIgnition switch is turned to ON.
zUse key operation to open the driver door locker.
zAfter door locker is pressed to opening side by hand, door control switch (handle
operation) is pressed to locker opening side.
zUse remote control locker control to open the door (only applicable for the automobile
equipping with remote control door locker control system).
2. Electric window main switch assembly
Operate door control switch by hand to check its conduction.
 356
Position of switch Terminal connected by avometerRegulated situation
LOCK 5-1 or 5-3Conduction
UNLOCK8-1 or 8-3↑

Anti-stealing and door lock--Electric door lock control system
 357
Power supply (+) Power supply (+)
Power supply
(+)
1G2 in Power supply
(+)
1G2 out Power supply (-)
Power supply (+) Power supply (+) Power supply (+) Power supply (+)
Power supply
(+)Power supply
(+)Power supply
(-) Power supply
(+)
Power supply (+)
Power supply (+)
Grounding wire
Sunroof
Rain wiperBrake light Anti-steal
Power supply
(+)
InstrumentRear fog light

Anti-stealing and door lock--Electric door lock control system
Malfunction phenomenon
“Door locker control system” does not work
(all).
Door locking/unlocking malfunction (use
handle operation and key operation)
Door locking/unlocking malfunction (use
key)
Malfunction of key keeping protection func-
tion
Only one door locker does not workPossible malfunction part
1. DOOR fuse (panel J/B)
2. Wiring harness
1. Electric window main switch (door control switch)
2. Wiring harness
1.
Door at the side of driver assembly (door control switch)
2. Wiring harness
3. Door locker connecting rod is loosen
1. Anti-versa lock supervising switch
2. Door control light switch
3. Wiring harness
1. Door locker electric motor
2. Wiring harnessReferred page
-
-
359
-
359
-
-
359
-
-
359
-
Malfunction phenomenon table
 358

Anti-stealing and door lock--Electric door lock control system
Inspection
1. Check driver sear door locker assembly.
(a) Liking that shown in figure, check the conduction of every
terminal of door key switch.
If the conduction does not accord with the regulation, change
the switch.
(b) Liking that shown in figure, supply battery voltage to terminal,
and check the function of door locker.
If the function does not accord with the regulation, change
the door locker assembly.
Open Close
Open Close
 359
Position of switch Terminal connected by avometerRegulated situation
LOCK 2-4Conduction
OFF - Not conduction
UNLOCK 1-2-3 Conduction
Condition Function
Supply battery anode to No. 6 terminal, cathode to No.5 terminalOpen
Supply battery anode to No. 5 terminal, cathode to No.6 terminalClose
