GENESIS G80 2021 Premium Navigation Manual

171
Using Dial Screen
l Bluetooth connection icon
Shows the connection status between Bluetooth phone and the head unit.
When the phone is connected and the phone call is made, Bluetooth icon () switches to
handset icon ().
m Reception level icon
The reception level (sensitivity) of the calling area is specified in the bar graph.
Mobile battery icon
Specifies the remaining battery of mobile phone.
n Delete
Deletes the entered phone number.
o a
Moves to Bluetooth setting screen.
p Call
If there is a registered phone number, the call is connected.
If there is no registered phone number, the most recent call number is entered.

172
Message
message
checKing new messages
1. When a message is received, the pop-up is displayed on the screen.
2. Select a desired item.
䠐[View]: Moves to the message screen.
䠐[Listen]: Listens to the message.
䠐[Close]: Closes the message pop-up.
,noTe
Change the setting of [Show Notifications] of the device connected in Bluetooth Setting of
Mobile Phone to 'use'.

173
Message
checKing message conTenT
1. Press [H] on the screen.
2. Select a message.
3. Check the information on massage.
䠐[Listen]: Listens to the message.
䠐[Reply]: Replys to the message.
䠐[Call]: Calls the message sender.
䠐[Close]: Closes the message.
,noTe
䠐Only the messages received after the Bluetooth connection are specified in the list.
䠐Depending on the mobile phone model, [Reply], [Call] functions may not be supported.

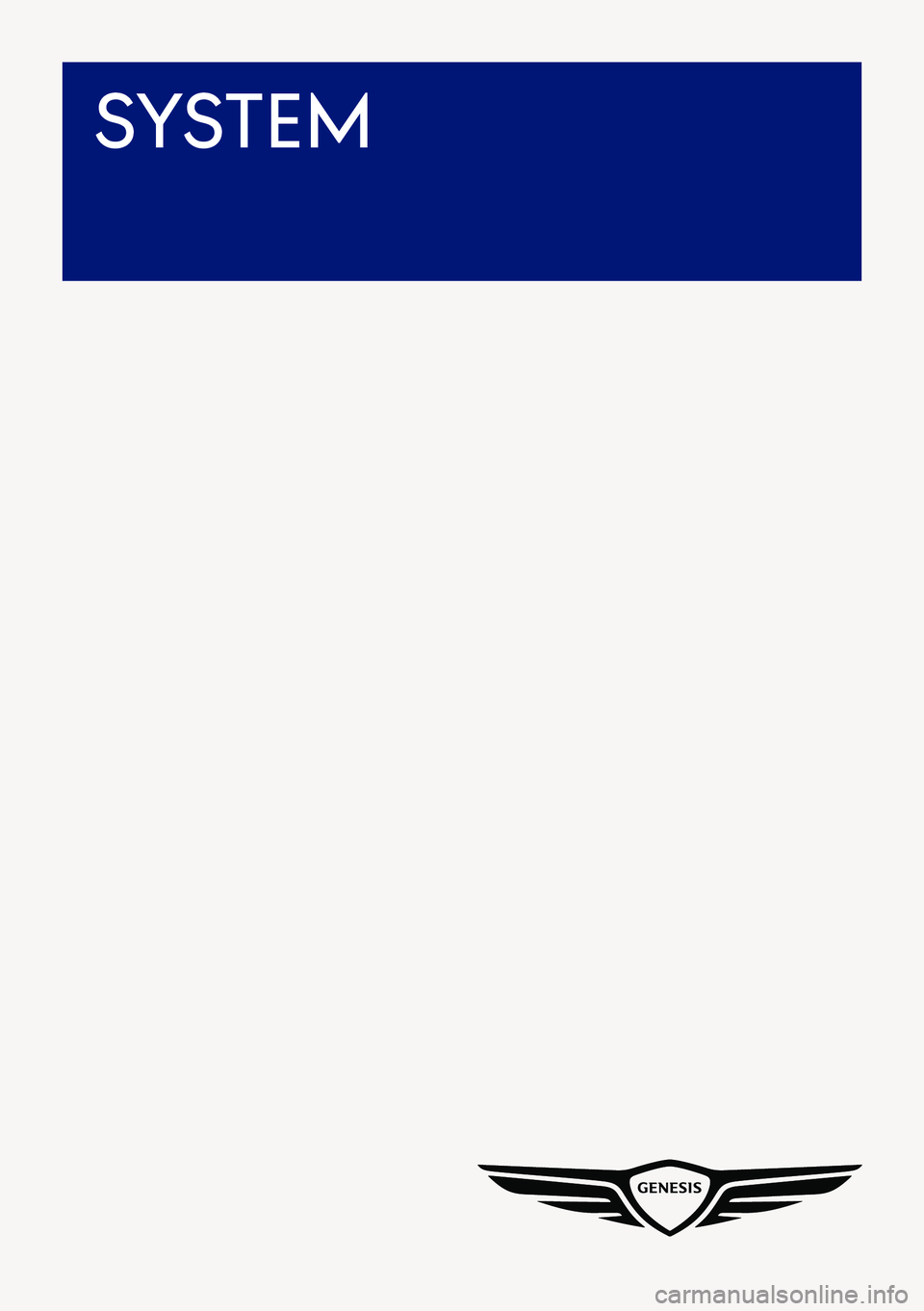

sYsTem
geTTing sTarTed

175
System Settings
sYsTem seTTings
seTTings screen composiTion
Press [Setup] > [Menu] on the home screen.
Display Off
Turns off the screen.
Search Setup
Enter menu name or settings keyword.
Reorder
Moves setup menu up/down to reorder.
Split screen
Displays split screen selection menu.

176
User Profile settings
uSer profiLe SettingS
The images displayed on this system may differ from actual ones.
This menu is used to select one of the three profiles on the system and set each profile.
Press [Setup] > [User Profile] or press [] on the home screen.
a Profile name
Displays the profile name applied on the system. Press the profile name itself to change
the settings related to profile or reset them.
䠐[Name]: You can change the profile name that will be applied on the system.
䠐[Profile Image]: You can select the profile image that will be applied on the system
among 12 images.
䠐[Link Connected Services Account]: You can link to your connected services account for
convenient vehicle management and a variety of service benefits.
䠐[Link Bluetooth Devices]: You can select the Bluetooth device that will be connected
with a profile name automatically after the Bluetooth device paired on the system.
䠐[Reset]: You can reset the profile currently logged in by pressing [Reset] > [Yes]. Press
[Confirm] to log in guest profile on the safety warning page screen.
b Change user
Changes to a different profile.
If you change to a different profile, the booting process will start and the safety warning
page is displayed.
c Profile image
Displays the profile image applied on the system.

177
Sound settings
sound seTTings
The images displayed on this system may differ from actual ones.
Press [Setup] > [Sound] on the home screen.
Sound settings screen is displayed.
posiTion
1. On the sound settings screen, press [Position].
2. Adjust the sound position.
,noTe
Press [Reset] to reset the settings.

178
Sound settings
sound Tune
1. On the sound settings screen, press [Sound Tune].
2. Adjust the value of each item.
,noTe
Press [Center] to reset the audio tune settings.

179
Sound settings
guidance
It adjusts navigation volume.
1. On the sound settings screen, press [Guidance].
2. Select the desired items.
䠐[Navigation Volume]: Adjust the volume using the Volume buttons on the map screen or
by turning the voulume controller when navigation guidance is playing.
䠐[Driving Safety Priority]: Lowers all other audio volumes when a driving safety system
sounds a warning.
䠐[Parking Safety Priority]: Lowers all other audio volumes when a parking assist view is
active.
䠐[Navigation Volume Priority]: Lowers all other audio volumes when navigation prompts
are playing.
䠐[Navigation During Calls]: Plays audio navigation guidance during phone calls.
䠐[Mute Navigation Guidance]: While navigation guidance is playing, pressing the mute
button on the steering wheel will mute guidance for 10 seconds.

180
Sound settings
sYsTem Volumes
1. On the sound settings screen, press [System Volumes].
2. Adjust the desired items.
䠐[Media Volumes]: Adjust the volume for each media mode.
䠐[Subsystem Volumes]: Adjust the volume for each system.
䠐[Connected Device Volumes]: When using a connected device, adjust the volume of the
connected device. (Android Auto, Apple CarPlay)
䠐[Speed Dependent Volume Control]: It automatically adjusts volume according to
vehicle speed.
䠐[Start-up Max. Vol. Limit]: When starting vehicle engine, if audio volume is big, it
decreases to adequate volume.
