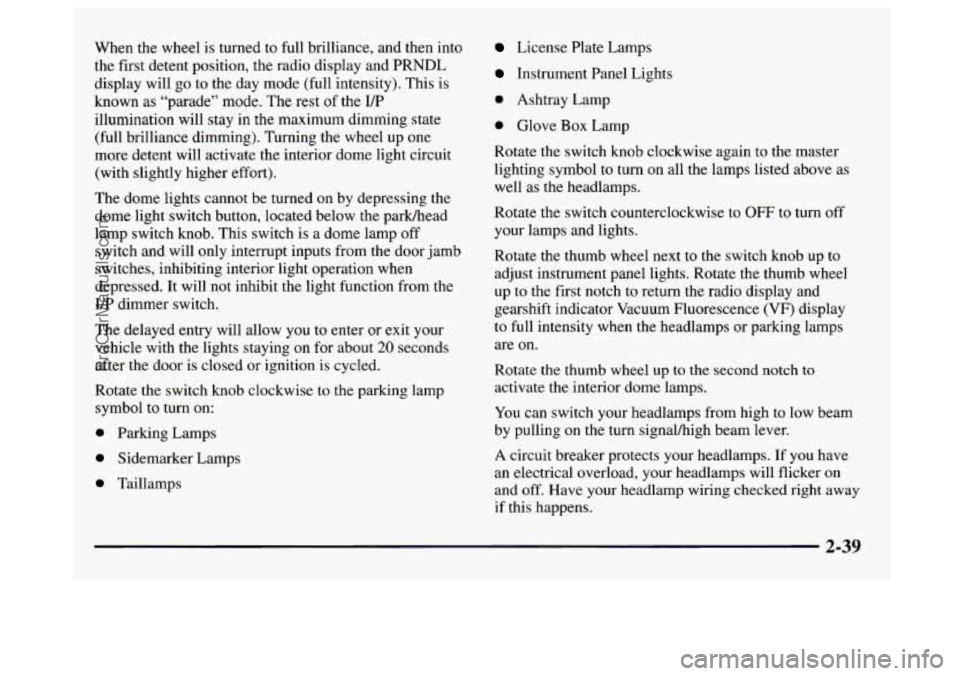

When the wheel is turned to full brilliance, and then into
the first detent position, the radio display and PRNDL
display will go to the day mode (full intensity). This is
known as “parade” mode. The rest
of the I/P
illumination will stay in the maximum dimming state
(full brilliance dimming). Turning the wheel up one
more detent will activate the interior dome light circuit
(with slightly higher effort).
The dome lights cannot be turned on by depressing the
dome light switch button, located below the parkhead
lamp switch knob. This switch is a dome lamp off
switch and will only interrupt inputs from the door jamb
switches, inhibiting interior light operation when
depressed. It will not inhibit the light function from the
I/P dimmer switch.
The delayed entry will allow
you to enter or exit your
vehicle with the lights staying
on for about 20 seconds
after the door
is closed or ignition is cycled.
Rotate the switch knob clockwise to the parking lamp
symbol to turn on:
0 Parking Lamps
0 Sidemarker Lamps
0 Taillamps
License Plate Lamps
Instrument Panel Lights
0 Ashtray Lamp
0 Glove Box Lamp
Rotate the switch
knob clockwise again to the master
lighting symbol to turn on all the lamps listed above as
well as the headlamps.
Rotate the switch counterclockwise to
OFF to turn off
your lamps and lights.
Rotate the thumb wheel next to the switch knob up to
adjust instrument panel lights. Rotate the thumb wheel
up to the first notch to return the radio display and
gearshift indicator Vacuum Fluorescence (VF) display
to full intensity when the headlamps or parking lamps
are on.
Rotate the thumb wheel up
to the second notch to
activate the interior dome lamps.
You can switch your headlamps from high to low beam
by pulling
on the turn signalhigh beam lever.
A circuit breaker protects your headlamps. If you have
an electrical overload, your headlamps will flicker on
and off. Have your headlamp wiring checked right away
if this happens.
ProCarManuals.com

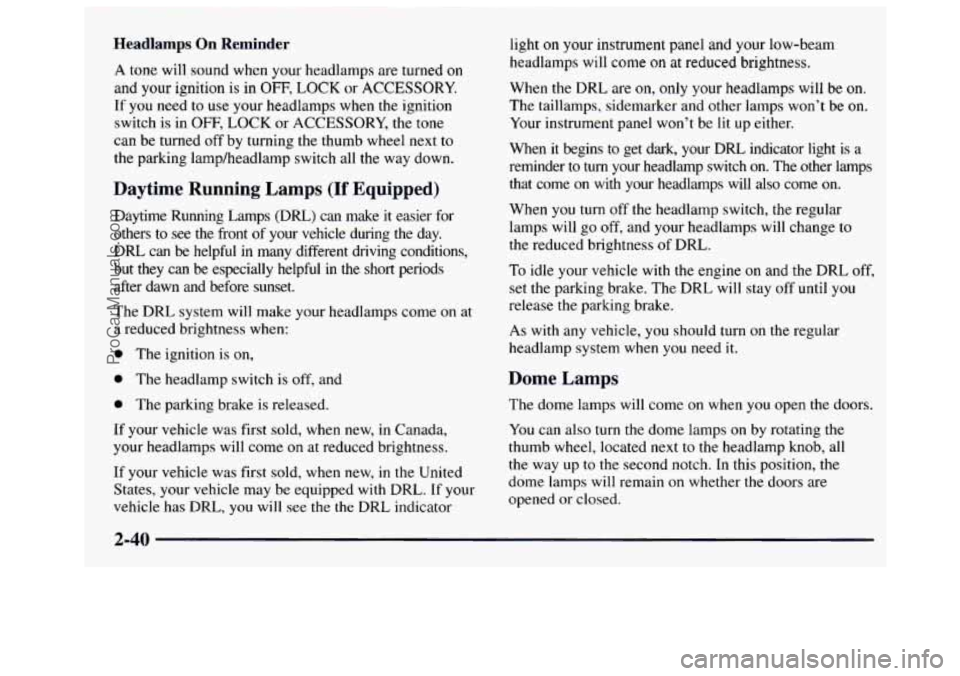

Headlamps On Reminder
A tone will sound when your headlamps are turned on
and your ignition is in OFF, LOCK or ACCESSORY.
If you need to use your headlamps when the ignition
switch is in
OFF, LOCK or ACCESSORY, the tone
can be turned off by turning the thumb wheel
next to
the parking lamp/headlamp switch all the way down.
Daytime Running Lamps (If Equipped)
Daytime Running Lamps (DRL) can make it easier for
others
to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in
the short periods
after dawn and before sunset.
The DRL system will make your headlamps come on at
a reduced brightness when:
0 The ignition is on,
0 The headlamp switch is off, and
0 The parking brake is released.
If your vehicle was first sold, when new,
in Canada,
your headlamps will come on at reduced brightness.
If your vehicle was first sold, when new,
in the United
States, your vehicle may be equipped with DRL. If your
vehicle has DRL,
you will see the the DRL indicator light
on your instrument panel and your low-beam
headlamps will
come on at reduced brightness.
When the DRL are on,
only your headlamps will be on.
The taillamps, sidemarker and other lamps won’t be on.
Your instrument panel won’t be lit up either.
When
it begins to get dark, your DRL indicator light is a
reminder
to turn your headlamp switch on. The other lamps
that come on with your headlamps will also come on.
When you turn off the headlamp switch, the regular
lamps will go off, and your headlamps will change to
the reduced brightness
of DRL.
To idle your vehicle with the engine on and the DRL off,
set the parking brake. The DRL will stay off until you
release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Dome Lamps
The dome lamps will come on when you open the doors.
You can also turn the dome lamps on by rotating the
thumb wheel, located next
to the headlamp knob, all
the way up to the second notch. In this position, the
dome lamps will remain on whether the doors are
opened or closed.
2-40
ProCarManuals.com

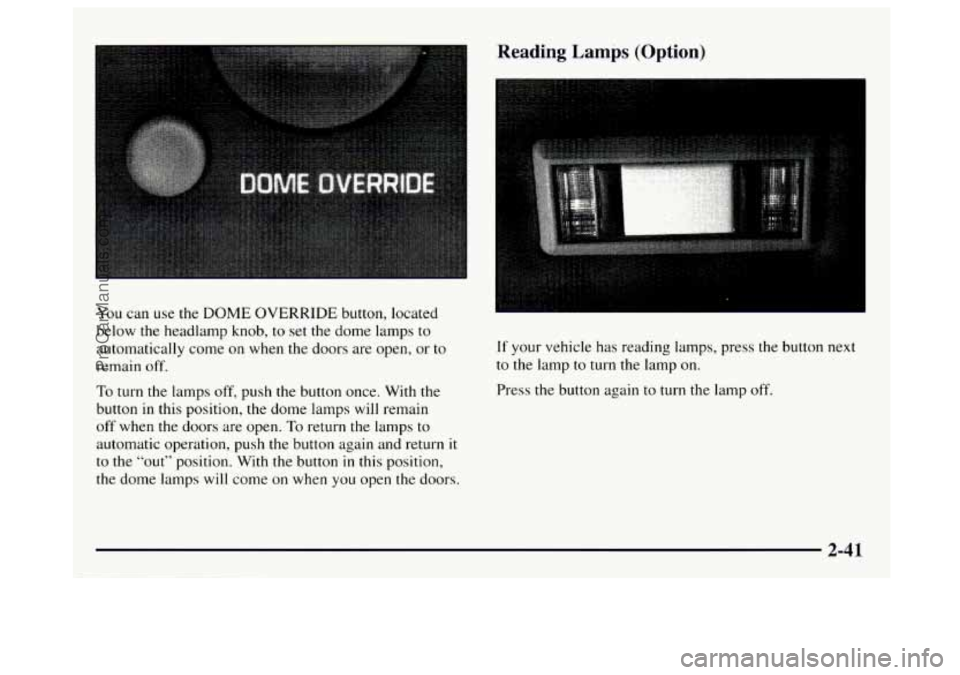

You can use the DOME OVERRIDE button, located
below the headlamp knob,
to set the dome lamps to
automatically come
on when the doors are open, or to
remain off.
To turn the lamps off, push the button once. With the
button
in this position, the dome lamps will remain
off when the doors are open. To return the lamps to
automatic operation, push the button again and return
it
to the “out” position. With the button in this position,
the dome lamps will come on when you open the doors.
Reading Lamps (Option)
If your vehicle has reading lamps, press the button next
to the lamp to turn the lamp on.
Press the button again to turn the lamp off.
2-41
ProCarManuals.com

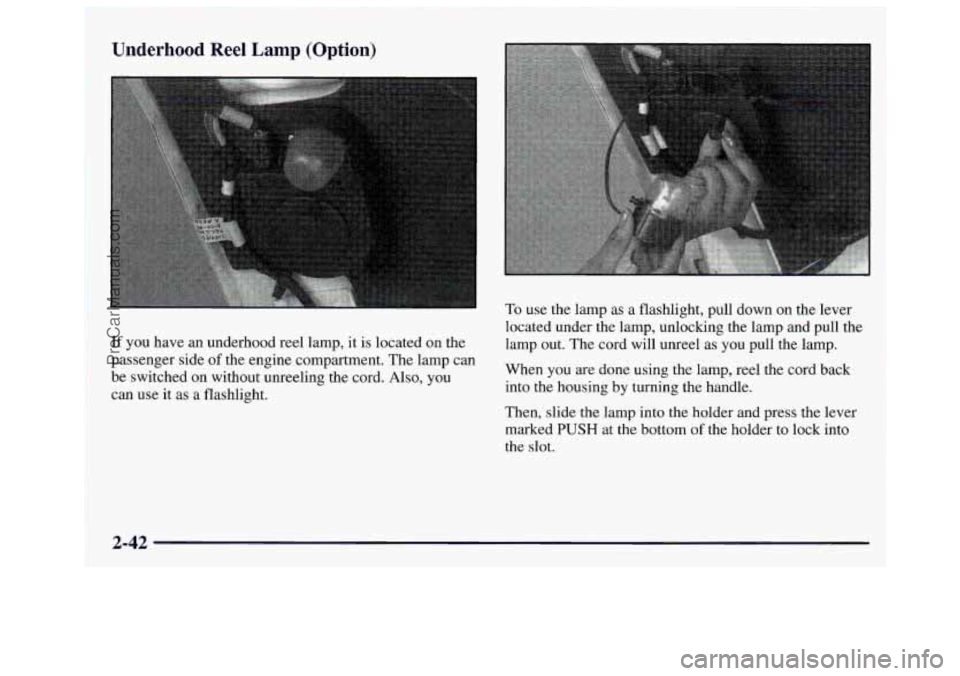

If you have an underhood reel lamp, it is located on the
passenger side
of the engine compartment. The lamp can
be switched on without unreeling the cord. Also, you
can use it
as a flashlight.
Underhood Reel Lamp (Option)
To use the lamp as a flashlight, pull down on the lever
located under the lamp, unlocking the lamp and pull the
lamp out. The cord will unreel as you pull the lamp.
When you are done using the lamp, reel the cord back
into the housing by turning the handle.
Then, slide the lamp into the holder and press the lever
marked
PUSH at the bottom of the holder to lock into
the slot.
2-42
ProCarManuals.com

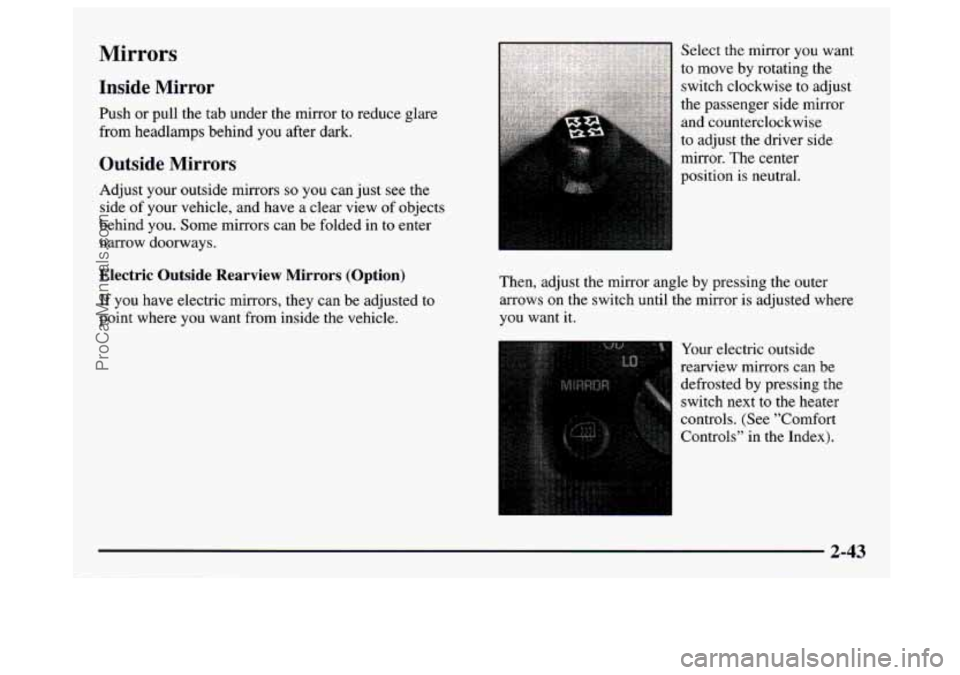

Mirrors
Inside Mirror
Push or pull the tab under the mirror to reduce glare
from headlamps behind you after dark.
Outside Mirrors
Adjust your outside mirrors so you can just see the
side
of your vehicle, and have a clear view of objects
behind you. Some mirrors can be folded in
ta enter
narrow doorways.
Electric Outside Rearview Mirrors (Option)
If you have electric mirrors, they can be adjusted to
point where you want from inside the vehicle.
to move by rotating the
switch clockwise
to adjust
the passenger side mirror
and counterclockwise
to adjust the driver side
mirror.
The center
position is neutral.
Then, adjust the mirror angle by pressing the outer
arrows on the switch until the mirror is adjusted where
you want it.
Your electric outside
rearview mirrors can
be
defrosted by pressing the
switch next to the heater
controls. (See "Comfort
Controls" in the Index).
2-43
ProCarManuals.com

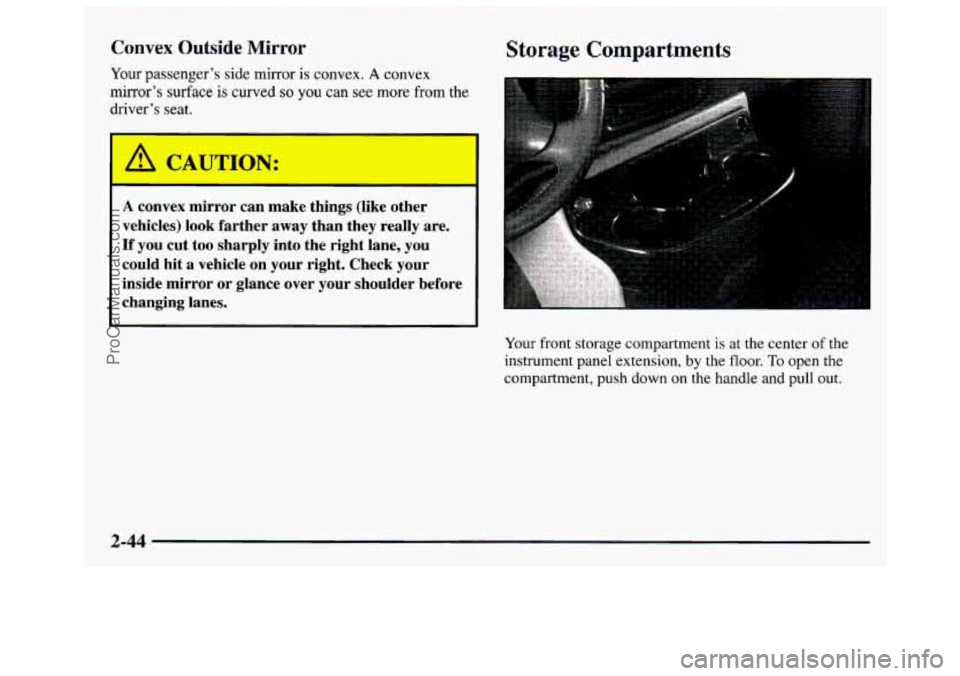

Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s
seat.
CAUTION:
-
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your inside mirror
or glance over your shoulder before
changing lanes.
Storage Compartments
Your front storage compartment is at the center of the
instrument panel extension,
by the floor. To open the
compartment, push down
on the handle and pull out.
2-44
ProCarManuals.com

k

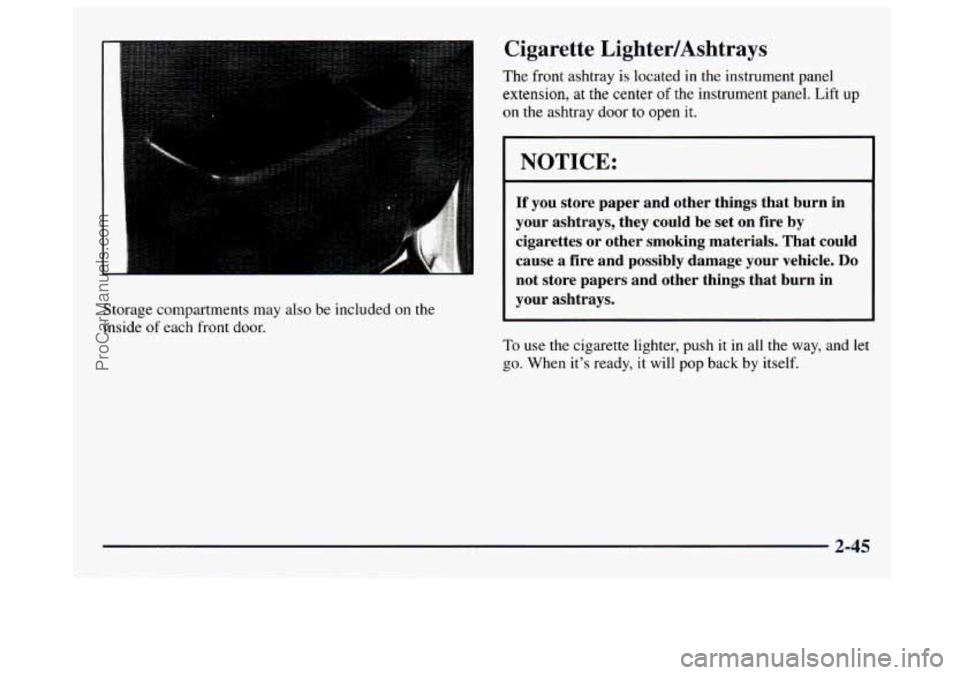

Storage compartments may also be included on the
inside of each front door.
Cigarette LightedAshtrays
The front ashtray is located in the instrument panel
extension, at the center of the instrument panel. Lift
up
on the ashtray door to open it.
NOTICE:
If you store paper and other things that burn in
your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could cause a fire and possibly damage your vehicle.
Do
not store papers and other things that burn in
your ashtrays.
To use the cigarette lighter, push it in all the way, and let
go. When it’s ready, it will pop back by itself.
2-45
ProCarManuals.com

NOTICE:
Holding a cigarette lighter in with your hand
while it is heating can make it overload,
damaging the lighter and the heating element.
Just push the lighter all the way in and let
go.
When it’s done, it will pop back by itself.
To remove the front ashtray, pull up on the tab with a
key or screwdriver inserted in the tab, and lift the
ashtray out.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them from side to side. Your visors have
elastic straps
you can use to hold items such as maps.
Visor Vanity Mirror (Option)
Some visors have illuminated mirrors on them. Pull the
visor down and lift the mirror cover
(if there is one), to
use the mirror.
2-46
ProCarManuals.com

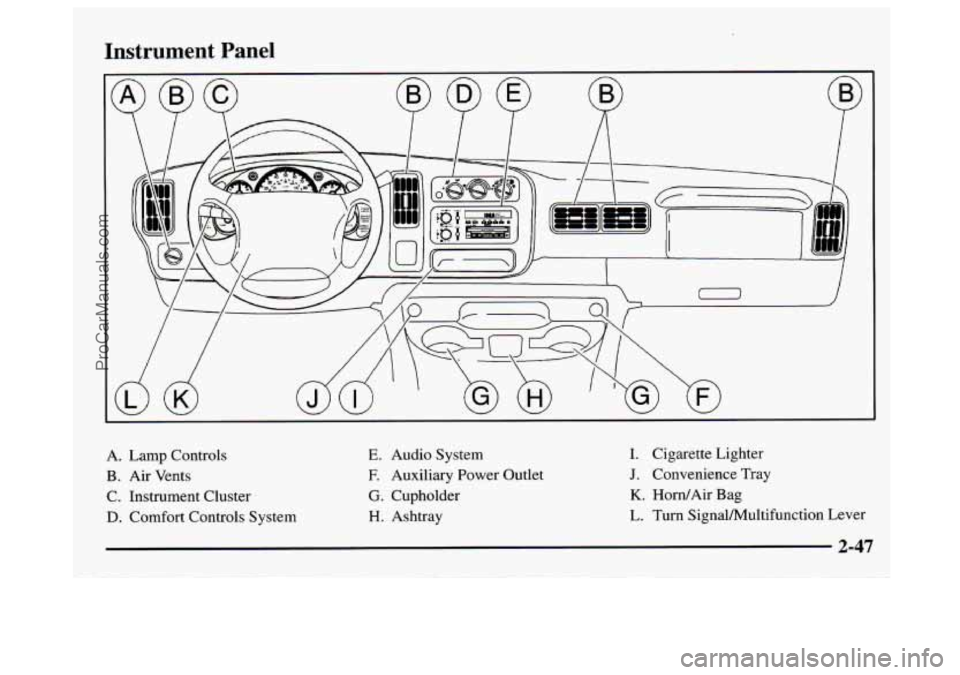

Instrument Panel
Y
A.
B.
C.
D.
Lamp Controls Air Vents
Instrument Cluster
Comfort Controls System
E.
E
G.
H.
Audio System
Auxiliary Power Outlet
Cupholder
Ashtray
I.
J.
K.
L.
Cigarette Lighter Convenience Tray
Horn/Air Bag
Turn SignalMultifunction Lever
2-47
ProCarManuals.com

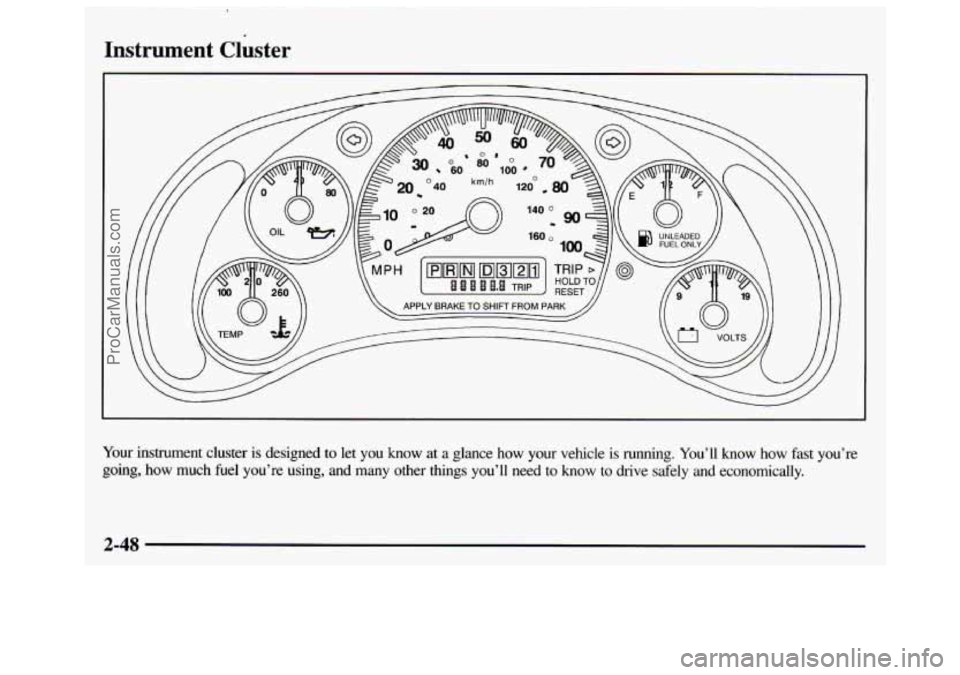

Instrument &ster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re
going,
how much fuel you’re using, and many other things you’ll need\
to know to drive safely and economically.
2-48
