Listed are four situations you may experience with your
fuel gage:
At the gas station, the fuel pump shuts off before the
gage reads FULL (F).
0 It takes a little more or less fuel to fill up than the
fuel gage indicated. For example, the gage may have
indicated the tank was half full, but
it actually took a
little more or less than half the tank’s capacity to fill
the tank.
The gage moves a little when you turn a corner or
speed up.
The gage doesn’t go back to EMPTY (E) when you
None of these indicate a problem with the fuel gage.
turn off
the ignition.
Engine Coolant Temperature Gage
W
TEMP
This gage shows the engine
coolant temperature. If the
gage pointer moves into
the red area your engine is
too
hot!
It means that your engine coolant has overheated. If
you have been operating your vehicle under normal
operating conditions, you should pull off the road, stop
your vehicle, and turn off the engine as
soon as possible.
In “Problems on the Road,” this manual shows what to
do. See “Engine Overheating” in the Index.
2-59
ProCarManuals.com

Voltmeter
When your engine is not
running, but the ignition is
on (in the RUN position),
this gage shows your
battery’s state of charge in
DC volts.
When the engine is running, the gage shows the
condition
of the charging system. Readings between the
low and high warning zones indicate the normal
operating range. Readings
in the
low warning zone may occur when a
large number of electrical accessories are operating in
the vehicle and the engine is left at an idle for an
extended period. This condition is normal since the
charging system
is not able to provide full power at
engine idle.
As engine speeds are increased, this
condition should correct itself as higher engine speeds
allow the charging system to create maximum power.
You can only drive for a short time with the reading in
either warning zone. If you must drive, turn
off all
unnecessary accessories.
Readings in either warning zone indicate a possible
problem in the electrical system. Have the vehicle
serviced as soon as possible.
Electronic Road-Speed Governor
(Gasoline Engines) (Option)
This optional system automatically controls vehicle top
speed. The system controller receives a signal from
the
vehicle speed sensor and reduces power when the
vehicle speed reaches the maximum
65 mph ( 105 km/h)
governed speed.
2-60
ProCarManuals.com

Center High-Mounted Stoplamp

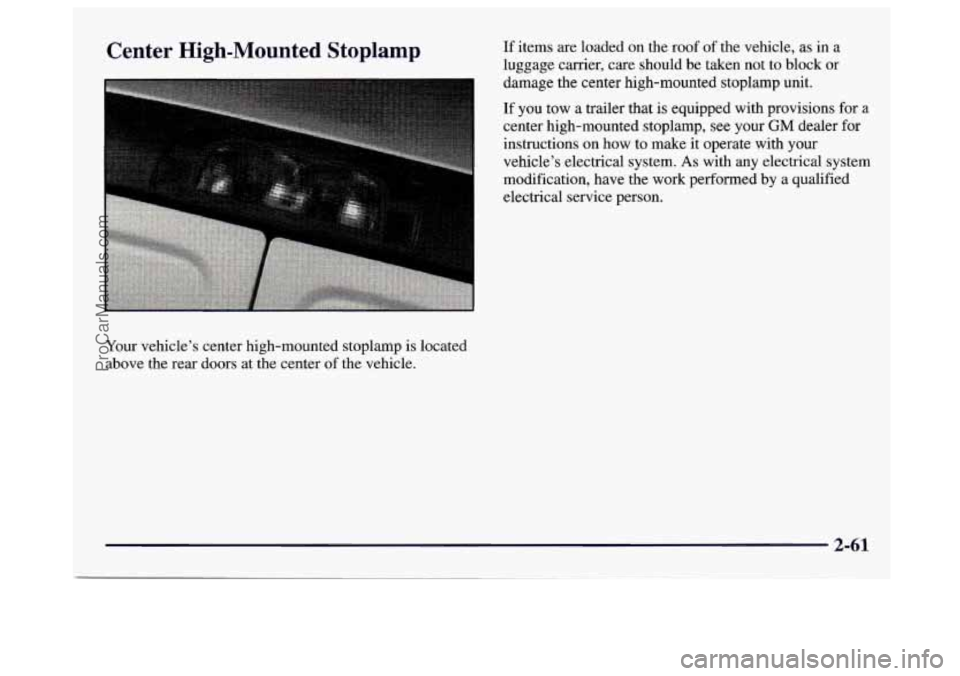

Your vehicle’s center high-mounted stoplamp is located
above the rear doors at the center
of the vehicle. If
items are loaded
on the roof of the vehicle, as in a
luggage carrier, care should be taken not to block or
damage the center high-mounted stoplamp unit.
If
you tow a trailer that is equipped with provisions for a
center high-mounted stoplamp, see your GM dealer for
instructions on how to make
it operate with your
vehicle’s electrical system.
As with any electrical system
modification, have the work performed
by a qualified
electrical service person.
2-61
ProCarManuals.com

fi NOTES
2-62
ProCarManuals.com

b% NOTES
2-63
ProCarManuals.com

b% NOTES
2-64
ProCarManuals.com

Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be
sure to read about the particular systems supplied with your vehicle.
3-2
3-2
3-3
3-5
3-5
3 -7
3
-7
3 -7
3-8
3-8
3-8
3-9 Comfort Controls
Heater Controls
Heater/Air Conditioning Controls
Rear
Heater (Without Air Conditioning)
Rear Air Conditioning and Rear Heater
Air Conditioning
Heating
Ventilation Tips
Audio Systems
Setting the Clock for Systems without
Automatic Tone Control
Setting the Clock for Systems with
Automatic Tone Control
AM-FM Stereo
3-1 1
3-13
3-18
3-23
3-25 3-26
3-27
3-27
3-28
3-28 AM-FM
Stereo with Cassette Tape Player
(If Equipped)
AM-FM Stereo with Cassette Tape and
Automatic Tone Control (If Equipped)
AM-FM Stereo with Compact Disc Player
and Automatic Tone Control (If Equipped)
Theft-Deterrent Feature
Understanding Radio Reception
Tips About Your Audio System
Care of Your Cassette Tape Player
Care of Your Compact Discs
Power Antenna Mast Care
(If Equipped)
Adjustable Mast Antenna
3-1
ProCarManuals.com

Comfort Controls Fan Knob
This section tells you how to make your air system The left knob of
the heating system control panel
work for
you. Your comfort control system uses controls the fan speed.
The knob has four speed
ozone-friendly
R- 134a refrigerant. positions. To increase
airflow, move the knob toward
With these systems, you can control the heating, fan off, move the mode knob on the far right to
OFF.
cooling and ventilation in your van. Your vehicle also
has a flow-through ventilation system described later
Temperature Knob
in this section.
The middle knob panel lets you select the relative
Heater Controls temperature of the air flowing into the passenger area
of your vehicle. This
knob will allow you to adjust the
relative air temperature independently of the function
knob setting. Move the knob clockwise toward the red
area for warmer air. Move the knob counter clockwise
toward the blue area for cooler air.
HI. To decrease airflow, move it toward LO. To turn the
If your vehicle does not have air conditioning, your
heater controls will look like this.
3-2
ProCarManuals.com

Mode Knob
The right knob changes the heater setting.
+.
/J VENT: This setting directs air through the
instrument panel vents.
’# BI-LEVEL: Use this setting to divide
airflow between the heater floor vents and instrument
panel vents.
+’ HEAT This setting directs air through the heater
floor vents. This setting
is useful for cold weather.
+H HEATmEFROST: Use this setting to divide
airflow between the heater floor vents and windshield.
+.
e
w.
DEFROST This setting directs air through the
windshield defroster vents. This setting is useful when
you have fog or ice on the windshield.
HeatedAir Conditioning Controls

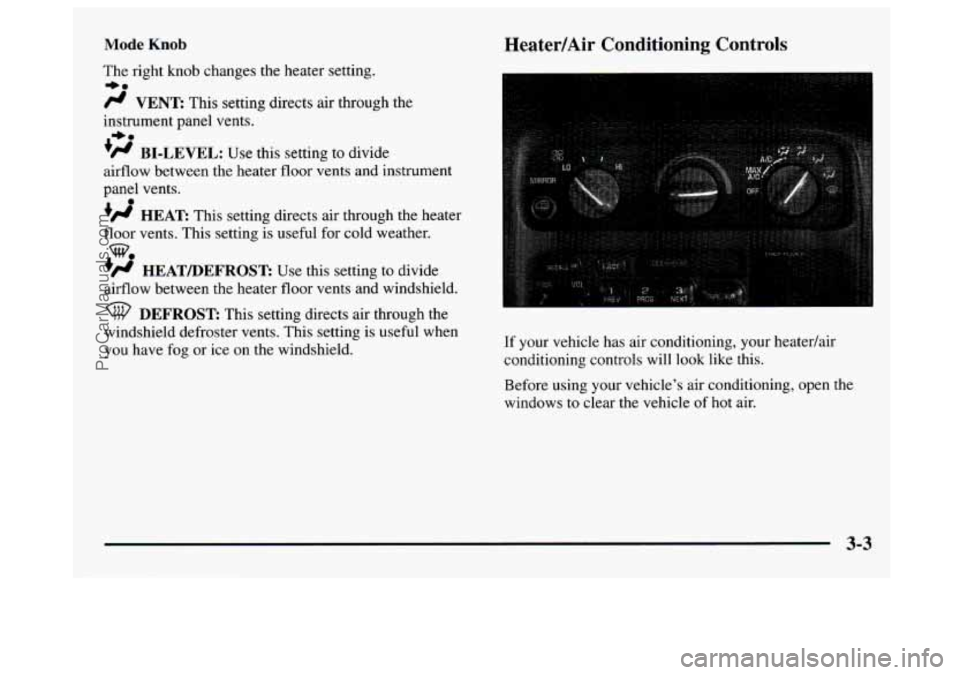

If your vehicle has air conditioning, your heatedair
