GMC SIERRA 1993 Owners Manual

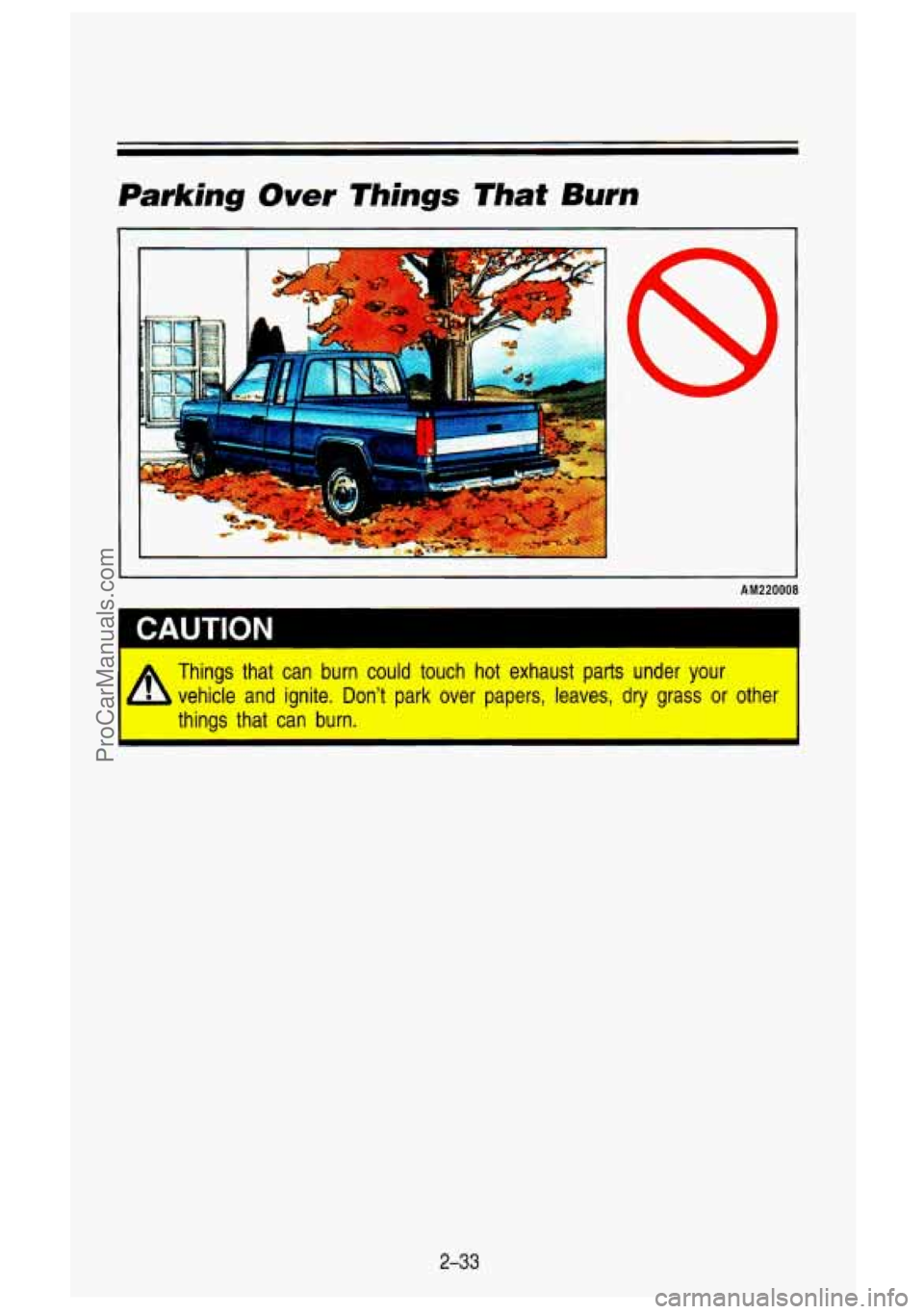

Parking Over Things That Burn
I&
'
A
-*! -- -
8
I AM220008
CAUTION
A Things that can burn could touch hot exhaust parts under your
vehicle
and ignite. Don't park over papers, leaves, dry grass or ol - r
things that can burn.
2-33
ProCarManuals.com

Featums & Contds

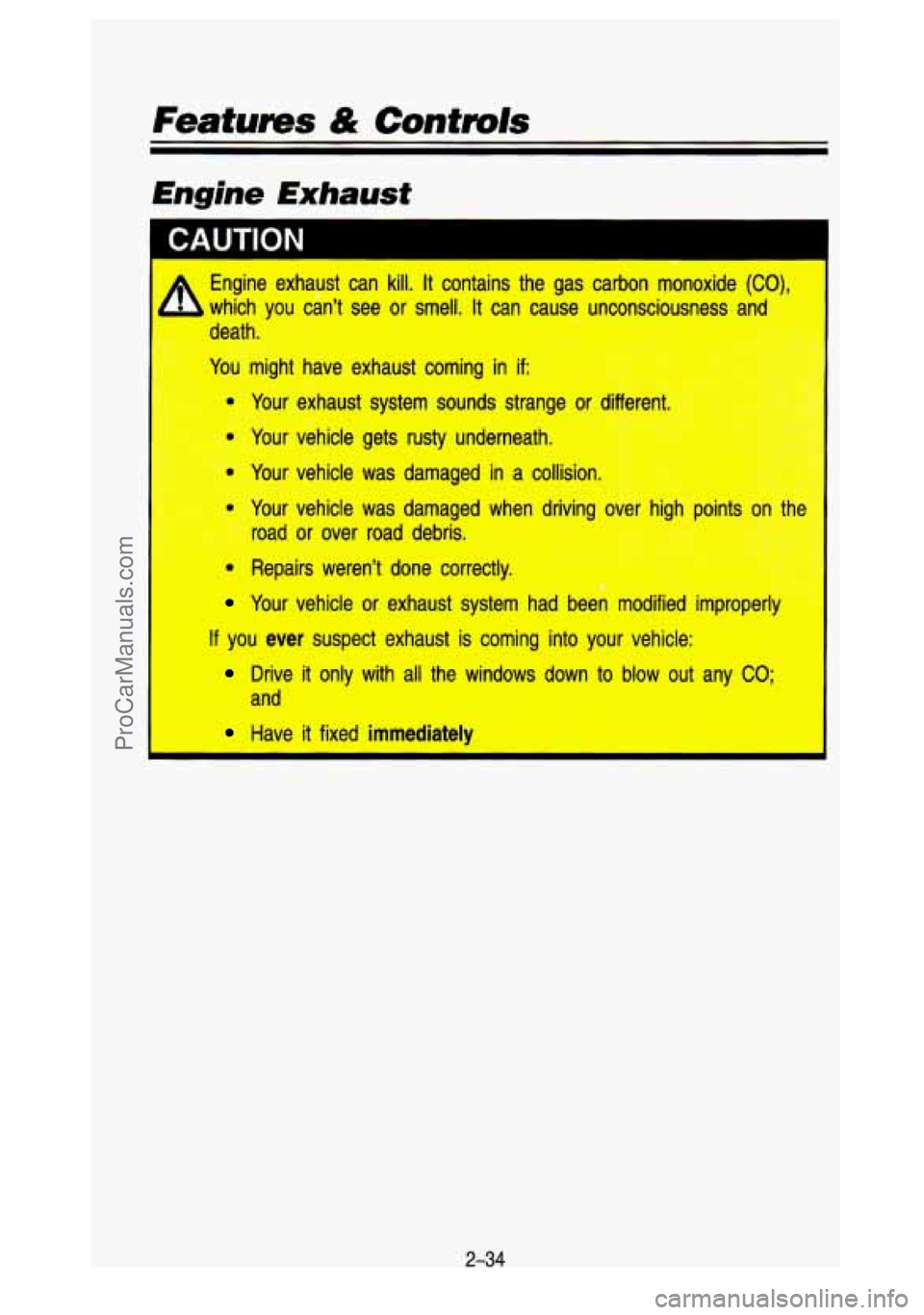

Engine Exhaust
d th. .-
Y t hr--- 'xhaust coming in if:
-
- Your vehicle sets rusty underneath.
* Your vehicle was damaged in a collision.
- Your vehicle was damaged when driving over high points on .Ik
Your exhaust system sounds strange or
road or over road debris. iii$!,
Repairs weren't done correctly. - ' : -.- n, .'. .! .*: 3.:*-;
Your vehicle or exhaust system had bee; modified improp&,
Drive it only with all the windows down to blow out any CO; l
Have it fixed immediately I
.. .lI : .. : --.,
If you ever suspect exhaust is coming into your vehicle:
and
I
2-34
ProCarManuals.com

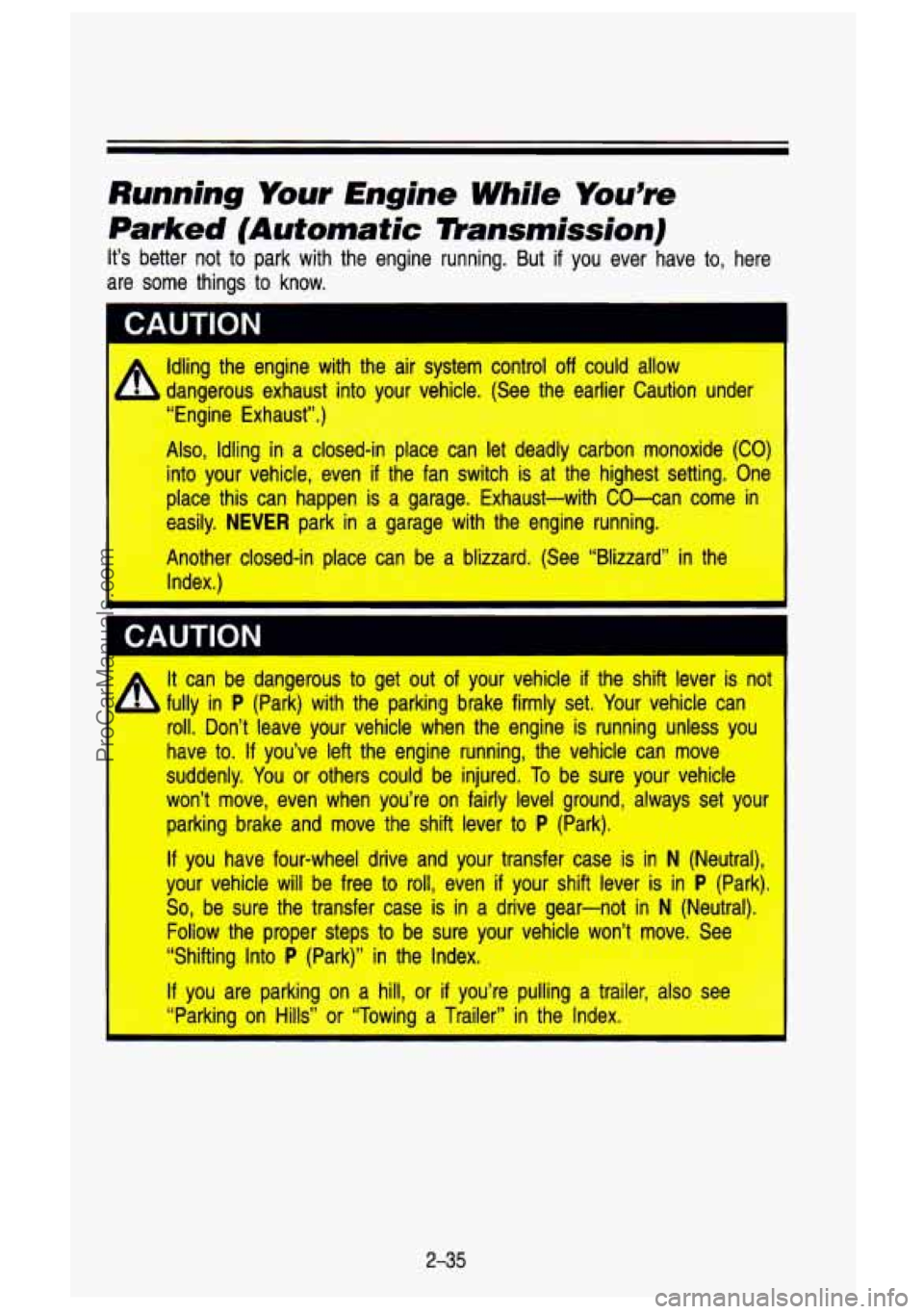

Running Your Engine While You%
Parked [Automatic mansmission)
It’s better not to park with the engine running. But if you ever have to, here
are some things
to know.
1 CAUTION I
* Idling the engine with the air system control off could allow
‘ jangerous exhaust into your vehicle. (See the earlier Caution under
**A :E ..:i *; !.< .. 5;:. ::.; ,$+ : ‘Engine Exhaust”.) ~~-?~c-~~~~~=~~:-
Also, Idling in a closed-in place can let deadly oxide (CO)
nto your vehicle, even if the fan switch is at the highest setting. One
place this can happen
is a garage. Exhaust-with co--( -% -c ?& 2asily. NEVER park in a garage with the engine runni
?-! 4nother ,I: -‘i closed-in place can be a blizzard. (See “Blizzard“ in th
Index.)
CAUTION
It can be dangerous to get out of your vehicle if the shift lever is not
L fully in P (Park) with the parking brake firmly set. Your vehicle can
roll. Don’t leave your vehicle when the engine is running unless
you
have to. If you’ve left the engine running, the vehicle can move
suddenly. You
or others could be injured. To be sure your vehicle
won’t move, even when you’re on fairly level ground,, alw\
ays
set your
parking brake and move the shift lever to
P (Park).
I
If you have four-wheel drive and your transfer case is in N (Neutral},
your vehicle
will be free to roll, even if your shift lever is in P (Park),
So, be sure the transfer case is in a drive gear-not in N (Neutral).
Foliow the proper -steps to be sure your vehicle won’t move. -See
“Shifting Into P (Park)” in the Index.
If you are parking on a hill, or if you’re pulling- -a- trailer, also see
“Parking on Hilis”-.or “Towing -a Trailer”‘ in the Index.
235
ProCarManuals.com

Features & Contmls

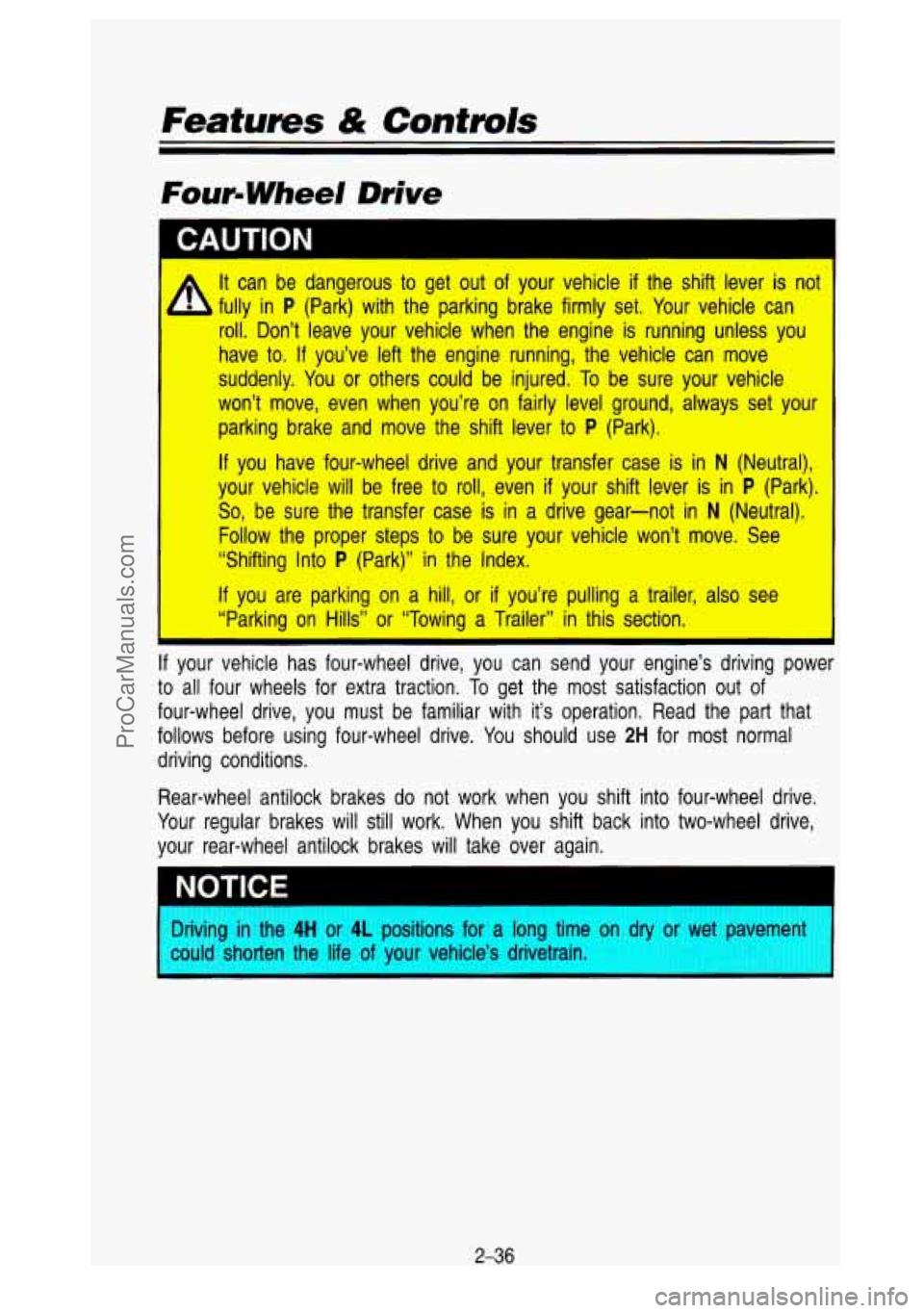

Four- Wheel Drive
CAUTION I
It can be dangerous to get out of your vehicle if the shift lever -is not
fully in
P (Park) with the parking brake firmly set. Your vehicle can
roll. Don’t leave your vehicle when the engine is running unless you
have
to. If you’ve left the engine running, the vehicle can ‘move
suddenly. You or -others could be injured.
To be sure your vehicle
won’t move, even when you’re on fairly level ground, always
set your
parking brake and move the shift lever
to P (Park).
If you have four-wheel drive and your transfer case is in N (Neutral),
your vehicle
will be free to roll, even if your shift lever is in P’(Park).
So, be sure the transfer case is in a drive gear-not in N (Neutral).
Follow the proper steps
to be suce your vehicle won’t move. See
“Shifting Into
P (Park)” in the Index.
If you are parking on a hill, or if you’re pulling a trailer, also see
“Parking ‘on Hills’’ or “Towing a Trailer” in this section.
I
If your vehicle has four-wheel drive, you can send your engine’\
s driving power
to all four wheels for extra traction. To get the most satisfaction out of
four-wheel drive, you must be familiar with it’s operation. \
Read the part that
follows before using four-wheel drive. You should use
2H for most normal
driving conditions.
Rear-wheel antilock brakes
do not work when you shift into four-wheel drive.
Your regular brakes will still work. When you shift back into two-w\
heel drive,
your rear-wheel antilock brakes will take over again.
I NOTICE
Driving in the 4H or 4L positions for a long time on dry or wet pavement
could shorten the life
of your vehicle’s drivetrain.
2-36
ProCarManuals.com

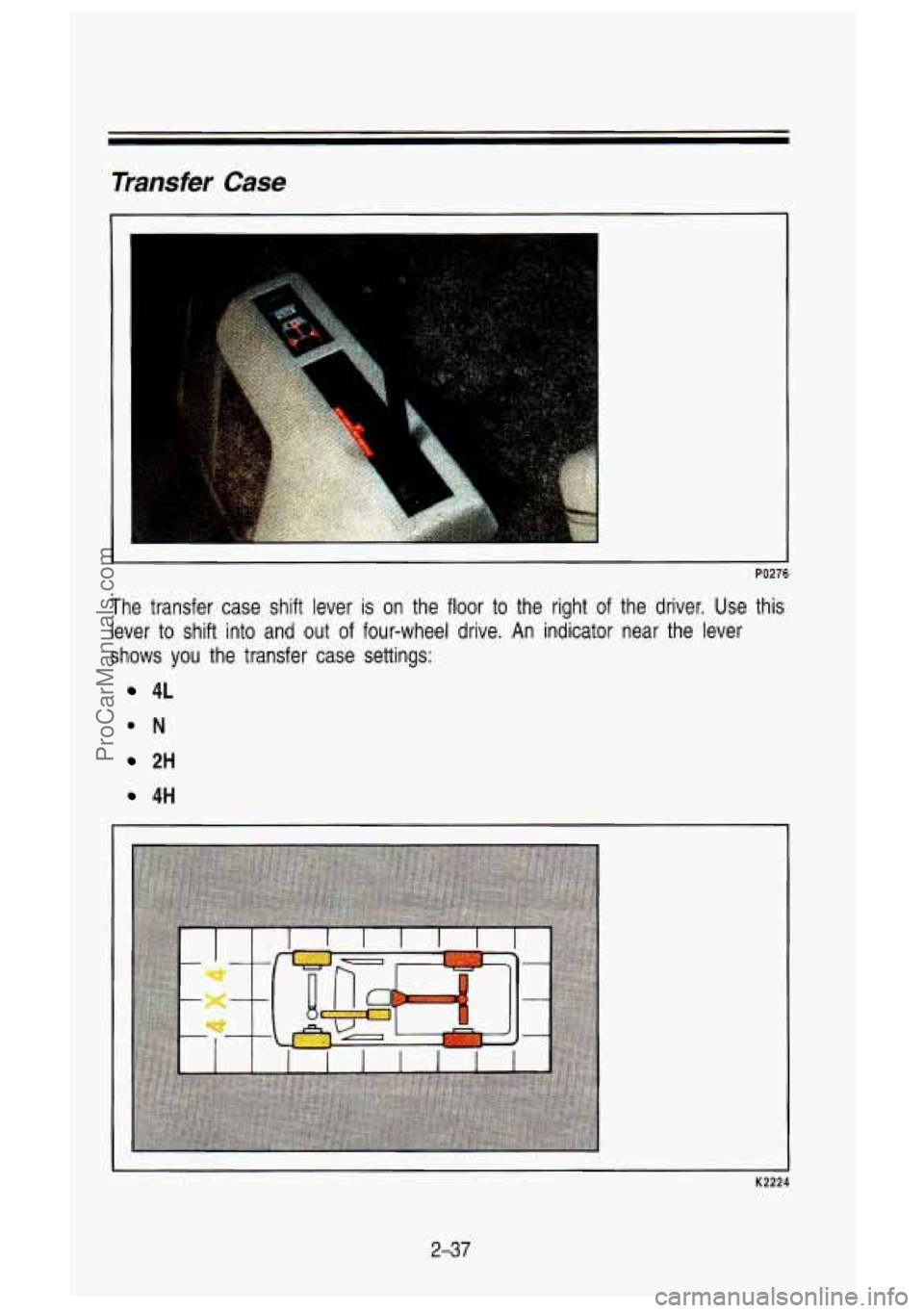

Transfer Case
PO276
The transfer case shift lever is on the floor to the right of the driver. Use this
lever to shift into and
out of four-wheel drive. An indicator near the lever
shows
you the transfer case settings:
4L
2H
4H
K2224
2-37
ProCarManuals.com

Featwes & Contmk

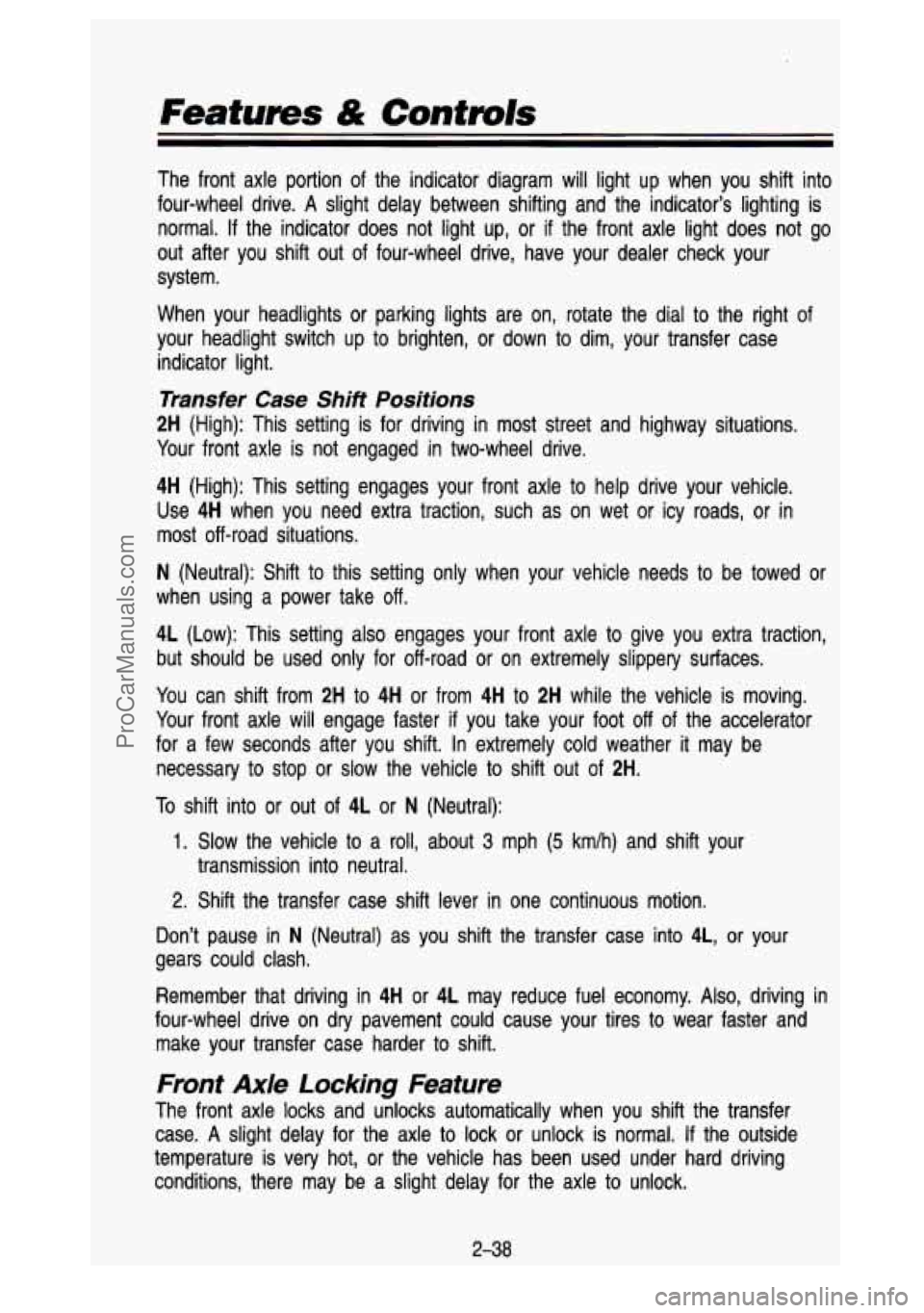

The front axle portion of the indicator diagram will light up when you shift into
four-wheel drive.
A slight delay between shifting and the indicator’s lighting is
normal.
If the indicator does not light up, or if the front axle light does not go
out after you shift out of four-wheel drive, have your dealer check your
system.
When your headlights or parking lights are on, rotate the dial\

to the right of
your headlight switch up
to brighten, or down to dim, your transfer case
indicator light.
Transfer Case Shift Positions
2H (High): This setting is for driving in most street and highway situations.
Your front axle is not engaged in two-wheel drive.
4H (High): This setting engages your front axle to help drive your vehicle.
Use
4H when you need extra traction, such as on wet or icy roads, or in
most
off -road situations.
N (Neutral): Shift to this setting only when your vehicle needs to be towed or
when using a power take
off.
4L (Low): This setting also engages your front axle to give you extra traction,
but should be used only for off-road or on extremely slippery surfaces.
You can shift from
2H to 4H or from 4H to 2H while the vehicle is moving.
Your front axle will engage faster
if you take your foot off of the accelerator
for a few seconds after you shift. In extremely cold weather it may be
necessary to stop or slow the vehicle to shift out of
2H.
To shift into or out of 4L or N (Neutral):
1. Slow the vehicle to a roll, about 3 mph (5 kmlh) and shift your
2. Shift the transfer case shift lever in one continuous motion.
transmission into neutral.
Don’t pause in
N (Neutral) as you shift the transfer case into 4L, or your
aears could clash.
Kernember that driving
in 4H or 4L may reduce fuel economy. Also, driving in
four-wheel drive on dry pavement could cause your tires to wea\
r faster and
make your transfer case harder
to shift.
Front Axle Locking Feature
The front axle locks and unlocks automatically when you shift the transfer
case.
A slight delay for the axle to lock or unlock is normal. If the outside
temperature is very hot, or the vehicle has been used under hard driving
conditions, there may be a slight delay for the axle to unlock.
2-38
ProCarManuals.com

Whenever you are in four wheel-drive, the rear wheel anti-lock brake system
does not operate. The regular brake system operates normally. W\
hen you shift back into two-wheel drive, the anti-lock brake system will operate.

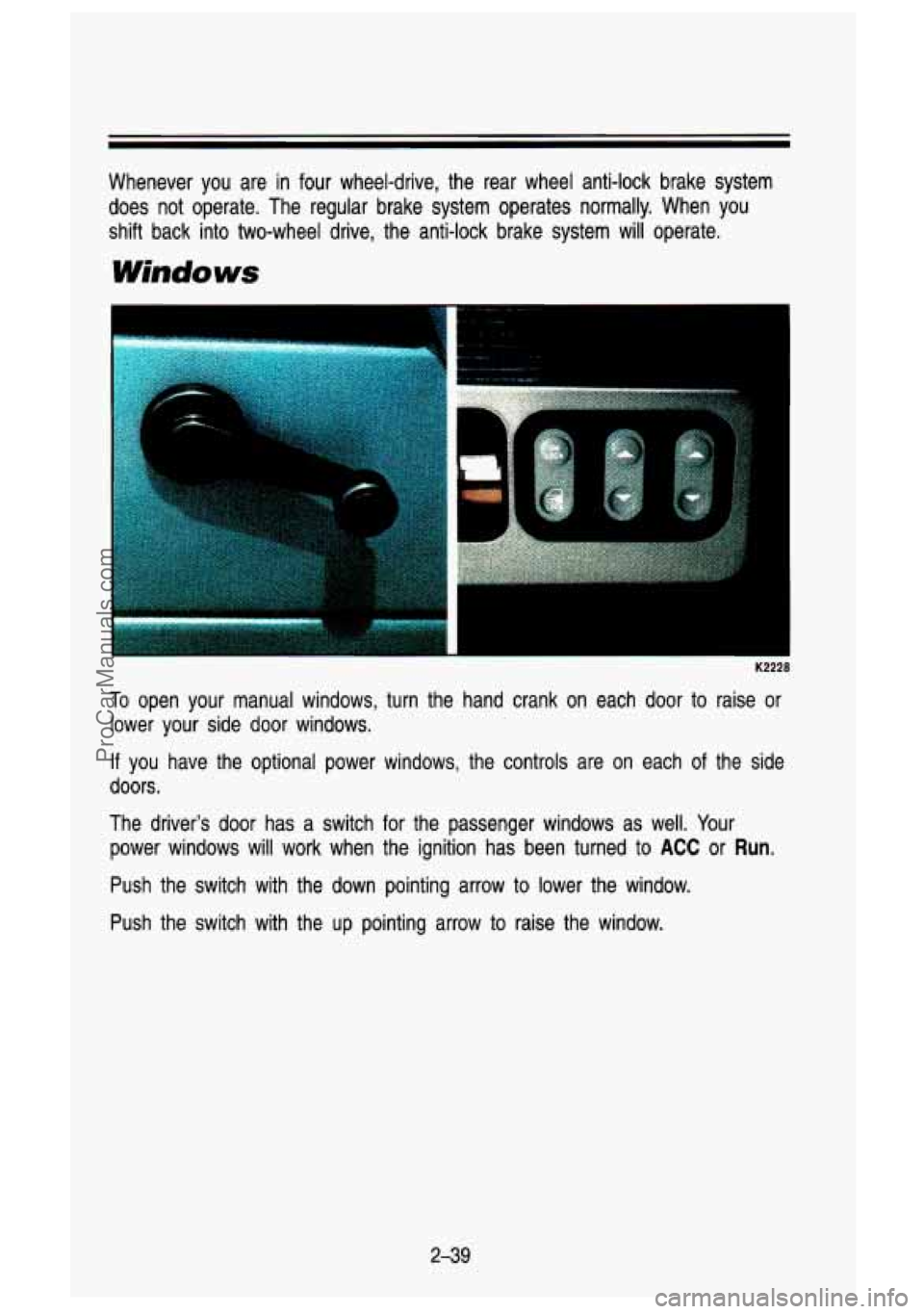

Windows
To open your manual windows, turn the hand crank on each door to raise or
lower your side door windows.
If you have the optional power windows, the controls are on each
of the side
doors.
The driver's door has a switch for the passenger windows as well. Your
power windows will work when the ignition has been turned to
ACC or Run.
Push the switch with the down pointing arrow to lower the window.
Push the switch with the up pointing arrow to raise the window.
2-39
ProCarManuals.com

Features & ContmIs

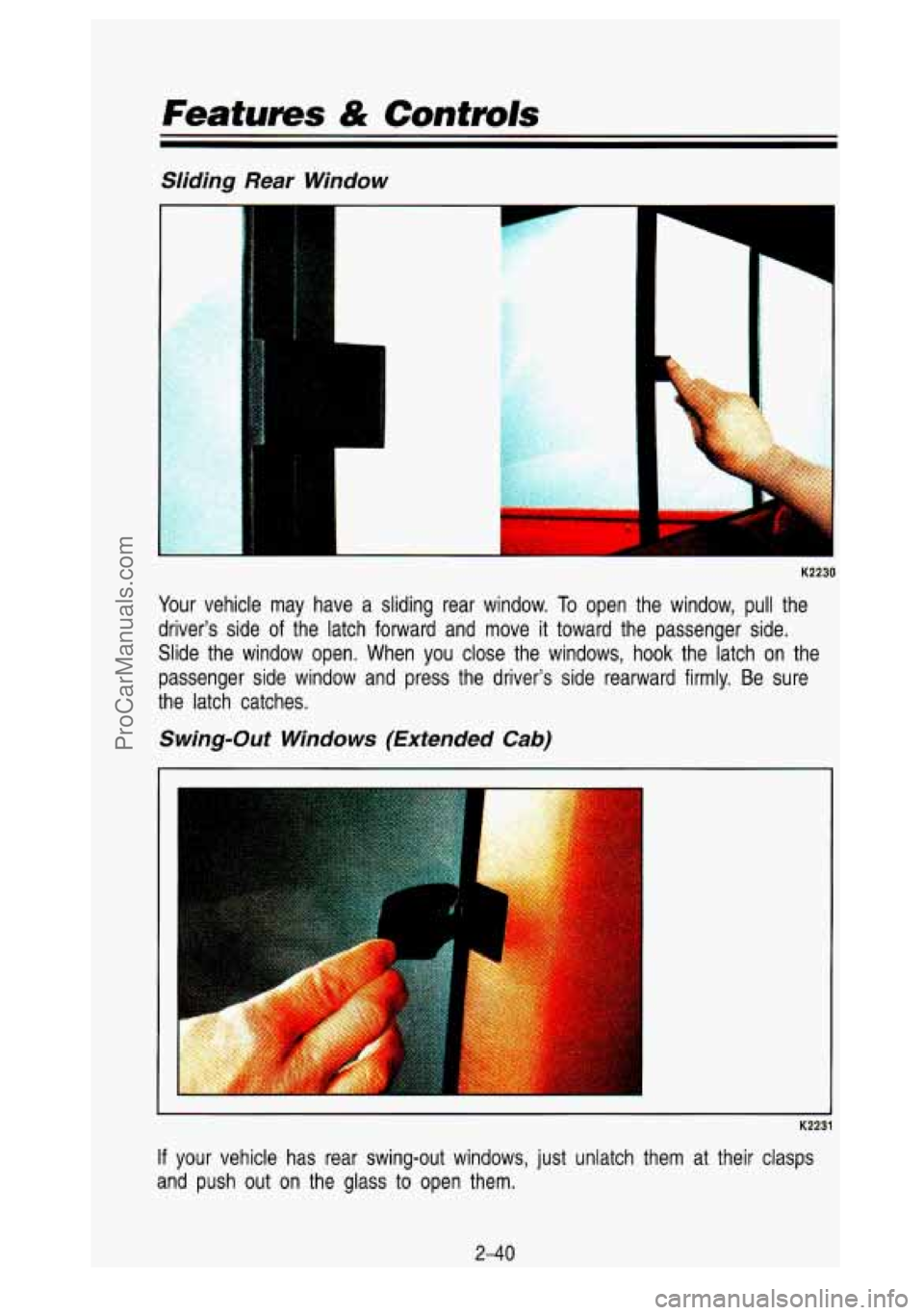

Sliding Rear Window
r
I
I
K2230
Your vehicle may have a sliding rear window. To open the window, pull the
driver’s side
of the latch forward and move it toward the passenger side.
Slide the window open. When you close the windows, hook the latch on the
passenger side window and press the driver’s side rearward f\
irmly. Be sure
the latch catches.
Swing-Out Windows (Extended Cab)
K2231
If your vehicle has rear swing-out windows, just unlatch them at \
their clasps
and push out on the glass to open them.
2-40
ProCarManuals.com

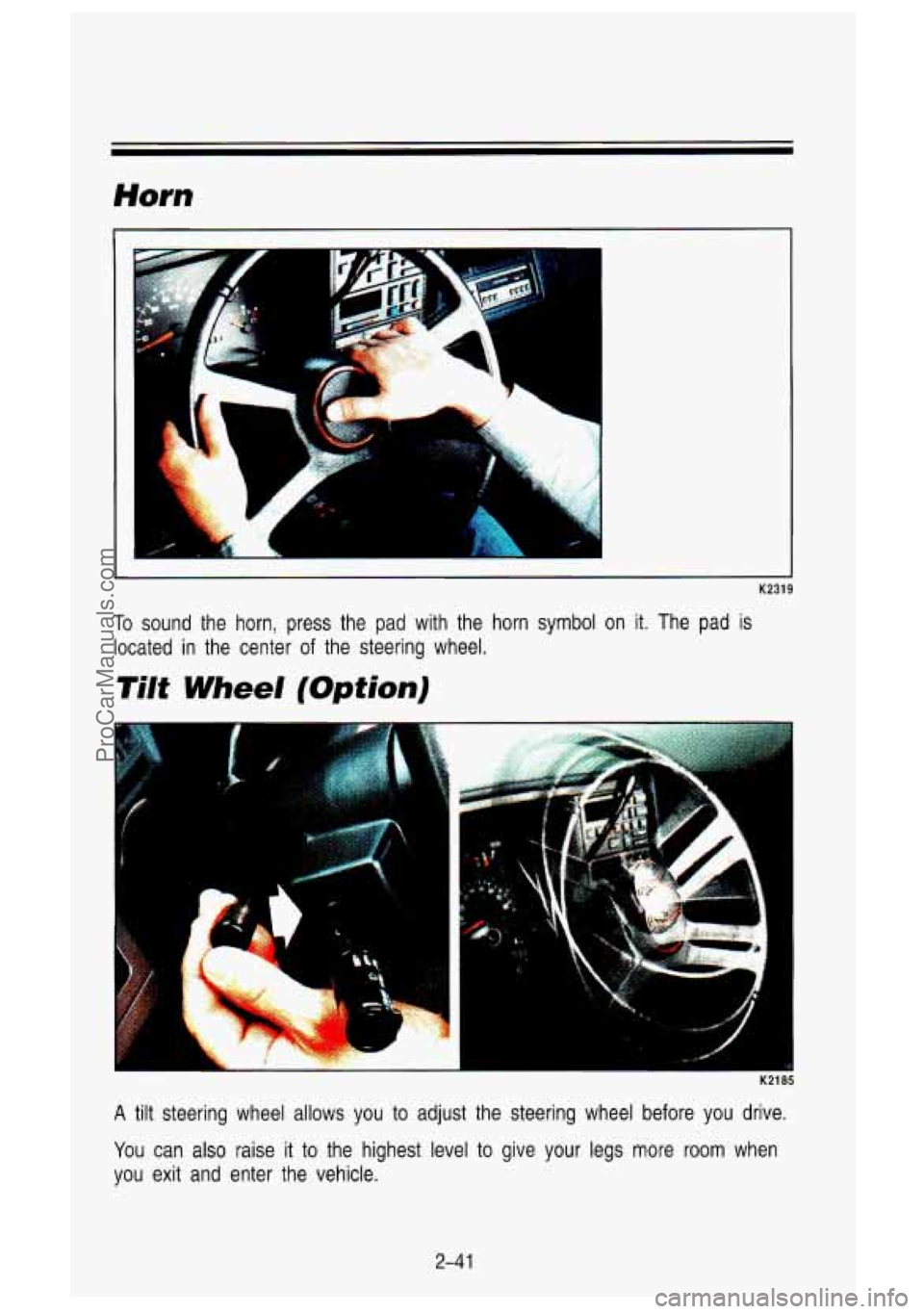

Horn
I'
c
E,
I
K2319
To sound the horn, press the pad with the horn symbol on it. Th\
e pad is
located in the center
of the steering wheel.
Tilt Wheel (Option)
K2185
A tilt steering wheel allows you to adjust the steering wheel be\
fore you drive.
You can also raise it to the highest level to give your legs more room when
you exit and enter the vehicle.
2-41
ProCarManuals.com

Features & ContrOrs

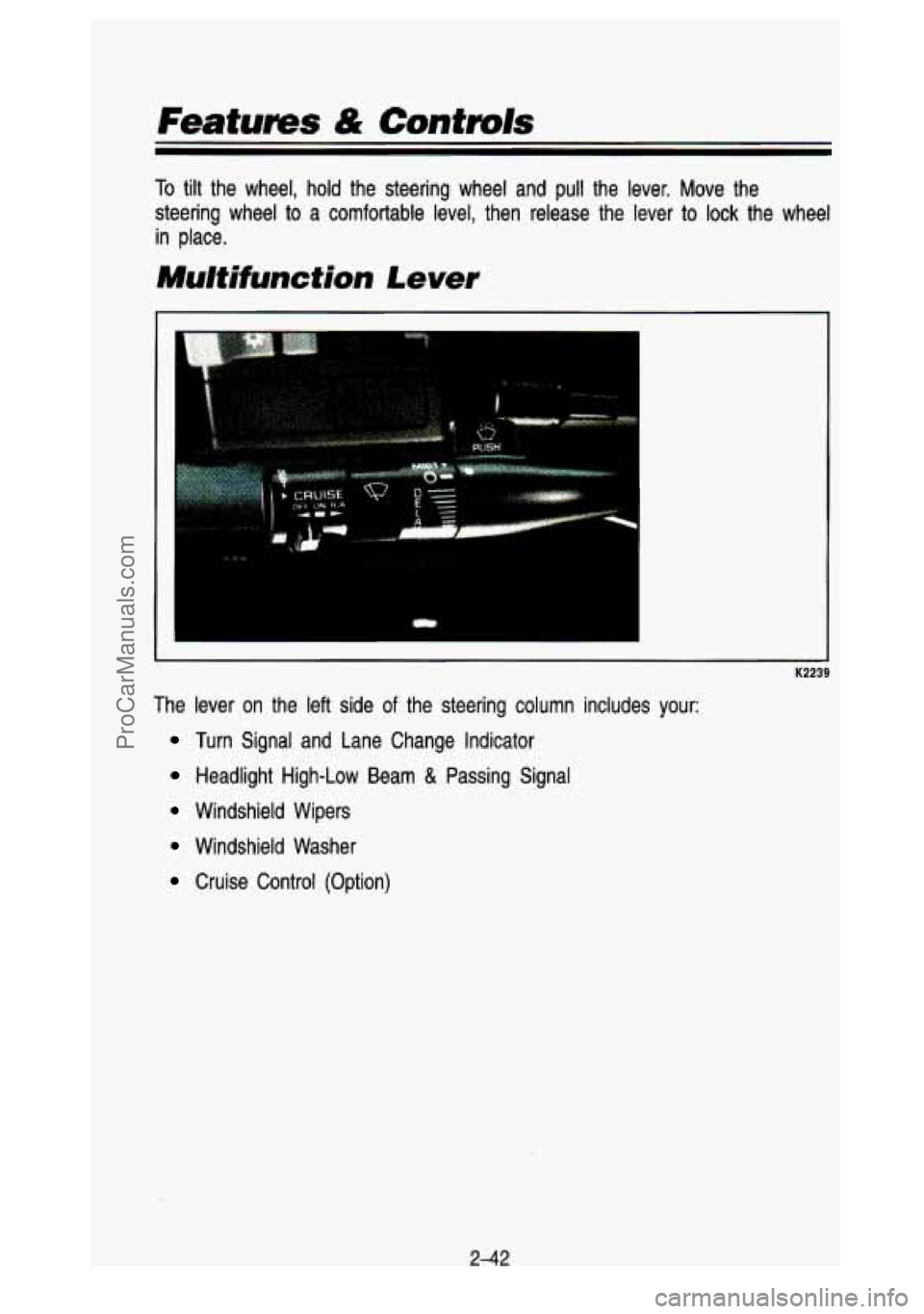

To tilt the wheel, hold the steering wheel and pull the lever. Move the
steering wheel to a comfortable level, then release the lever to
lock the wheel
in place.
Mu/tifunction Lever
The lever on the left side of the steering column includes your:
Turn Signal and Lane Change Indicator
Headlight High-Low Beam & Passing Signal
Windshield Wipers
Windshield Washer
Cruise Control (Option)
2-42
