GMC SIERRA 1993 Owners Manual
Manufacturer: GMC, Model Year: 1993, Model line: SIERRA, Model: GMC SIERRA 1993Pages: 436, PDF Size: 23.88 MB
Page 121 of 436

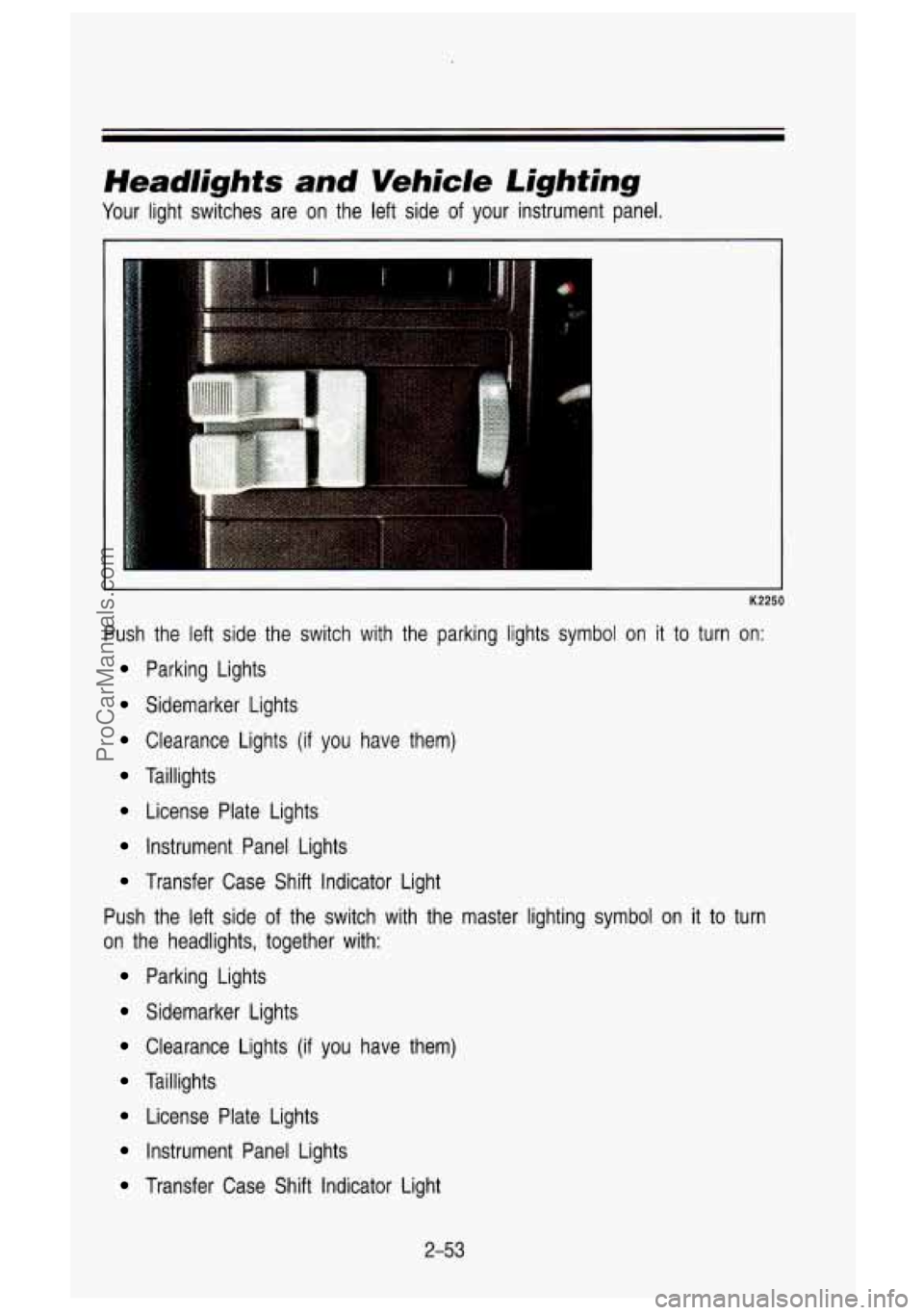

Headlights and Vehicle Lighting
Your light switches are on the left side of your instrument panel.
Push the left side the switch with the parking lights symbol
on it to turn on:
Parking Lights
Sidemarker Lights
Clearance Lights (if you have them)
Taillights
License Plate Lights
instrument Panel Lights
Transfer Case Shift Indicator Light
Push the left side of the switch with the master lighting symbol on it
to turn
on the headlights, together with:
Parking Lights
Sidemarker Lights
Clearance Lights (if you have them)
Taillights
License Plate Lights
Instrument Panel Lights
Transfer Case Shift Indicator Light
2-53
ProCarManuals.com
Page 122 of 436

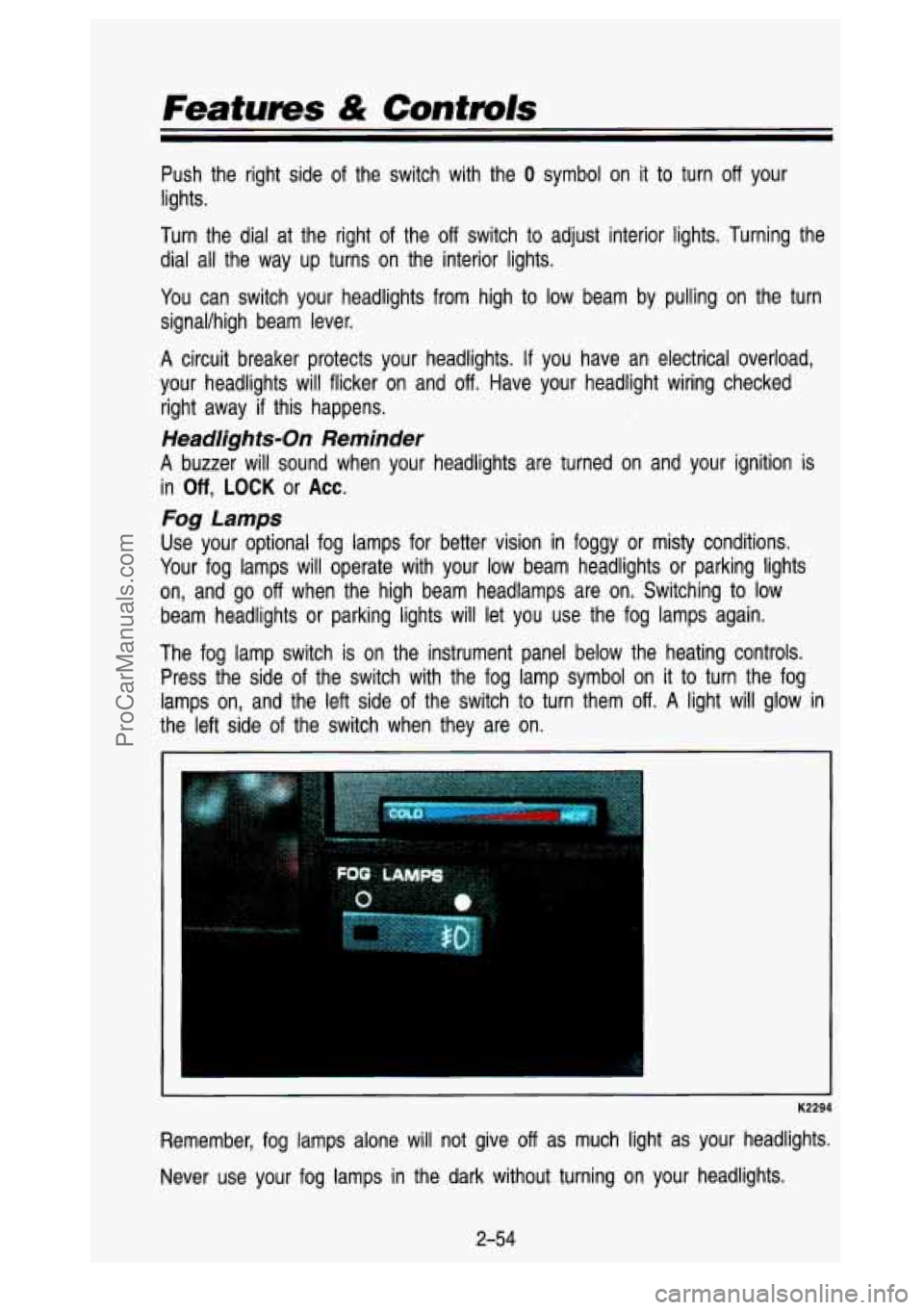

Push the right side of the switch with the 0 symbol on it to turn off your
lights.
Turn the dial at the right of the
off switch to adjust interior lights. Turning the
dial
all the way up turns on the interior lights.
You can switch your headlights from high to low beam by pulling o\
n the turn
signal/high beam lever.
A circuit breaker protects your headlights. If you have an electrical overload,
your headlights will flicker on and
off. Have your headlight wiring checked
right away
if this happens.
Headlights-On Reminder
A buzzer will sound when your headlights are turned on and your ignition is
in Off, LOCK or Acc.
Fog Lamps
Use your optional fog lamps for better vision in foggy or misty conditions.
Your fog lamps will operate with your low beam headlights or parking li\
ghts
on,
and go off when the high beam headlamps are on. Switching to low
beam headlights or parking lights will let you use the fog la\
mps again.
The fog lamp switch is on the instrument panel below the heating controls.
Press the side of the switch with the fog lamp symbol on
it to turn the fog
lamps on, and the left side of the switch
to turn them off. A light will glow in
the left side of the switch when they are on.
K2294
Remember, fog lamps alone will not give off as much light as your headlights.
Never use your fog lamps in the dark without turning on your headlights.
2-54
ProCarManuals.com
Page 123 of 436

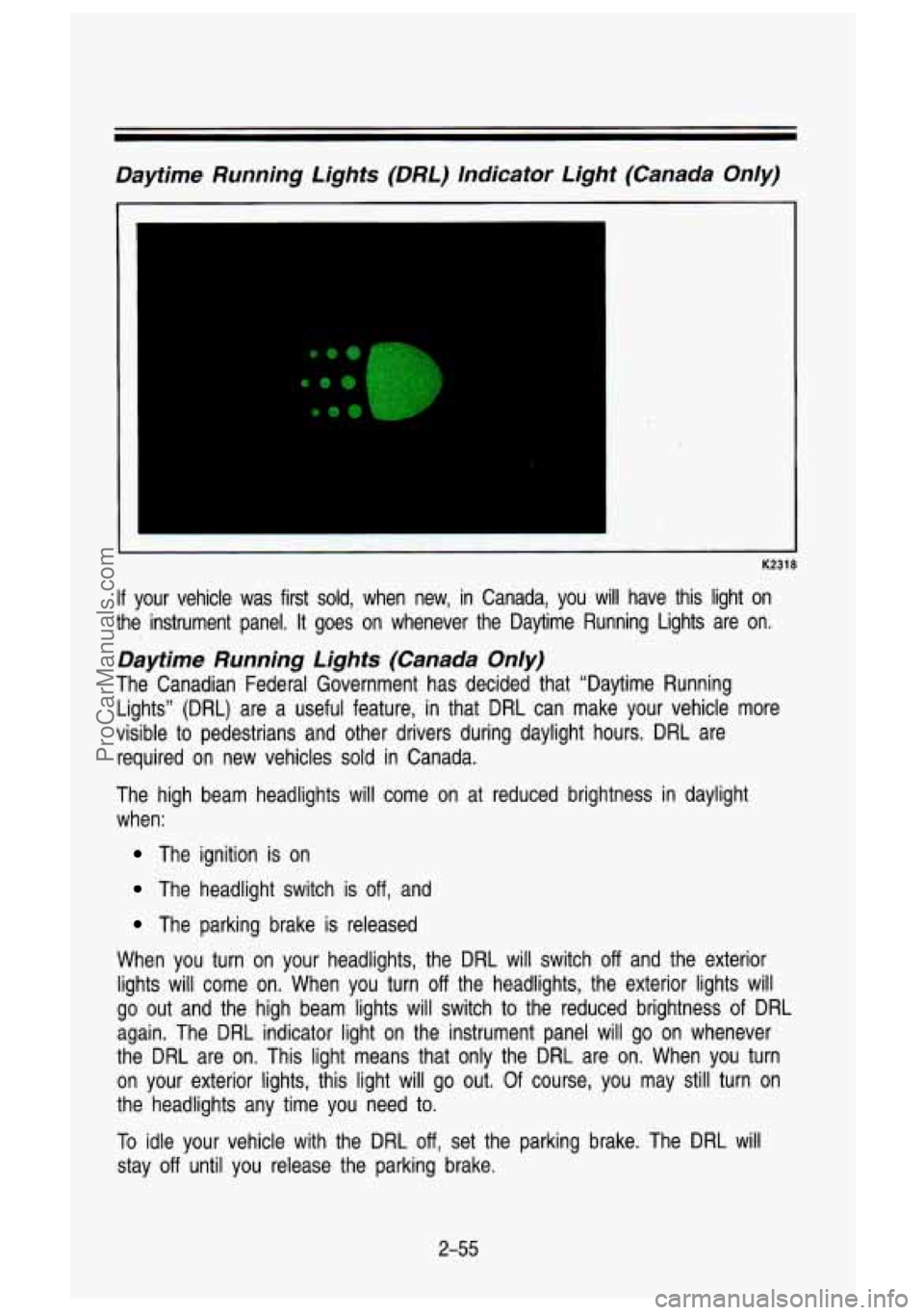

Daytime Running Lights (DRL) Indicator Light (Canada Only)
K2318
If your vehicle was first sold, when new, in Canada, you will have this light on
the instrument panel. It goes on whenever the Daytime Running \
Lights are on.
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Run\
ning
Lights” (DRL) are a useful feature, in that
DRL can make your vehicle more
visible to pedestrians and other drivers during daylight hours. DRL are
required on new vehicles sold in Canada.
The high beam headlights will come on at reduced brightness in daylight
when:
The ignition is on
The headlight switch is off, and
The parking brake is released
When you turn on your headlights, the DRL
will switch off and the exterior
lights will come on. When you turn
off the headlights, the exterior lights will
go out and the high beam lights will switch to the reduced brightness
of DRL
again. The DRL indicator light on the instrument panel will go\
on whenever
the DRL are on. This light means that only the DRL are on. When you turn
on your exterior lights, this light will go out.
Of course, you may still turn on
the headlights any time you need to.
To idle your vehicle with the DRL off, set the parking brake. The DRL will
stay
off until you release the parking brake.
2-55
ProCarManuals.com
Page 124 of 436

Features & Contmls

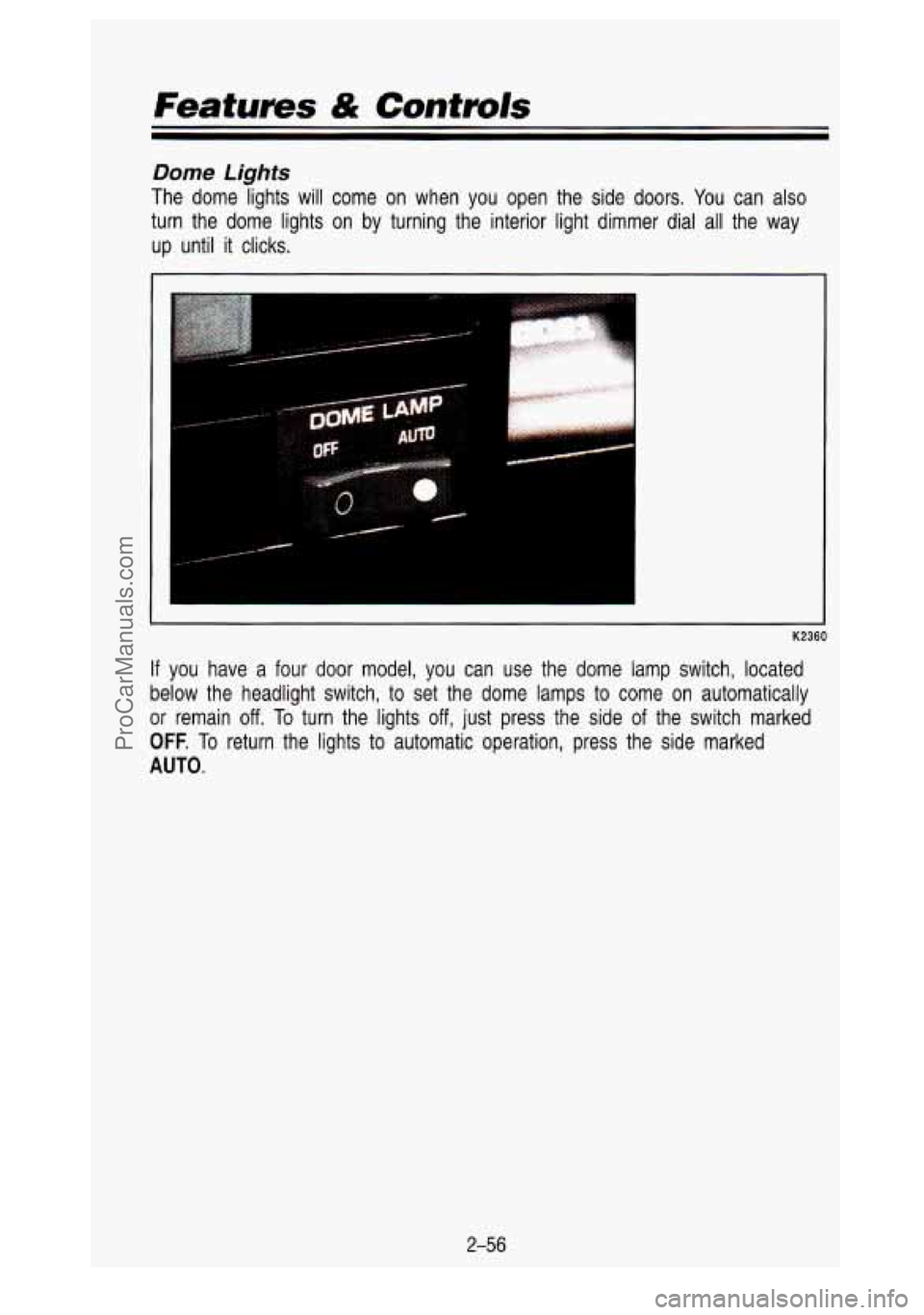

Dome Lights
The dome lights will come on when you open the side doors. Y\
ou can also
turn the dome lights on by turning the interior light dimmer \
dial all the way up until
it clicks.
K2360
If you have a four door model, you can use the dome lamp switch, located
below the headlight switch, to set the dome lamps to come on automatically
or remain
off. To turn the lights off, just press the side of the switch marked
OFF. To return the lights to automatic operation, press the side marked\
AUTO.
2-56
ProCarManuals.com
Page 125 of 436

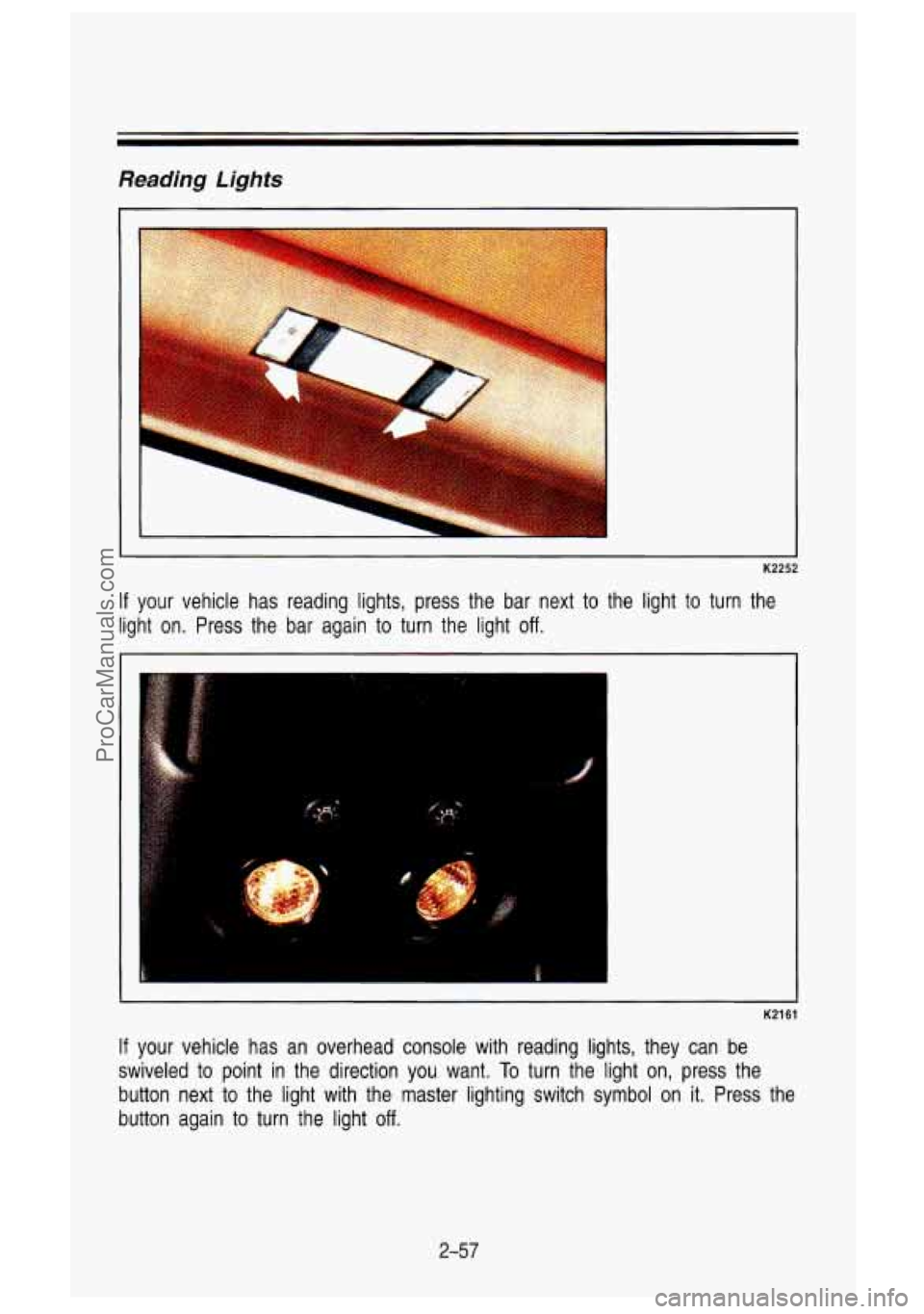

Reading Lights
K2252
Reading Lights
I i
LL
-9
I I
K2252
If your vehicle has reading lights, press the bar next to the li\
ght to turn the
light on. Press the bar again to turn the light
off.
I
F
K2161
If your vehicle has an overhead console with reading lights, they \
can be
swiveled to point in the direction you want.
To turn the light on, press the
button next to the light with the master lighting switch symbol
on it. Press the
button again to turn the light
off.
2-57
ProCarManuals.com
Page 126 of 436

Features & Controls

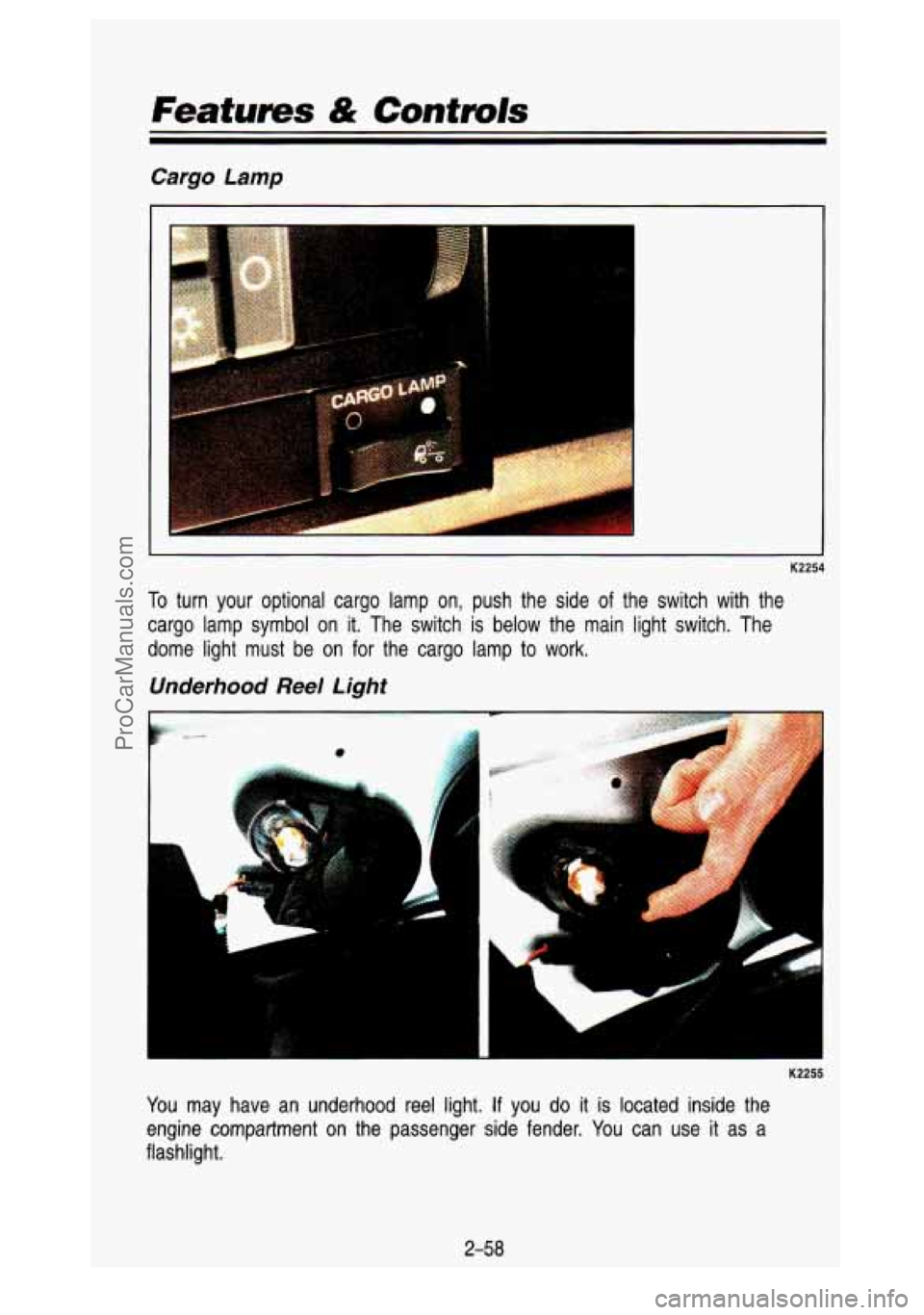

Cargo Lamp
To turn your optional cargo lamp on, push the side of the switch with the
cargo lamp symbol on it. The switch is below the main light \
switch. The
dome light must be on
for the cargo lamp to work.
Underhood Reel Light
K2255
You may have an underhood reel light. If you do it is located inside the
engine compartment on the passenger side fender. You can use
it as a
flashlight.
2-58
ProCarManuals.com

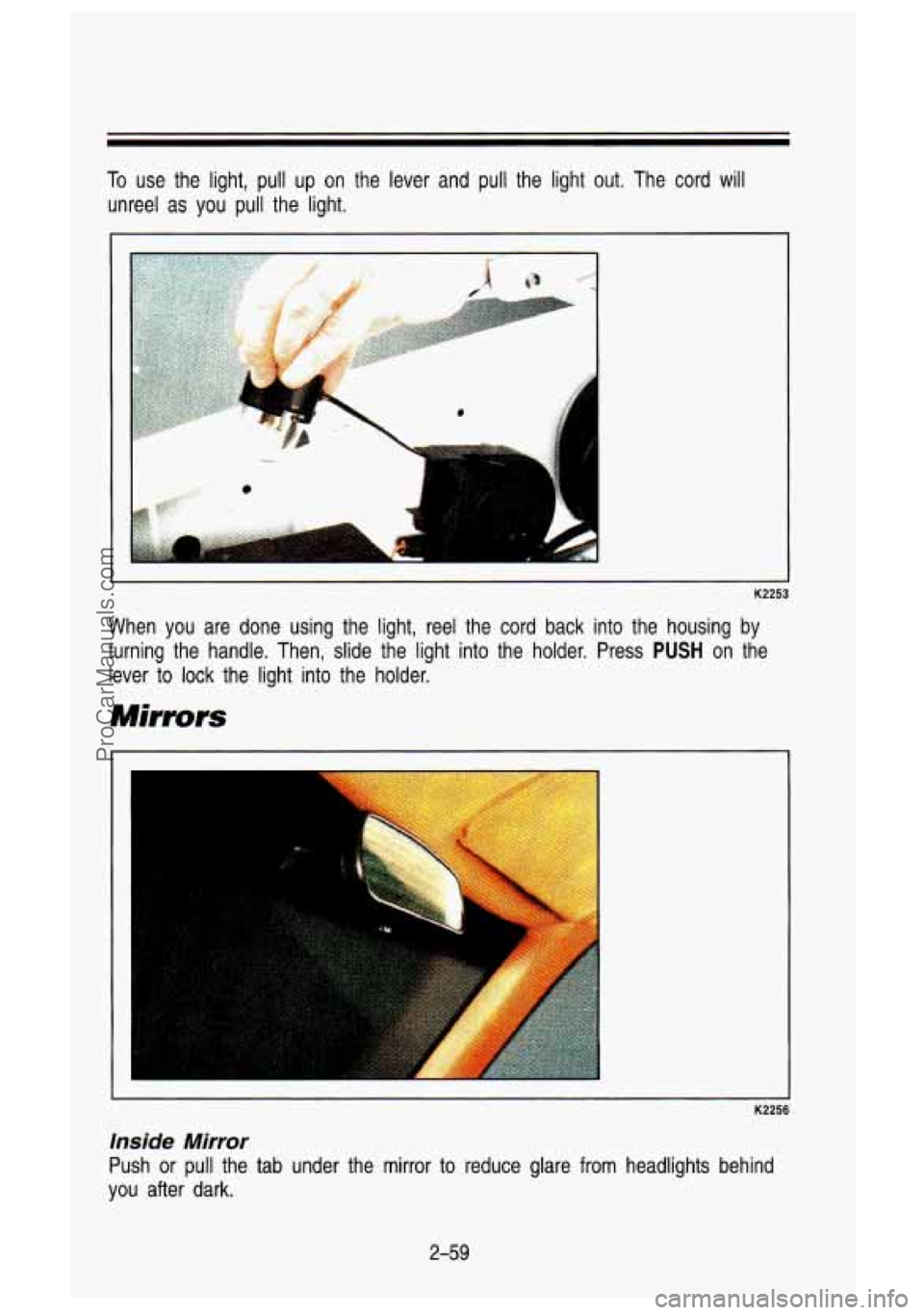

Page 127 of 436

To use the light, pull up on the lever and pull the light out. The cord will
unreel as you pull the light.
K2253
When you are done using the light, reel the cord back into t\
he housing by
turning the handle. Then, slide the light into the holder. Pre\
ss
PUSH on the
lever to lock the light into the holder.
Mirrors
K2256
inside Mirror
Push or pull the tab under the mirror to reduce glare from headlights behind
you after dark.
2-59
ProCarManuals.com
Page 128 of 436

Features & Controls

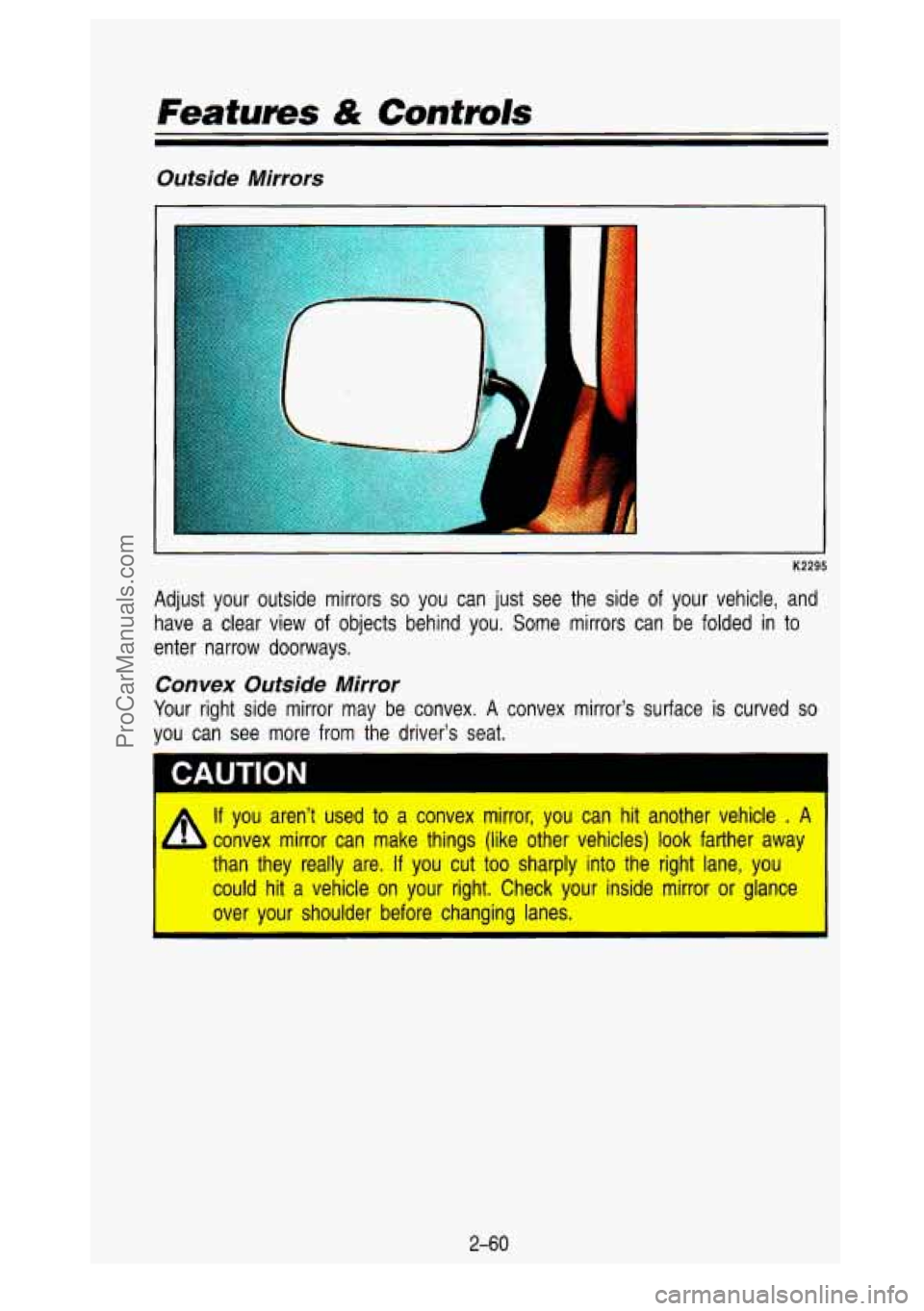

Outside Mirrors
K2295
Adjust your outside mirrors so you can just see the side of your vehicle, and
have a clear view
of objects behind you. Some mirrors can be folded in to
enter narrow doorways.
Convex Outside Mirror
Your right side mirror may be convex. A convex mirror’s surface is curved so
you can see more from the driver’s seat.
If you aren’t used to a convex mirror, you can hit another vehicle . A
1 convex mirror can make things (like other vehicles) look fart\
her away
than they really are. If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your inside mirror o\
r glance over your shoulder before changing lanes.
2-60
ProCarManuals.com
Page 129 of 436

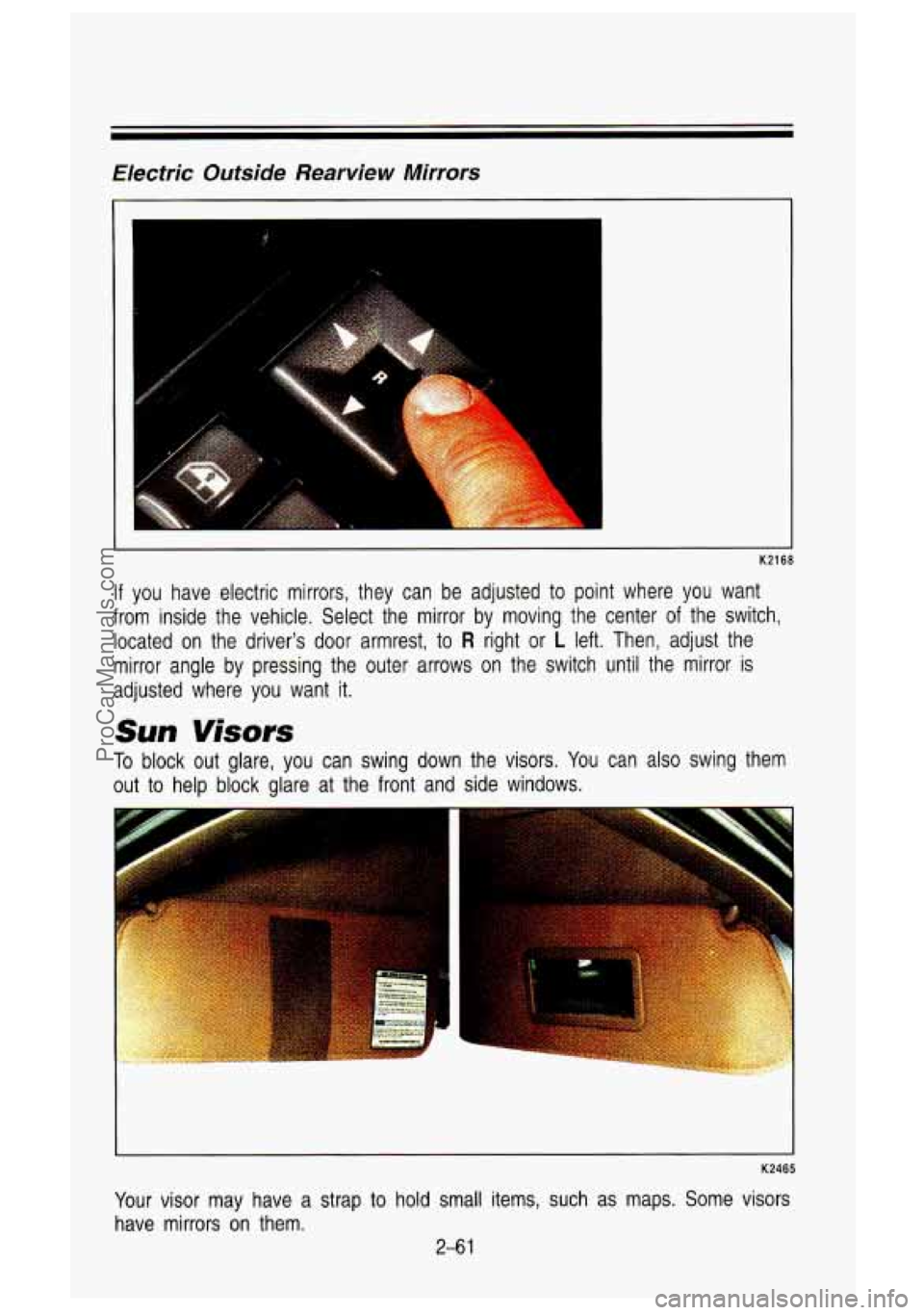

Electric Outside Rearview Mirrors
K2168
If you have electric mirrors, they can be adjusted to point where you want
from inside the vehicle. Select the mirror by moving the cente\
r of the switch,
located on the driver's door armrest,
to R right or L left. Then, adjust the
mirror angle by pressing the outer arrows on the switch until \
the mirror is
adjusted where you want
it.
Sun Visors
To block out glare, you can swing dowr
out
to help block glare at the front and
7 the visors. You can also swing them
side windows.
1
K2465
Your visor may have a strap to hold small items, such as maps. Some visors
have mirrors on them.
2-6 1
ProCarManuals.com

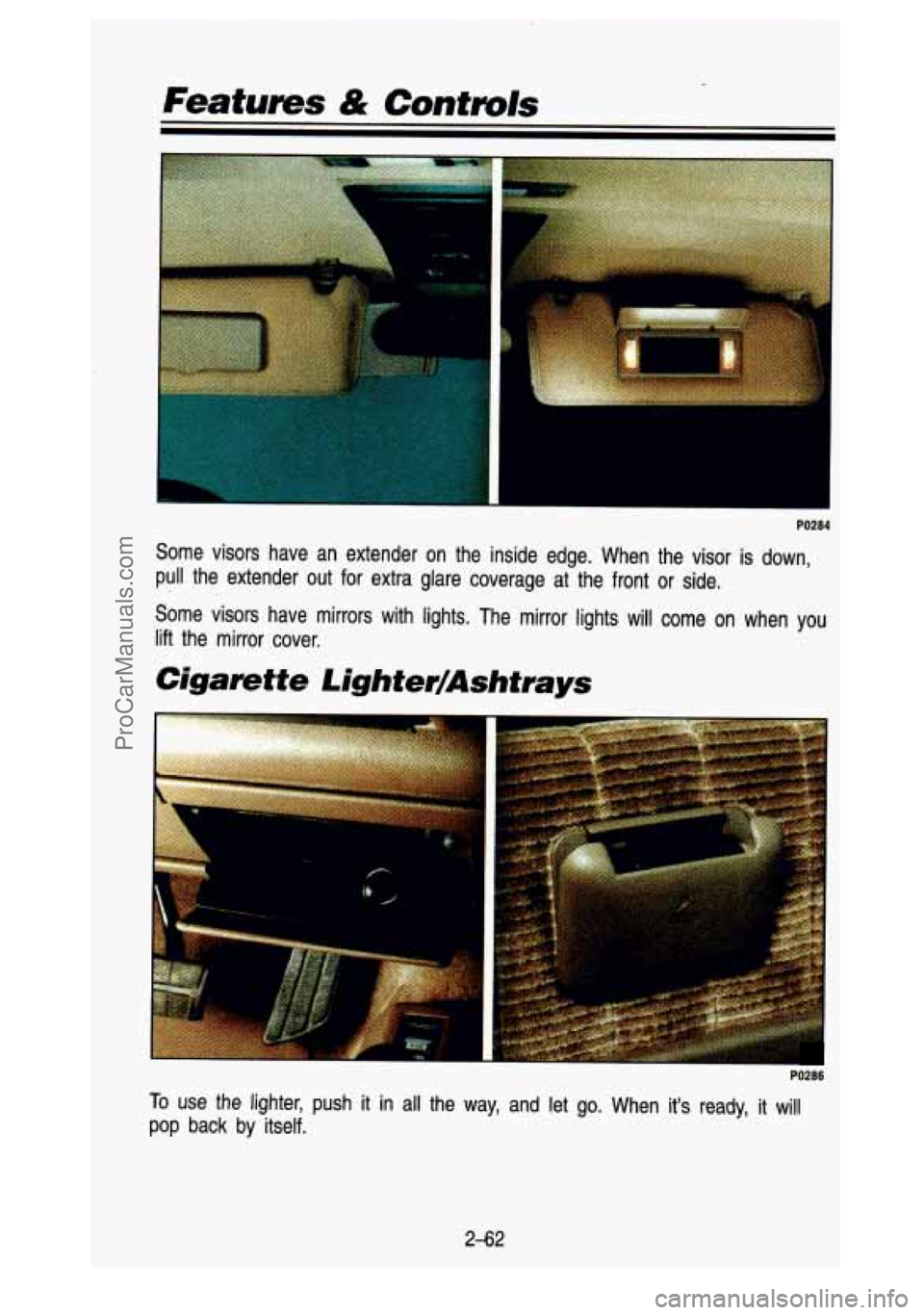

Page 130 of 436

Featumes & Controls
PO284
Some visors have an extender on the inside edge. When the vis\
or is down,
pull the extender out for extra glare coverage at the front o\
r side.
Some visors have mirrors with lights. The mirror lights will c\
ome on when
you
lift the mirror cover.
Cigarette Lighter/Ashtrays
PO286
To use the 'lighter, push it in all the way, and let go. When it's ready, it will
pop back by itself.
